SPECIFICATIONS

Brand Name: wishiot

Bundle 1: BN-180 GPS Module

Bundle 2: BN-220 GPS Module

Bundle 3: BN-280 GPS Module

Bundle 4: BN-880 GPS Module

Bundle 5: 6 in 1 CP2102 Serial Module

Choice: yes

Hign-concerned Chemical: None

Item: Beitian GPS Module

Model Number: FZ2917 FZ2918 FZ2919 FZ2920

Origin: Mainland China

semi_Choice: yes

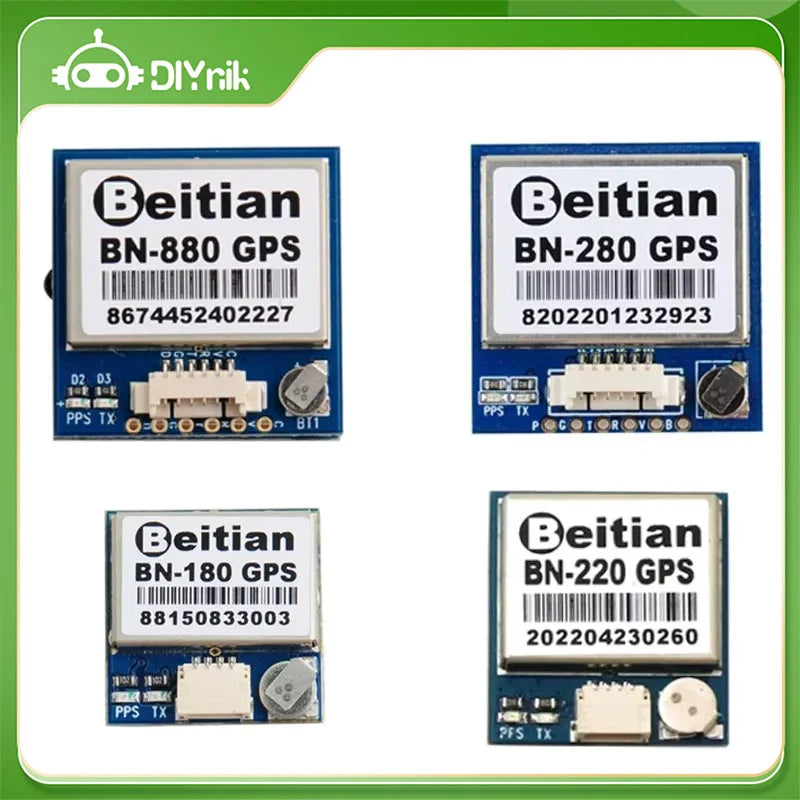

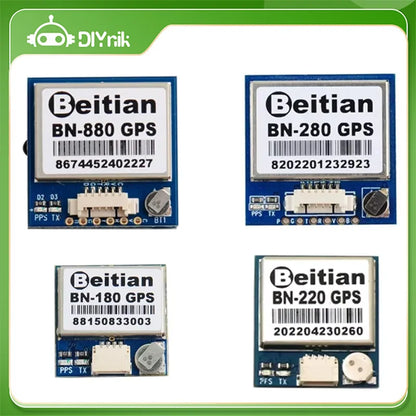

Beitian GPS Module BN-180 BN-220 BN-280 BN-880 GLONASS with Antenna for Pixhawk Flight Controller

Package Includes

Bundle 1

1 x BN-180 GPS Module

2 x 15cm Cable

OR

Bundle 2

1 x BN-220 GPS Module

2 x 15cm Cable

OR

Bundle3

1 X BN-280 GPS module

1 X Cable

OR

Bundle 4

1x BN-880 GPS Module

1x 15cm Cable

OR

Bundle5

1 X 6 in 1 CP2102 Serial Module

1 X 4P female to female dupond cable





Description

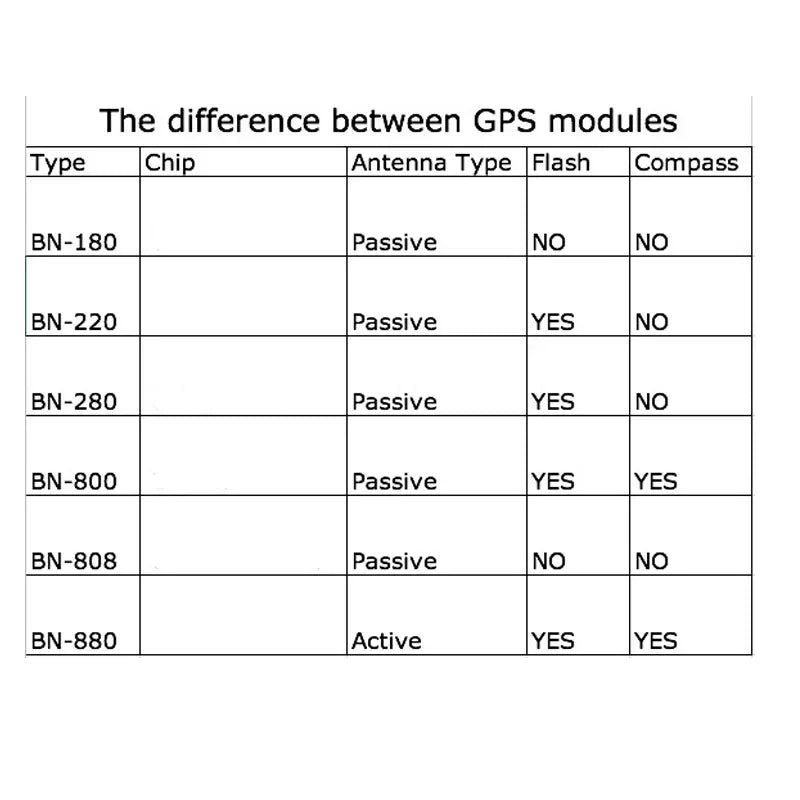

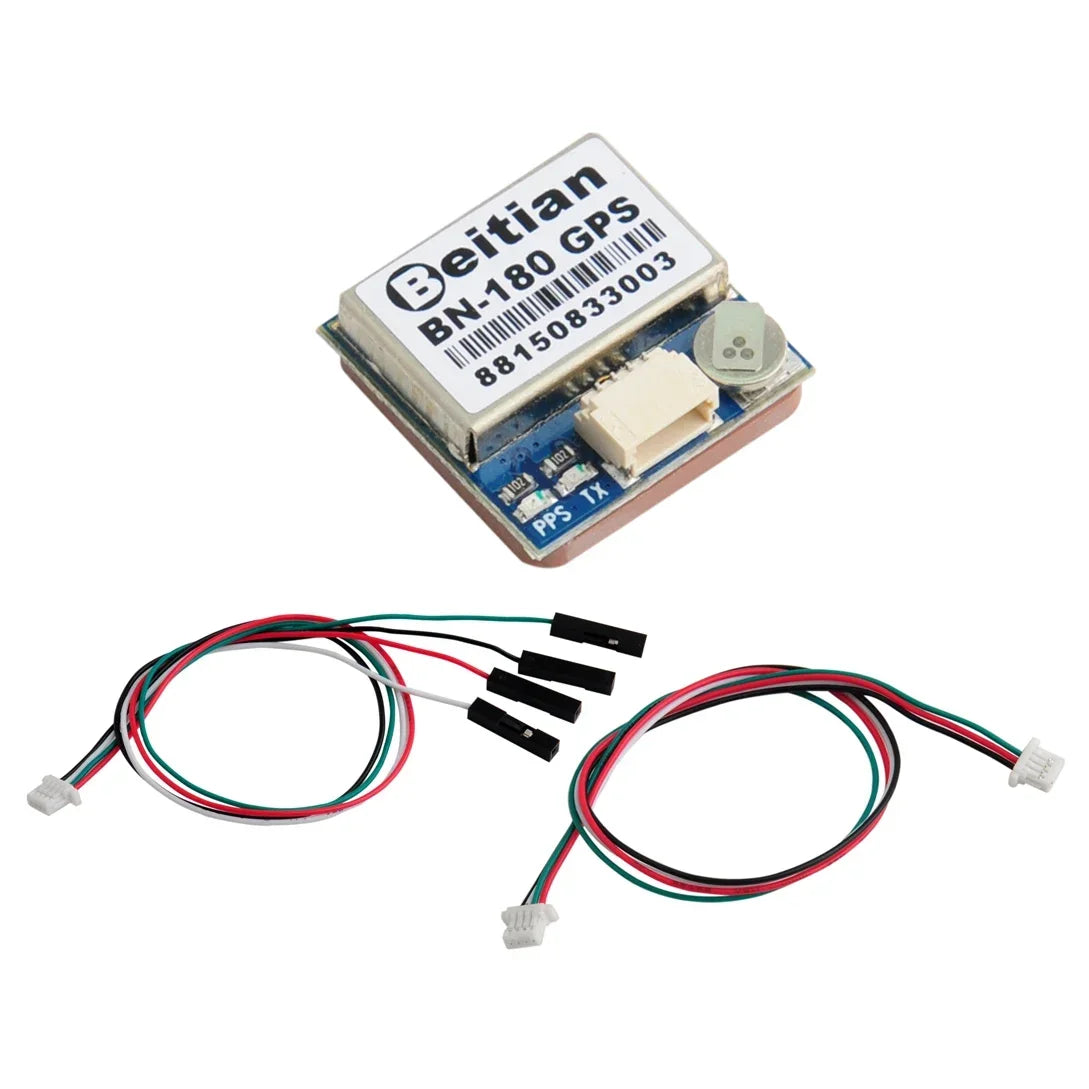

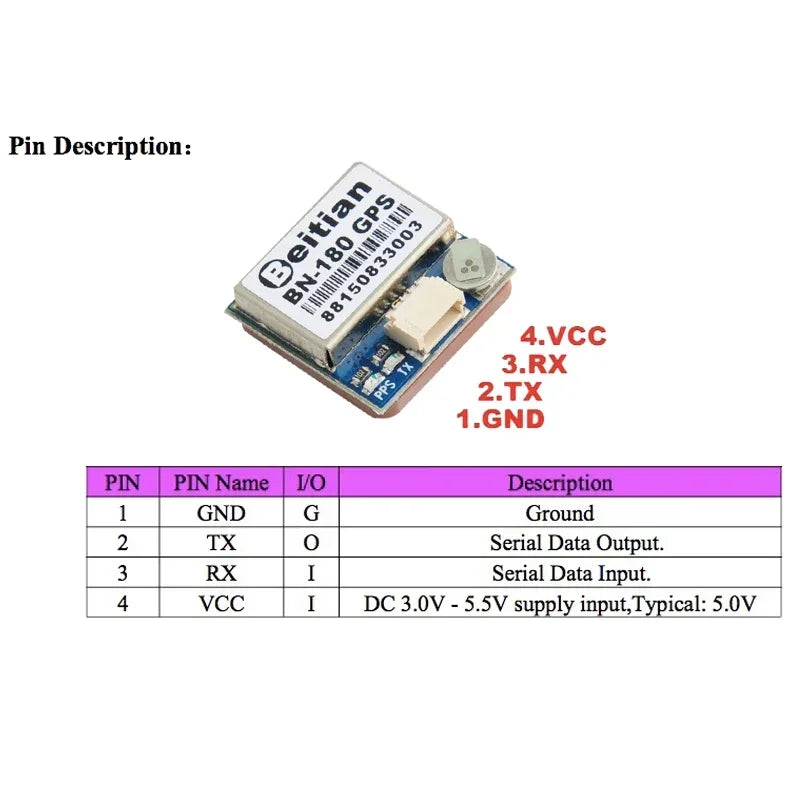

BN-180 GPS Module

Specification

Electrical Characteristics

Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels : 72 Searching Channel



Sensitivity

Tracking : -167dBm

Reacquisition : -160dBm

Cold start : -148dBm

Hot start : -156dBm



Accuracy

Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity : 0.1m/sec 95% (SA off)

Timing : 1us synchronized to GPS time



Acquisition Time

Cold Start : 26s

Warm start : 25s

Hot start : 1s



Data and Update Rate

Support Rate : 4800bps to 921600bps,Default 9600bps

Data Level : TTL or RS-232,Default TTL level

Data Protocol : NMEA-0183 or UBX, Default NMEA-0183

Single GNSS : 1Hz-18Hz

Concurrent GNSS : 1Hz-10Hz,Default 1Hz



Operational Limits

Altitude : 50,000m Max

Velocity : 515m/s Max

Acceleration : Less than 4g



Power consumption

VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V

Current : Capture 50mA/5.0V

Operating temp : -40 °C ~ +85°C

Storage Temp : -40°C ~ +105°C



Indicator :

TX LED:blue.The data output, TX LED flashing

PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed



Wiring:

GND,TX output,RX input,VCC(3.0v-5.5v)

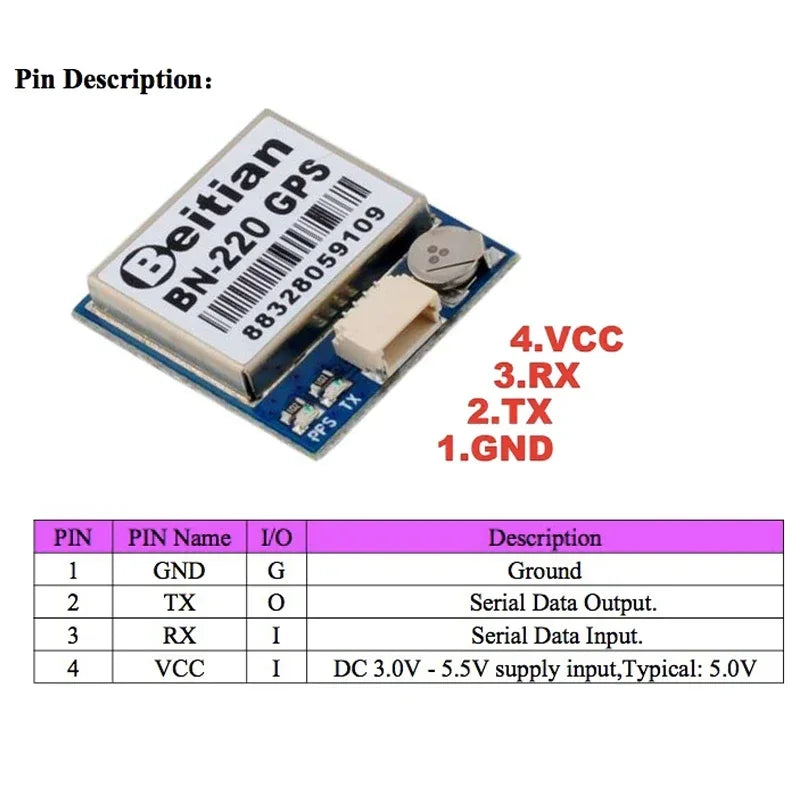

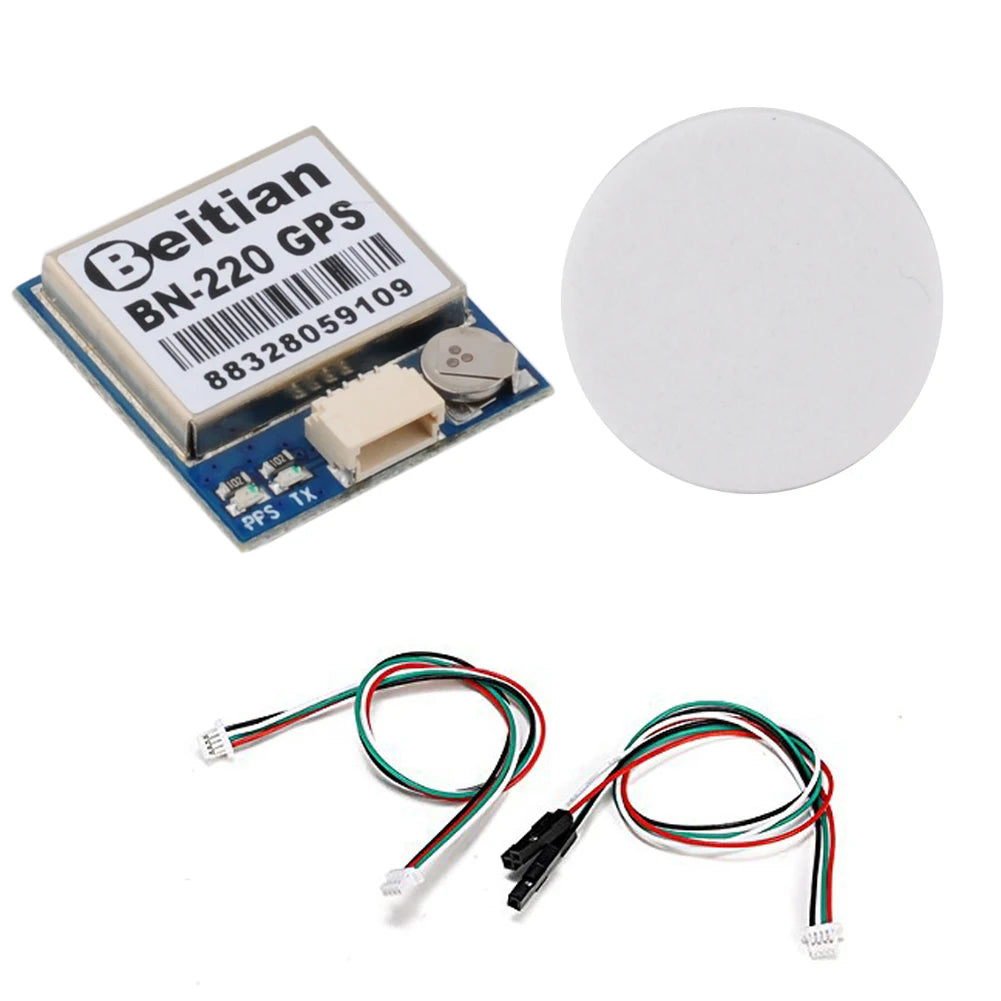

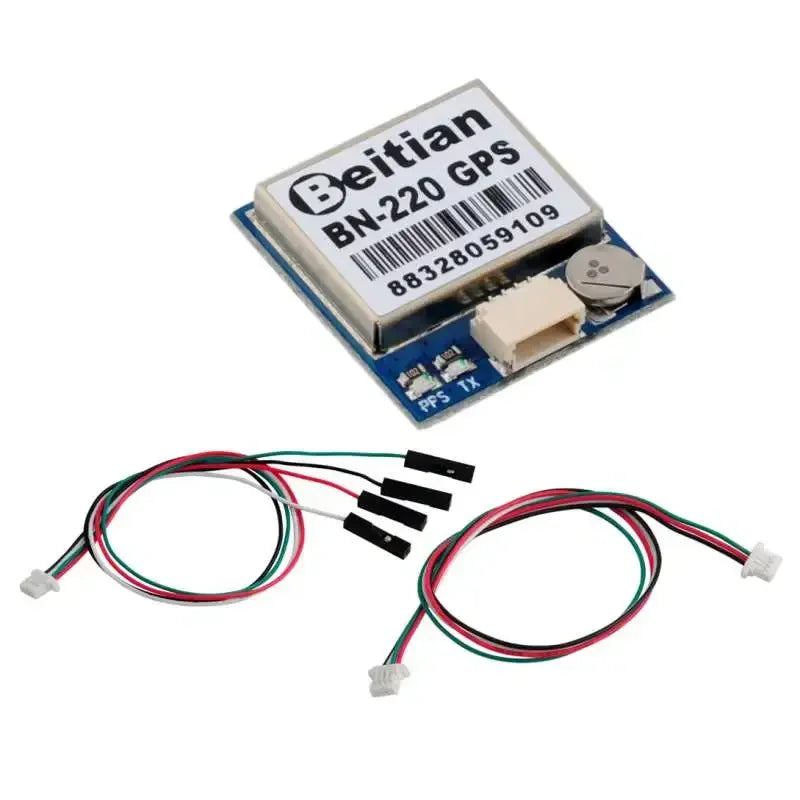

BN-220 GPS Module

Dimension : 22mm*20mm*6mm

Module Weight : 5.3g

Connector : 1.00mm spacing between the 4pins patch seat



Specification

Electrical Characteristics

Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels : 72 Searching Channel



Sensitivity

Tracking : -167dBm

Reacquisition : -160dBm

Cold start : -148dBm

Hot start : -156dBm



Accuracy

Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity : 0.1m/sec 95% (SA off)

Timing : 1us synchronized to GPS time



Acquisition Time

Cold Start : 26s

Warm start : 25s

Hot start : 1s



Data and Update Rate

Support Rate : 4800bps to 921600bps,Default 9600bps

Data Level : TTL or RS-232,Default TTL level

Data Protocol : NMEA-0183 or UBX, Default NMEA-0183

Single GNSS : 1Hz-18Hz

Concurrent GNSS : 1Hz-10Hz,Default 1Hz



Operational Limits

Altitude : 50,000m Max

Velocity : 515m/s Max

Acceleration : Less than 4g



Power consumption

VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V

Current : Capture 50mA/5.0V

Operating temp : -40 °C ~ +85°C

Storage Temp : -40°C ~ +105°C



Indicator :

TX LED:blue.The data output, TX LED flashing

PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed



Wiring:

GND,TX output,RX input,VCC(3.0v-5.5v)

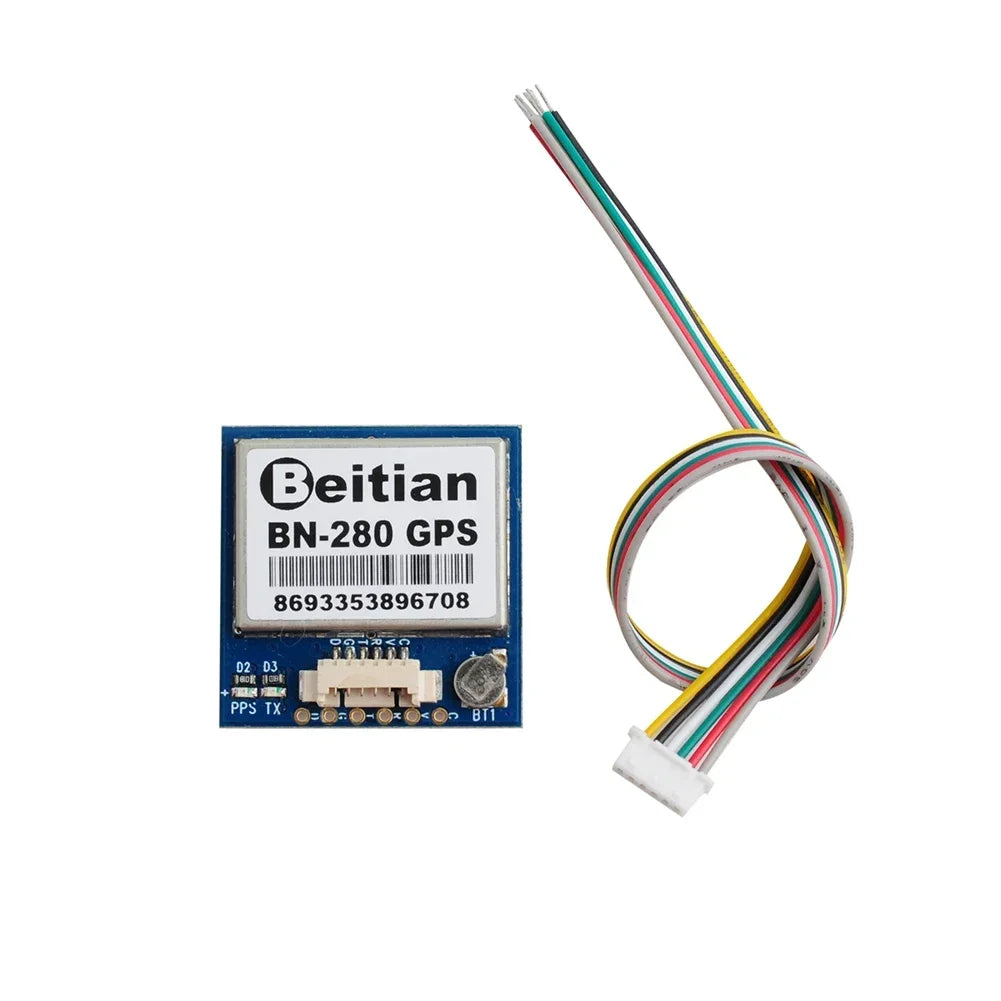

BN-280 GPS module

Description:

Receiver mode:GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Frequency:GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

72 search channel

Baud rate :4800bps-921600bps, 9600bps by default

Output level :TTL or RS-232,TTL by default

Output agreement :NMEA-0183 or UBX,NMEA-0183 by default

Single :GNSS:1Hz-18Hz

Standard :GNSS:1Hz-10Hz,1Hz by default

Size :28*28*10 mm



Module pin

1.PPS,Sec pulse will output after positioning, pulse period is 1s, high level persists 100 ms, used for system synchronization

2.GND ,connect to the ground

3.TX data output of module

4.RX data input of module

5.VCC, 3.0V-5.5V,recommend 5.0V

6.BOOT

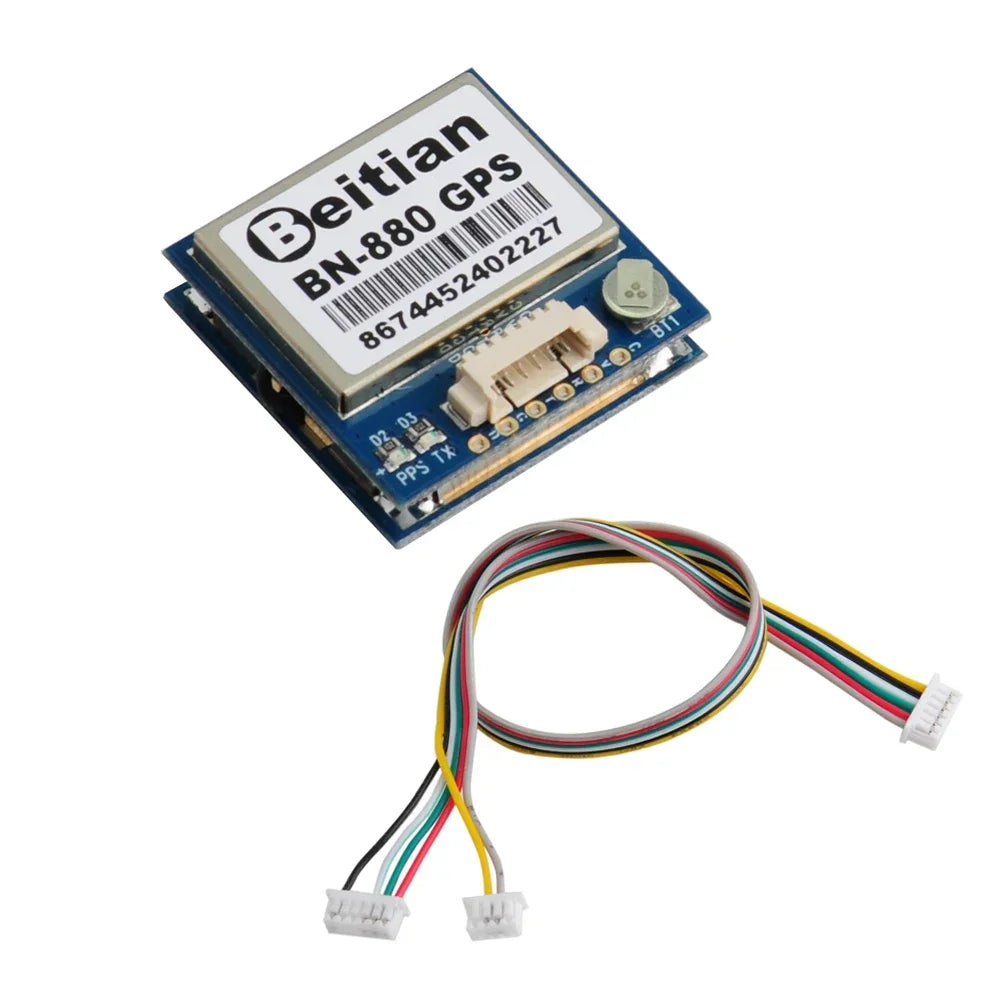

BN-880 GPS Module

Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V

Consumption:Capture 50mA@5V

Receiving Format: GPS, GLONASS,Galileo,BeiDou,QZSS and SBAS

Receiving Channel:72 Searching Channel

Receiving Sensitivity:Trace -167dBm , Capture-148dBm

Positioning Time:Cold Start: avg26s , Warm Start: avg25s, Hot Start: avg3s

Level Positioning Precision: 2m At Open Wind

Output Frequency:1Hz-10Hz,Default 1Hz

Speed Precision: 0.1 m/s (Without Aid)

Acceleration Precision :0.1 m/s (Without Aid)

Dynamic Characteristics:Max Height:18000m, Max Speed:5153m/s,Max Acceleration:4G

UART Interface:UART Port:TXDA and RXDA

Support Rate:4800bps to 115200bps,Default 38400dps

Working Temperature:-40℃-+85℃

Storage Temperature:-40℃-+85℃

Size:28mm x 28mm x 10mm

Weight:10g

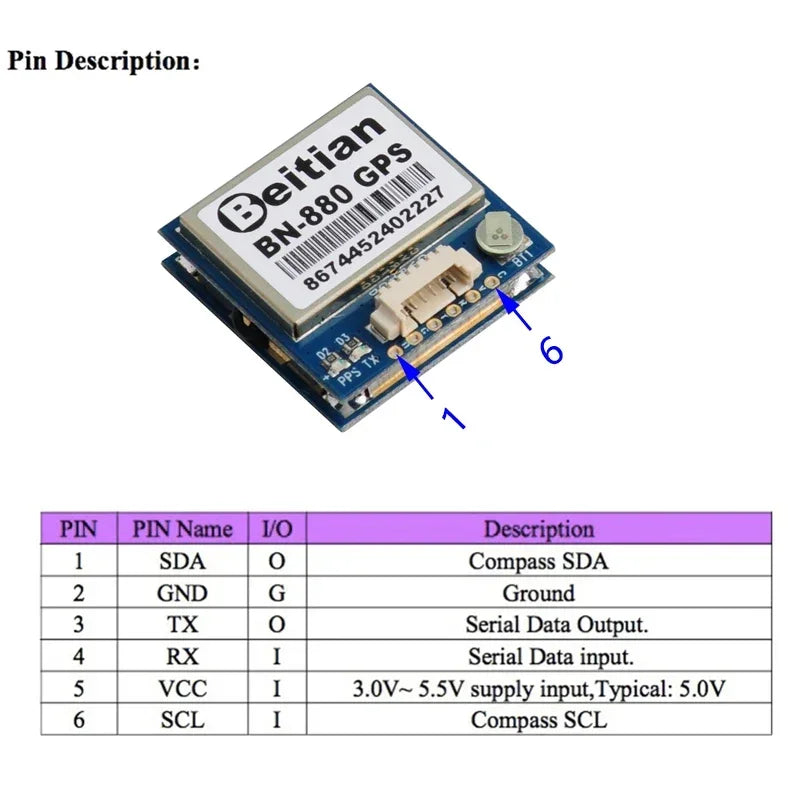

The Module's Pins:SDA,GND,TX,RX,VCC,SCL



Features:

GPS Module,Dual Module Compass

With electronic compass IC HMC5883L

1.25mm spacing between the 6pins patch seat



Note:Can not use for flight control with SCM, but it is  suitable for Open source flight controller.



GPS Program Set up documents and instructions:Please click here

BN-880 GPS Configuration files



6 in 1 CP2102 Serial Module USB to TTL 485 3.3V 5V

Description:

Core chip: CP2102

Small size:3.1 X 1,8CM

Compatible with 3.3V and 5V

Power suppy output

Overcurrent protection

TTL level interface

RS232 level interface

RS485 level interface

Four level can exchange freely

High-speed communication

DTR,RTS signal
