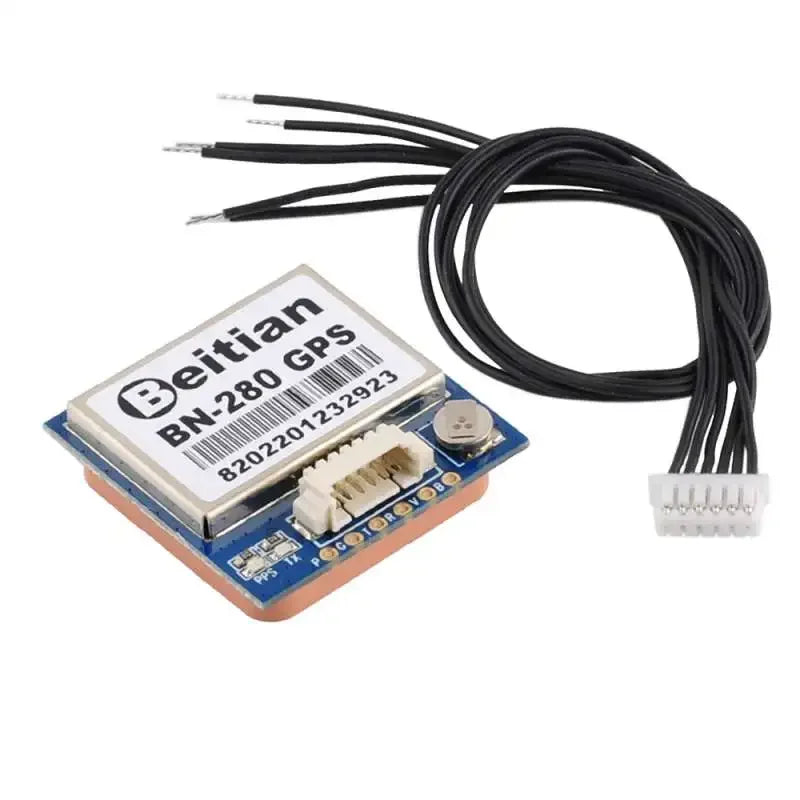

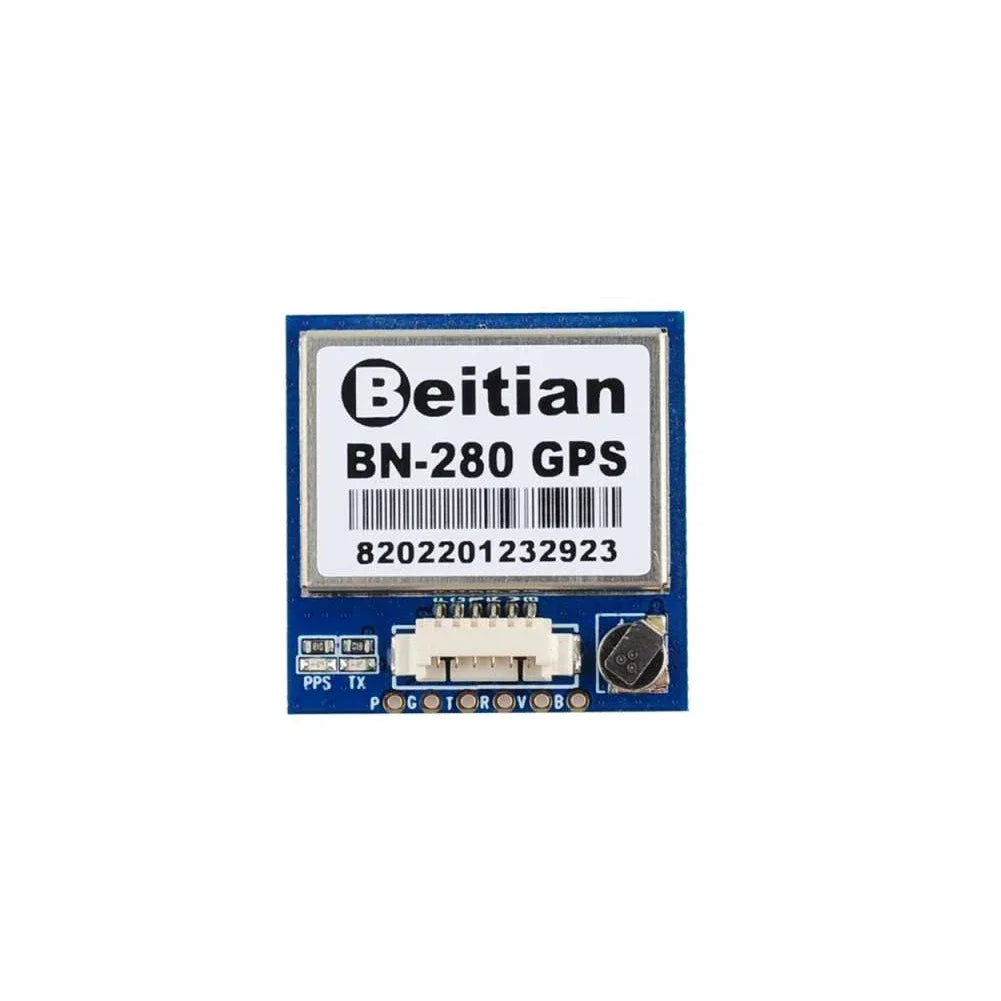

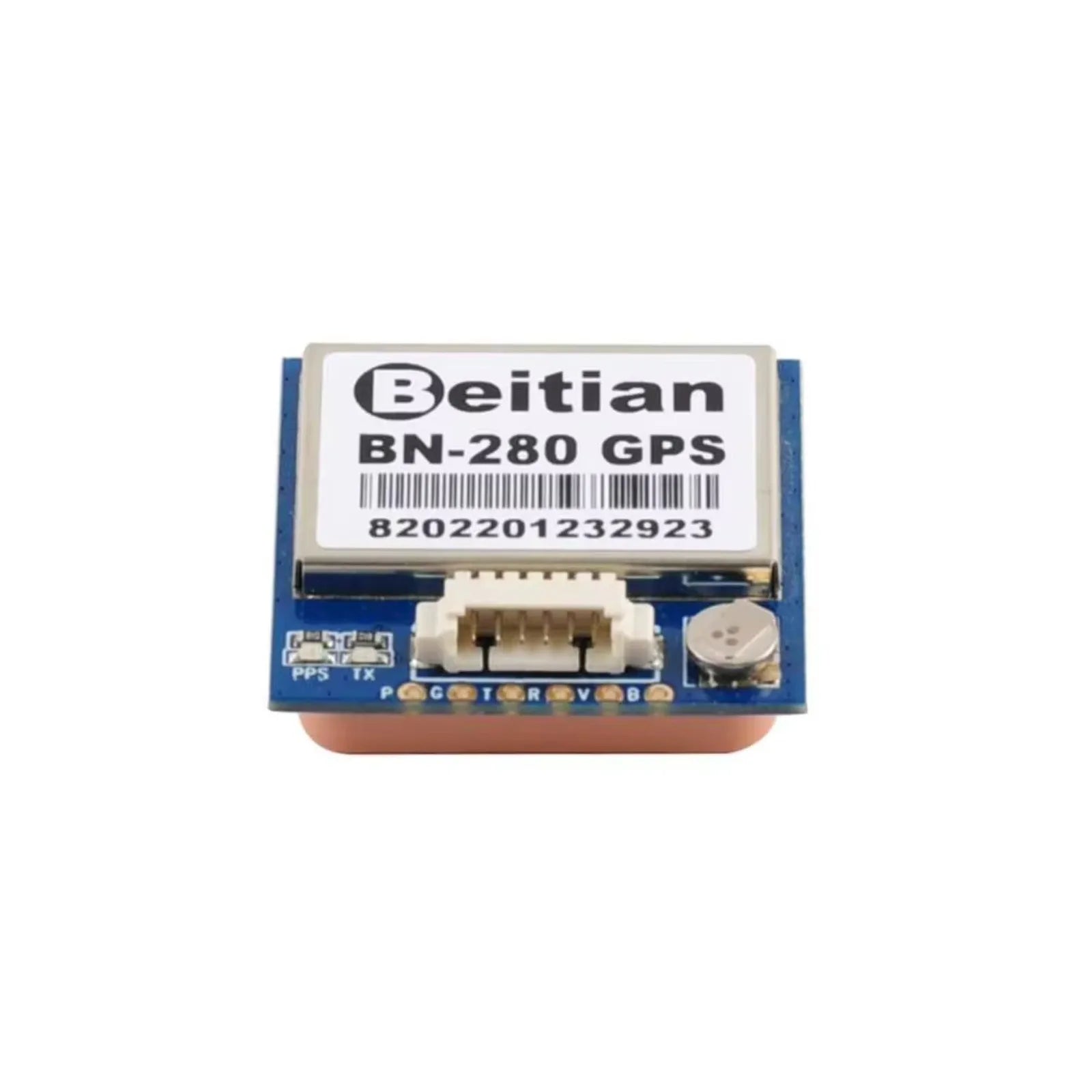

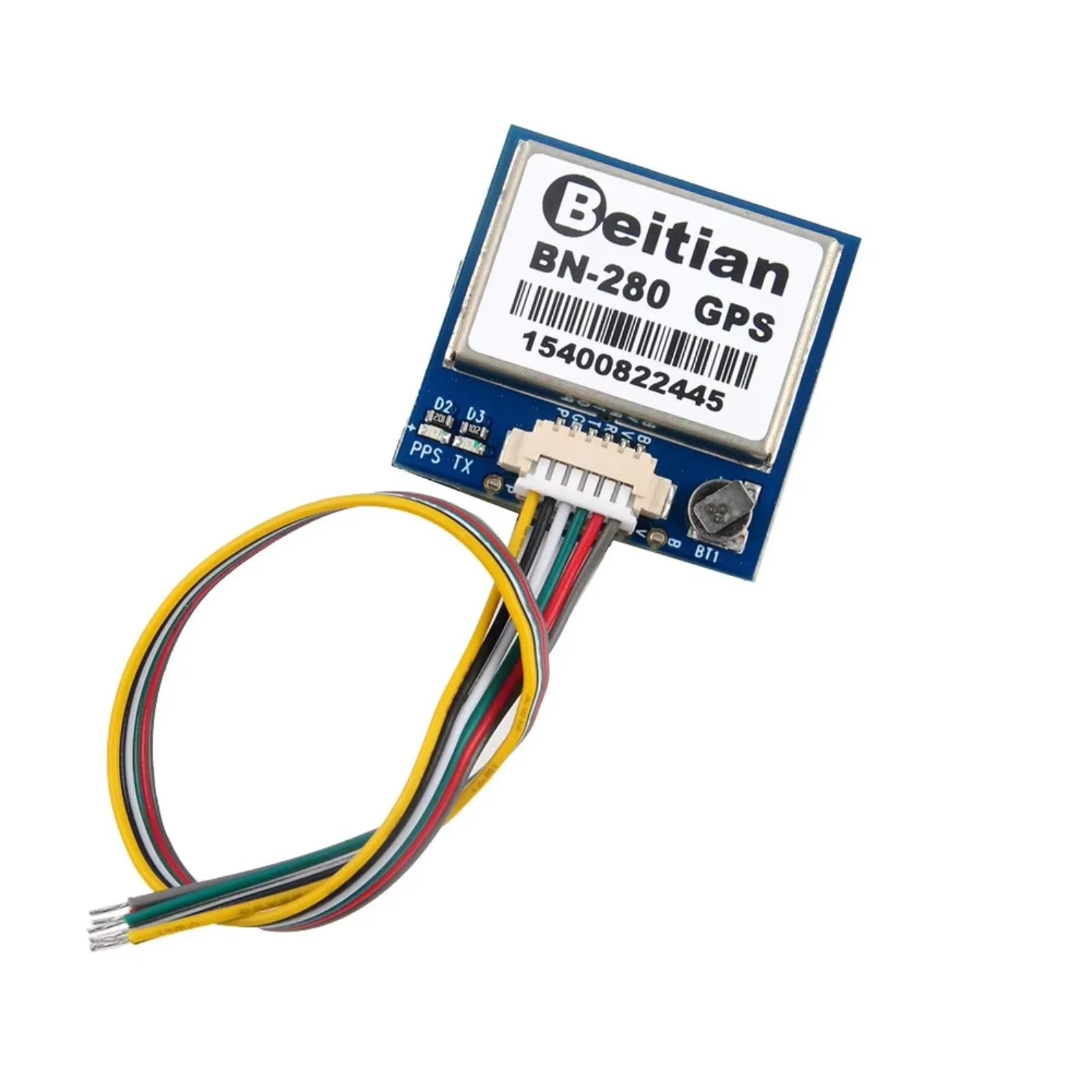

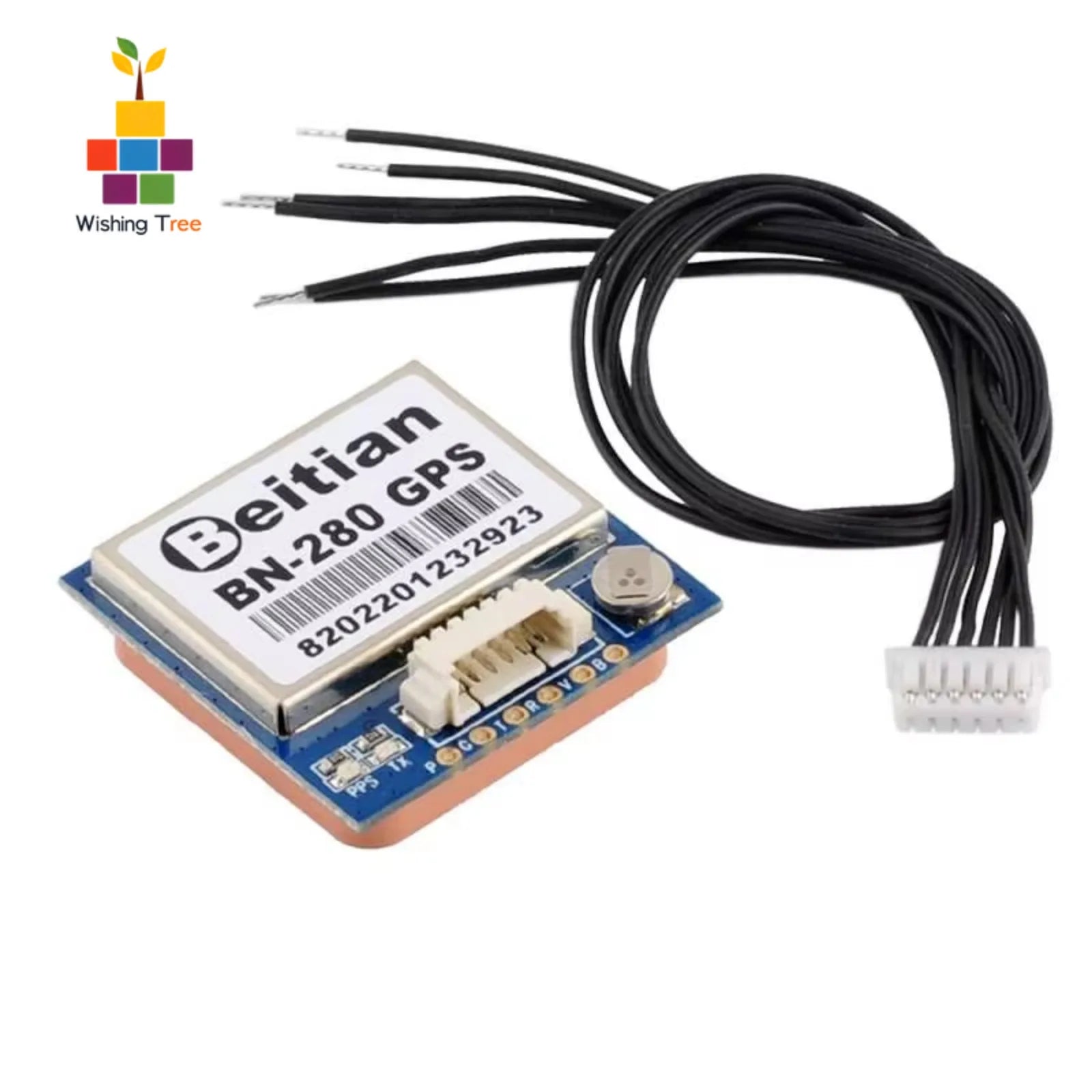

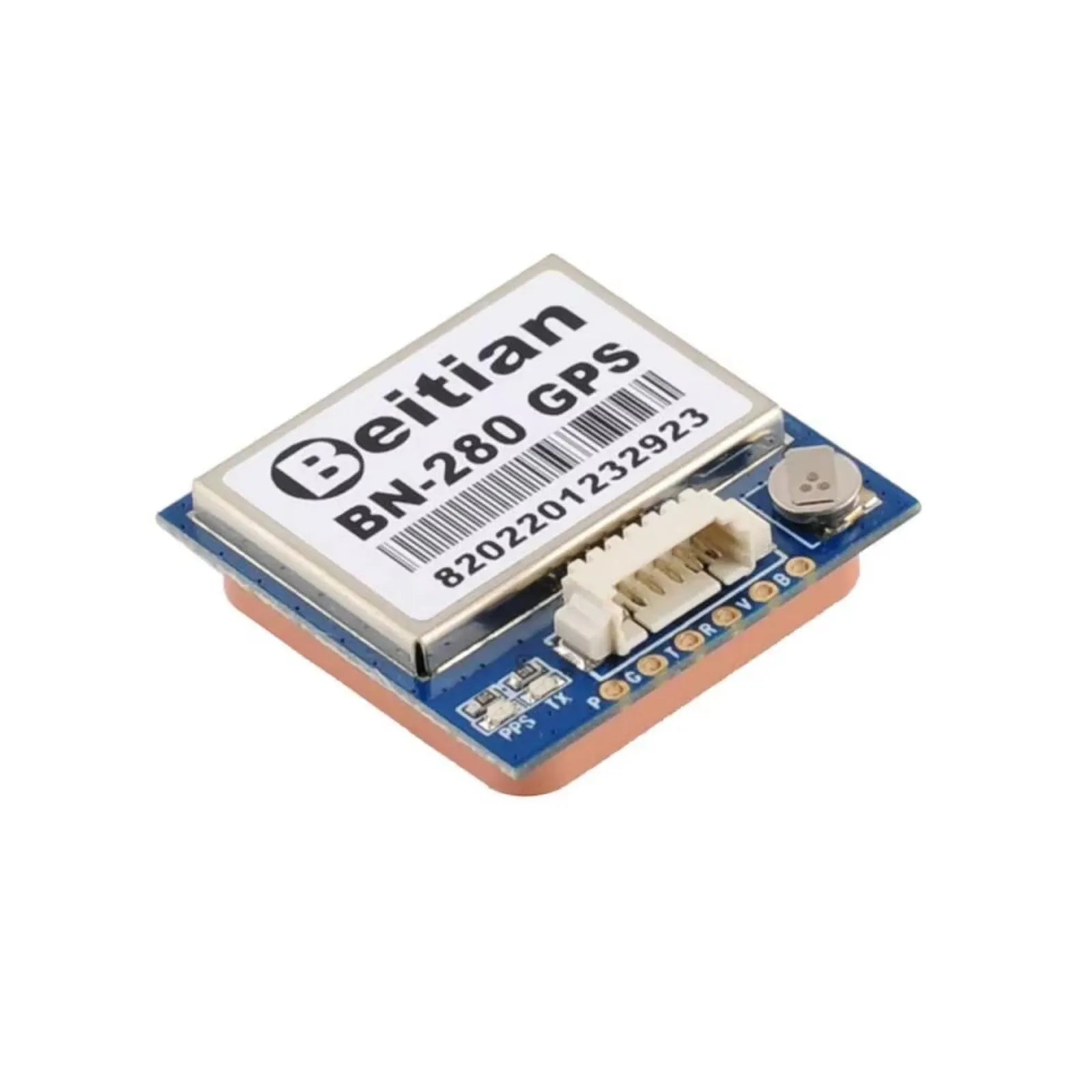

Beitian BN-280 G-MOUSE UART TTL level GPS GLONASS Dual GNSS Module with 4M FLASH 3-5V for Arduino RPI RC Racing Drone Flight Control

Product Name: M8030-KT GPS Module
Product Description:
The M8030-KT is a high-performance GPS module supporting multiple satellite systems, including GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, and QZSS L1. It features 72 search channels, enabling quick satellite signal acquisition and tracking.

Electrical Characteristics:
Receiving Format: Supports GPS, GLONASS, BDS, GALILEO, SBAS, QZSS, with default settings for GPS, GLONASS, SBAS, QZSS.
Tracking Sensitivity: -167dBm
Reacquisition Sensitivity: -160dBm
Cold Start Sensitivity: -148dBm
Hot Start Sensitivity: -156dBm

Accuracy:
Position Accuracy: 2.0 meters CEP 2D RMS (Typical, Open Sky, with SBAS enabled)
Velocity Accuracy: 0.1m/sec (95% confidence, SA off)
Timing Accuracy: 1us synchronized to GPS time

Acquisition Time:
Cold Start: 26s
Warm Start: 25s
Hot Start: 1s

Data Output:
Support Rate: 4800bps to 921600bps, Default 9600bps
Data Level: TTL Level
Data Protocol: NMEA-0183
NMEA Message: RMC, VTG, GGA, GSA, GSV, GLL
Update Rate: 1Hz-10Hz, Default 1Hz
FLASH: 4M FLASH, for permanently storing configuration

Operational Limits:
Altitude: <50,000m
Velocity: <515m/s
Acceleration: <4g

Power Consumption:
VCC: DC Voltage 3.6V-5.5V, Typical 5.0V
Current: Capture 50mA/5.0V

Mechanical Specifications:
Dimension: 28mm28mm8mm
Weight: 11.8g
Connector: 1.25mm 6-pin connector

Environment:
Operating Temp: -40℃ ~ +85℃
Storage Temp: -40℃ ~ +105℃

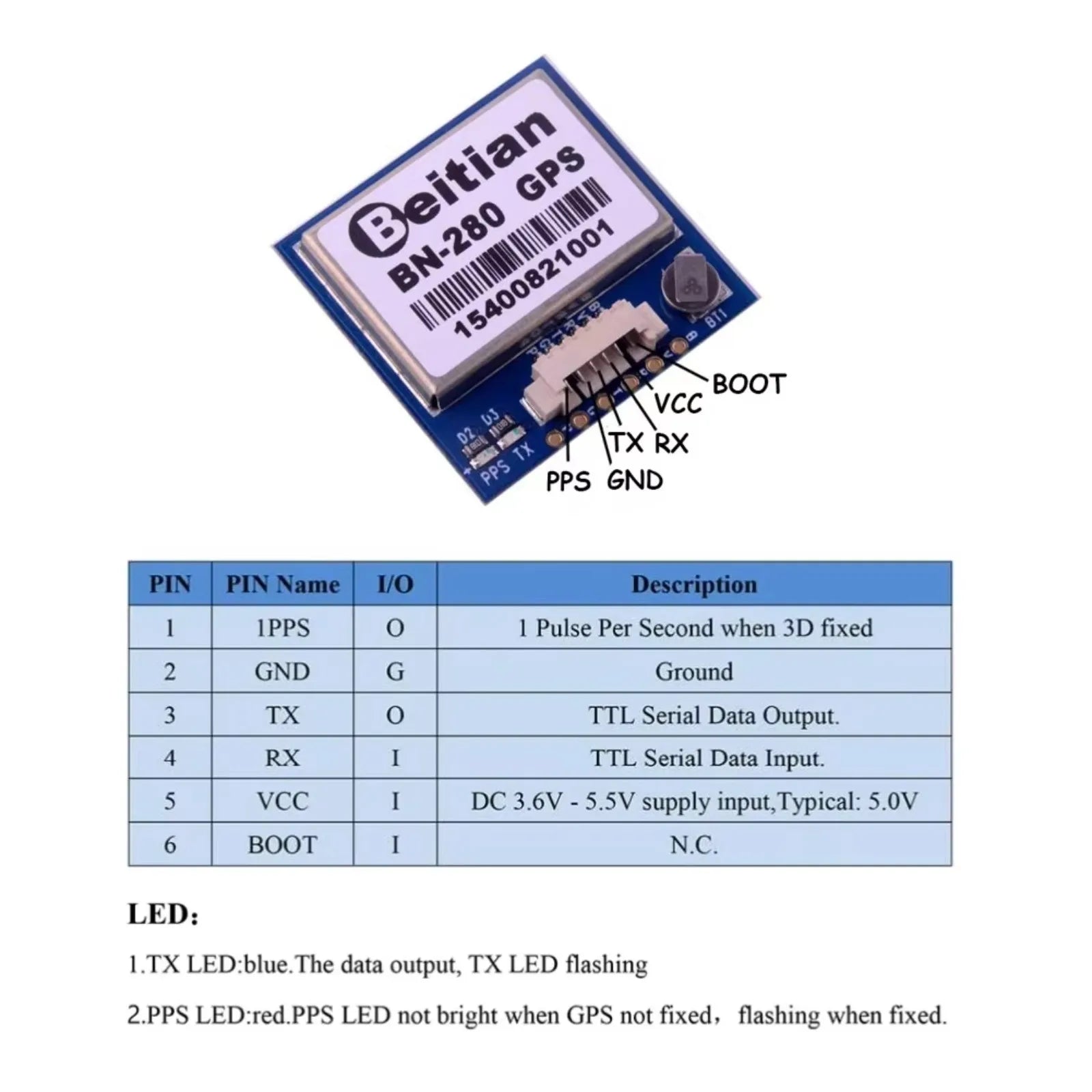

LED:
TX LED: blue, data output, TX LED flashing
PPS LED: red, PPS LED not bright when GPS not fixed, flashing when fixed
The M8030-KT GPS module, with its high accuracy and multifunctionality, is suitable for various applications requiring precise positioning.plications requiring precise positioning.
