Módulo GPS BN-880 Dual con Compás para Controladora Vuelo APM 2.6/2.8 / Pixhawk PIX 2.4.7/2.4.8
Módulo GPS BN-880 Dual con Compás para Controladora Vuelo APM 2.6/2.8 / Pixhawk PIX 2.4.7/2.4.8
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: QX-MFLU
Certification: CE
For Vehicle Type: Airplanes
Hign-concerned Chemical: None
Material: Composite Material
Origin: Mainland China
Quantity: 1 pcs
Recommend Age: 14+y
modname=ckeditor

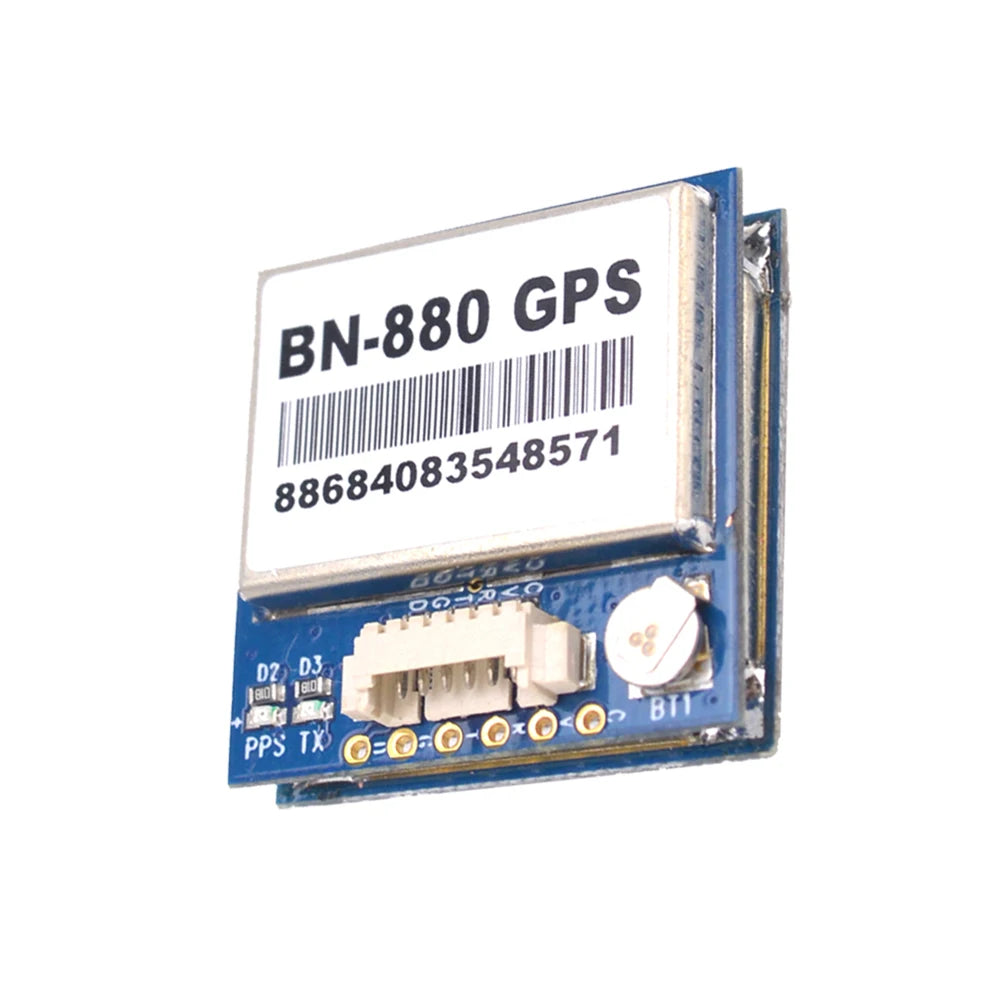

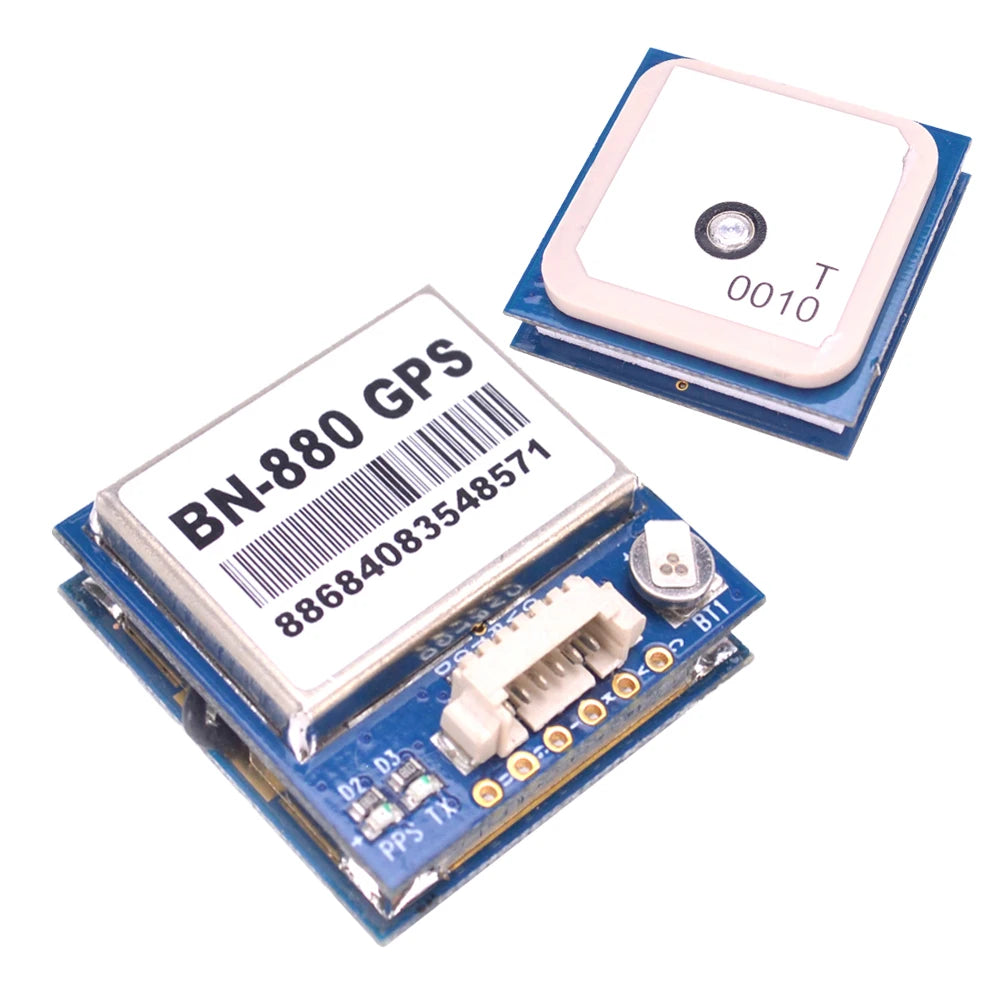

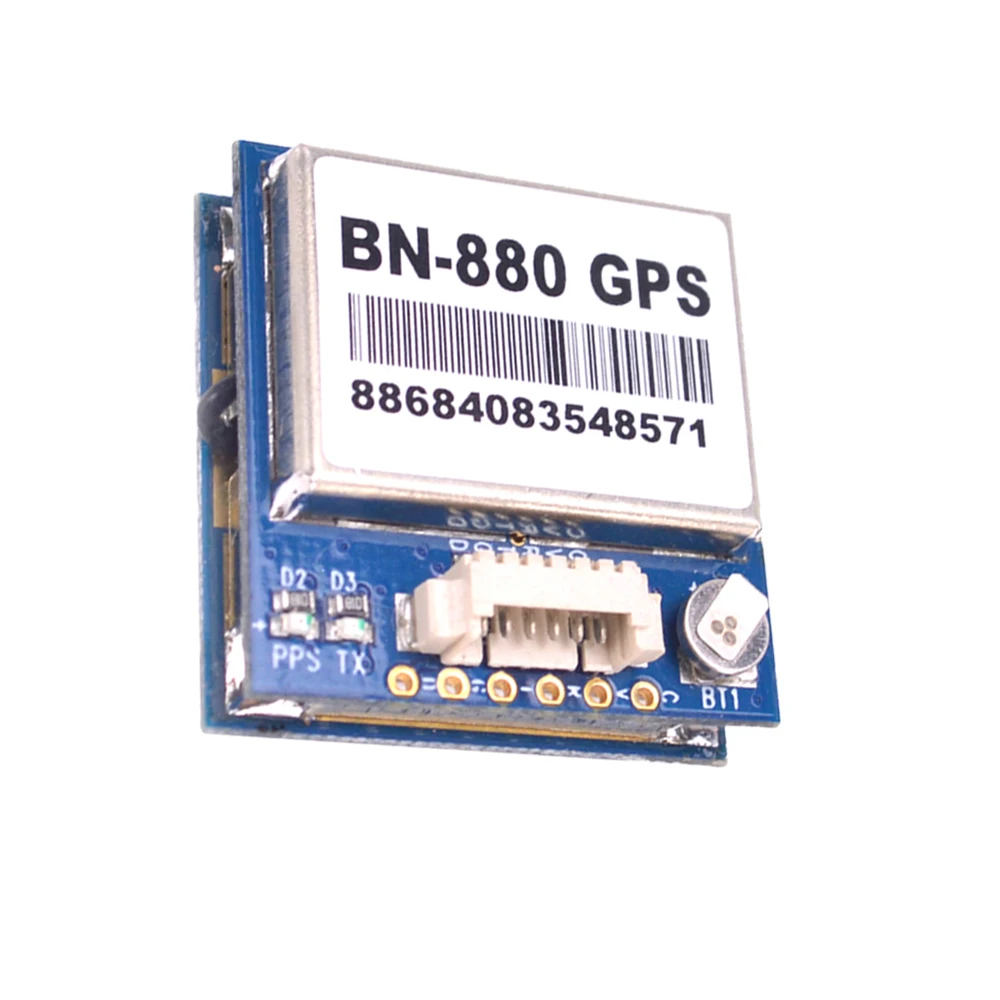

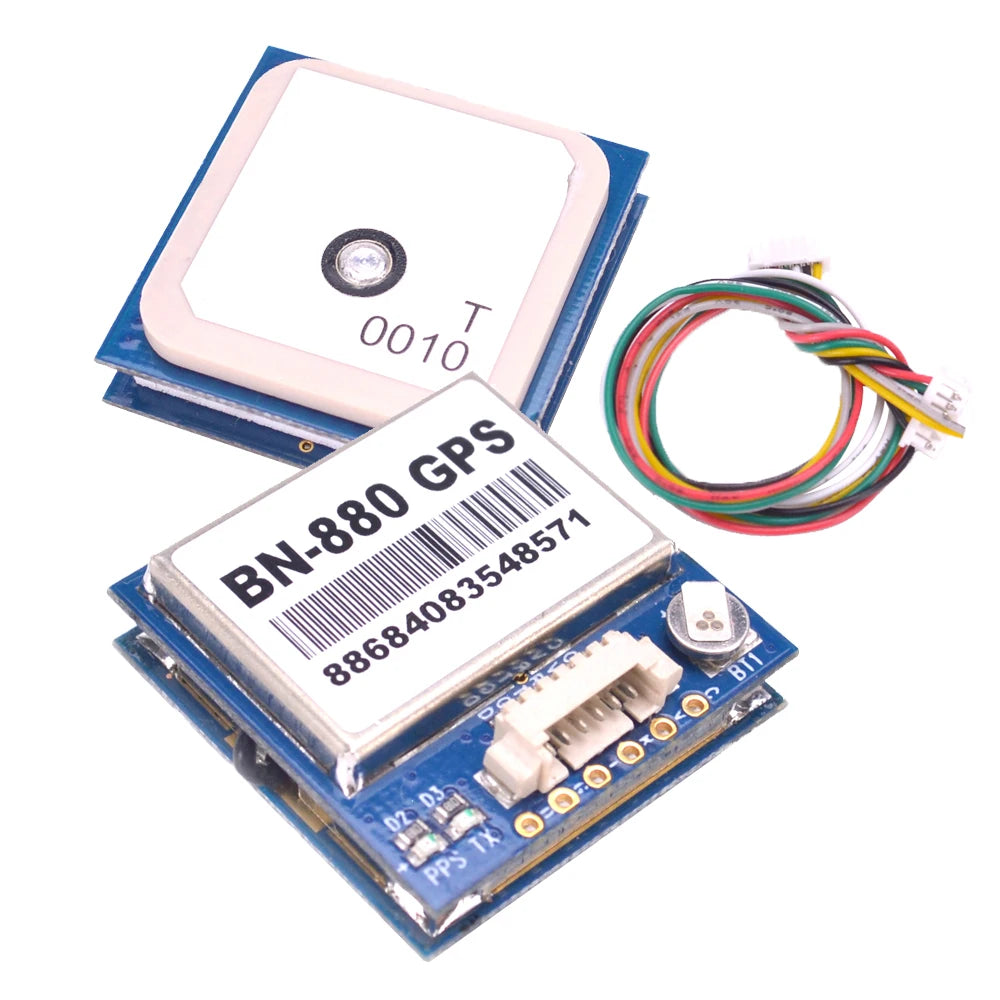

BN-880 GPS Module:
Model:BN-880
Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption:Capture 50mA@5V
Receiving Format:GPS,GLONASS,BeiDou,QZSS and SBAS
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm
Capture-148dBm
Positioning Time:Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison:2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precison:0.1 m/s (Without Aid)
Acceleration Precison:0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height:18000m
Max Speed:5153m/s
Max Acceleration:4G
UART Interface:UART Port:TXDA and RXDA
Support Rate:4800bps to 115200bps,Default 38400dps
Working Temperature:-40-+85
Storage Temperature:-40-+85
Size:28mm x 28mm x 10mm
Weight:10g
The Module's Pins:SDA,GND,TX,RX,VCC,SCL
Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883
1.25mm spacing between the 6pins patch seat
Package Included:(Send it as your choice)

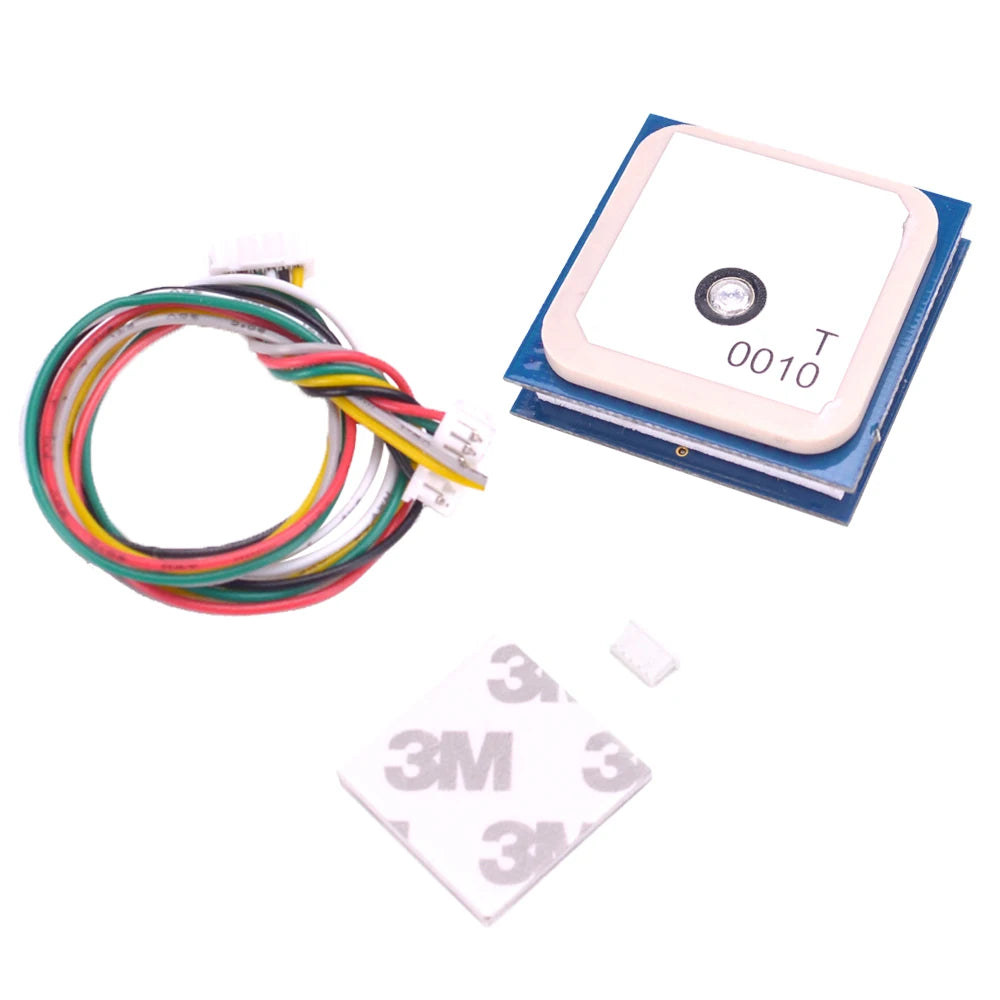

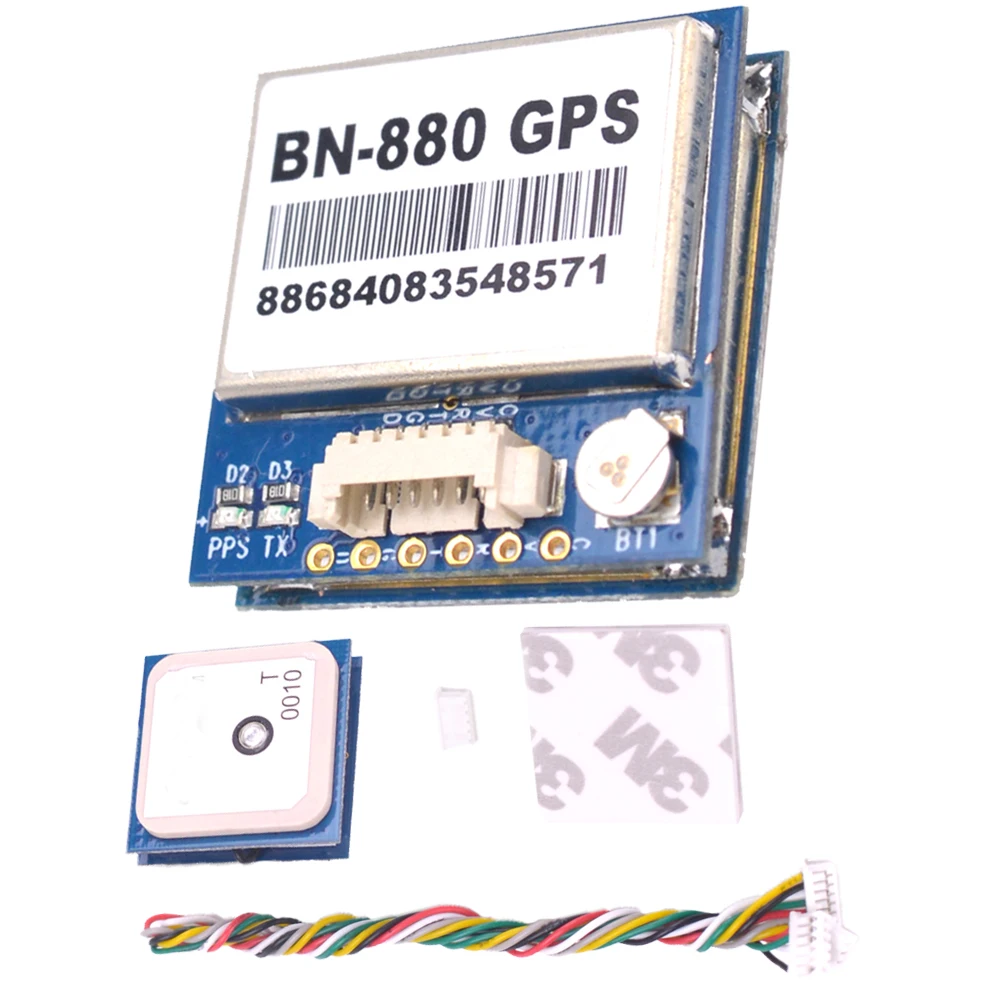

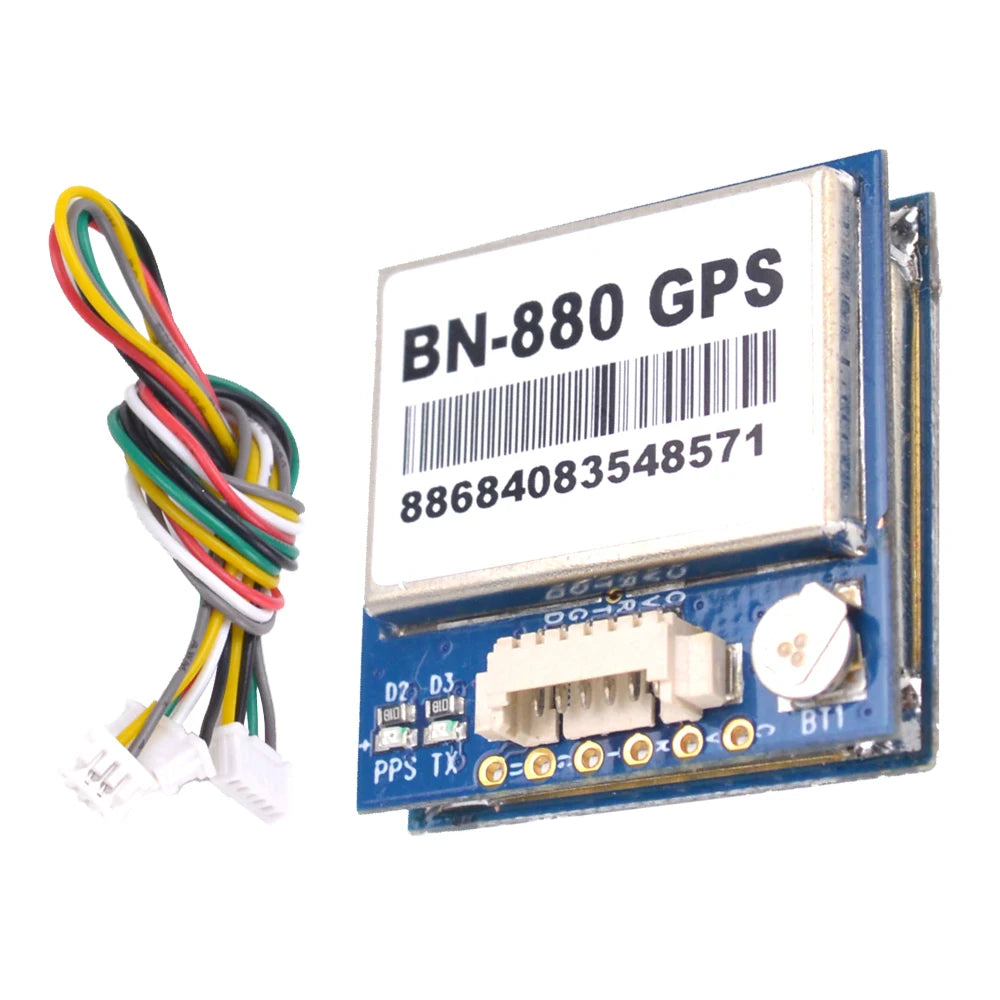

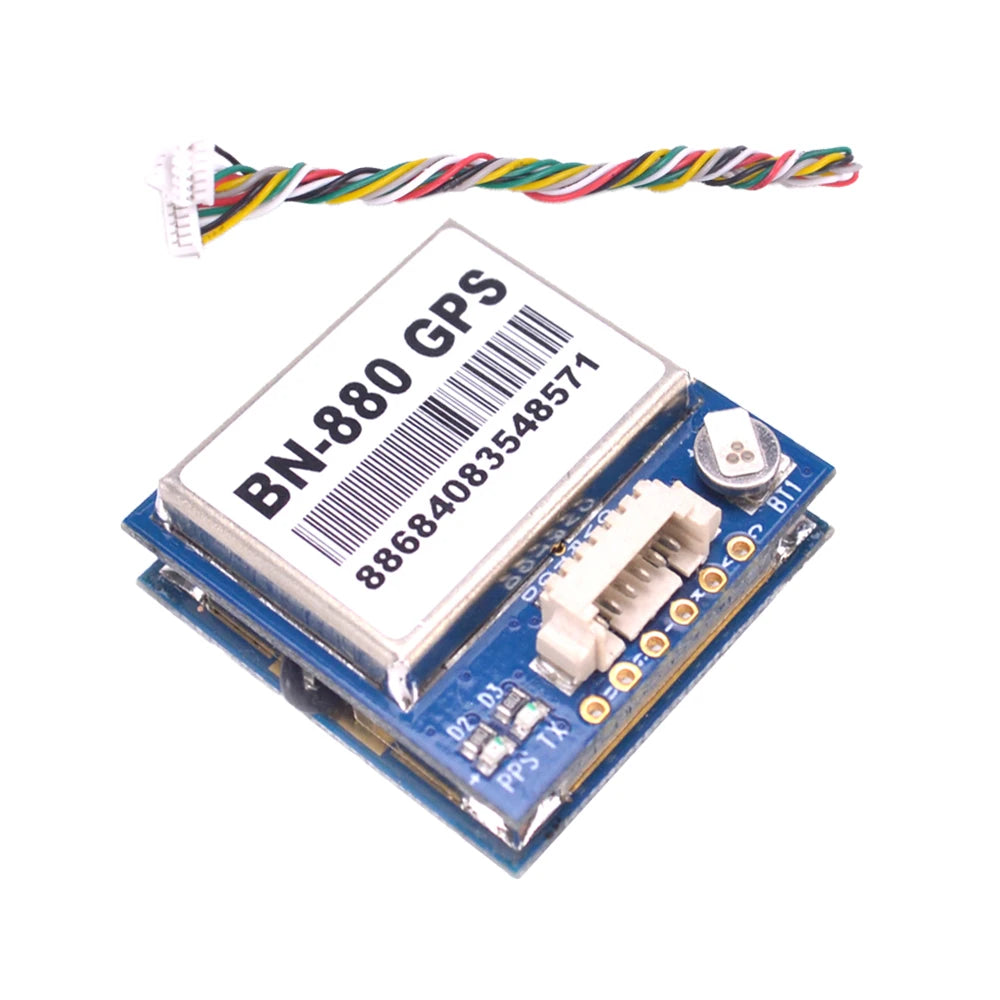

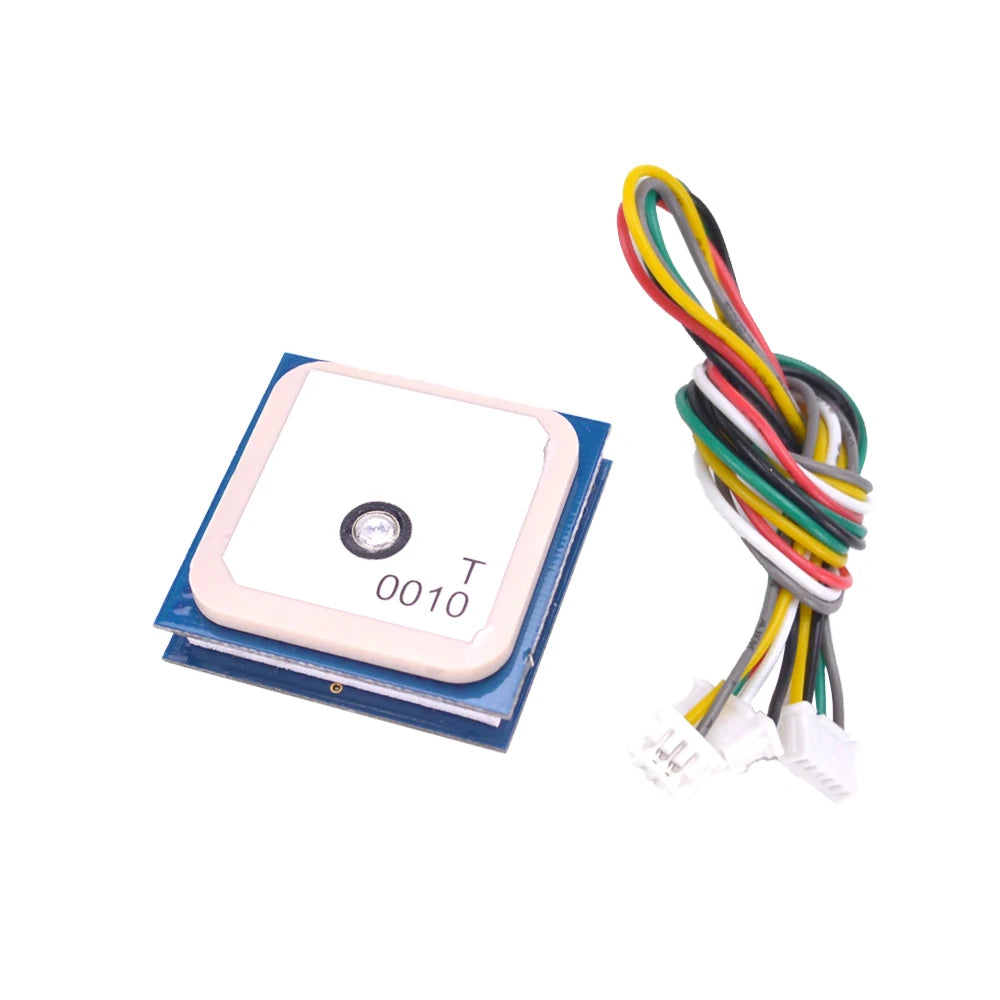

1PCS / 2PCS BN-880 GPS Module with cables
