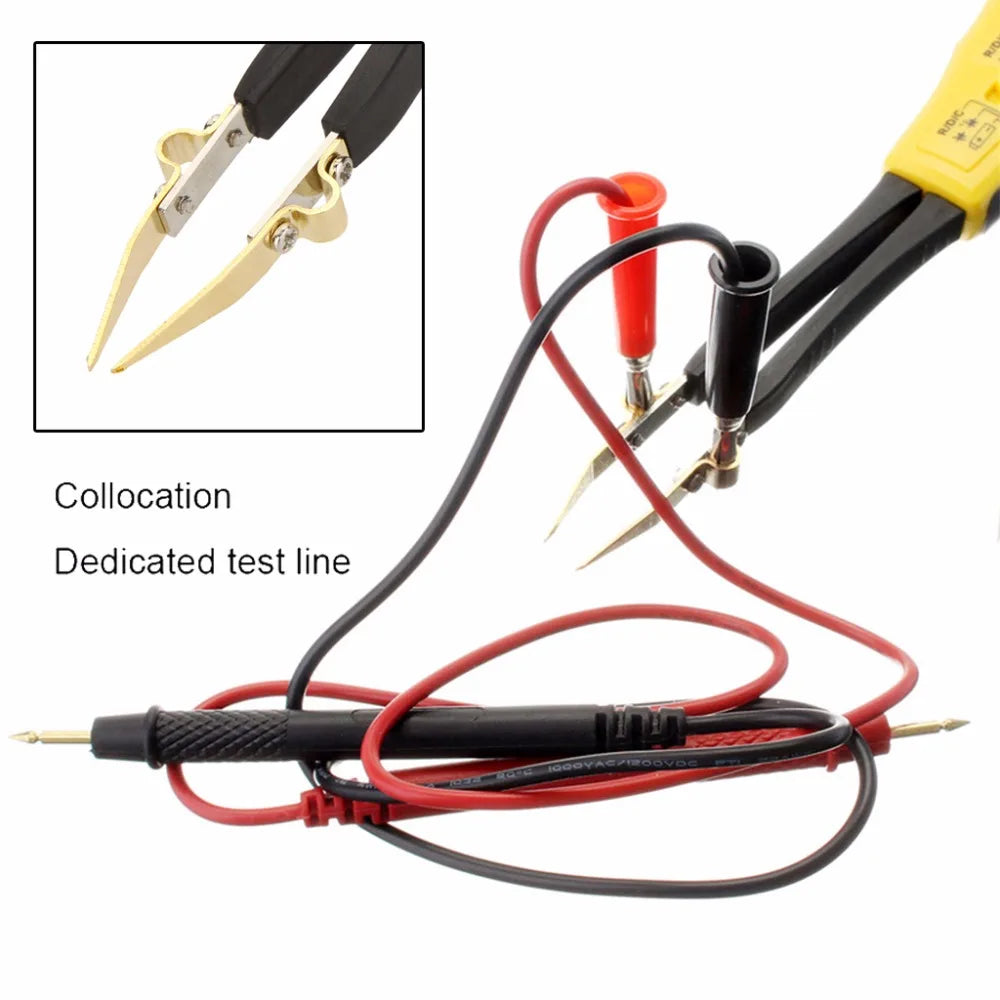

Medidor Capacitancia Digital BT-990C - Tester SMD Diodo/Resistencia (Tipo Pinza) + Puntas Repuesto
Medidor Capacitancia Digital BT-990C - Tester SMD Diodo/Resistencia (Tipo Pinza) + Puntas Repuesto
No se pudo cargar la disponibilidad de retiro

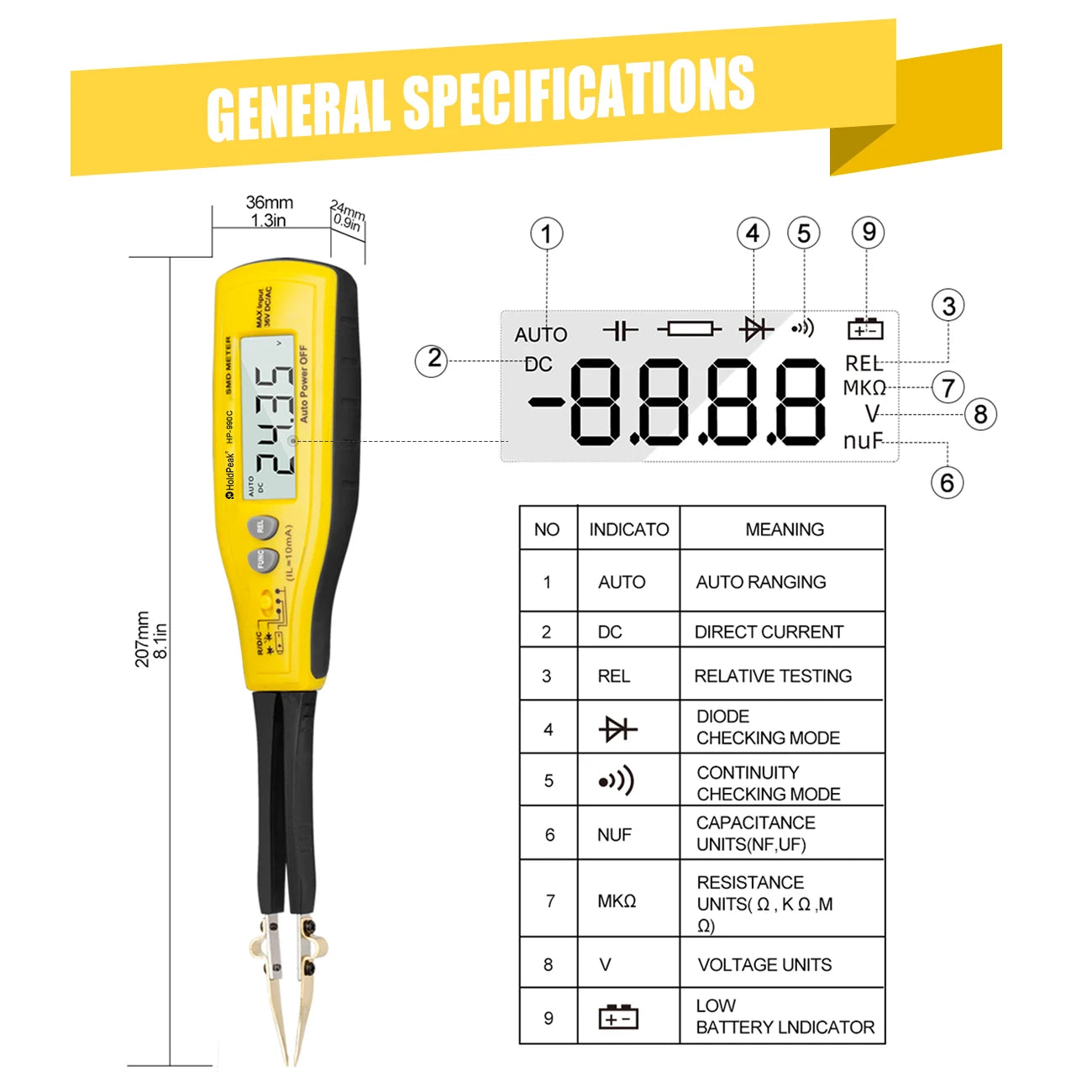

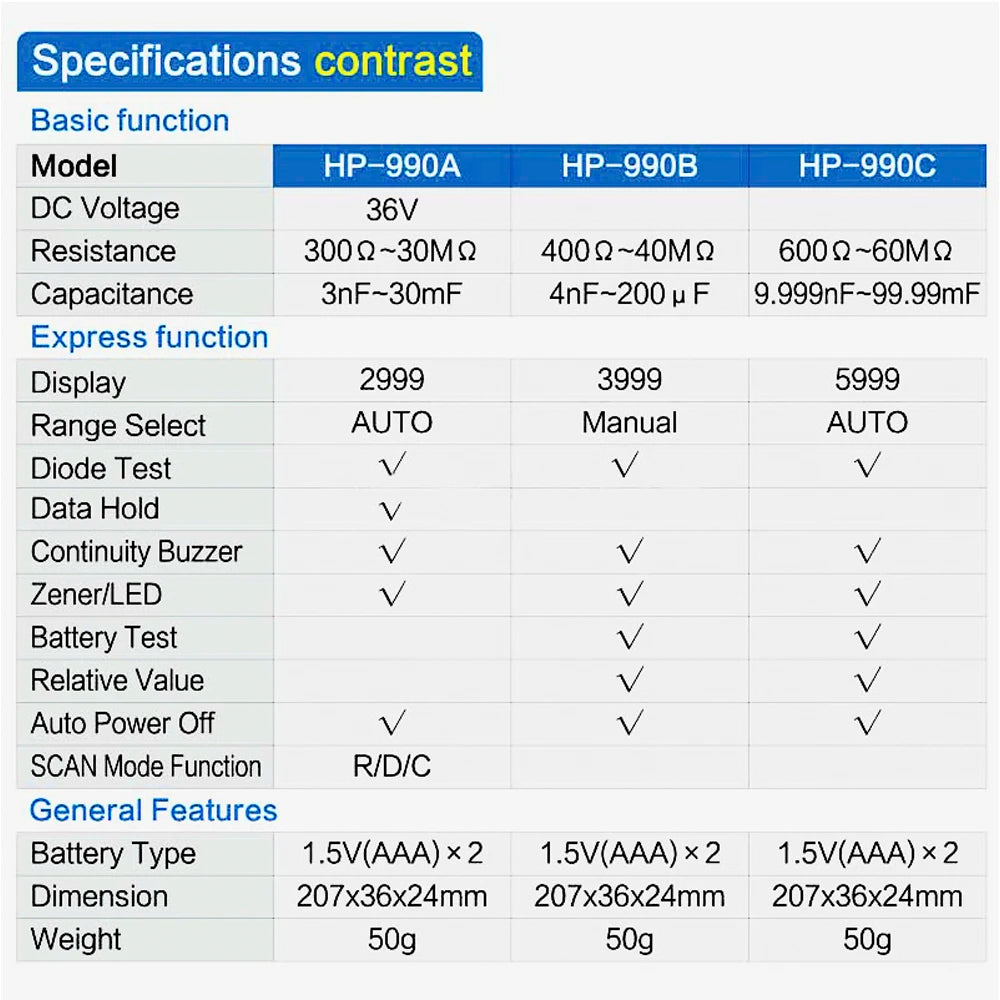

SPECIFICATIONS
Batter test: yes
Brand Name: BTMETER
Certification: CE
Choice: yes
Continuity Buzzer: yes
DIY Supplies: ELECTRICAL
Diode Test: yes
Display: 5999
Display Type: Digital display
Hign-concerned Chemical: None
Is Smart Device: No
LED/Zener: yes
Measuring Capacitance Range: 9.999nF~99.99mF
Measuring Voltage Range: 20V
Model Number: HP-990C
Operating Mode: AUTO RANGE
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
semi_Choice: yes

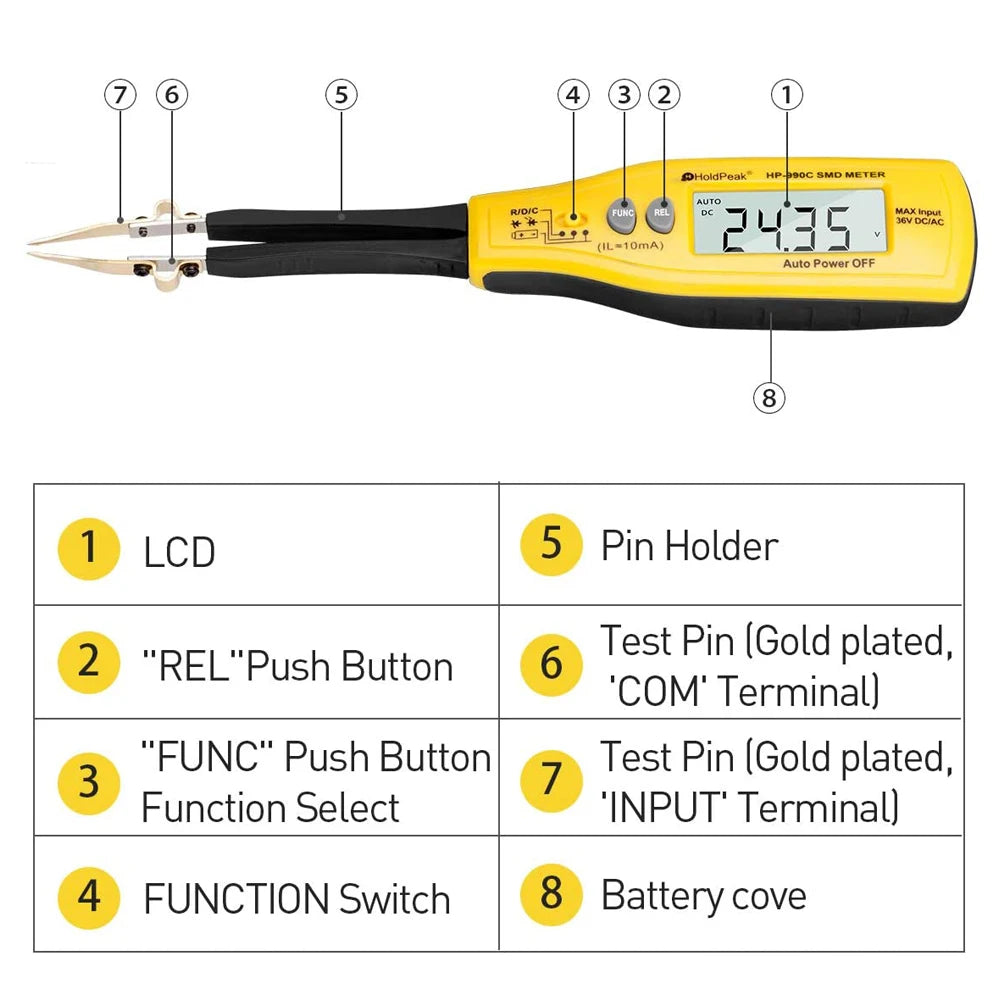

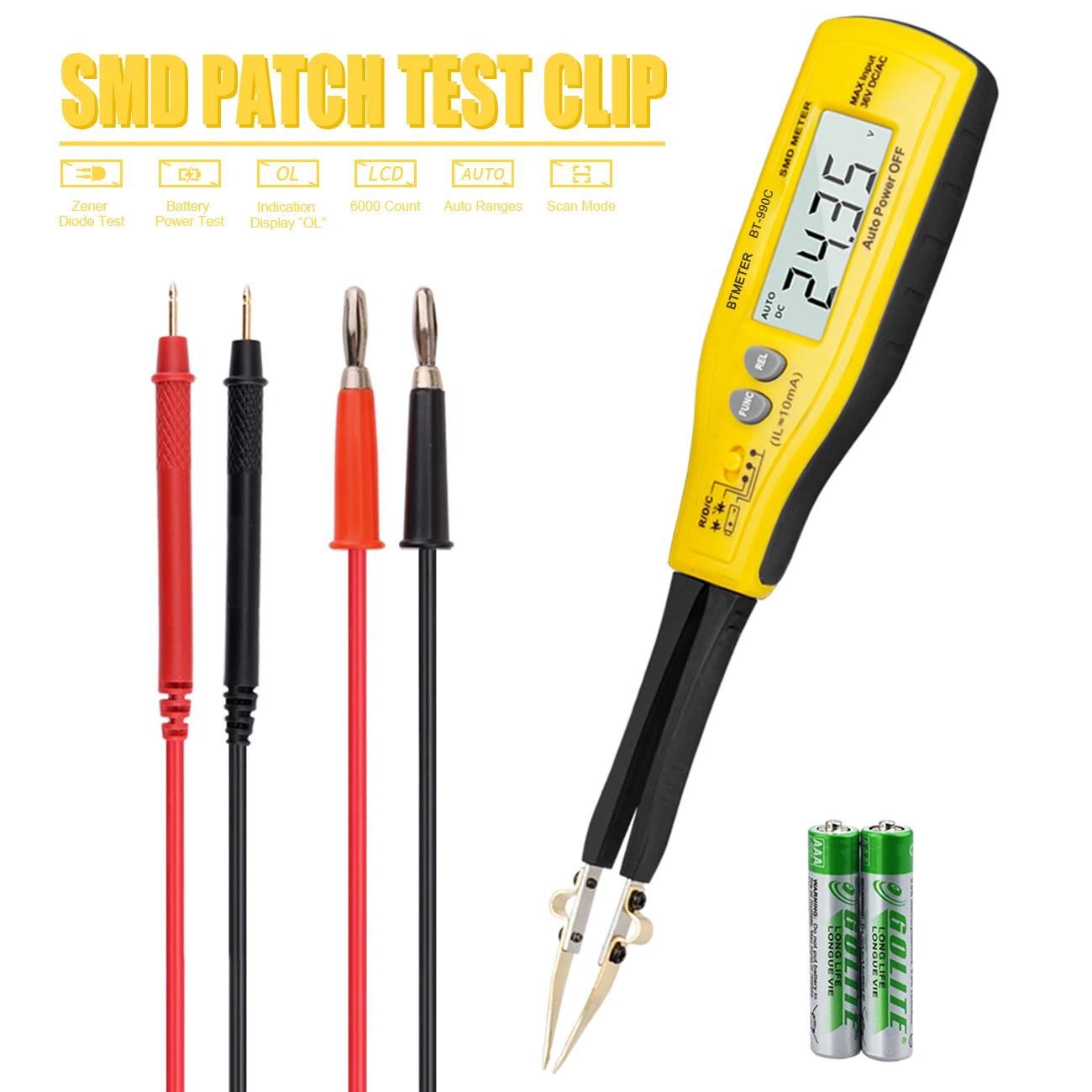

HP-990C Digital Capacitance Meter SMD Tester for Diode Capacitance Resistance Tweezers Meter Battery Tester with Spare Test Pin
Product Description

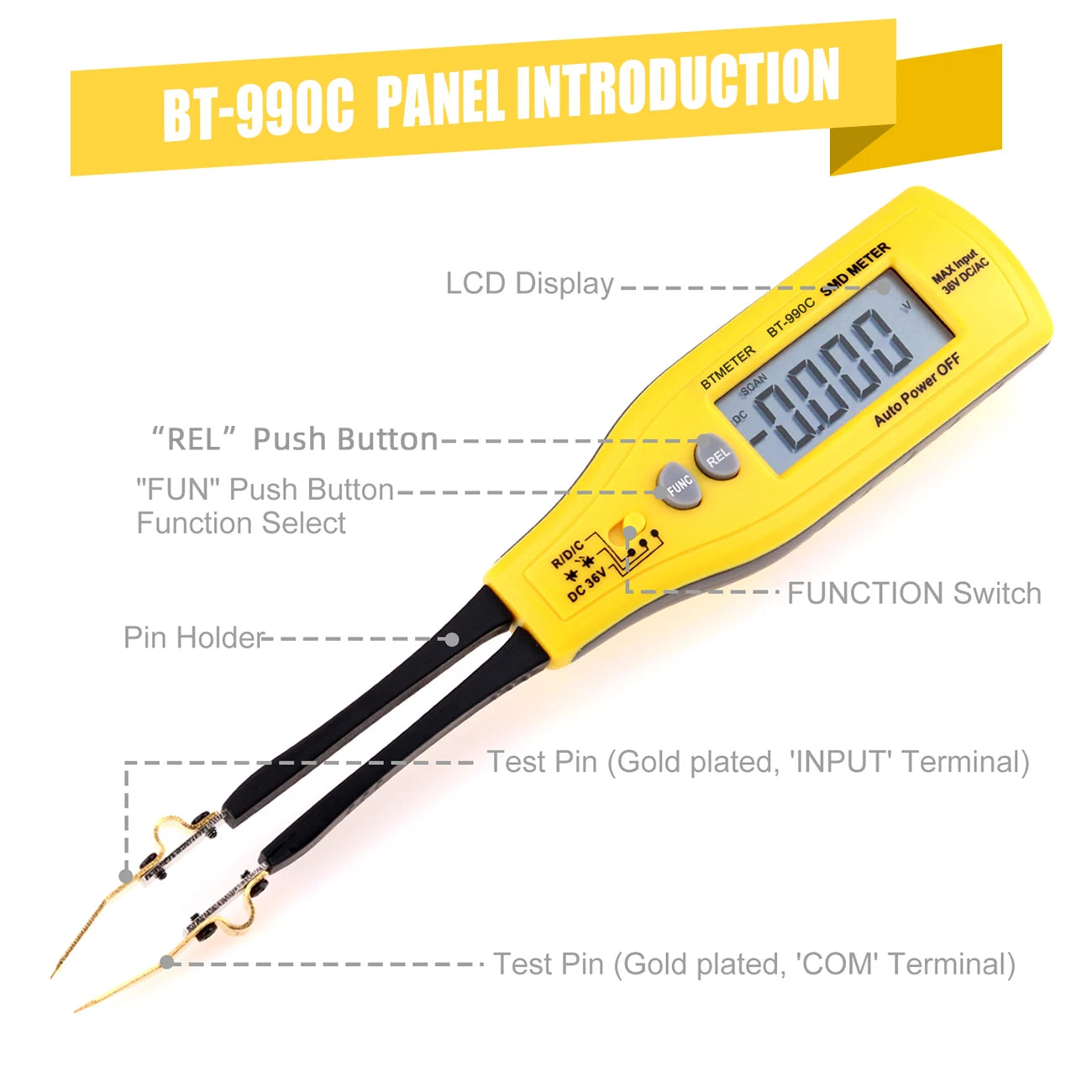

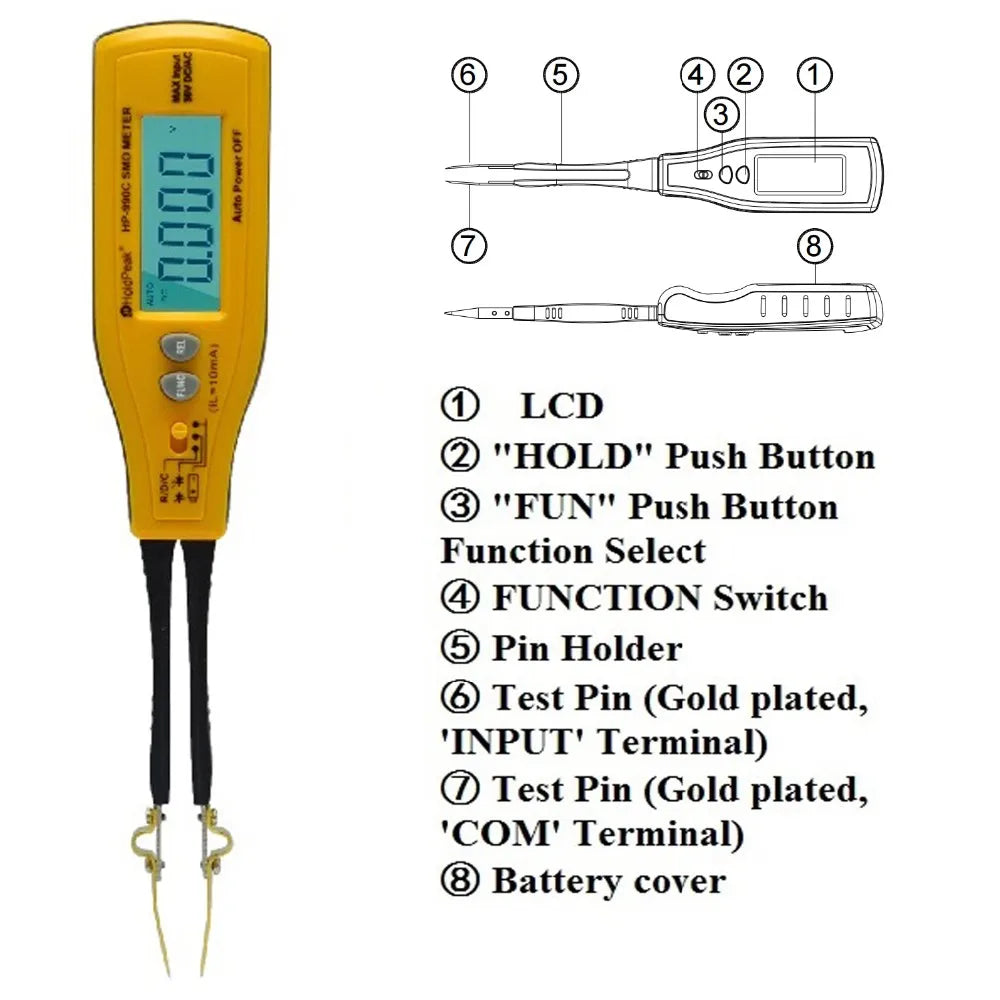

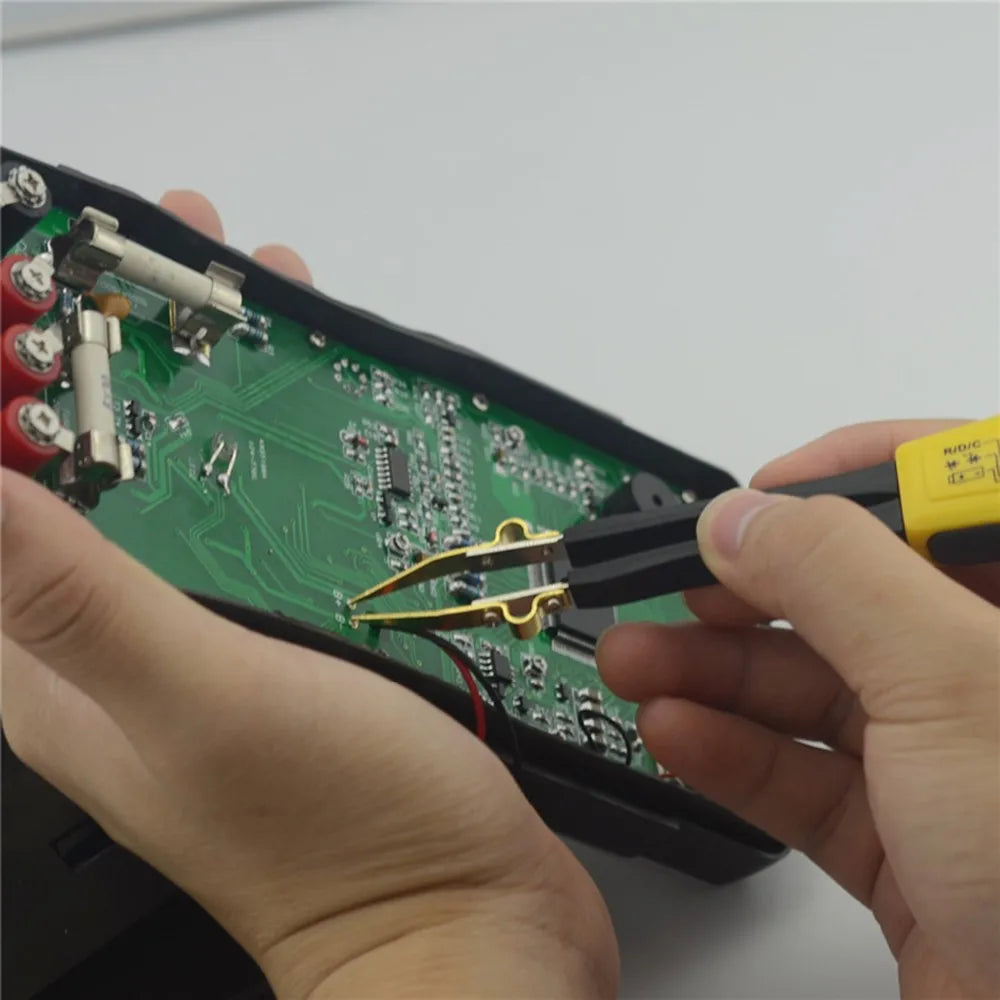

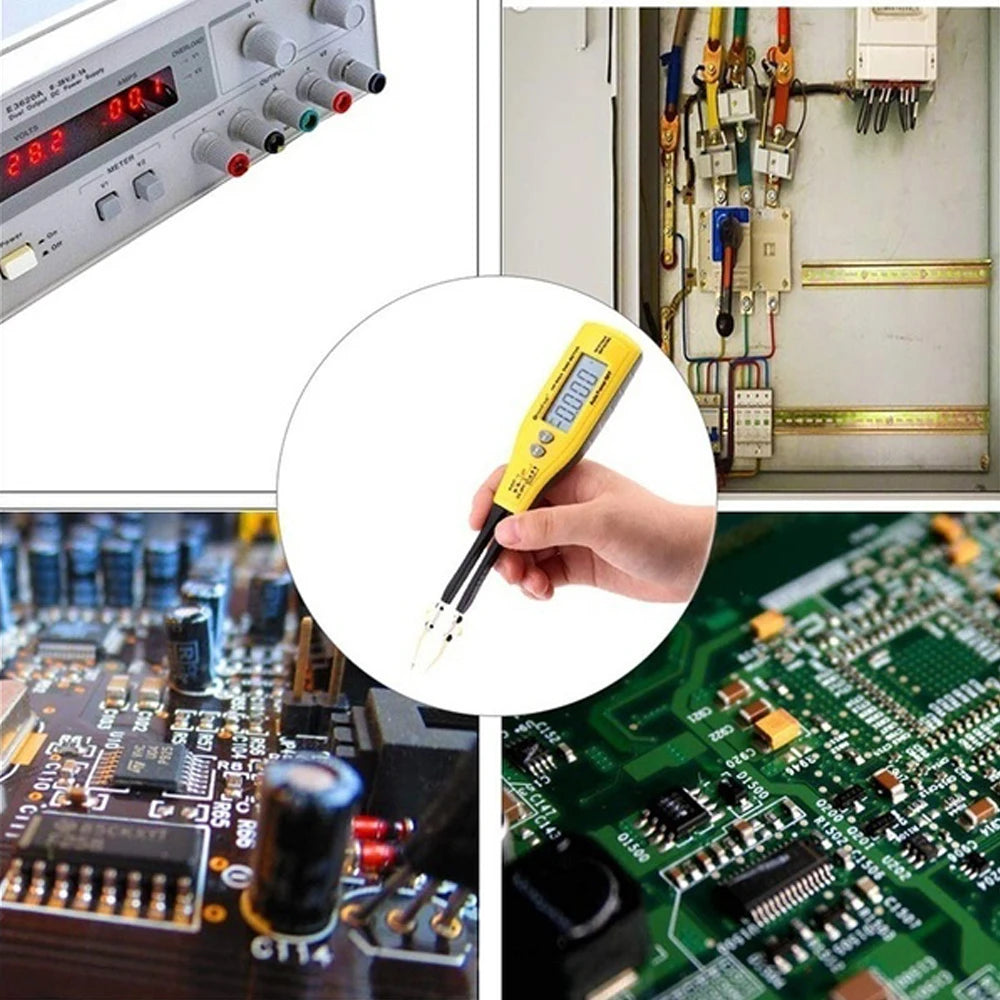

✲ HP-990C is a handheld and battery operated very convenient small Tool, that is specially used to measuring SMD(Surface Mounting Device),there are resistor, Capacitor, Diode, Zener and LED.
✲ HP-990C have the continuity checking function,battery power Measurement.
✲ HP-990C is designed to meet IEC1010-1 standard and Stipulation of 2-Pollution Grade.
✲ HP-990C conform to the European Union’s following Requirement:CE regulation 89/336 (EMC Electromagnetic Compatibility).

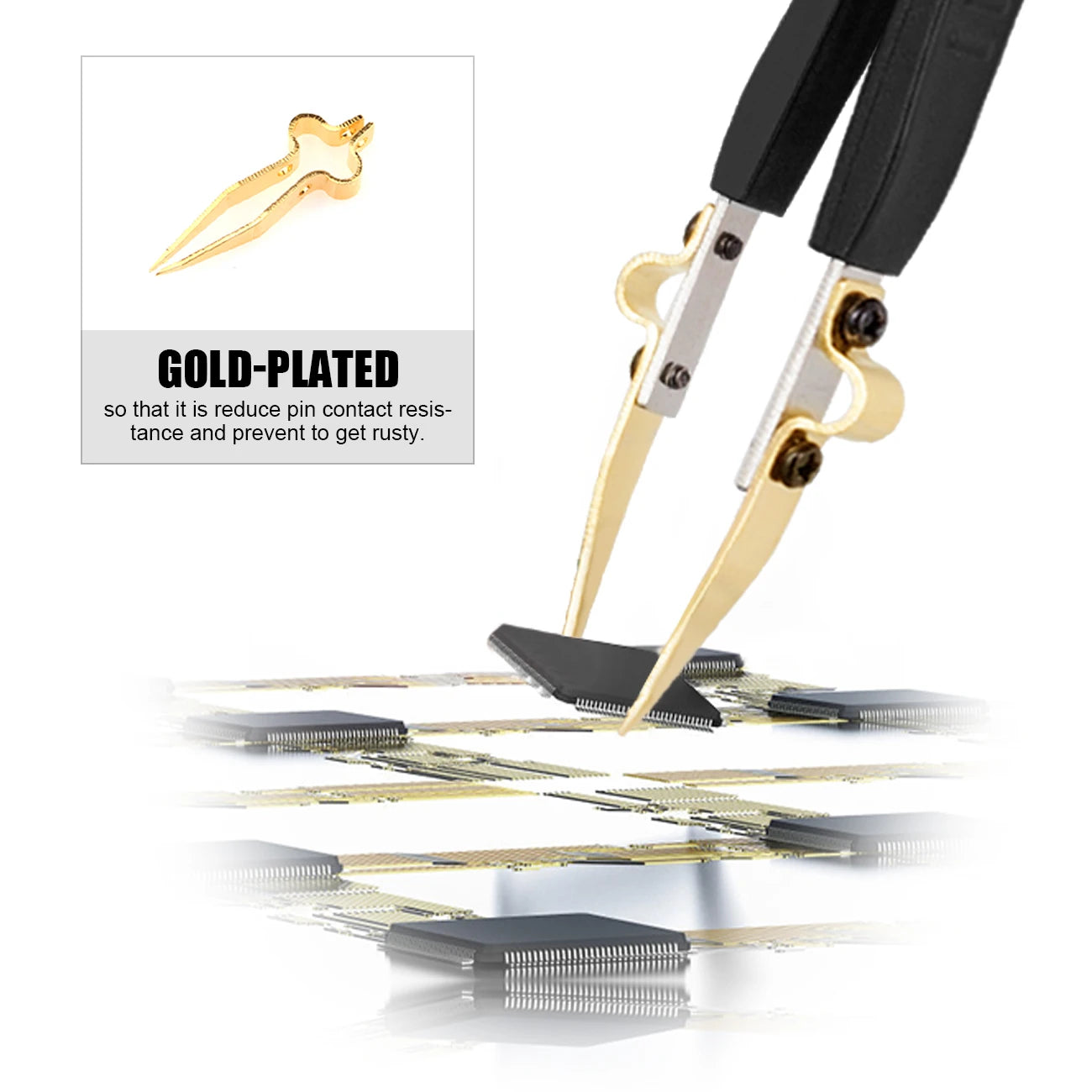

✲ The entire outer surface of the Meter case has been with thermo plastic elastomer, and the two testing pins has been gold-plated, so that it is reduce pin contact resistance and prevent to get rusty.

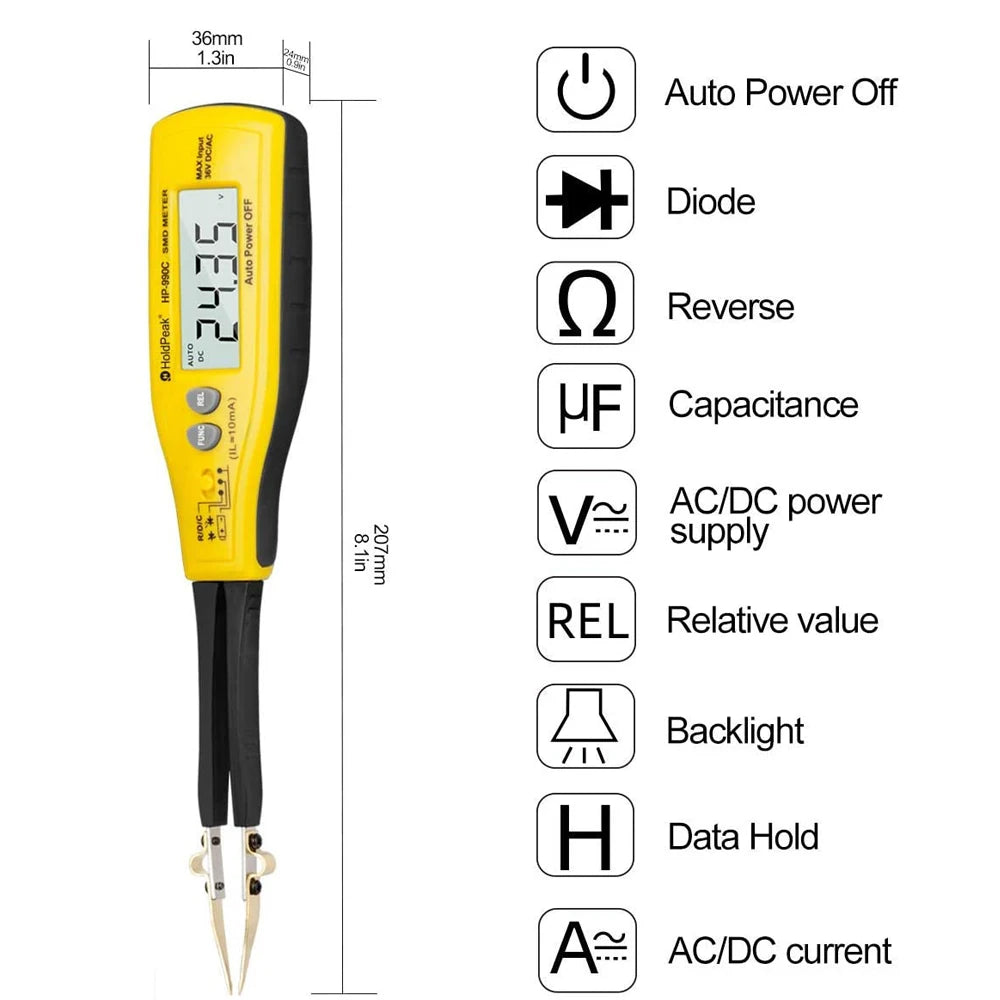

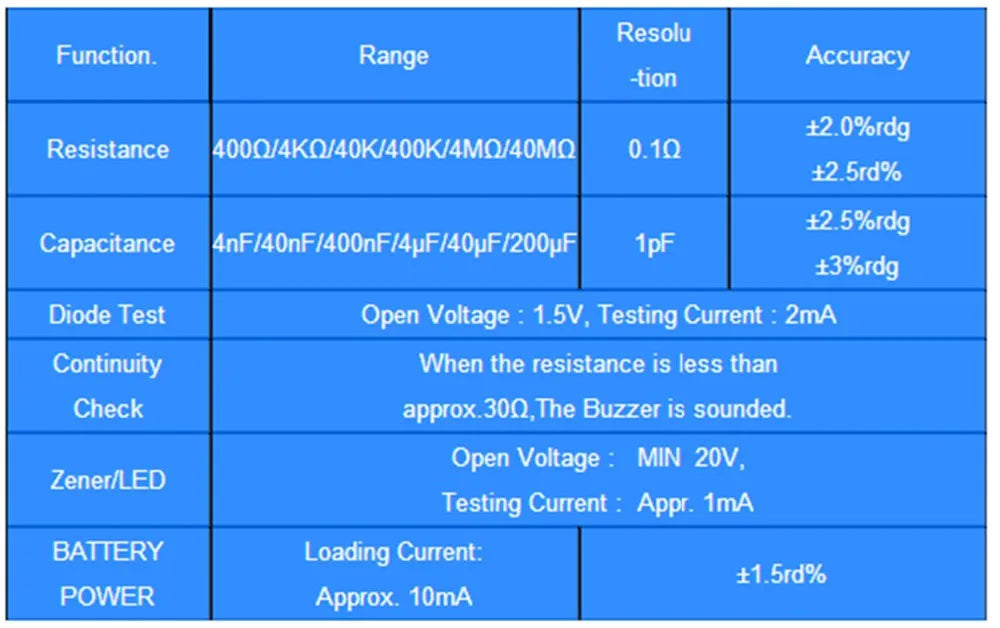

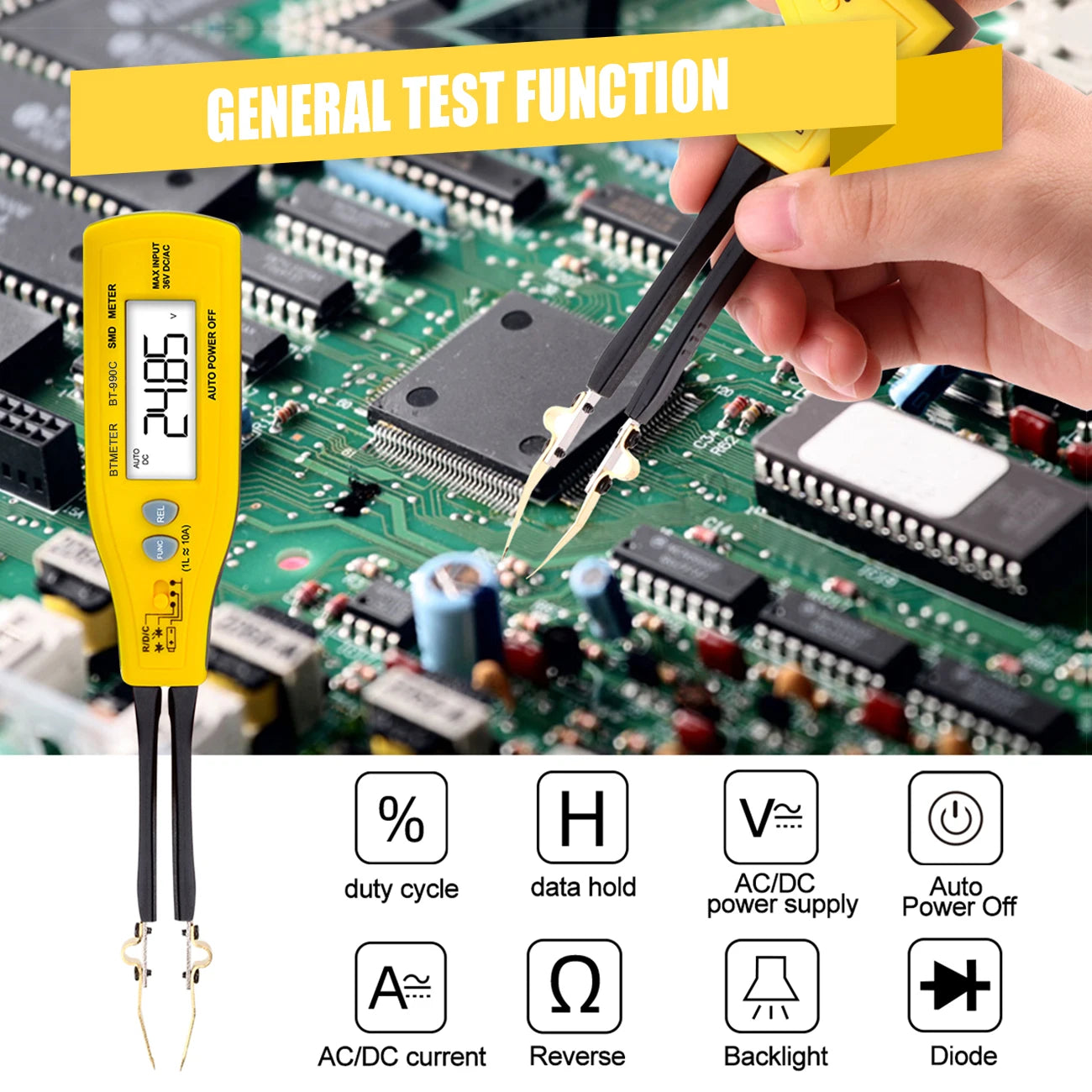

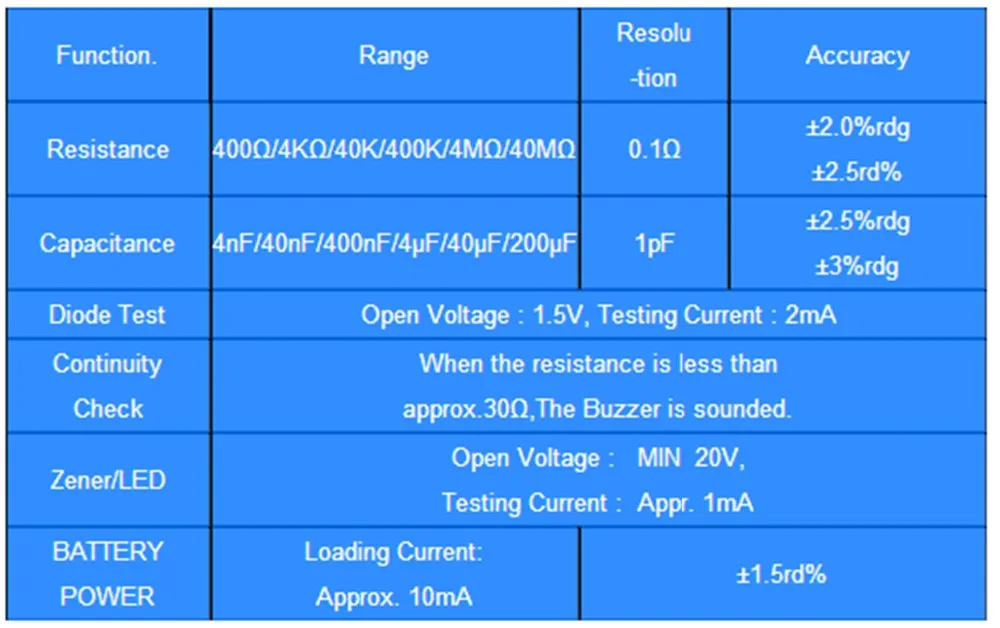

Functions
♦ Auto ranges.
♦ Resistance 600Ω-60MΩ
♦ Capacitance 9.999nF-99.99mF (7 seconds)

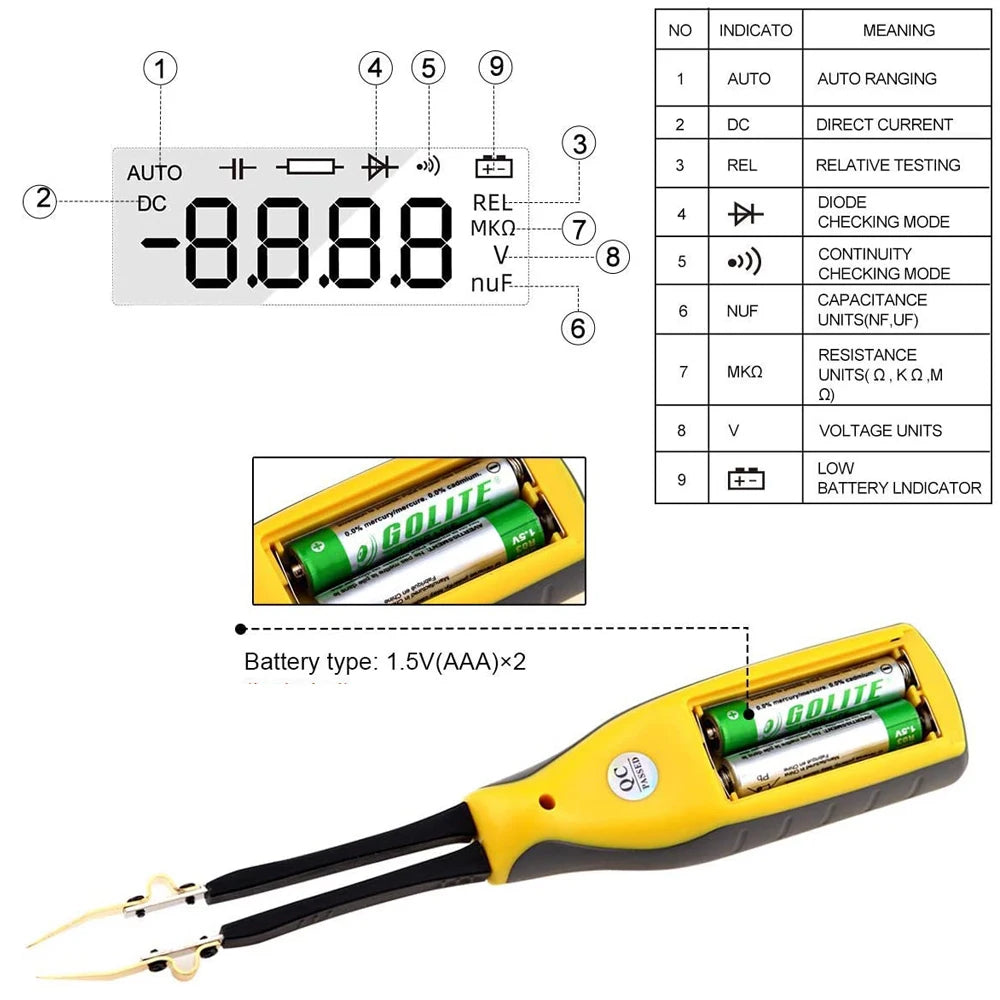

♦ 5999 Co unt LCD display.
♦ Over-rang indication display "OL"
♦ Zener diode Test
♦ LED Test

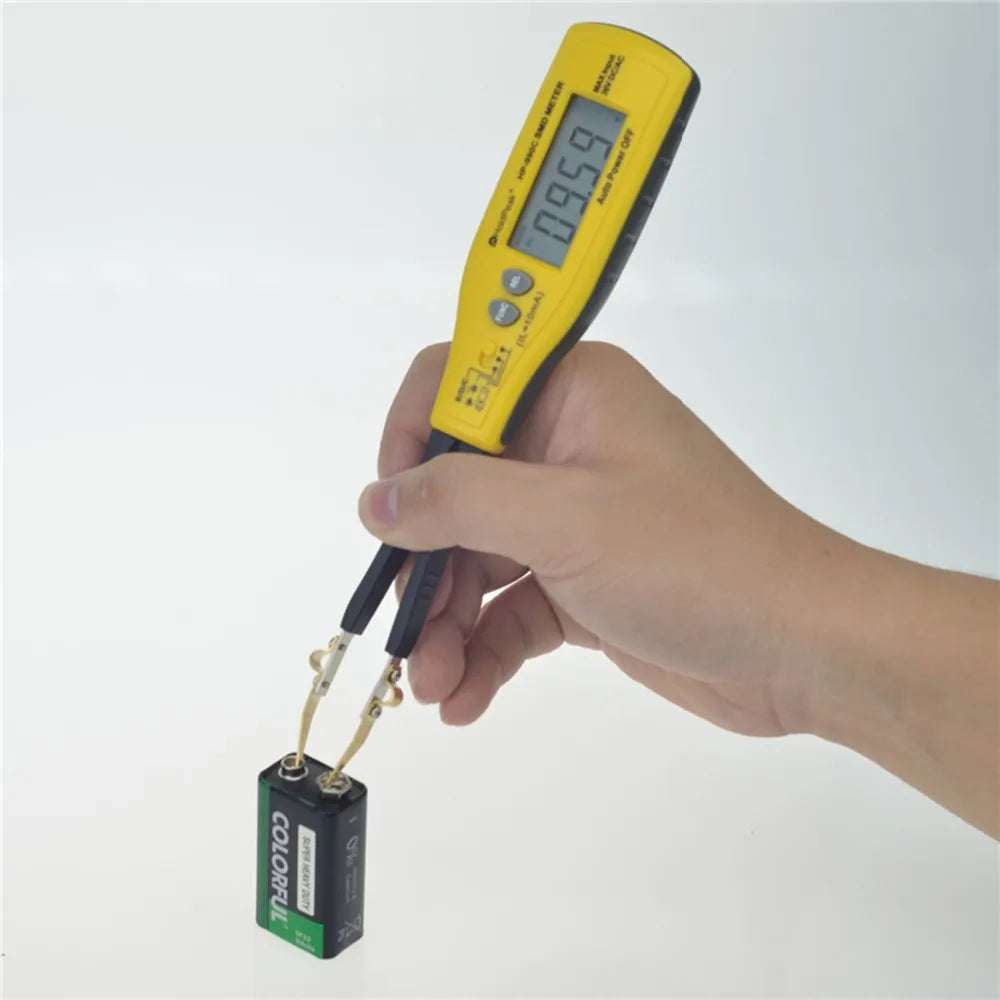

♦ Battery Power Test

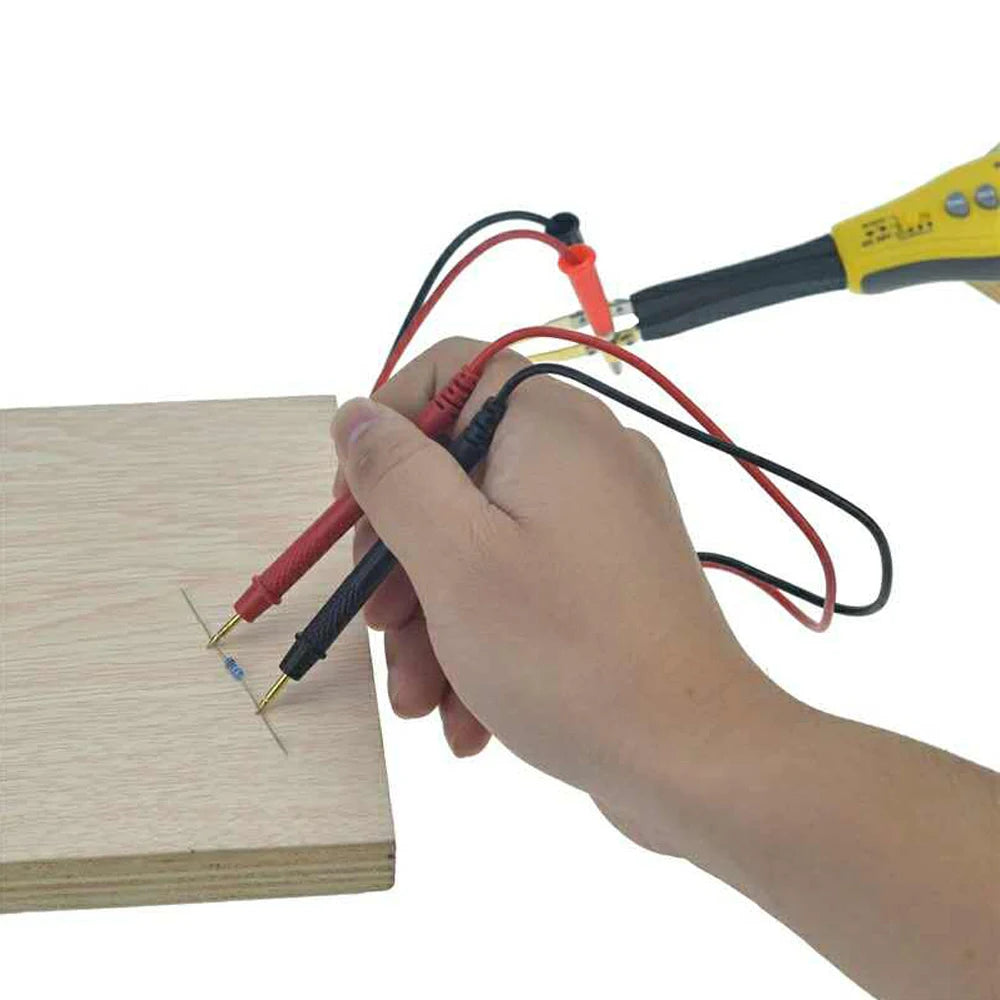

♦ Specialized SMD TEST or TEST DIP Component with leade.
♦ Low Batteery Indication
Note: HP-990C is in stock in warehouses in US,RU, and the delivery address is US/RU orders. We will ship the goods from overseas warehouses and you will receive the products in a few days.

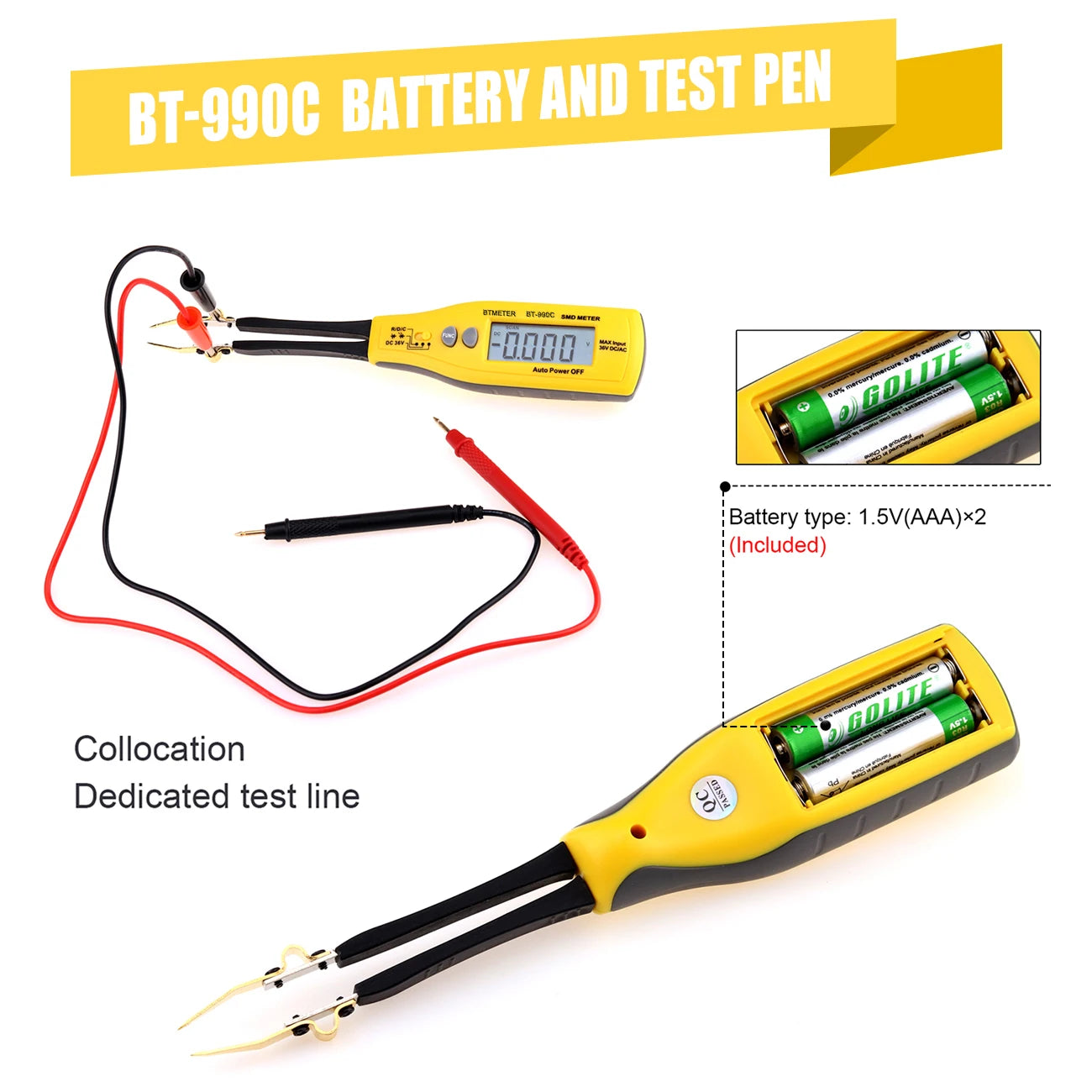

Notice:According to the shipping method is not allowded us to ship the battery.So the package does not include the battery.
