SPECIFICATIONS

Brand Name: VINCKOLOR

Certification: CE

Colorimeter Style: Standing

Hign-concerned Chemical: None

Interface: USB

Measurement Caliber: 21mm/7MM

Model Number: TH-110

Origin: Mainland China

Part 1. Instrument Advantages

1). It conforms to both ASTM and ISO international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Instrument is with a calibration certification from a third party laboratory.

3). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds.

4). Three kinds of illuminants A,C and D65 for haze and total transmittance measurement.

5). 21mm test aperture.

6). Open measurement area, no limit on sample size.

7). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc.

8). It adopts LED light source whose lifetime can reach 10 years.

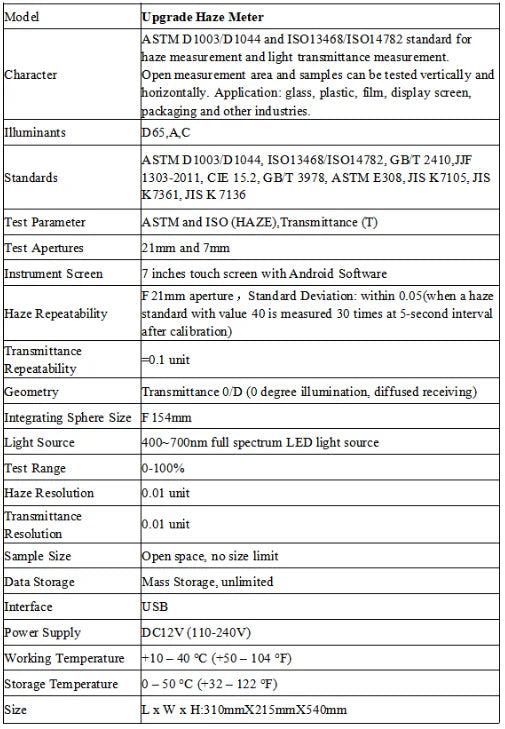

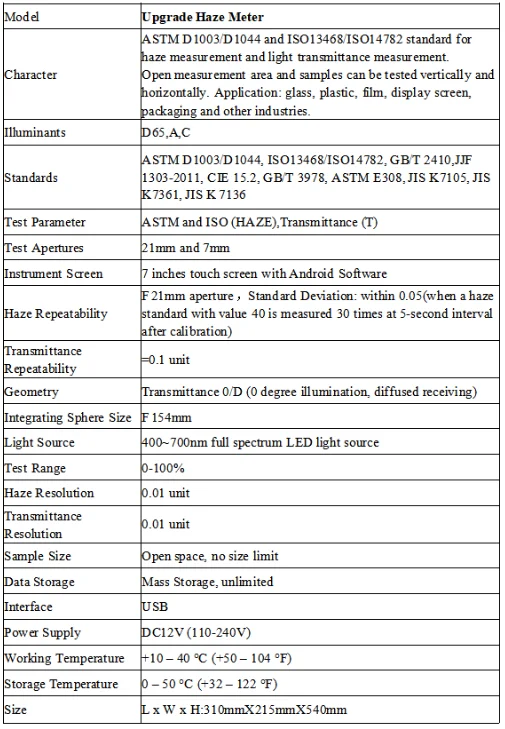

Part 2. Technical Data

Part 3. Haze Meter Application
