SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Battery Type: lead acid battery

Battery Voltage: 6V 12V Auto(5A), 12V 24V Auto(10A)

Brand Name: PowMr

Certification: CE

Choice: yes

Hign-concerned Chemical: None

Is Smart Device: YES

Item: Waterproof Solar Charge Controller

Max input power: 60W(5A), 120W(10A)

Maximum Current: 5A/10A

Model Number: POW-5A-12V/POW-10A-12V

Origin: Mainland China

User for: outdoor ,outside

Waterproof: IP57(5A), IP68(10A)

is_customized: Yes

semi_Choice: yes

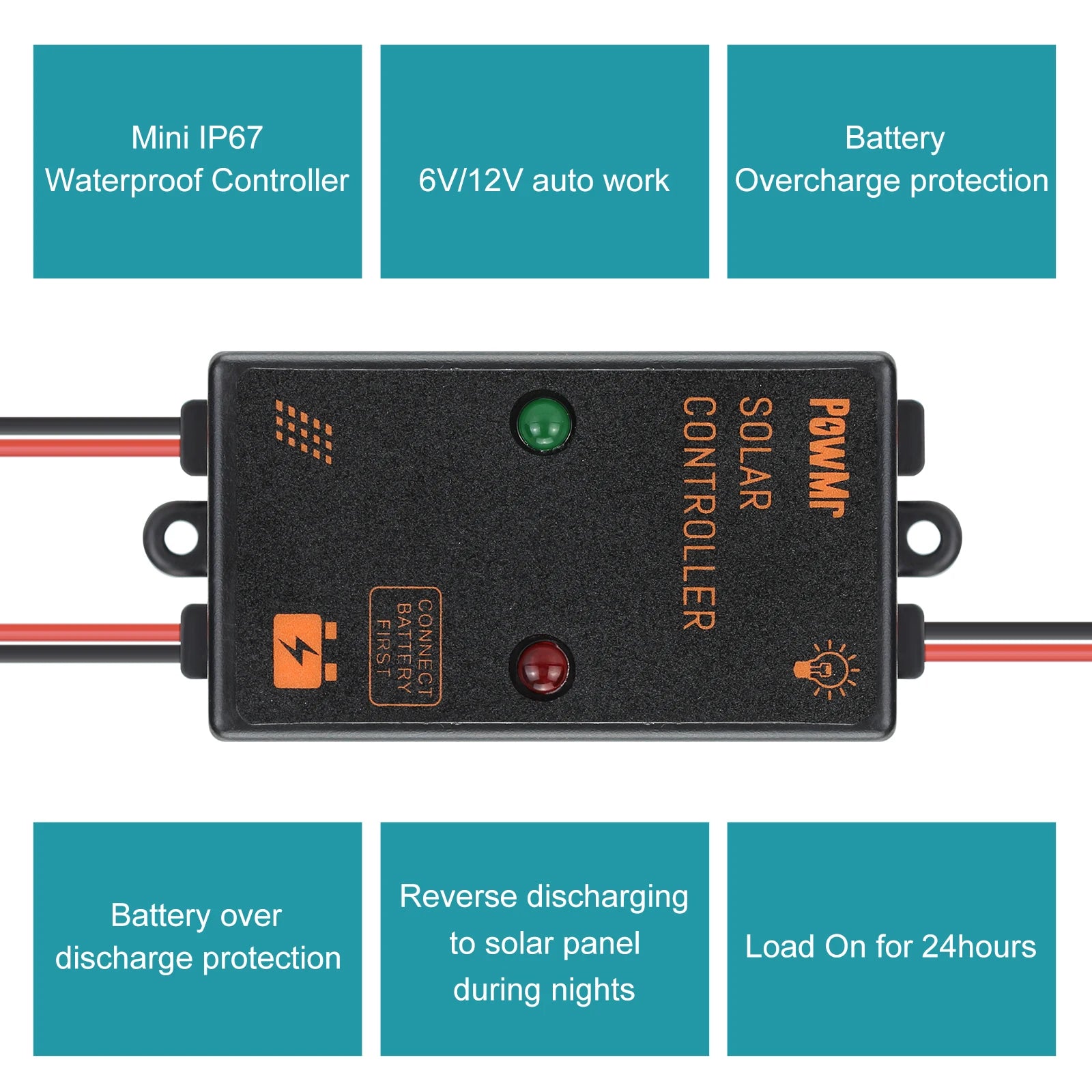

PowMr 5A 10A Solar Charge Controller 6V/12V/24V Auto Adapt MPPT Regulator PWM PV Panel Waterproof IP57 IP68 Can Work for 24 Hours

Introduction:

PowMr Waterproof Solar charge controller with built in high quality, high reliability components of ST, IR and Infineon, adopts the most advanced digital technique. The controller can extend the battery life with build-in 4-stage PWM charging program. It is equipped with various of protection function such as over-charge protection,over discharge protection ,over-load protection,reverse current protection, continue working for 24 hours.Ensure it more safe and more power saving for household system, solar street light, solar garden lamp etc.

Feature:

1.6V/12V(5A), 12V/24V(10A) auto identify positive ground.

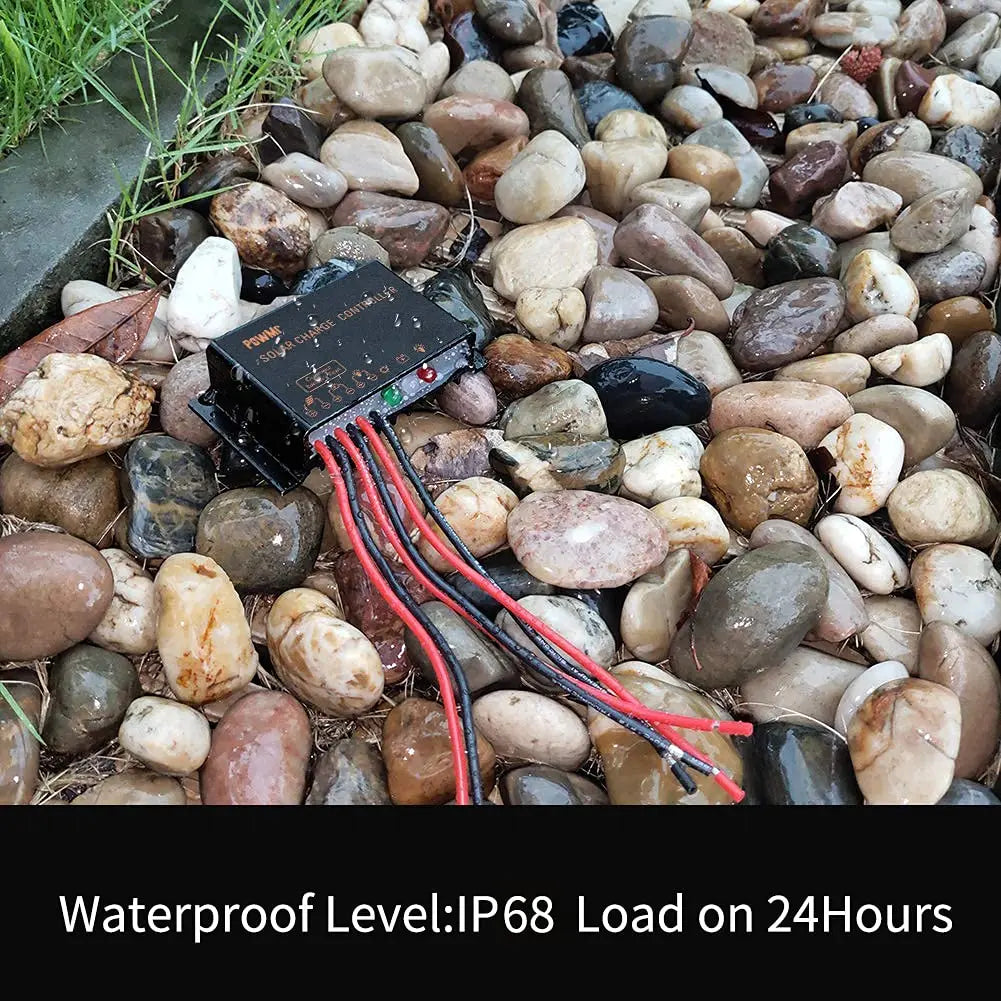

2.5A:IP57 waterproof degree. 10A:IP68 waterproof degree.

3.Intelligent 4-stage PWM charging.The PV can convert light energy into electric energy stored in batteries which will be protected by the solar controller.

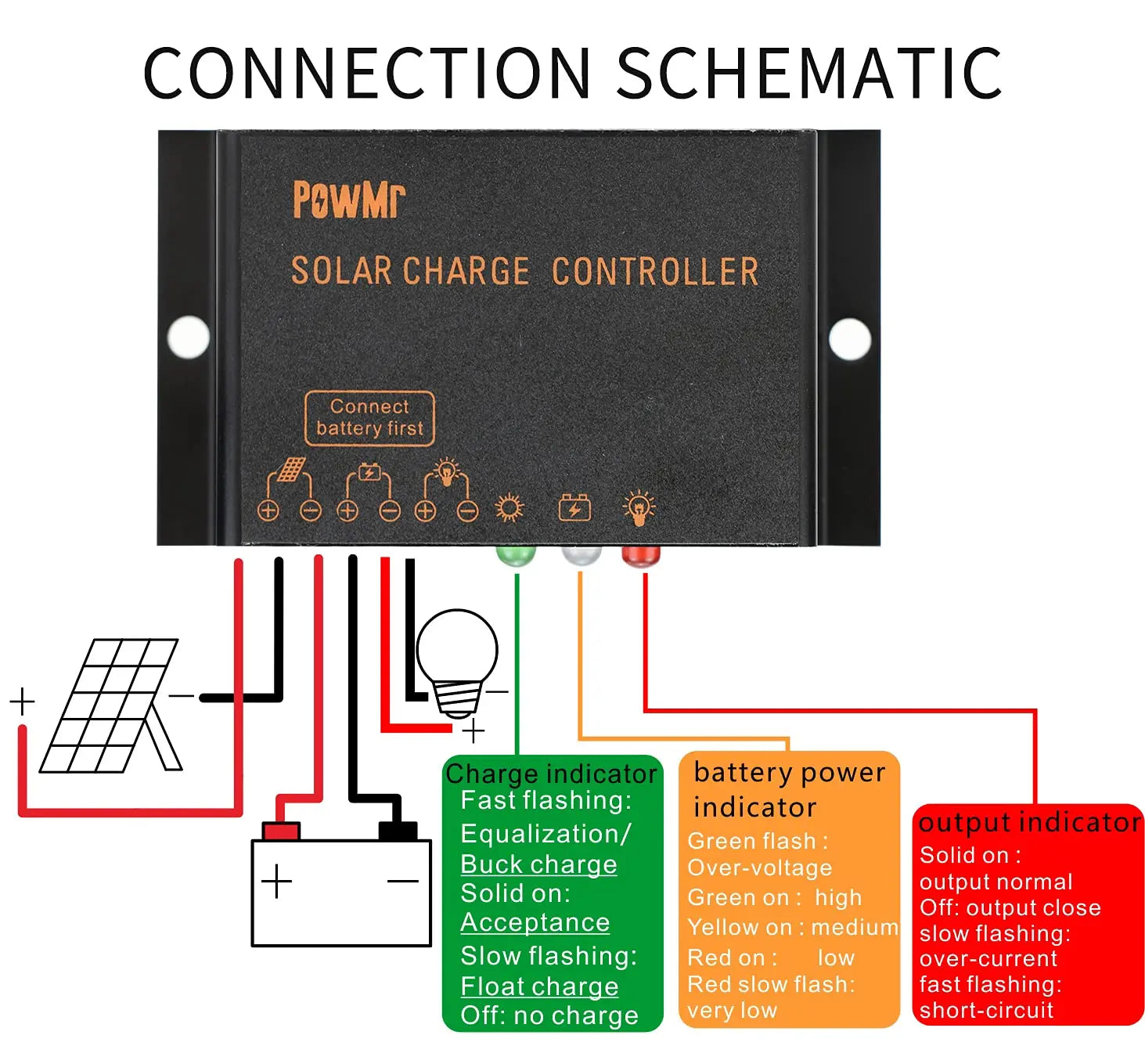

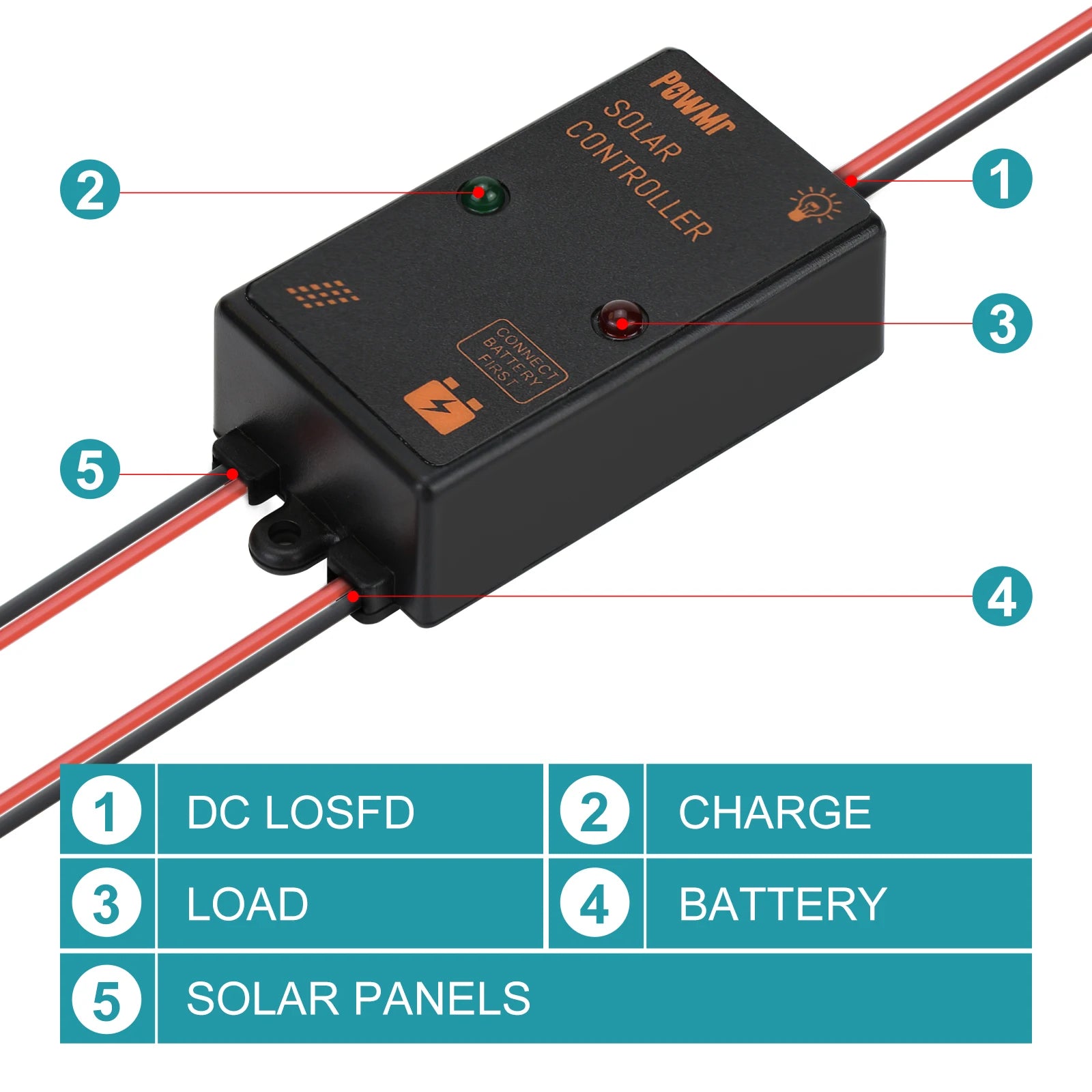

4.EASY TO MONITOR THE LED INDICATOR LIGHTS - The solar controller integrates Three LED indicator lights: green (Charge indicator), White (BAT power indicator) and Red (Output indicator).

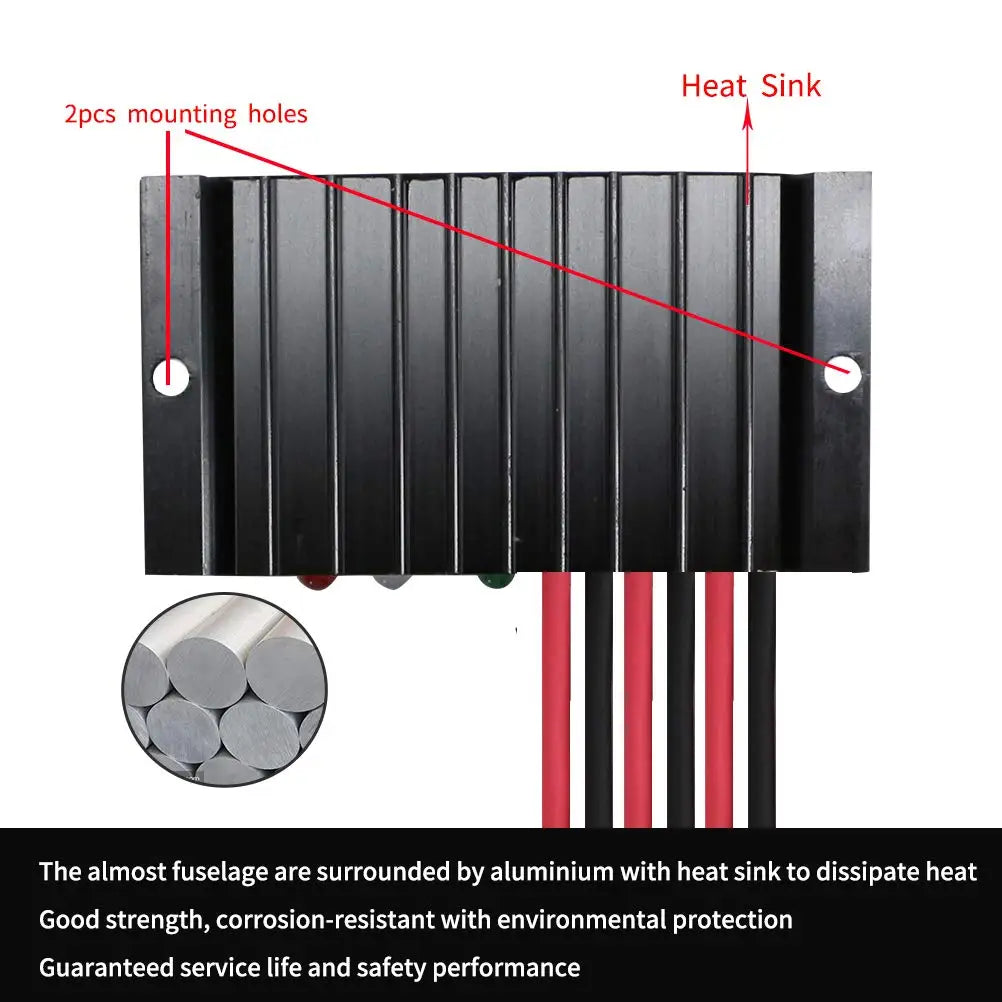

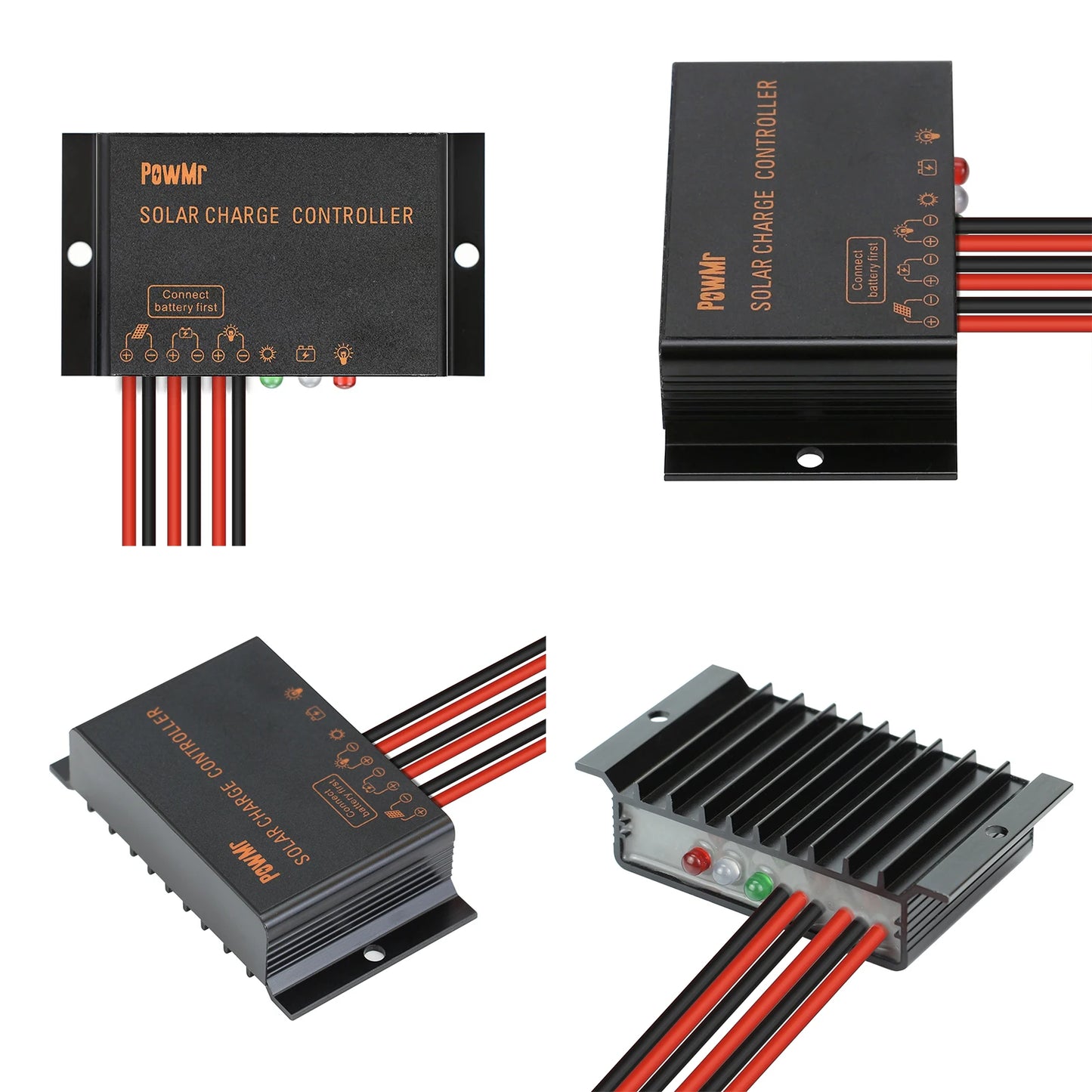

5.Easy to mount directly to the frame of PV,the almost fuselage are surrounded by aluminium with heat sink to dissipate heat.

6.The charge controller provides short-circuit, open-circuit, over charge, overload protection, as well as Dual MOSFET Reverse current and low heat protection.

1. Prevent the battery from over charging, over discharging and Reverse discharging to solar panel during nights.

2. Controller will start the lighting system in the evening automatically according to the surrounding luminance.

3. Controller can automatically shut down the lighting system:

A: Automatically shut down the light at dawn when battery is full.

B: Automatically shut down the light when battery is low.

The mode has been set inside the controller before exit the factory.Do ask for further more information from your distributor.

Specification:

Product Overview:
