Product selling point:

1. Using high-quality materials, the quality is guaranteed

2. Stable performance

3. Input overvoltage, undervoltage protection, input overcurrent protection

4. Over-temperature protection of the whole machine

5. Output overcurrent and short circuit protection

6. Wide range of applications, suitable for all kinds of power supply transformation fast charge output

parameter:

Input voltage: DC 8~32V

Output voltage: automatically adjust between 3~12V when connected to a TYPE-C compatible power receiving device (the input voltage should be higher than the output voltage, if you want to trigger 12V fast charging, the input voltage should be higher than 12V)

Output power: maximum 30W (5V3.5A, 9V3A, 12V2.5A, etc.)

Conversion efficiency: 92%~97%

Output voltage ripple: < 200mV

No-load current: <2mA

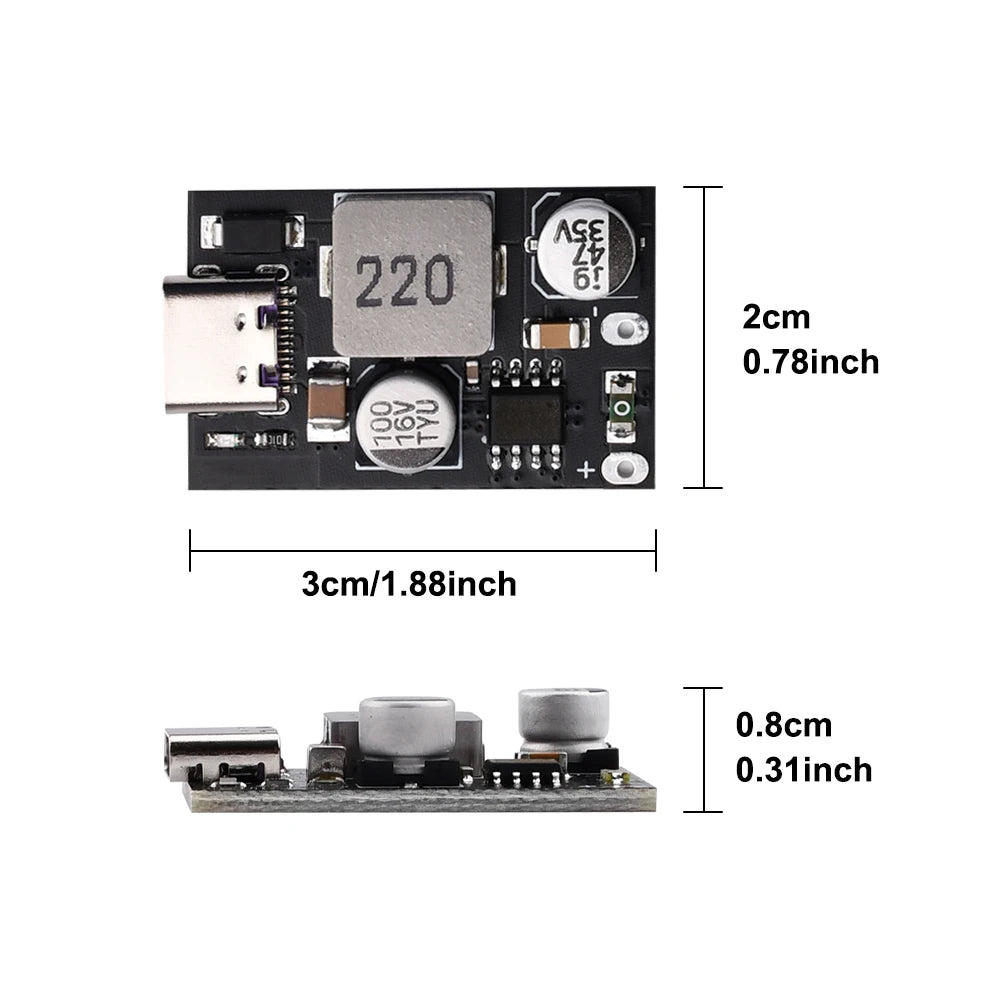

Product size: 20*20*8mm (excluding the protruding 1mm of the C-mount female seat)

Supported charging protocols:

1. BC1.2 protocol

2.QC2.0 and QC3.0

1. Fast charging protocol FCP and SCP

2. Fast charging protocol AFC

3. MTK PE+1.1 and MTK PE+2.0

4. PD2.0/PD3.0 (PPS) output protocol

7.PPS supports 3~11V, 20mV/step

Package list:

Fast charging module*1
