Description:

Input voltage: DC 3 V to 6 V

Input current: 2 A - 5 A

High pressure type: the type of pulse current

Output voltage: 400000 v(Please pay attention to safety)

High pressure discharge distance between: 10 mm - 20 mm

The output high voltage wire length: 100 mm

Input power cord length: 100 mm (the red line is positive)

Wiring:

Red and green power connection red line:"+" green line "-"

output : the other side ,same color cable

Please notice:

the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )

Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module

Module use note:

1 High voltage module should avoid the use of high voltage no-load, power must be

adjusted before the high voltage line end of the right distance, high voltage wire drawing

distance and the use of battery voltage and capacity is proportional to.

2 The test arc distance from short to long experiment, when the power is prohibited

beyond the longest arc distance, due to the high pressure energy can not be released,

very easy to damage the module.

3 The power of the module, the internal heat is not heat, so not a long time to work.

4 The method to determine whether the battery capacity can drive the maximum output power is to measure the battery voltage during arcing. If you are around 6V, you can output the maximum power.

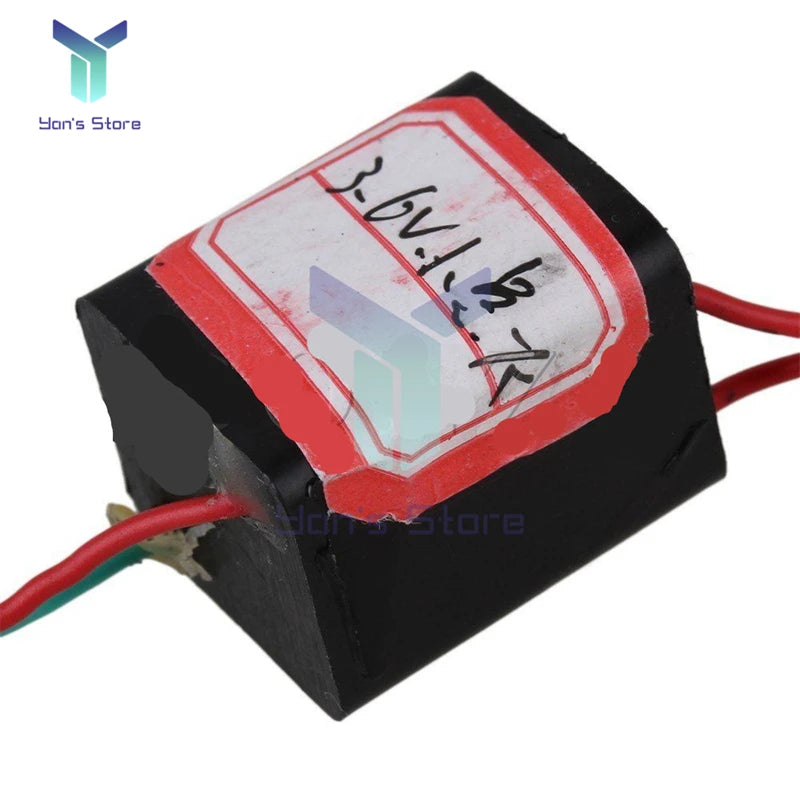

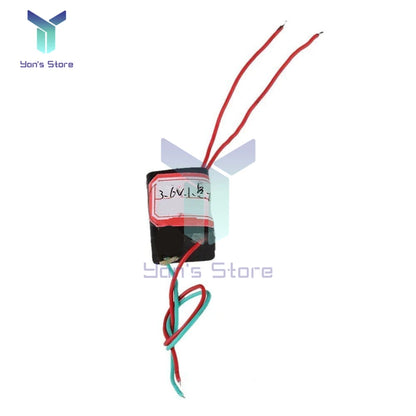

20KV

Features:

Double high-voltage cables can be ignited by cigarette paper, and a high-voltage line is available at Metallkoerper to support current and no sound.

The module can be used as high school scientific experiment equipment, electronic equipment, negative ion generator, used for scientific hours using high voltage source.

About performance:

Single 18650 or idle mobile phone battery (remove the protection board, the position above 2000mAh, planned capacity).

note:

1. The high-voltage module should avoid no-load high-voltage current. The power must be set at a suitable distance from the high-voltage output line Batteriekapazitaet proportional distance and use high-voltage arc (unprovided voltage as high as possible enough to have power).

2. Experimental test from short to long arc distance. Without the maximum arc distance used by the step power, the energy cannot be released, and the module can be easily damaged due to high voltage.

3. Due to power, internal heat is not easy, and each working time should be set within 5 seconds.

Specification:

Material: metal, plastic

Color: black

Dimensions: 19 × 20 × 18 mm (length x width x height)

Weight: 19 grams

Input voltage: DC3.6V-6V

Input current: 1.5A

Output voltage: (Please pay attention to safety when using) DC20KV

Output current: 0.05A

Input line length: about 1.1 mm (red is positive)

Ausgangsleitungslaenge: about 110 mm

High voltage bipolar discharge distance: 5 mm

Elegant Art: Pulse Current

Structure: high integration, low voltage

Package Included:

1 × 20kV boost power supply module

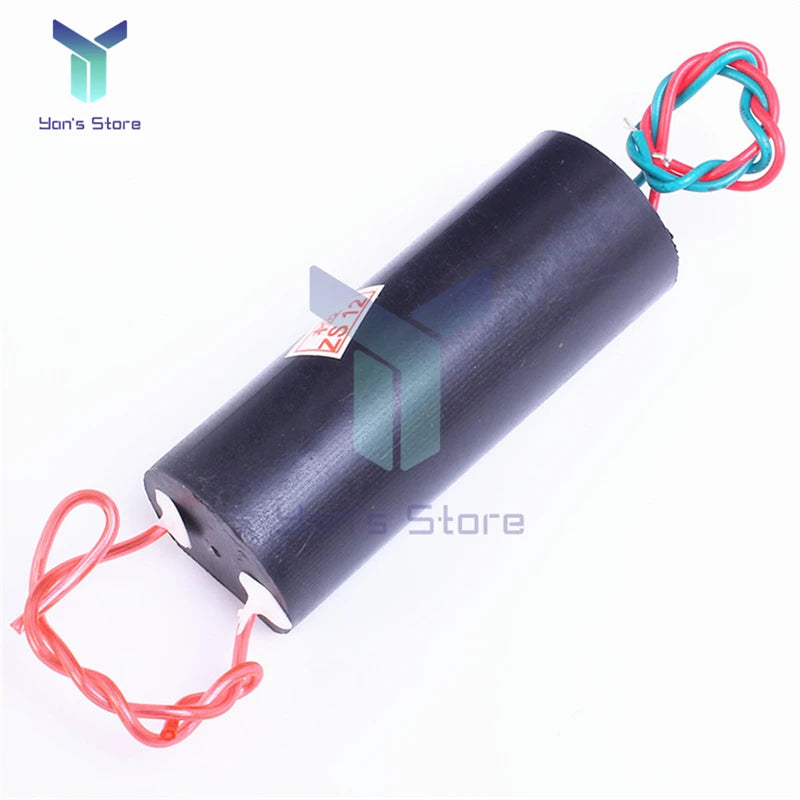

50KV

Product description:

1. Model: MC-105

2. Length: 64 mm

3. Diameter: 24 mm

Plane diameter: 21mm

5. Input voltage: DC 3.7-6V

Input current: 2A-3A

Input wire length: 10cm

8. High voltage form: pulse DC type

9. Output voltage: 50kV

Output current: 0.05A

11. Length of output line: 8cm

12. High voltage polarization discharge distance: 1-2cm

13. Usage: red and green lines are input ports, red line is positive, green line is negative, the other two high-voltage lines are output ports; fixed high-voltage line ports are at an appropriate distance; input port and battery can be connected to achieve high voltage arc

14. Input power: You can use a single 3.7V lithium battery or 2S in parallel, such as 18650 battery, etc.

Package Included:

1 x 50kV high voltage pulse generator super arc pulse ignition coil module

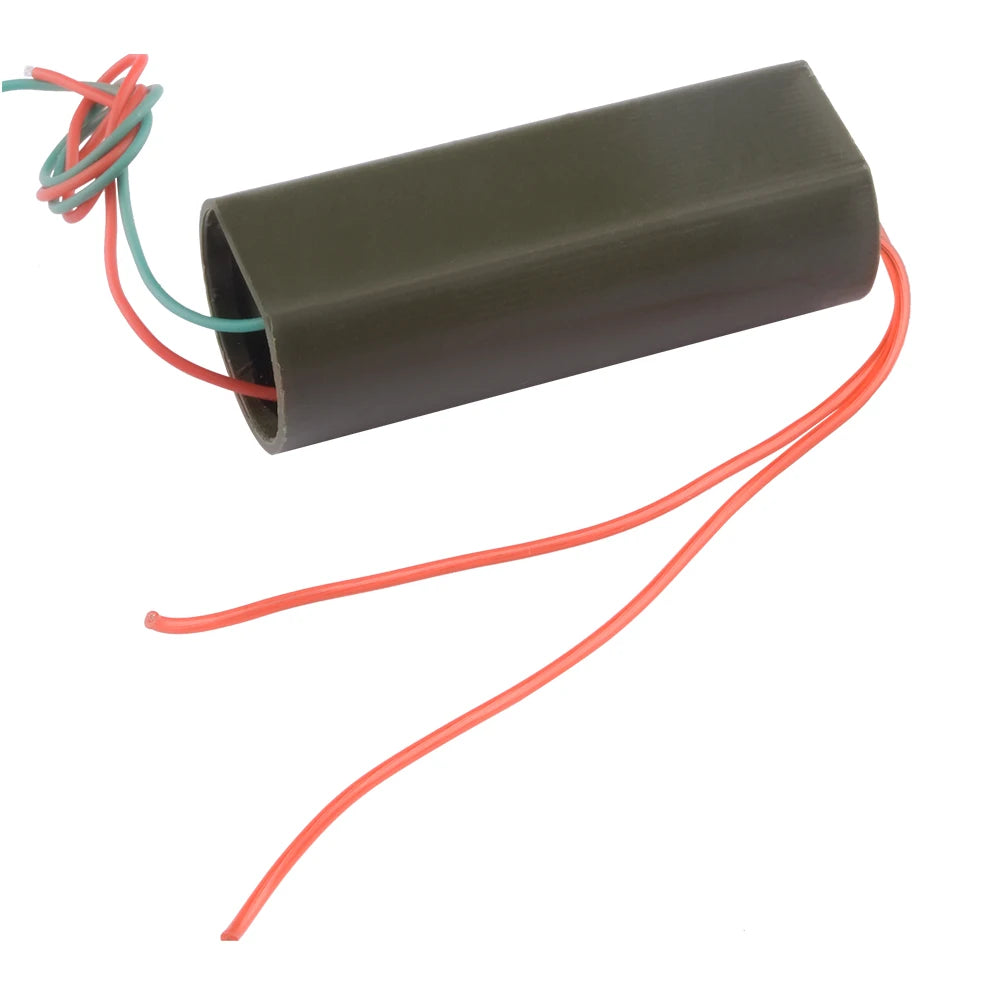

400KV

Description:

Input voltage: DC 3 V to 6 V

Input current: 2 A-5 A

High voltage type: type of pulse current

Output voltage: 400,000 V (please pay attention to safety)

The distance between high voltage discharge is 10mm-20mm

Output high voltage wire length: 100mm

Input power cord length: 100 mm (red line is positive)

wiring:

Red and green power supply connected to the red wire: "+" green wire "-"

Output: the other side, the same color line

caution:

High-voltage modules should avoid the use of high-voltage no-load power. (The power supply must be adjusted to the appropriate distance of the high-voltage output line, the battery capacity is proportional to the distance and the use of high-voltage arc (without applying voltage as high as possible, you must provide sufficient current). Experiment from short to long arc distance test, do not exceed the maximum Arc distance power, energy, can not be released due to high voltage, it is easy to damage the module).

Work: intermittent, continuous work is not allowed to exceed 1 minute and the output side is not allowed to short circuit. Incorrect voltage and long working time can easily damage the module

Package Included:

1 DC 3V-6V to 400 kV boost 400,000V boost power module high voltage generator

500KV

DC12V DC high voltage pulse generator module ignition coil capacitance arc distance 50mm

12V input, good power, quality, arcing distance, sound shocking, simple operation

Specifications:

Peripheral circuit is simple (just plug in switches, batteries can be) the discharge intensity violent.

Module Model: MCY-12-1

Physical volume: Length 70X 32mm diameter

Input voltage: 6V-12V

Input Current: 0.5A-1A

Input line length: 23 cm

High voltage type: DC type pulse

Output voltage: about 500KV (please pay attention to safety when used)

Output Current: 0.5A-1A

Output line length: about 92 cm

High voltage bipolar discharge distance: 2 cm -5 cm

Features:

This module is a science of small production with high voltage inverter transformer / booster finished module

After the input terminal DC6V-12V voltage can get tens of thousands of volts of direct current high voltage at the output,It can be used for high school science experiment, electronic equipment, negative ion generator, high voltage source when using scientific small production,Module uses the Tesla coil principle is made,

the output high voltage pulse current, small size, high efficiency

Usage:

1. To avoid the use of electricity at high voltage load, must adjust the proper distance

between the front end of the high-voltage power-

2. To test the arc distance from short to long experiment, when power is strictly prohibited exceed

the maximum arcing distance, energy can not be released due to high pressure, easy to damage the module.

3. Power module, the internal should not heat, so we can not work long hours.

4. Determine whether the battery capacity can drive maximum power output of the battery

voltage measurement approach is arcing time. If 6V or so you can output the maximum power.

5. Two small-capacity lithium series is 7.2V, measured in arc-state voltage has dropped to about 4V,

the capacity of the smaller voltage pull lower. It is proposed to use lithium 2000MA above,

the best conditions with more battery 4000MA.

Package includes:

1x DC12V pulse high-voltage module

1000KV
