SPECIFICATIONS

Brand Name: eletechsup

Certification: None

Model Number: DDEN12MB_3400

Origin: Mainland China

Output Current: <1A

Output Frequency: DC-DC

Output Power: 1 - 50W

Output Type: SINGLE

Size: 20 x 15 x 6

Type: DC/DC Converters

Weight: 1.6g

is_customized: Yes

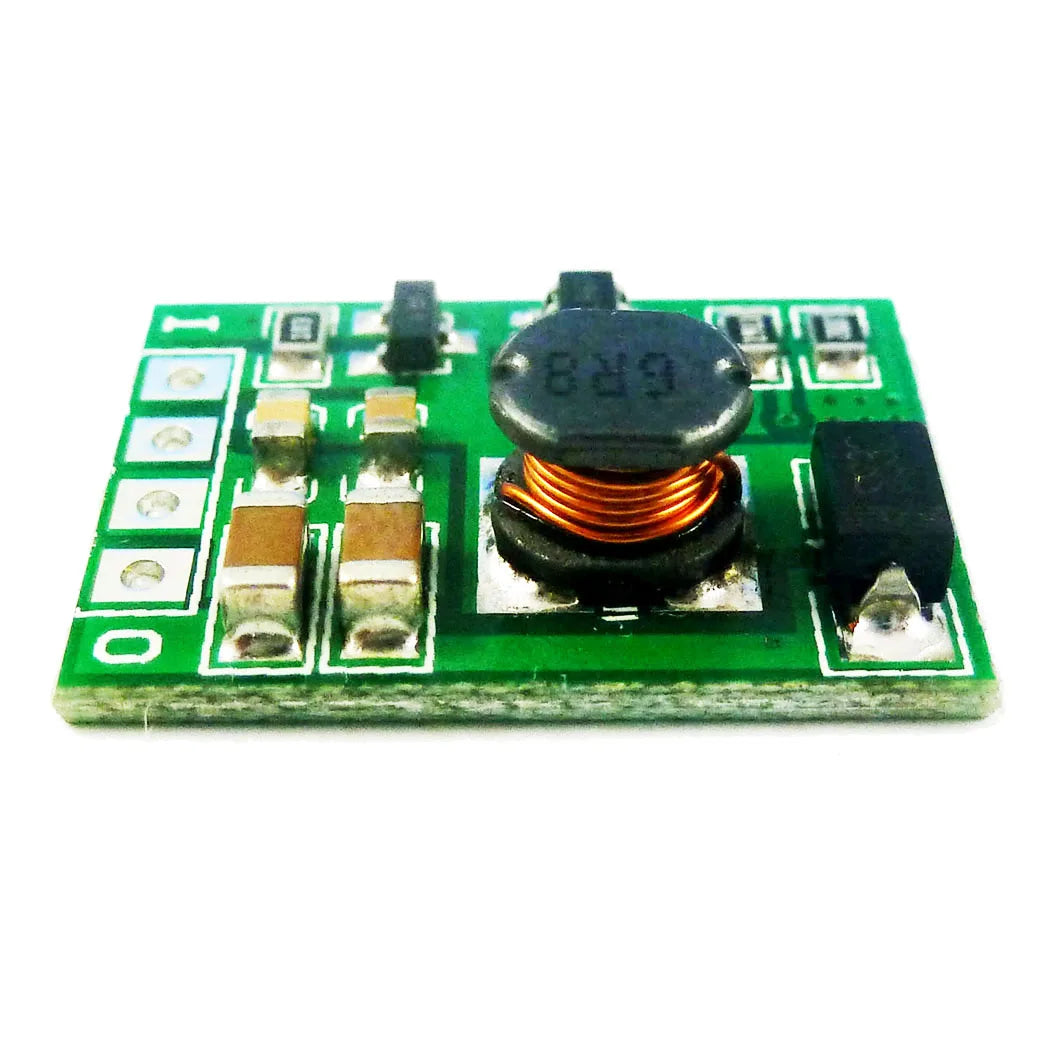

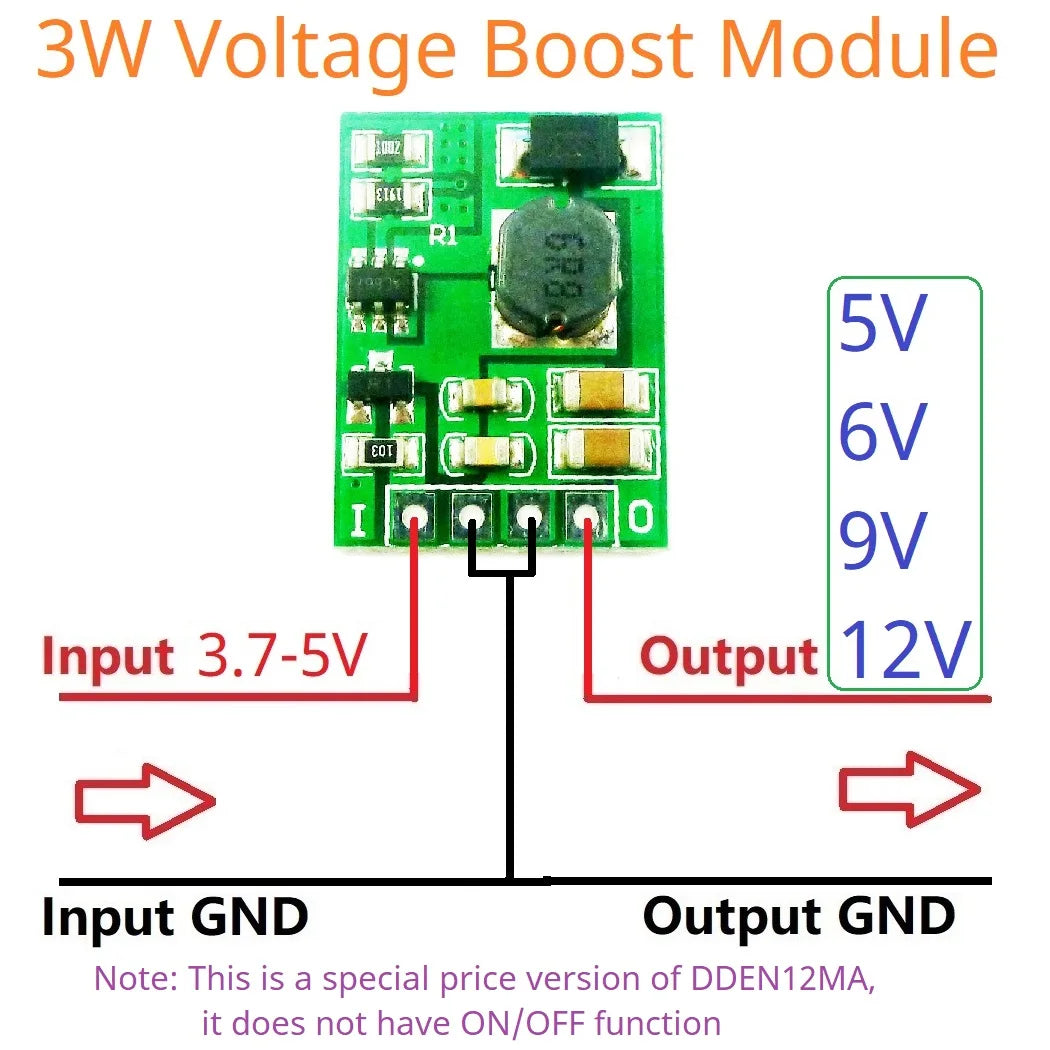

Product Title: DC 3.7V 4.2V to 5V 6V 9V 12V Step-up DC DC Boost Converter Voltage Regulate for Arduino MEGA ESP32 ESP8266











Description:









DC DC Boost Converter Module working frequency 1MHZ.

Up to 84% Efficiency

Quiescent current : Turn on output 0.4mA

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

Size(Does not include pin) : 20 x 15 x 6MM
Weight : 1.5g(no Pin)







Note: This is a special price version of DDEN12MA, it does not have ON/OFF function,The maximum output function is only 3W





Protection :



Over current protection(OCP)



Over voltage protection(OVP)



Short circuit protection(SCP)



Over temperature protection(OTP)

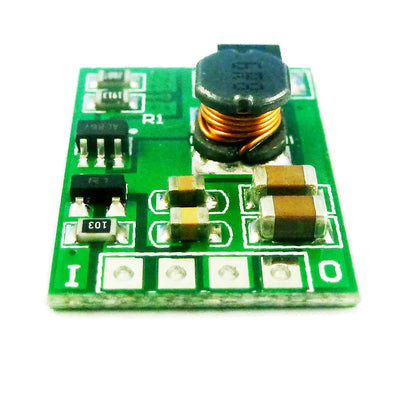

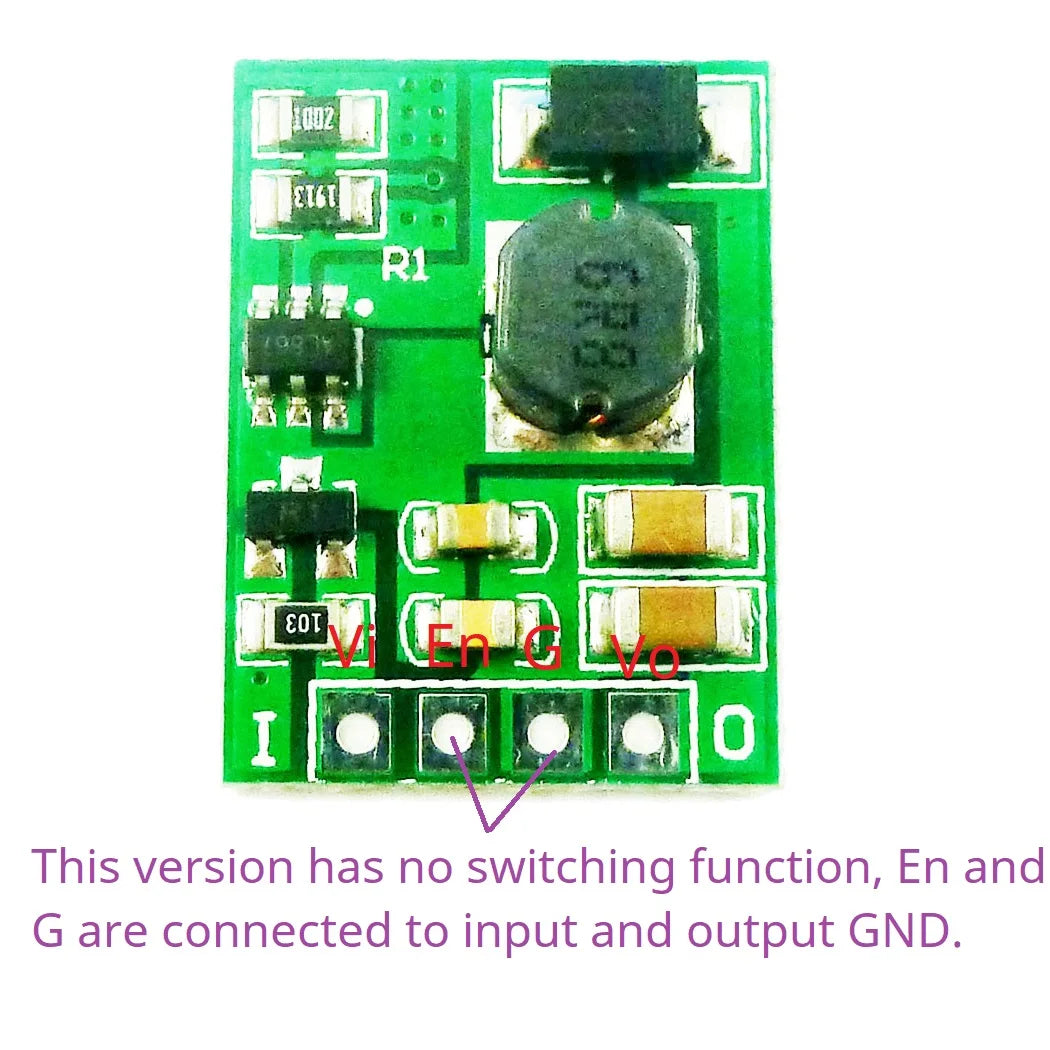

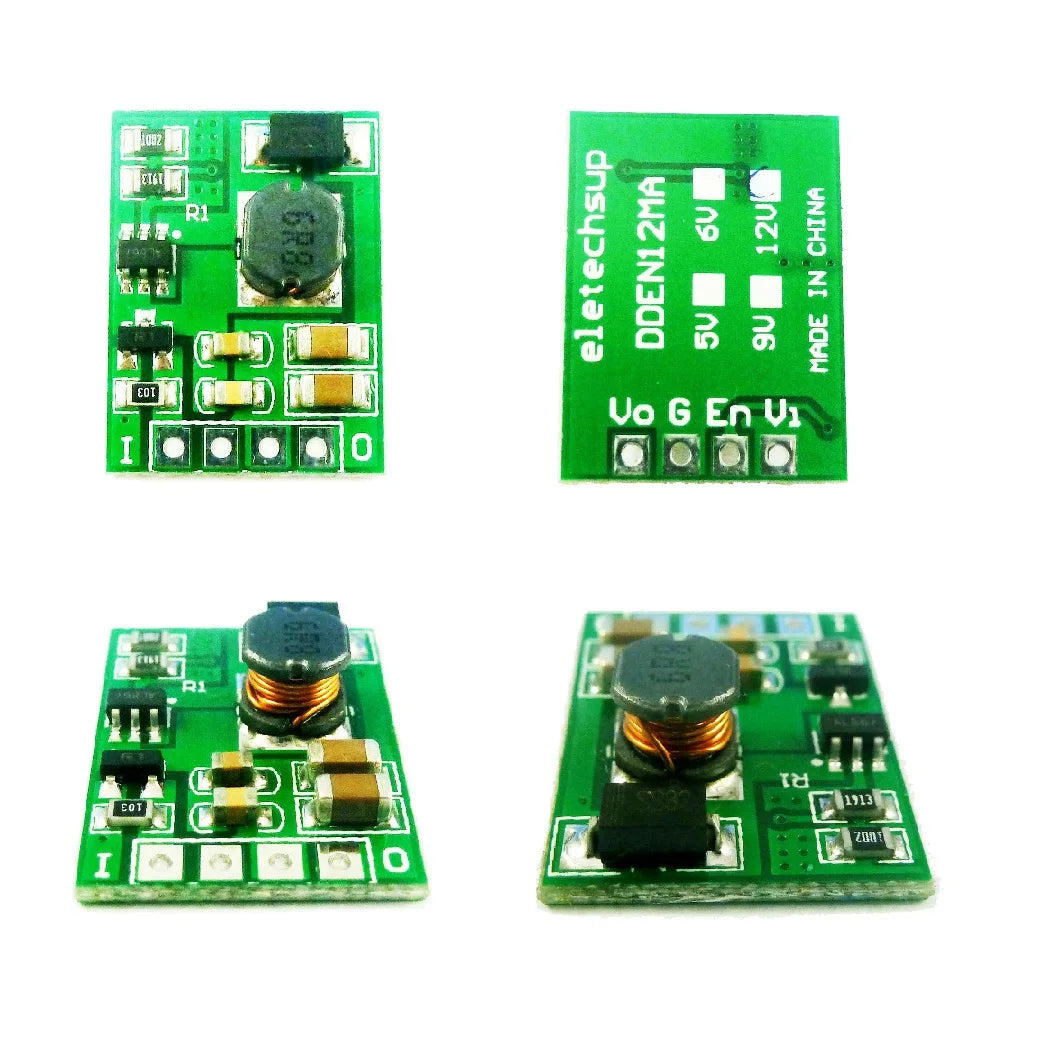

Pin description:



Vi : Input positive(+)
En : This function is invalid and can be connected to GND
G : Input and Output negative(GND/-)
Vo: Output positive(+)

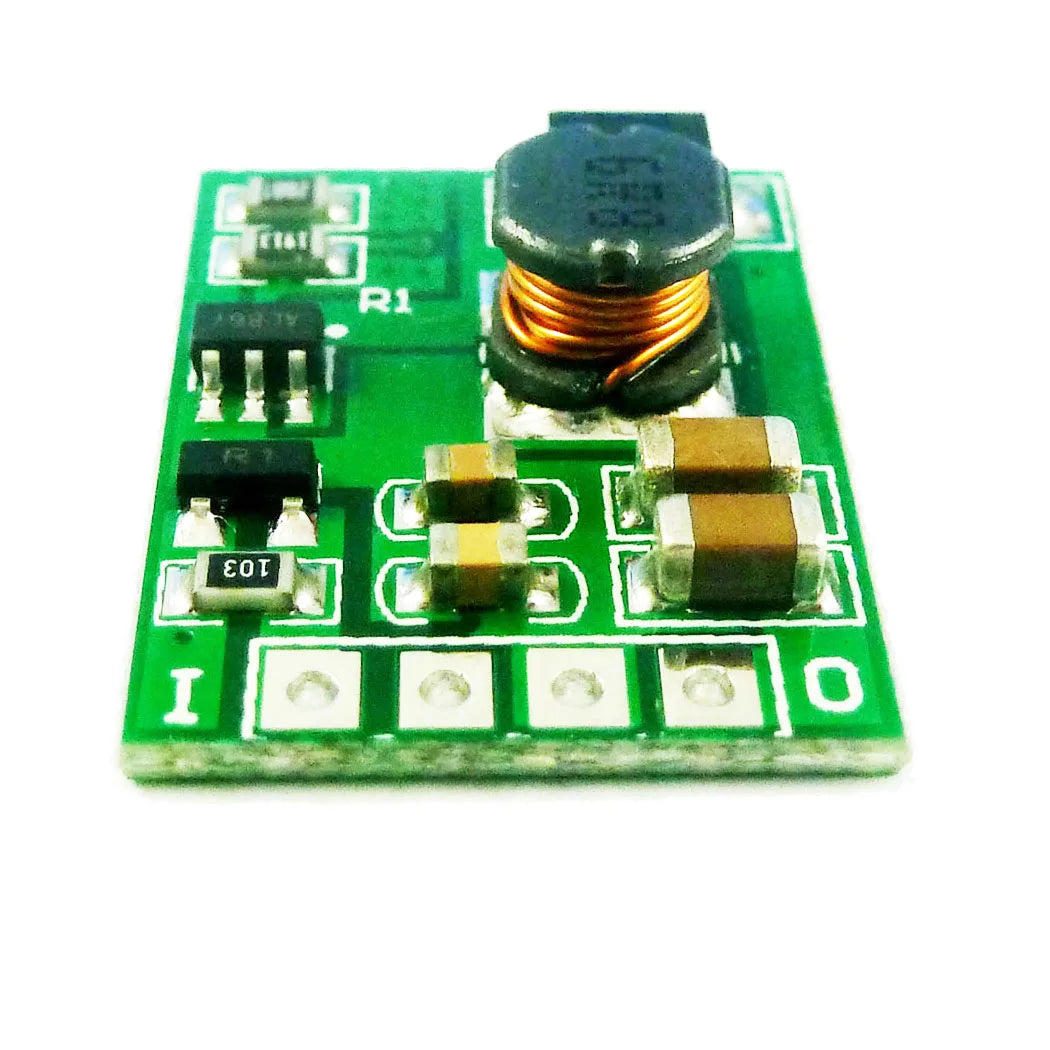

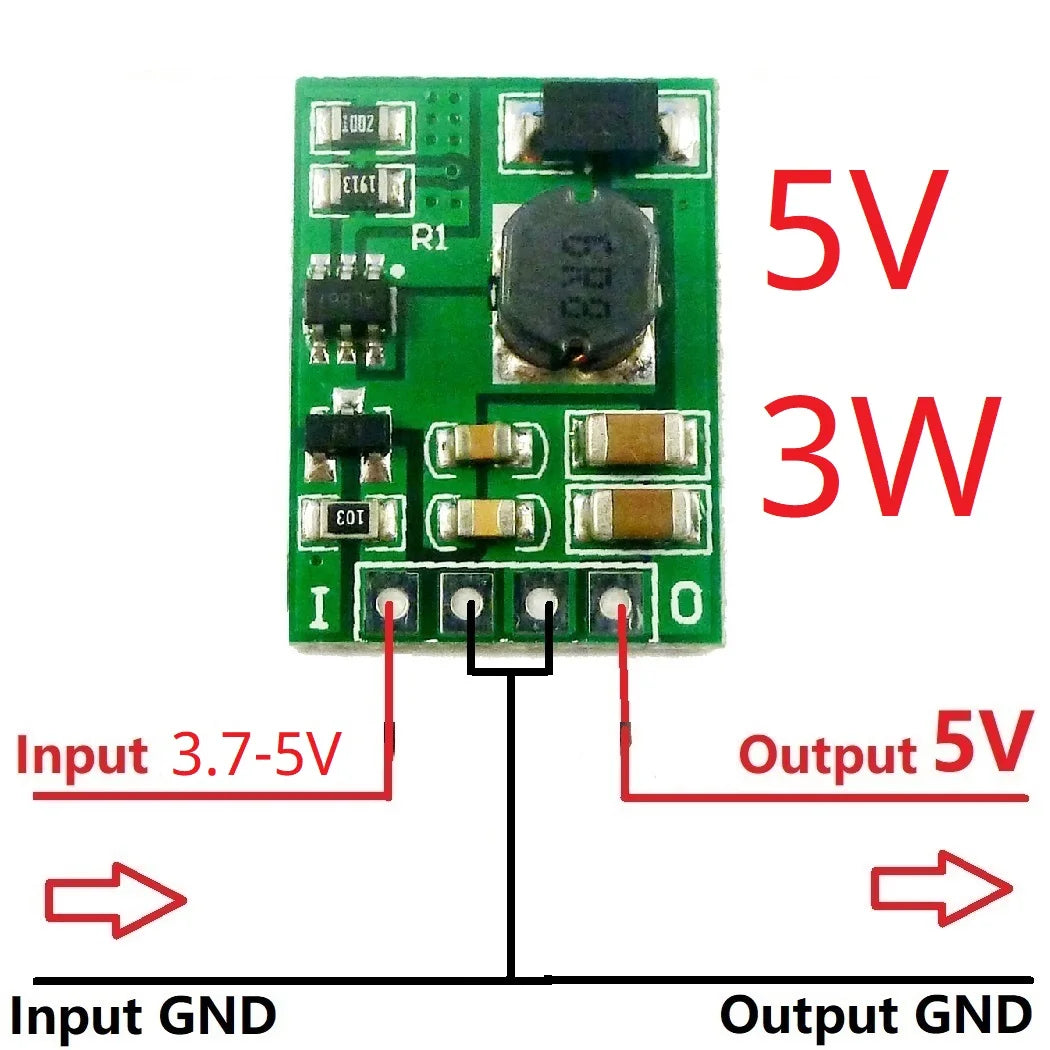

Output 5V :





Input voltage DC 3.7 ~ 5V,output DC 5V±3%



Maximum output : 5V/600MA

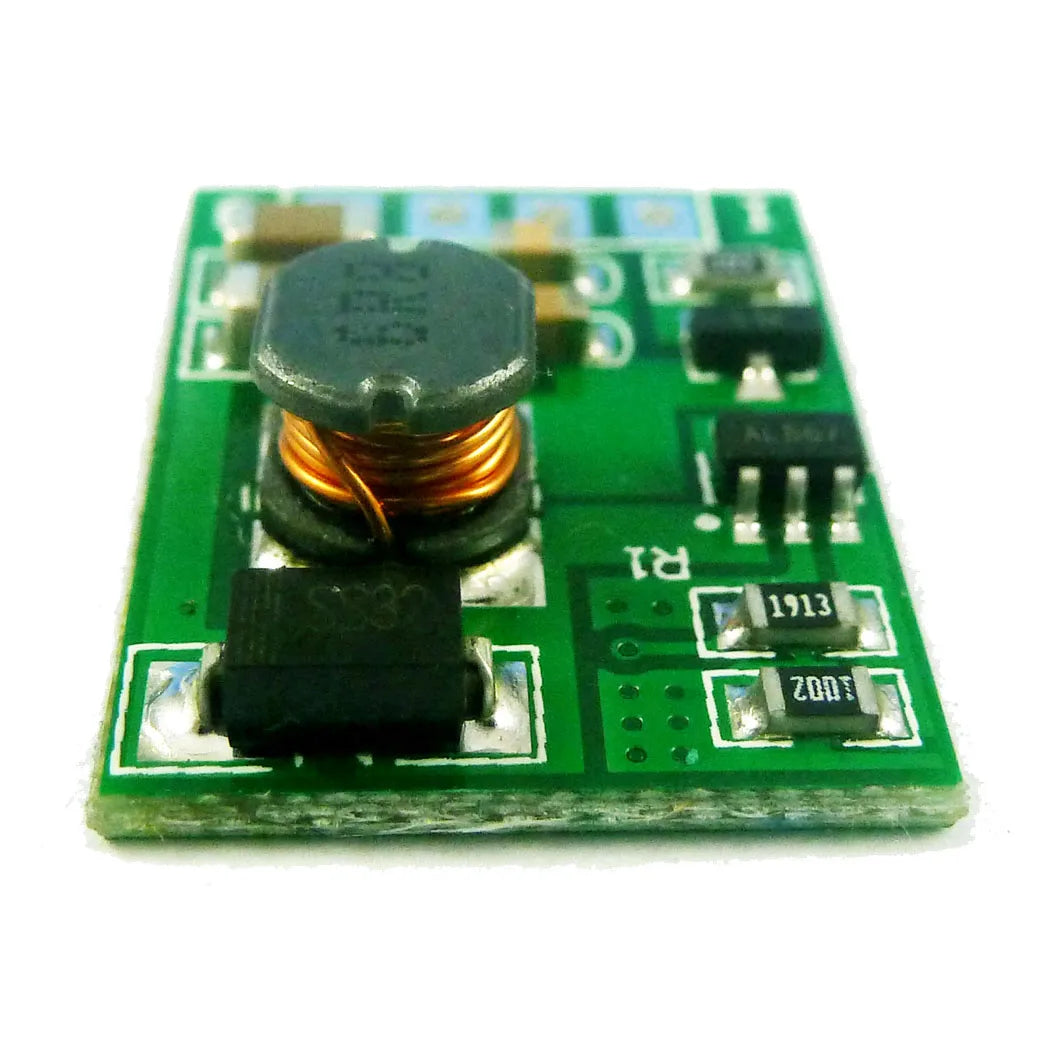

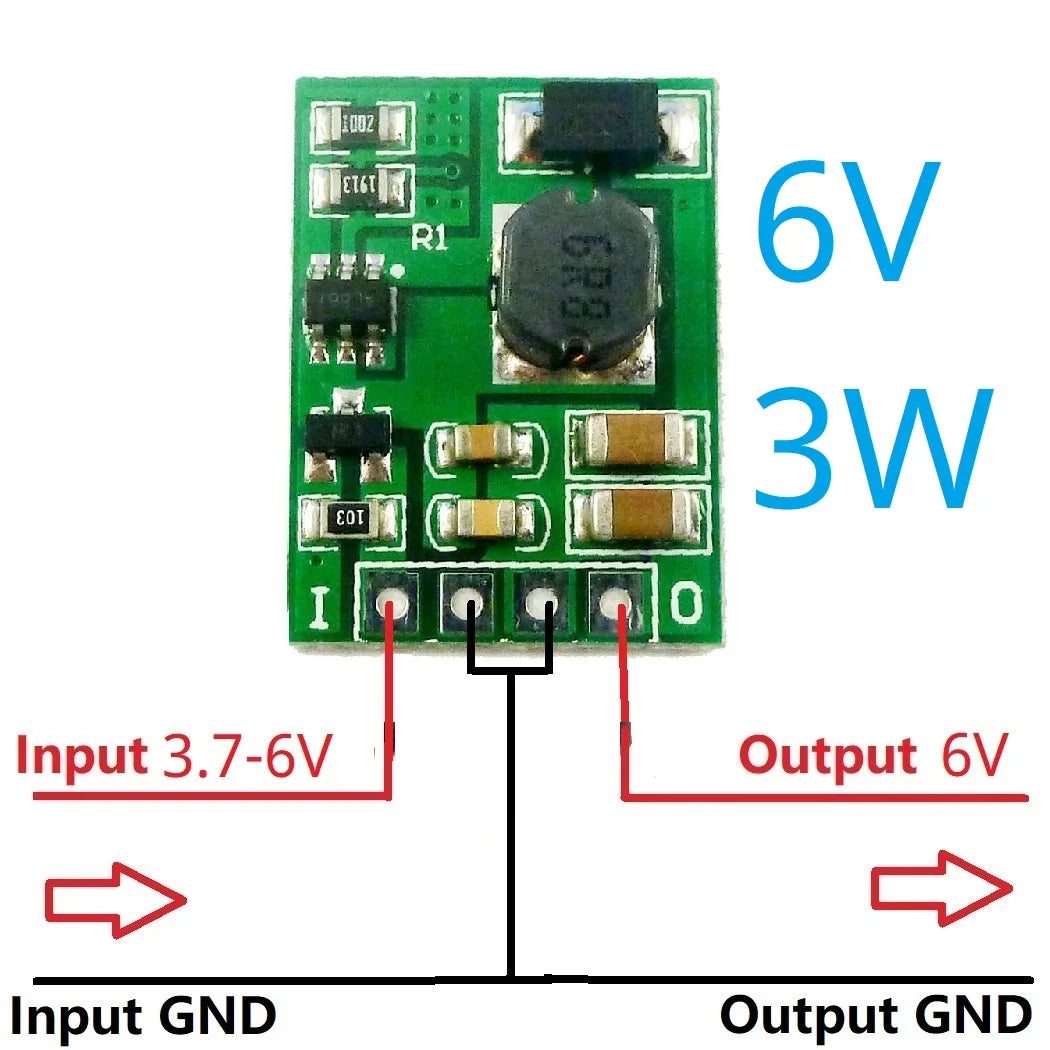

Output 6V :





Input voltage DC
3.7 ~ 6
V,output DC 6V±3%



Maximum output : 6V/500MA









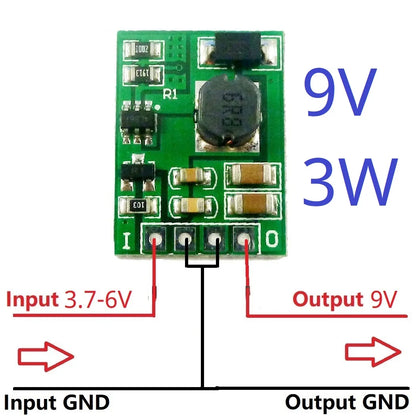

Output 9V :





Input voltage DC
3.7 ~ 6
V,output DC 9V±3%



Maximum output : 9V/330MA

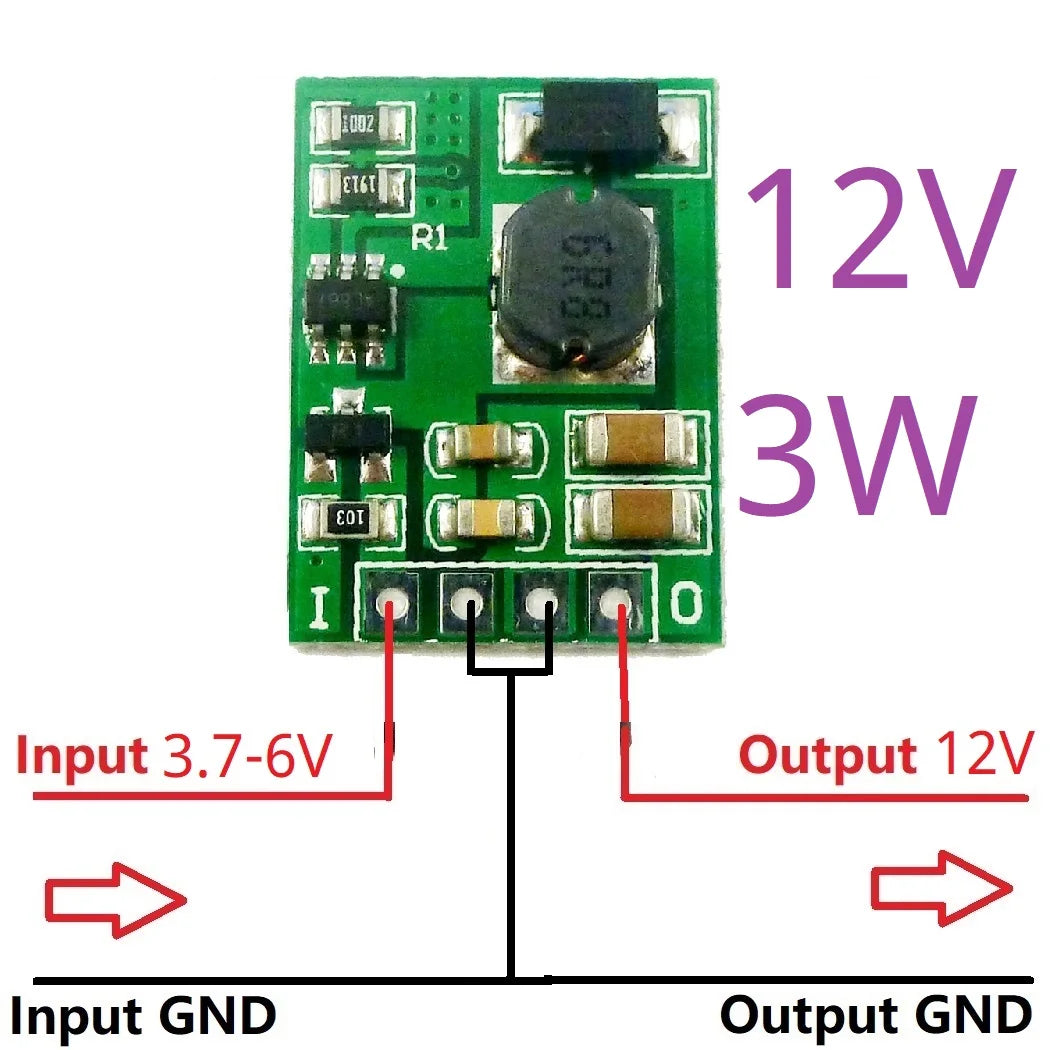

Output 12V :





Input voltage DC
3.7 ~ 6
V,output DC 12V±3%



Maximum output : 12V/250MA







Applications









Battery powered equipment



Instrumentation, multimeter



Small power motors



PTZ Camera webcam



IP Camera



Toy car boat



Model aircraft



power bank



LED Lighting



WIFI Router



PLC RS485 devices
