Golf Cart DC Buck Step-Down Voltage Converter Regulator, Output voltage: DC 30-60V; Output voltage: DC 24V(non-adjustable); Output current: 20A; Output power 480W, Wide input Voltage, easy to place in any applications.
Die-cast aluminum shell, expoxy potting, cooling by free air convection, Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
High conversion efficiency: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; over 100,000 hours lifetime
Waterproof rating: IP68, 100% waterproof , can work in rain, waterproof housing makes the converter ideal for use in a wide range of applications including vehicles, security systems, hospital equipment, telecommunications etc, and Commonly used for radio, speaker system, club car, electric bike, solar panel, led lights.
Wide application: Used on golf cart,club car,bus, cmb, large trucks,taxi radio,motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, DVD, solar panel, electronic systems, industrial equipment and other 12V devices.

The dc converter regulator is a high reliability power transformer. It features wide input voltage, low power consumption, high efficiency, high reliability. It can work safely and reliability in 40°C~80°C. It widely used in industrial, automotive, instruments, telecommunication and civil applications.

Synchronization Rectification Technology,efficiency up to 96% max

Industry grade DC 36V 48V to 24V step-down converter

5 Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operating

Die-cast aluminum shell, epoxy potting, cooling by free air convection

Applications: golf cart, forklifts, bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen, taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc.

Stable and reliable performance,

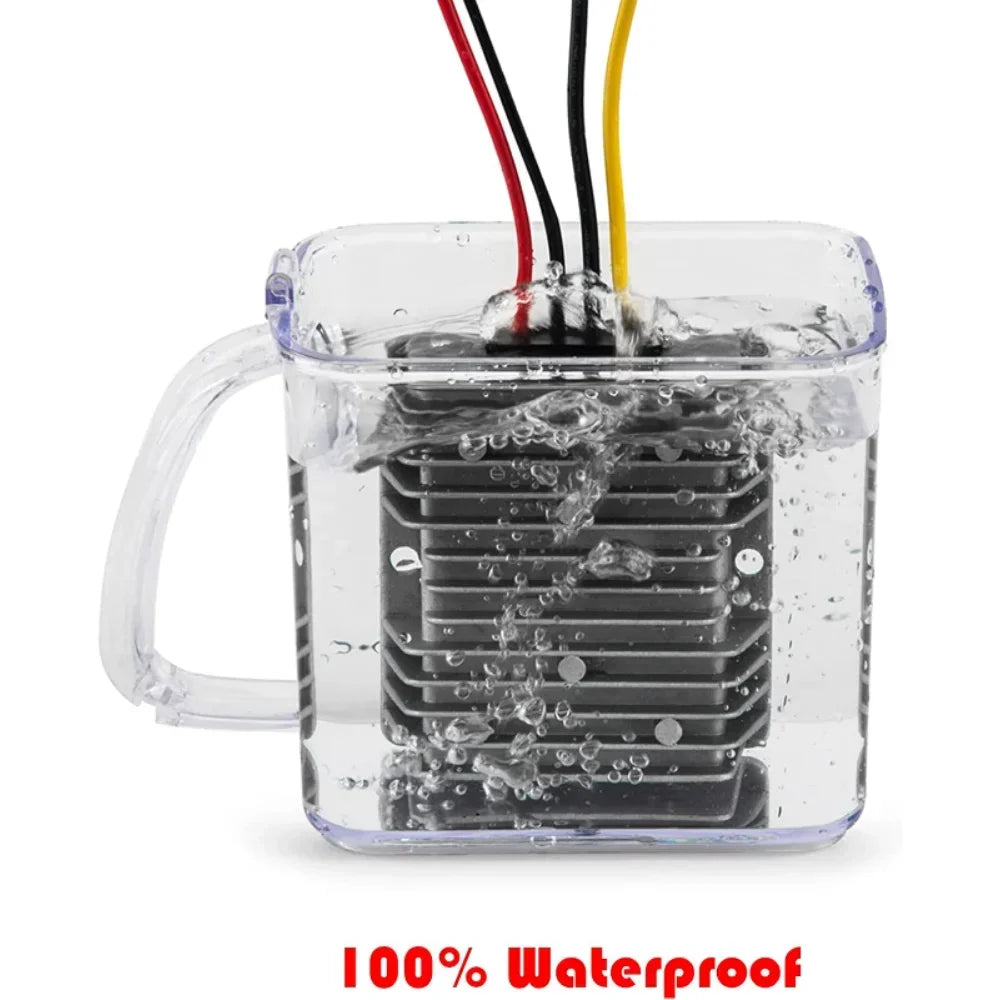

100% waterproof & anti-shock protection, lifetime up to 100,000 hours

Ultra compact size, light weight

Non-Isolated Module

Easy to install

Case material: die-cast aluminum

Potting material: epoxy sealed

Input voltage: 36V/48V DC

Input range: 30-60V DC

Output voltage: 24V DC (non-adjustable)

Output current: 20A

Output Rated Power: 480W

Efficiency: 97% (half load); 95% (full load)

Operating temperature:-40 ~ 85℃

Waterproof rating: IP68

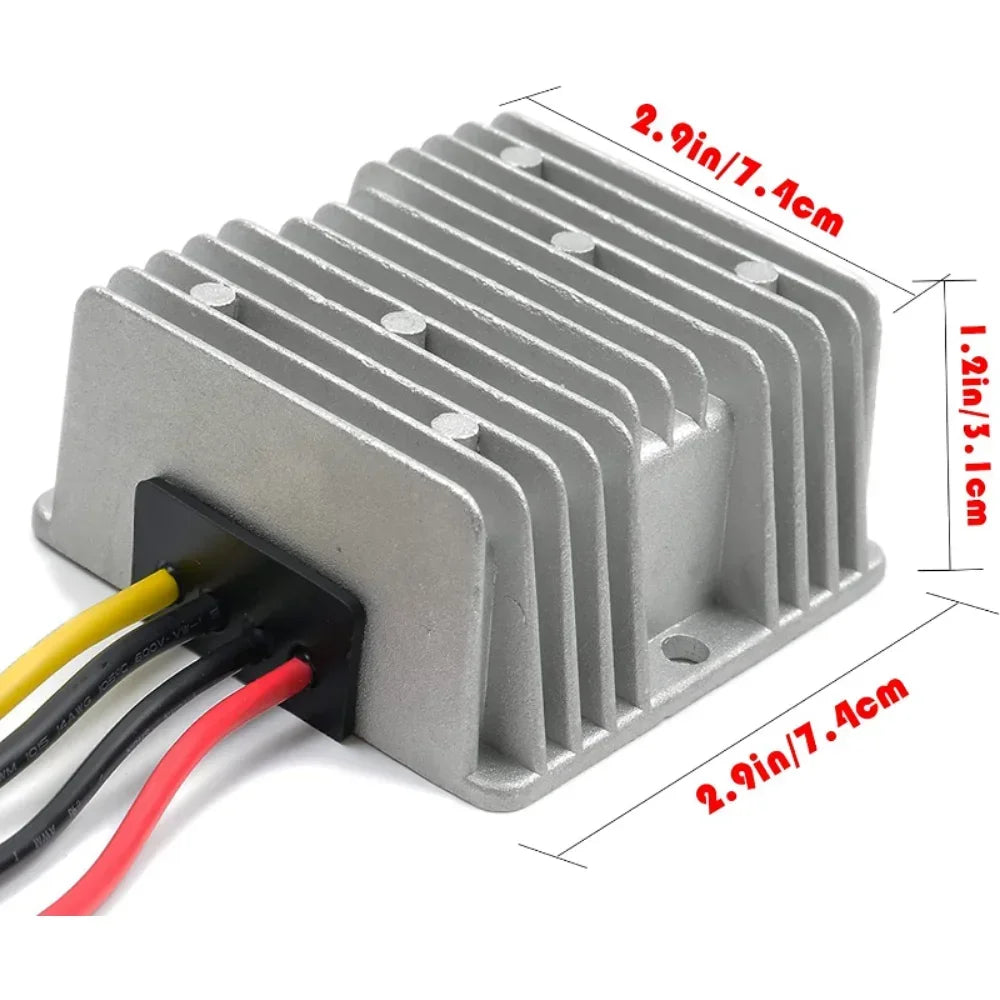

Fixing Hole Diameter: 5mm(0.20 inch)

Package included:

1 x DC Voltage converter regulator

Safety Instructional Manual:

1. Can not used long time Under the MAX. LISTED LOAD POWER.

2. Please connect the converter and your device as the wiring diagram provided on above picture.
