Módulo Generador Alto Voltaje DC 6-15V a AC 10kV-25kV Step-Up Inverter Encendedor Arco Bobina Boost
Módulo Generador Alto Voltaje DC 6-15V a AC 10kV-25kV Step-Up Inverter Encendedor Arco Bobina Boost
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: Aideepen
Hign-concerned Chemical: None
Model Number: AC High Voltage Generator Inverter
Origin: Mainland China
Output Power: 51 - 100W
Output Type: SINGLE
Size: 35x23mm
Type: DC/DC Converters
is_customized: Yes
Features:
1. High voltage output: provide AC 10kV-25kV output, ensure stable and reliable ignition effect
2. Low heat design: 12V power supply natural heat dissipation, support for long time continuous work without burnout
3. Dynamic sweeping arc: automatic arc starting without manual arc, convenient and efficient
4. Overheating protection mechanism: MOS overheating automatic protection, effectively prevent high temperature damage to the equipment
5. Compact size design: small circuit board and transformer, easy to integrate into a variety of equipment
Parameter:

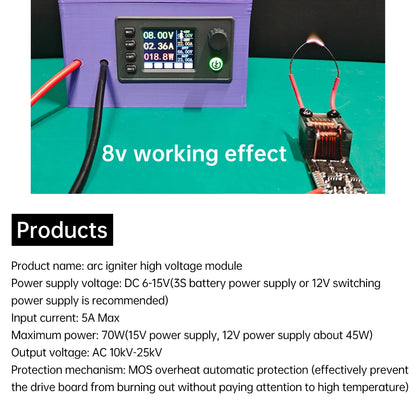

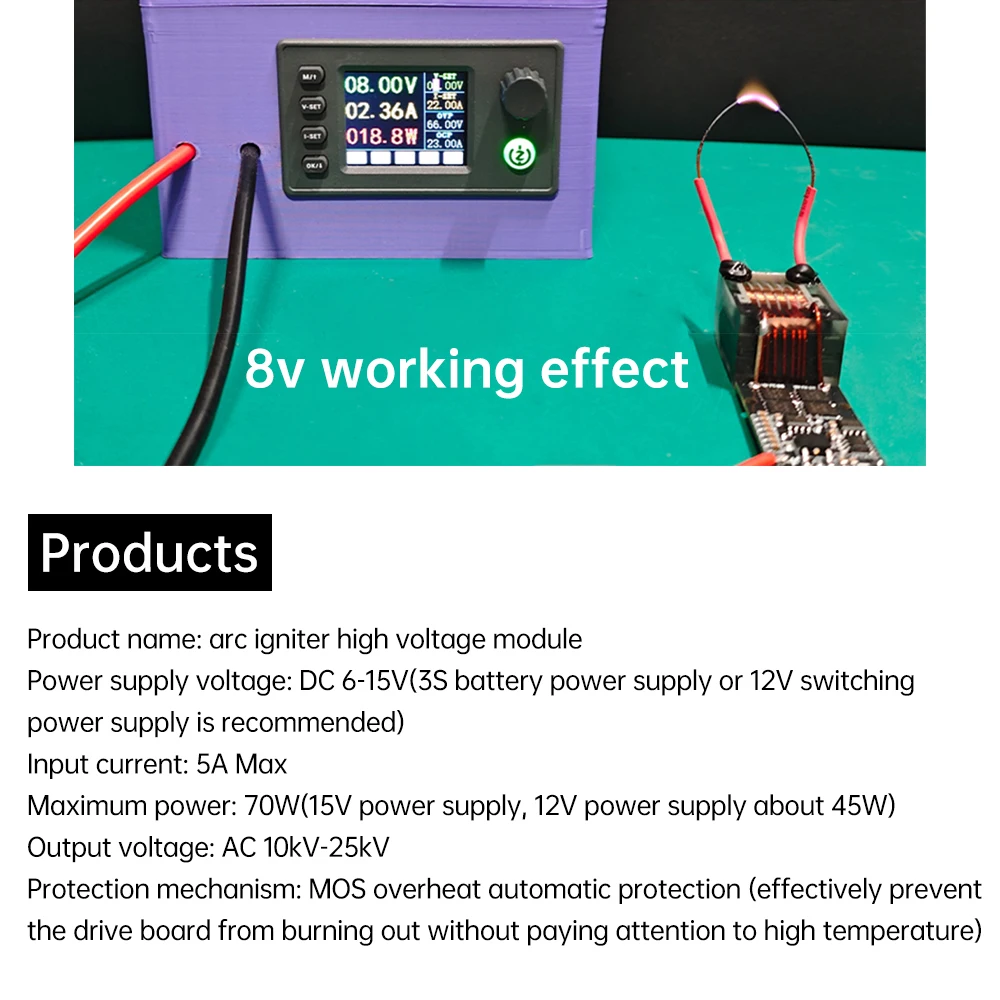

Product name: Arc igniter high voltage module
Supply voltage: DC 6-15V (recommended 3S battery power or 12V switching power supply)
Input Current: Maximum 5A

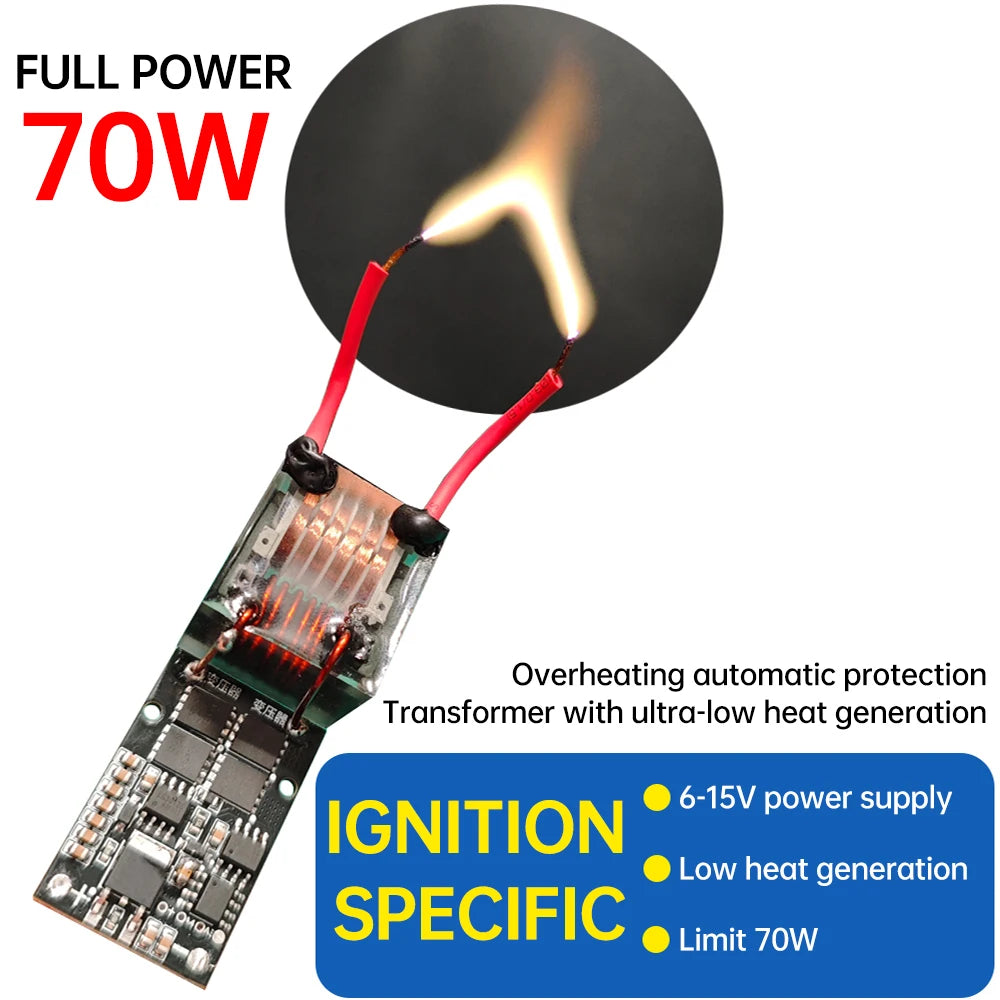

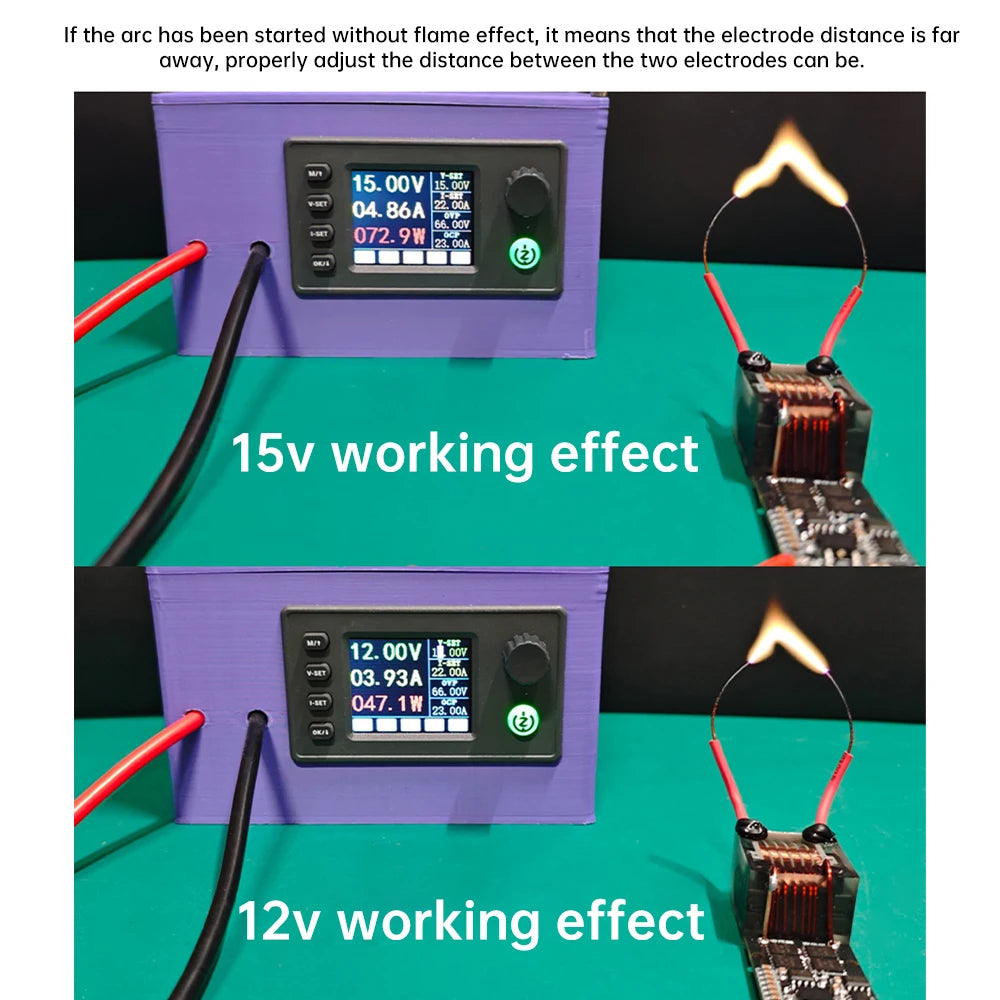

Maximum power: 70W (15V power supply, 12V power supply about 45W)
Output voltage: AC 10kV-25kV

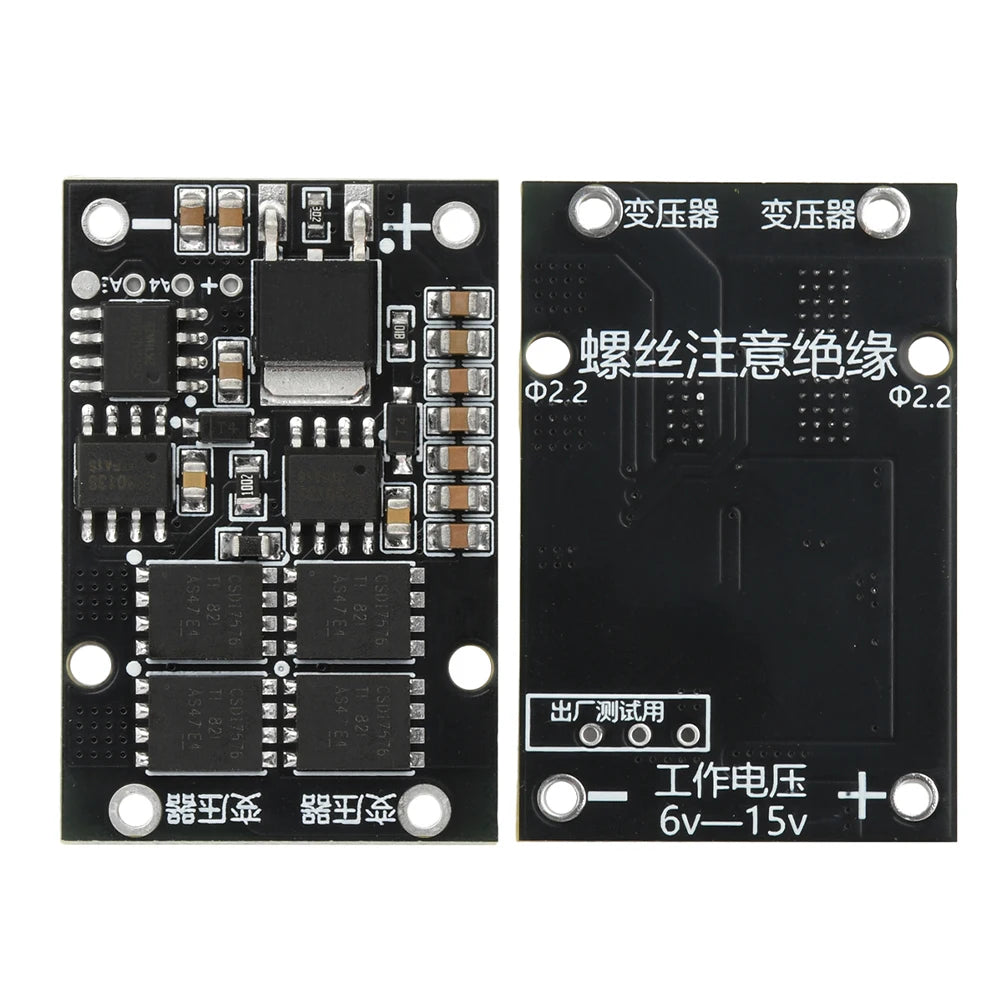

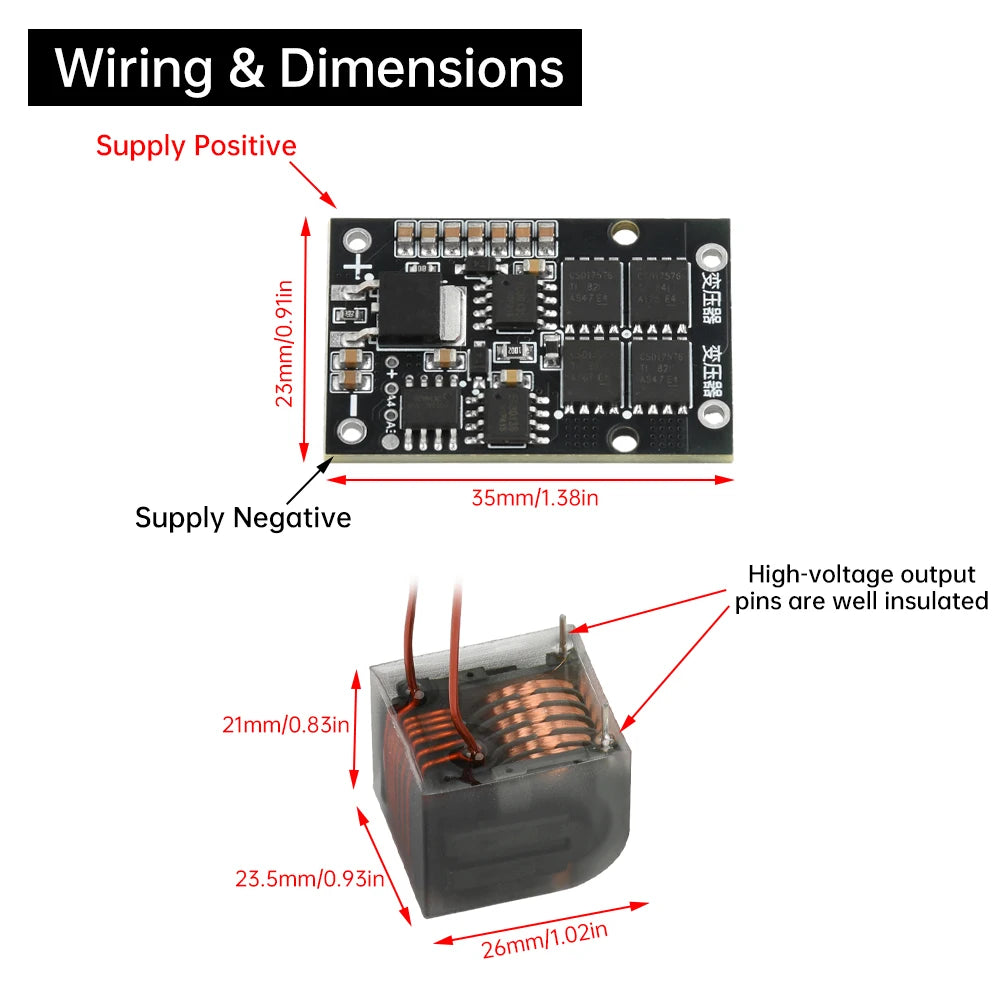

Circuit board size: 35x23mm

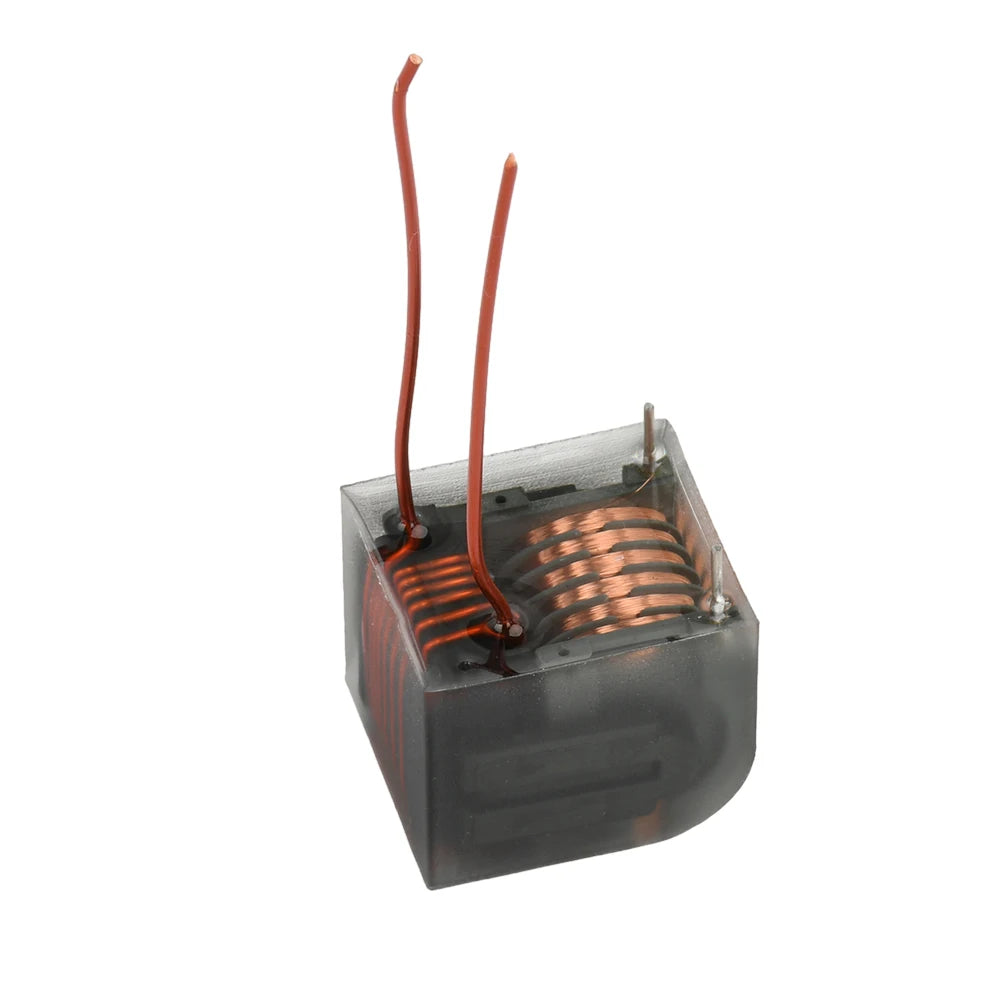

Transformer size: 26x24x21mm+ (3mm high output insulation)
Protection mechanism: MOS overheating automatic protection (effective prevention of not paying attention to the high temperature burned driver board)
Description:

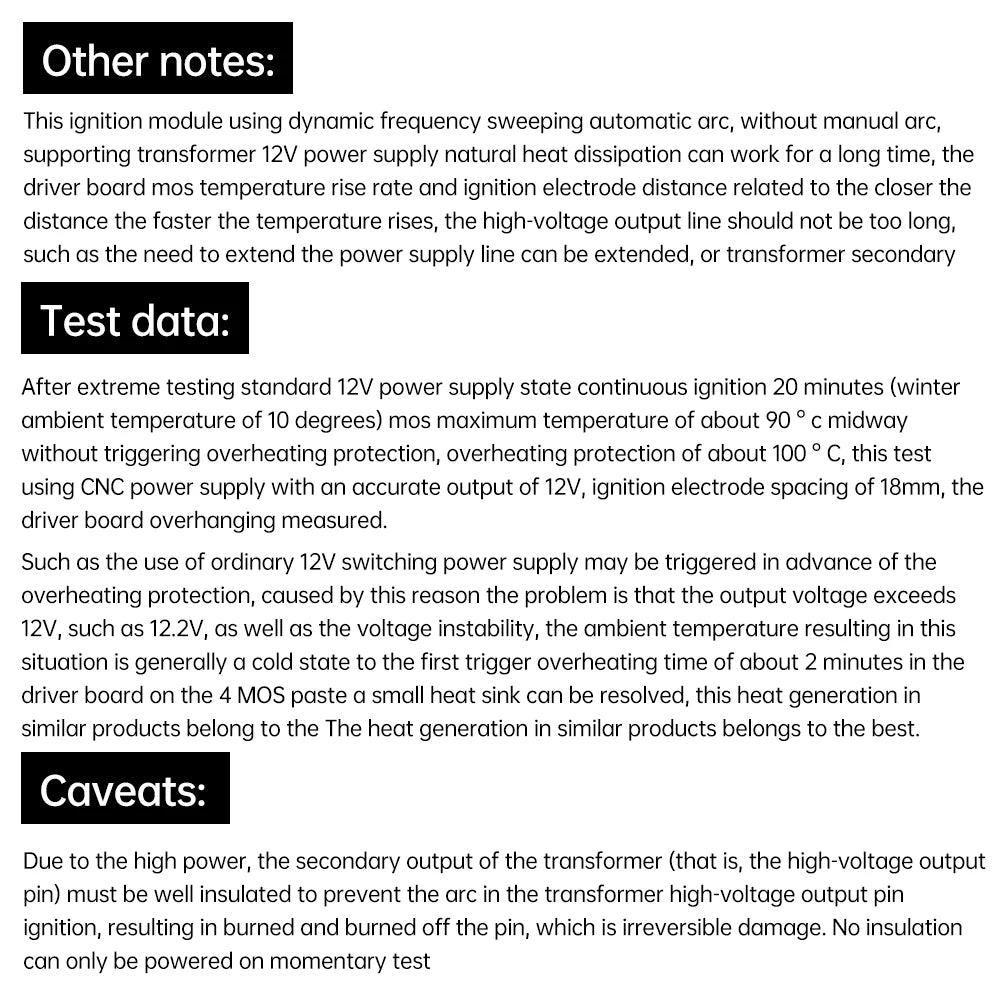

This ignition module using dynamic frequency sweeping automatic arc, without manual arc, supporting transformer 12V power supply natural heat dissipation can work for a long time, the driver board mos temperature rise rate and ignition electrode distance related to the closer the temperature rises faster, the high-voltage output line should not be too long, such as the need to extend the power supply line can be extended, or transformer secondary
Attention:

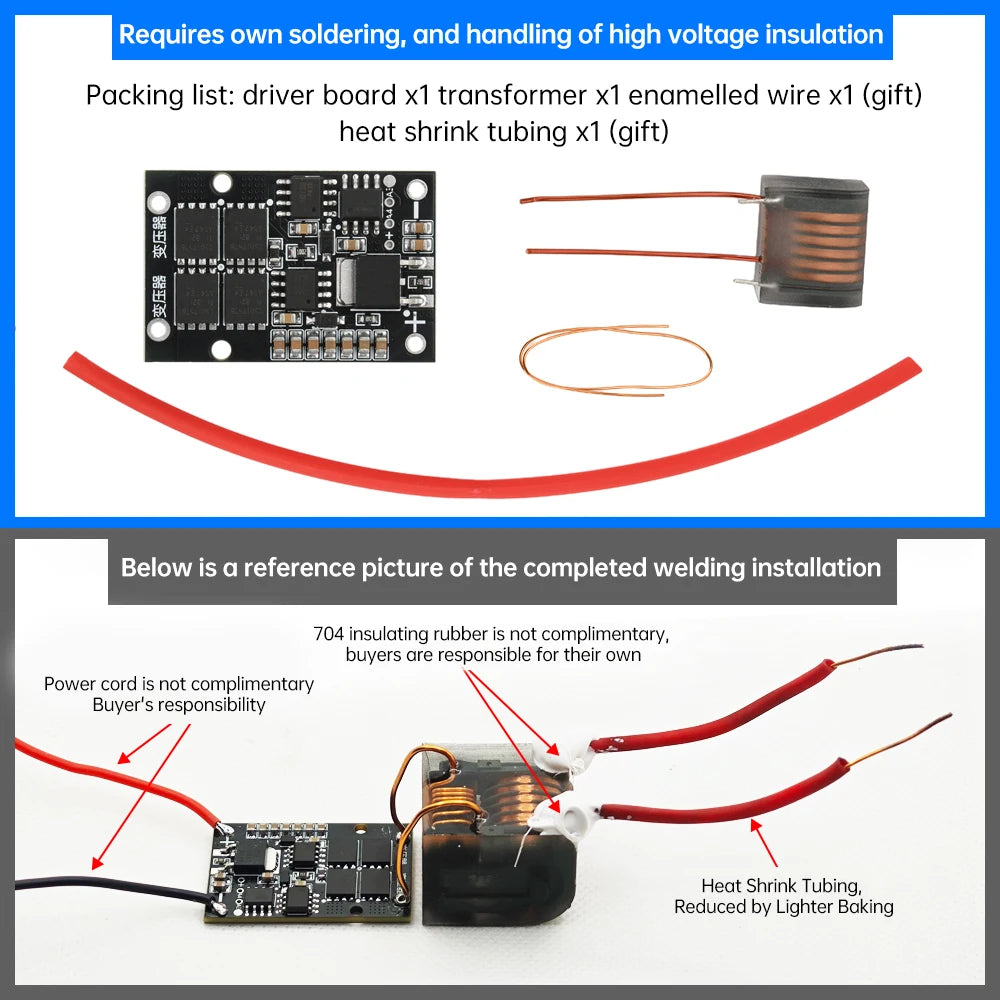

Due to the higher power, the secondary output of the transformer (that is, the high-voltage output pin) must be well insulated to prevent the arc in the transformer high-voltage output pin ignition, resulting in burned and burned off the pin, which is irreversible damage. No insulation can only be powered on momentary test

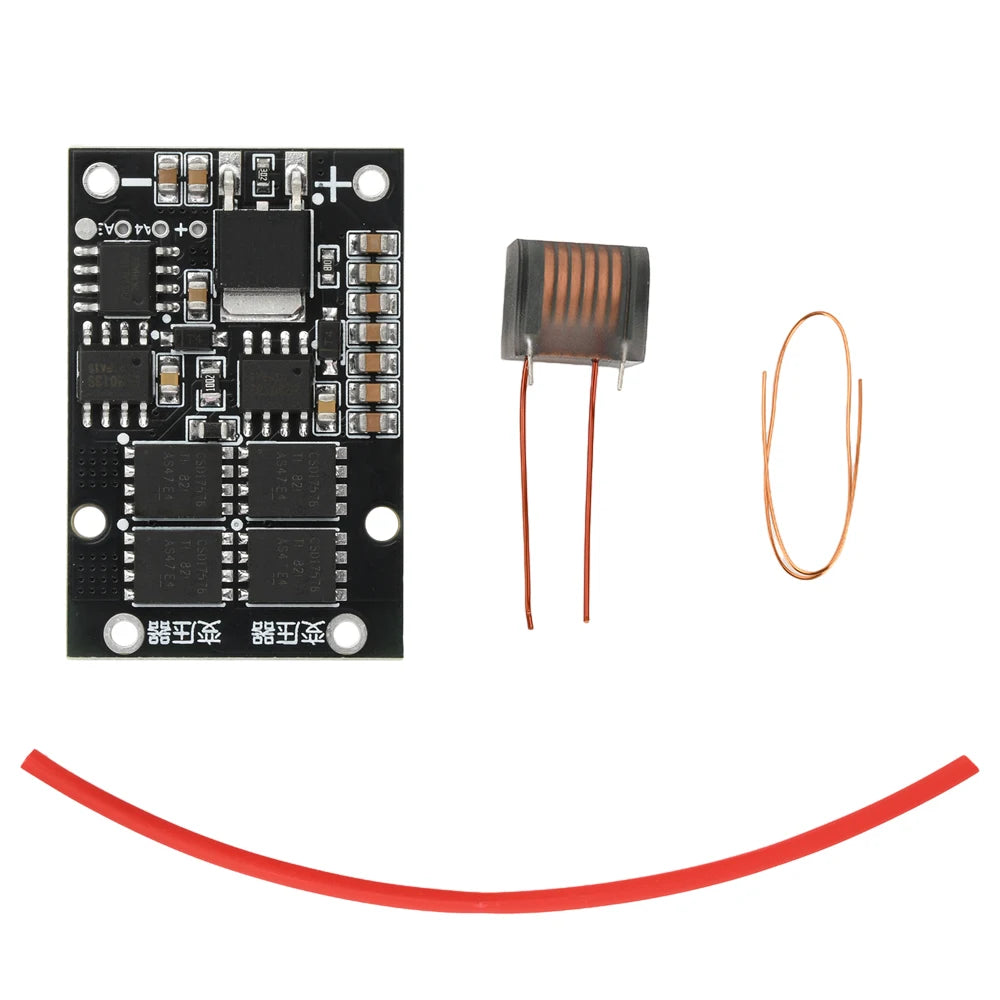

Package include:
1 x DC 6-15V to AC 10KV-25KV AC High Voltage Generator Inverter Boost Spark Arc Ignition Coil Module For Igniter
