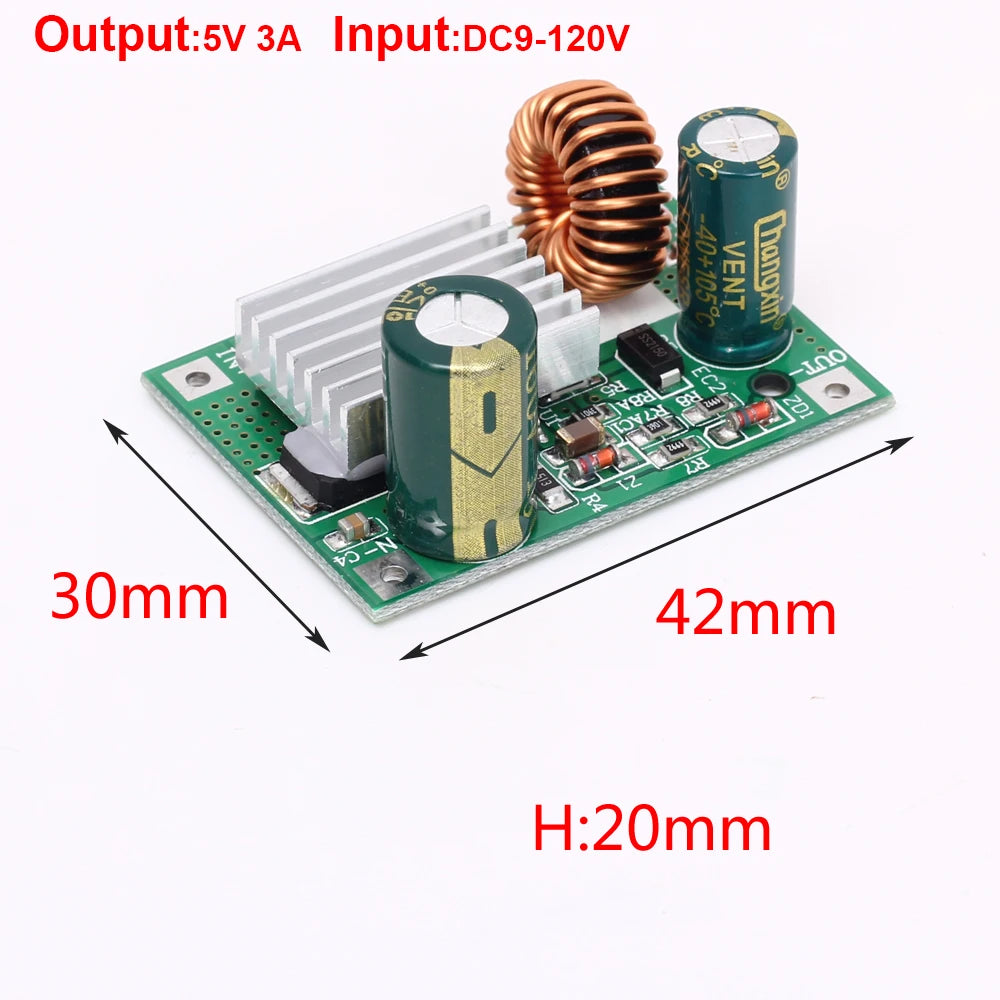

Módulo Convertidor Buck DC 9V-120V a 5V 3A Step-Down (No Boost)

Módulo Convertidor Buck DC 9V-120V a 5V 3A Step-Down (No Boost)

$7.480 CLP
$10.480 CLP $7.480 CLP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Color

SPECIFICATIONS

Brand Name: Aideepen

Certification: None

Choice: yes

Feature 1: buck converter

Feature 2: step up converter

Feature 3: 5v to 12v dc dc converter

Feature 4: isolated dc dc converter

Feature 5: dc dc converter

Model Number: Buck Converter

Origin: Mainland China

Output Current: 3A

Output Frequency: 140KHz

Output Power: 1 - 50W

Output Type: SINGLE

Product Name: DC Step Down Power Supply Module

Size: 42*30*17mm/42*30*20mm

Type: DC/DC Converters

Weight: 20g

Working Humidity range: 0%-95%RH

Working Temperature range: -40~85 Celsius

is_customized: Yes

semi_Choice: yes

DC 9V 12V 24V 36V 48V 72V 84V 120V to 5V 3A Step Down Module Power Supply DC DC Converter Buck Converter Step Up Converte


Description:

It is a DC constant voltage constant current step down power supply module.It can be used as ordinary buck power supply module, charger and LED constant current driver.Simple and efficient, practical.

Features:

    1>.High input voltage;
    2>.Stable voltage output;
    3>.Support over temperature protection;
    4>.Support overvoltage protection;
    5>.Support short circuit protection;
    6>.Low power consumption;
    7>.Support constant voltage constant current output;
    8>.Support charging function;
    9>.With heat sink and keep good heat dissipation.

Parameters:

    1>.Product Name:DC Step Down Power Supply Module
    2>.Working Voltage:DC 16V-90V, DC16-120V, DC9-90V, DC9-120V(Keep input is at least 4.0V high than output)
    3>.Output Voltage:DC5V, 12V
    4>.Output Current:3A
    5>.Output Power:5V-15W, 12V-36W
    6>.Conversion efficiency:About 96%(The smaller the differential voltage, the higher the efficiency)
    7>.Working frequency:140KHz
    8>.Soft Starter:Yes(Failure at high power load)
    9>.Over temperature protection:Yes
    10>.Overvoltage protection:Yes
    11>.Short circuit protection:Yes
    12>.Working Temperature range:-40℃~85℃
    13>.Working Humidity range:0%-95%RH

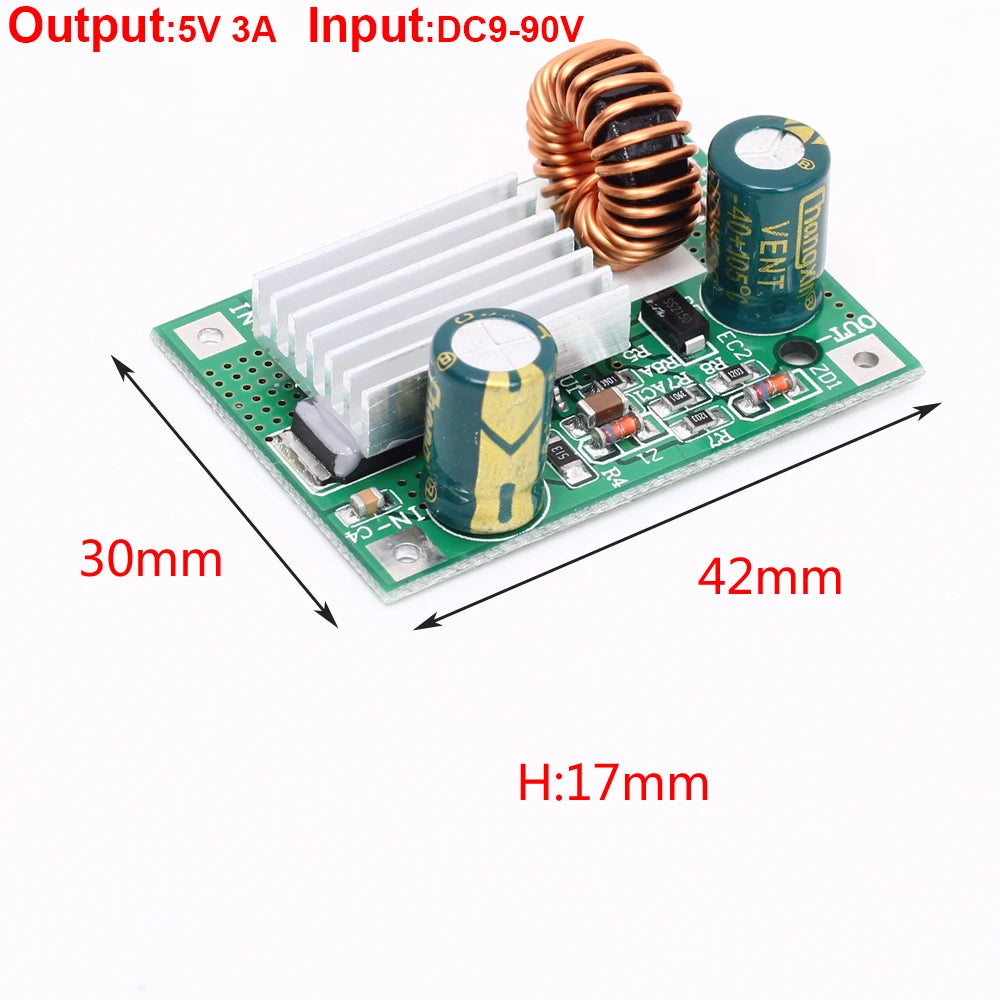

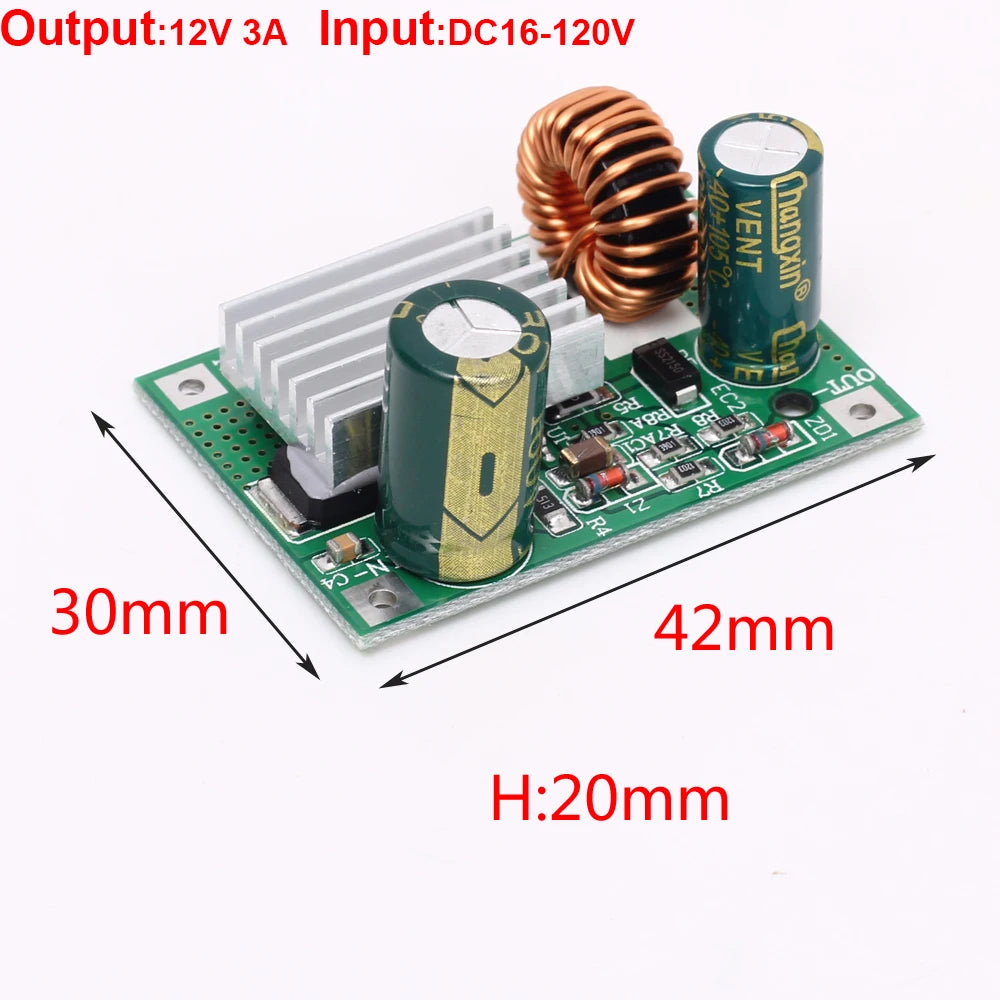

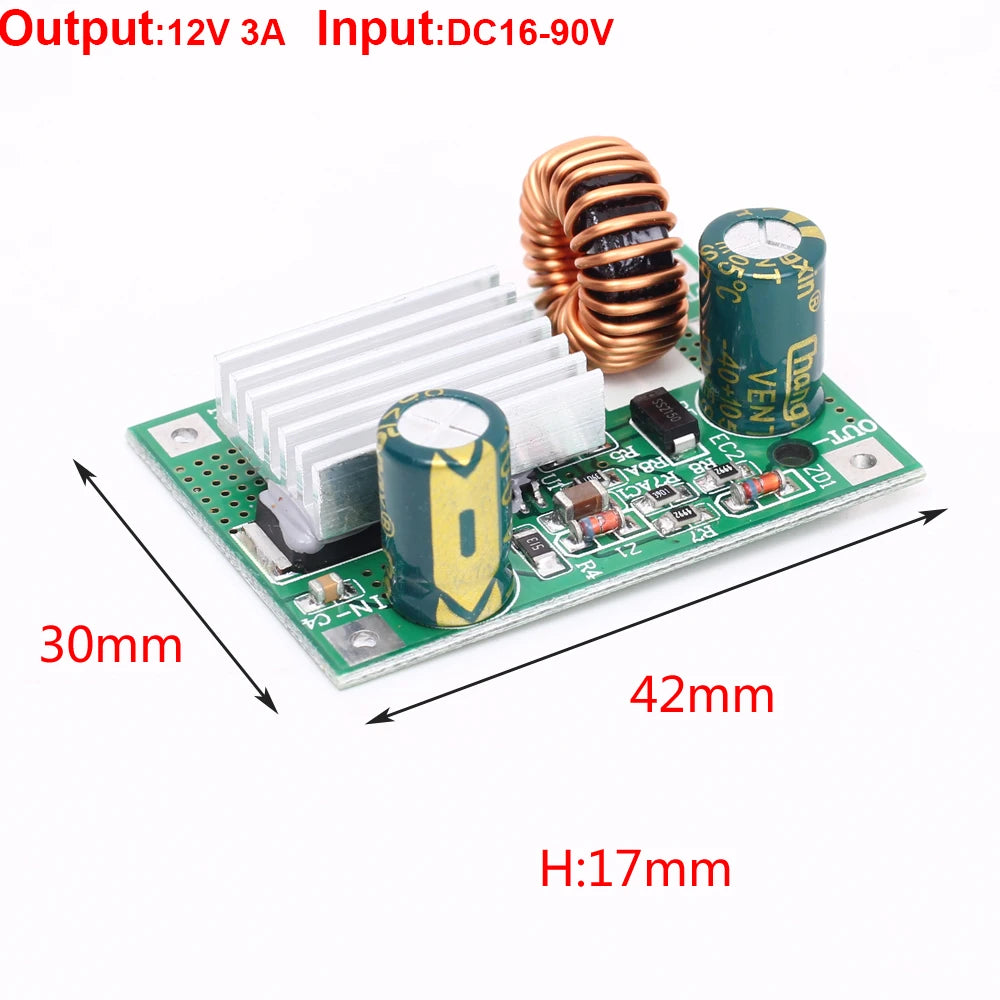

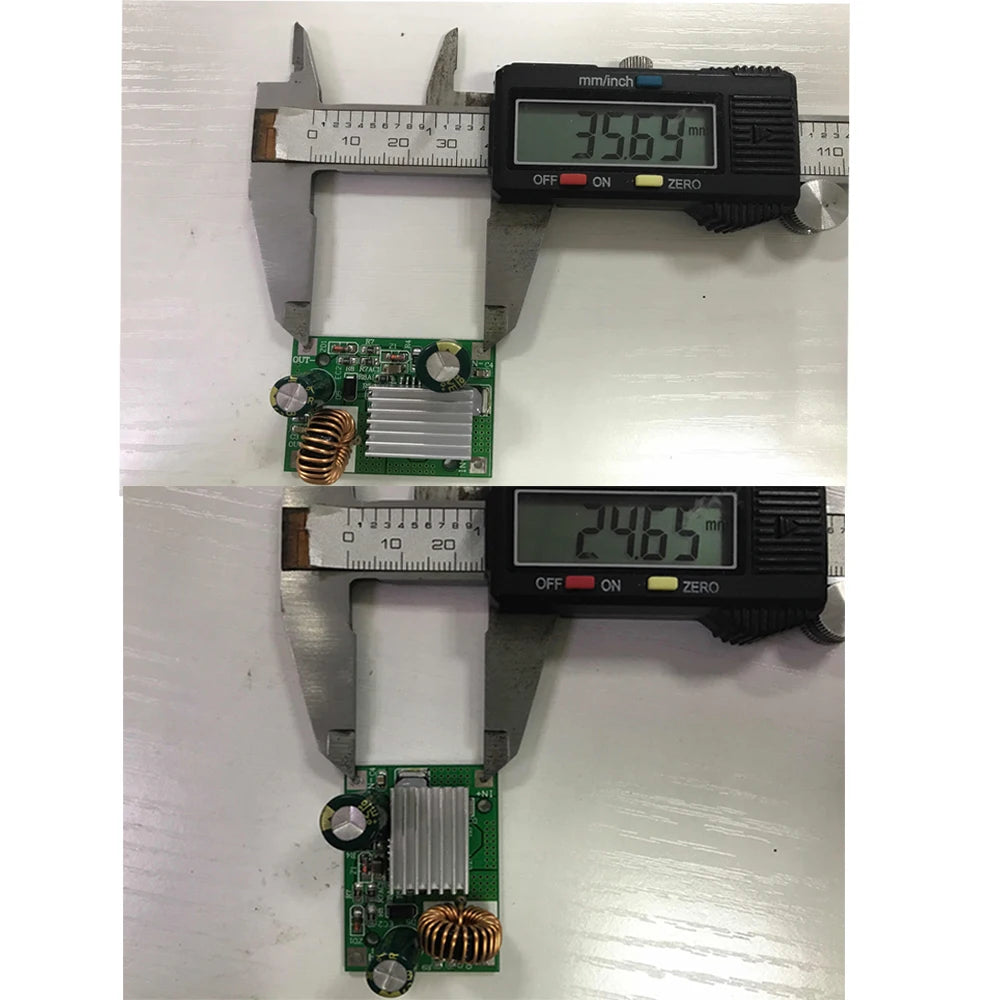

    14>.Size:42*30*17mm/42*30*20mm

Using Steps:

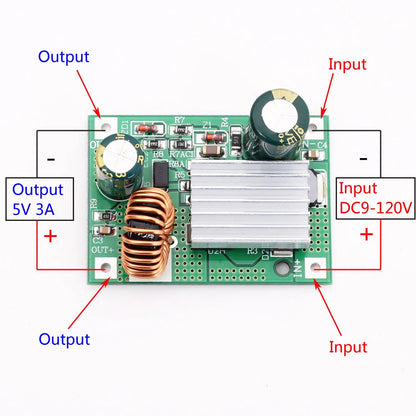

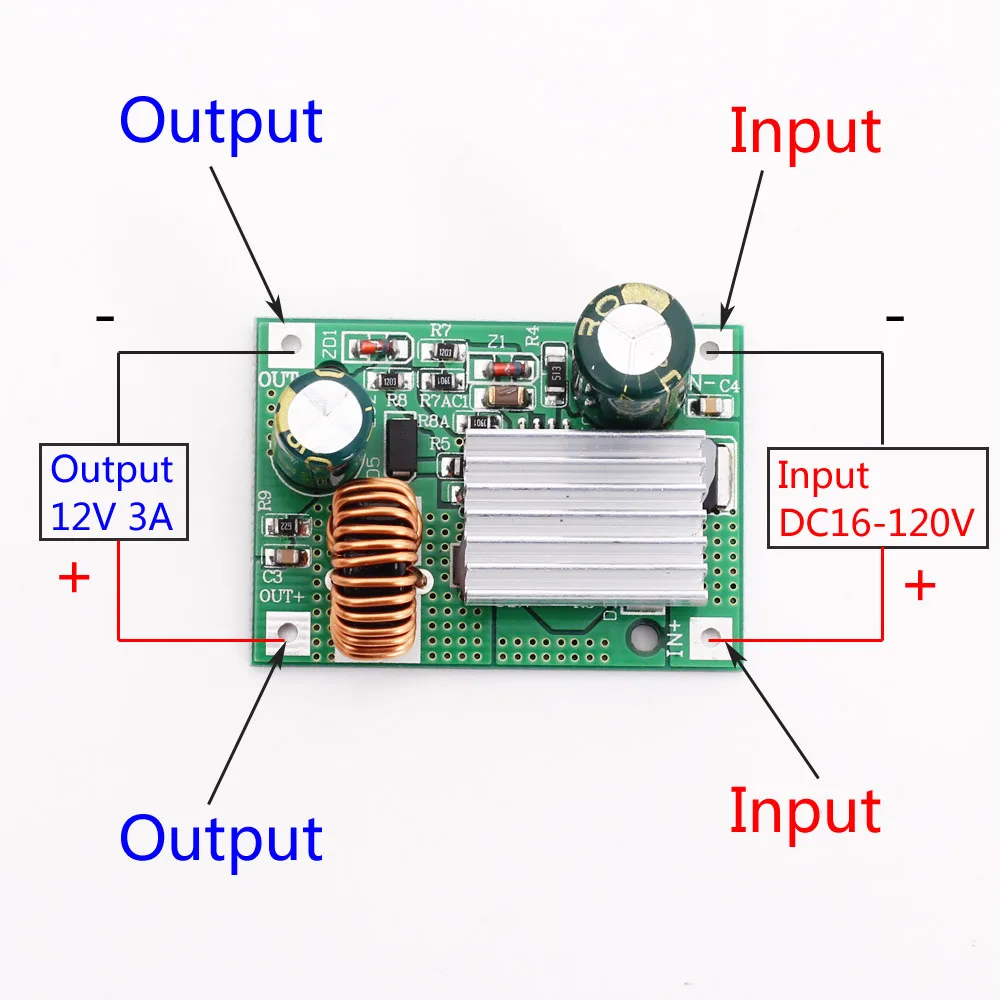

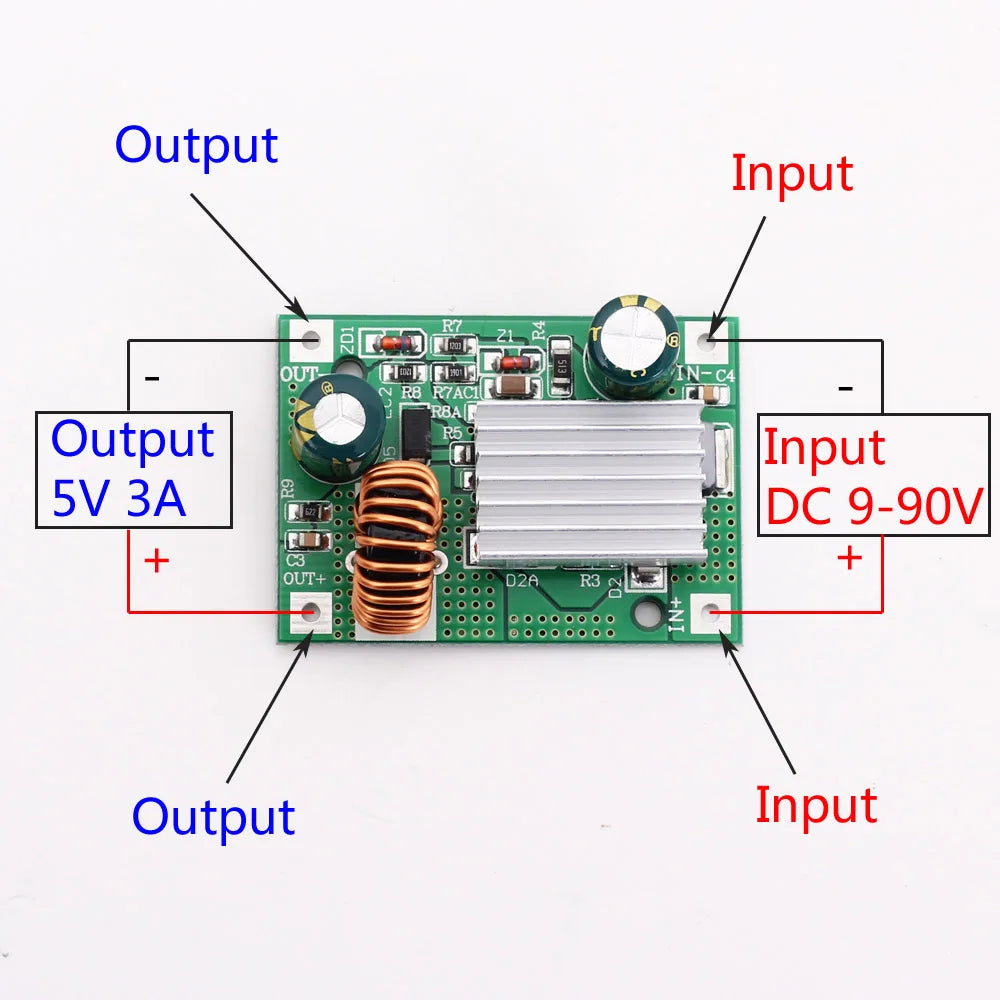

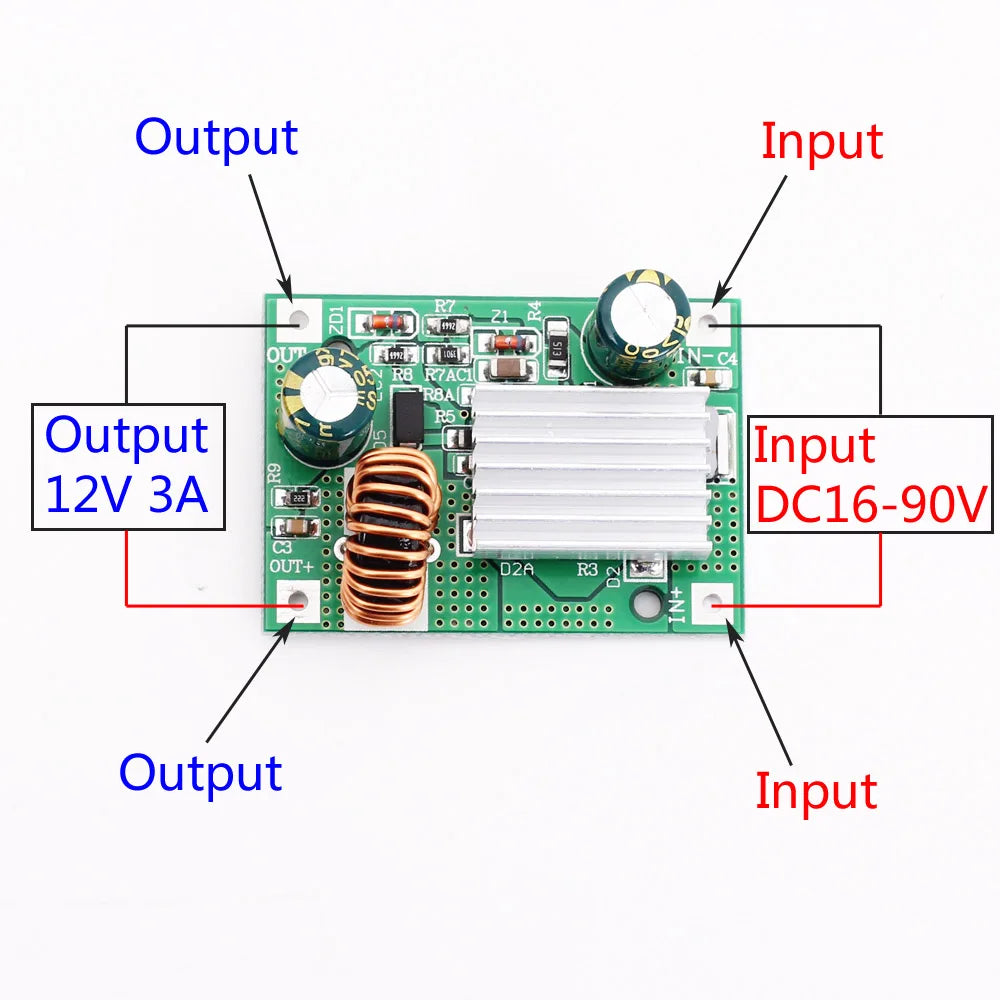

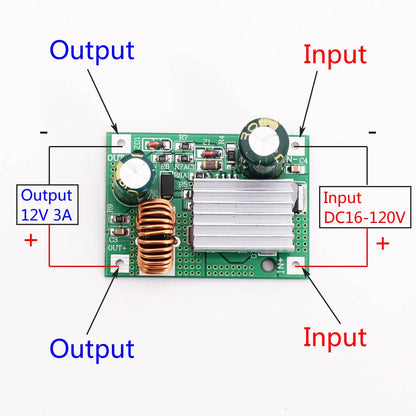

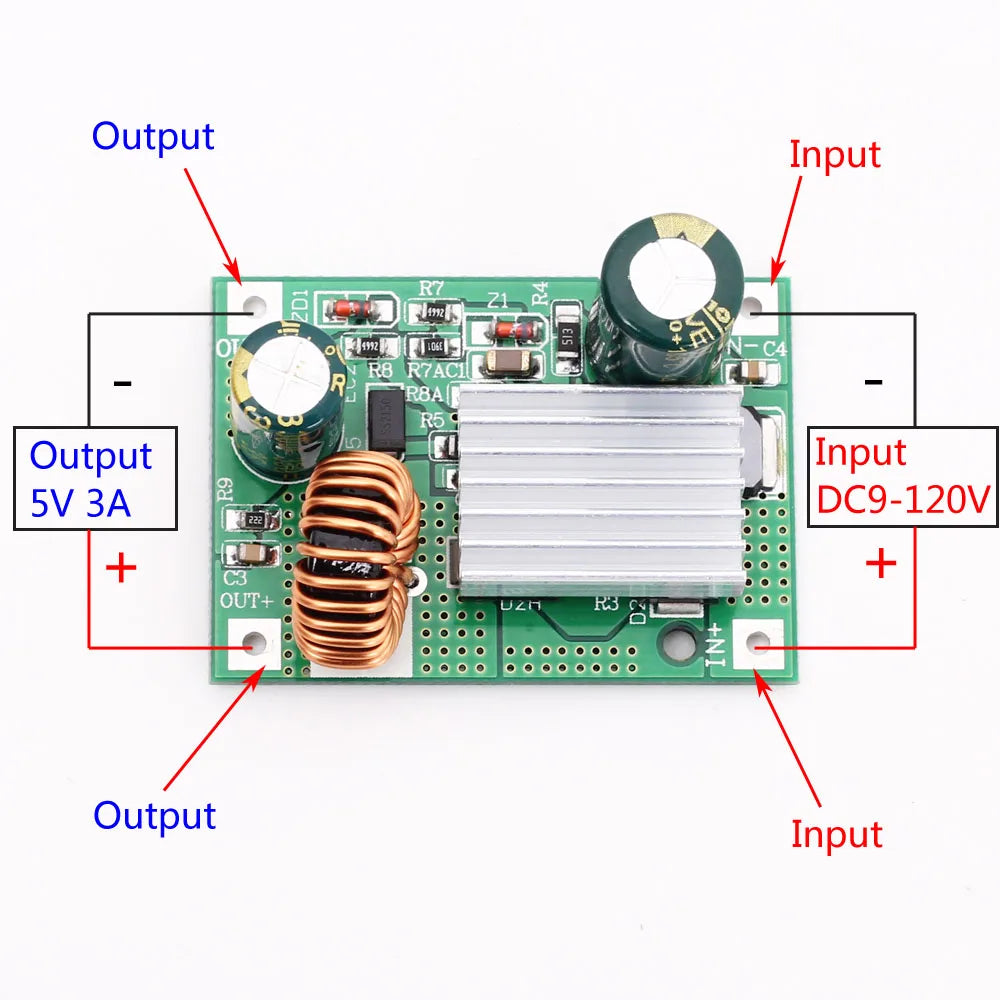

    1>.Connect right input voltage at input terminal.
    2>.Turn ON power supply.
    3>.Check output voltage by voltmeter and ammeter.
    4>.Connect load.

Note:

    1>.It is a step down power supply module,So please keep input is at least 4.0V high than output.
    2>.Input and output are Non-isolated, safe and reliable.

Application:

    1>.Ordinary power supply;
    2>.Battery charger;
    3>.LED drive power;
    4>.Power conversion.

Package Include:

1 x DC-DC Step Down Buck Converter Module
