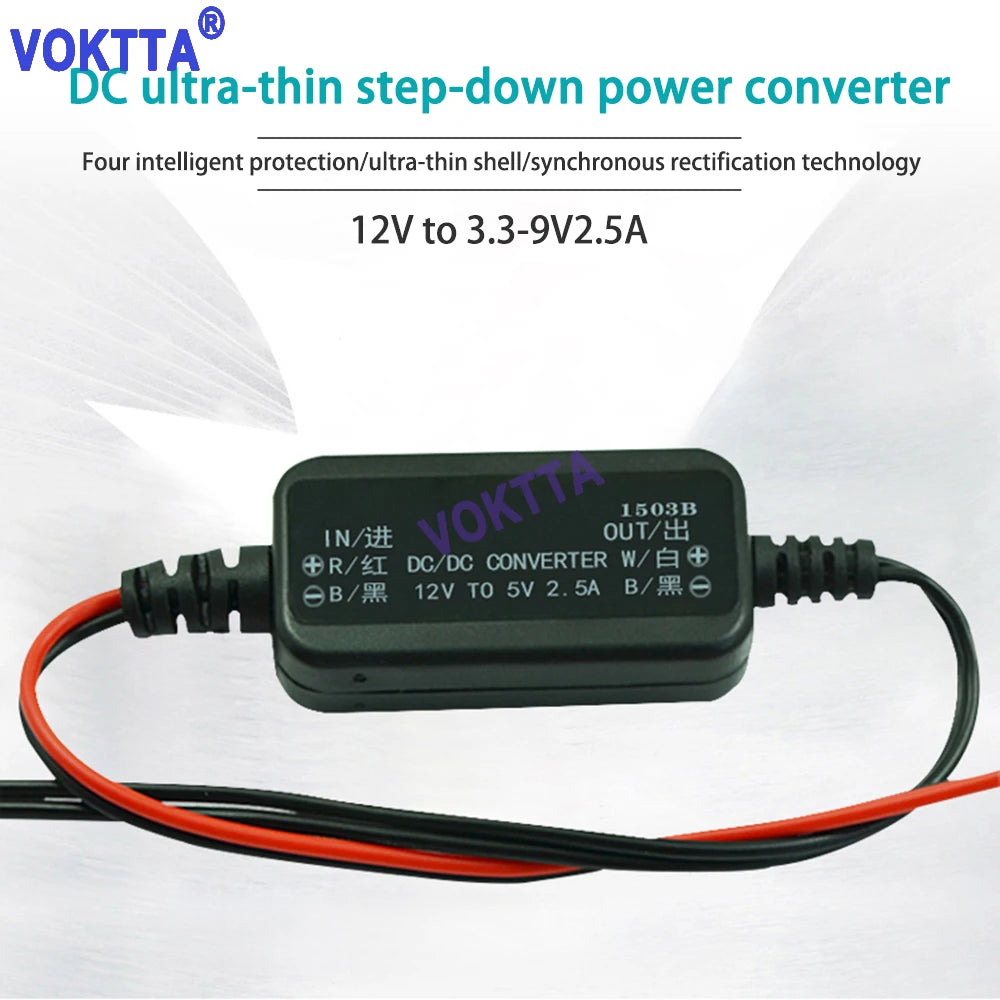

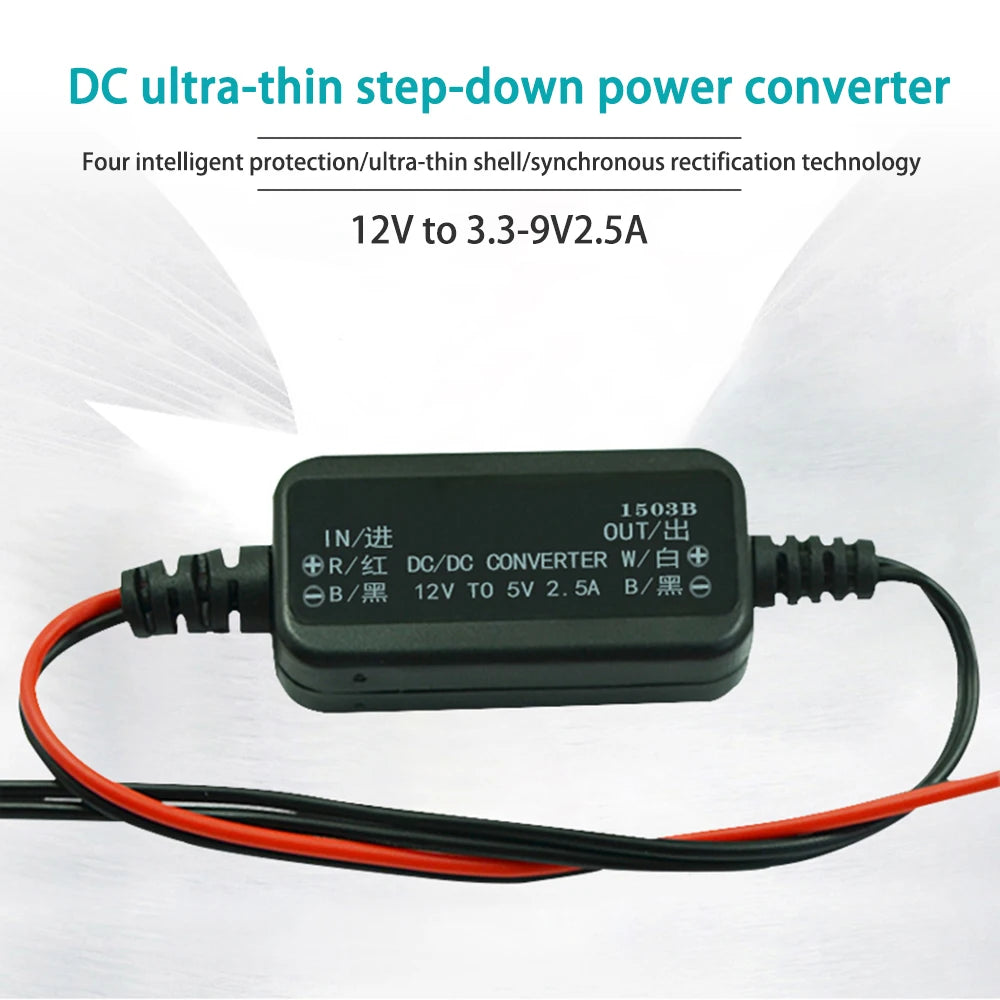

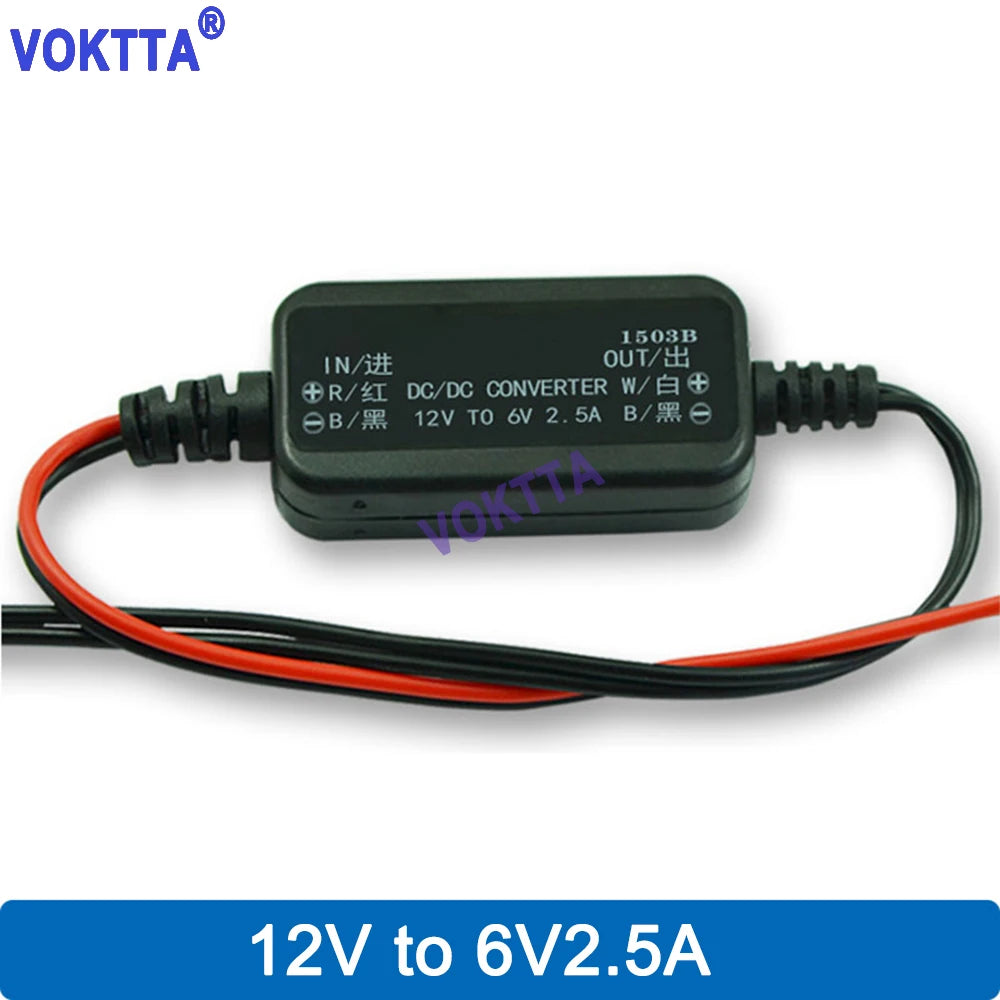

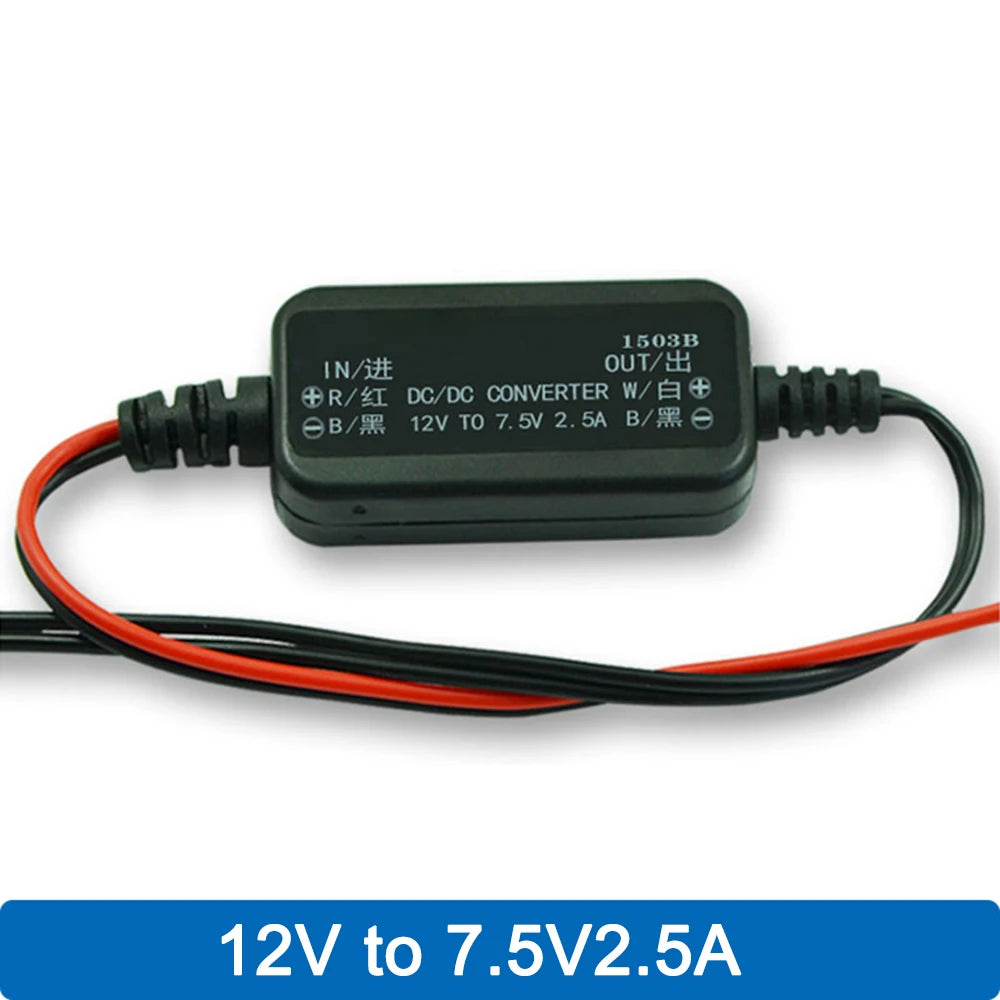

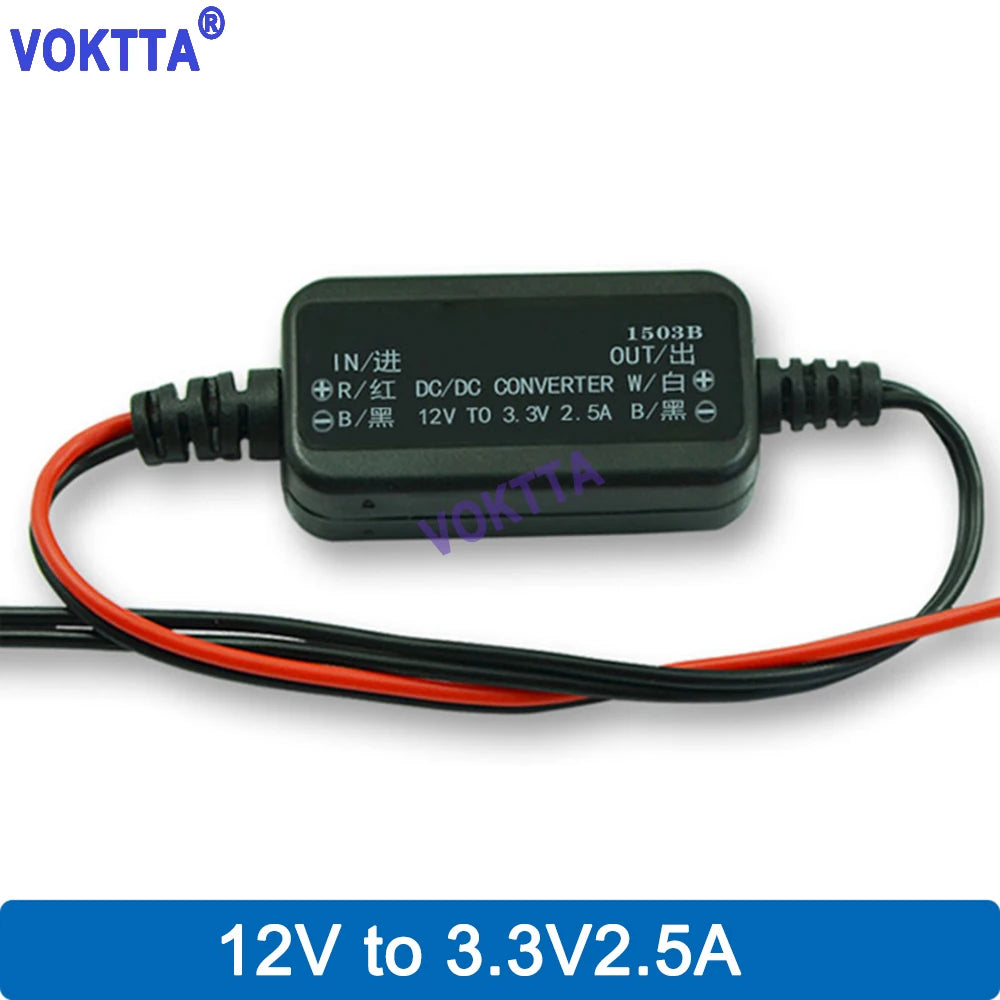

Módulo Convertidor Buck DC 12V a 3.3V/4.2V/5V/6V/7.5V/9V Step-Down No Aislado con Protección

$7.898 CLP

~~$10.898 CLP~~ $7.898 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Color 4.2V 3.3V 6V 5V 9V 7.5V

Cantidad

SPECIFICATIONS

Brand Name: Voktta

Certification: CE

Choice: yes

Hign-concerned Chemical: None

Installation line length: 13cm

Model Number: 12V to 3.3-9V DC to DC Converters

Origin: Mainland China

Output Current: 2.5A, 9V1A

Output Power: 1 - 50W

Output Type: SINGLE

Size: 43 X 22 X 11mm

Type: DC/DC Converters

Weight: 15g

Working temperature: -40-80 Degree

semi_Choice: yes

Features:
1.Use high-quality materials with guaranteed quality

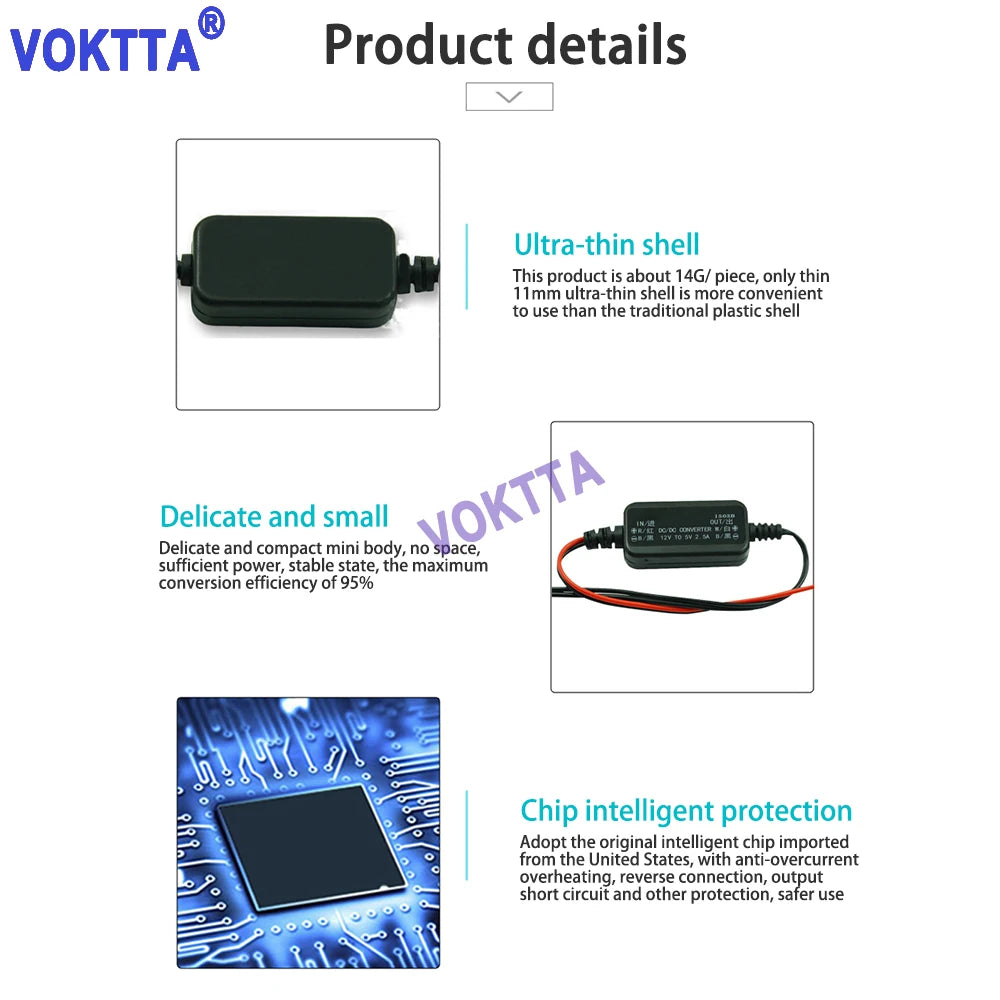

2.Compact and aesthetically pleasing in size, with only an 11mm ultra-thin shell, making it more convenient to use than traditional plastic shells
3.Built in multiple intelligent protection functions, with ultra-high conversion rate and stability
4.The product comes with overcurrent protection, overheat protection, short circuit protection, reverse connection protection, etc
5.The red positive and black negative wiring is simple and convenient, with a wide range of applications

Parameters:
Product nature: Non isolated step-down power converter
Input voltage: DC8-15V

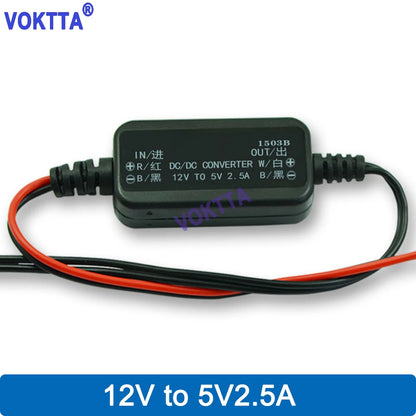

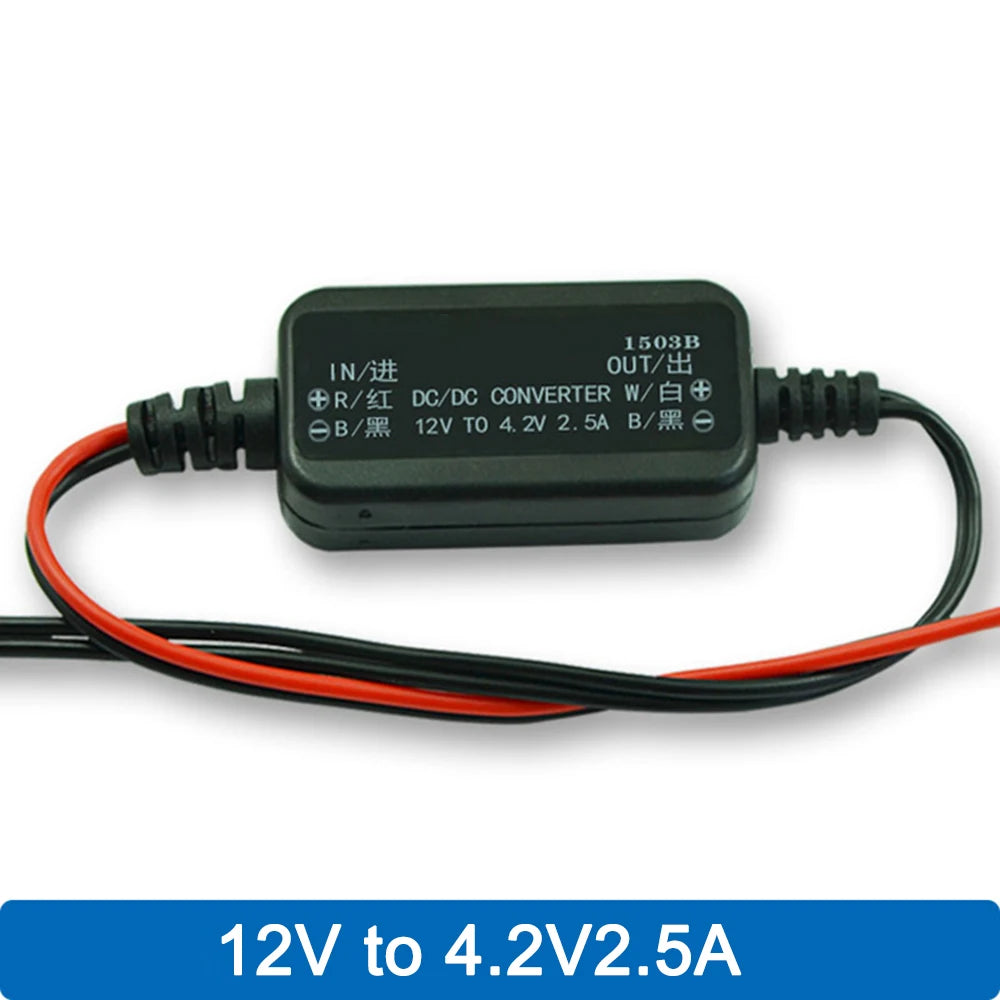

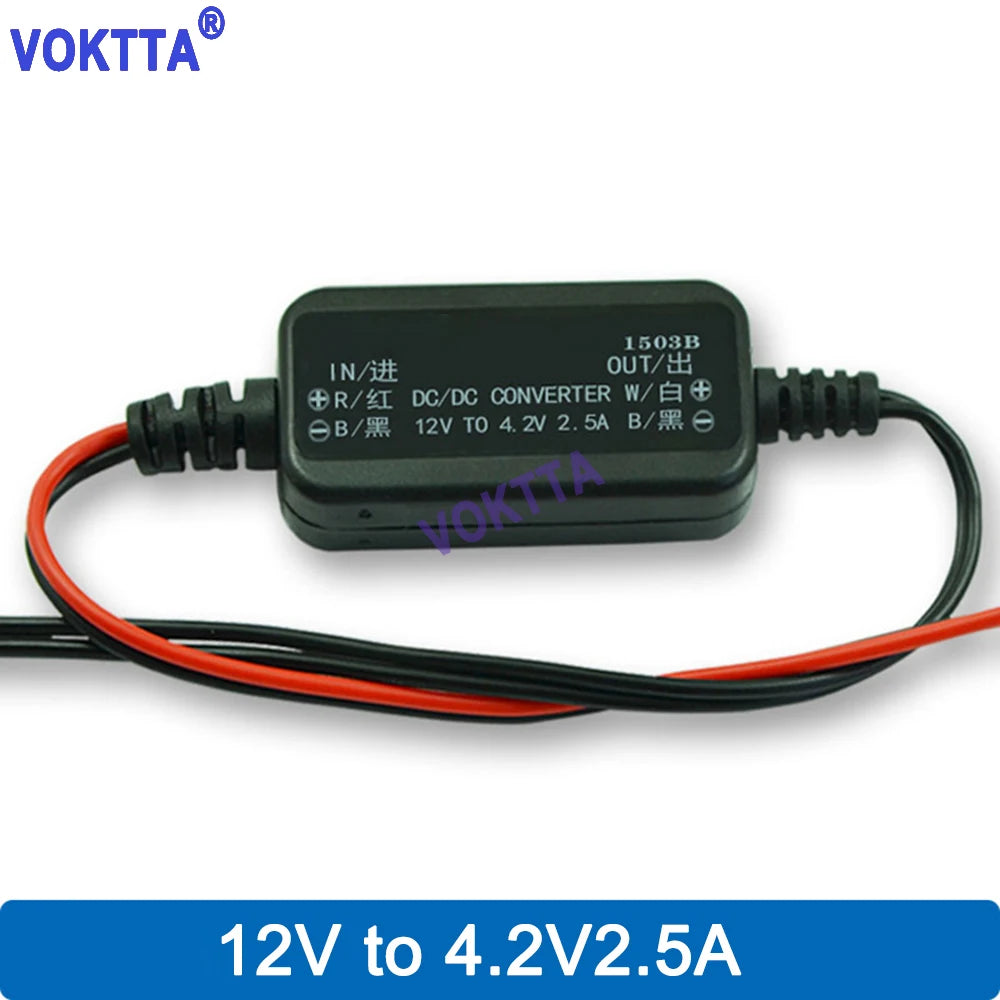

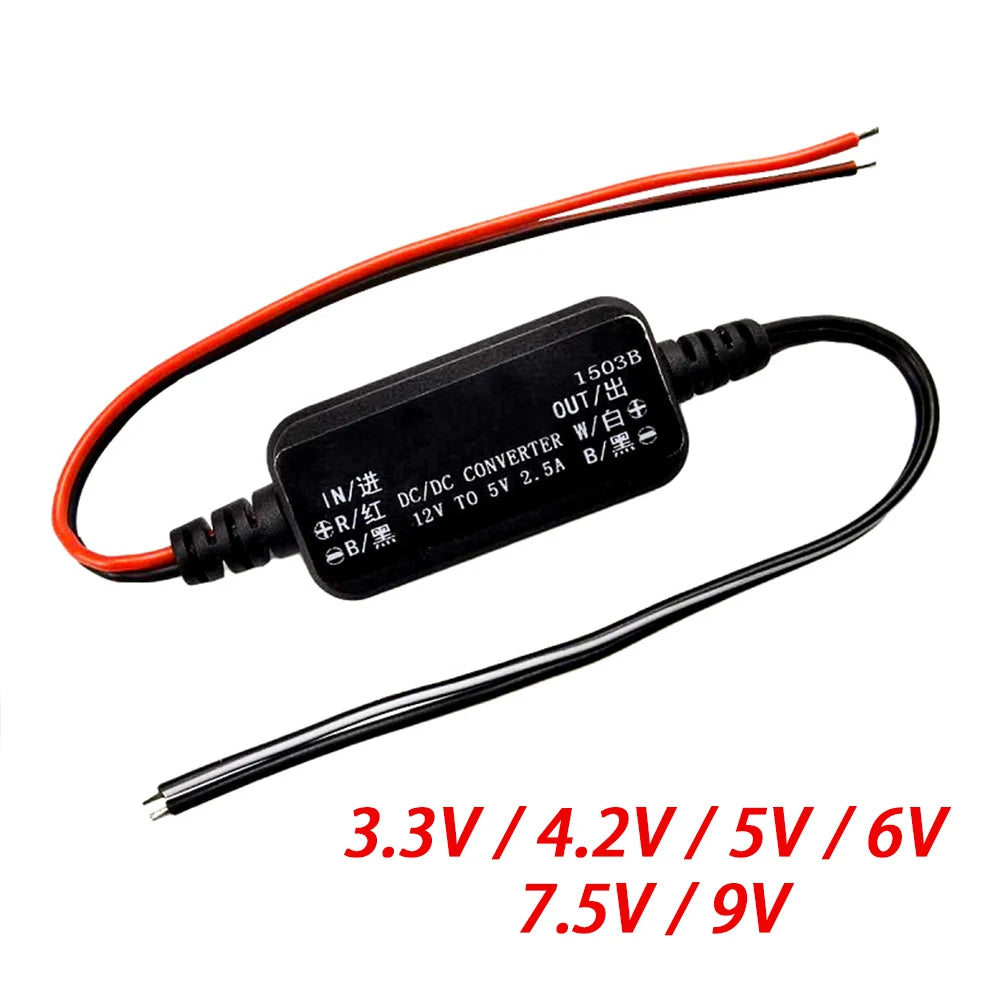

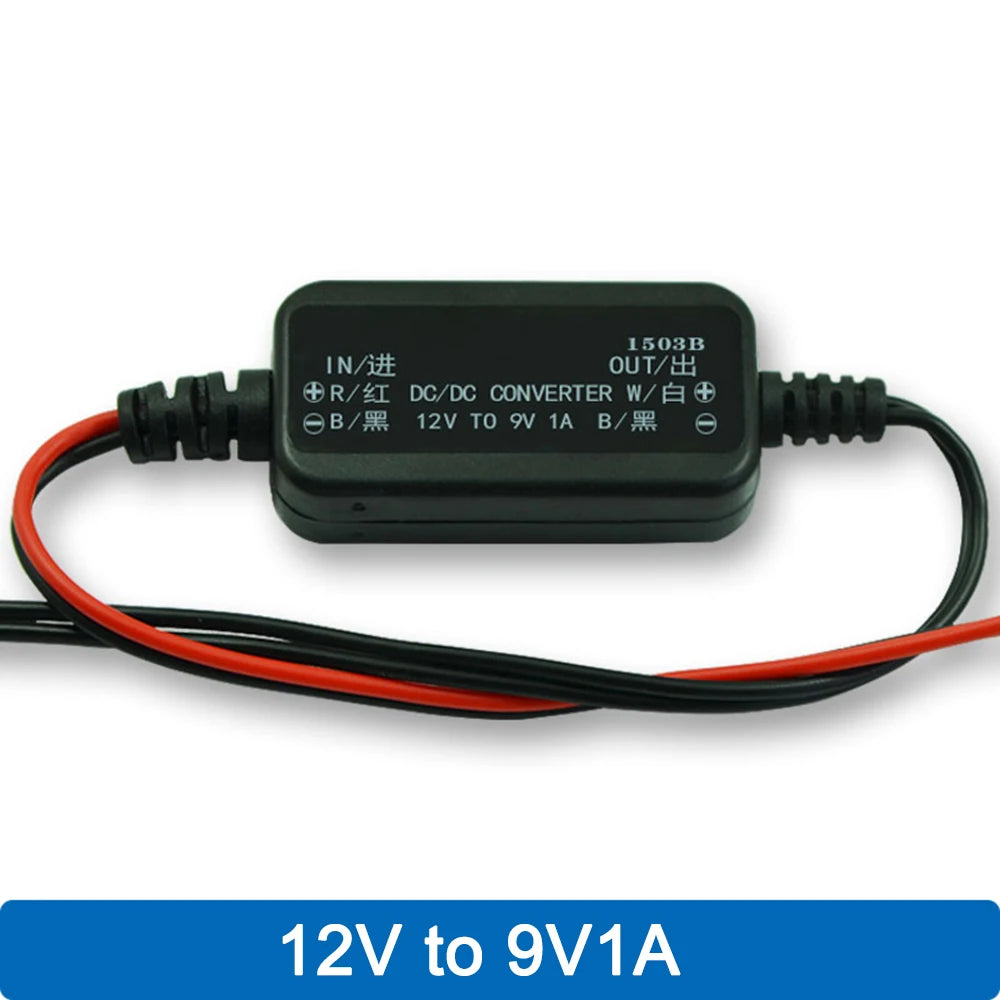

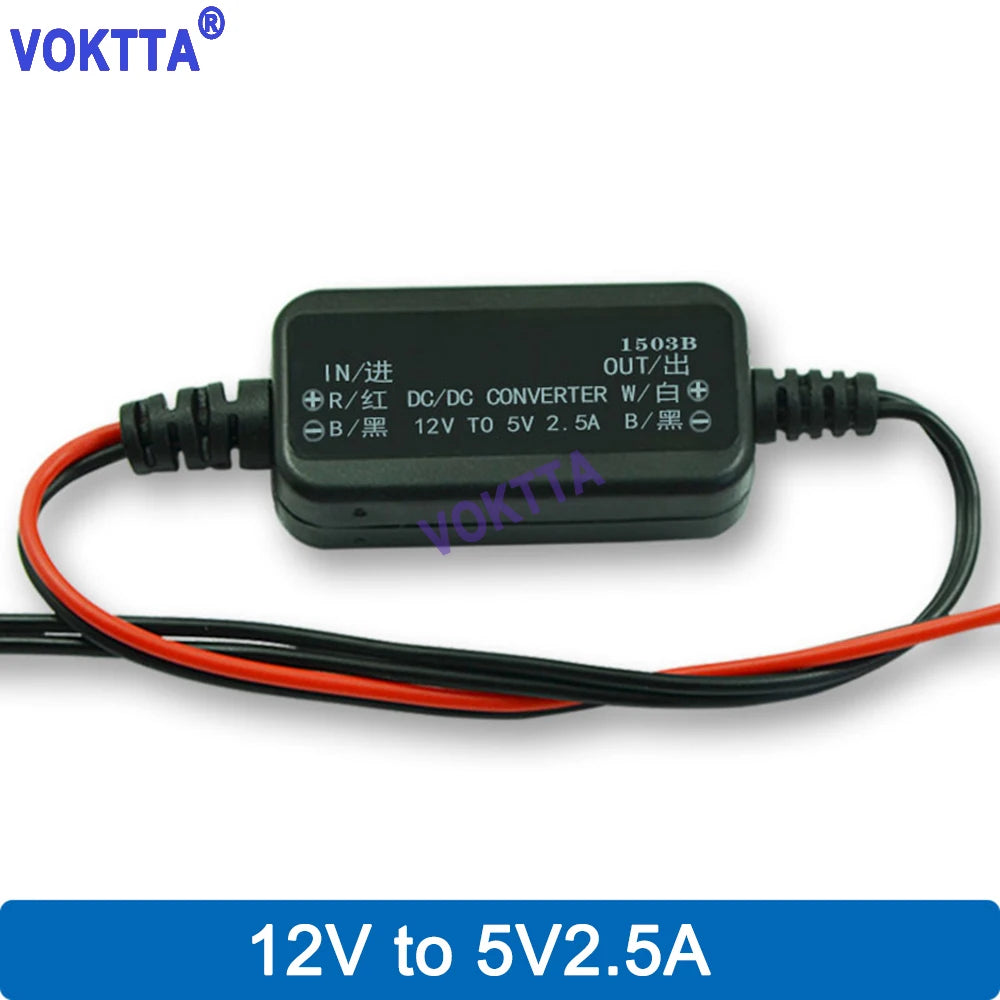

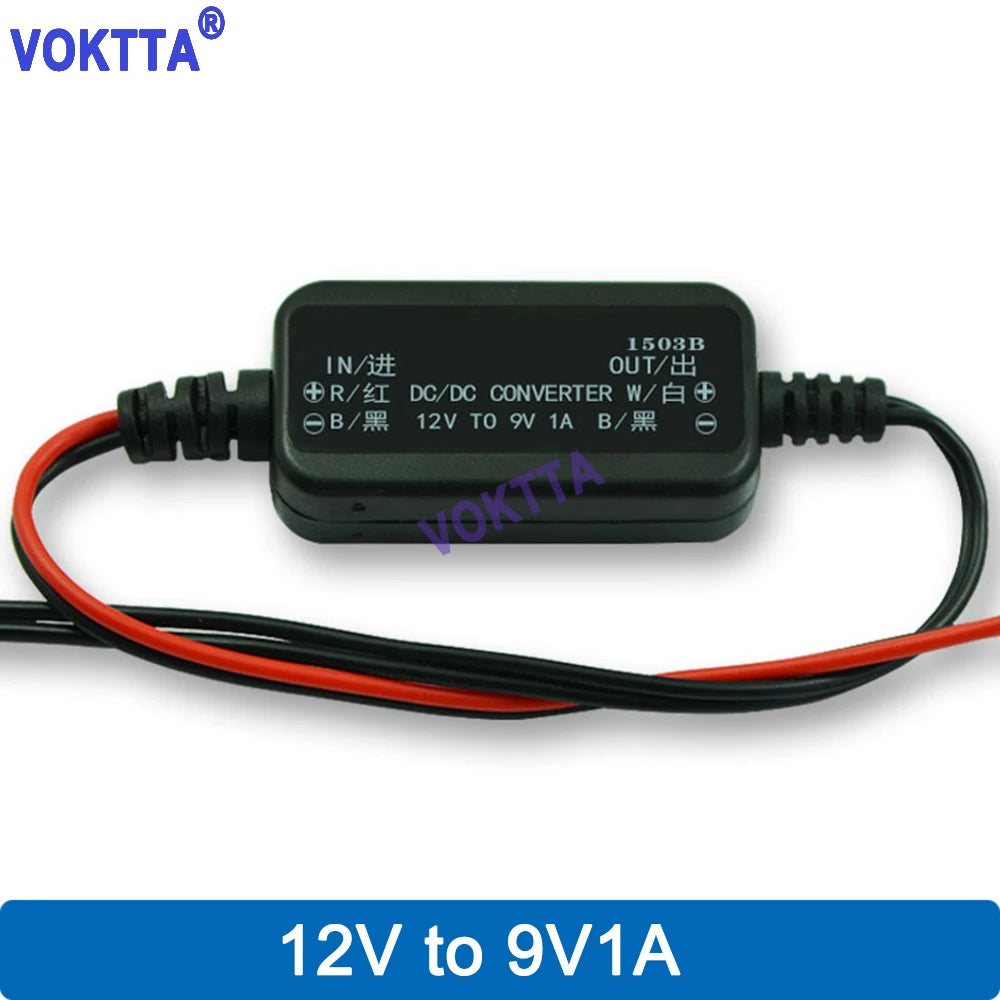

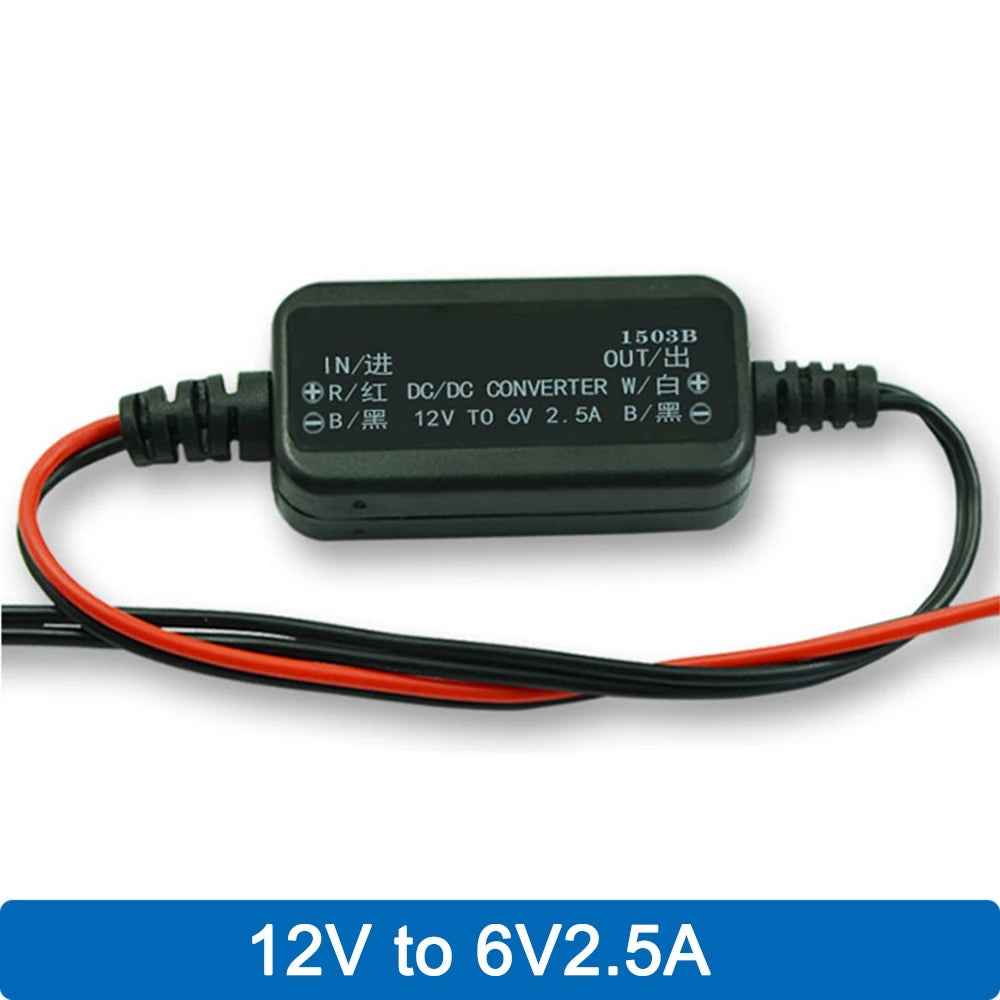

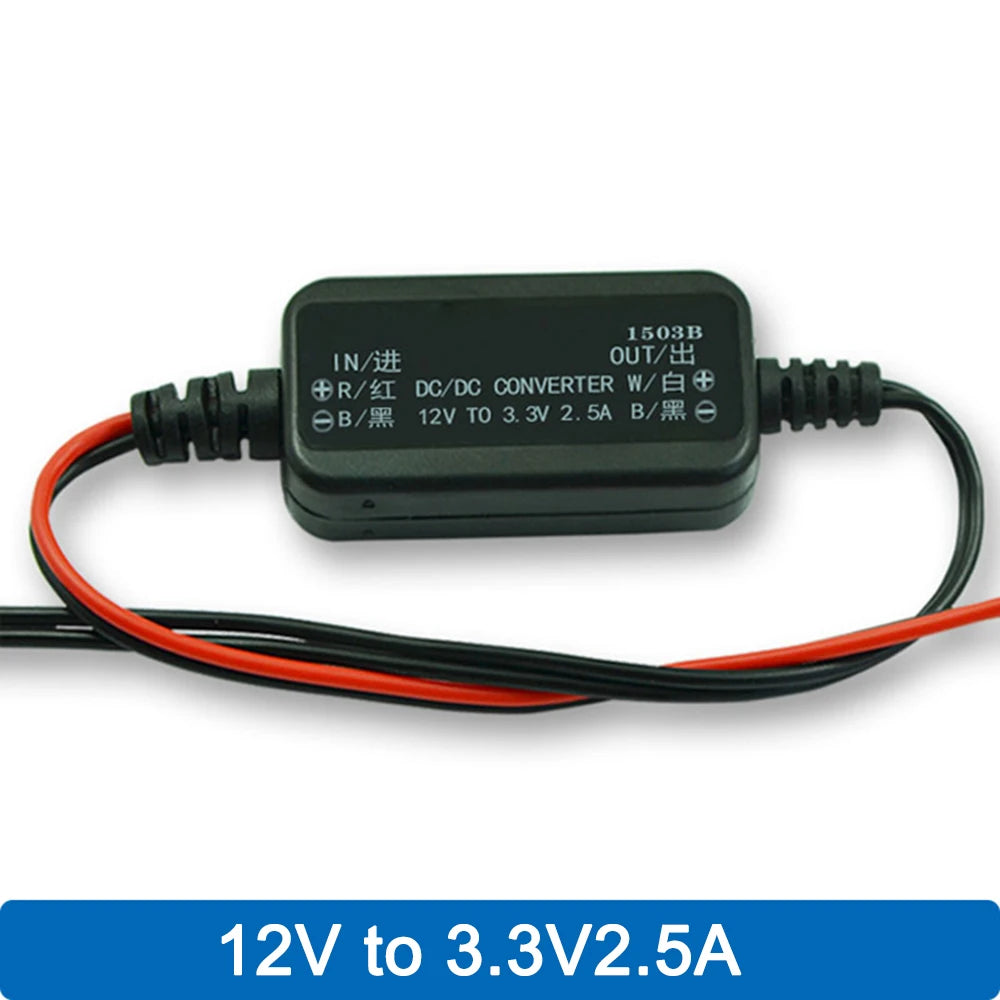

Output voltage: 3.3V, 4.2V, 5V, 6V, 7.5V, 9V (optional)
Output current: 2.5A, note: 9V1A
Output power: 8.25W, 10.5W, 12.5W, 15W, 18.75W, 9W
Conversion efficiency: maximum over 95%
No load power consumption: 10-12MA
Working temperature: -40~80 ℃
Installation line length: 13cm
Boundary dimension: 43 * 22 * 11mm
Heat dissipation method: natural heat dissipation
Protection functions: overcurrent protection, overheating protection, short circuit protection, reverse connection protection
