SPECIFICATIONS

Brand Name: Stlxy

Certification: None

Current Type: DC

Hign-concerned Chemical: None

Model Number: LM2596S 5A Step Down Power

Origin: Mainland China

is_customized: Yes

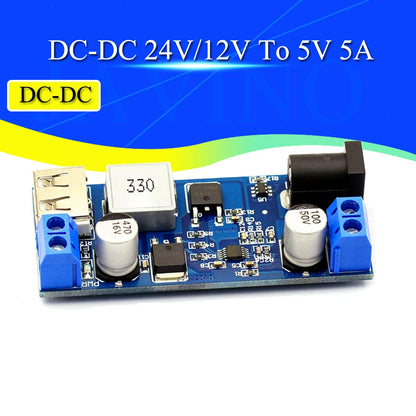

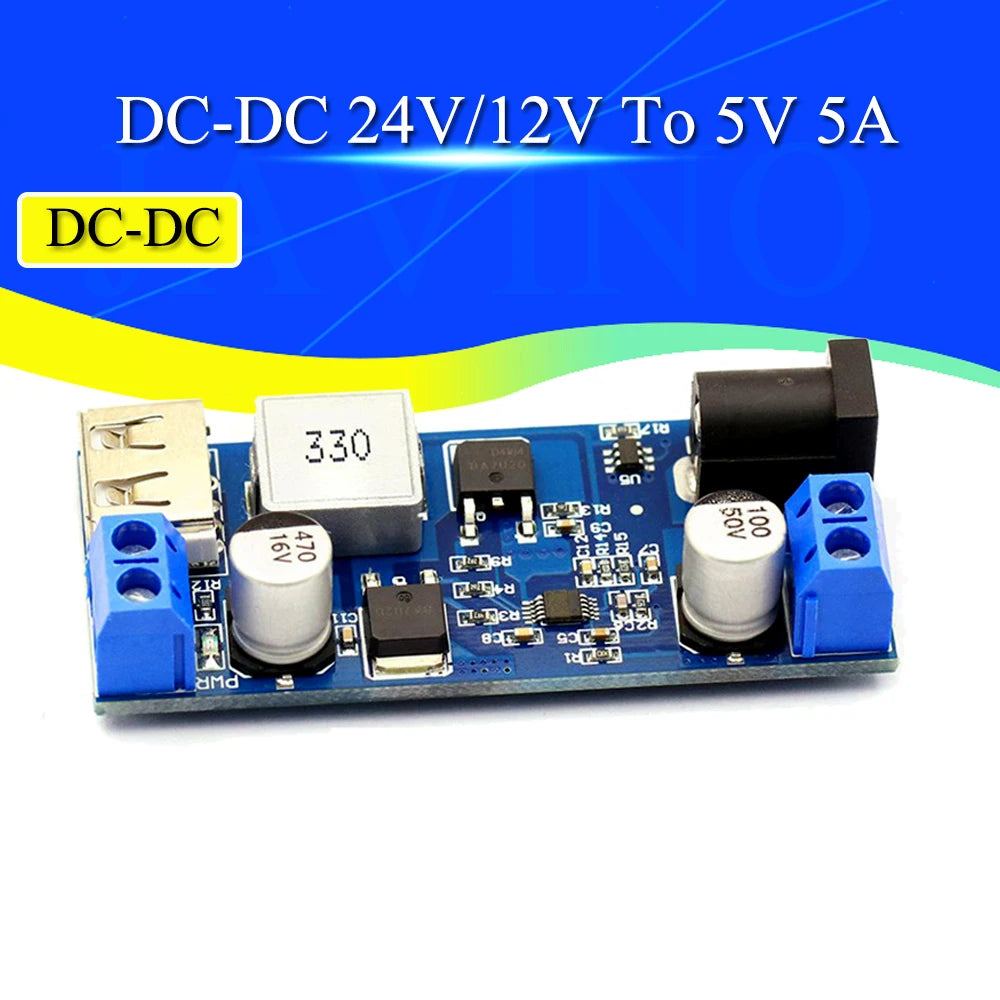

DC-DC 24V/12V To 5V 5A Step Down Power Supply Buck Converter Replace LM2596S Adjustable USB Step-down Charging Module For Phone

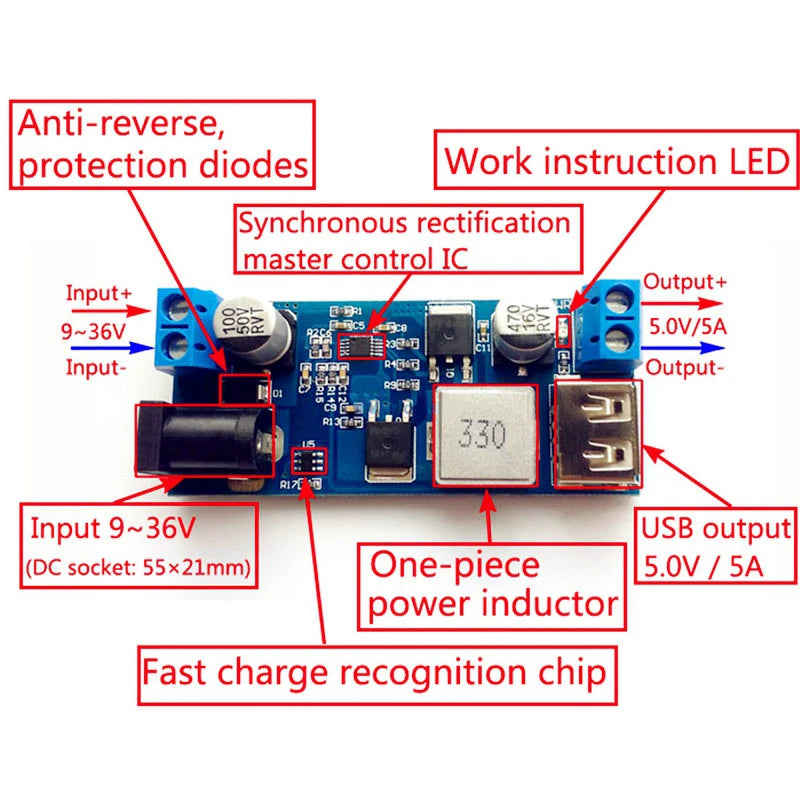

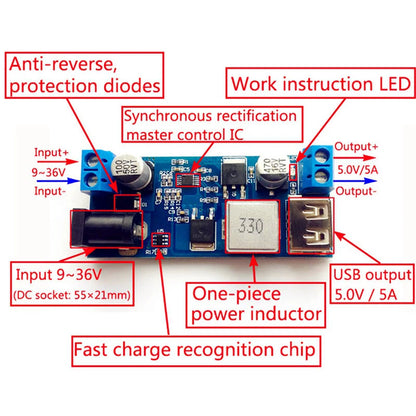

Highlights:



Synchronous rectification scheme,wide voltage input,high current output,high efficiency;

With DC plug and terminals,easy to use;

With USB port,with fast-charge identification chip compatible with Andrews and iphone mobile phone.

Javino



Product parameters:

1: Input voltage: DC 9V - 36V;



2: The output voltage: 5.2V / 5A / 25W



3: Output capability:



    9 ~ 24V Input: Output 5.2V / 6A / 30W



    24 ~ 32V Input: Output 5.2V / 5A / 25W



32 ~ 36V Input: Output 5.2V / 3.5A / 18W



4: Size: 63 * 27 * 10mm (L * W * H)
