SPECIFICATIONS

Brand Name: YXD WISH

Certification: RoHS

Model Number: High Voltage DC-DC Boost Converter Step Up Power Supply Module

Origin: Mainland China

Output Current: standard

Output Frequency: standard

Output Type: SINGLE

Size: 50*60mm

Type: DC/DC Converters

Weight: standard

is_customized: Yes

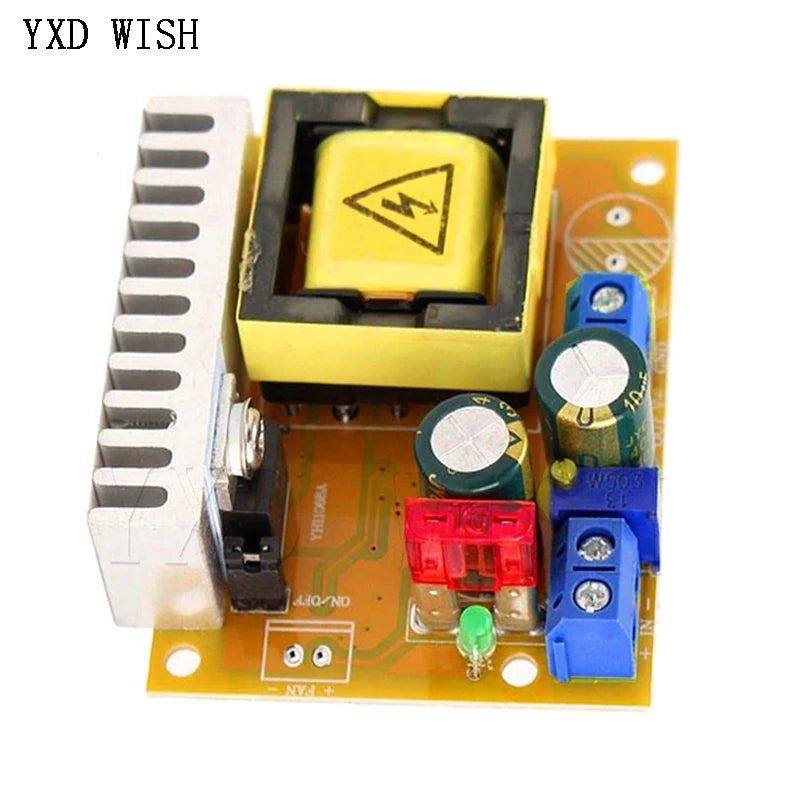

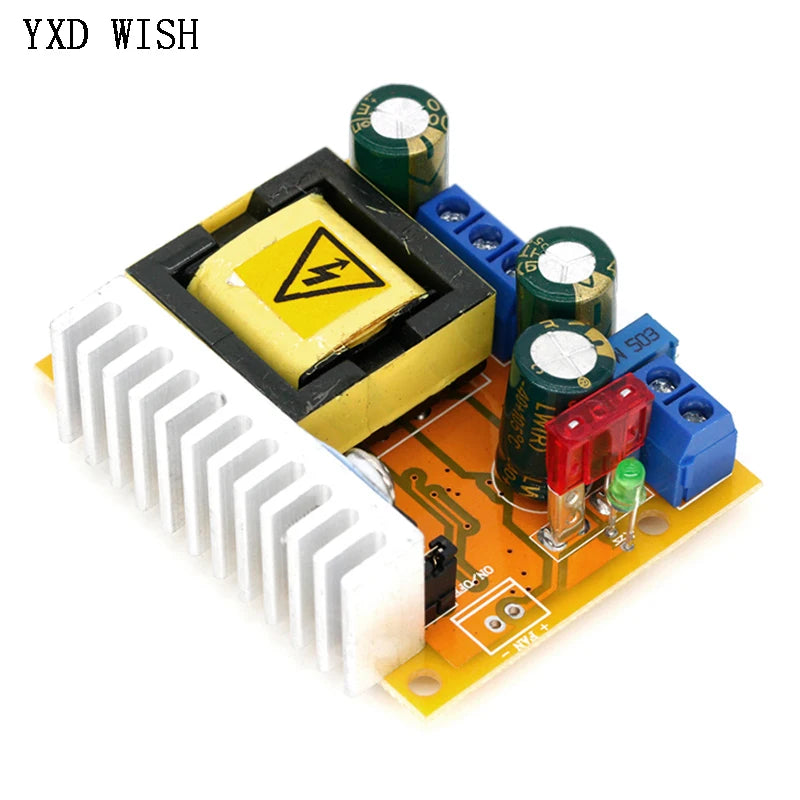

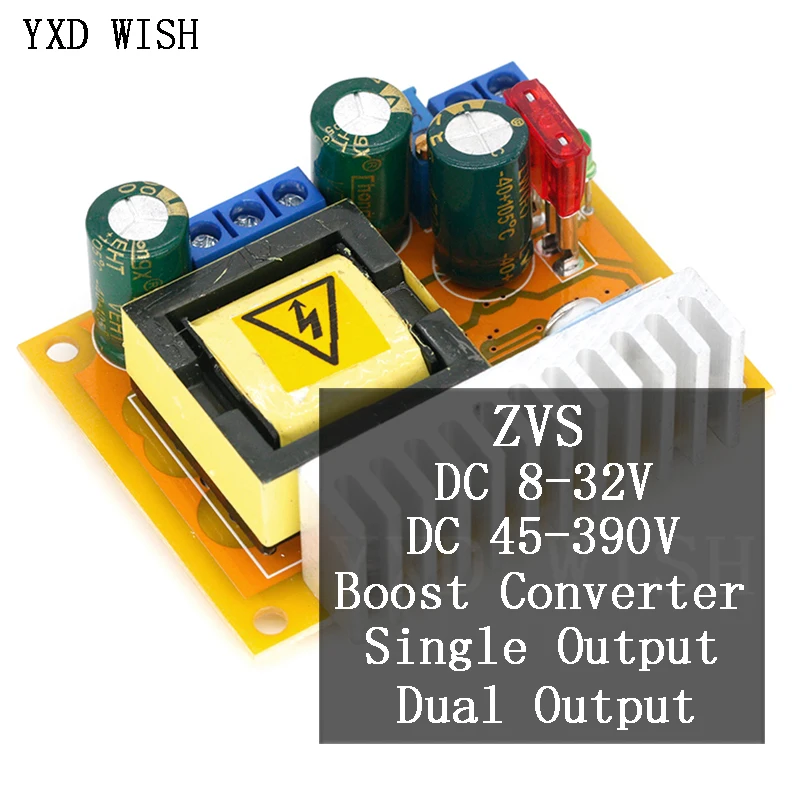

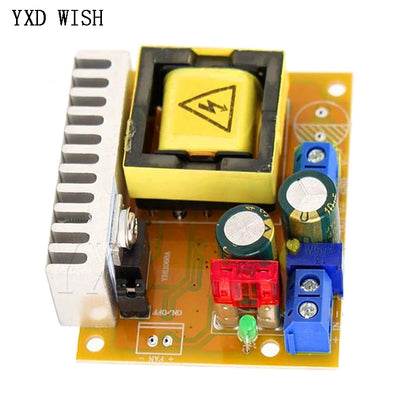

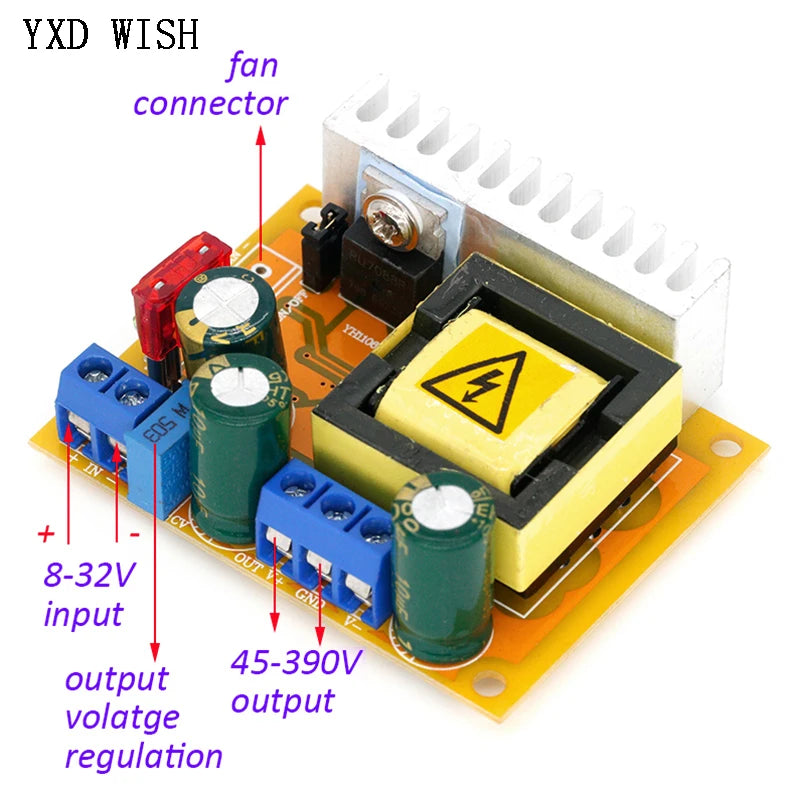

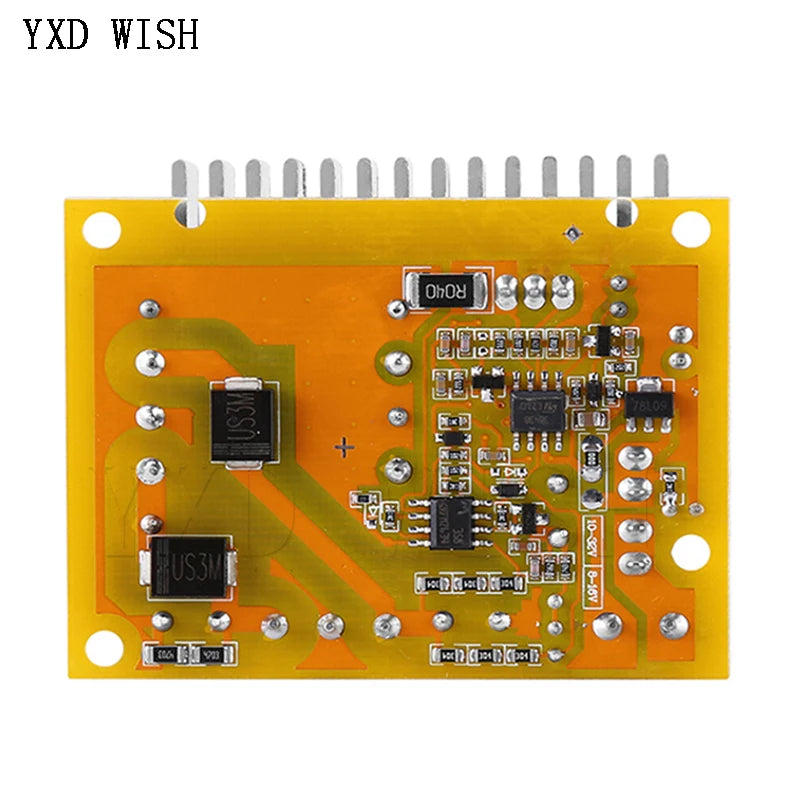

DC-DC Boost Converter Step Up Power Supply Module DC 8-32V to 45-390V High Voltage ZVS Capacitor Charging Board


Fearture:
Module Name: High Voltage boost module
Module Properties: non-isolated step-up module
Input voltage:  10-32V input (Suitable for width voltage input range)
Input Current: 5A (MAX)
Quiescent current: 15mA (when 12V to 50V, the higher the output voltage, the greater the static current.)

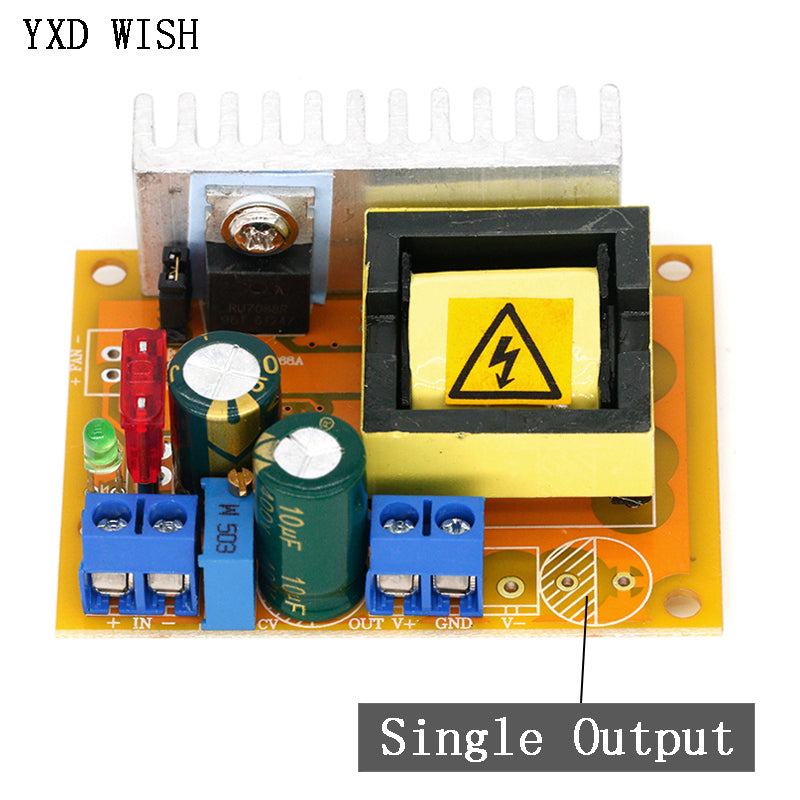

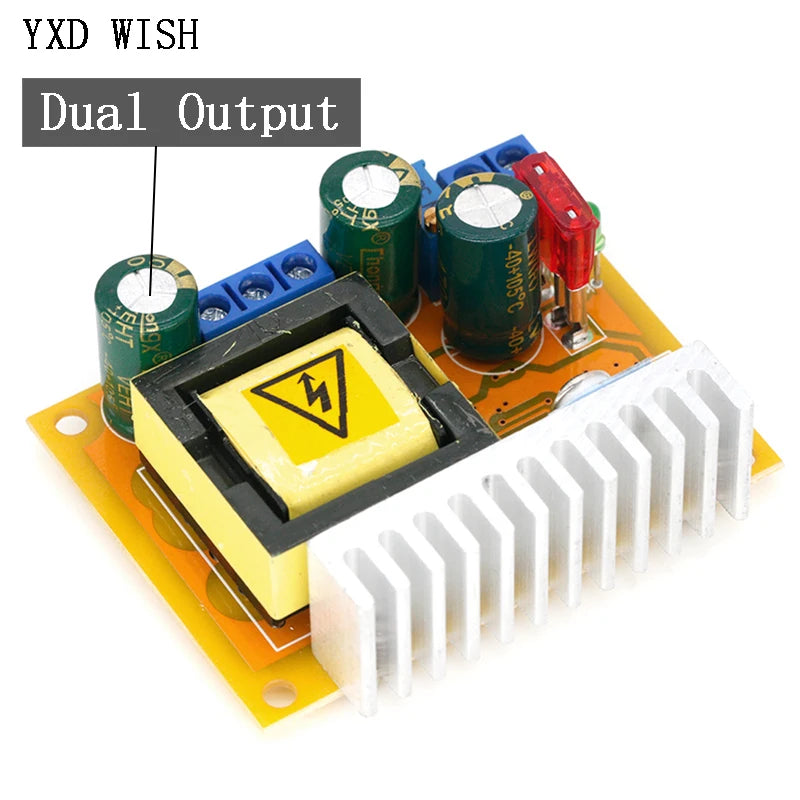

Output voltage: 45-390V 780V Dual Output continuously adjustable.
Output Current: 0.2A MAX (With the input, output, pressure related.. The higher the voltage, the smaller the output current.)
Output Power: 40W (peak 70W)
Working temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 75KHz
Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: Yes. (The input fuse 10A,please do not short circuit output, otherwise damage to the rectifier.)
Overcurrent protection: yes. If the input current is more than 4.5A, reduce the output voltage.
Overvoltage protection: yes.  If the output voltage is more than 410V, reduce the output voltage.
Input reverse polarity protection: Yes (No self-healing, connect reverse burning fuse, try not reverse connect.)
Installation: four 3mm screws
Connection: solderless terminals output (with shell welding output)
Module dimensions: 60 x 50 x 22 mm


The capacitor charging time measured data:
470uF 390V full time to 2 seconds
1000uF 390V full time to four seconds
2200uF 390V full time to 8 seconds
4700uF 390V full time to 18 seconds


Applications:
1, for charging the capacitor.
2, for the electronic equipment supply power, can according to the system voltage to set the output value.
3, Withstand voltage test power supply, glow tube power supply.
4, hunting, exterminate rats.
