SPECIFICATIONS

Brand Name: Voktta

Choice: yes

Model Number: Power Supply Module

Number of sockets: Not

Origin: Mainland China

Type: other

is_customized: Yes

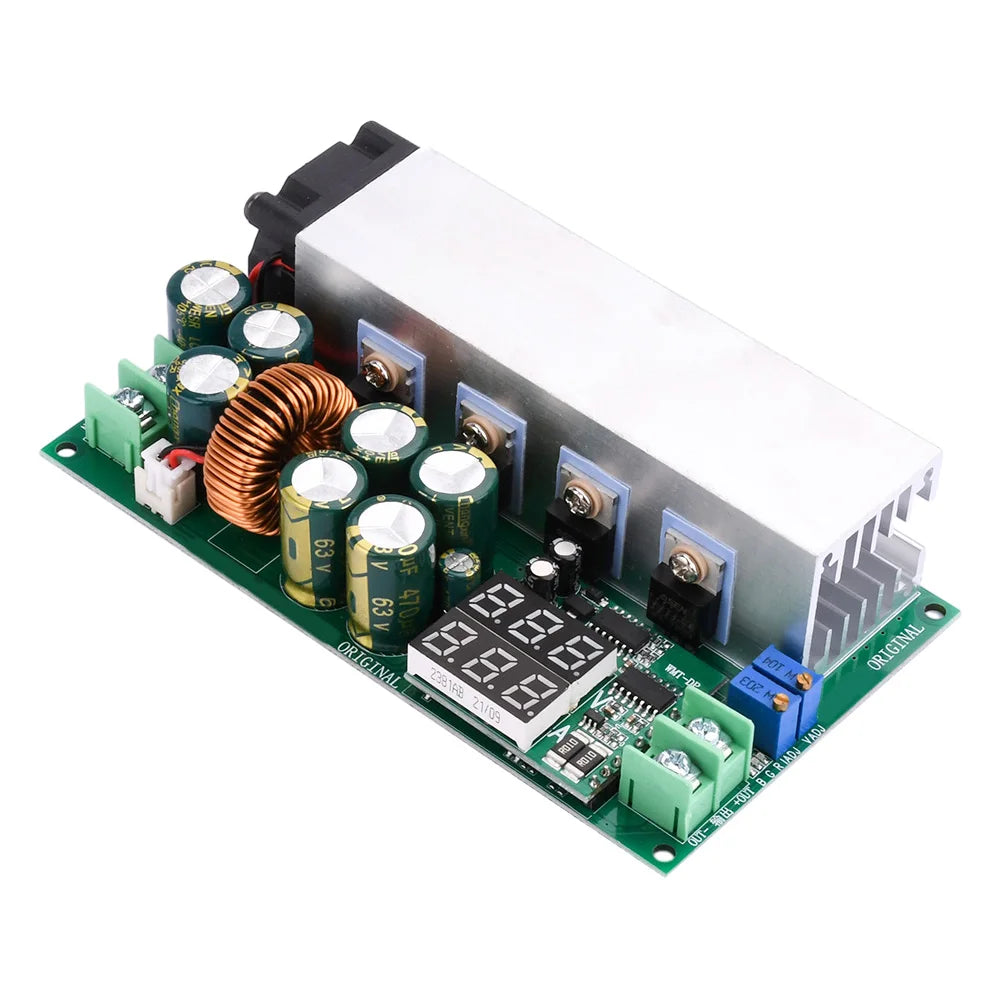

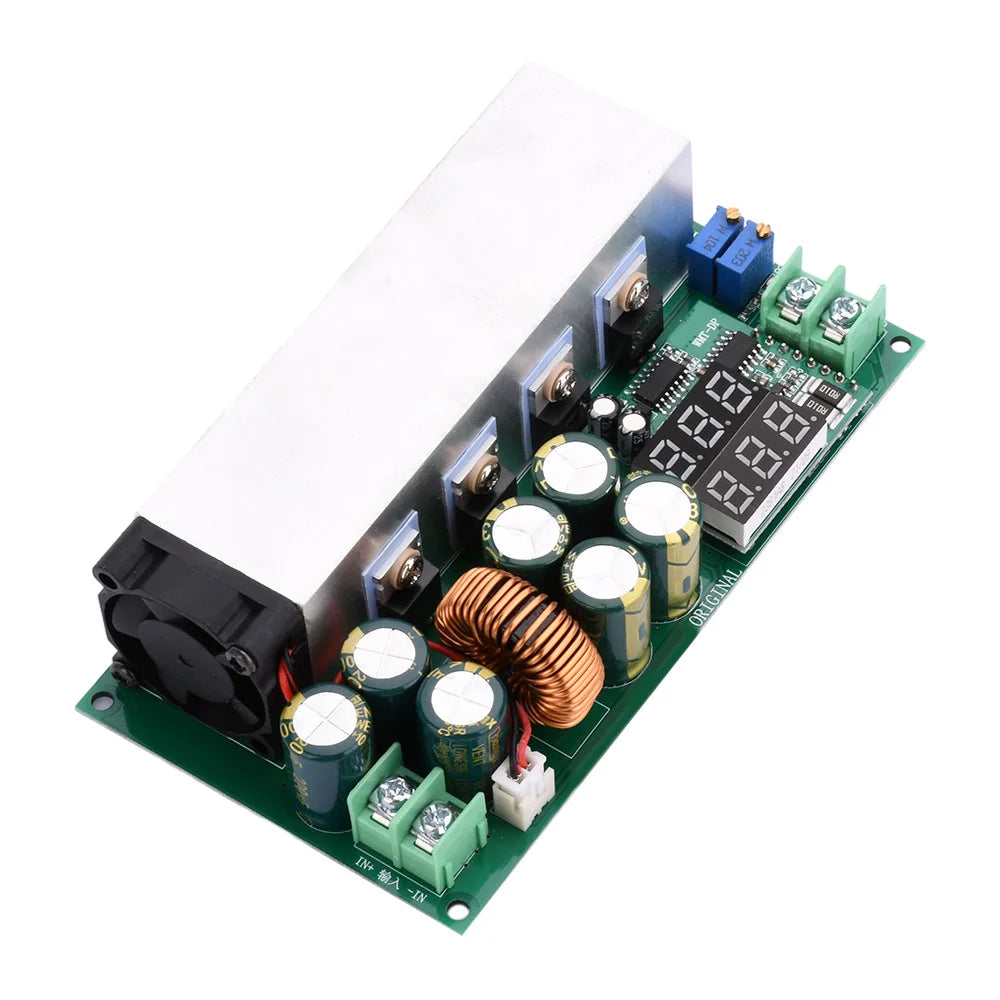

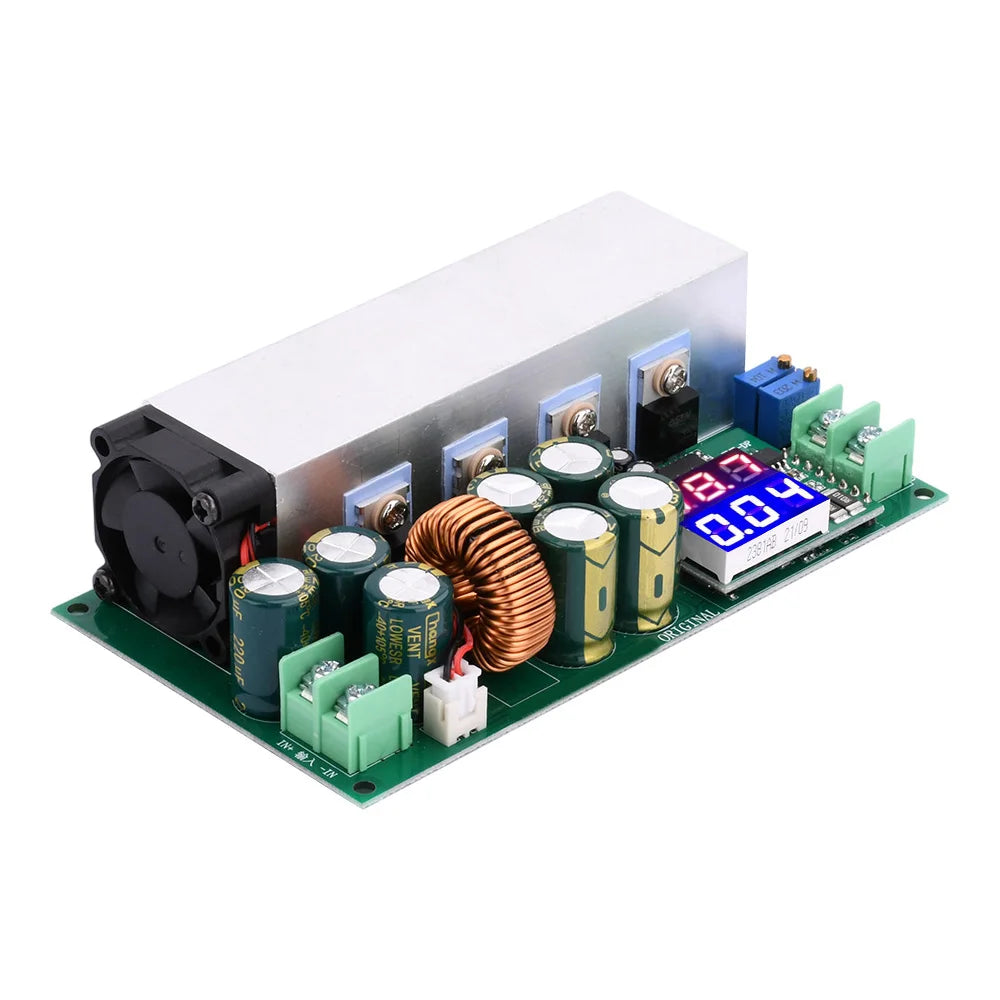

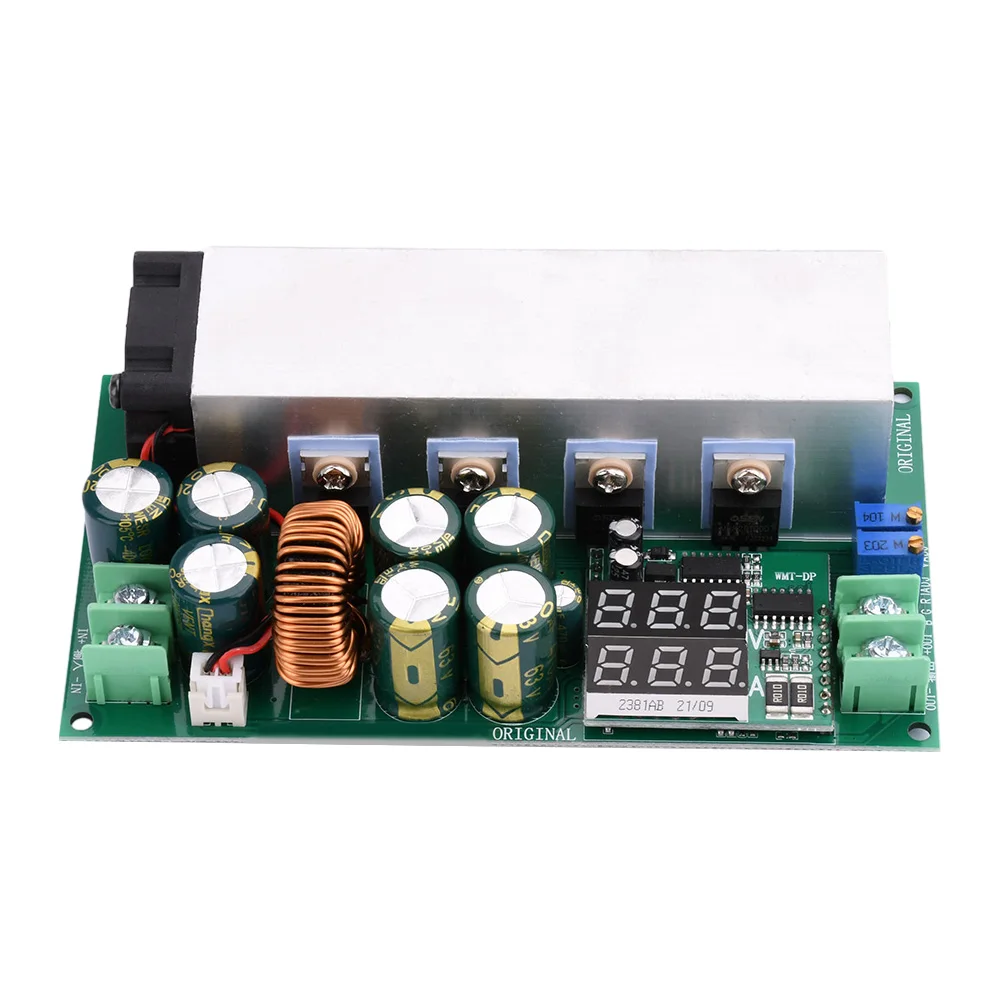

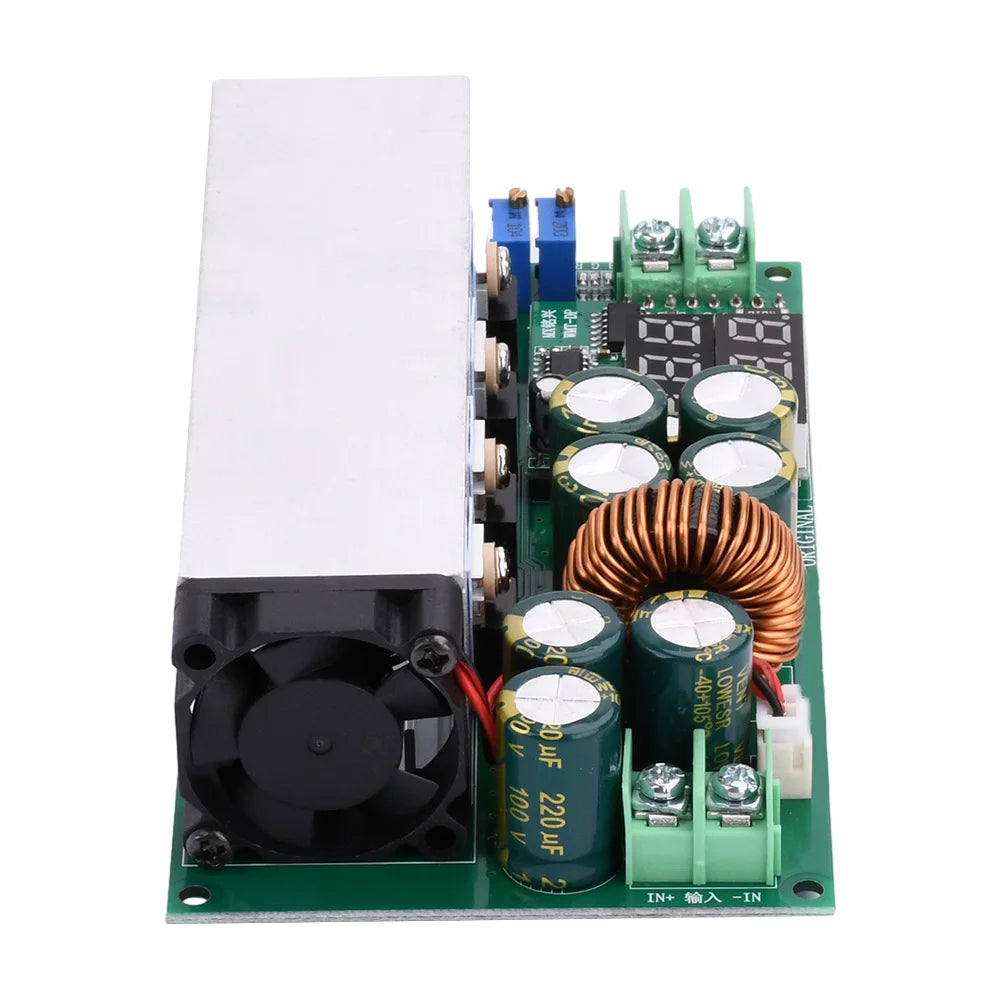

DC-DC High Power 600W Adjustable Step-down Power Supply Module With Fan 12V-80V To 2.5V-50V Buck Converter 25A Constant Current

Features:
1. High performance, output voltage and current are continuously adjustable;

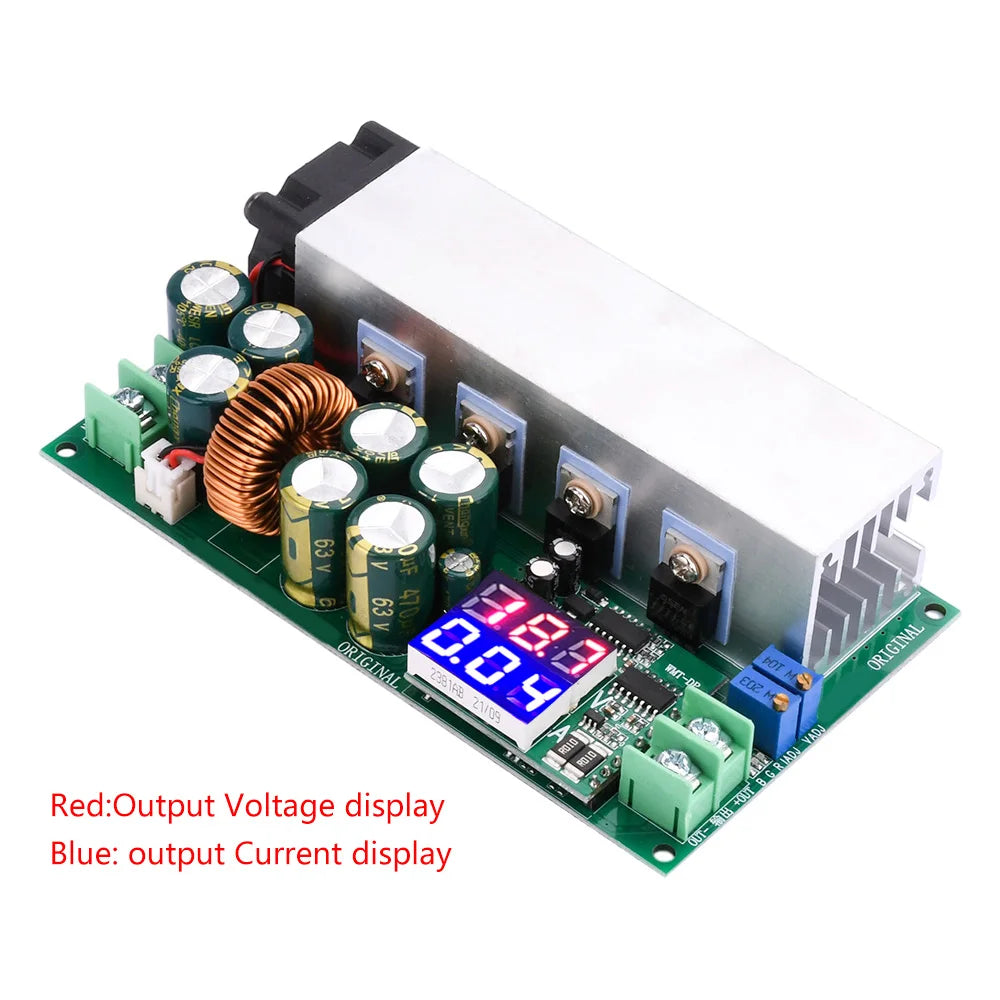

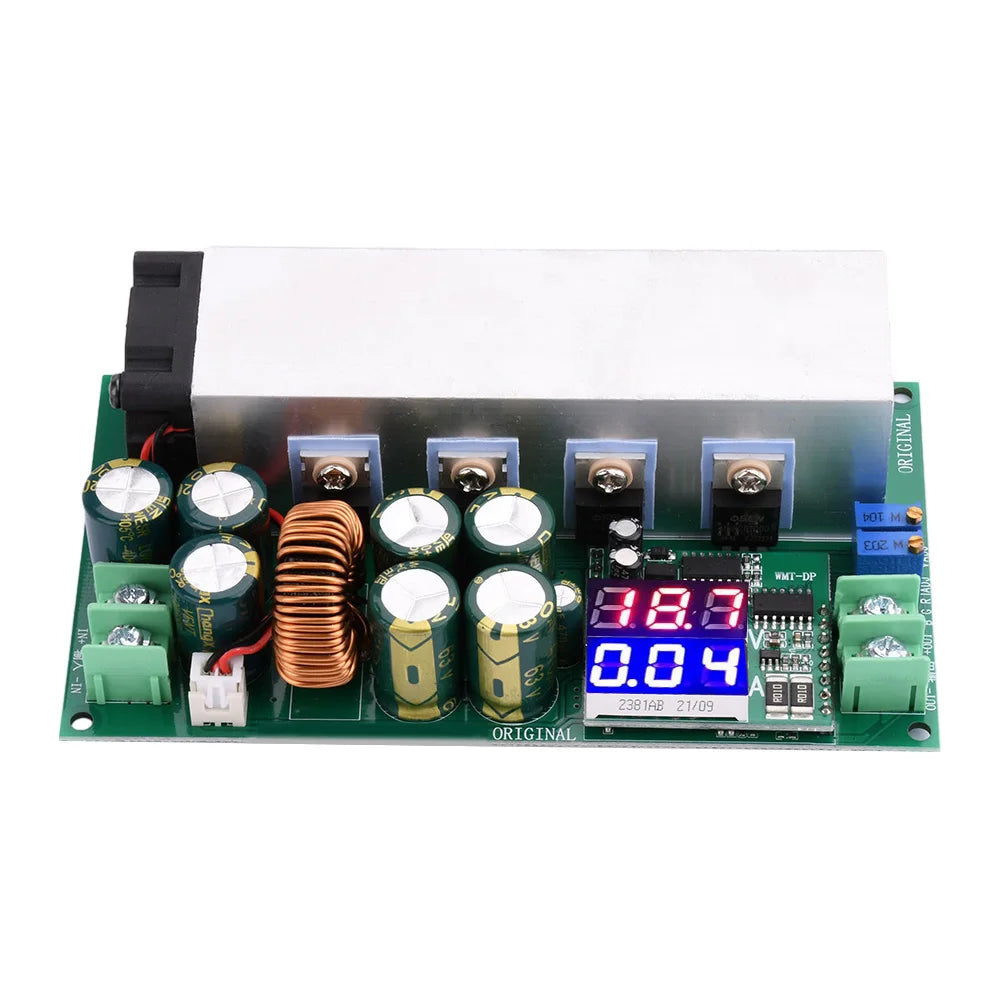

2. Add digital display function, the output voltage can be displayed, making it more convenient to use;
3. Easy to operate, just plug it in and use it;
4. Made of high-quality materials, the input voltage can reach up to 80V;
5. The efficiency is extremely high, up to 93%.
Product parameters:
Input voltage: DC12-80V (72V battery cannot be used)
Output voltage: 2.5V-50V adjustable (can only step down) (maximum output voltage = input voltage * 0.8)
Output current: 20A (MAX) 25A overcurrent
Maximum power: 600W
Conversion efficiency: ≥93%
Protection: over-current protection, anti-backflow

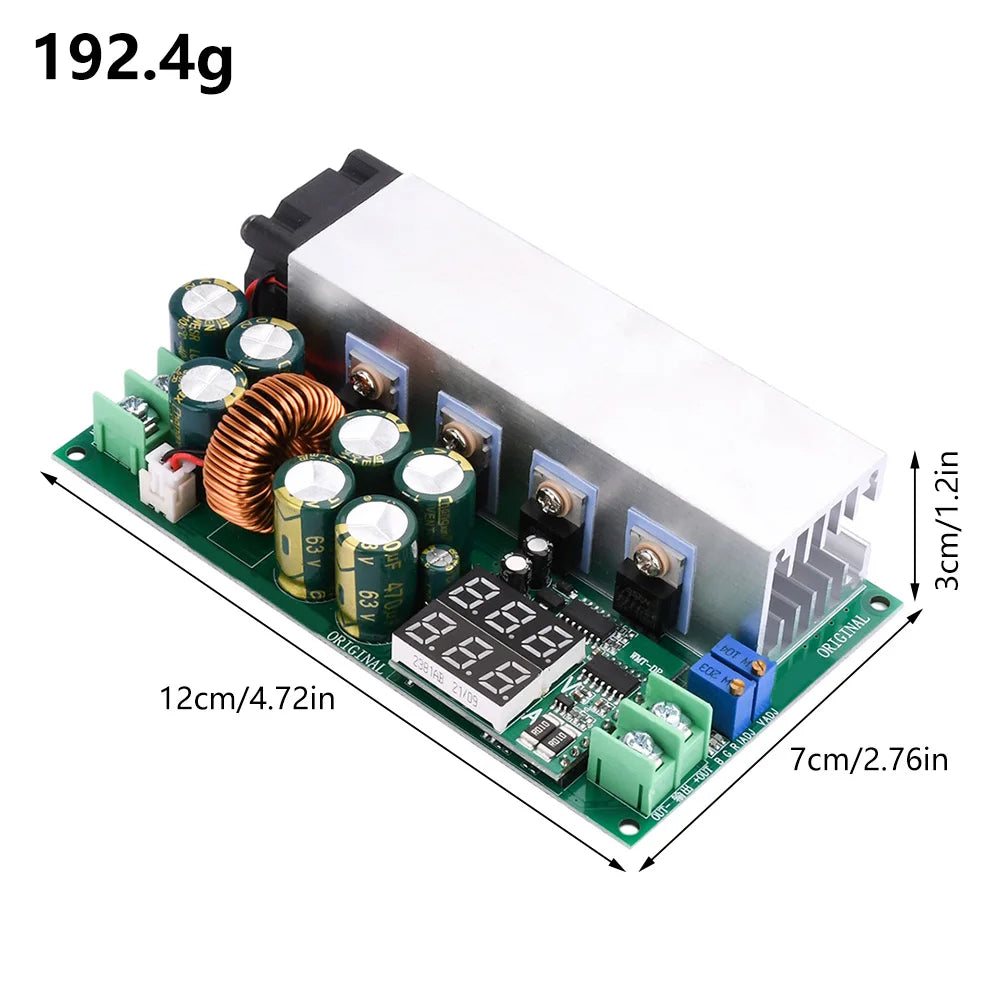

Size: L125mm*W70mm*H32mm
Working temperature: -40-85℃
Storage environment: -20℃-+50℃
Relative humidity: 65±20%
Wiring: For high power, the wiring should be as thick as possible.

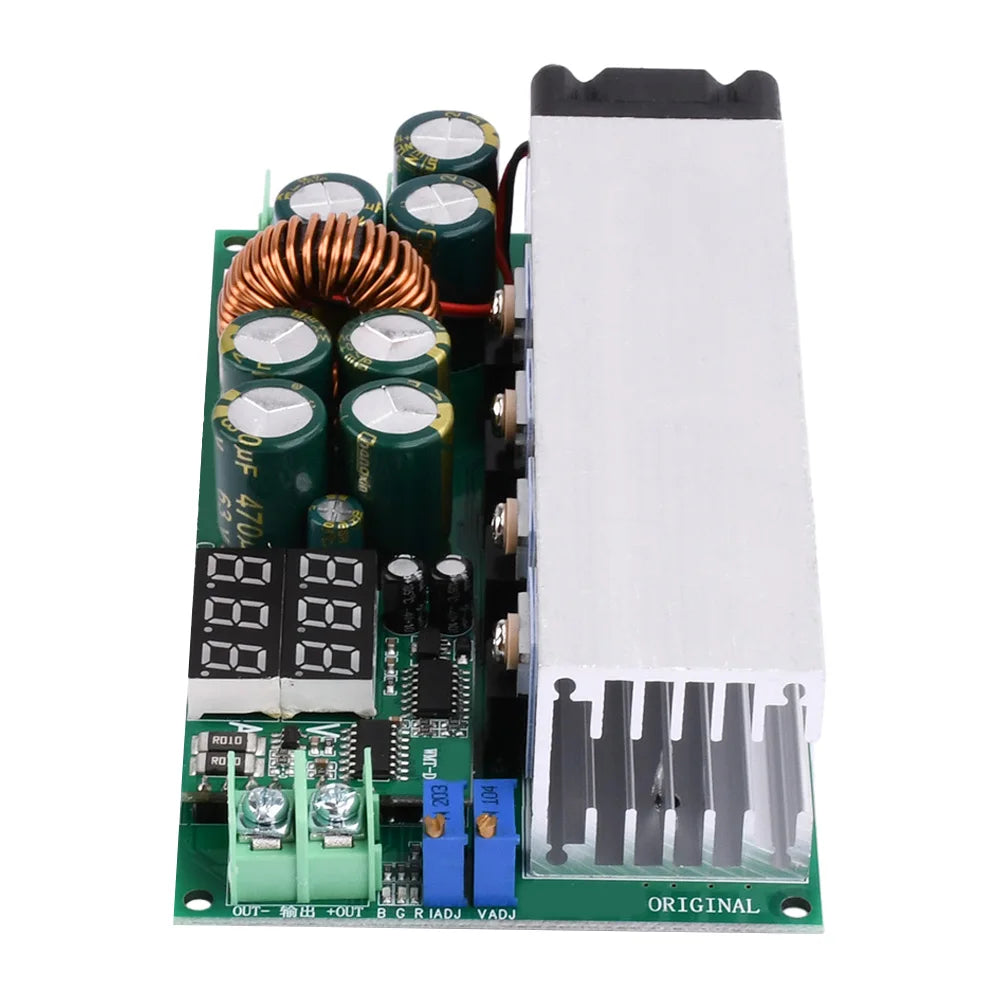

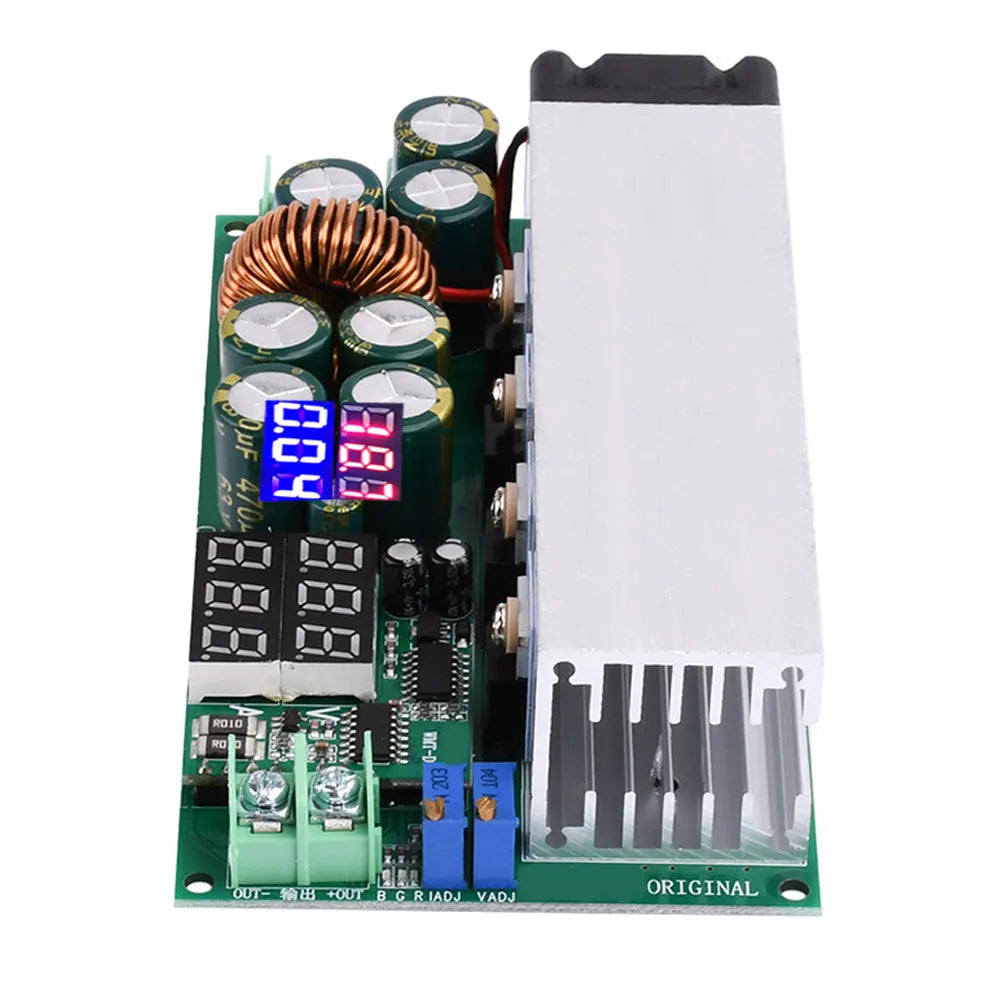

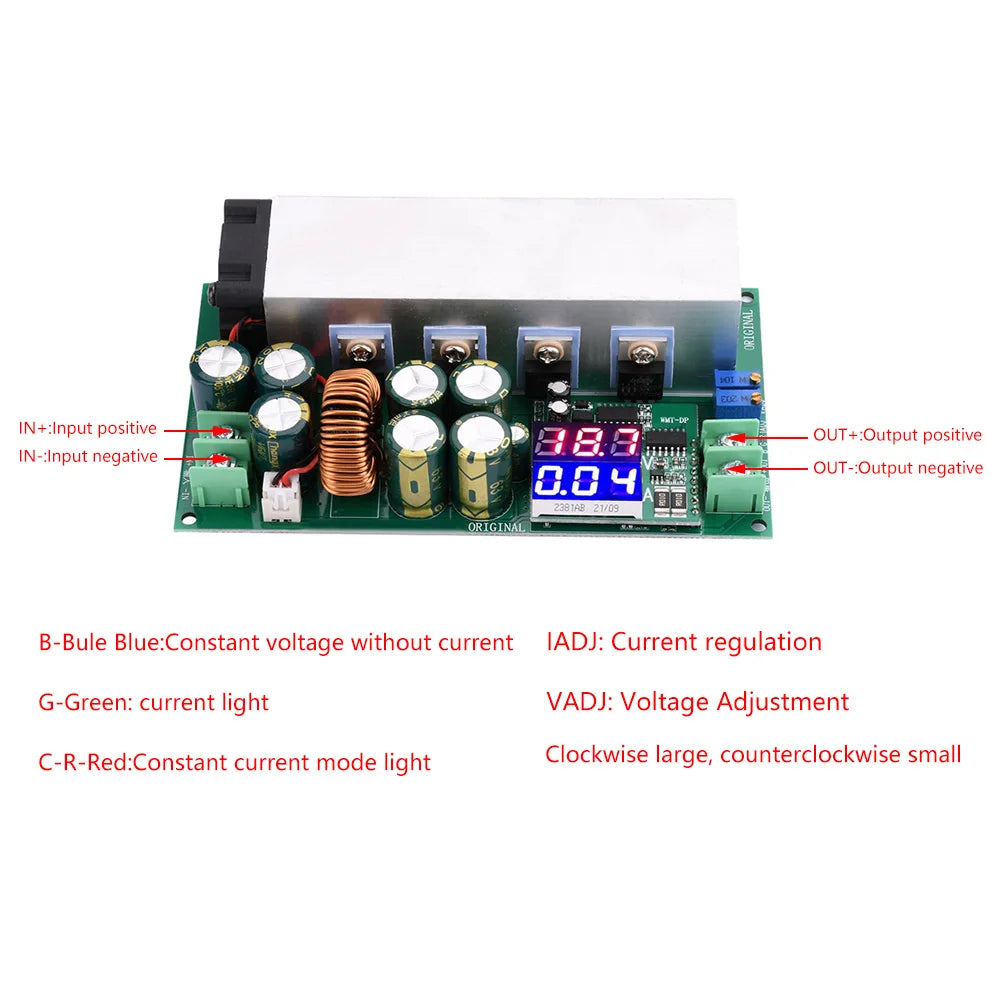

Interface Description:
IN+: Input positive pole
IN-: Input negative pole
OUT+: output positive pole
OUT-: output negative pole
B-Bule blue light: constant voltage and no current
G-Green green light: current light
C-R-Red red light: constant current mode light
IADJ: current adjustment, clockwise is larger, counterclockwise is smaller
VADJ: voltage adjustment, clockwise is larger, counterclockwise is smaller
Note: When charging batteries and batteries, please add diodes to the output to prevent backfeed!

Product List:
1X module
