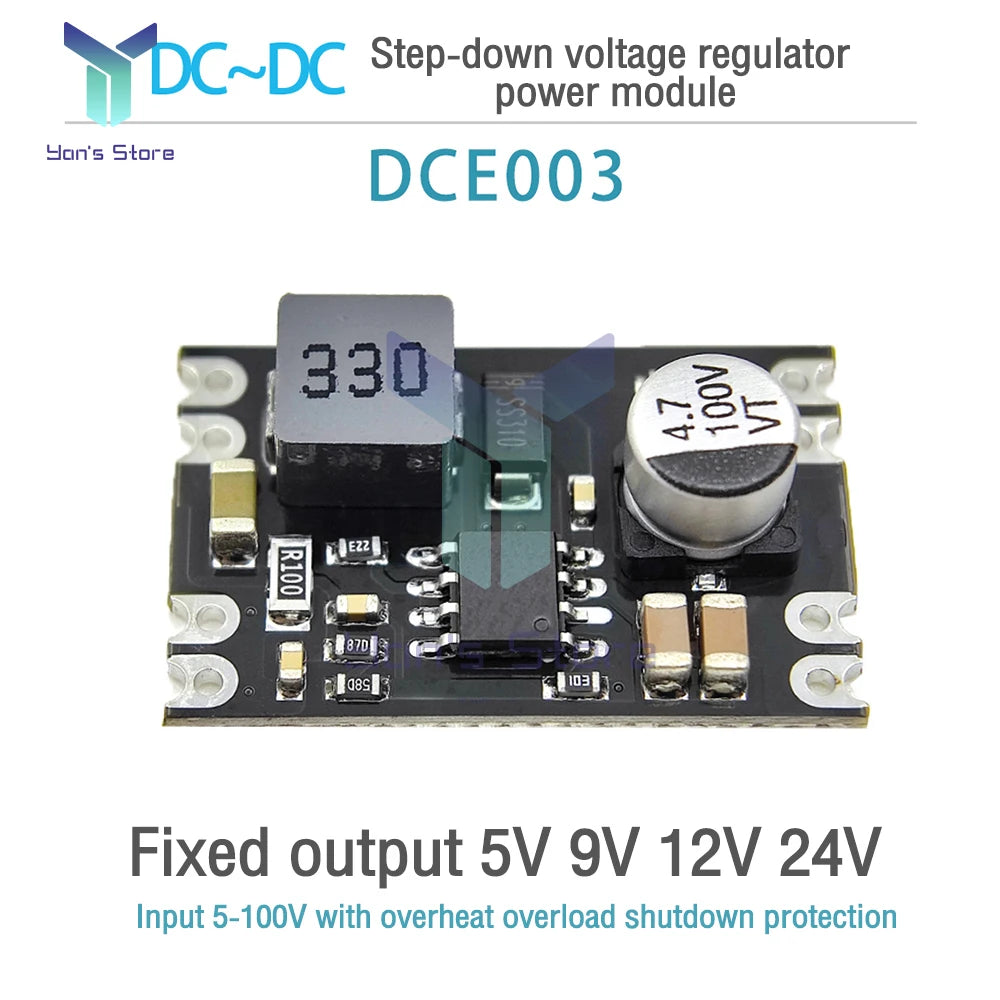

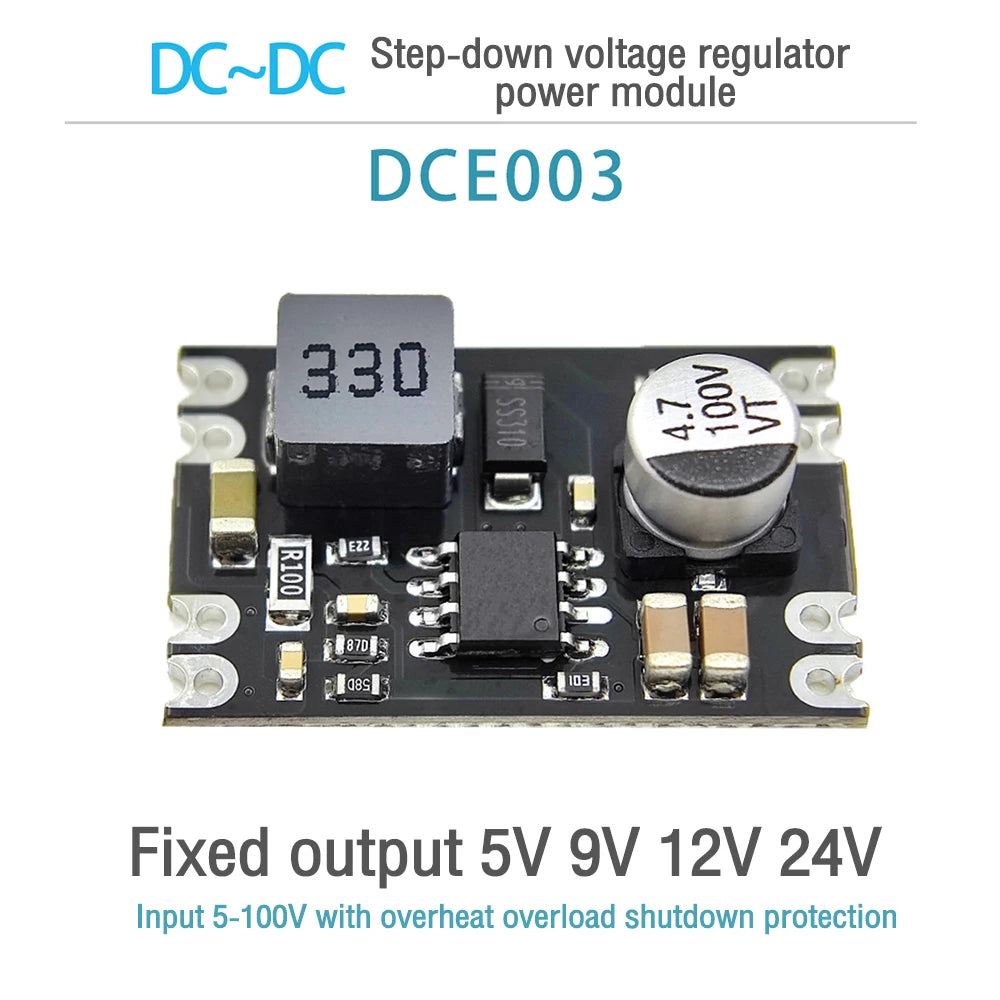

Features:
1.Fixed output 5V 9V 12V 24V, input 5-100V with overheat overload shutdown protection

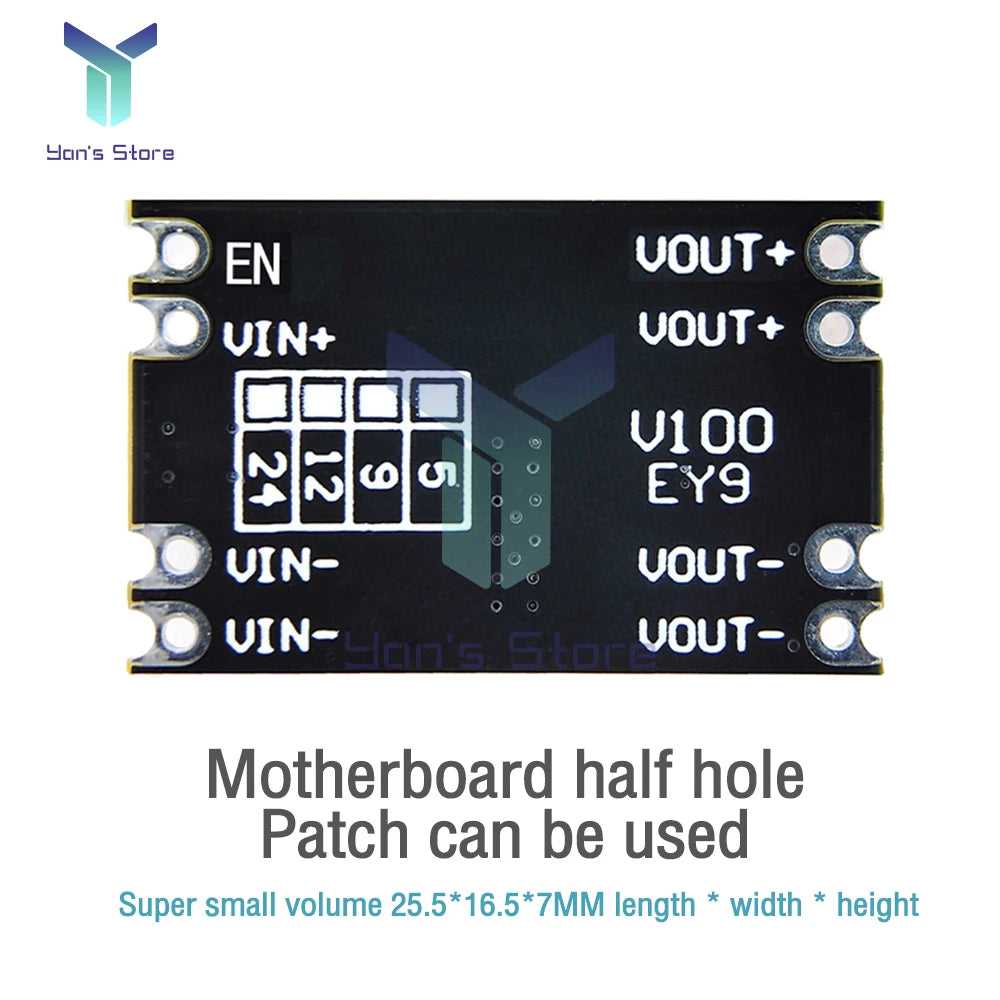

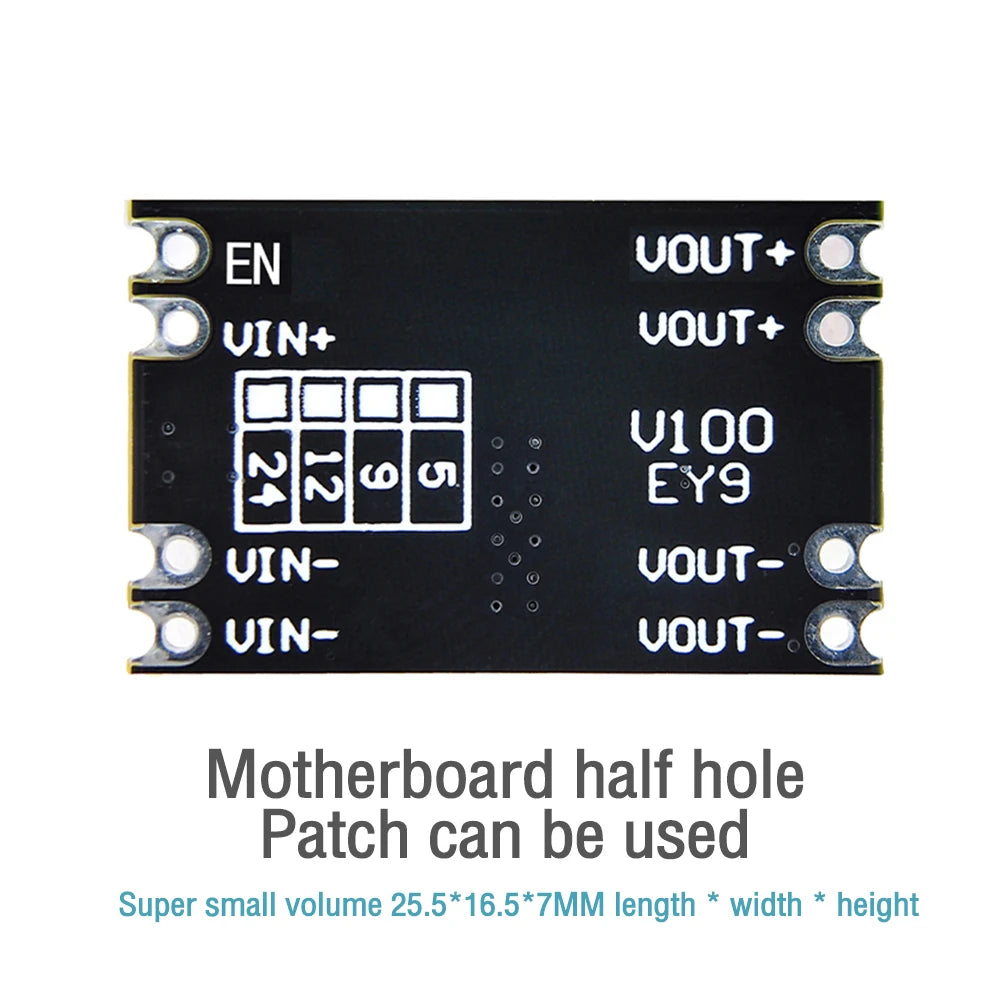

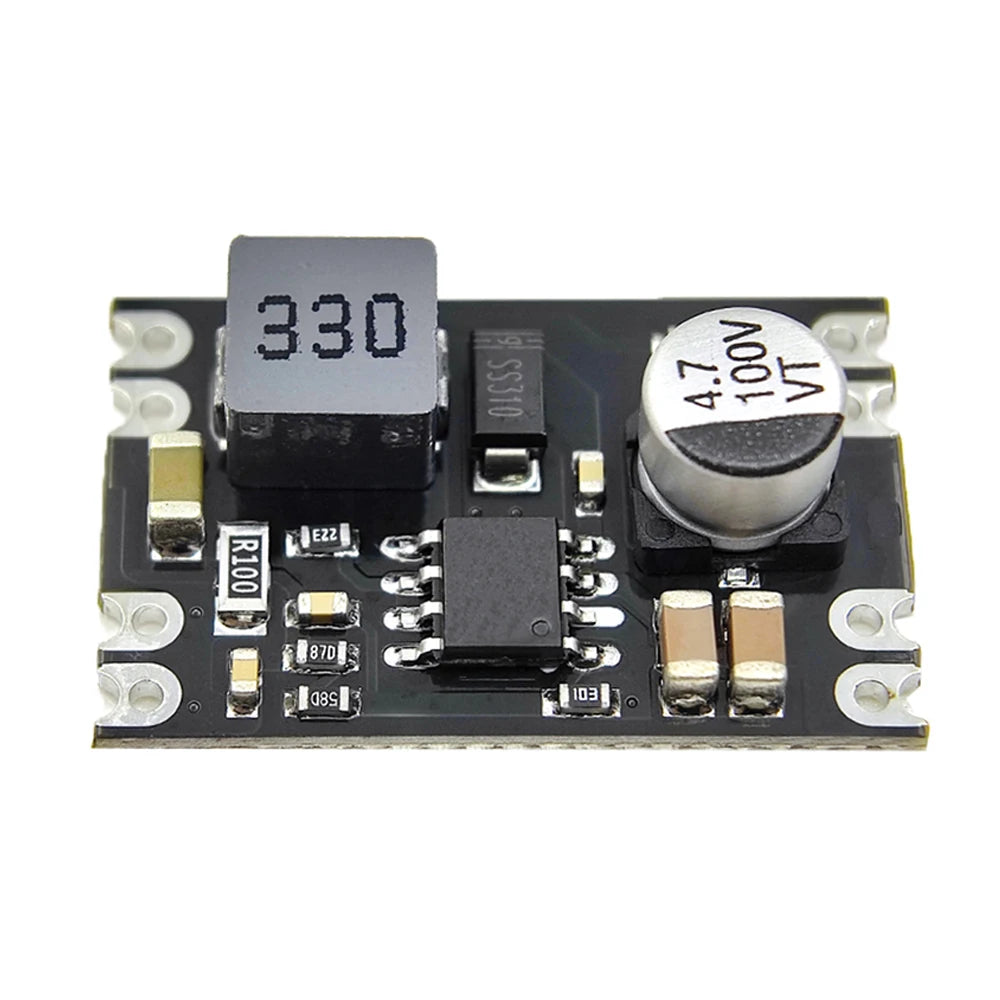

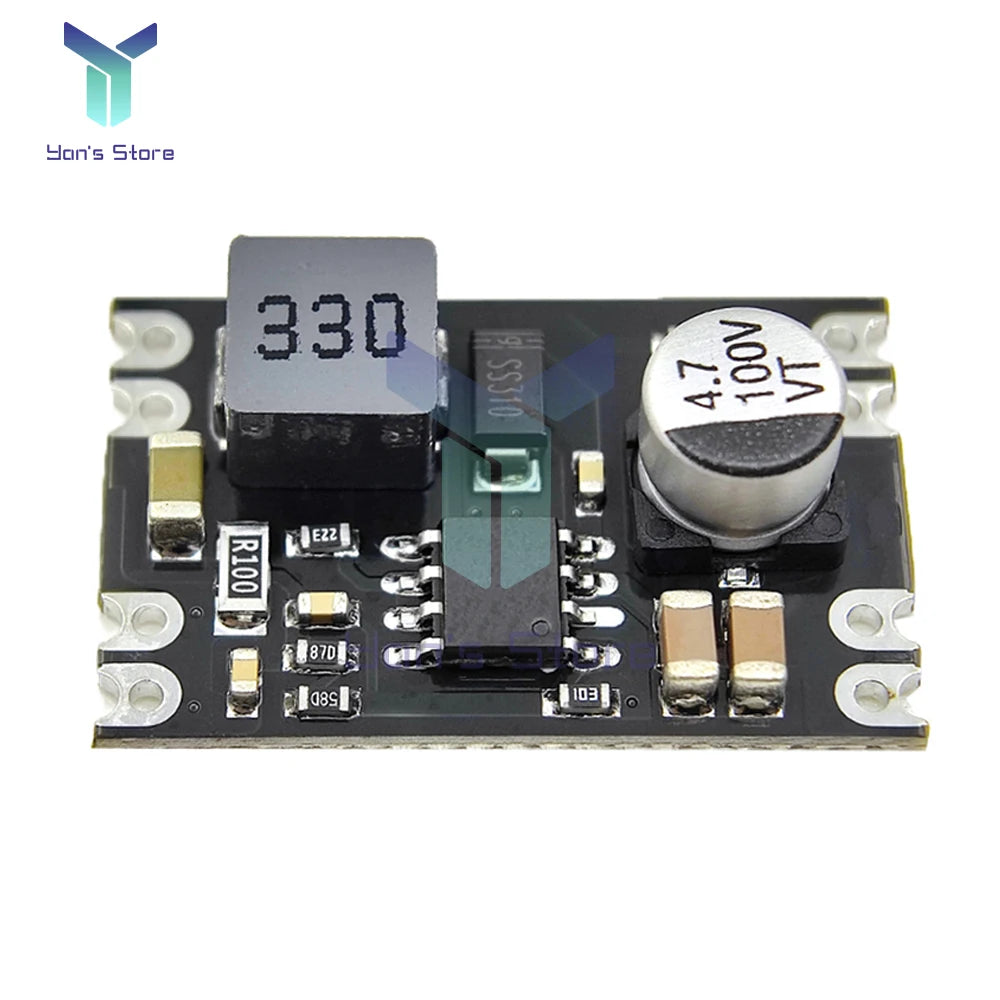

2.Motherboard half hole, can be used for mounting, ultra small volume 25.5 * 16.5 * 7MM
3.DC-DC voltage reduction module is a device that converts high direct current into low voltage electrical energy. The input voltage must exceed the output voltage (with voltage difference), such as 12V to 5V, 24V to 5V.
4.It adopts microelectronics technology, with high efficiency and small size,
5.Easy to operate and easy to install.

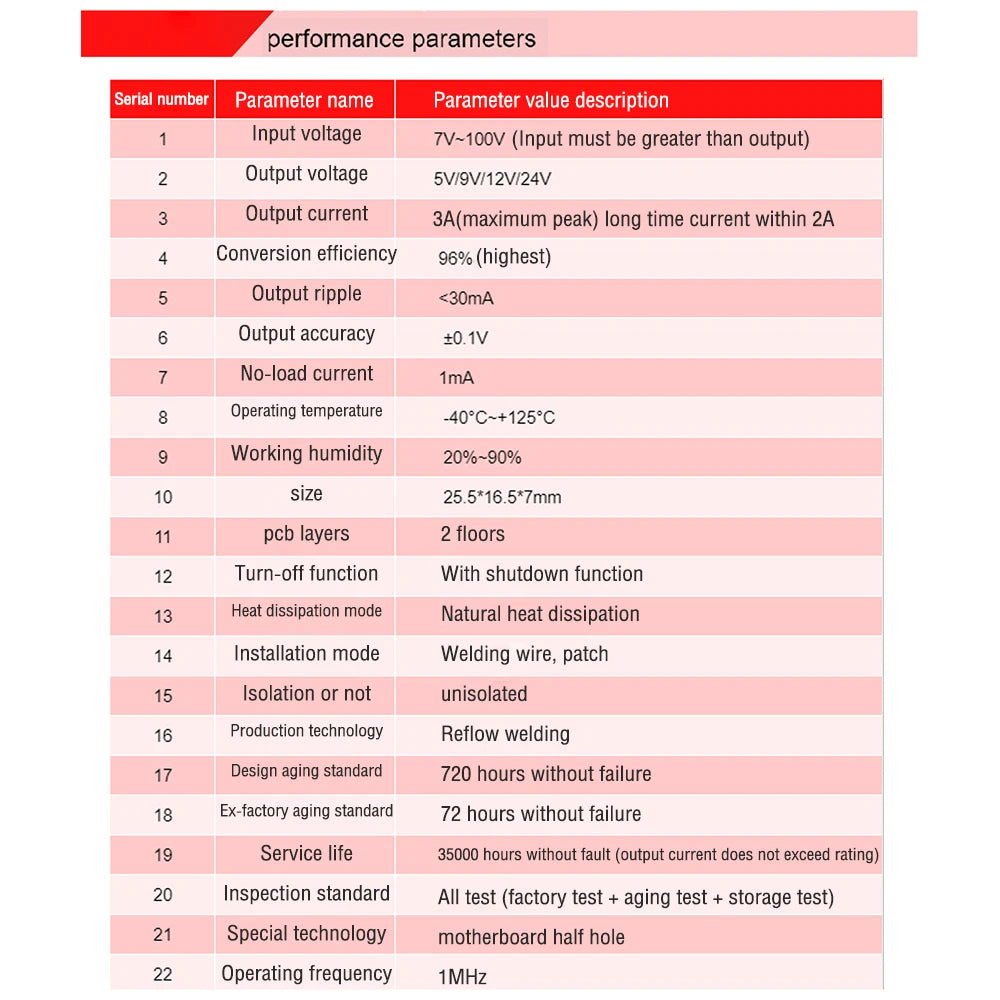

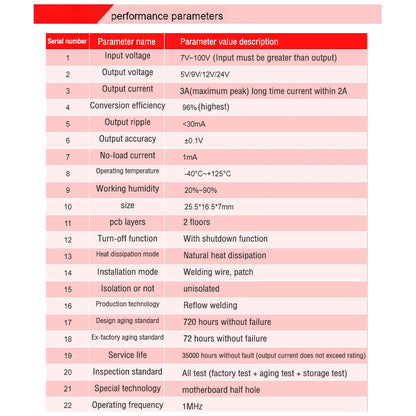

Parameters:
Input voltage: 7V~100V (input must be greater than output)
Output voltage: 5V/9V/12V/24V
Output current: 3A (maximum peak) Long term current within 2A
Conversion efficiency: 96% (highest)
Output ripple:<30mA
Output accuracy: ± 0.1V
No-load current: 1mA
Working temperature: -40 ° C~+125 ° C
Working humidity: 20%~90%

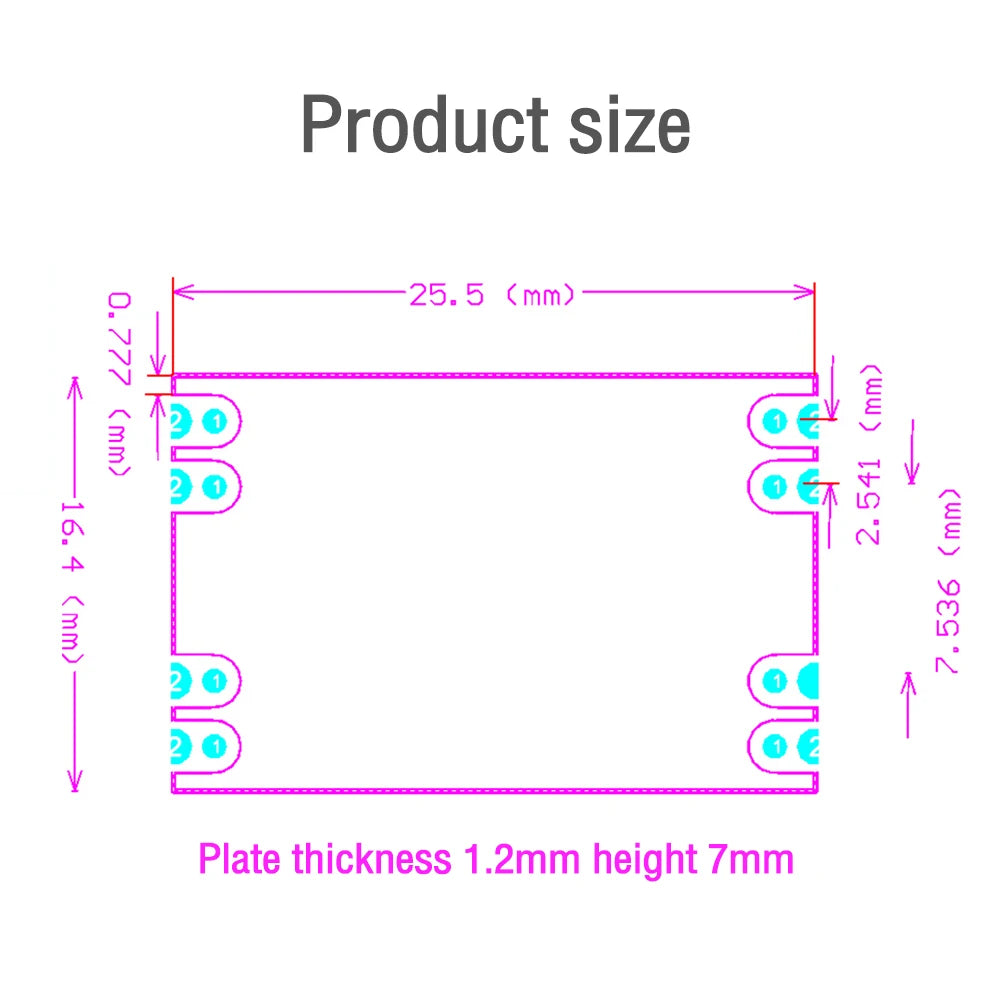

Size: 25.5 * 16.5 * 7mm (length * width * height)
PCB layers: 2 layers

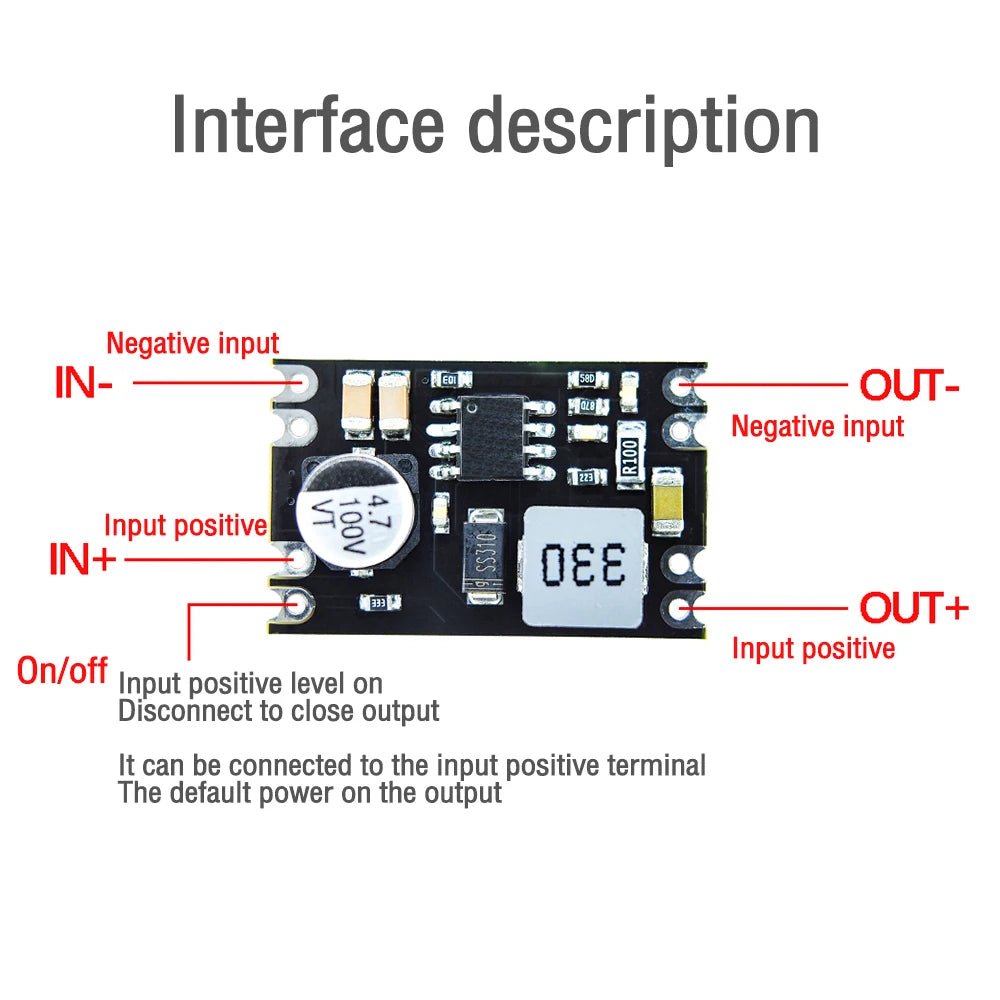

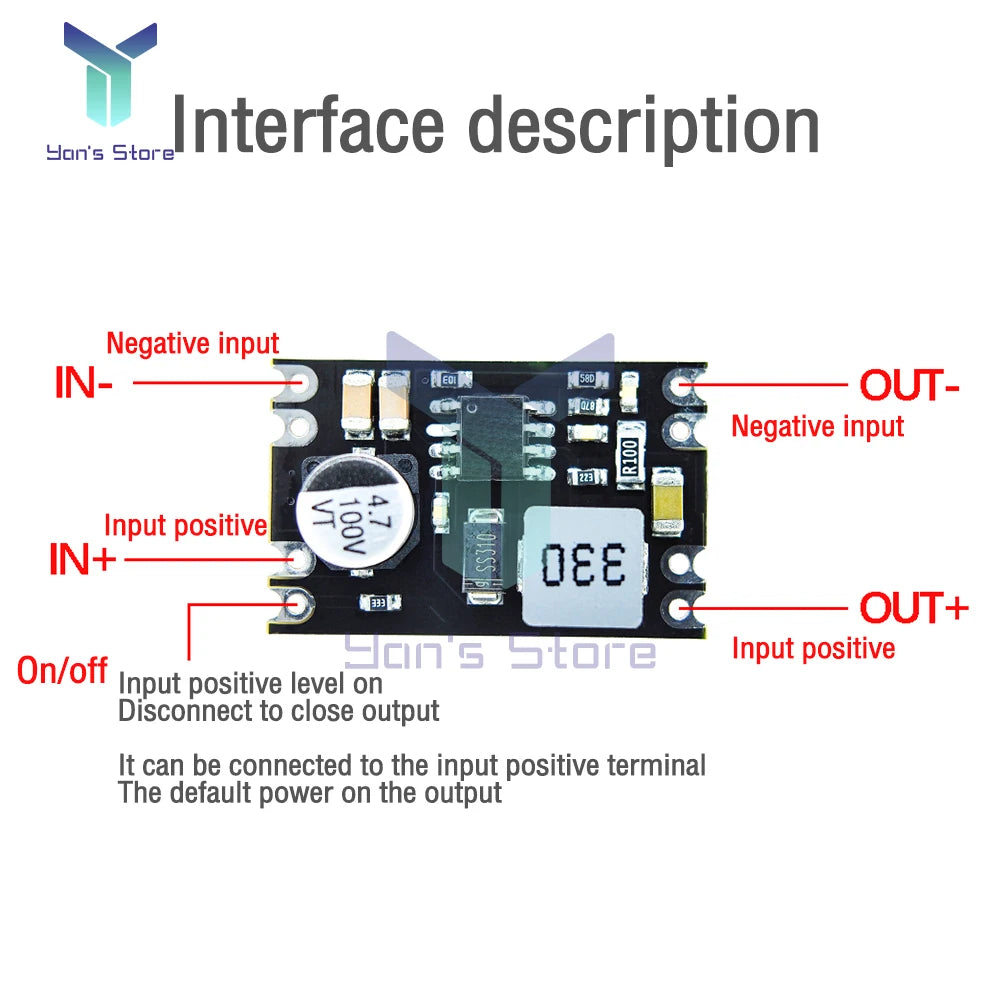

Shutdown function: with shutdown function
Heat dissipation method: natural heat dissipation
Installation method: solder wire, patch
With or without isolation: without isolation
Production process: reflow soldering
Service life: 35000 hours without faults (output current not exceeding rated value)
Special process: motherboard half hole
Working frequency: 1MHz

Package include:
1X module
