Módulo Convertidor Boost DC-DC SX1308 Step-Up Ajustable
Módulo Convertidor Boost DC-DC SX1308 Step-Up Ajustable
Precio habitual
$14.540 CLP
Precio habitual
$11.898 CLP
Precio de oferta
$14.540 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Application: Computer
Brand Name: NoEnName_Null
Choice: yes
Condition: New
Dissipation Power: 1
Hign-concerned Chemical: None
Origin: Mainland China,Mainland China
Supply Voltage: 1
Type: Voltage Regulator,SWITCH
is_customized: Yes
semi_Choice: yes
Description:

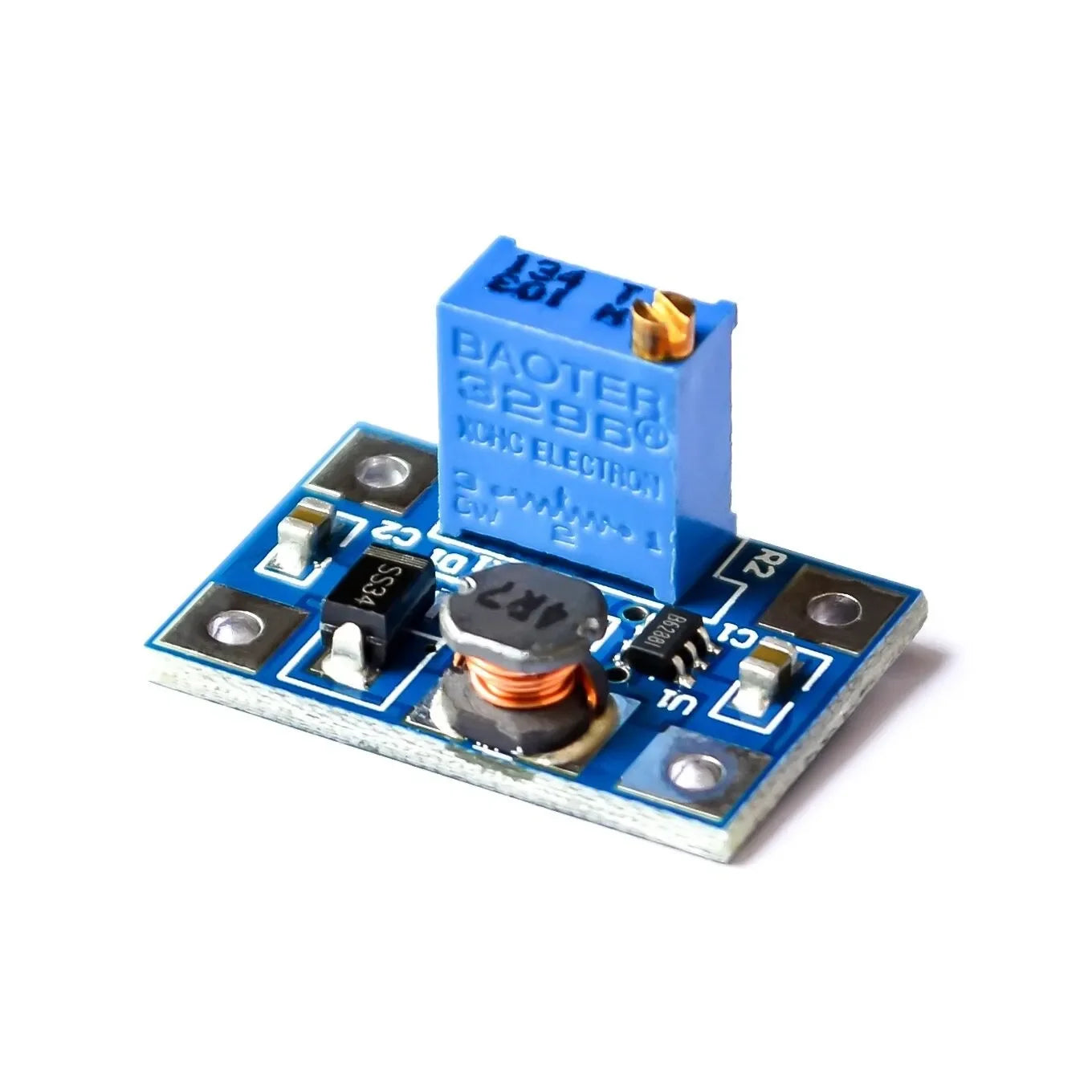

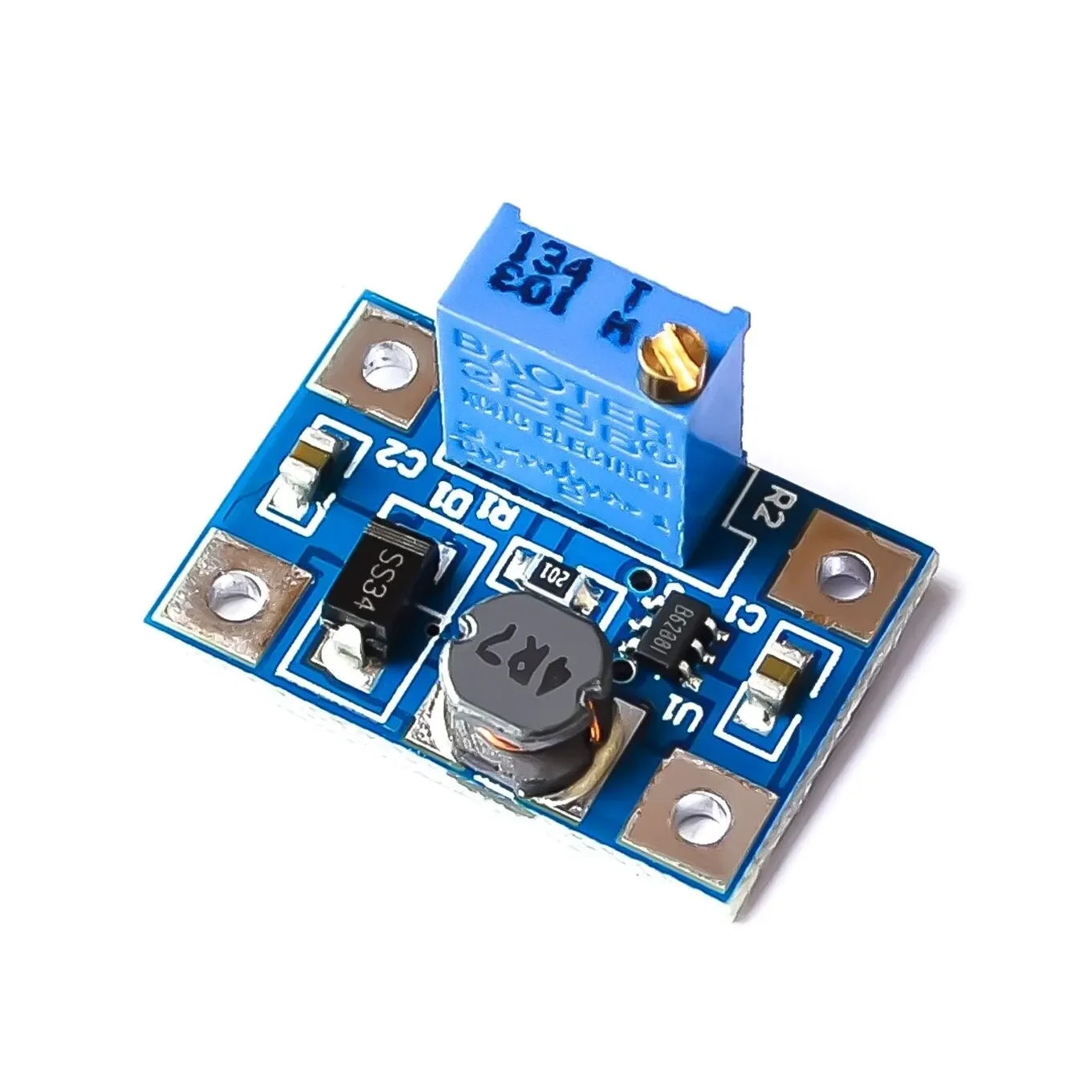

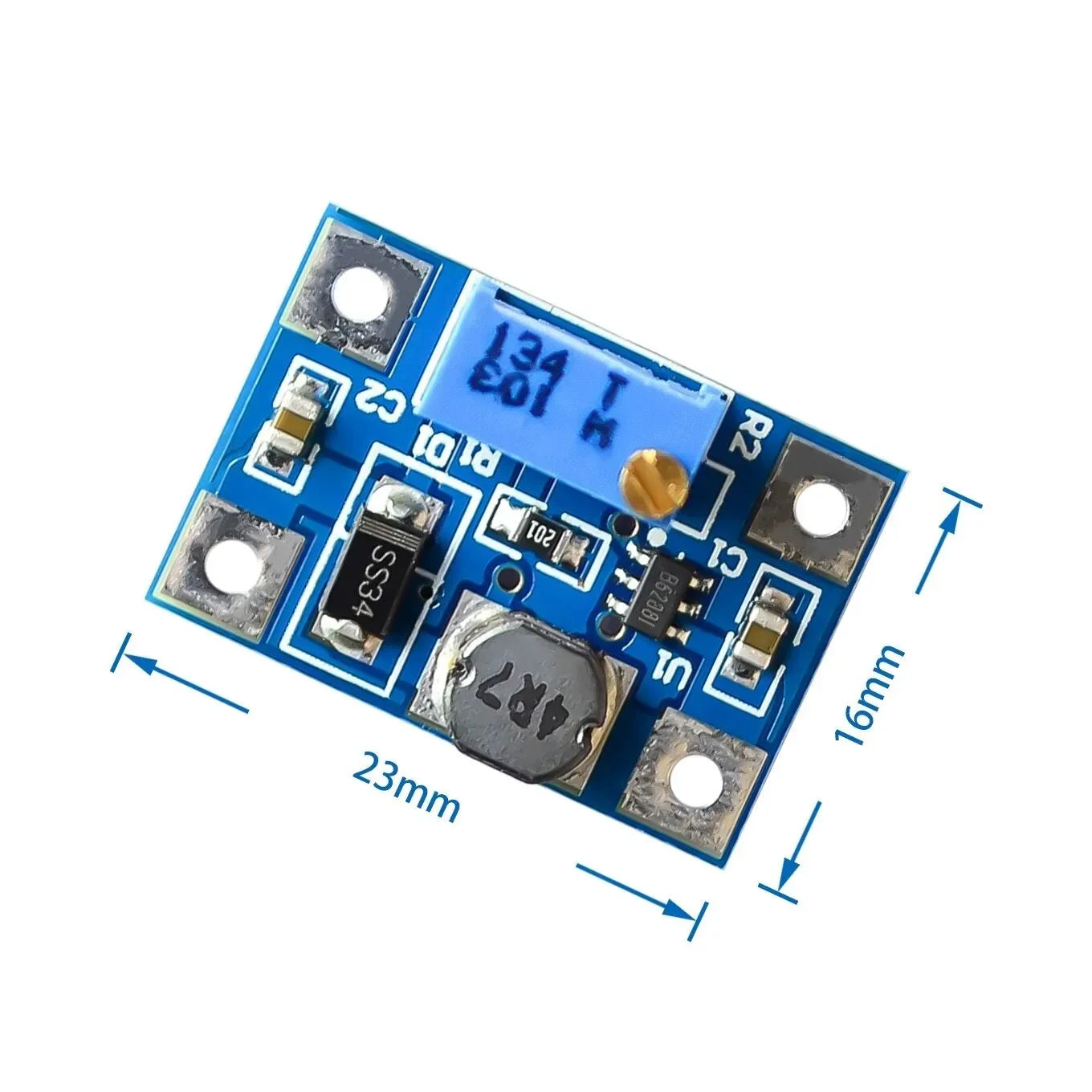

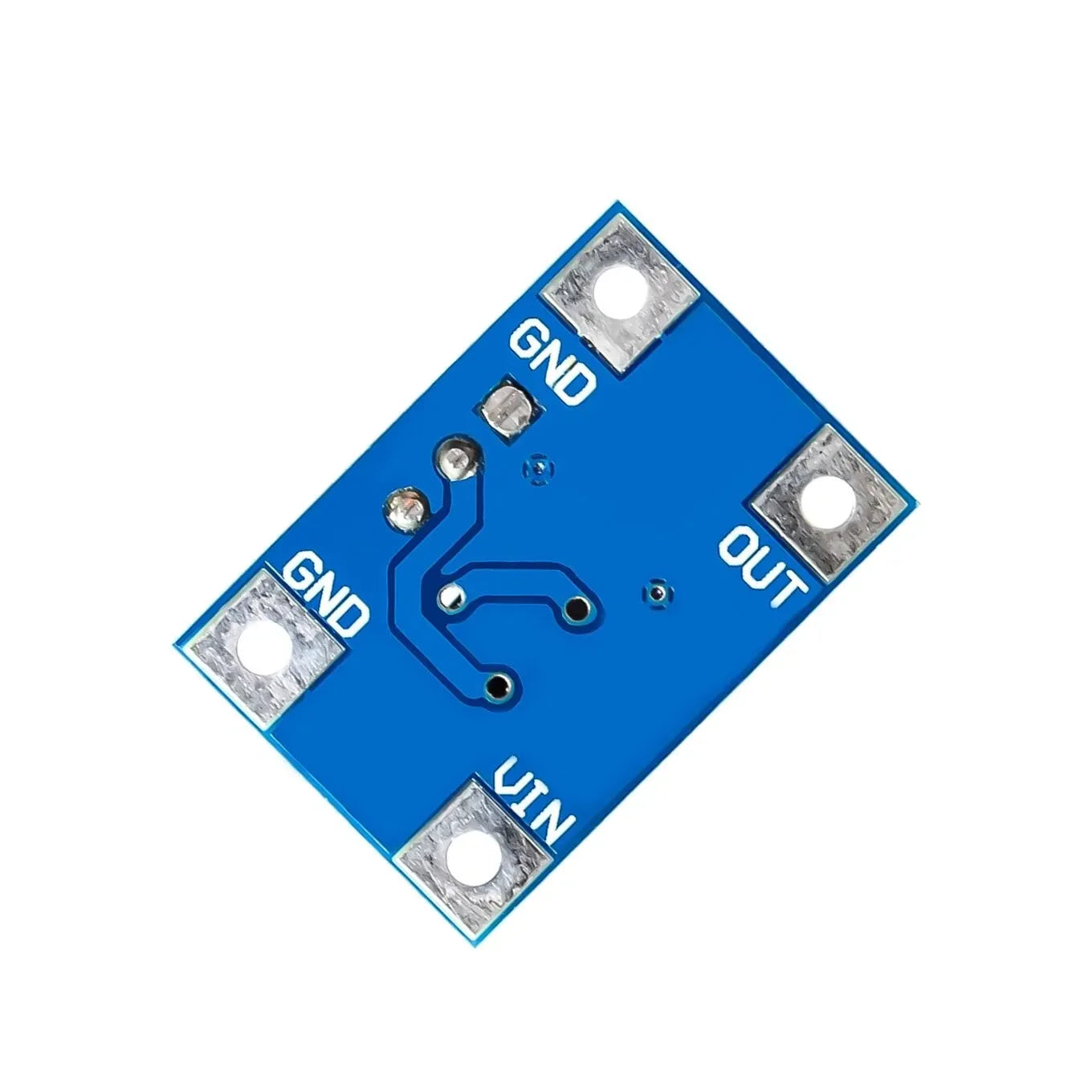

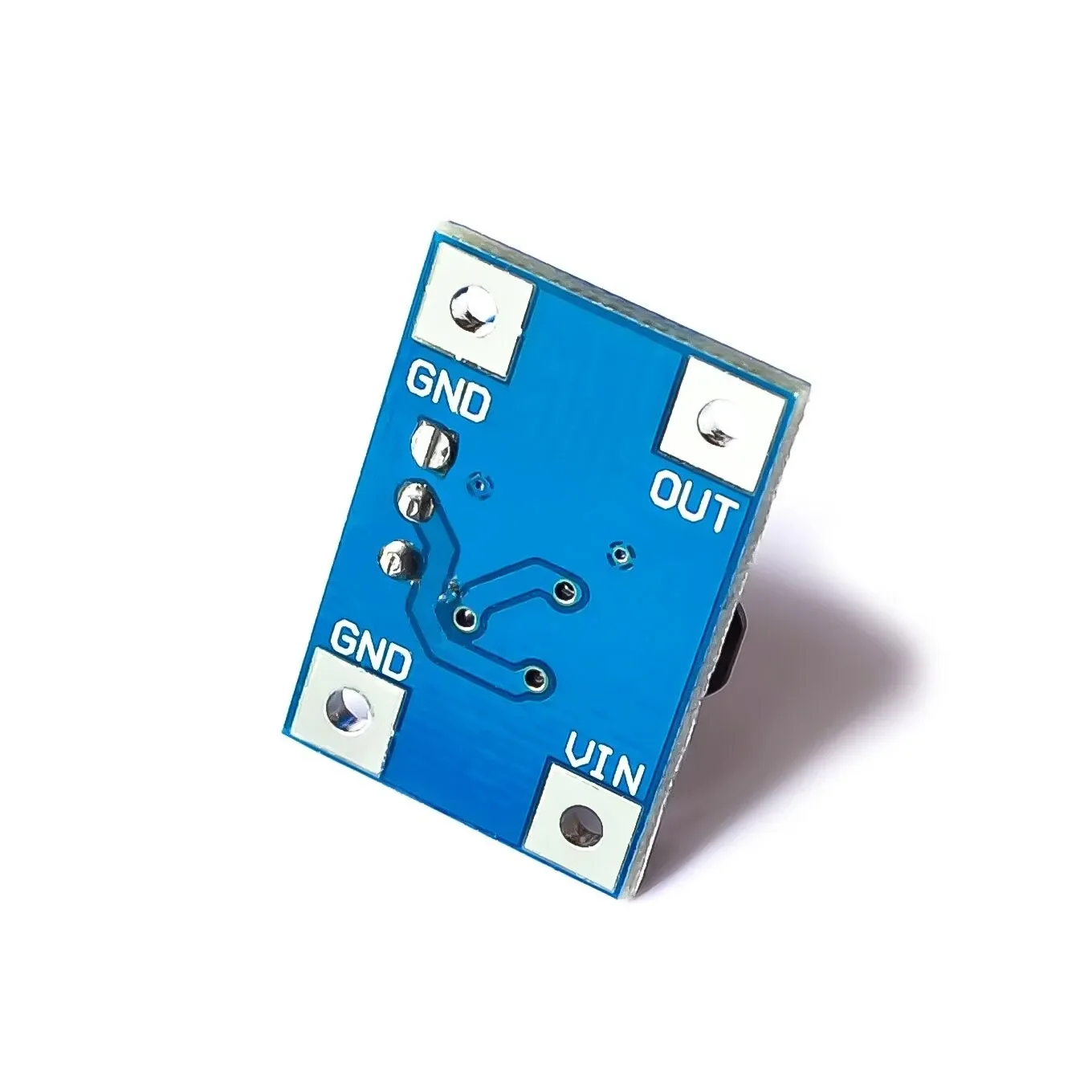

LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.
Features:
Oscillation frequency 1.2MHz
efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function
10k to adjust potentiometer, adjust the output voltage
Parameters:
Maximum input voltage: DC 2-24V
Maximum output voltage: DC 2-28V
Switching frequency: 1.2MHz
Maximum current output: 2A
