SPECIFICATIONS

Brand Name: Aideepen

Input voltage: 3~6V

Model Number: 5V to 6-15V Step Up Boost Converter

Origin: Mainland China

Output Current: 1A

Output Frequency: 1.0MHZ

Output Power: 1 - 50W

Output Type: SINGLE

Output voltage: 6-15.5V

Size: 5.5x1.6cm

Type: DC/DC Converters

Weight: 6g

is_customized: Yes

Attention:

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself





Specifications:

Input voltage 3~6V, output 6-15.5V

Maximum input current :  1.4A

Long-term work Current : 1A

Conversion efficiency : 79-90%

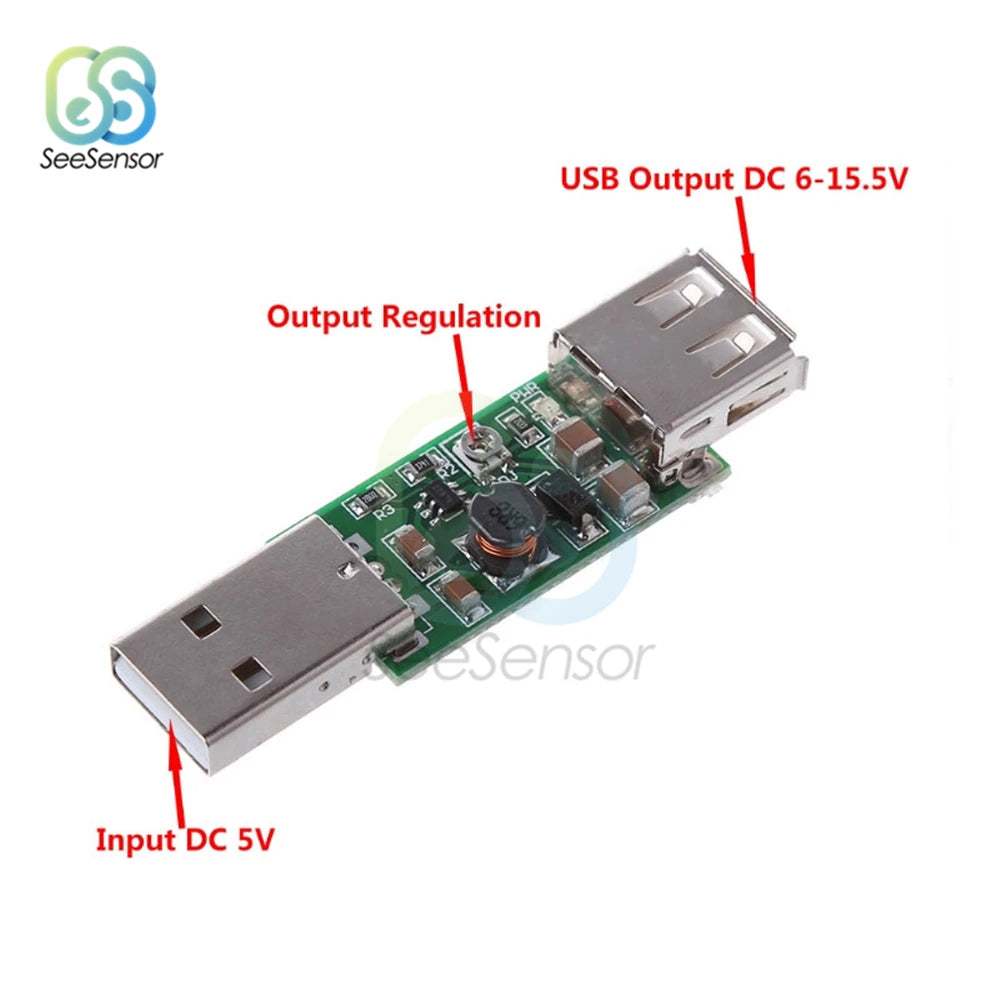

Input: USB Male Interface, DC 3-6V

Ouput: USB Female Interface,  DC 6-15.5V

If input DC 5V, output 6-15.5V Adjustable

Power : Maximum 7W

DC-DC Boost module working frequency 1.0MHZ

Operating ambient temperature : -40~+85°

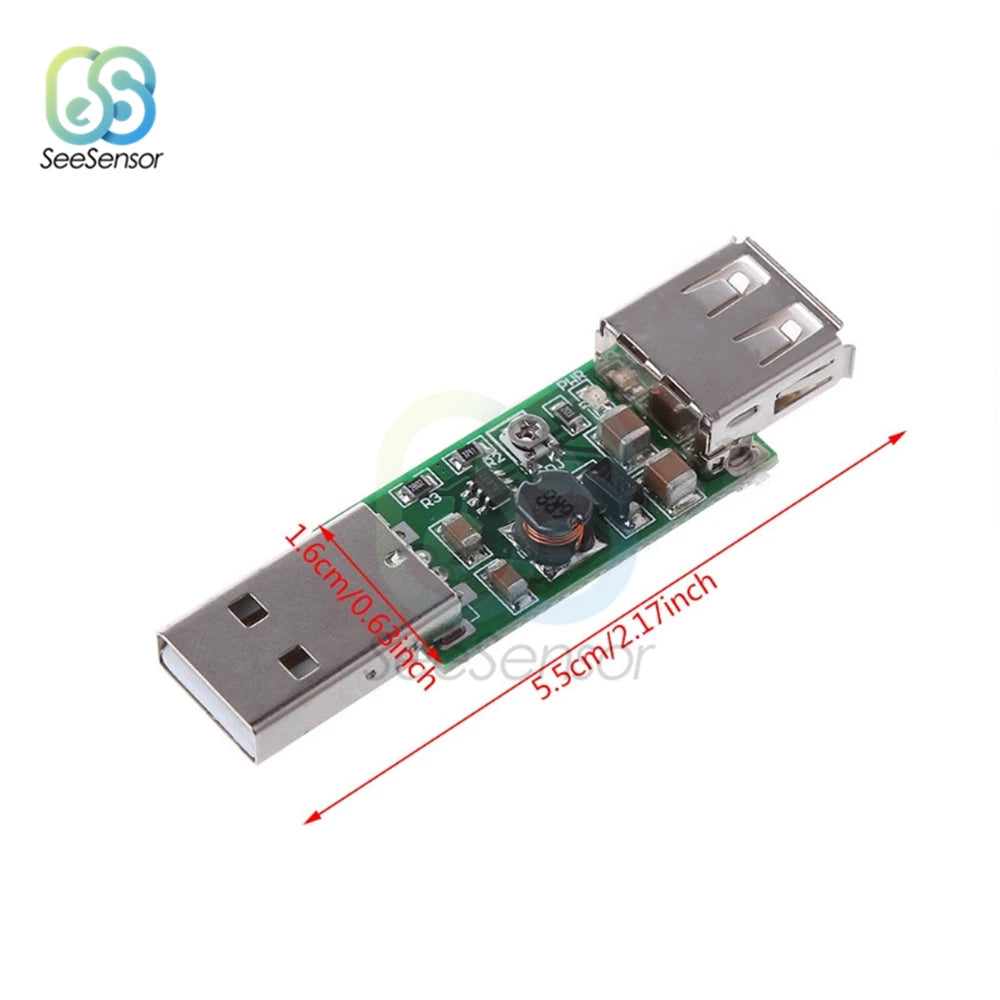

Size: 5.5x1.6cm/2.17x0.63"







Note:

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!





Package included:

1Pc x Voltage Inverter Module
