SPECIFICATIONS

Brand Name: Aideepen

Certification: None

Choice: yes

Model Number: 3-24V to 5V 6V 9V 10V 12V 15V 18V 24V 8W DC-DC Voltage Converter

Origin: Mainland China

Output Current: Quiescent current: 3-4mA

Output Frequency: 400KHZ

Output Power: 1 - 50W

Output Type: DUAL

Size: 42 x 24 x 15mm

Type: DC/DC Converters

Weight: 10g

is_customized: Yes

semi_Choice: yes

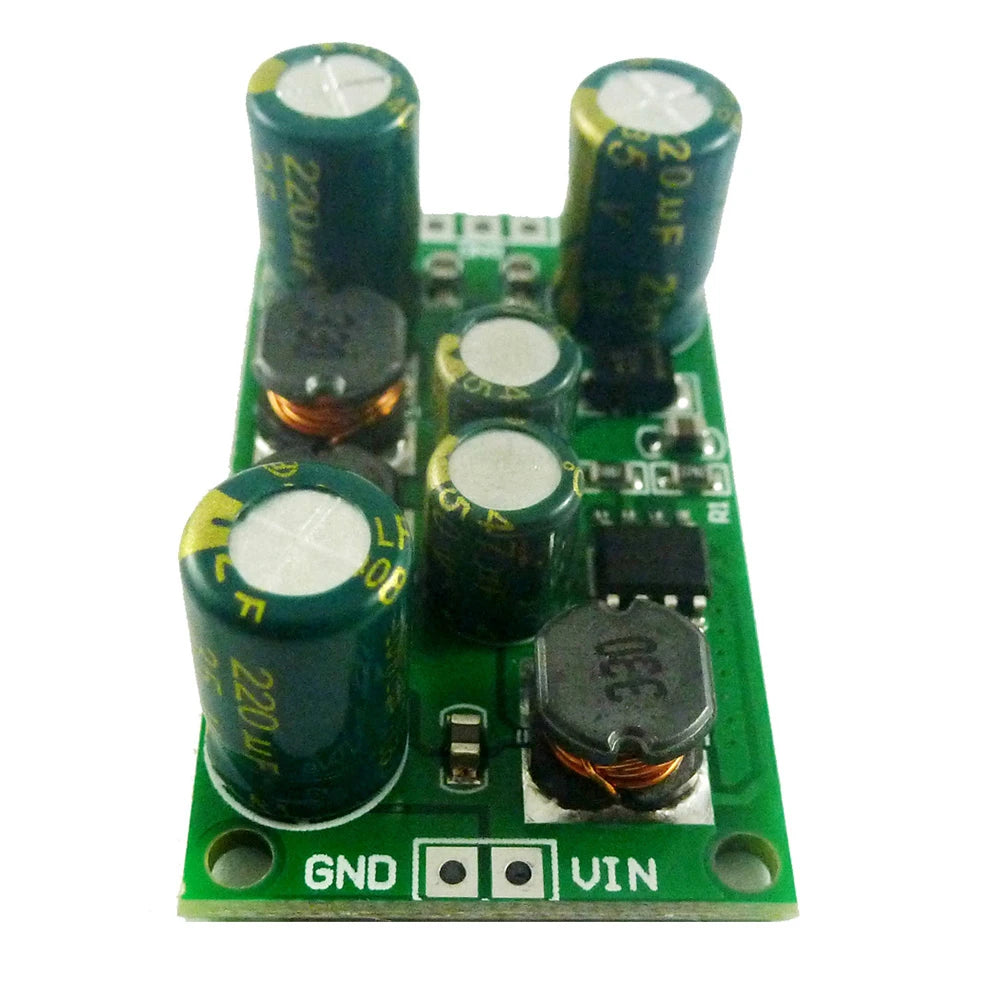

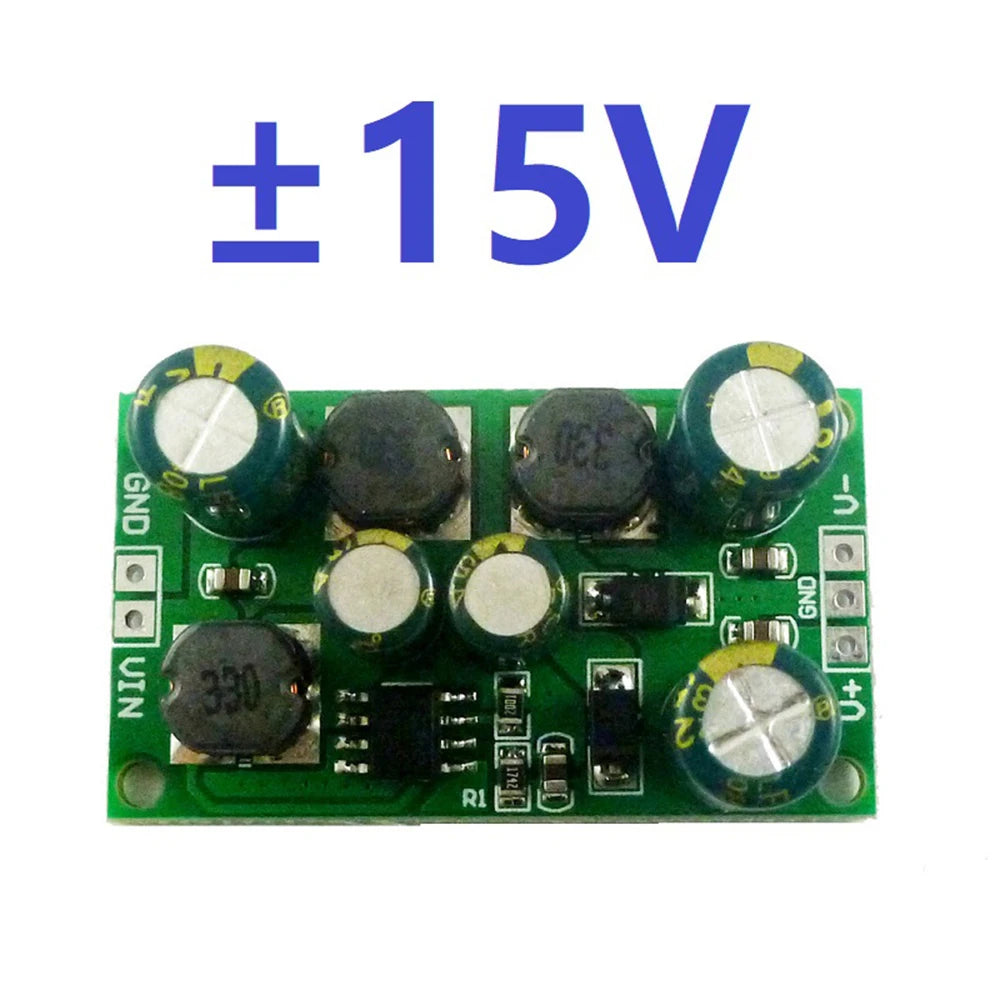

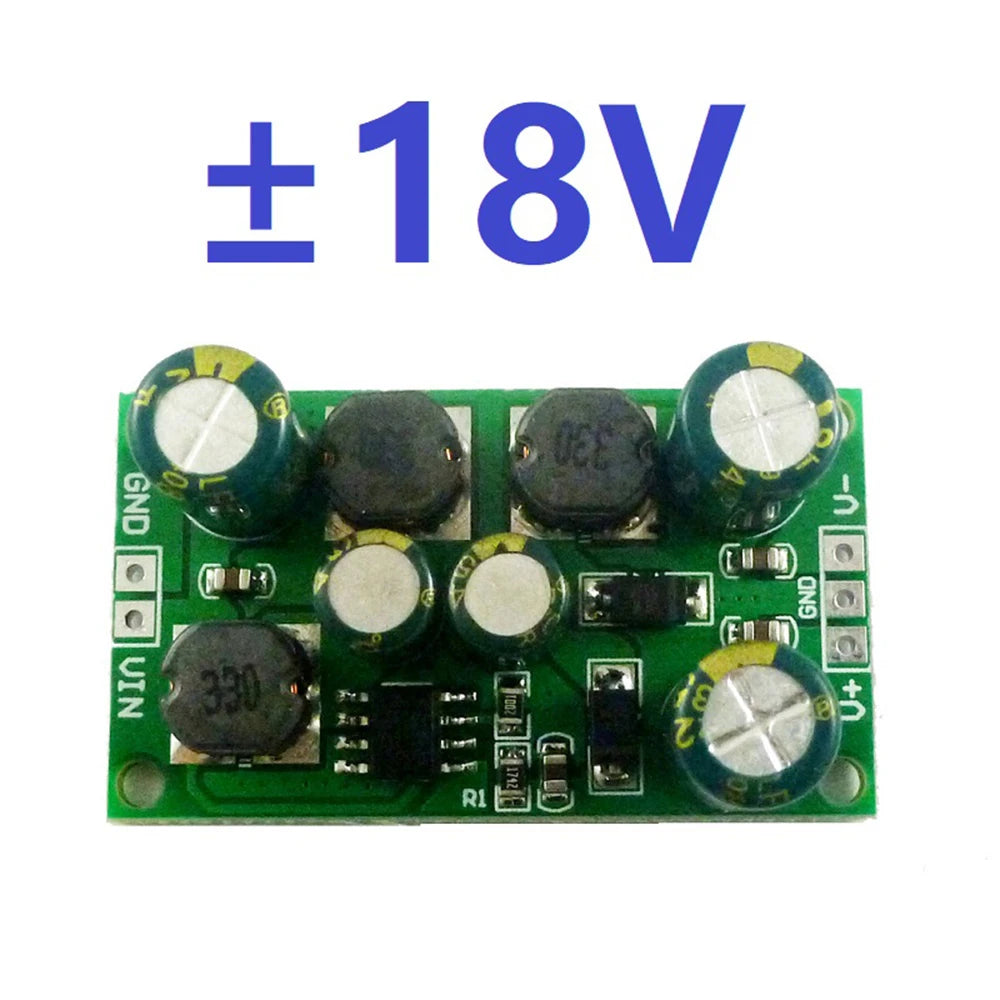

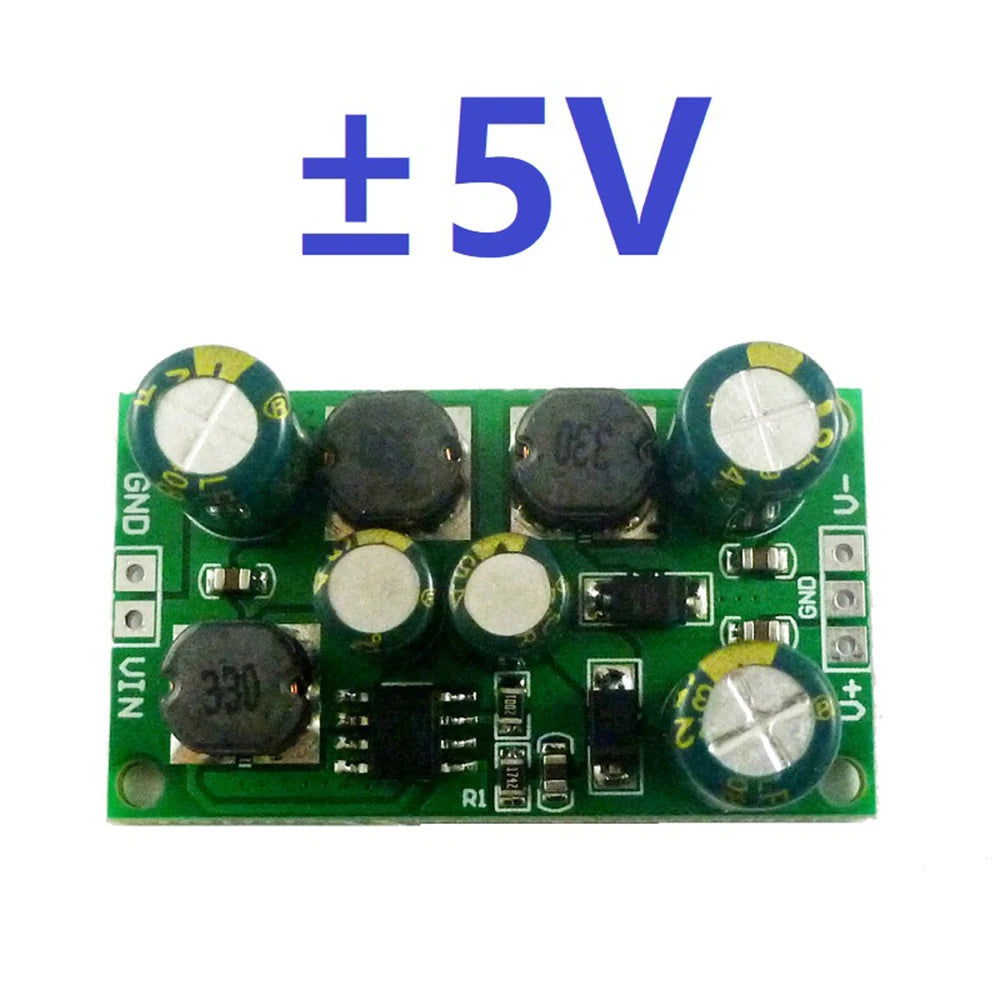

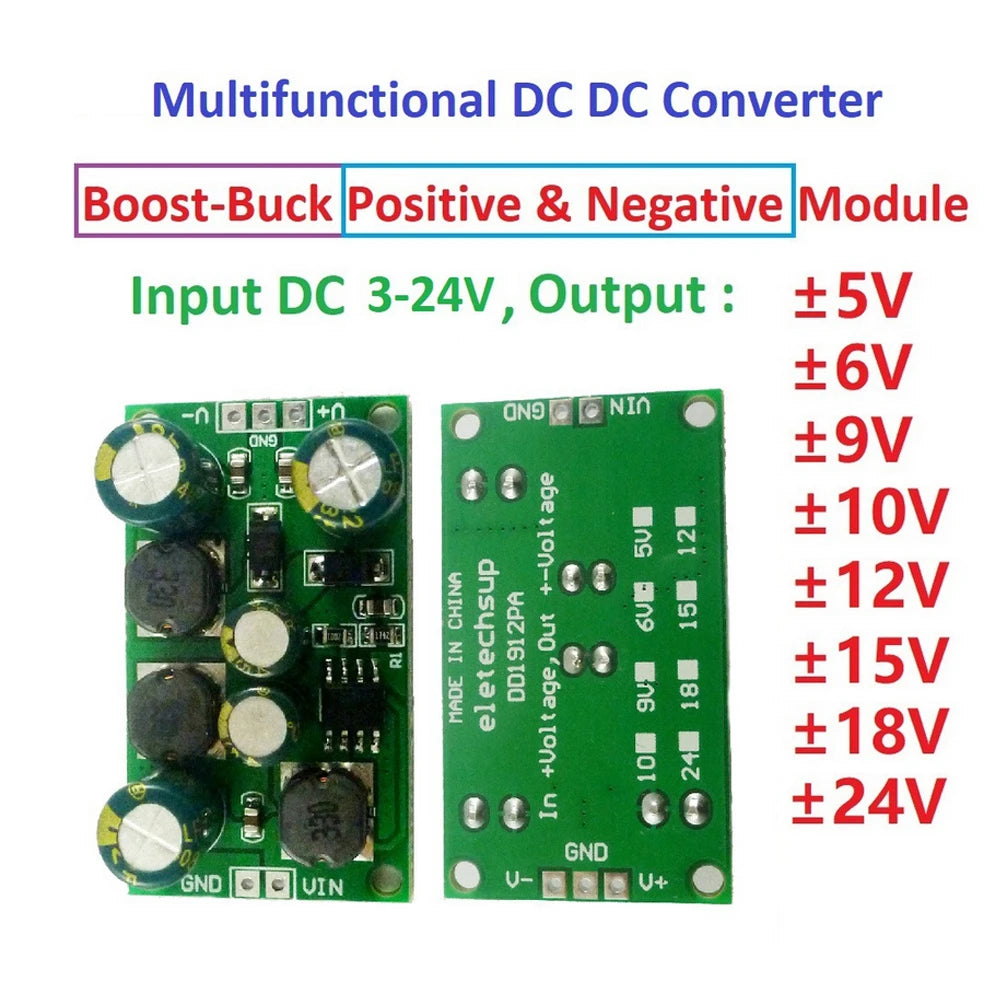

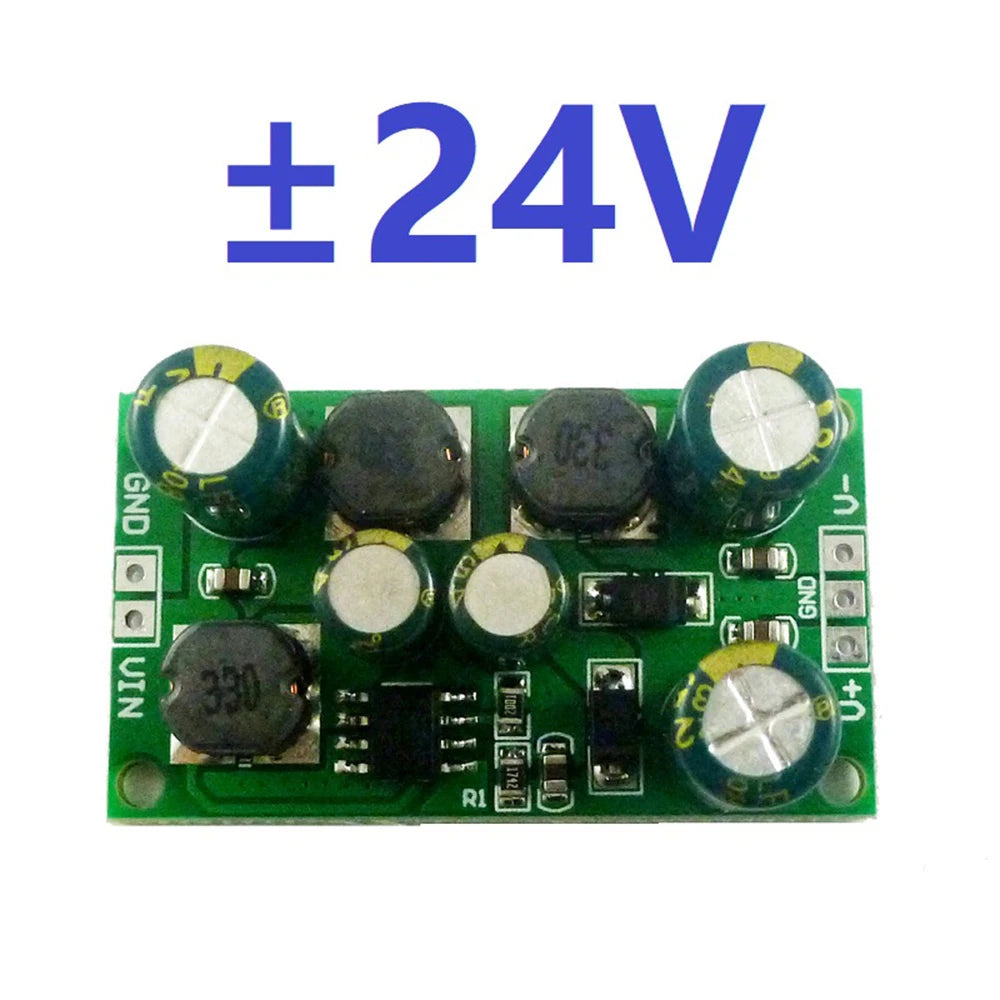

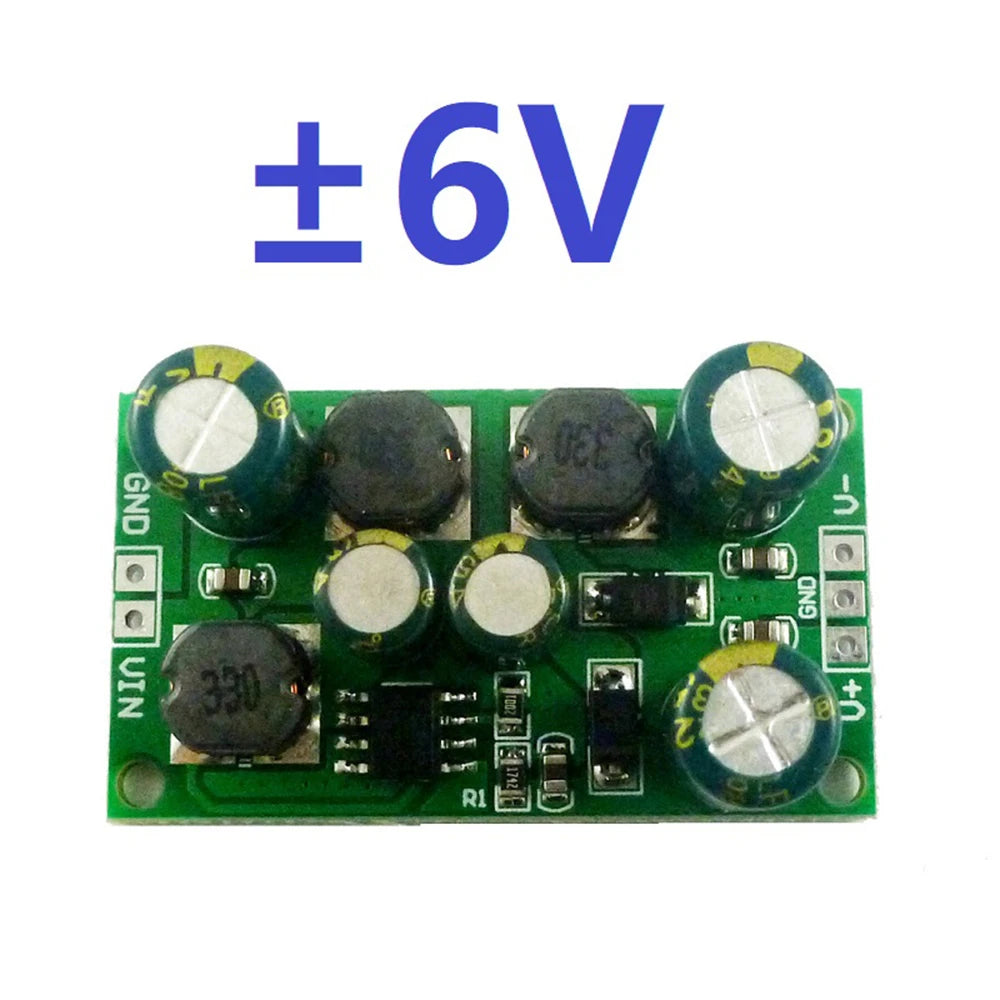

DC-DC Voltage Converter Boost-Buck Module Positive Negative Voltage Dual Output 3-24V to 5V 6V 9V 10V 12V 15V 18V 24V 8W





Description:

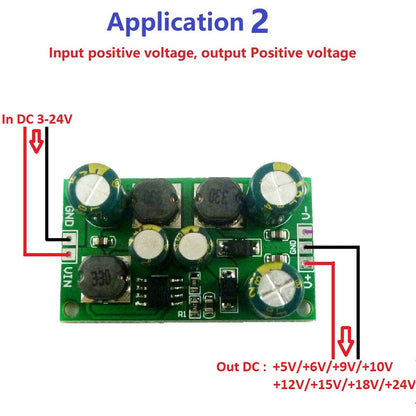

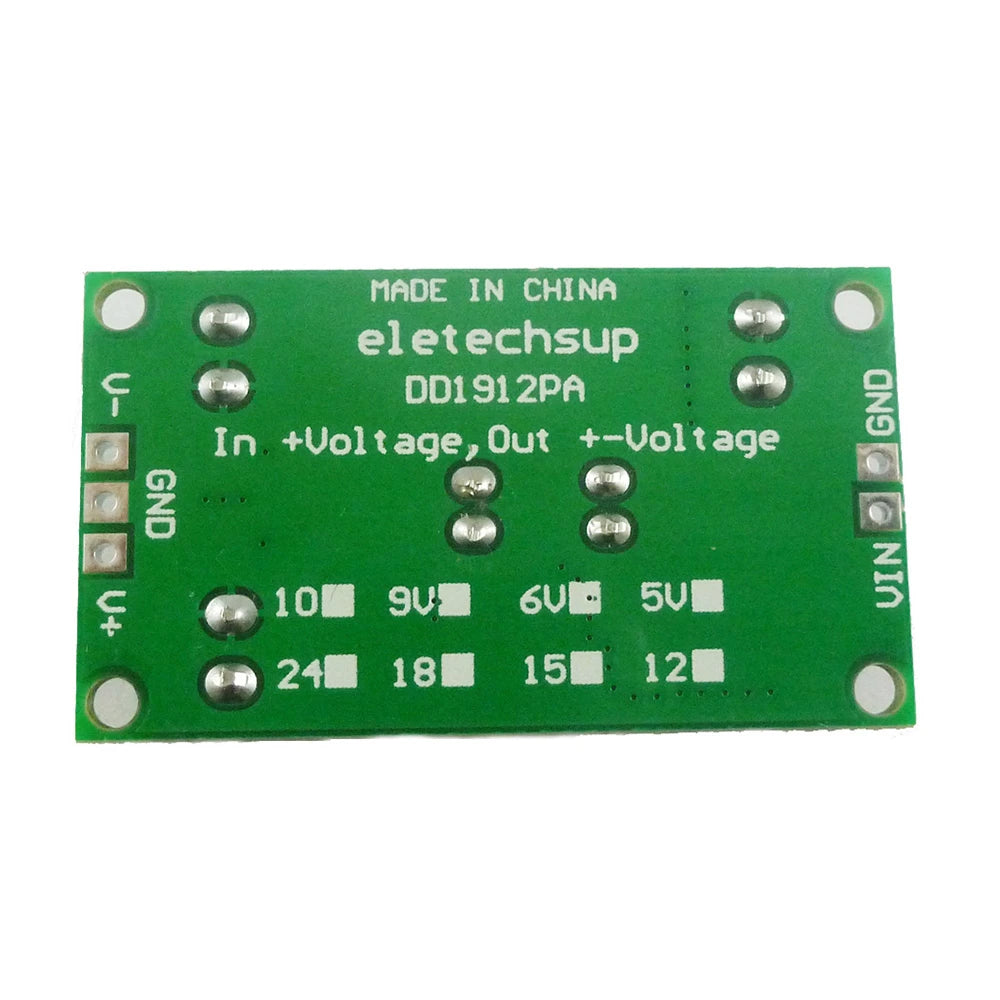

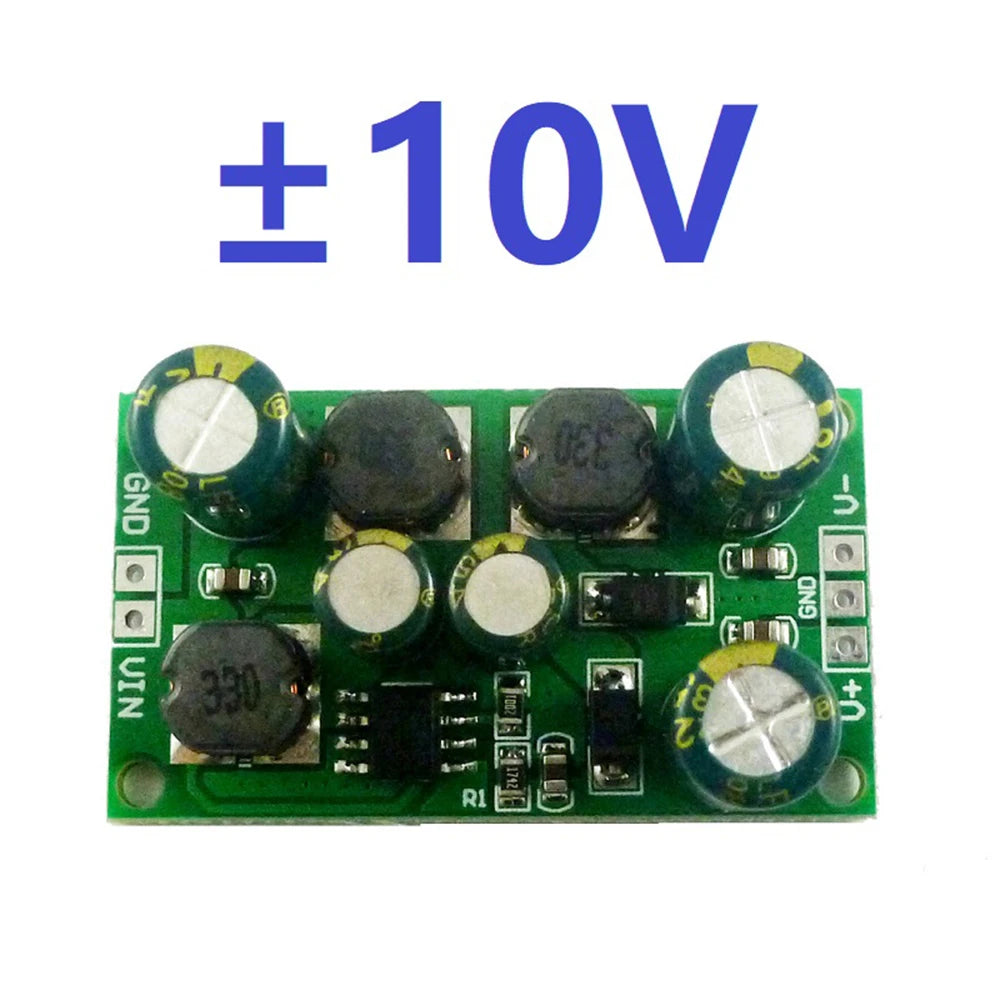

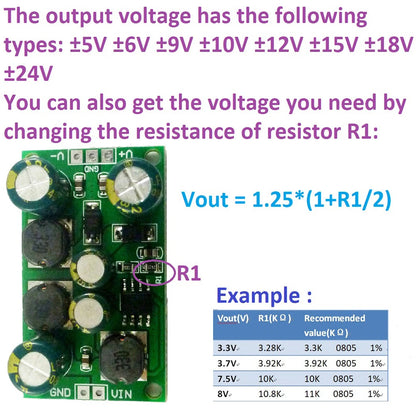

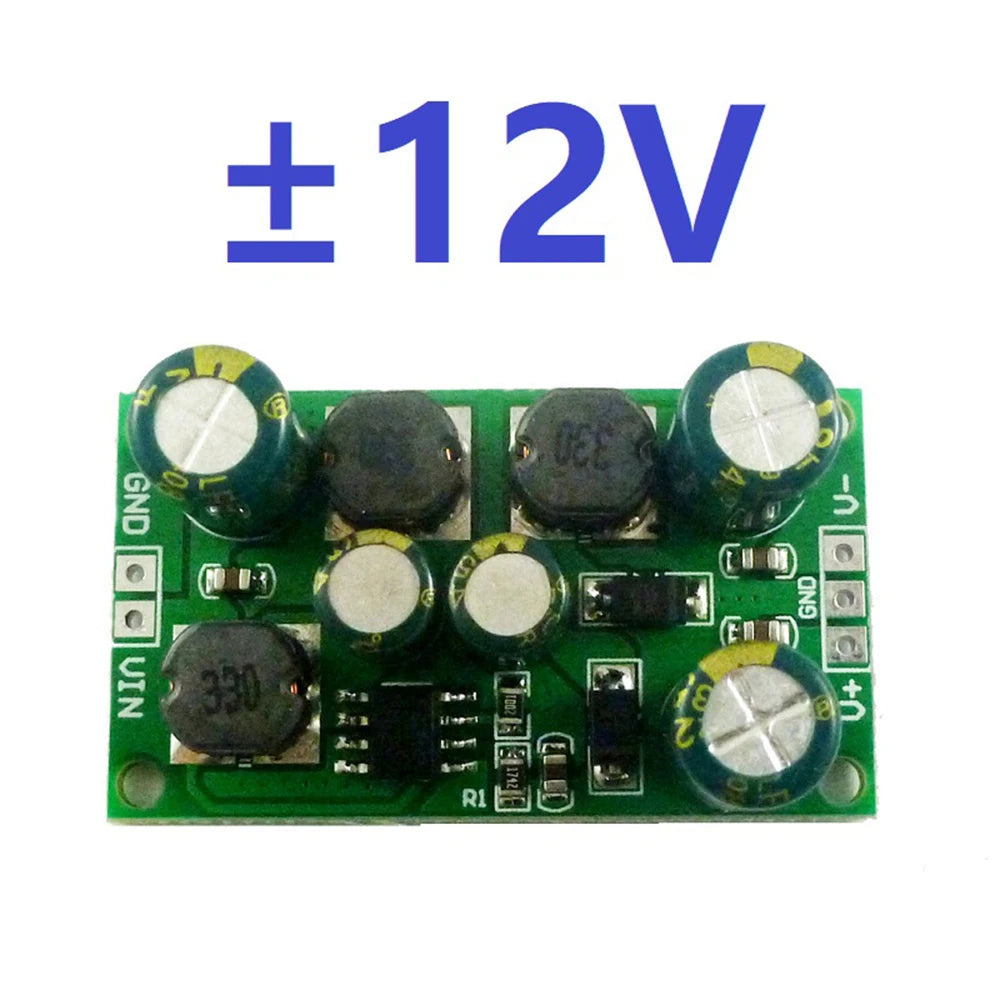

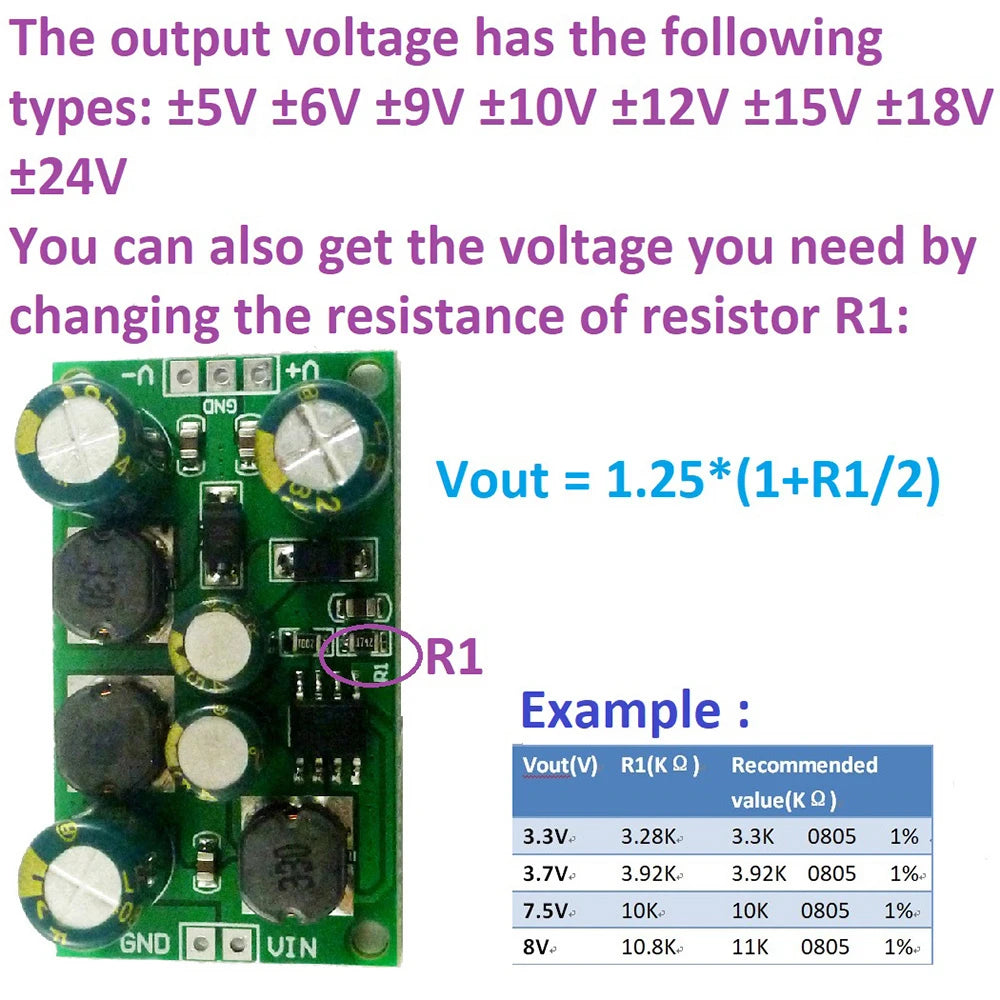

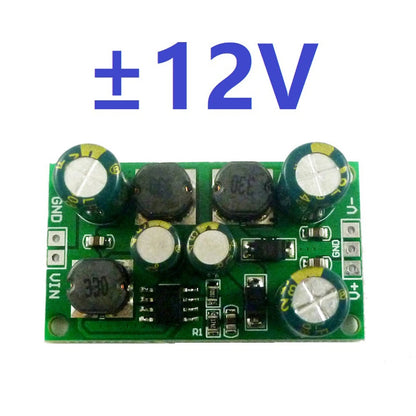

Input voltage 3~24V,output optional ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V

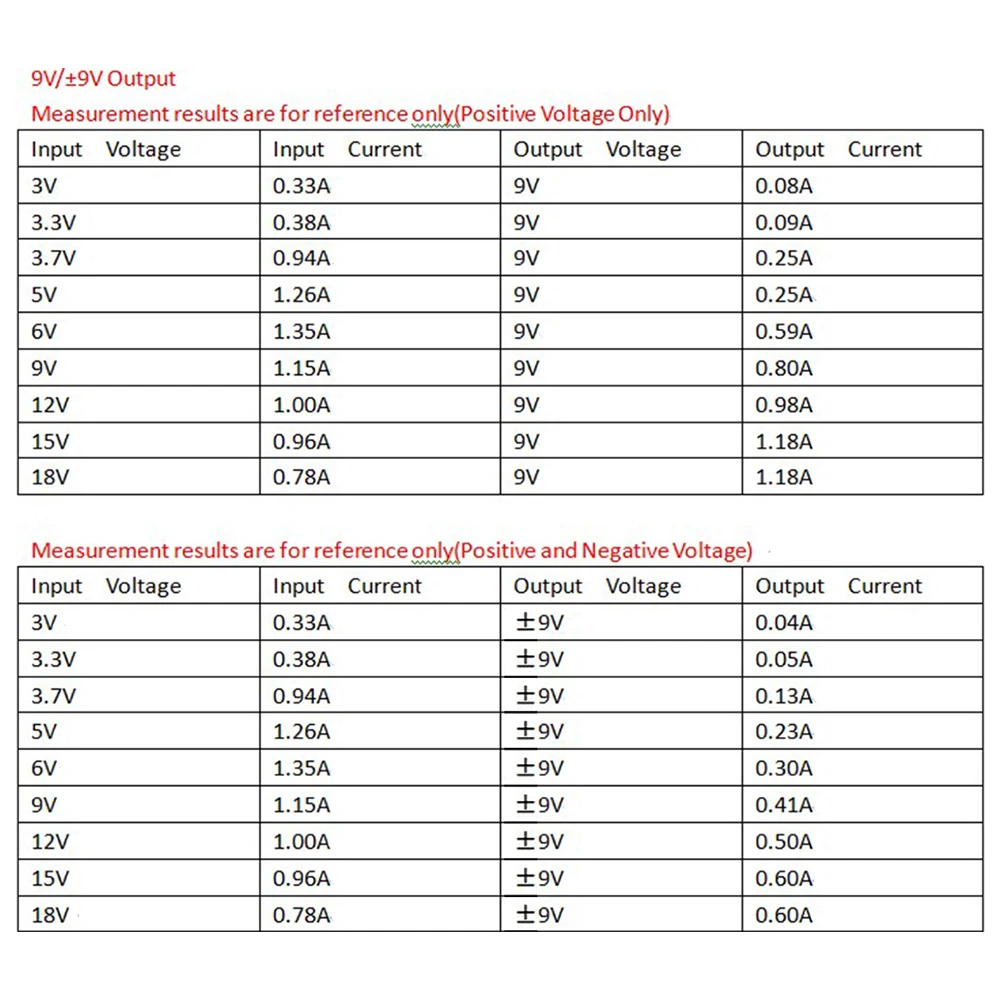

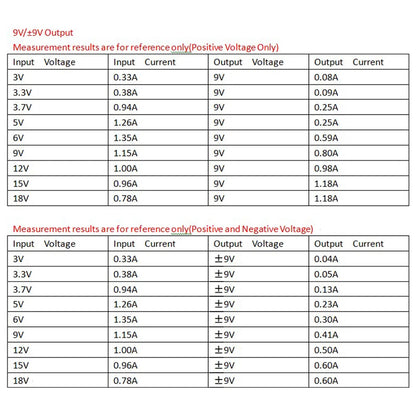

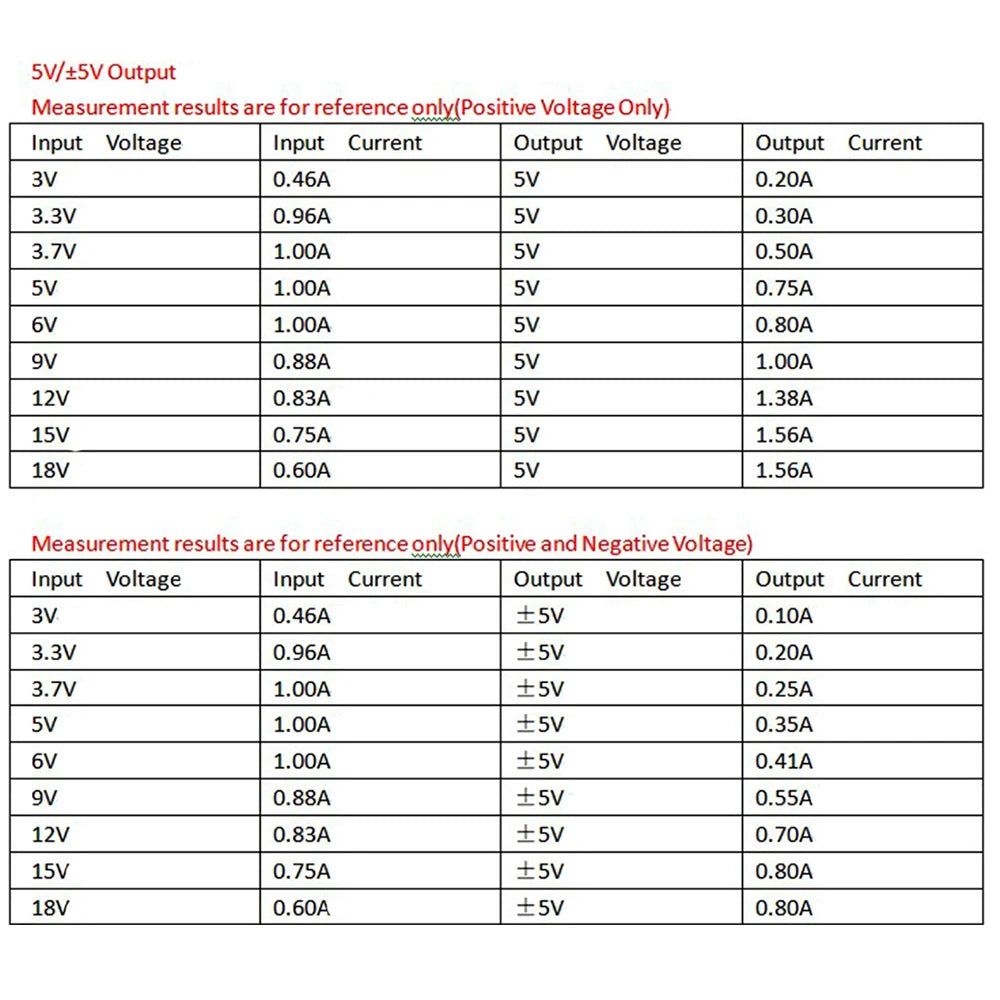

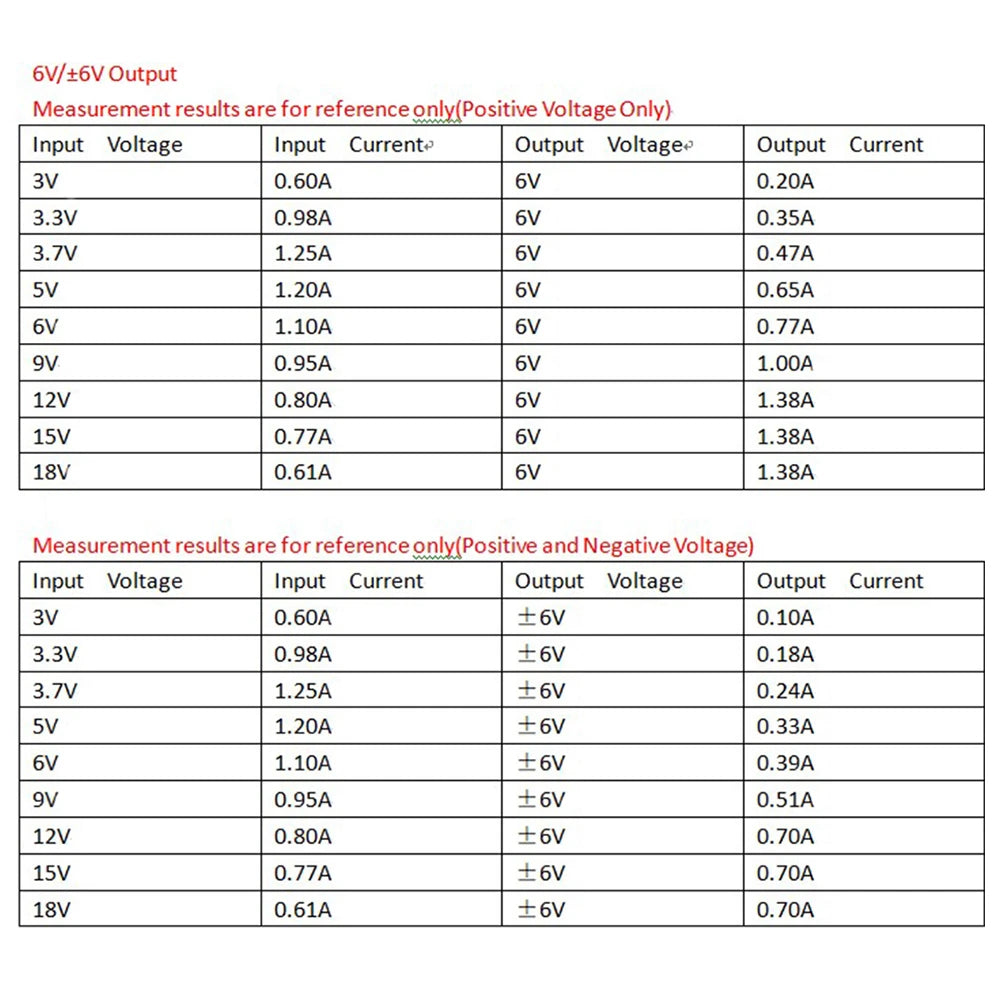

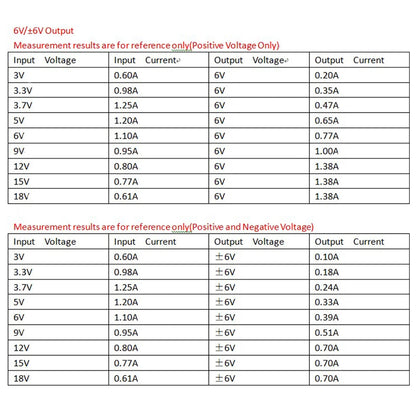

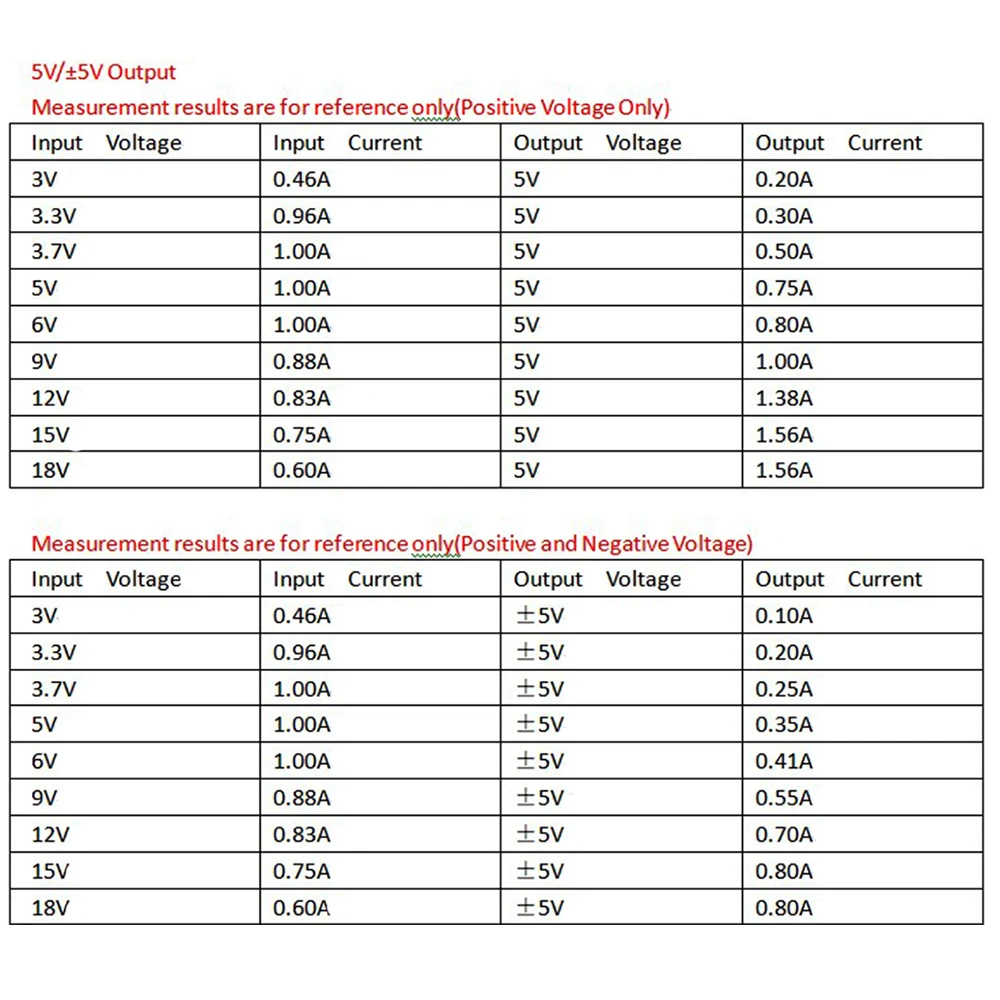

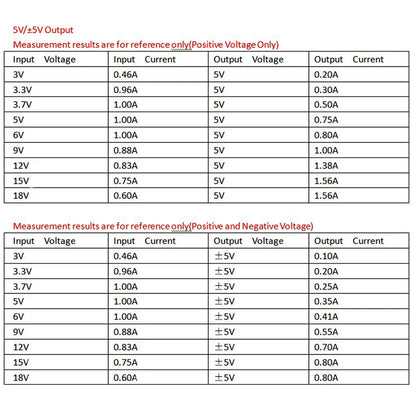

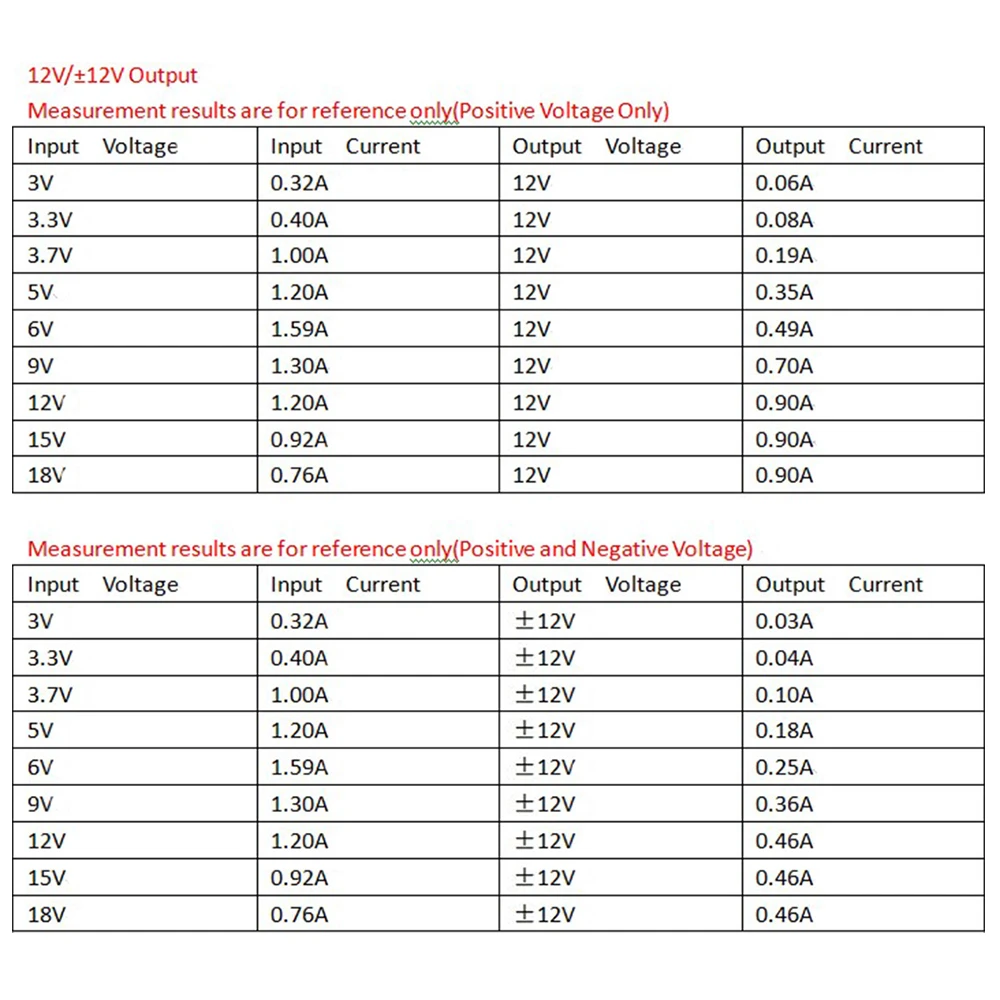

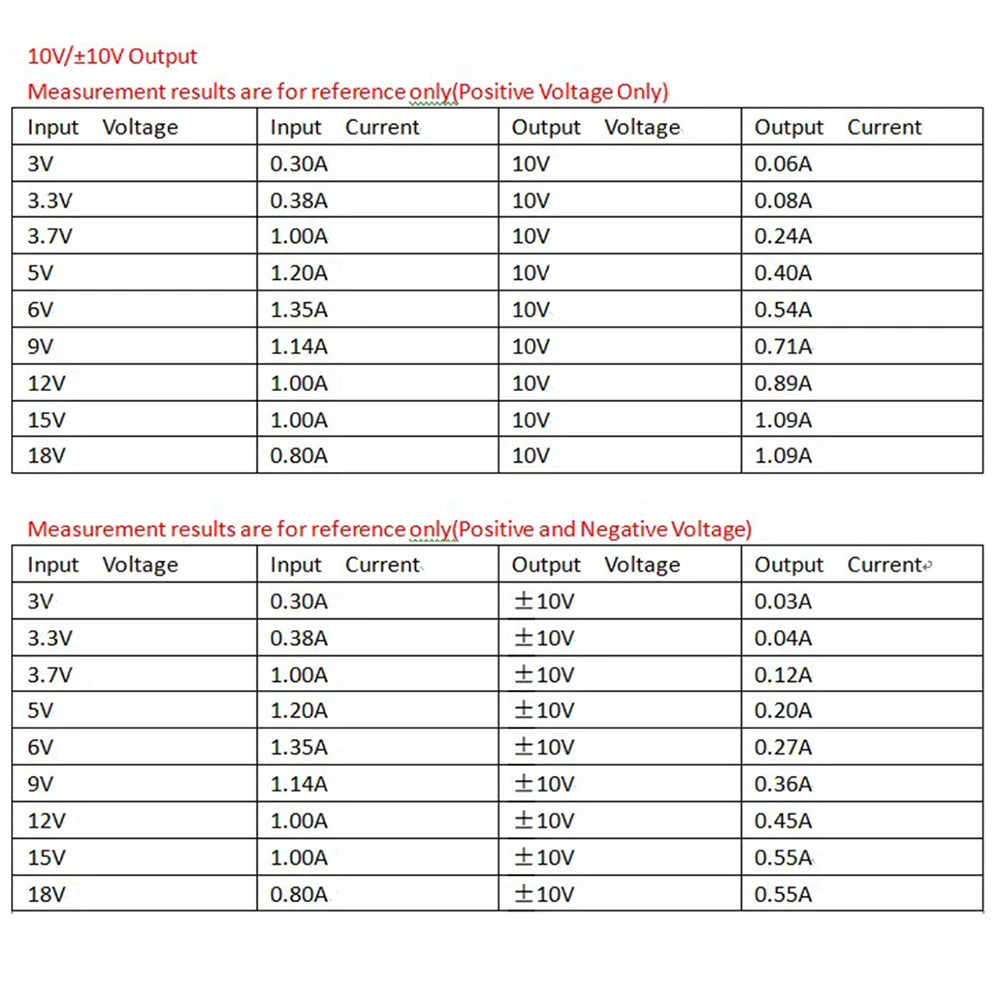

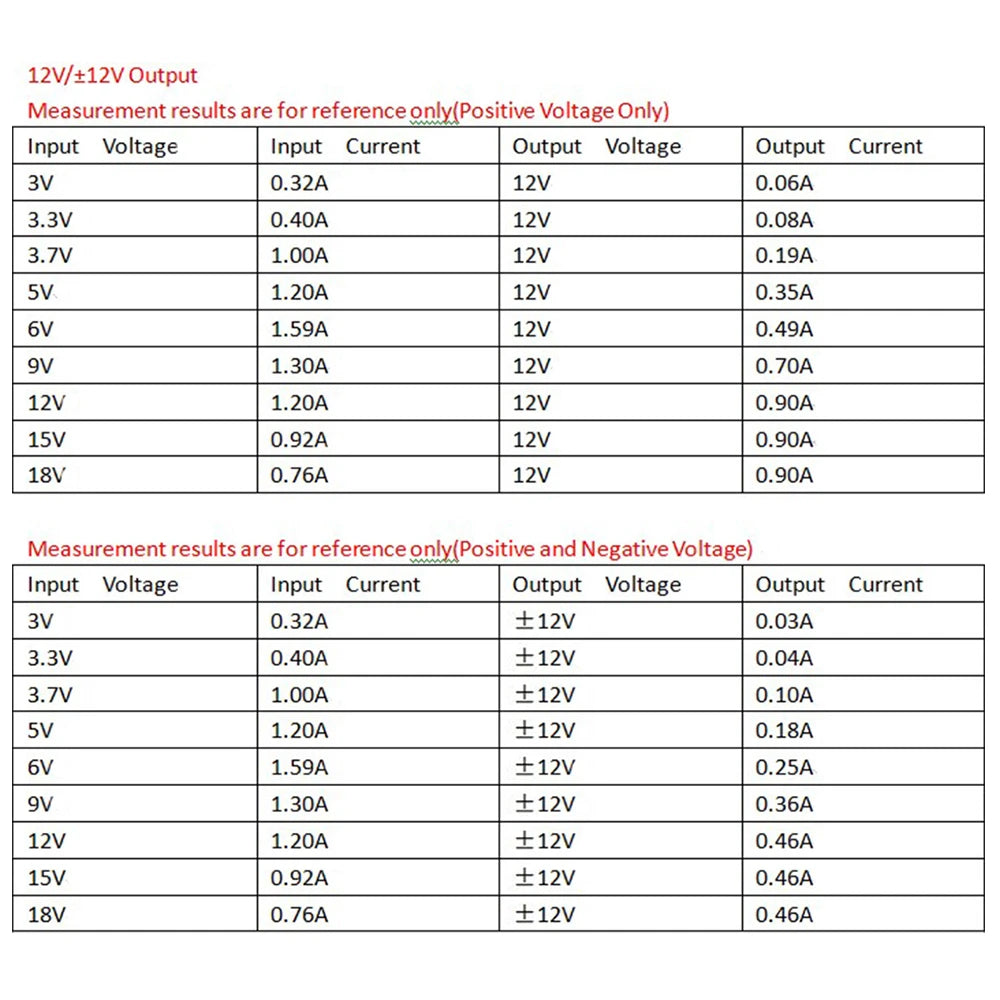

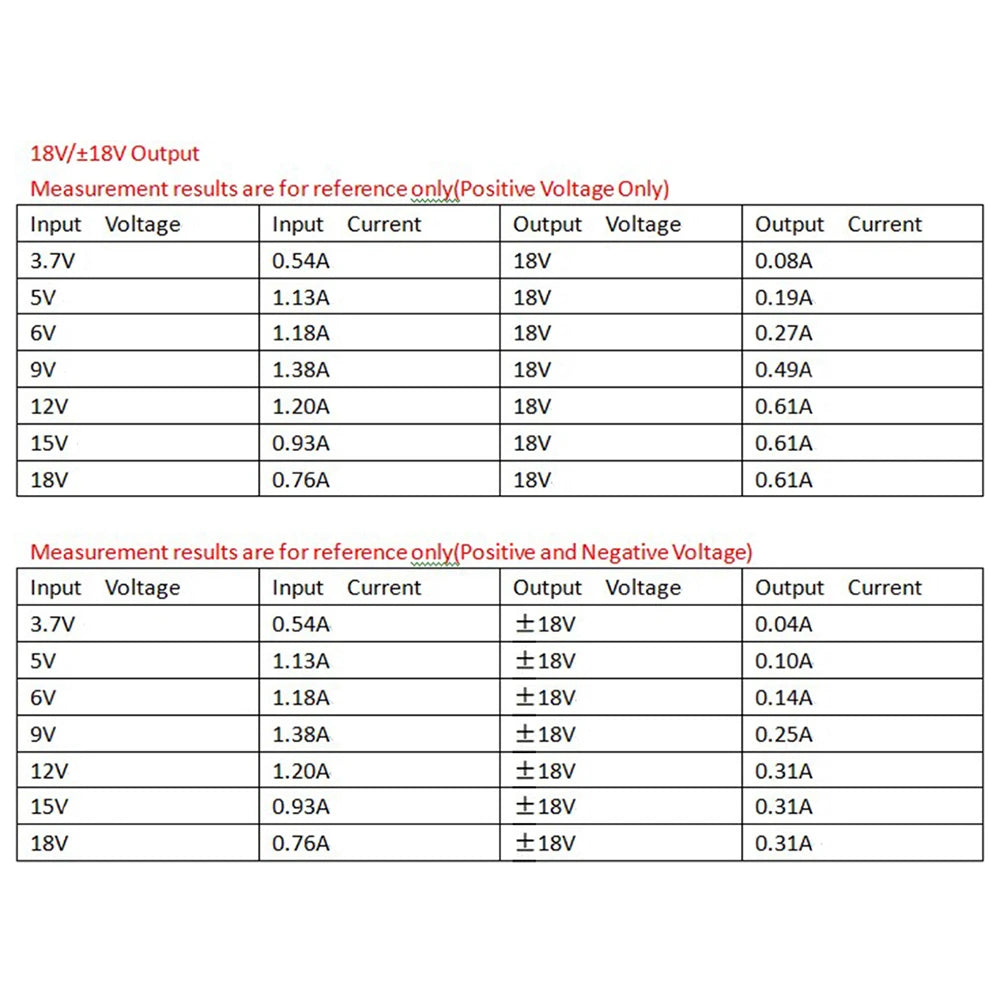

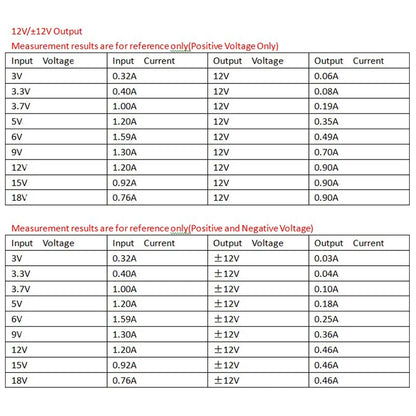

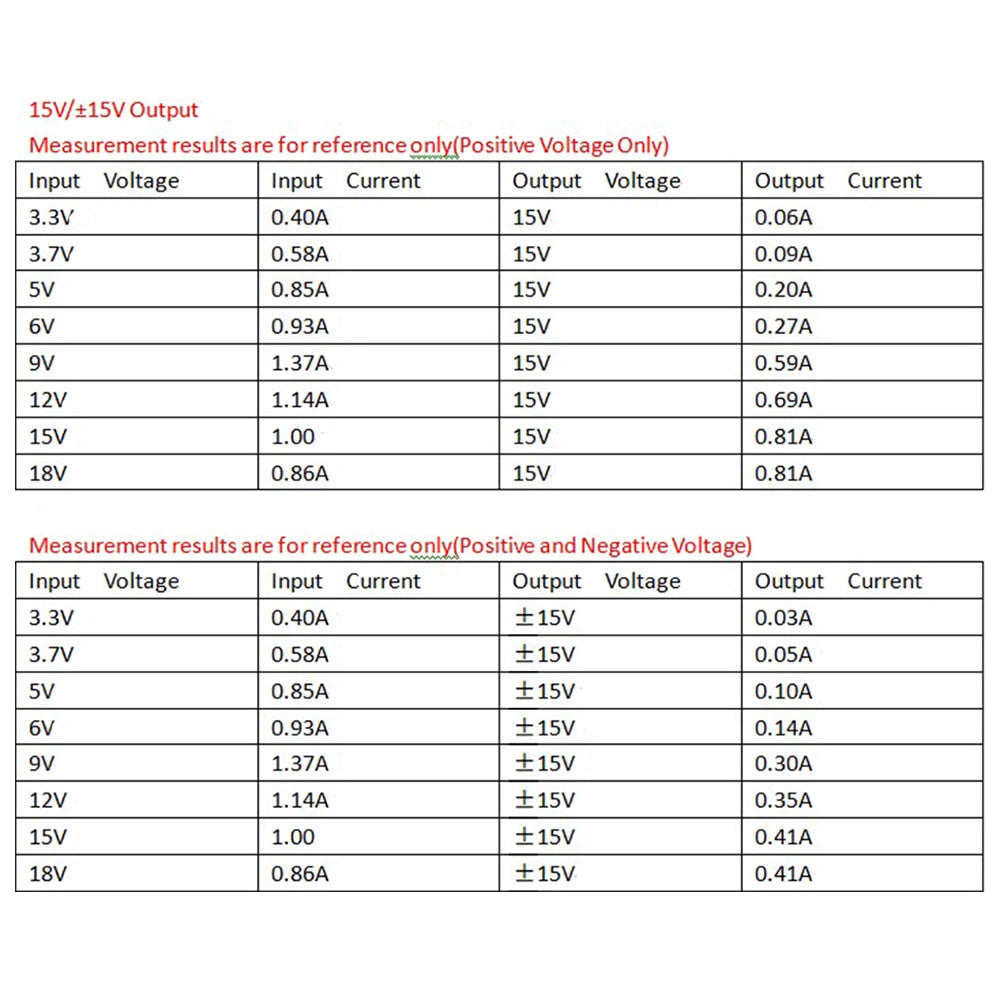

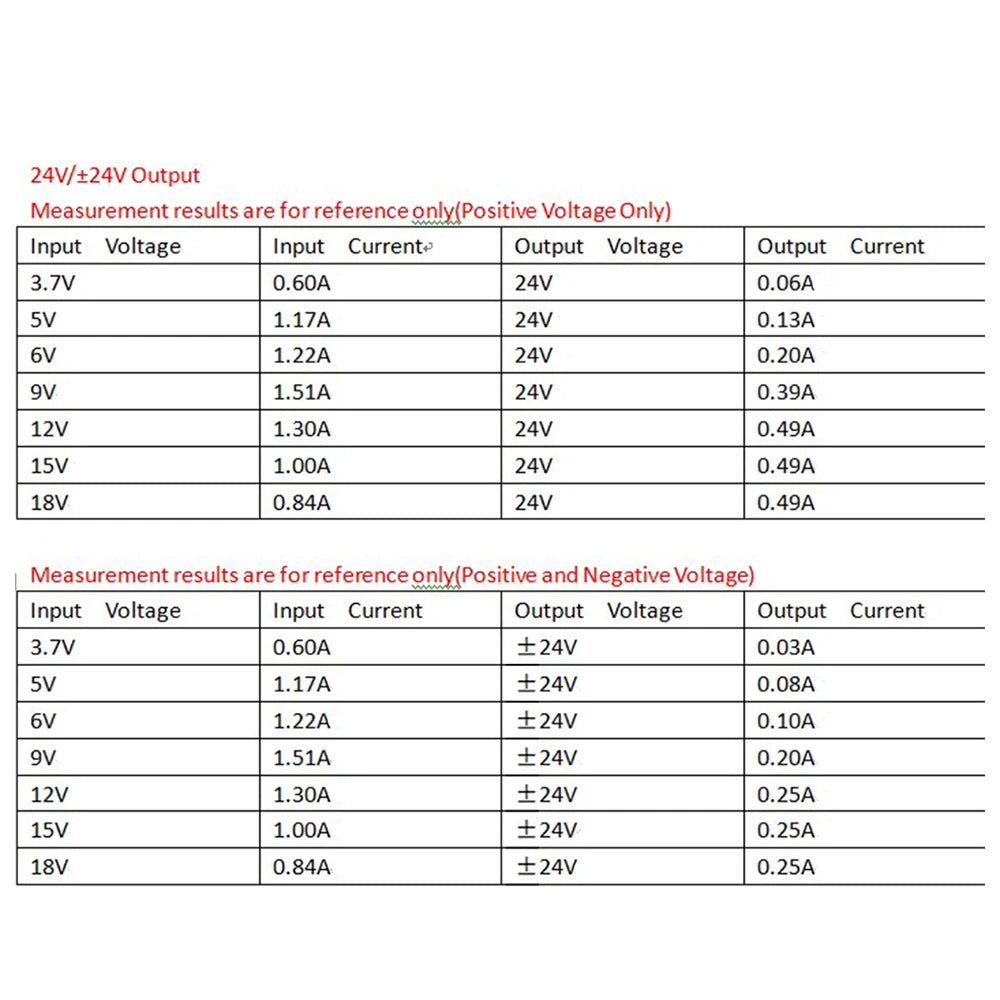

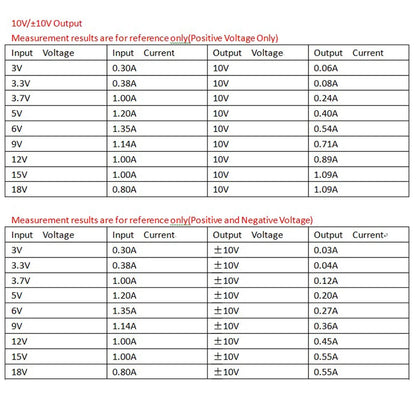

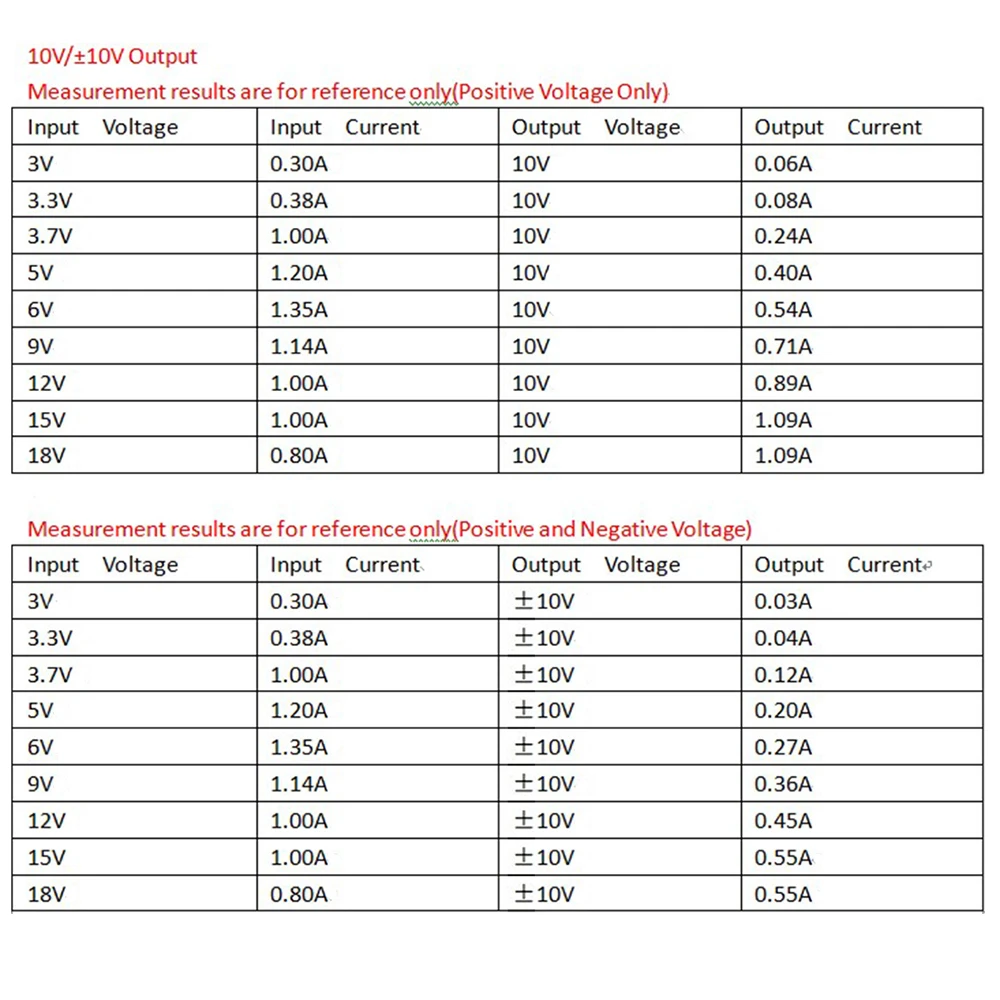

Maximum output power: 1-8W (For details, please see the description at the bottom or ask us for information.)

Conversion efficiency :70-90%

Quiescent current: 3-4mA

Accuracy : Positive voltage ±3%,Negative voltage ±5%



8W DC-DC Boost-Buck Converter working frequency 400KHZ.

Operating ambient temperature : -40~+85 Degrees Celsius

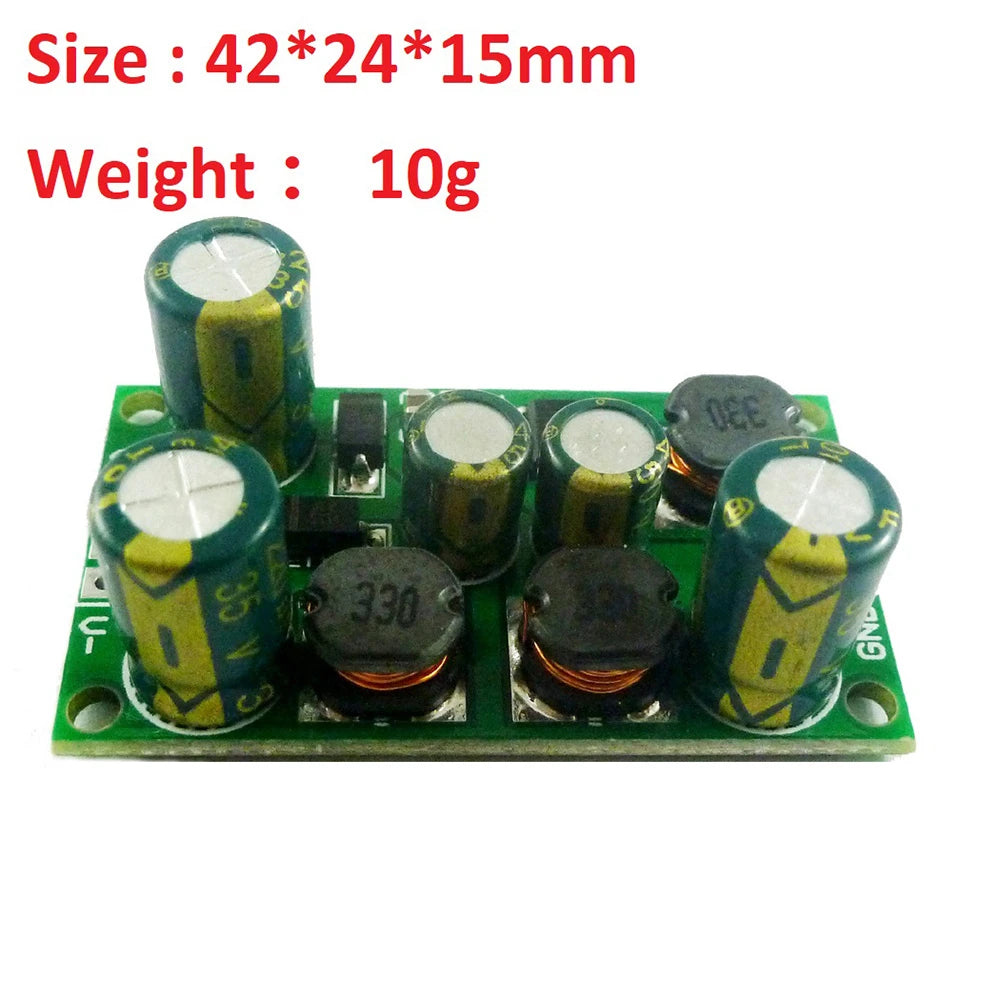

Size: 42 x 24 x 15mm

Weight: 10g



High efficiency up to 90%

Built in Frequency Compensation

Built in Soft-Start Function

Built in Thermal Shutdown Function

Built in Current Limit Function





Note:

1 In order to obtain a more stable voltage, it is recommended that the output is greater than 10MA

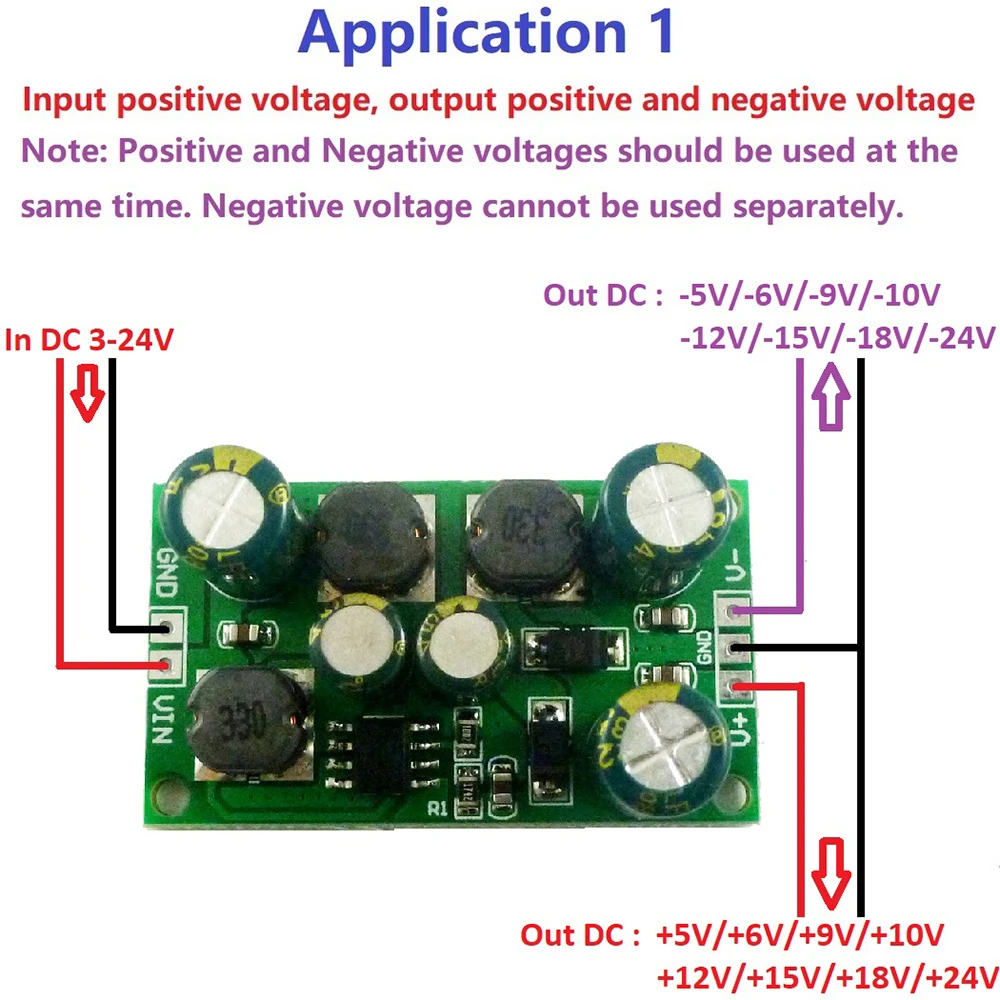

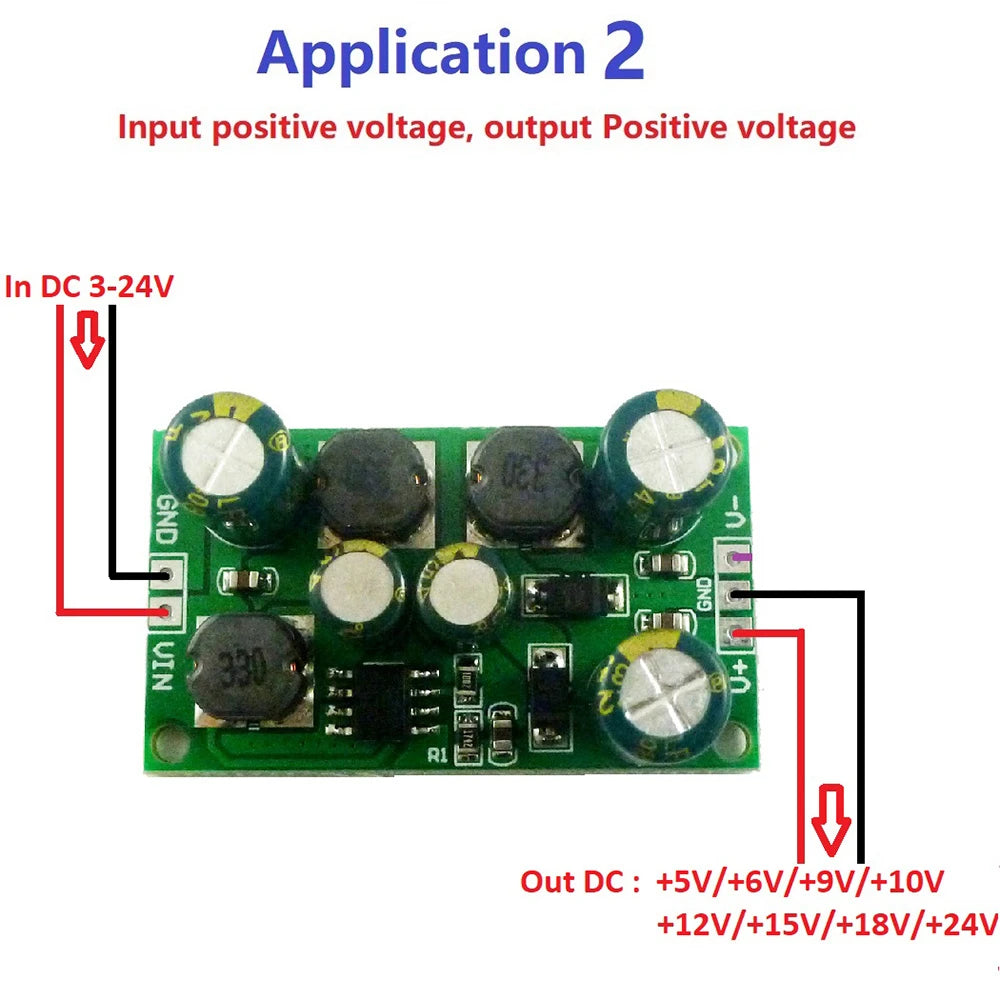

2 V- cannot be used alone, or no voltage output.But you can just use V+







Applications



ADC/DAC/Operational Amplifier Reference voltage

RS232 RS485 RS422 Bus

Audio equipment

Low power audio power supply

Car audio amplifier dual power board

LCD power supply

Instrumentation equipment





Attention:

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself







Q & A:



Q1 : Why output voltage is less than the nominal voltage

A1: Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low



Q2 : Why is the negative voltage not output or the output too low?

A2 : The negative voltage cannot be used alone. When using a negative voltage, the same load must be connected at the positive voltage terminal.
