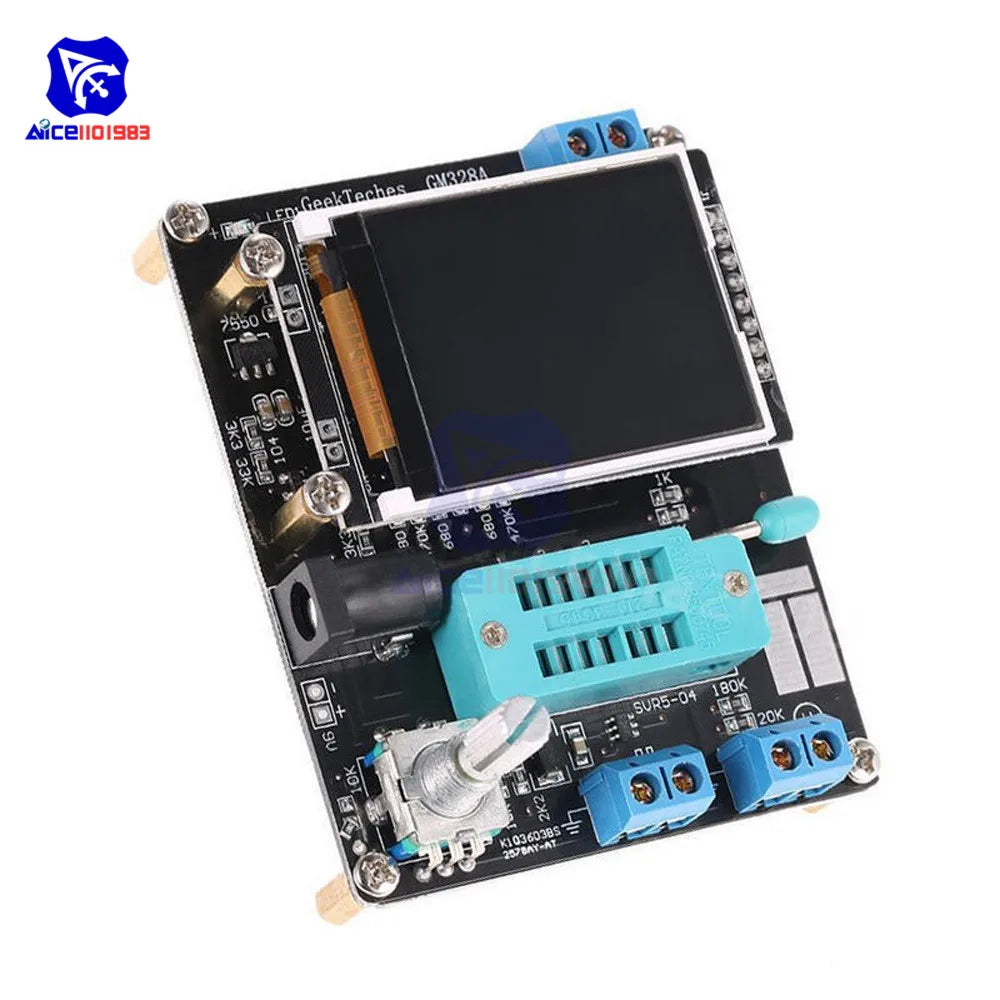

Tester Transistor DIYMORE GM328A (Ruso/Inglés) - Medidor Resistencia, Inductancia, Capacitancia, ESR (con Case)

$36.990 CLP

~~$26.572 CLP~~ $36.990 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

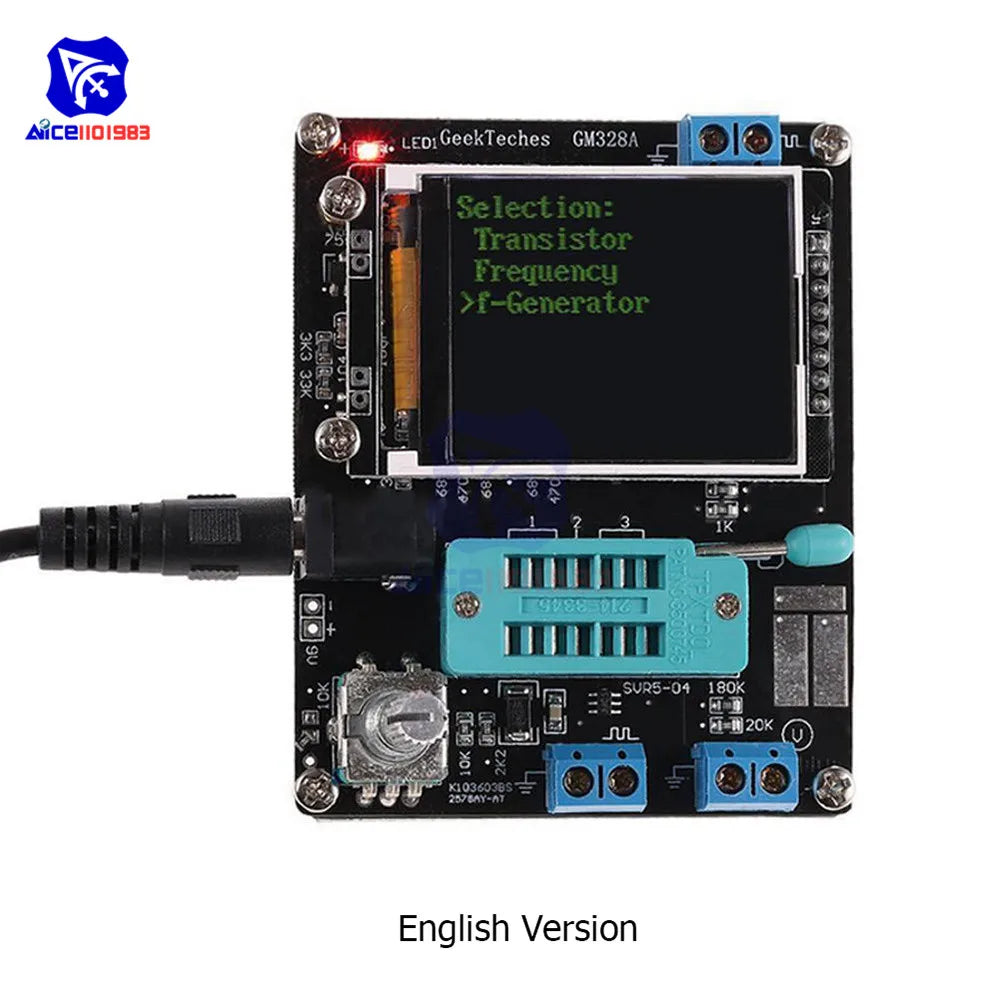

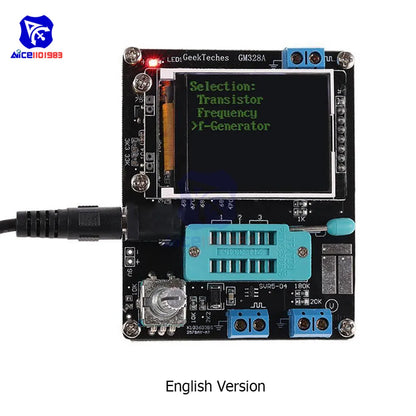

Color English Version

Cantidad

SPECIFICATIONS

Application: Computer

Brand Name: diymore

Choice: yes

Condition: New

Dissipation Power: Resistance Inductance Capacitance Meter

Model Number: GM328A

Operating Temperature: -20 -65 °C

Origin: Mainland China

Package: SOP

Supply Voltage: DC 6.8 -12V Power Supply or 9V Battery

Type: Logic ICs

is_customized: Yes

semi_Choice: yes

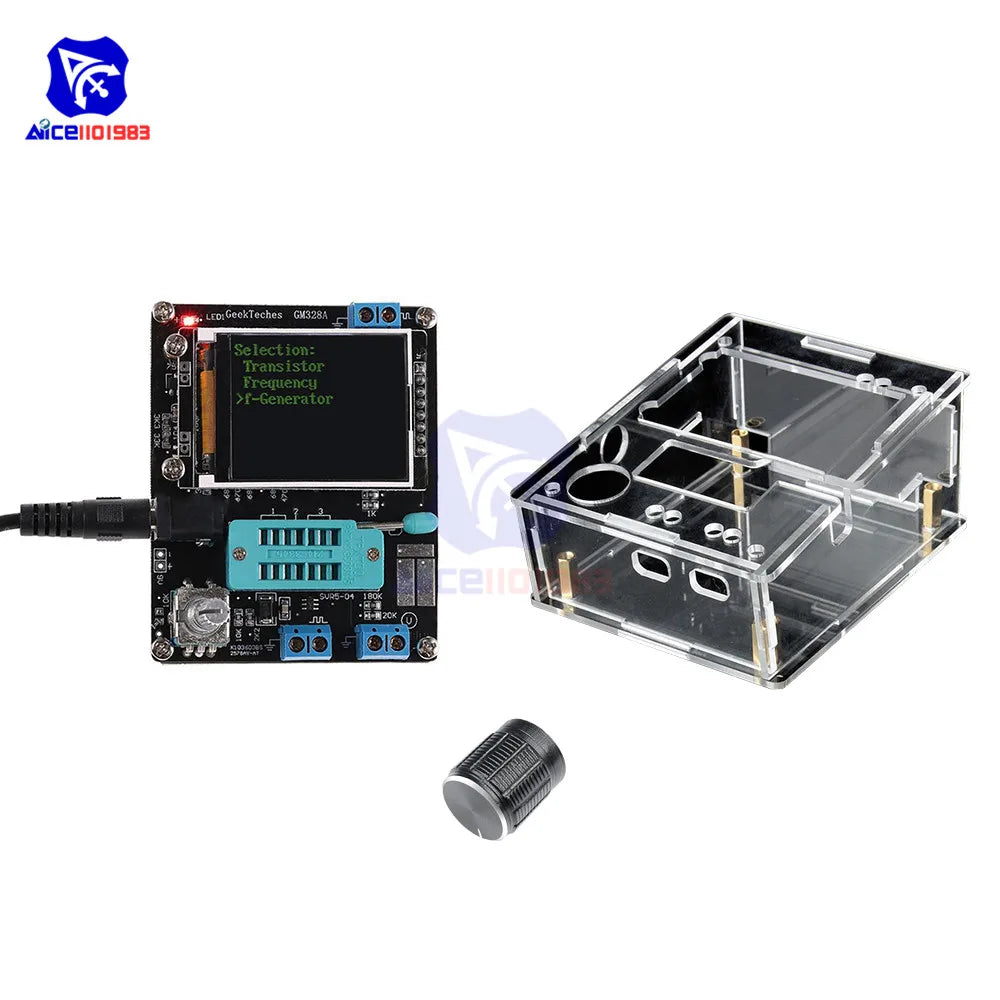

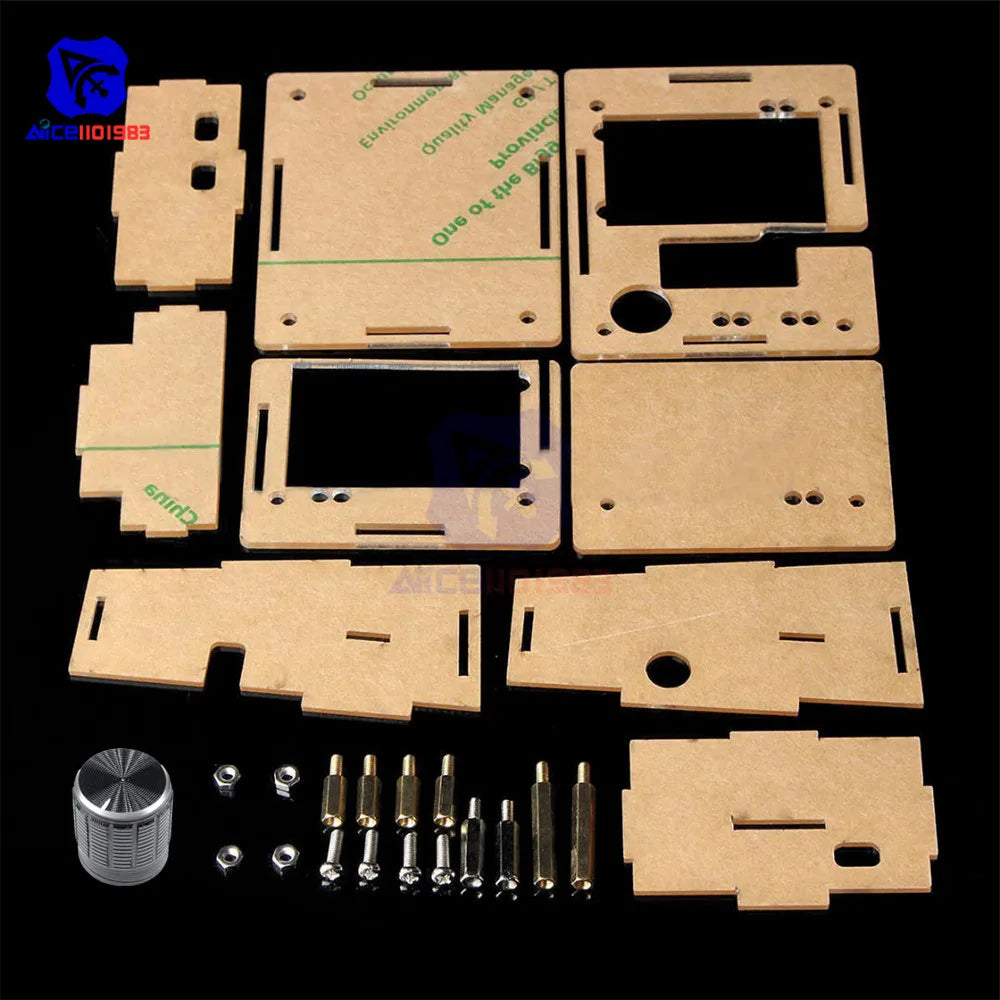

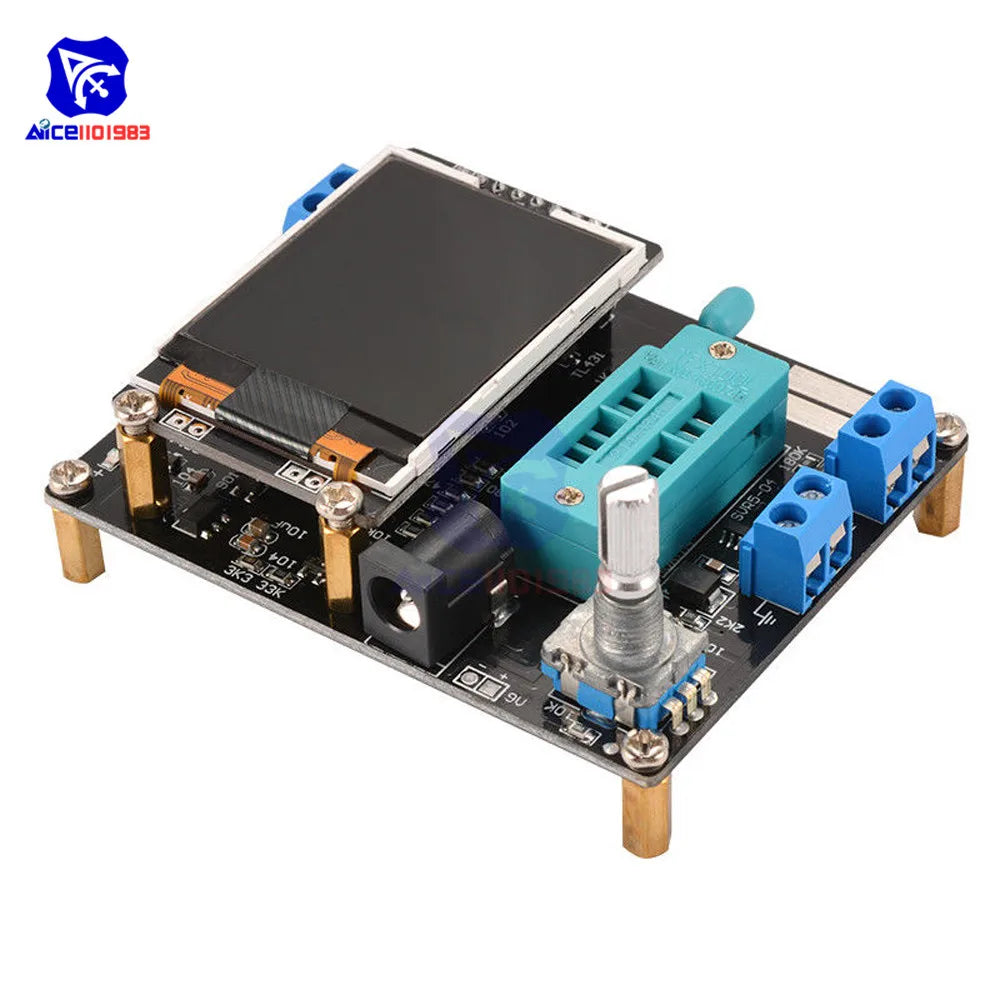

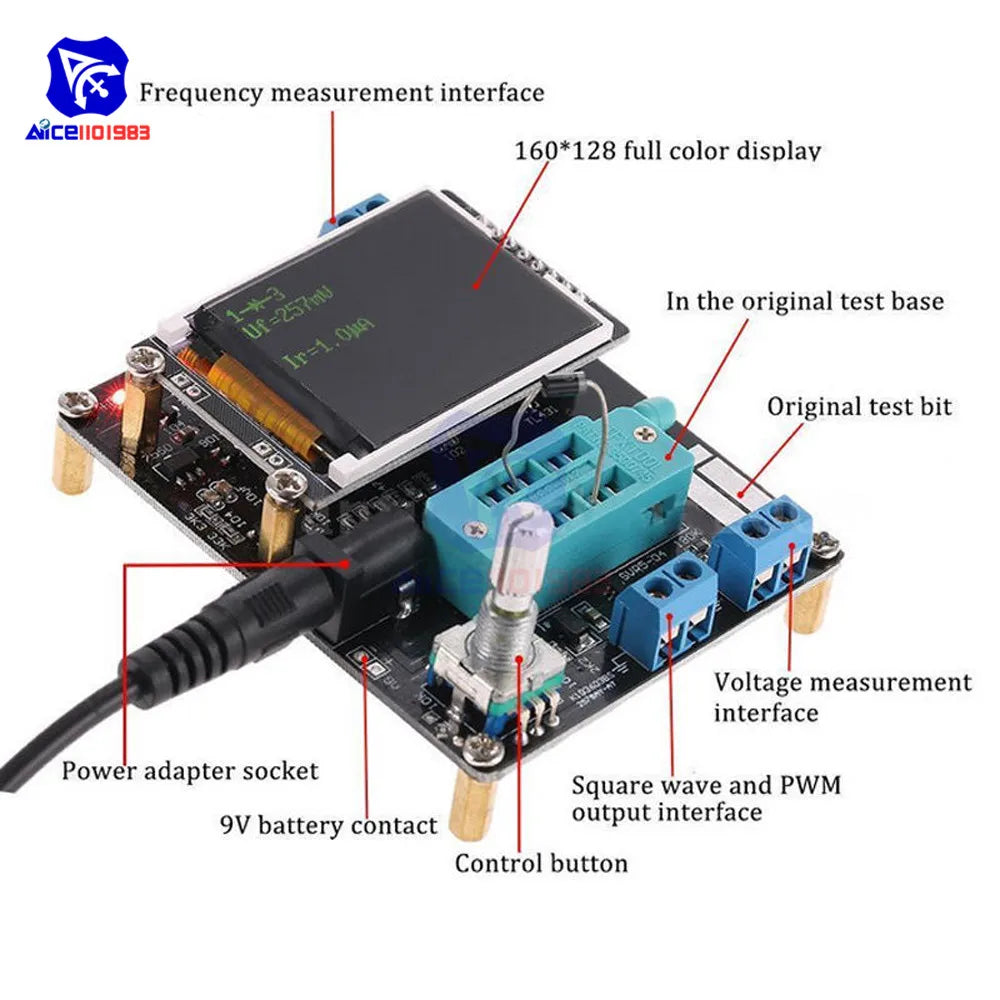

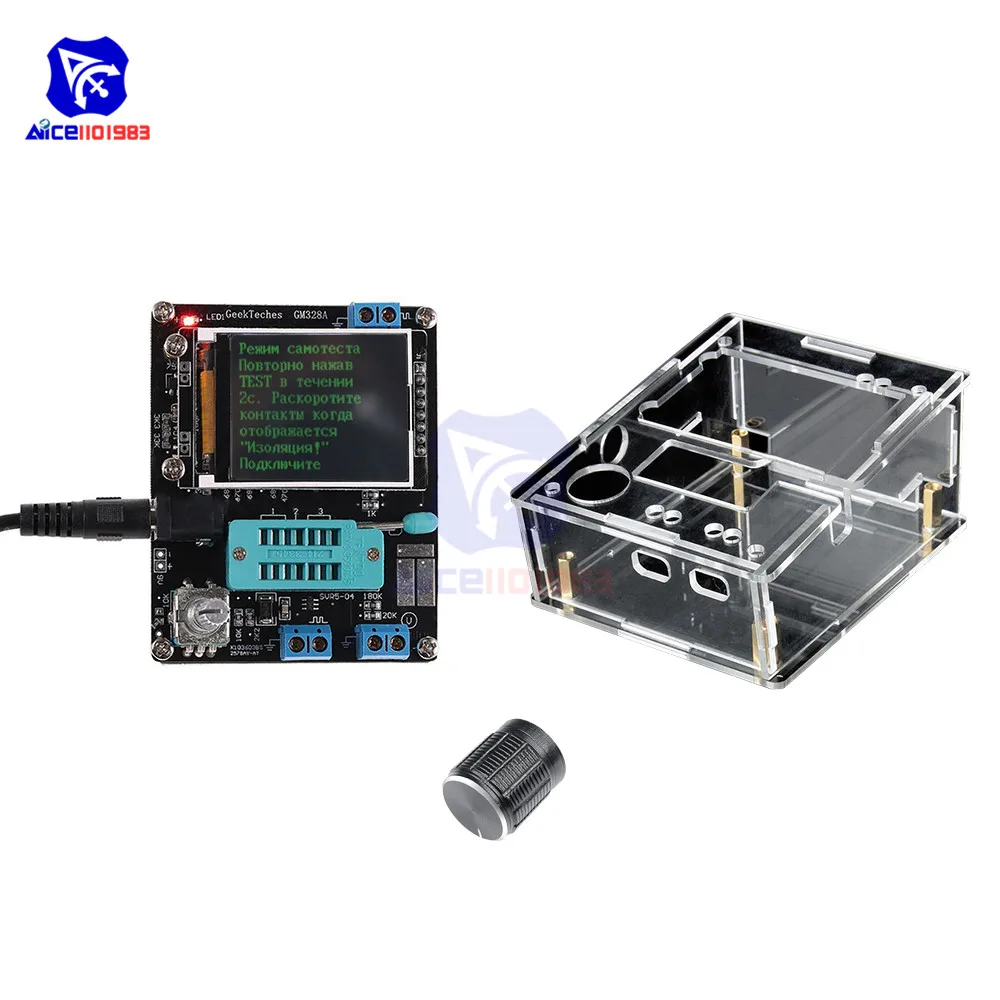

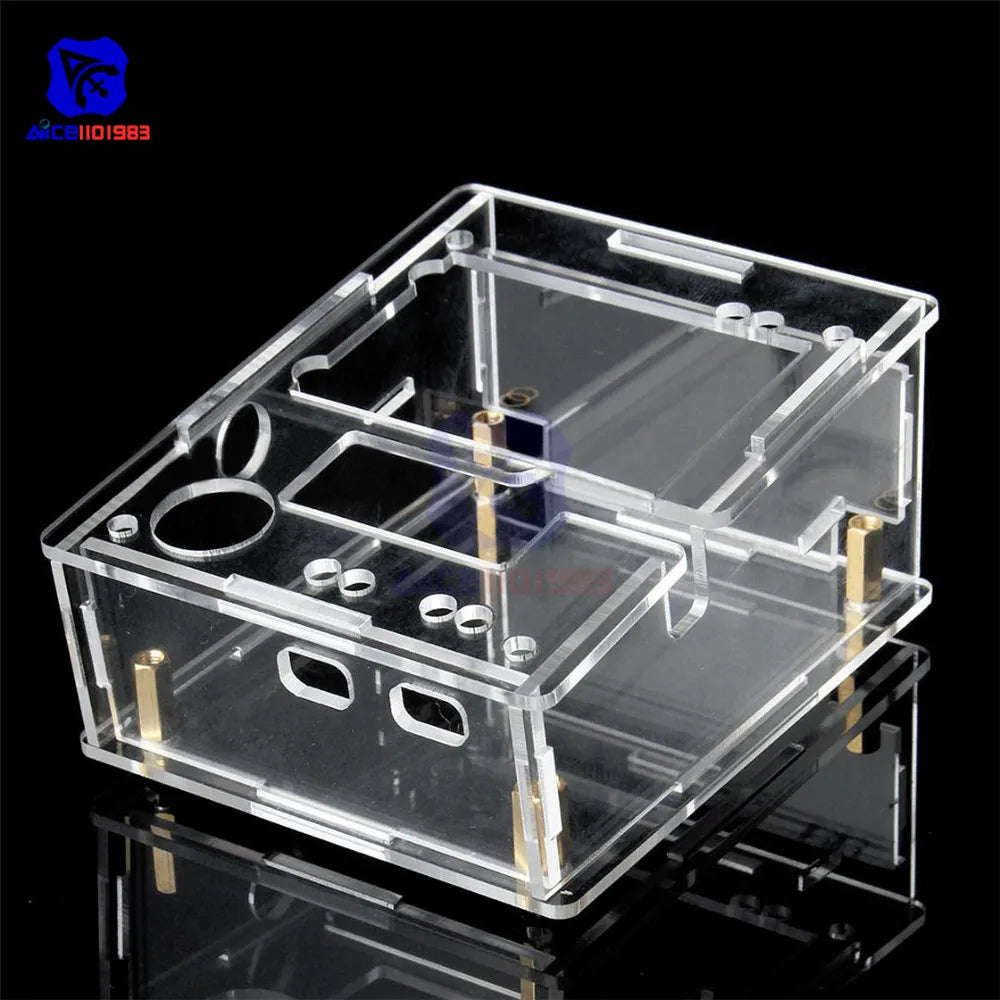

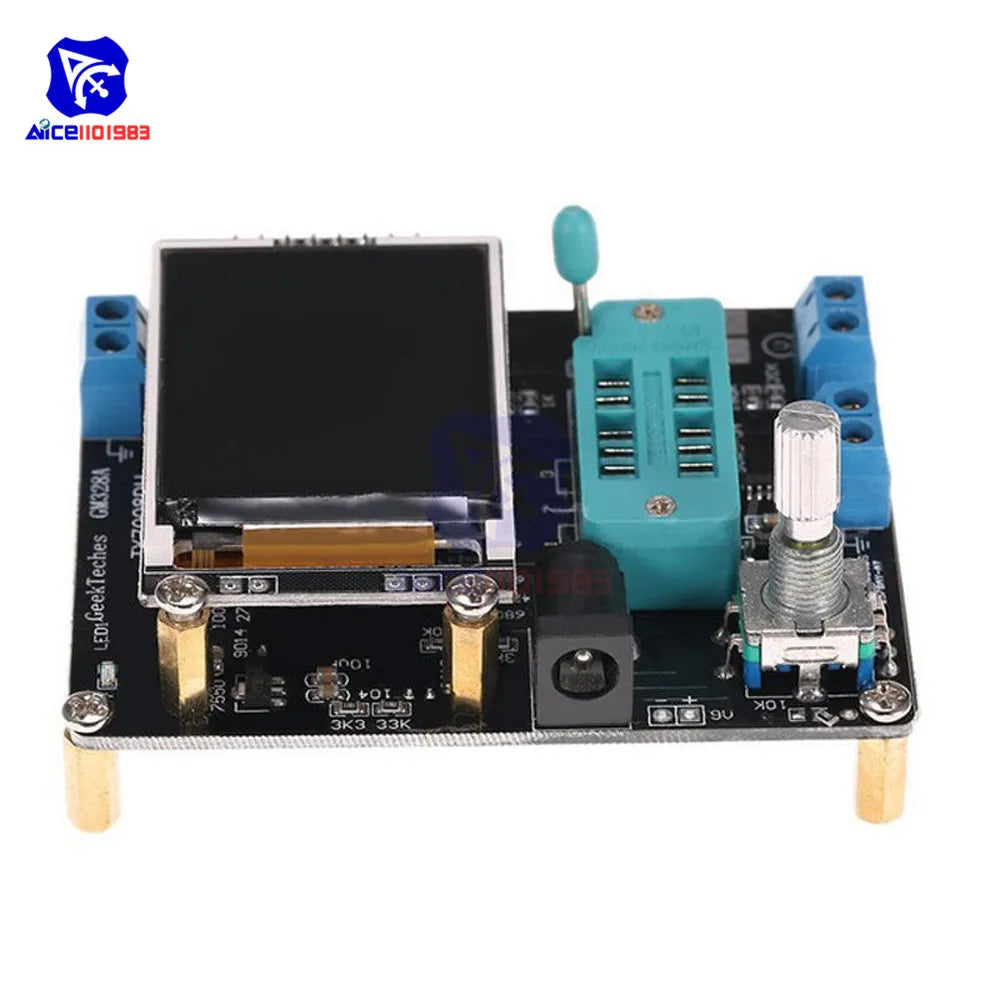

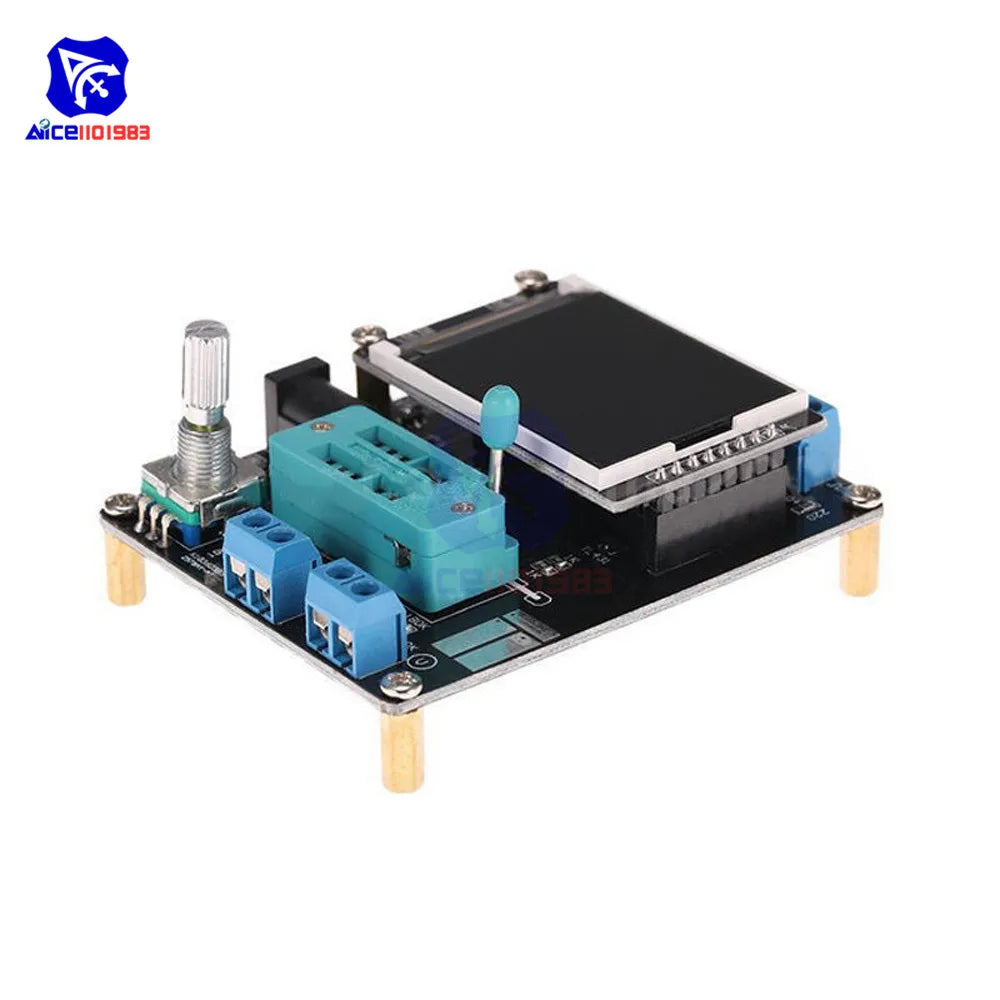

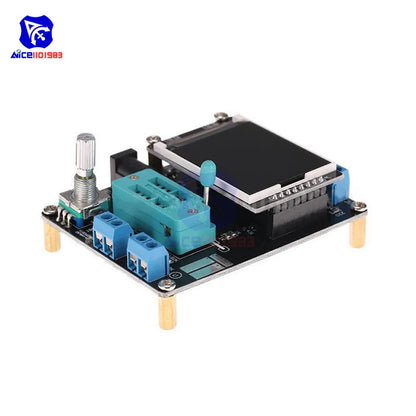

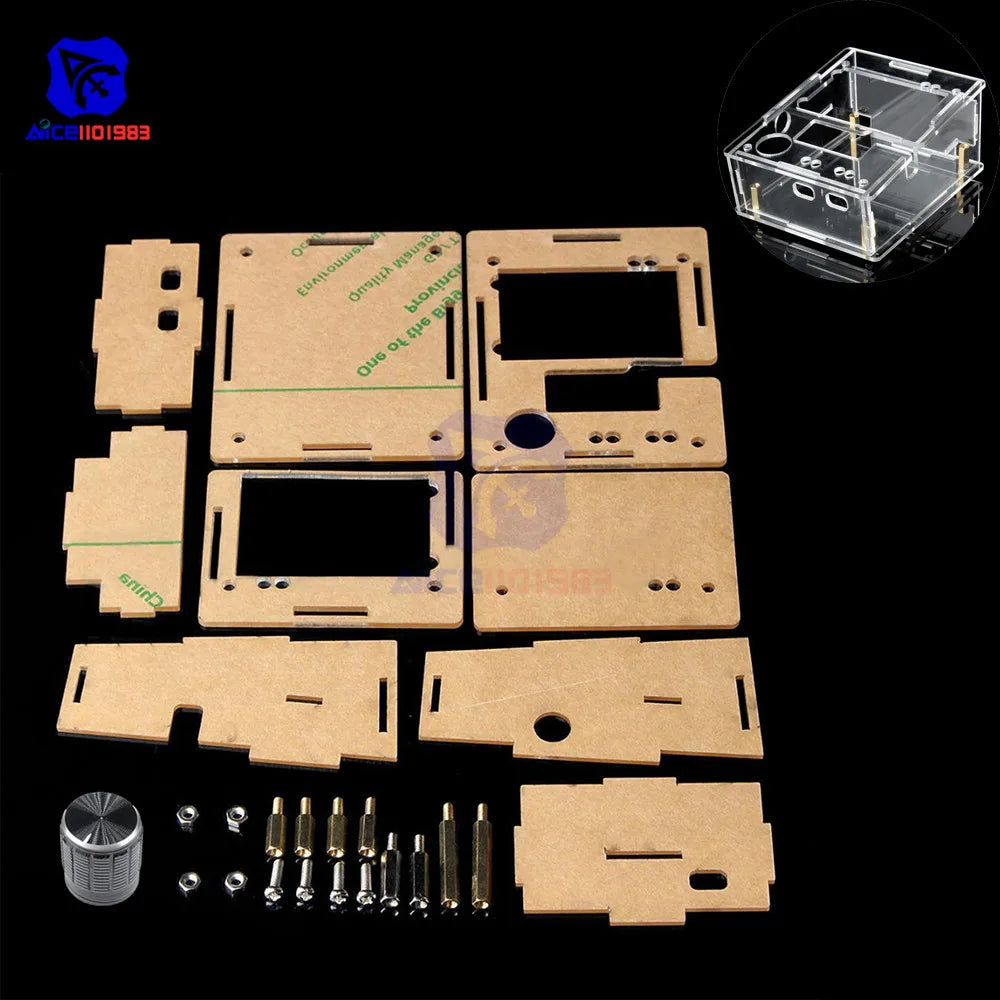

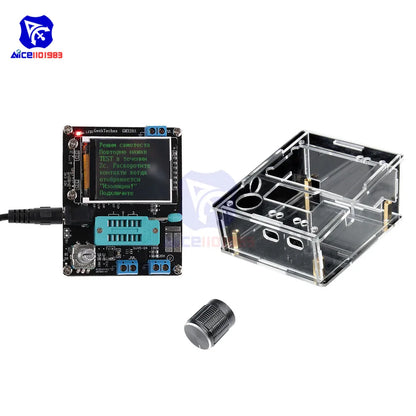

GM328A Transistor Tester Resistance Inductance Capacitance Meter ESR Detector with Case Knob Russian/English Version

Description:

Multi-functional transistor tester for automatic detection of NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout. It also can be used as square signal and PWM signal generator.

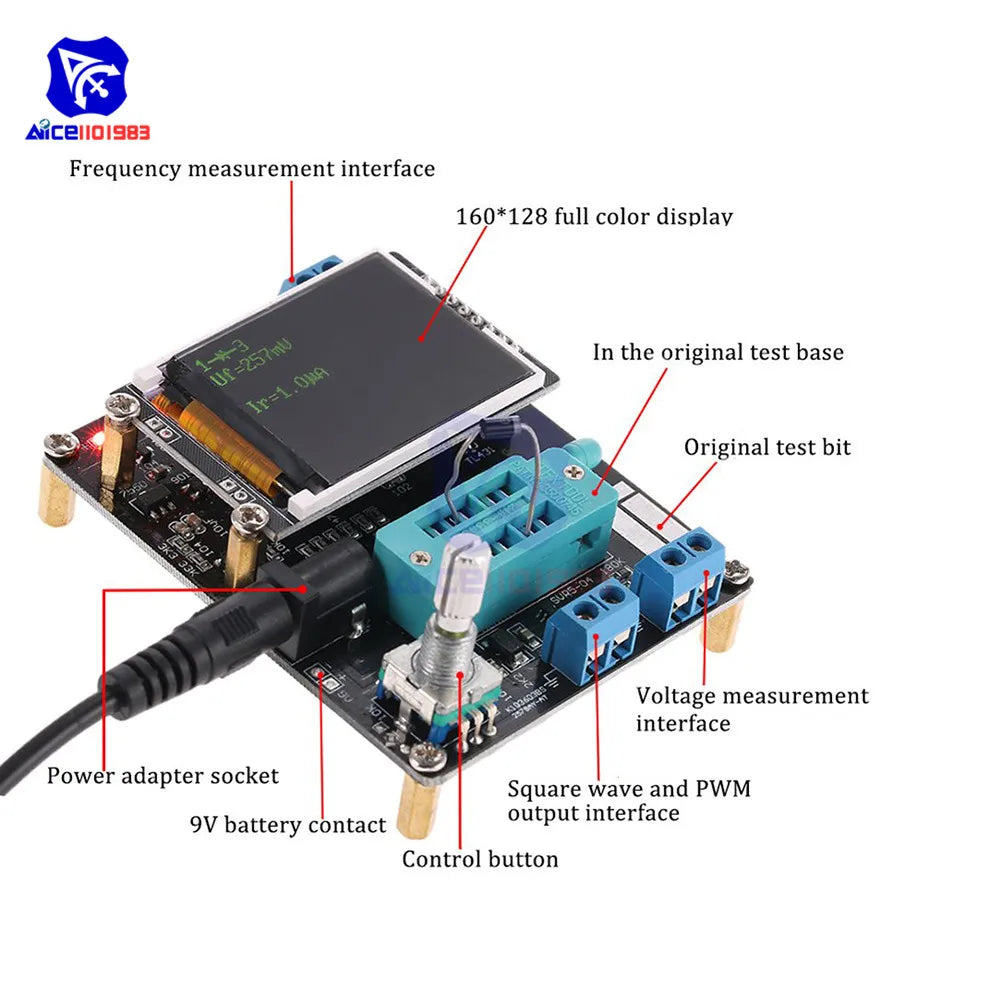

Feature:

Digital LCD display for easy readings of data and graphics.

Rotary switch control.

Main chip is the DIP, easy for electronic enthusiasts to DIY or update.

Uses 9V battery (not included) or use DC power (DC 6.8-12V).

Automatic shutdown (shutdown current is about 20nA).

Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.

Support 2 resistors measurement, show its positive and negative, on-state voltage.

Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.

Automatically test the pins of a component and show on the display.

Measure FET gate threshold voltage and gate capacitance.

For the following 2100Ω resistor while measuring its inductance measuring range from 0.01mH - 20H.

Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM (pulse width modulation) signals.

Notice:

Before measuring capacitance, the capacitor must be discharged, otherwise it can very likely damage the meter.

Specification:

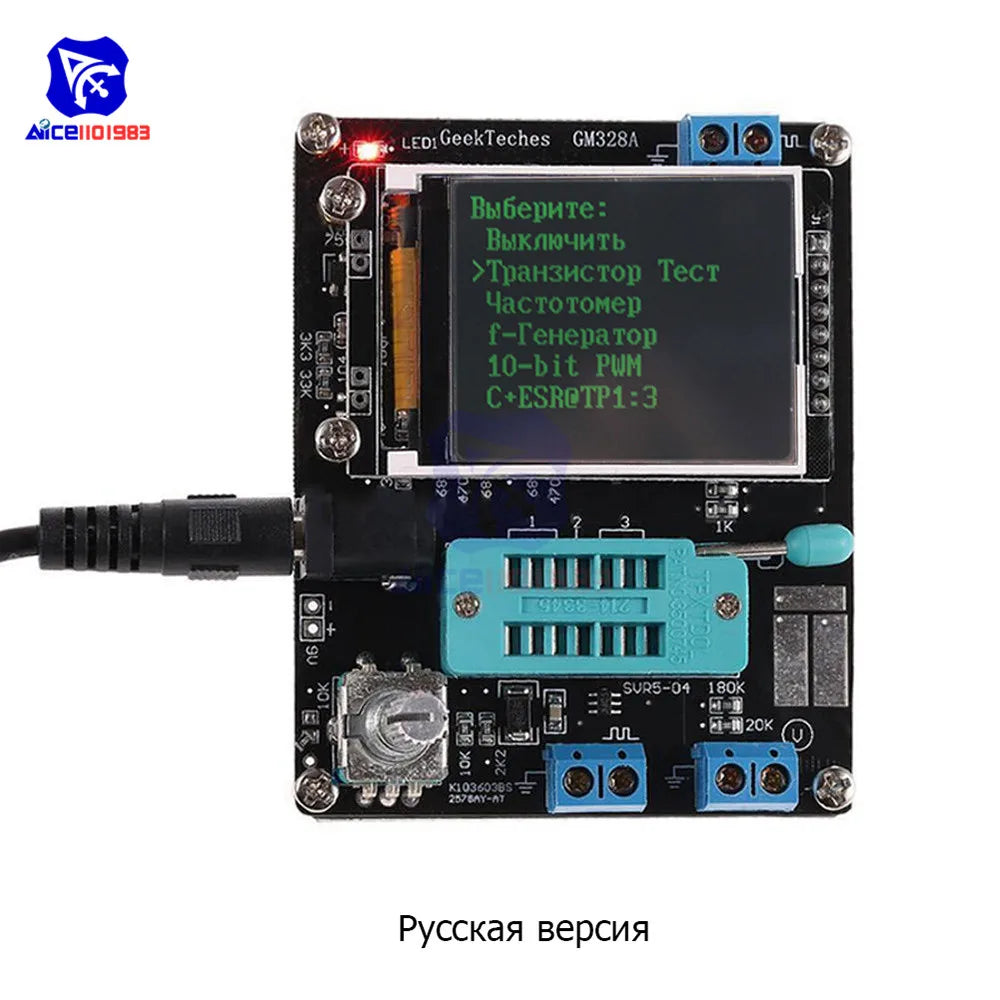

Language: English, Russian (Option)

Display: 160 x 128 LCD

Power supply: 9V Battery (not included), DC 6.8-12V
