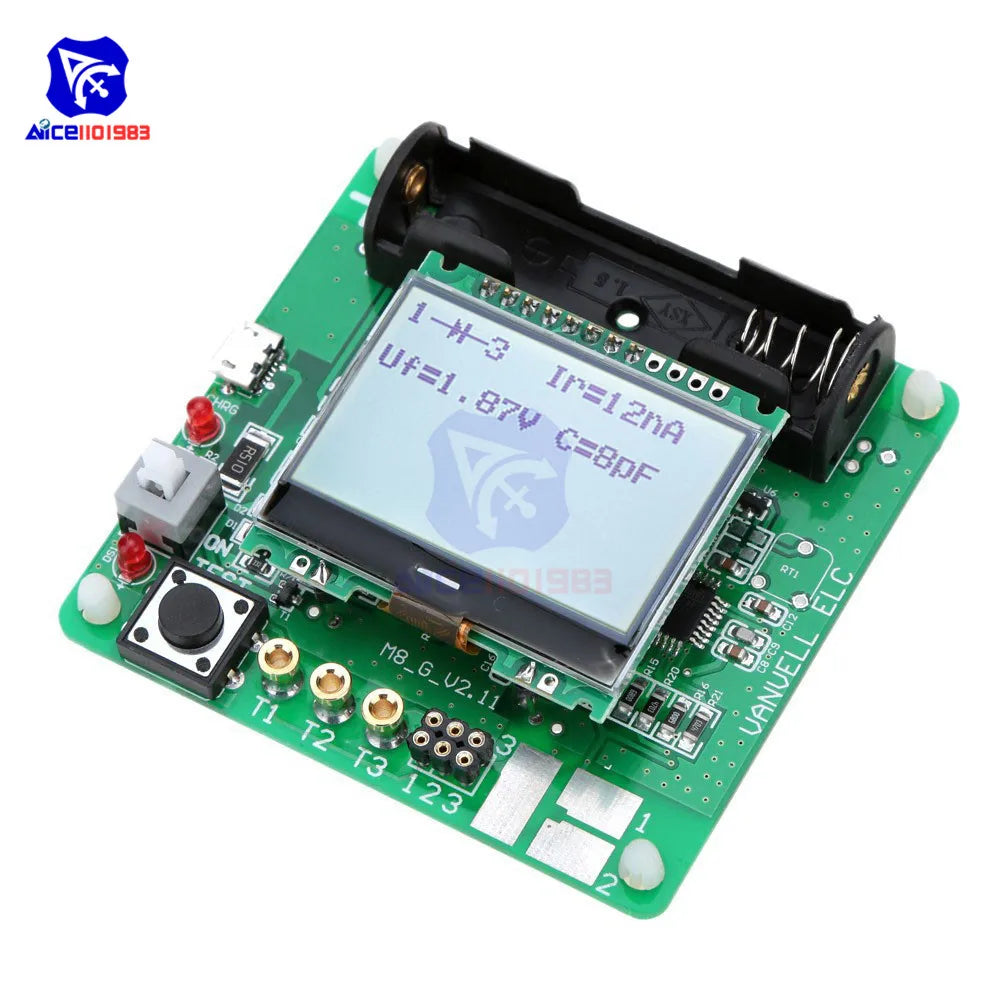

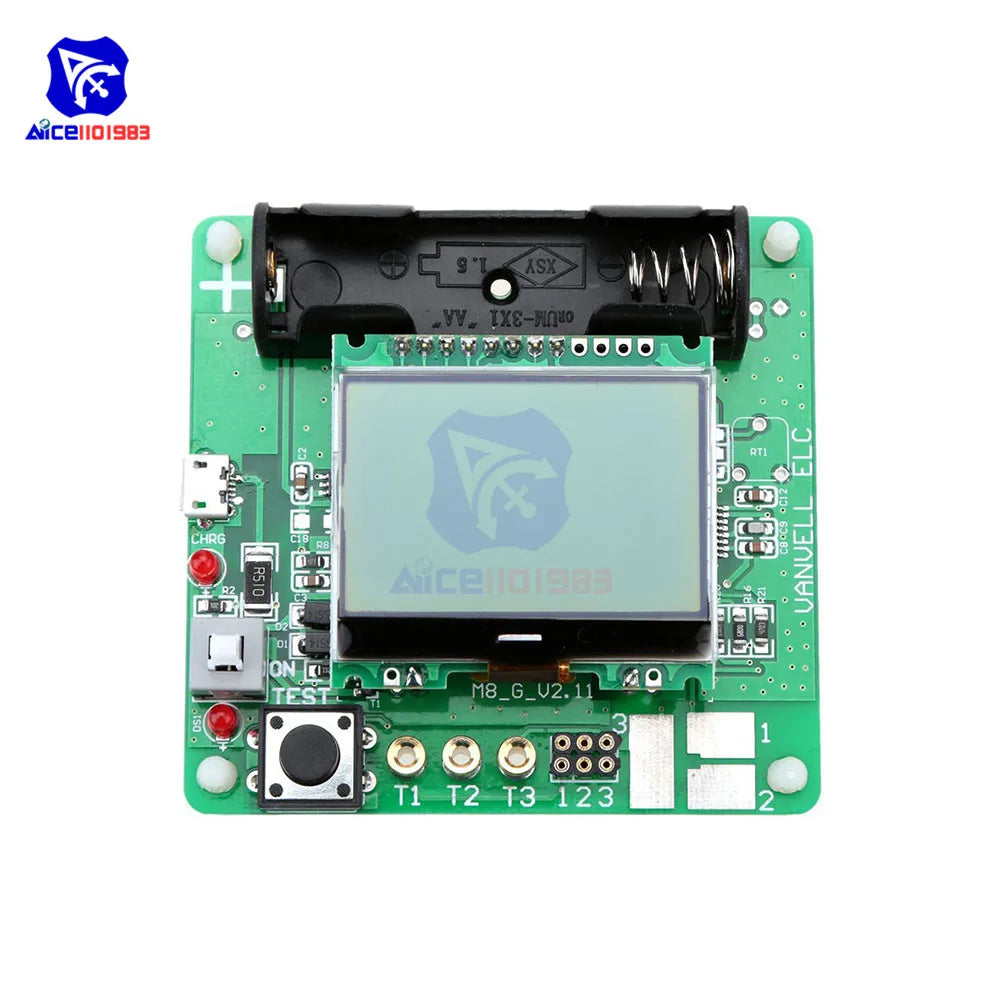

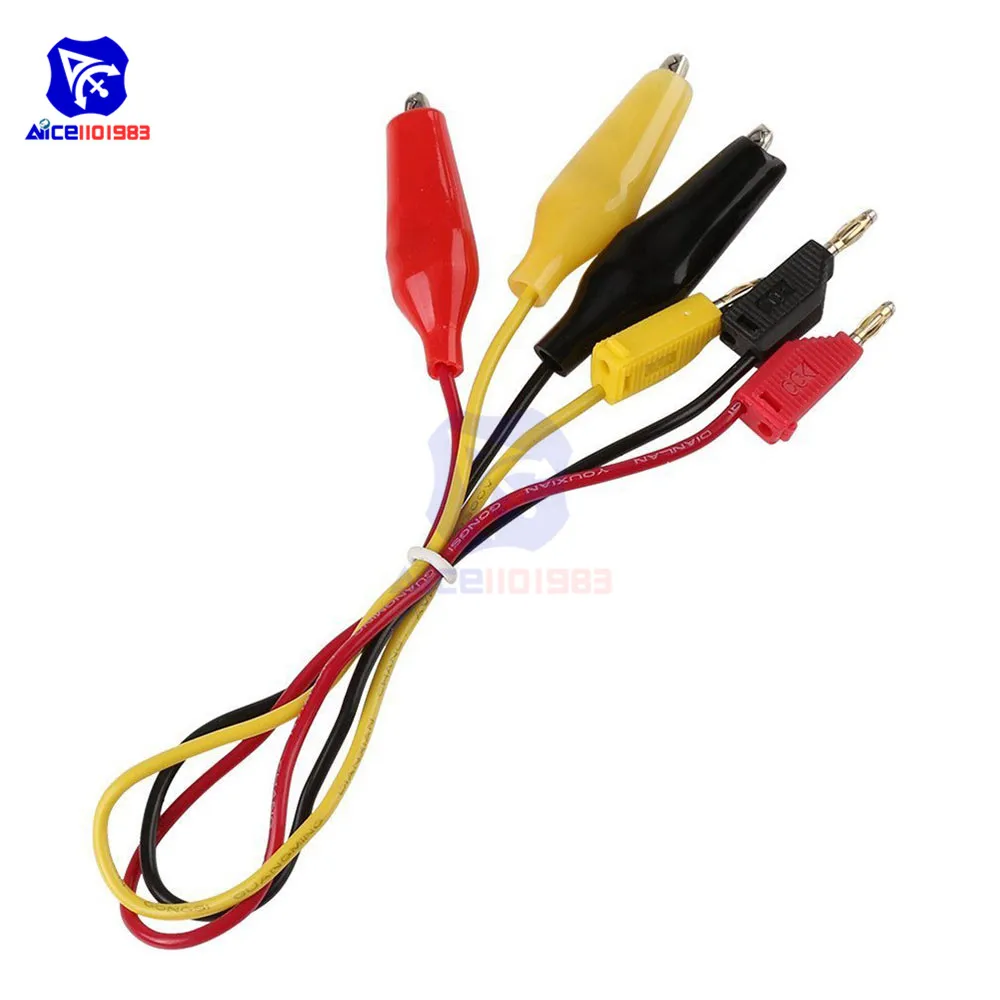

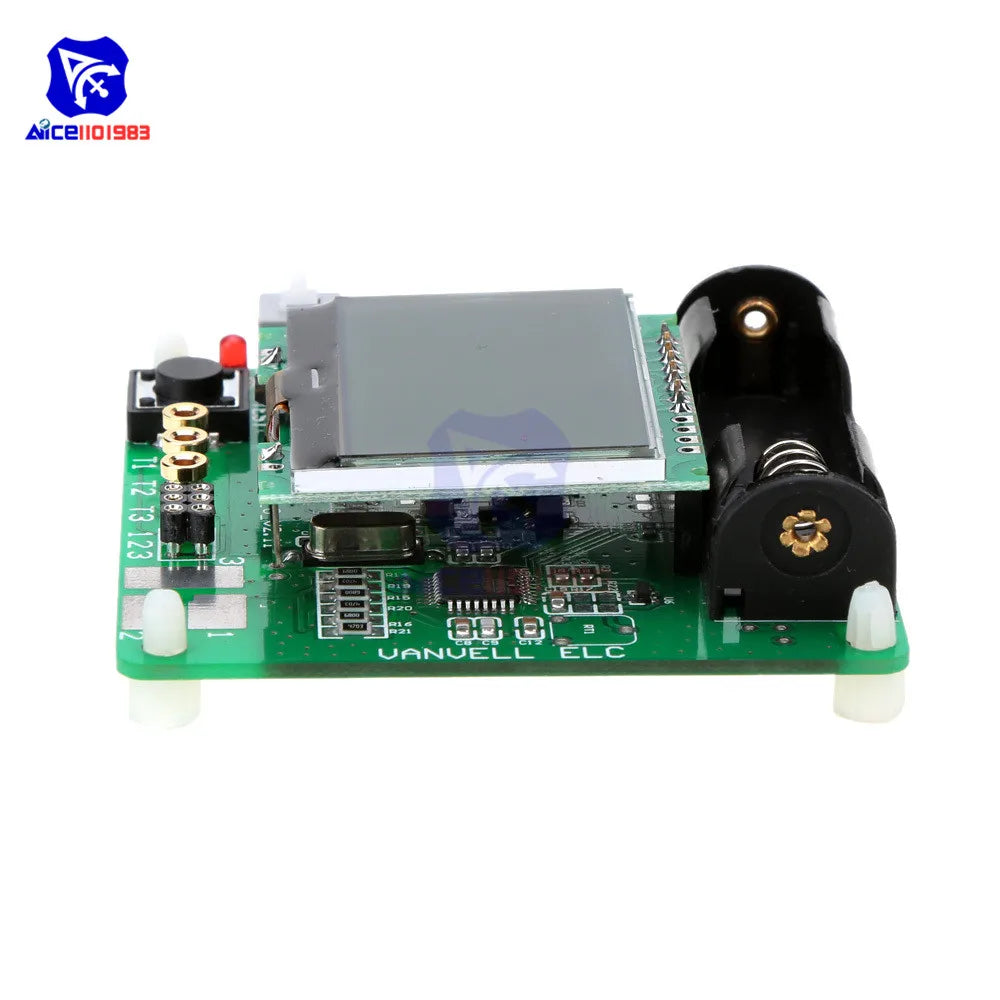

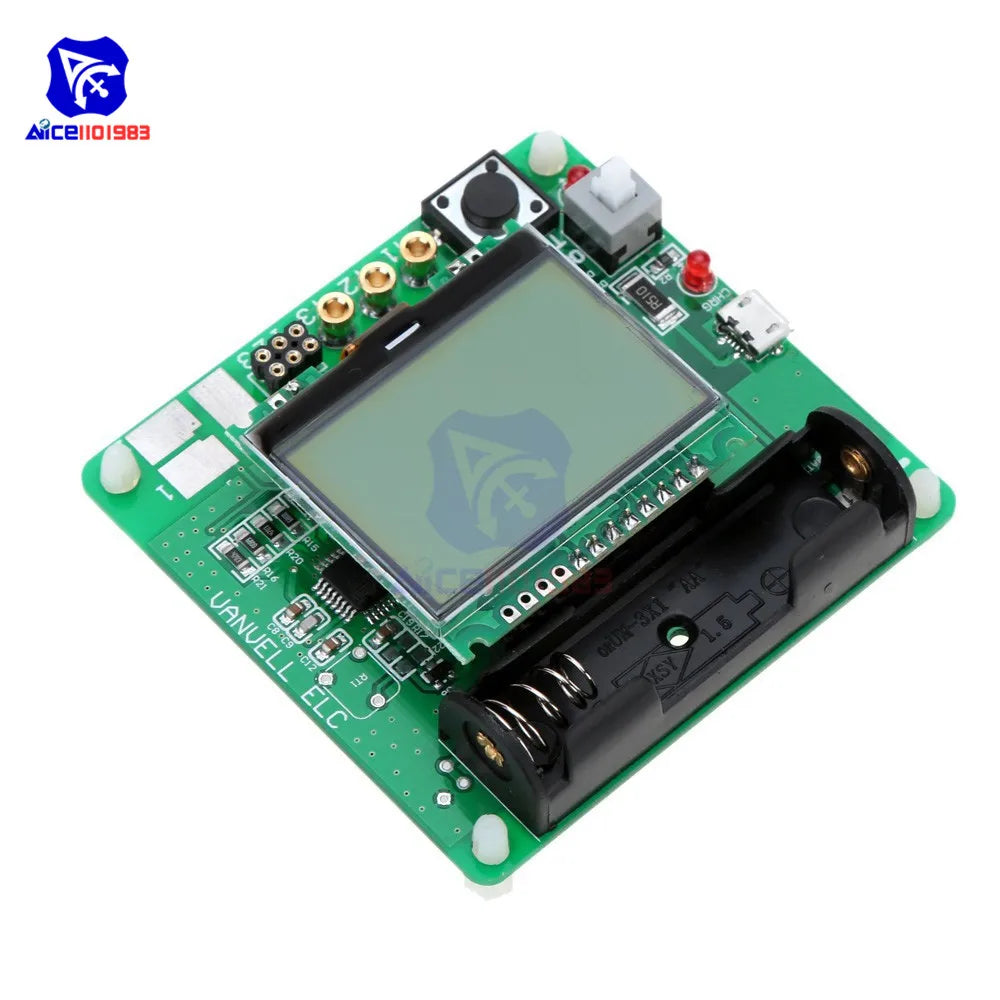

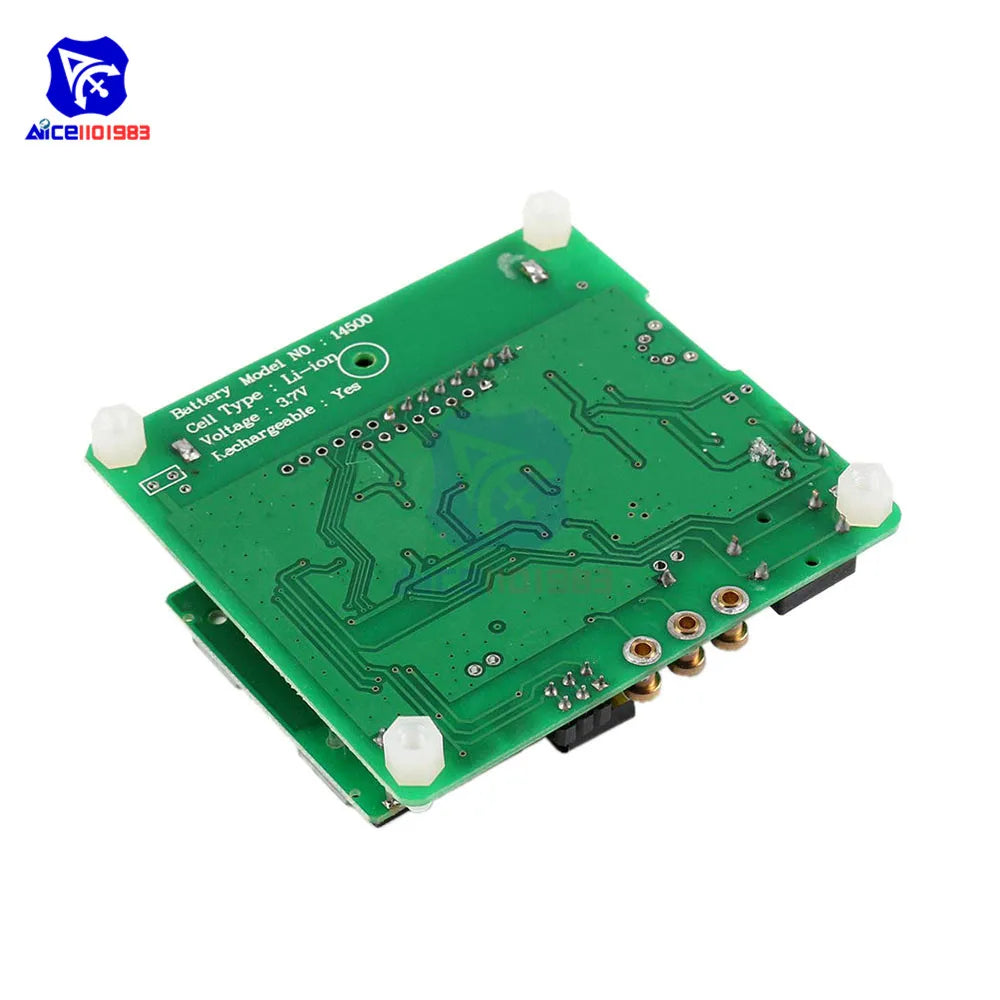

Tester Transistor Multifunción DIYMORE MG328 LCD Inductor Capacitor Medidor Detector + Pinzas Cocodrilo

$32.340 CLP

~~$23.747 CLP~~ $32.340 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Default Title Default Title

Cantidad

SPECIFICATIONS

Application: Computer

Brand Name: diymore

Condition: New

Dissipation Power: Transistor Inductor Capacitor Tester

Model Number: MG328

Operating Temperature: -20 -65℃

Origin: Mainland China

Package: SOP

Supply Voltage: 3.7V Battery

Type: Voltage Regulator

is_customized: Yes

Feature:

One key measurement operation, auto power off delay. Shutdown current is only 20nA, support for battery operation

Automatic detection PNP and NPN bipolar transistor, N, P-channel MOSFET, JFET FET, diodes, two diodes, thyristors, resistors, capacitors, inductors. Automatic detection pin definitions

Measuring the current amplification factor (B) of the bipolar transistor and the turn-on voltage of the emitter junction (Uf). Darlington transistor amplification factor can be identified by the high threshold voltage and high current

Can detect bipolar transistors and MOSFETs internal protection diodes and displayed on the screen

Measuring the threshold voltage and the gate capacitance of the MOSFET

Specification:

Power supply: 1 x 3.7V battery(not included)

Shutdown current: 20nA

Resistance measurement resolution: 0.1 ohms

Capacitance measurement: Range from 25pf to 100mF (100000 UF)

Resolution: Up to 1 pF

Inductance measurement range: 0.01MH-20H

Color: Green

Material: PCB

Note:
