DL400 Pro Tester Reparación Pantalla LCD y Expansión IC 32GB para iPhone X a 15 Pro Max / iPad Mini 4/5
DL400 Pro Tester Reparación Pantalla LCD y Expansión IC 32GB para iPhone X a 15 Pro Max / iPad Mini 4/5
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NoEnName_Null
Design: Software must upgrade to 20231025 version
Hign-concerned Chemical: None
Material: Chrome Vanadium Steel
NOte: DL400 Pro 4gb Expand to 32GB
Origin: Mainland China
Pieces Included: BOX
With Magnetic: No
advantage: Accurate testing and easy operation
function: Testing display and touch

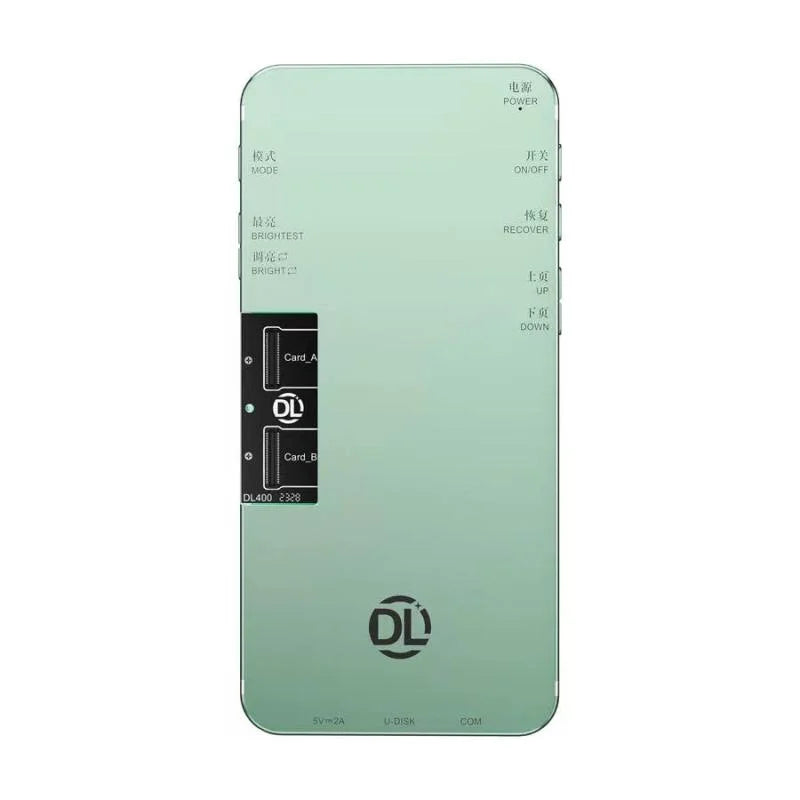

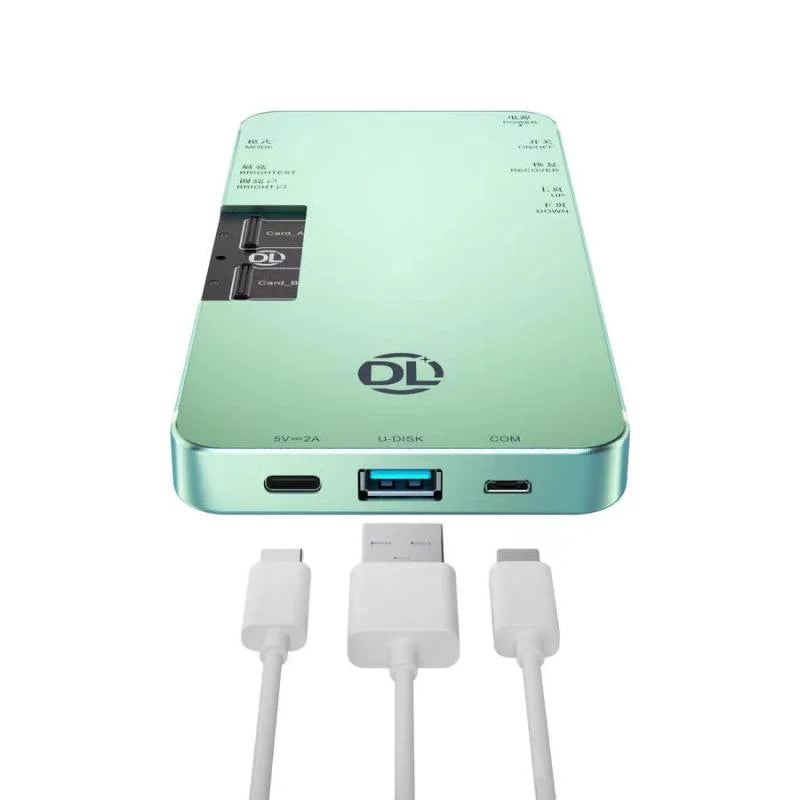

name: Digitize Display Touch Screen Tester
usage: mobile phone glass with touch Testing

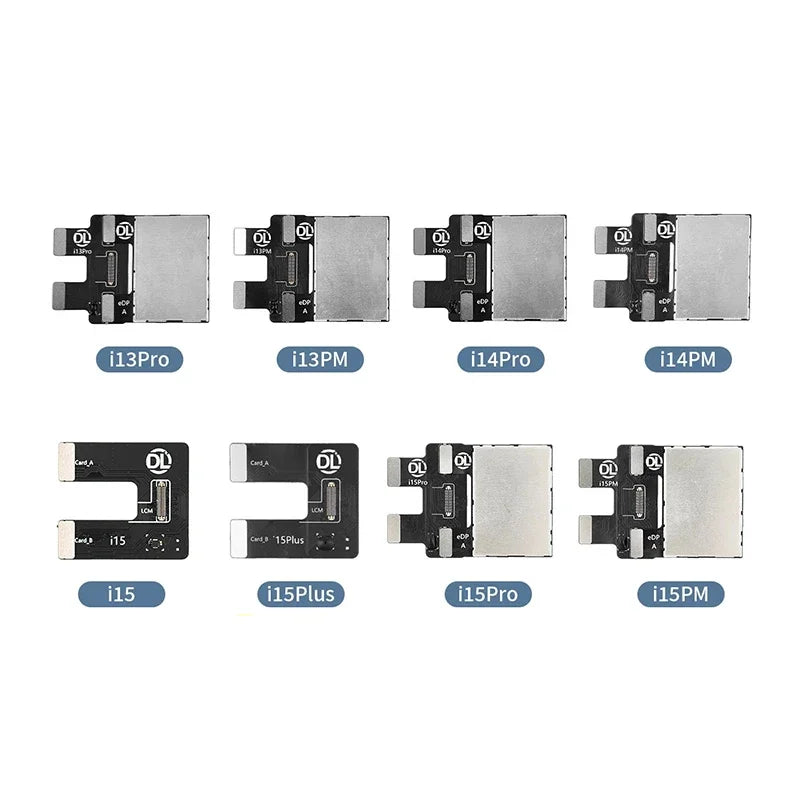

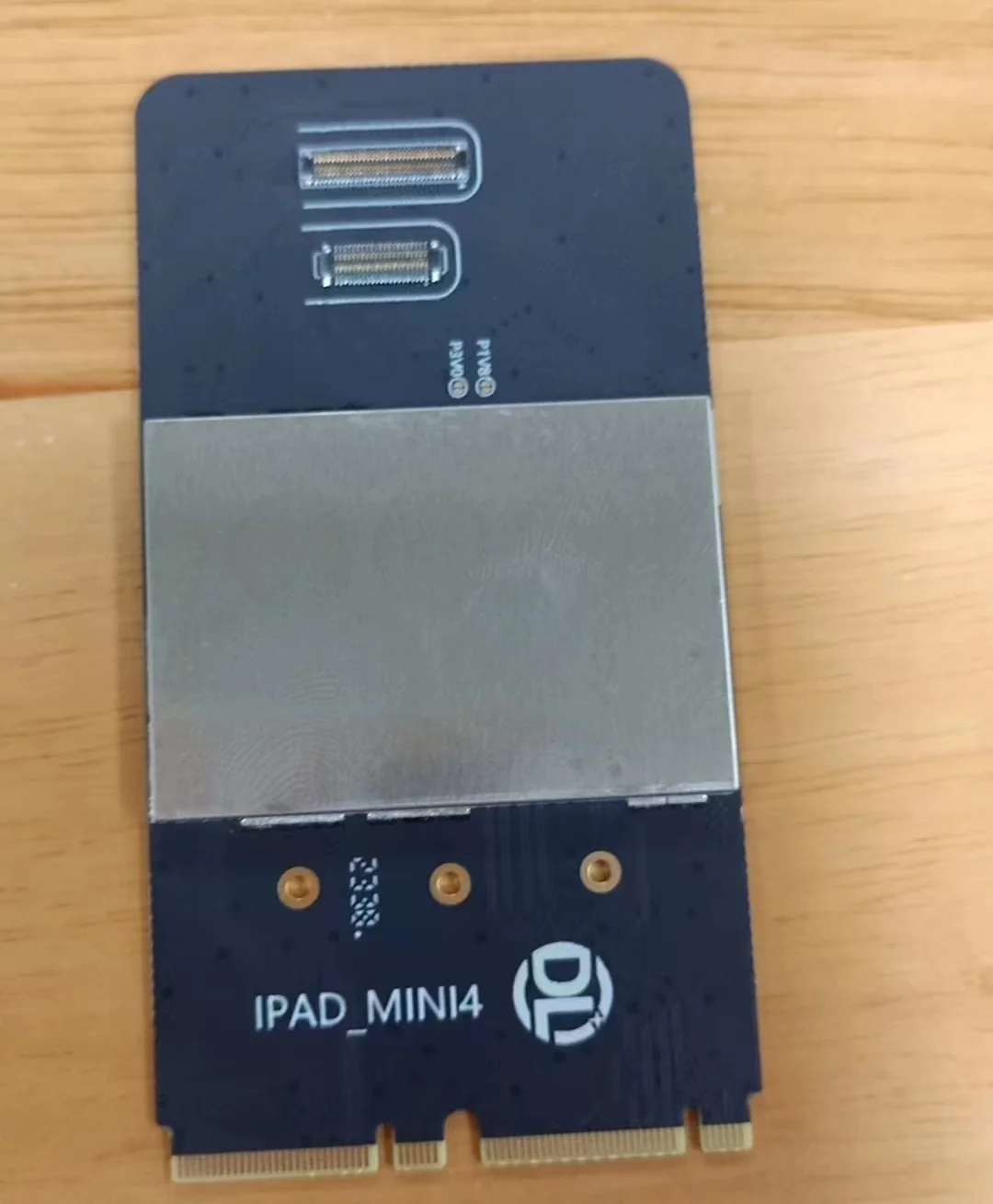

DL400 Pro 32GB Expand IC Upgrade Support For iPhone X-13 Pro/13Promax/14Pro/14 Pro Max LCD Screen For iPAD MINI 4/5 Test Repair

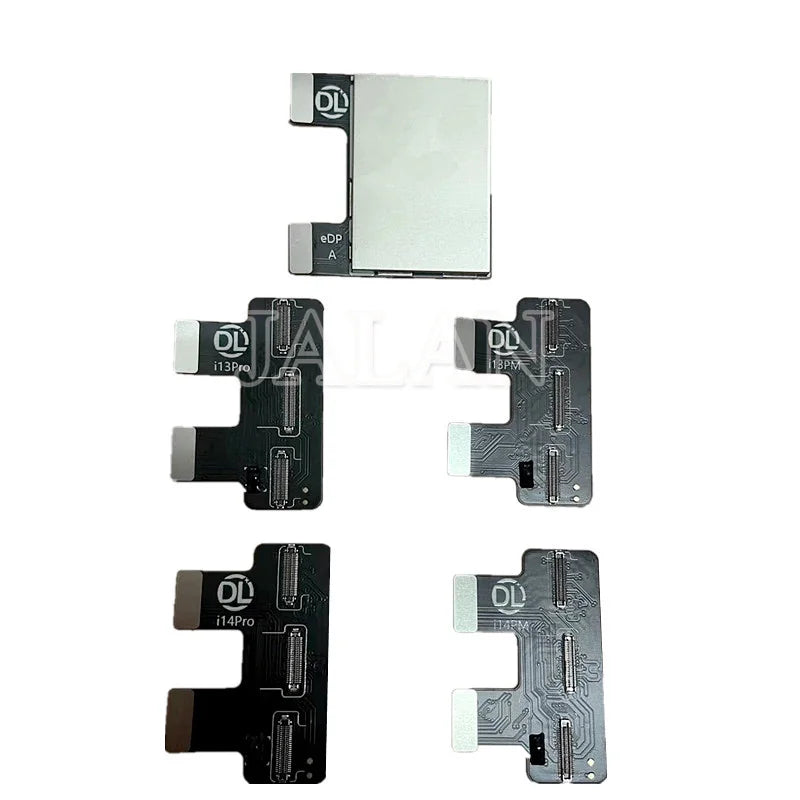

13pro 13promax 14pro 14promax flex cable order Note：

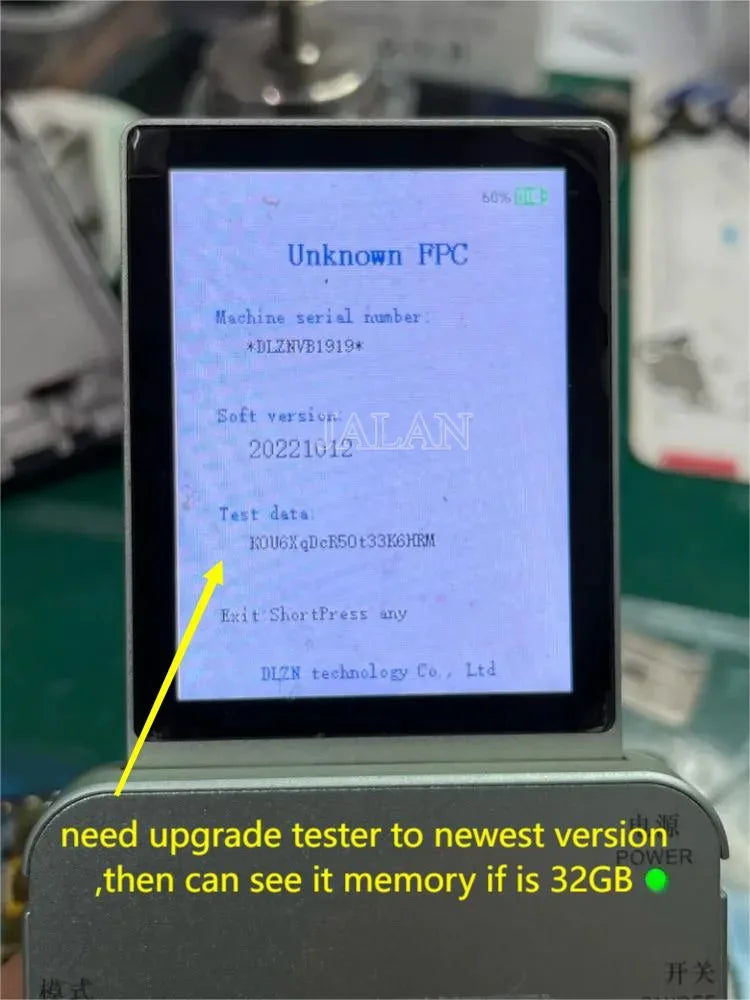

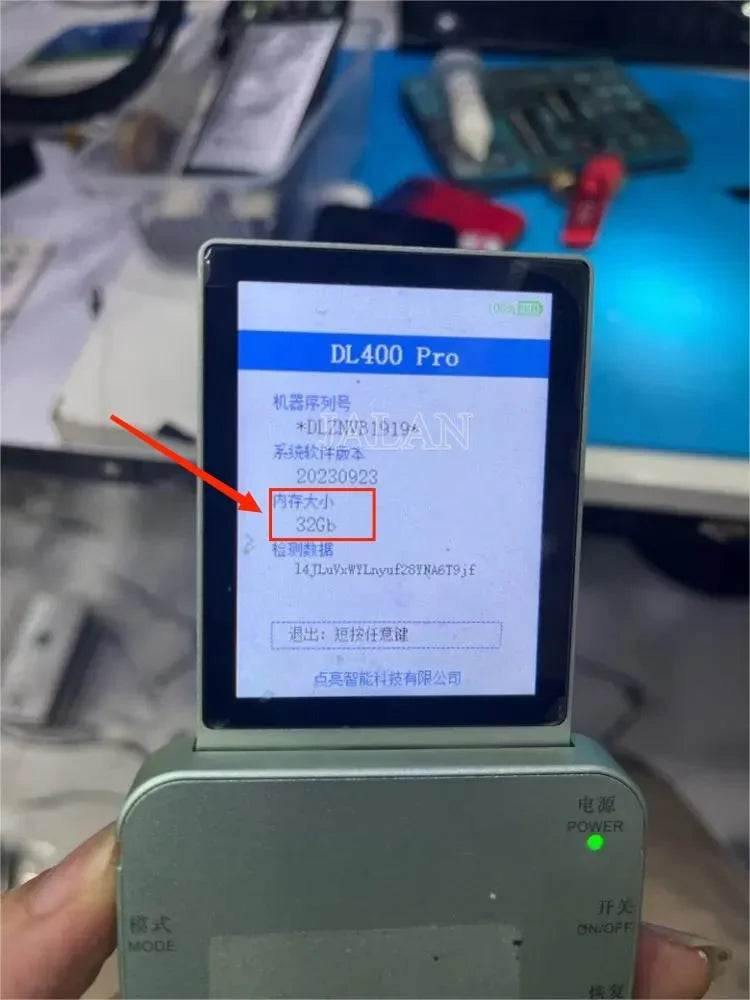

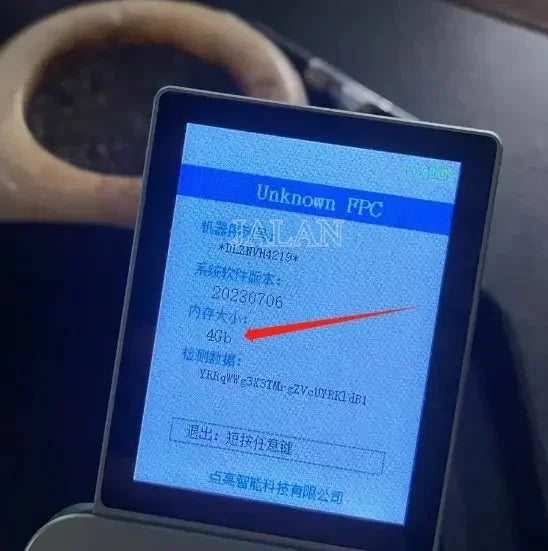

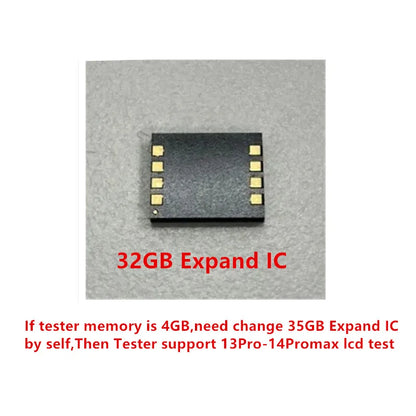

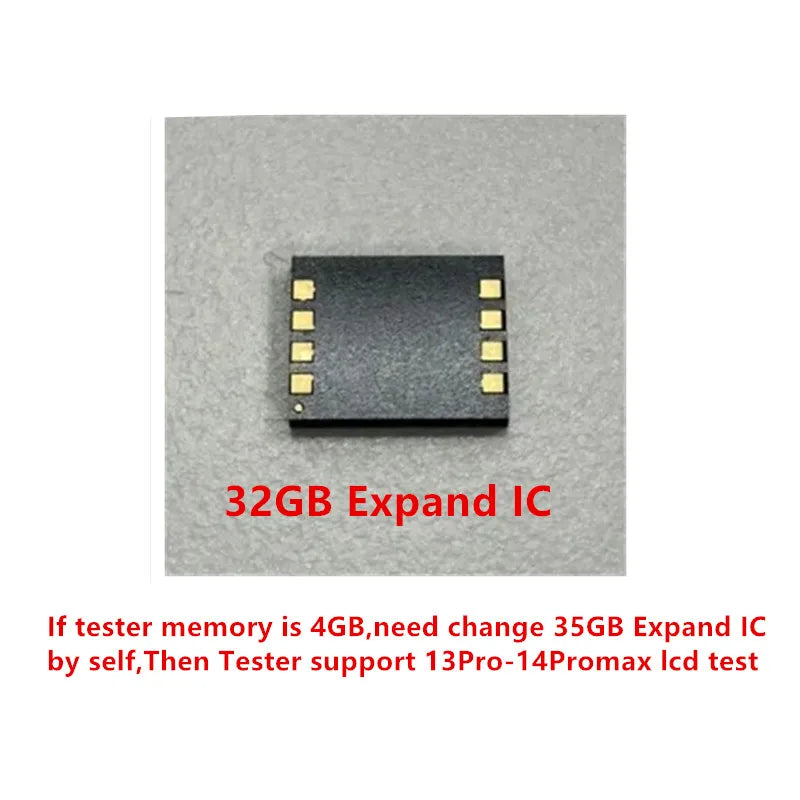

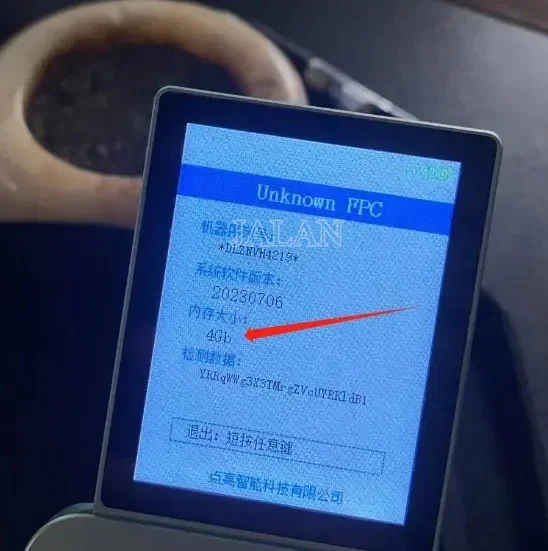

1. Press recovery button to check DL400 Pro system and memory，if it is 4GB memory,then need to order IC to expand
32GB memory (check video:https://www.youtube.com/watch?v=nkS_fZoE1dY), if it is 32GB，then can use flex directly
2. Pls upgrade DL400 Pro tester to newest version 20231026，this is the upgrade file download website：http://www.szdianl.com/xiazai/

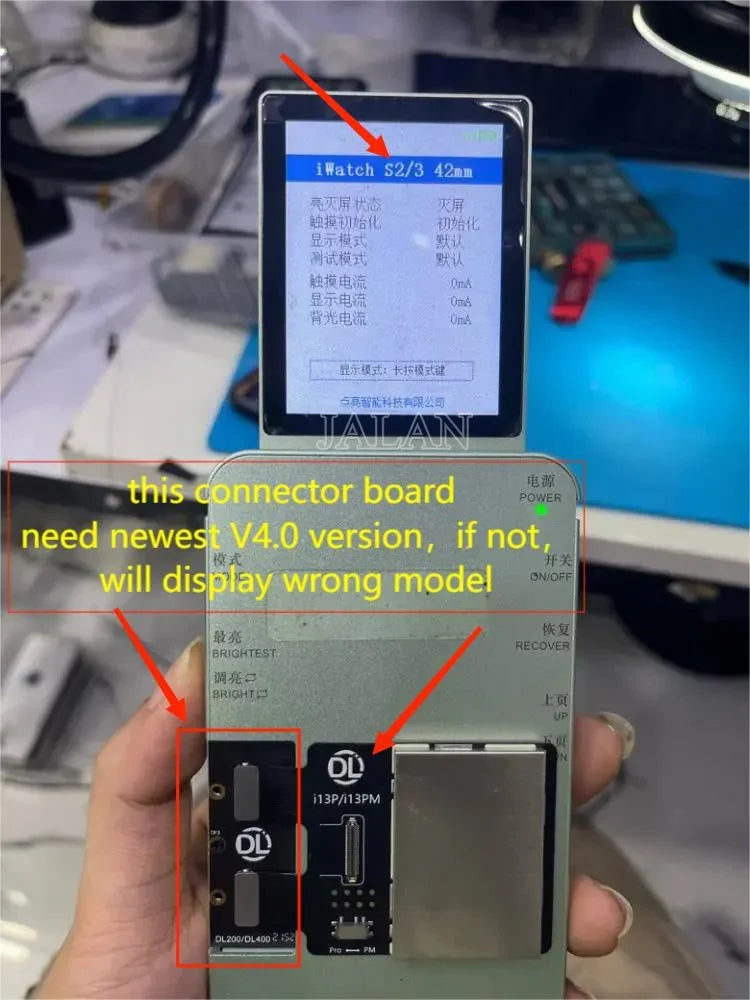

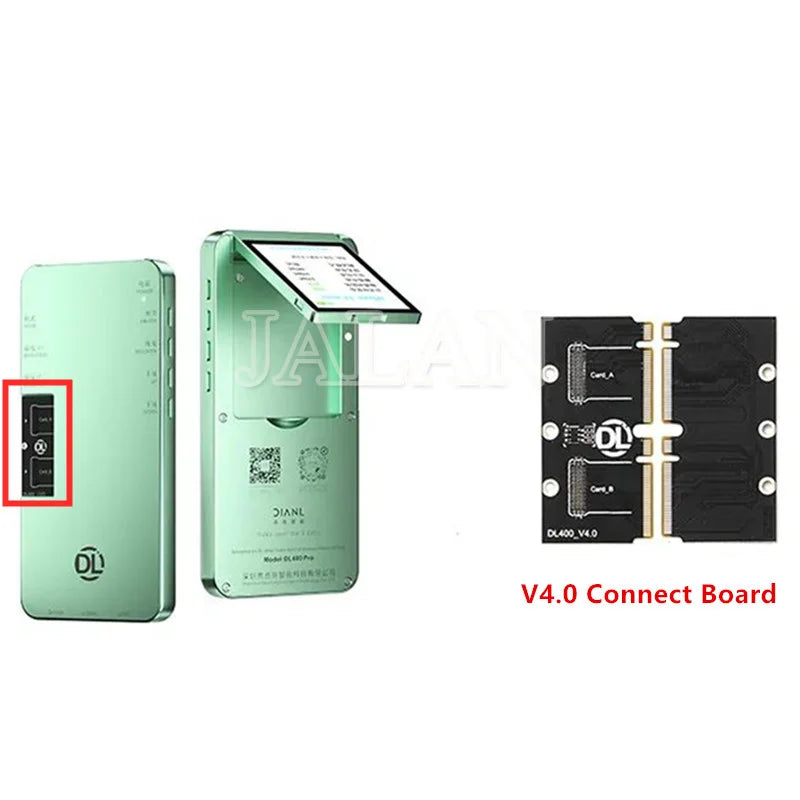

3. Confirm the tester connector board version，only newest V4.0 version can use 13pro/13promax/14pro/14promax flex cable，If it's not V4.0，after connect flex，these will be an error model show in the display

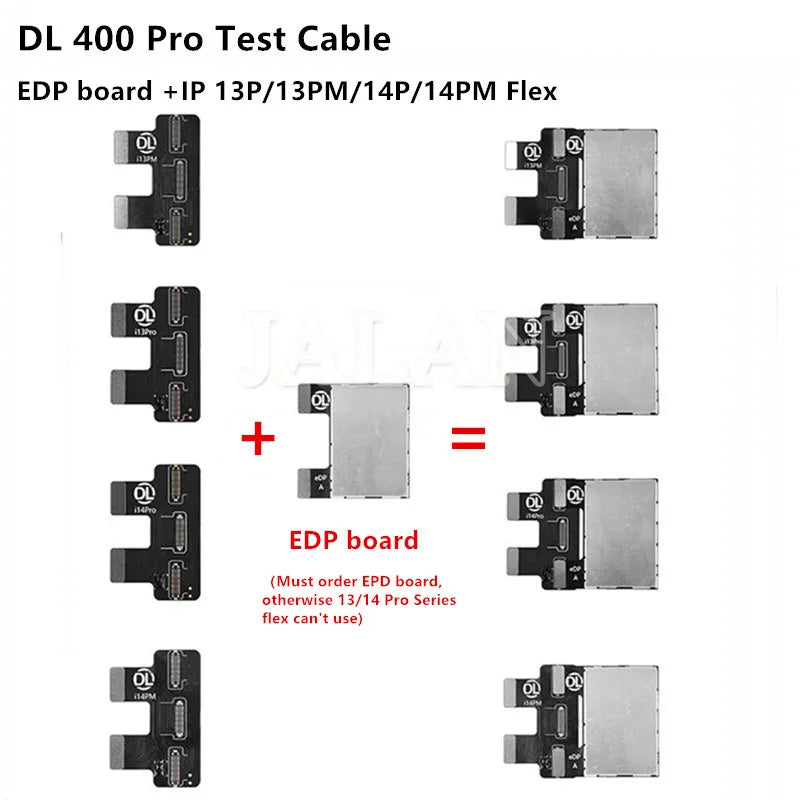

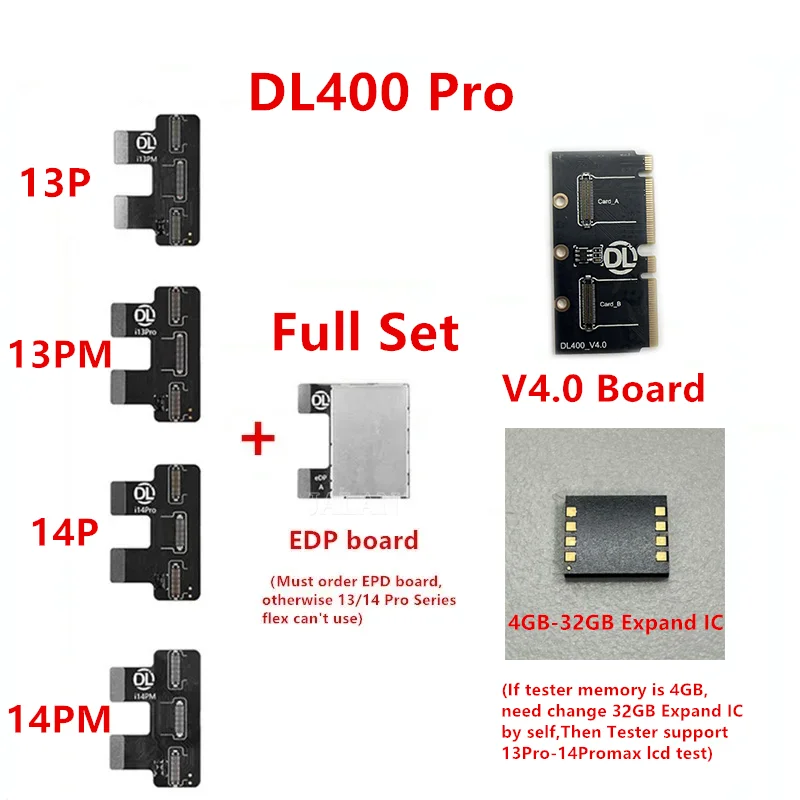

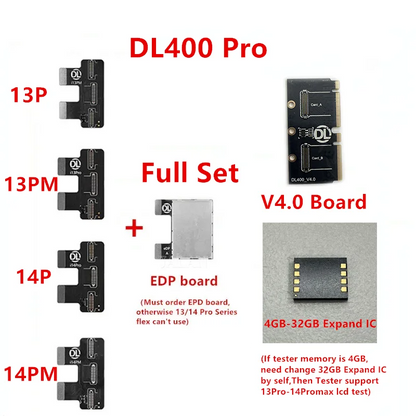

4. if tester is old version and memory is 4GB,need order Connect board V4.0, EDP board, Expand IC.13pro/13promax/14pro/14promax flex cable and upgrade tester to newest version，then can test 13pro/13promax/14pro/14promax LCD

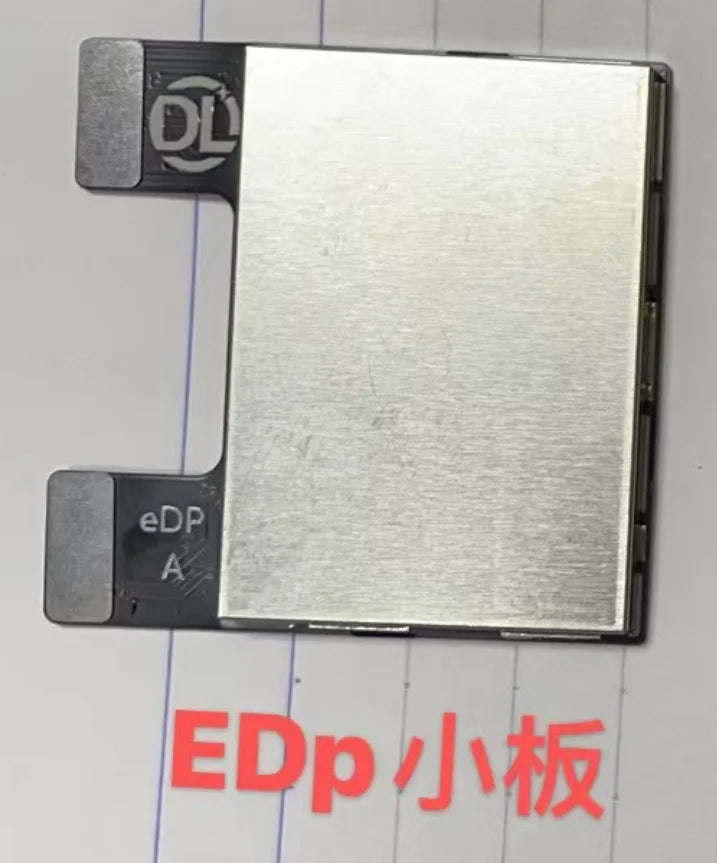

5. Important: 13pro/13promax/14pro/14promax LCD must connect with EDP board, othervisw will not work
