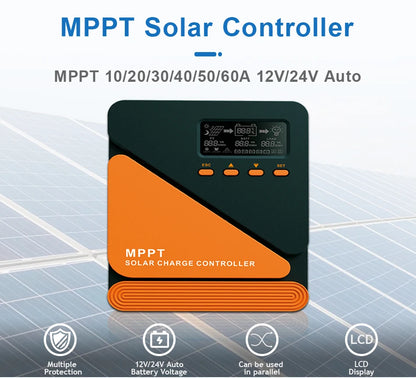

EASUN Solar Charge Controller MPPT 60A 50A 40A 30A 20A 10A Solar Panel Solar Charge Regulator 12V 24V Battery PV Input 100VOC

$56,032.34 USD

~~$59,602.34 USD~~ $56,032.34 USD

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

Current MPPT 20A MPPT 10A MPPT 40A MPPT 30A MPPT 60A MPPT 50A

Rated Voltage 12V 24V

Cantidad

SPECIFICATIONS

Application: Solar System Controller,Charger Controller,Lighting Controller,Voltage Controller,Solar Working Station

Brand Name: EASUN POWER

Certification: CE

Choice: yes

Hign-concerned Chemical: None

Is Smart Device: YES

Maximum Current: 60A

Model Number: ICharger-CM-MPPT

Origin: Mainland China

is_customized: Yes

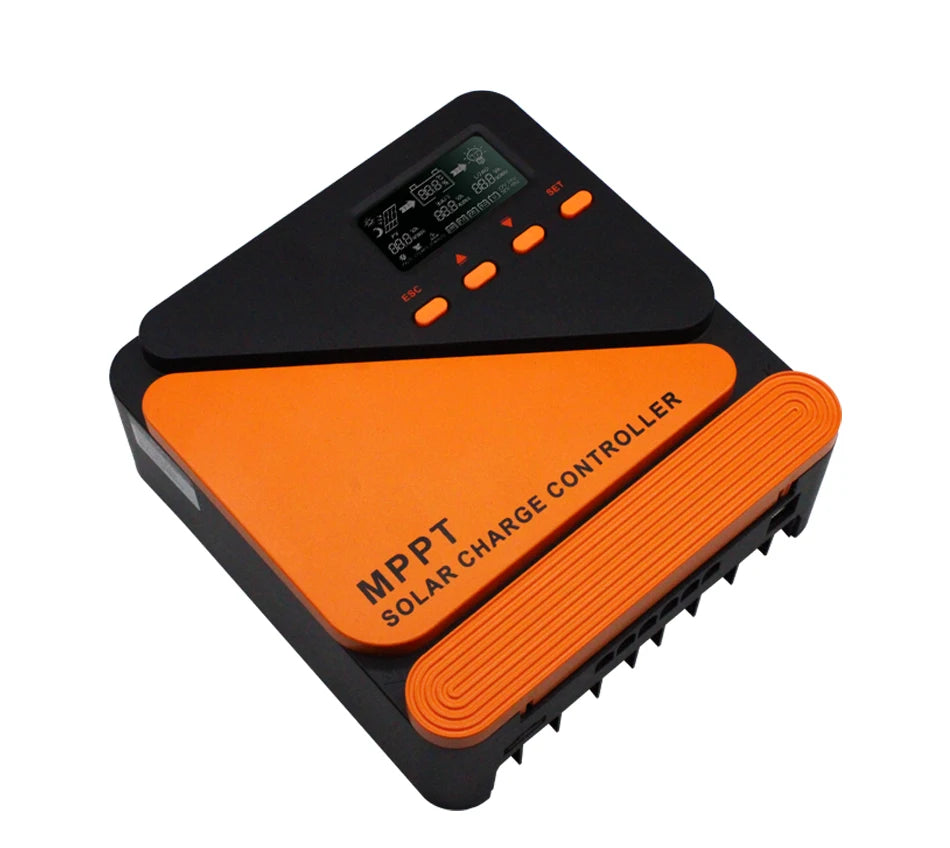

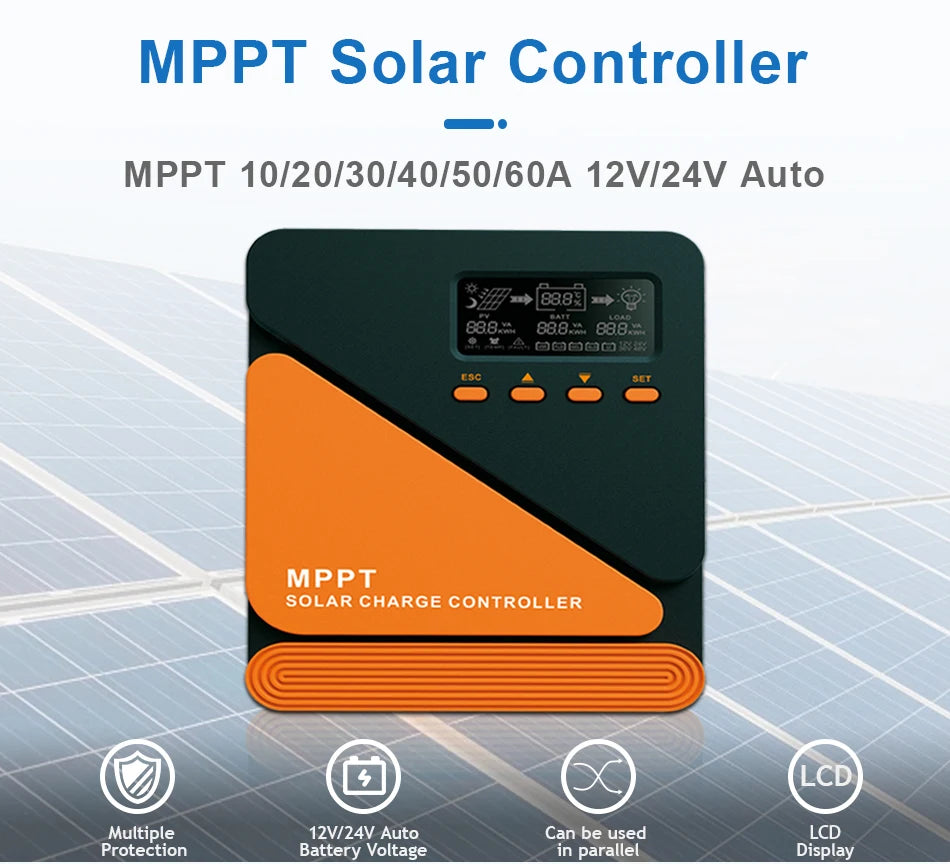

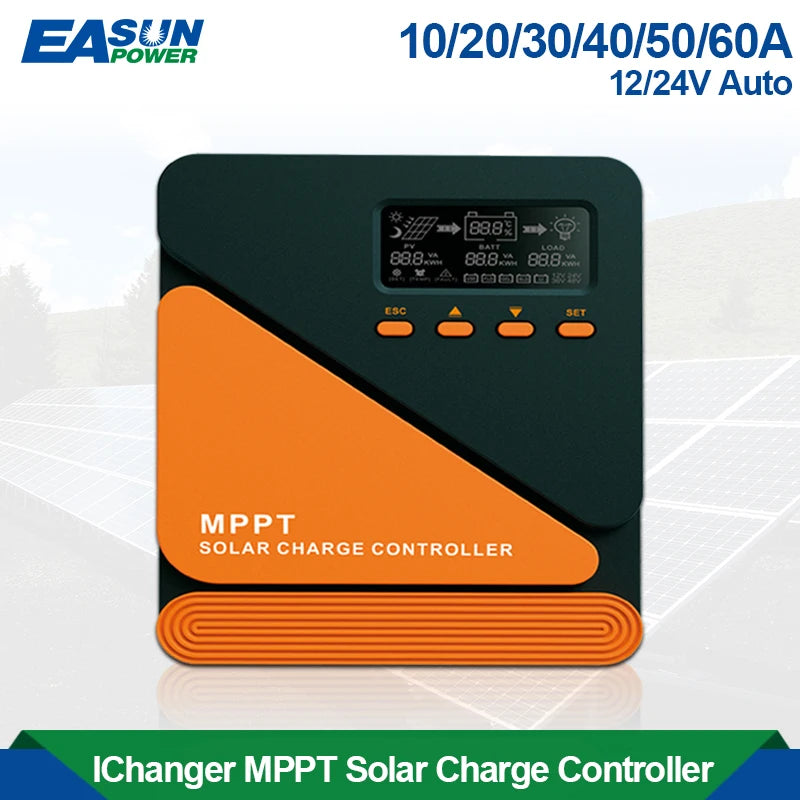

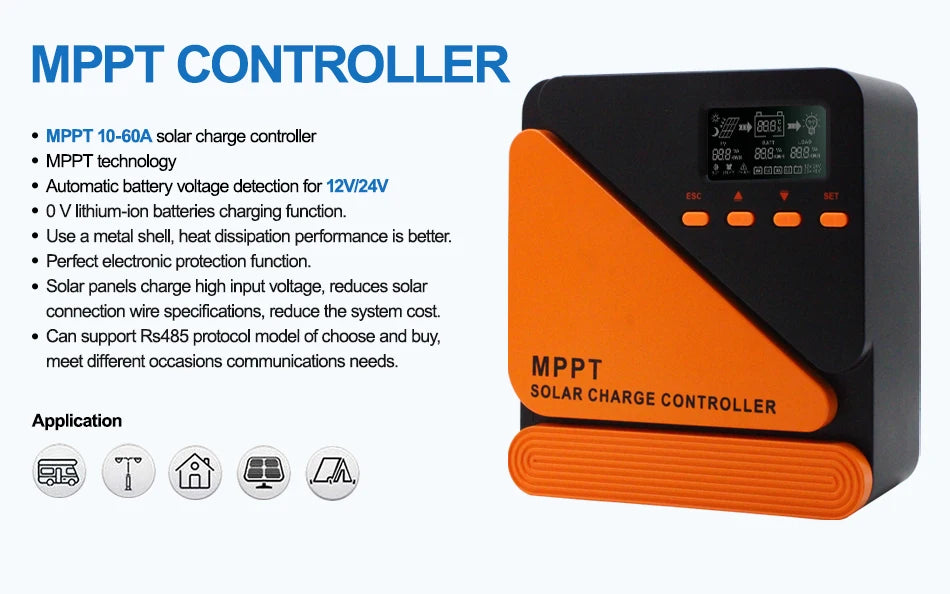

EASUN Solar Charger Controller MPPT 60A 50A 40A 30A 20A 10A Solar Panel Solar Charge Regulator 12V 24V Battery PV Input 100VOC

Features：

100% MPPT controller

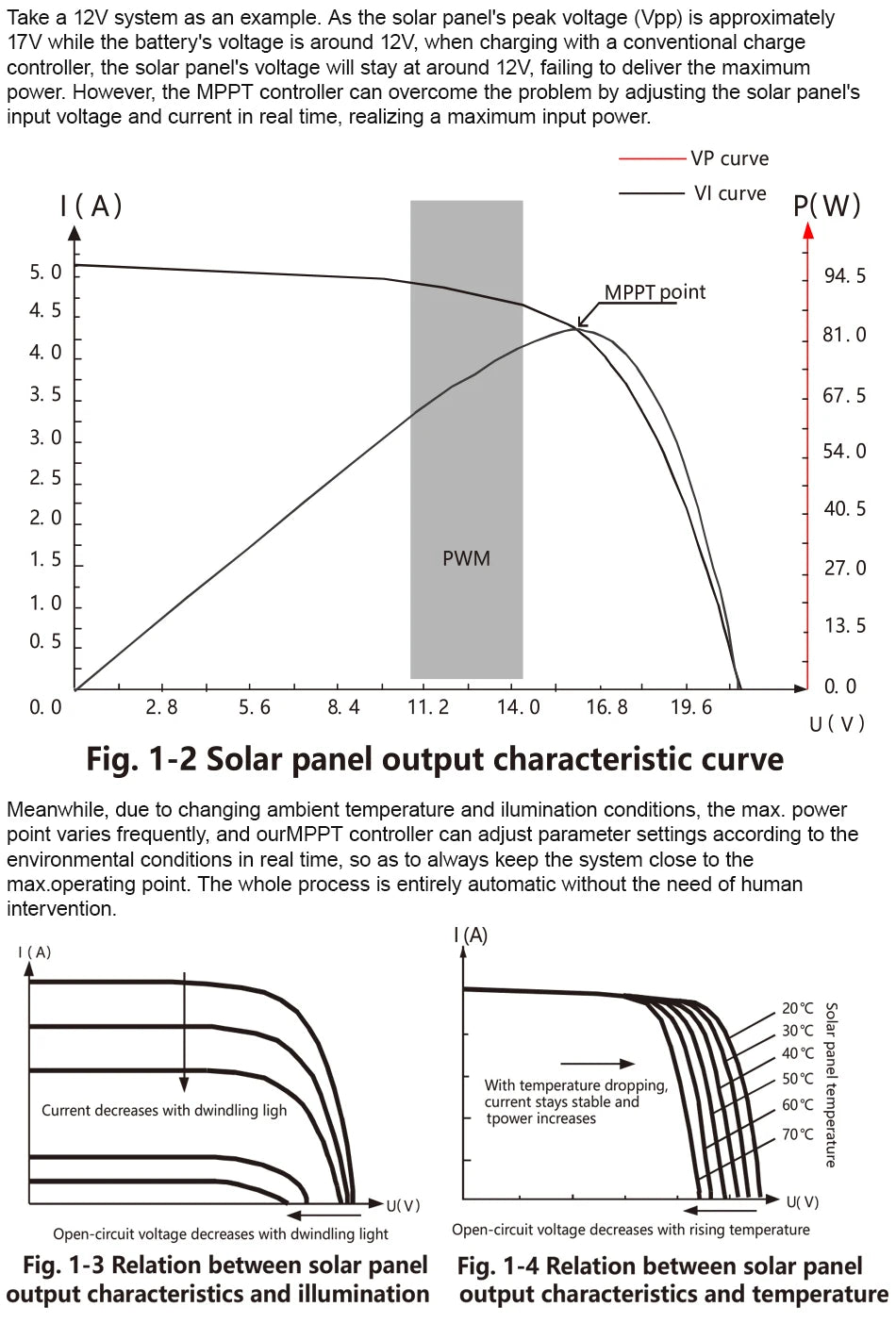

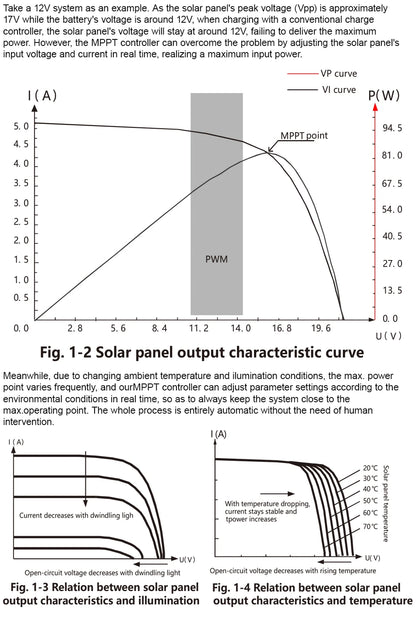

Intelligent Maximum Power Point Tracking technology

Built-in DSP controller with high performance

Automatic battery voltage detection 12V/24V

Three-stage charging optimizes battery performance

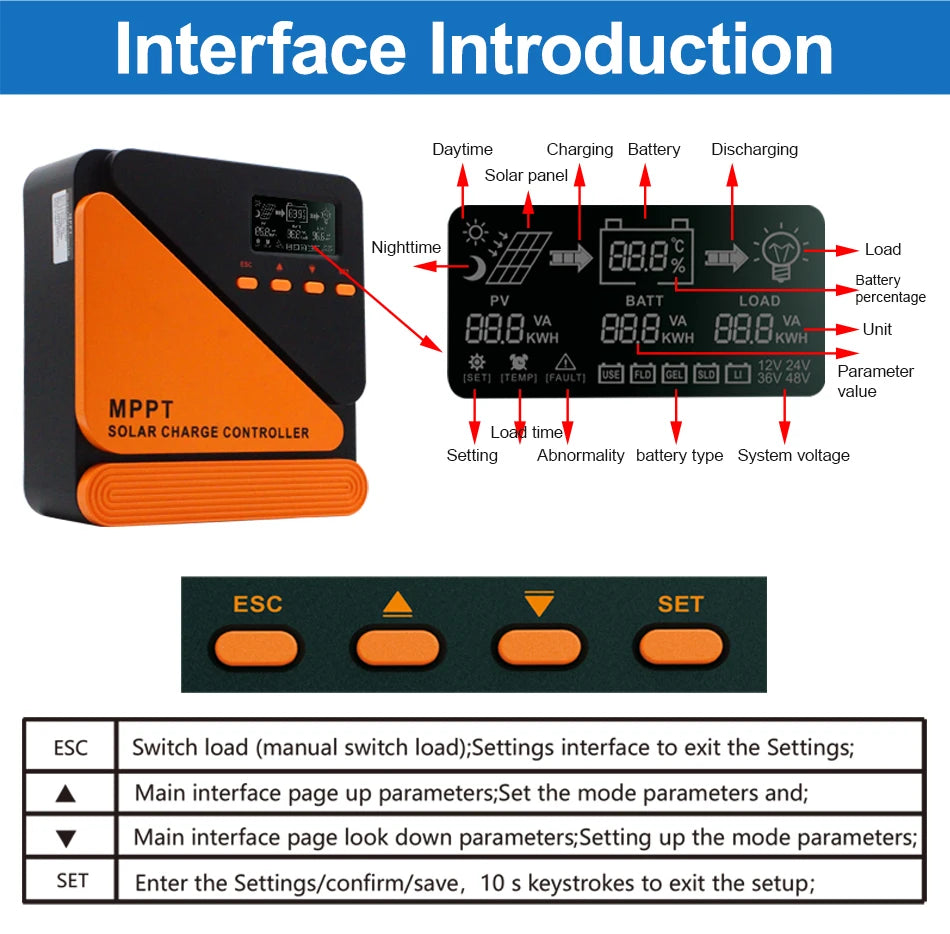

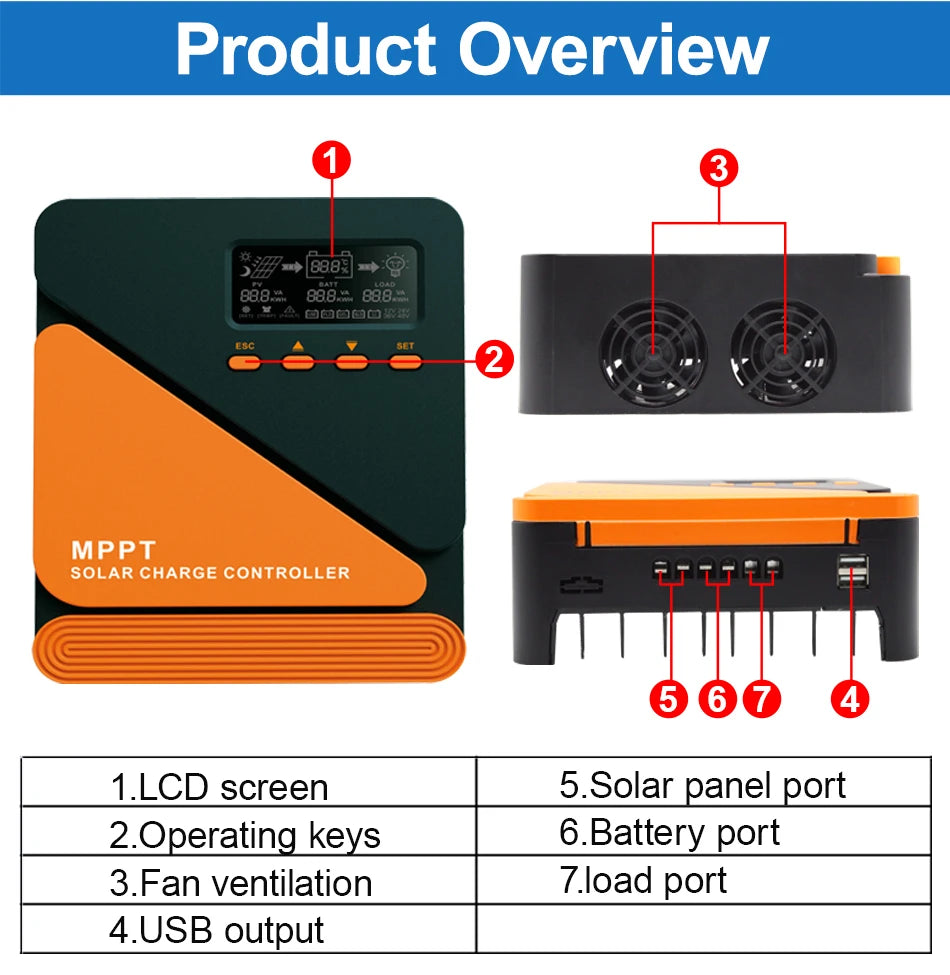

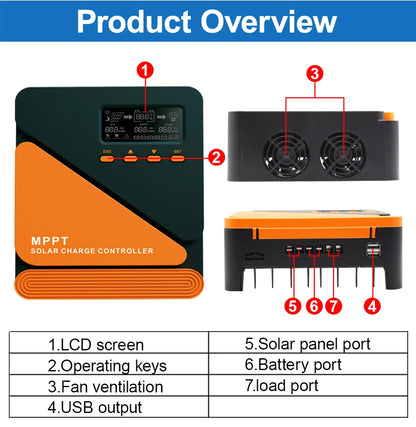

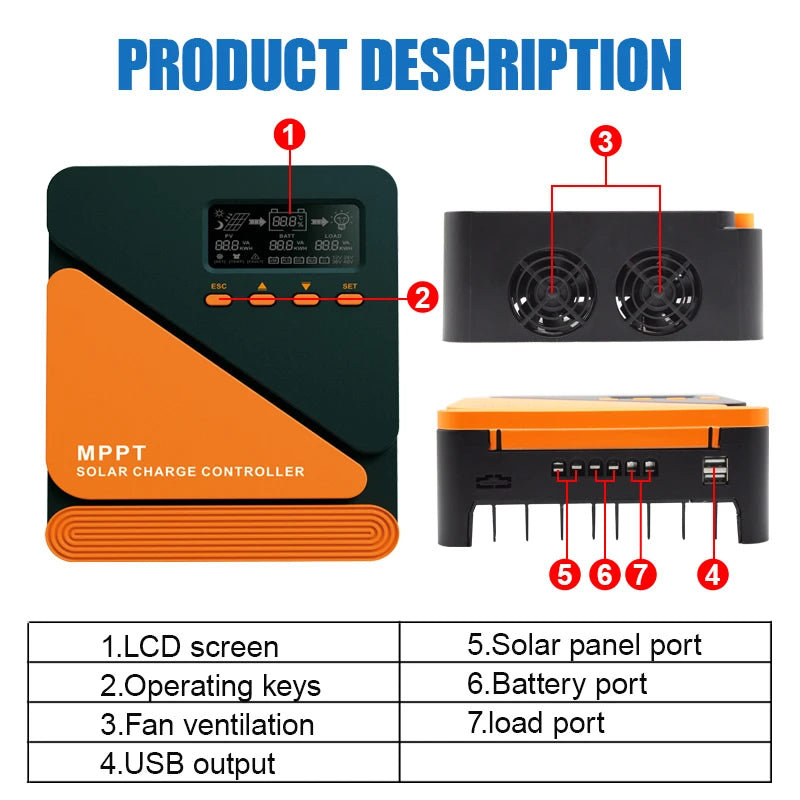

Multi-function LCD displays

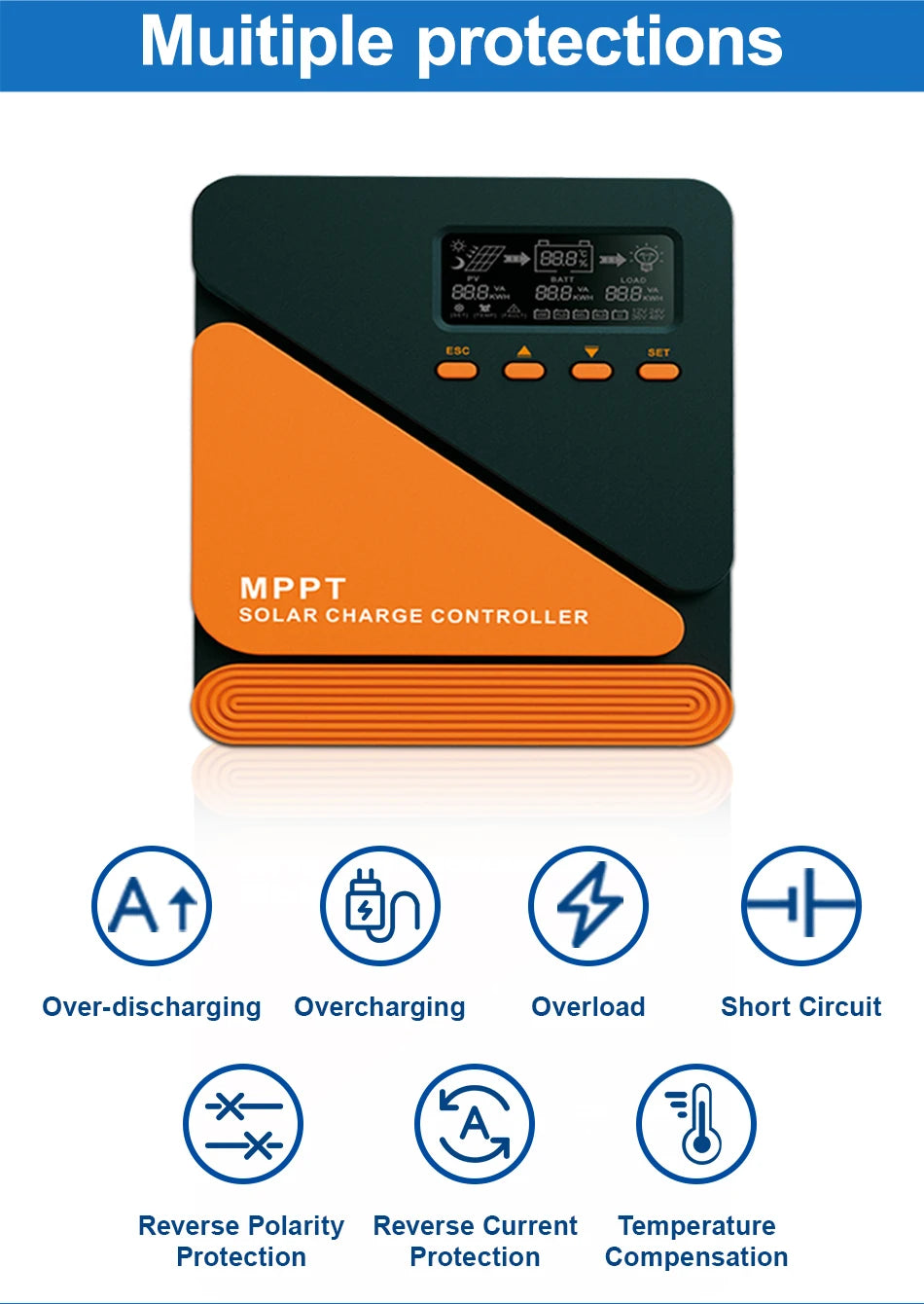

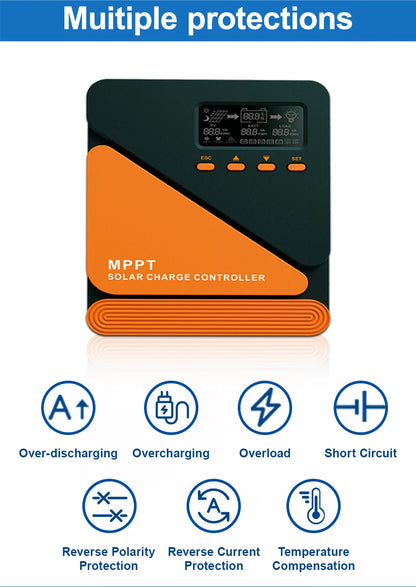

Reverse polarity protection of solar panel

Overcharge protection

Can be mounted easily

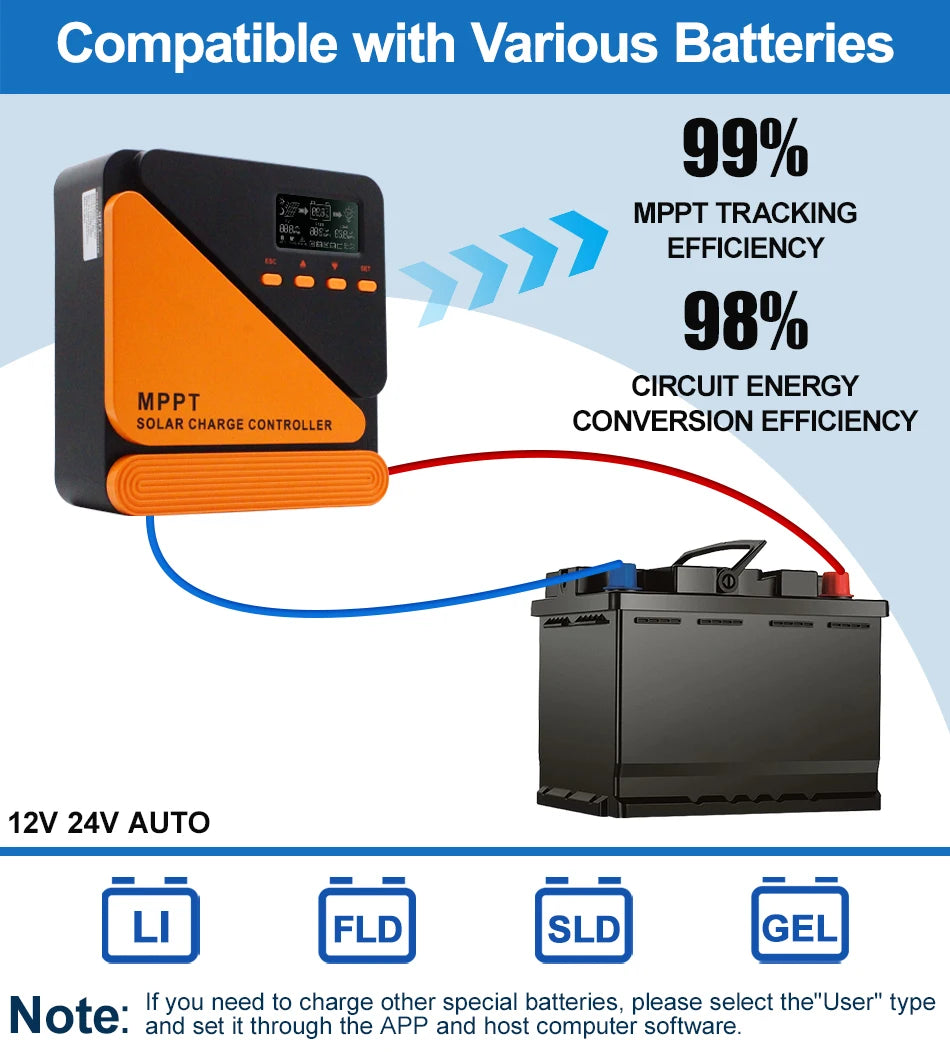

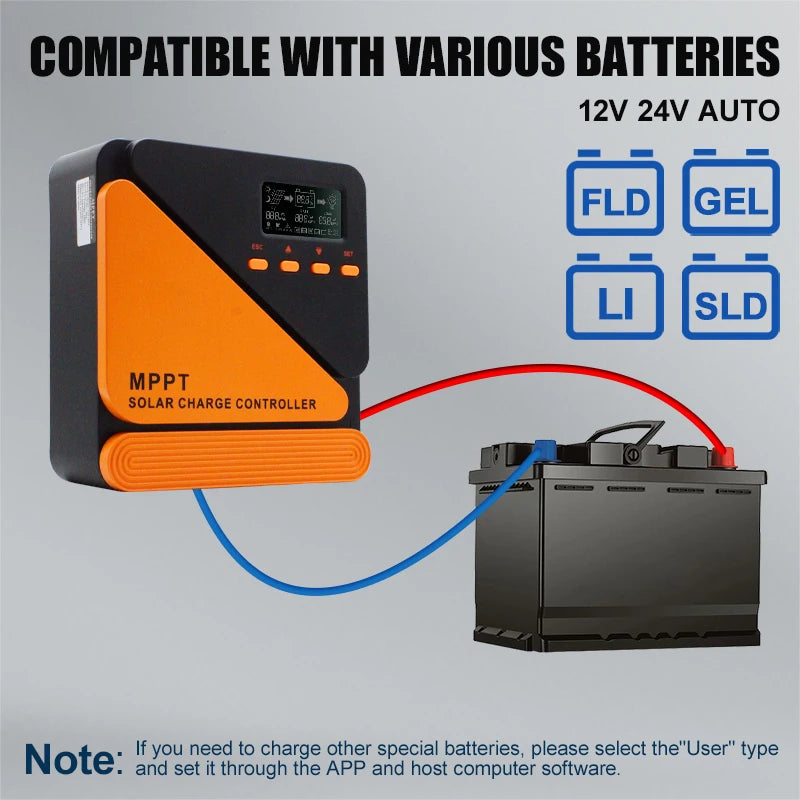

Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

Model	MPPT10A	MPPT20A	MPPT30A	MPPT40A	MPPT50A	MPPT60A
Systemvoltage	12V/24V/Auto
No-loadloss	≤0.4W
Max.solarinputvoltage	50VVOC		100VVOC
Batteryvoltage	9~32V
Max.powerpointvoltagerange	Batteryvoltage+2V~50V		Batteryvoltage+2V~100V
Ratedchargingcurrent	10A	20A	30A	40A	50A	60A
Ratedloadcurrent	20A

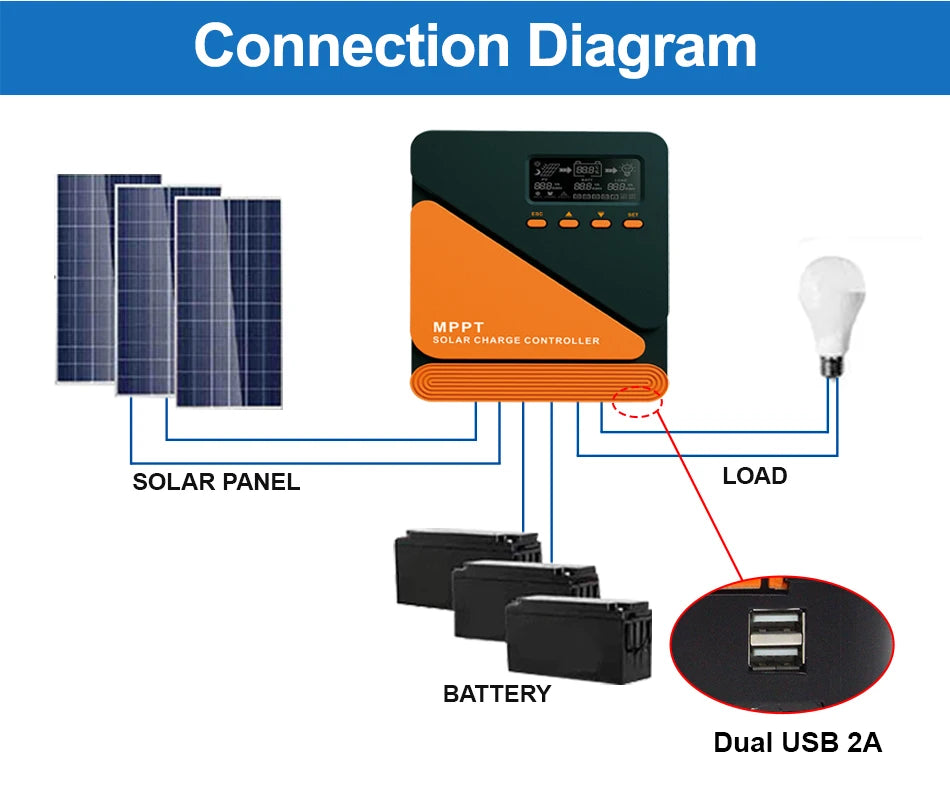

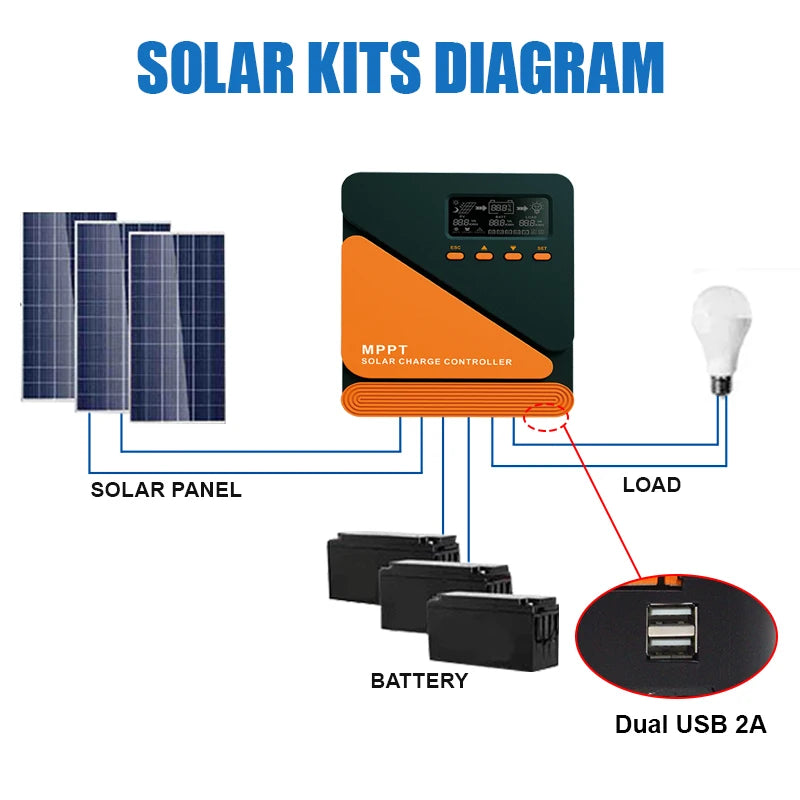

USBoutput	5V*3A
Max.photovoltaicsysteminputpower	120W/12V	240W/12V	360W/12V	480W/12V	600W/12V	720W/12V
Conversionefficiency	≤98%
MPPTtrackingefficiency	＞99%
Temperaturecompensationfactor	-2mv/C/2V(default)
Operatingtemperature	-10C~+65 C
Waterprooflevel	IP21
Netweight	0.4kg		1.08kg		1.43kg
Grossweight	0.52kg		1.3kg		1.65kg
Electromagneticcompatiblity	AccordtoEN61000,EN55022,EN55024
Communicationmethod	Rs485(Needtochooseandbuy)
Altitude	≤3000m

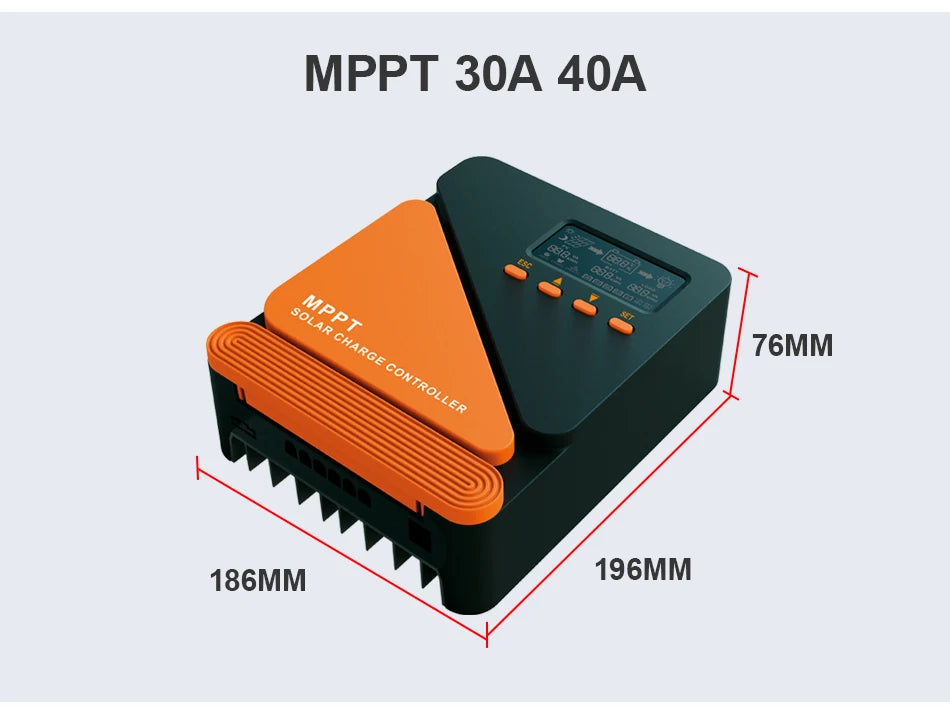

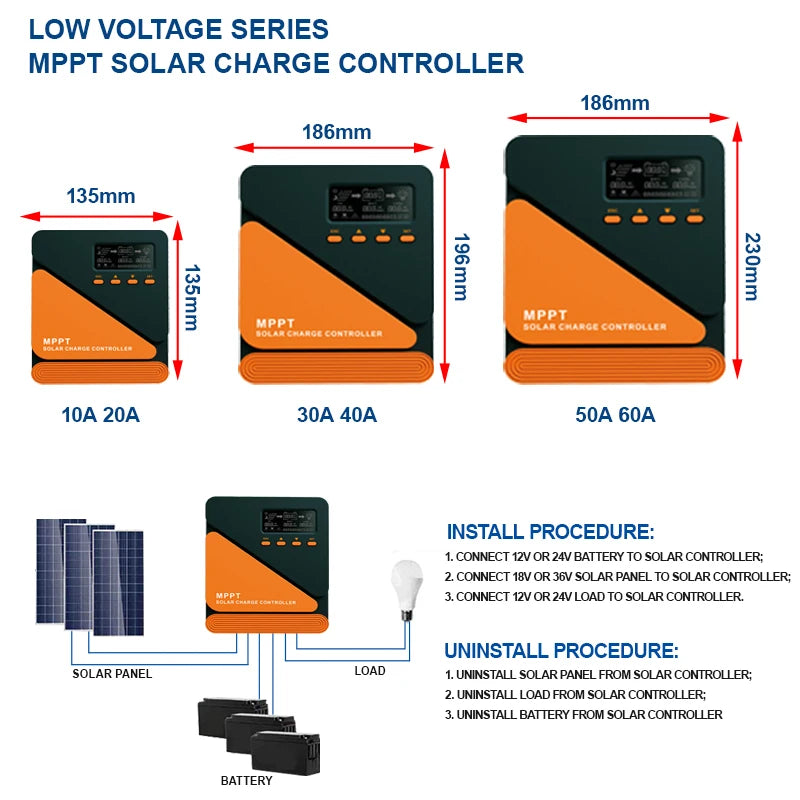

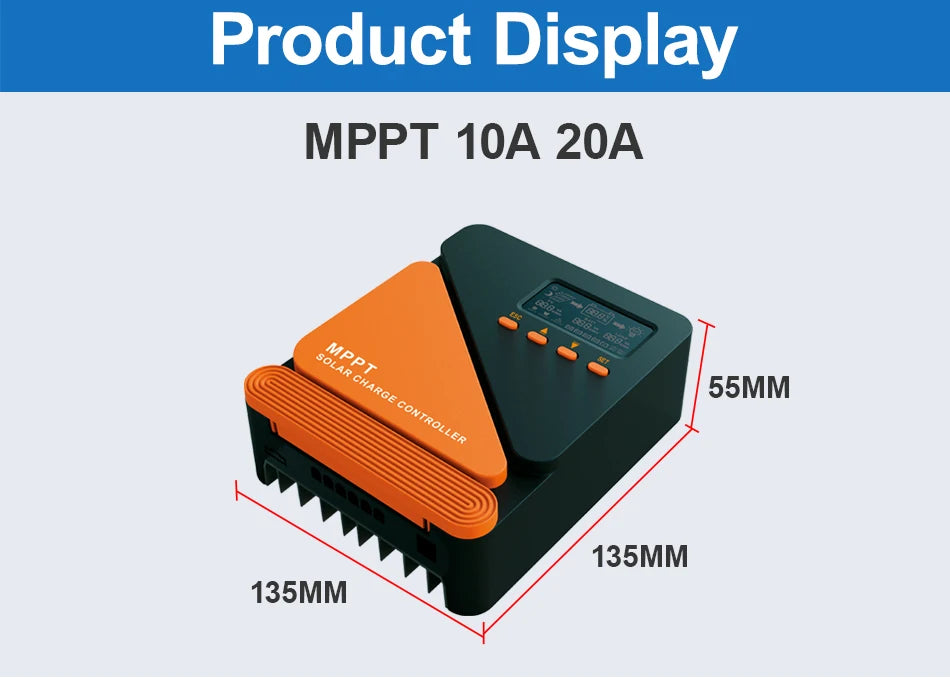

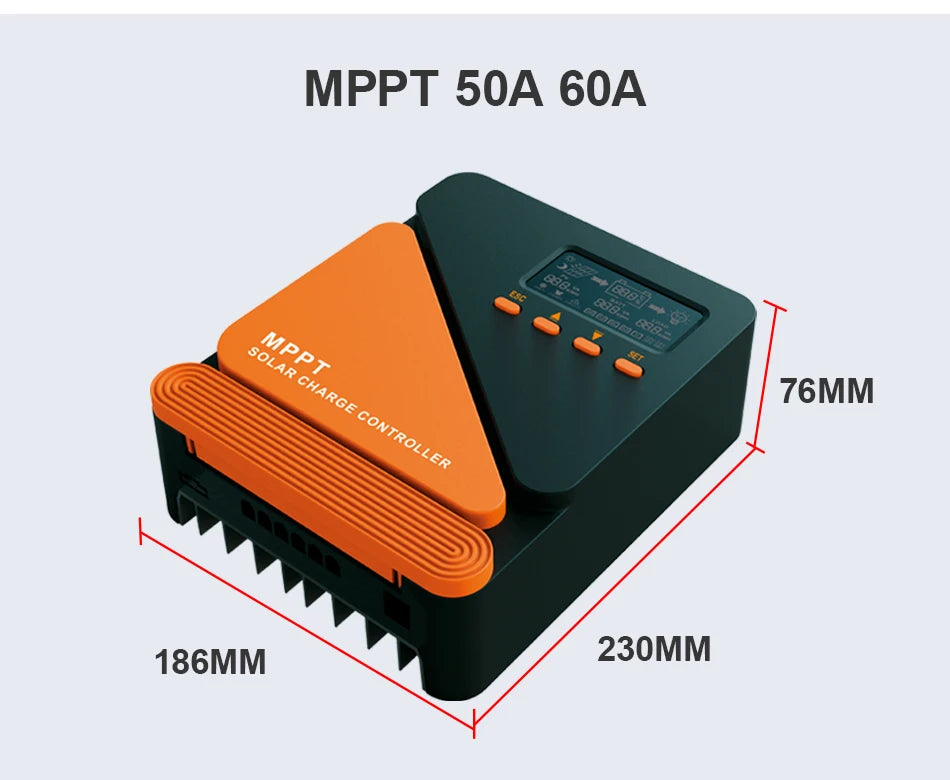

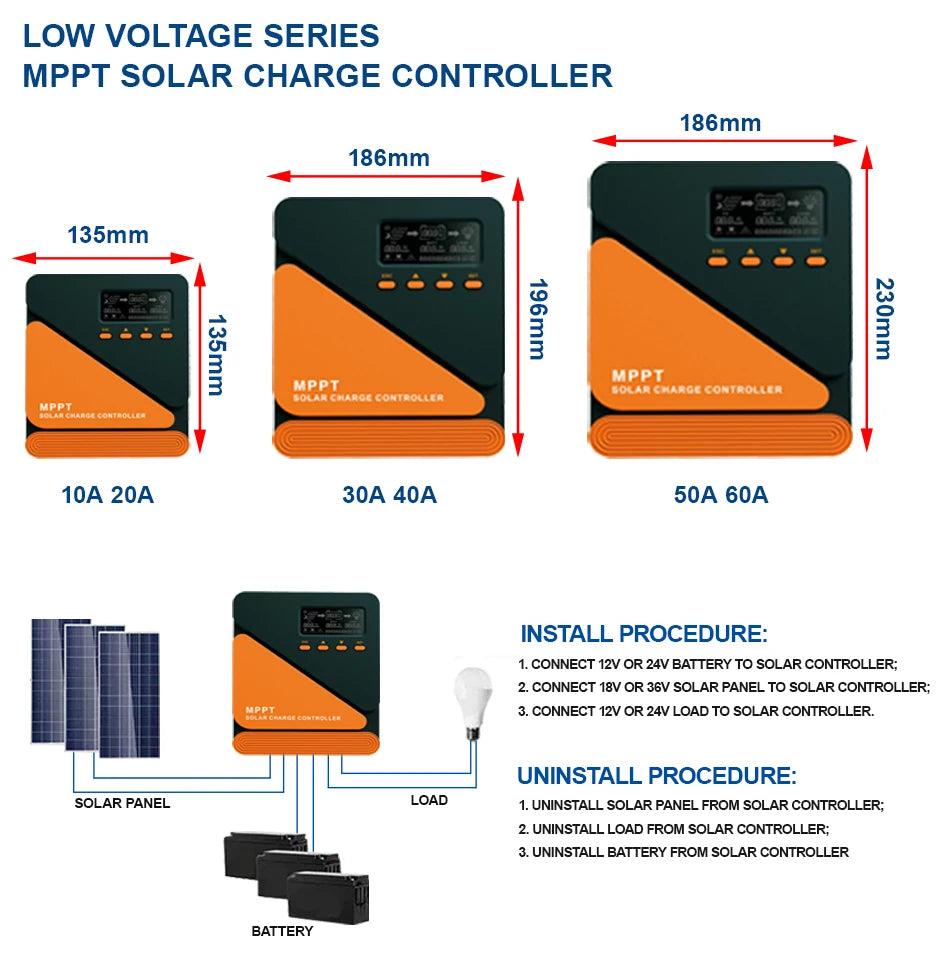

Productdimensions	135x135x55mm		196x186x76mm		230x186x76mm
