Electric Unit Digital Soldering Iron Station Temperature Controller Kits for HAKKO T12 Handle DIY kits LED vibration switch

$53,091.85 USD

~~$56,660.66 USD~~ $53,091.85 USD

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

Color White LED Red LED Blue LED Green LED

Cantidad

SPECIFICATIONS

Acquiescence Soldering Tip(Standard tip): T12-k(or you can left message for me to choice the one like the photo)

Brand Name: HANLEI

Certification: None

Choice: yes

Feature: include the solder and flux ,Complete ABS shell,new 24V 4.5A power

Hign-concerned Chemical: None

Input Voltagle: AC 110V 220V

Input voltage: new 110V 220V to 24V 4.5A power supply switching transformer

Is Smart Device: No

LED Color Optional: Blue,red,green,white,you can choice the color you want!

Model Number: T12

Note: If you choice Power supply only that,not include the complete DIY kits

Origin: Mainland China

Other Feature: include the new power supply,match the ABS case

Output Voltage: 72W MAX

Package listing: 1xAs the main picture shows all diy kit

T2 / T12 handle (907 handle conversion): Applies to T2 / T12 Series Tip, default is black color.

Temperature Stability: plus or minus 10C

Temperature adjustment range: 200C-450C

display show 500,not heat up: check again the handle and vibration switch

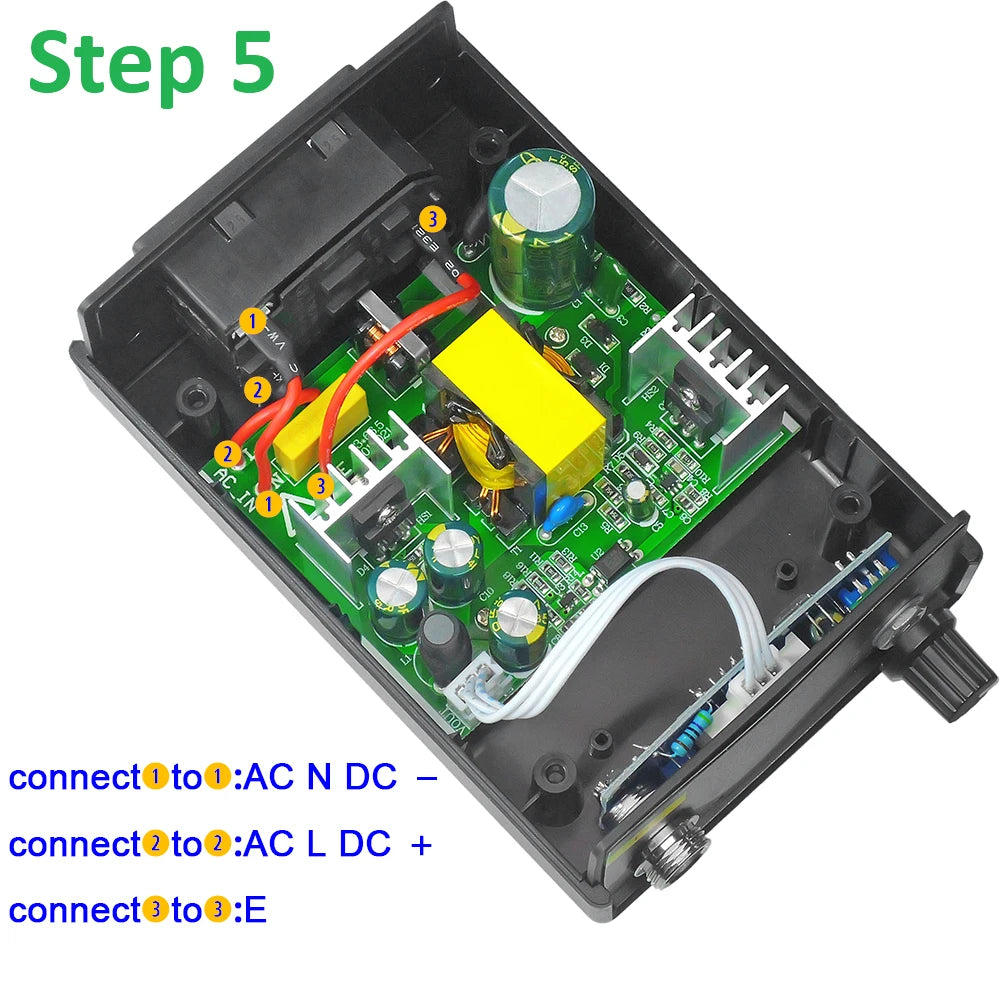

if temperature value of dozens jumping: see our manual Step 5

note: Please read the description about the power supply

semi_Choice: yes

Electric Unit Digital Soldering Iron Station Temperature Controller Kits for HAKKO T12 Handle DIY kits w/ LED vibration switch and ABS shell and new 24v 4.5a power supply

Please read the description before order!

If you receive the product have any question,please contact with me before open a dispute!we will solve for you in our best!

The kit is a DIY product, T12 tip will be different from the random purchase, T12 tip can be used for HAKKO T12 handle, quality assurance, customers can rest assured to buy. We are the DIY kits, not kits produced by HAKKO.

The new arrival tips have change new package!the product is the same,quality assurance!

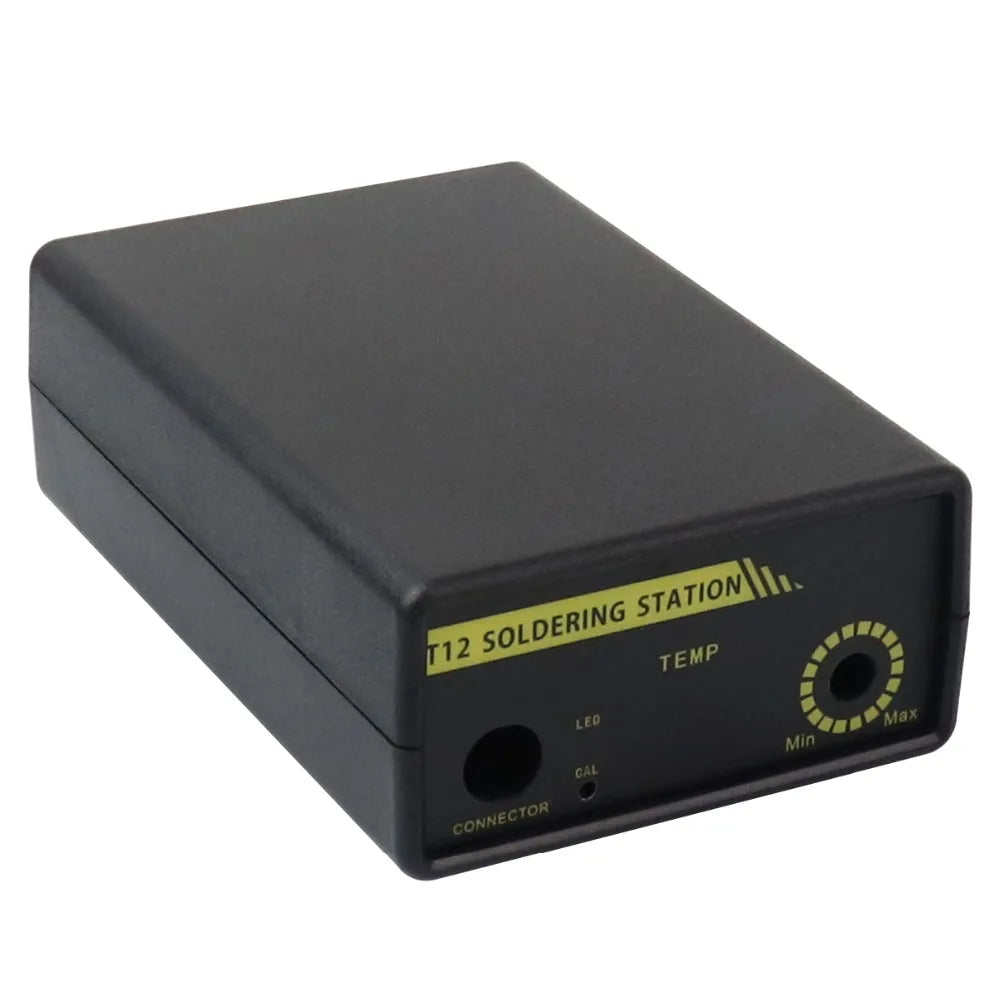

Note,This package is ABS plastic shell!

If you choose Led Color, will it be a complete set! A soldering iron + a case + the power unit!

If you want the DIY Kits with alloy shell but without power supply,you can chick into this photo

Please read the description before order!

OUR DIY kits have change new package ,but it is also the new 2017 new version,please don't worry about that!

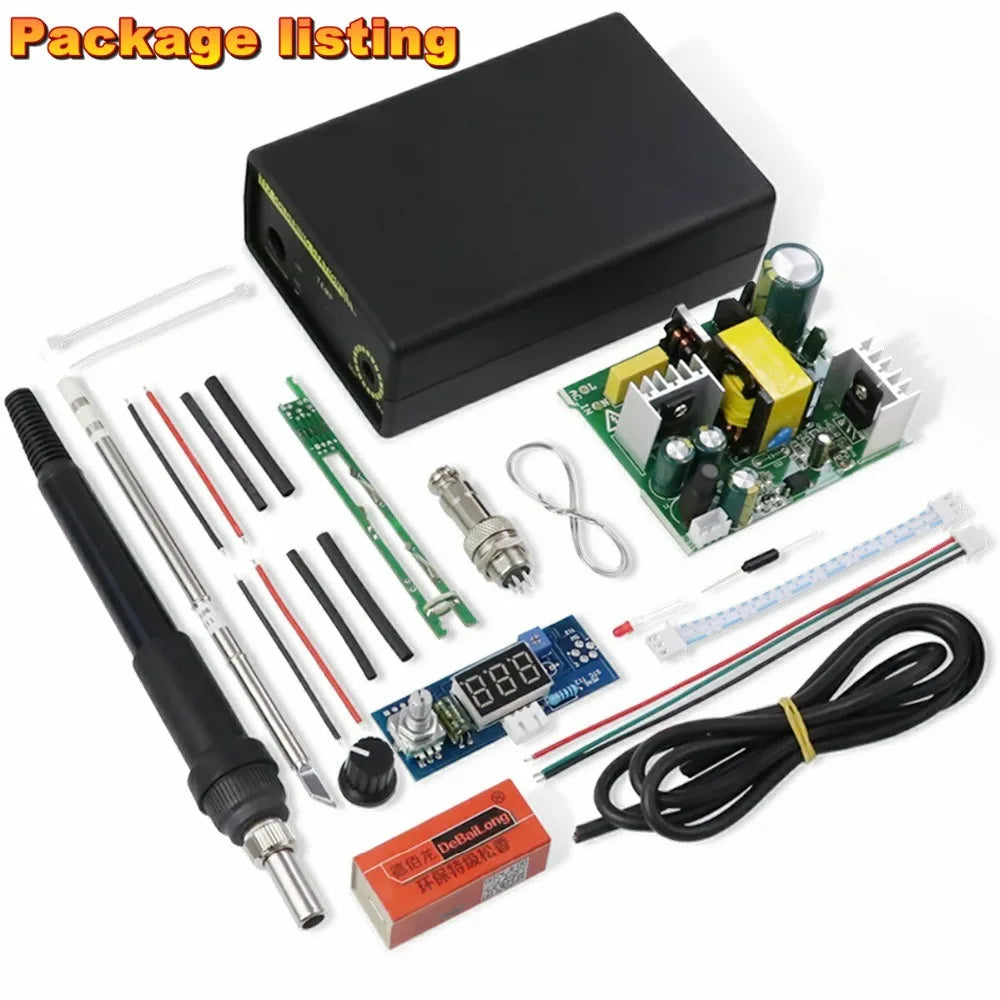

The Package listing as the main photo shows all diy kit，include the shell and power supply, the power suppply match the shell ,not need to change that to fit the shell.

(But If you choice 24V 4.5A power supply switching transformer,the package only the part you choice not the DIY kits!)

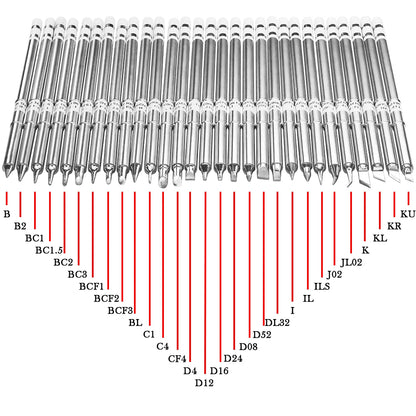

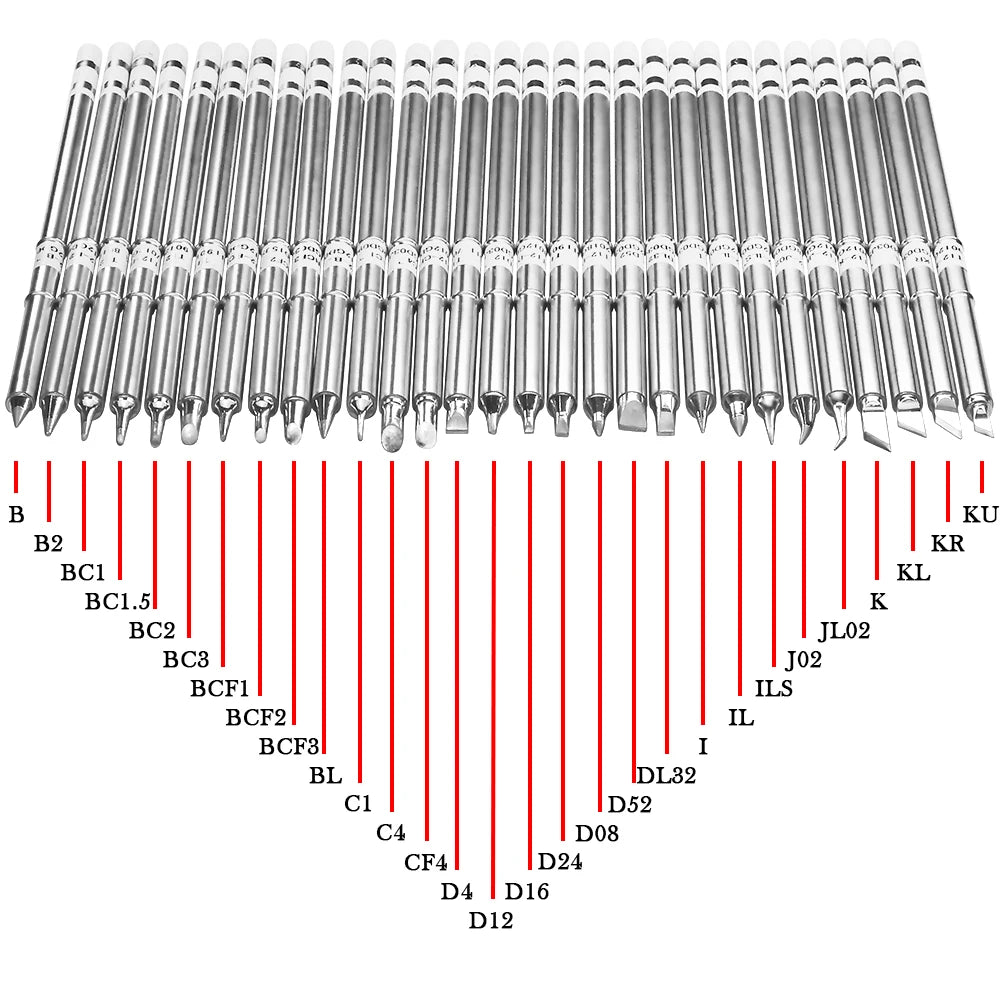

We will send T12 Soldering Tip T12-K and if you want other tip in the following photo,you can left the message for me!We will send that for you(instead of the standard T12-K tip)!

If you want more extratips,you can click into the following photo!

Note!!!English manual at the following bottom!

Dear friend,this product is 2022 new version

Attention:Before the test machine, be sure to confirm the correct line, positive and negative, otherwise the heating core must be heated to red and burn,you can see the following English manual !

New arrival discount wholesale tip:

5pcs/lot,click into the photo and place the order,we will send the package you choice,or you can place the order and left message for me the tips you want(the tips in the above picture) !

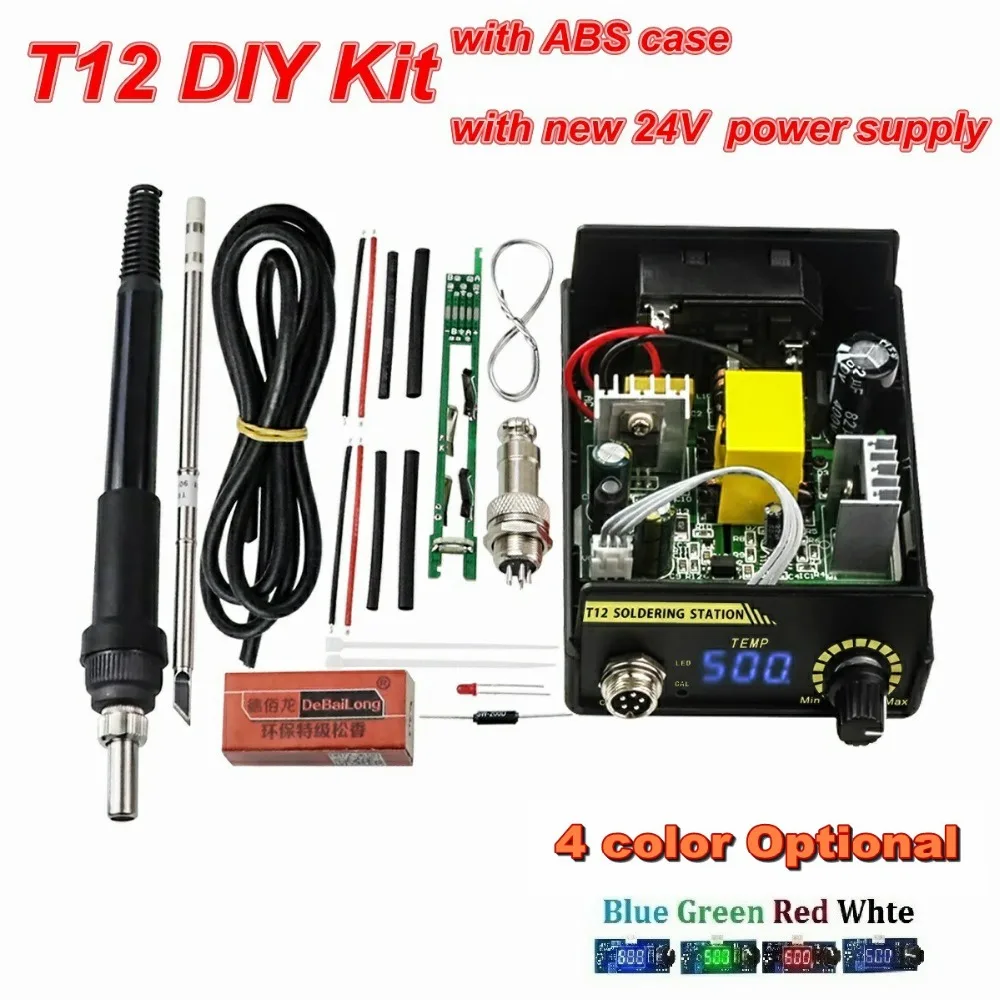

2022 New version(4 color optionalBlue,Green,Red,White)

This product is a DIY Kits, buyers need to own welding. DIY risk, novice buy carefully, If it is man-made damage, we do not assume responsibility, Thank you for understanding.

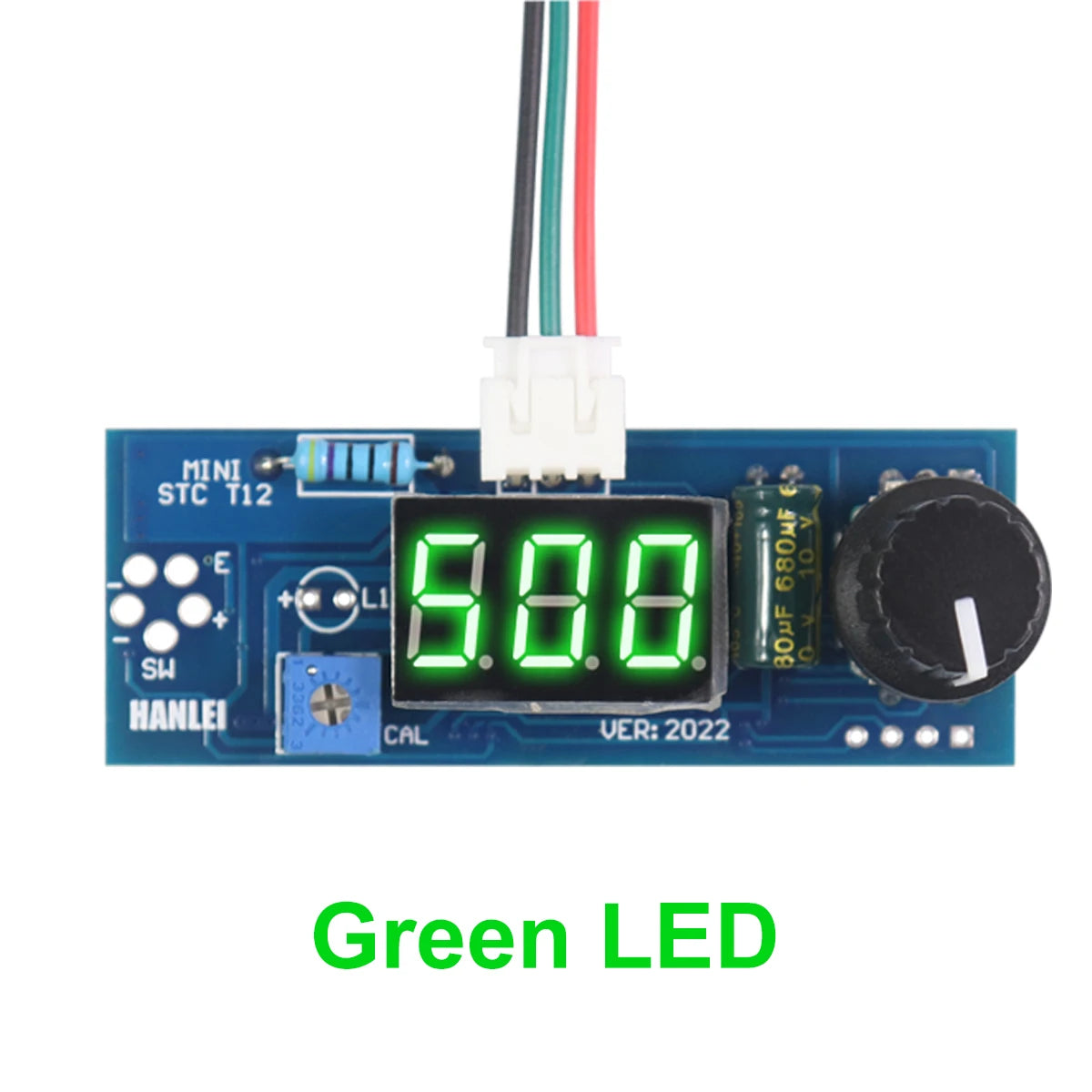

And the LED have 4 color: Blue,red,green,white,you can choice the color you want!

This item can use in T12 T2 T13 T15 heating core. auto sleep, ball bearing vibration. Blue light white word.

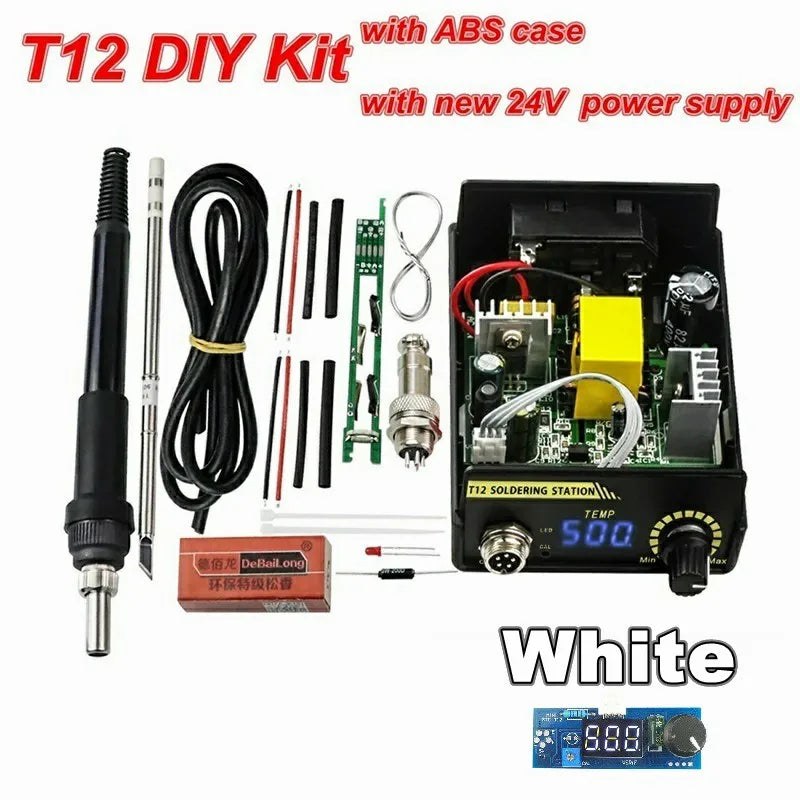

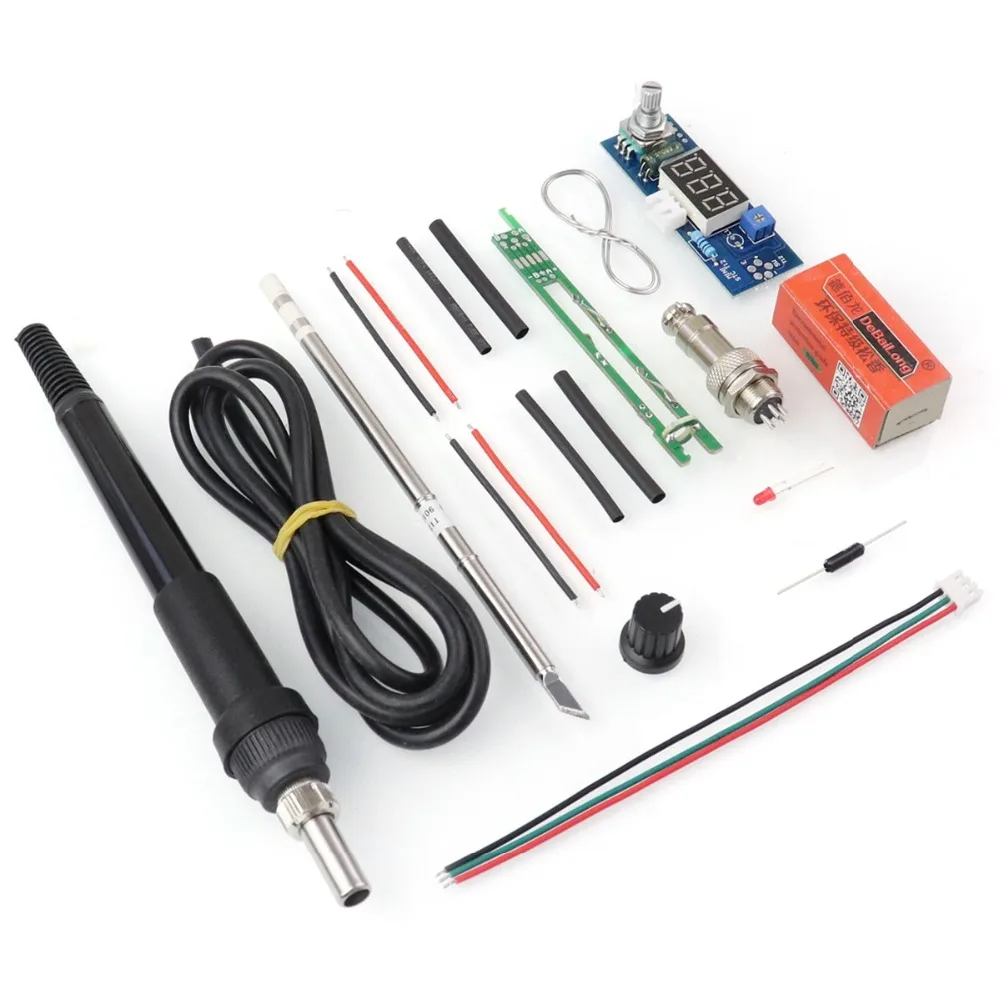

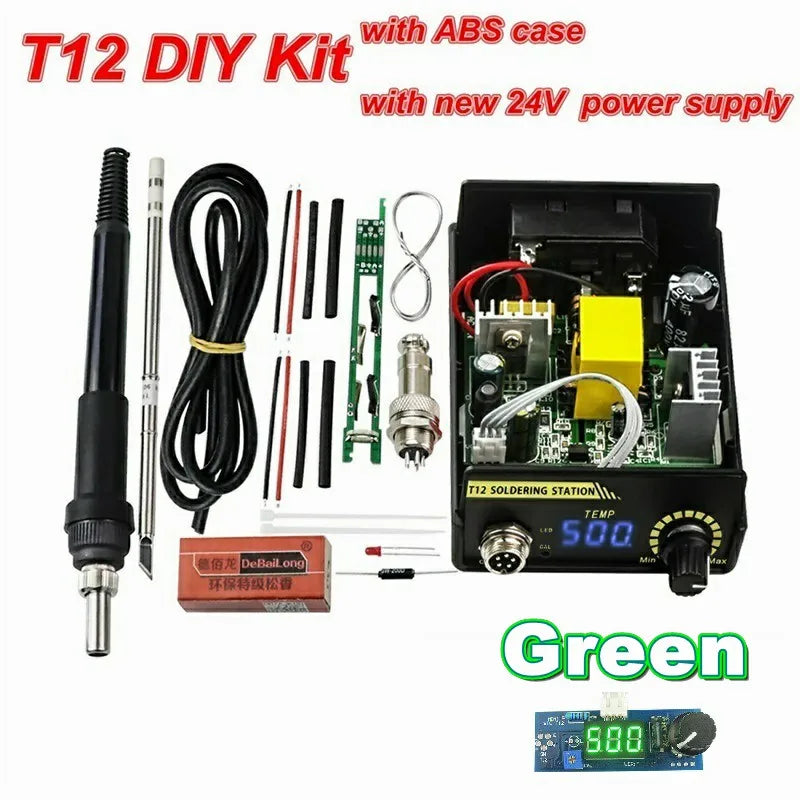

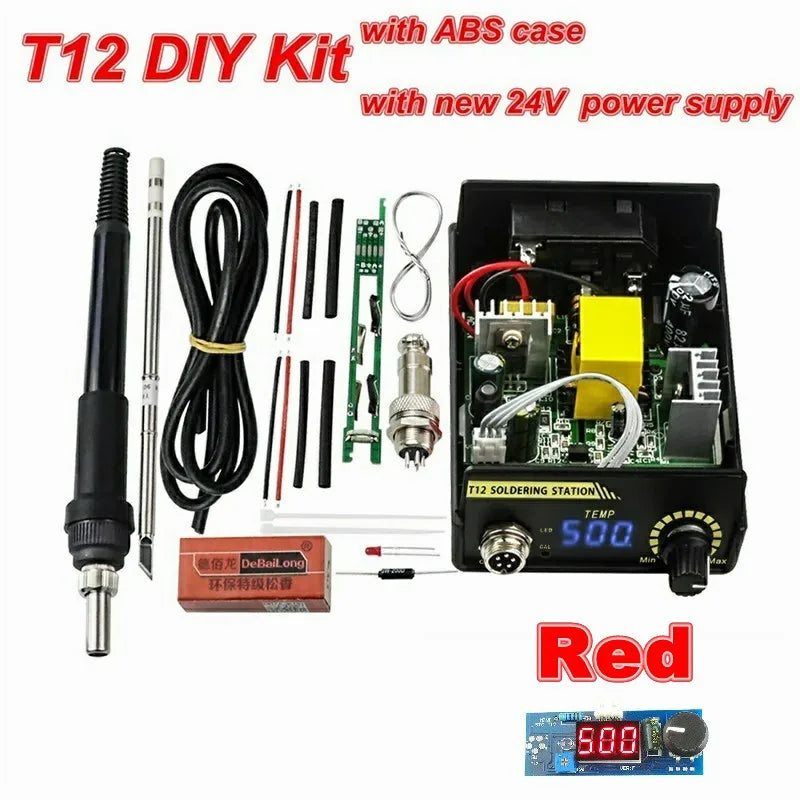

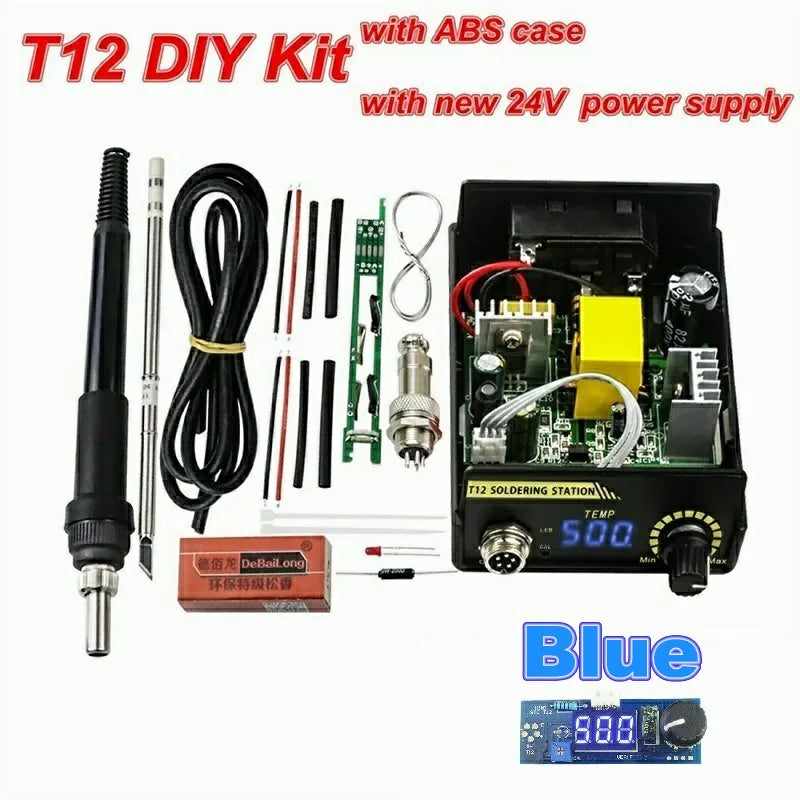

Diy Kits Descriptions:

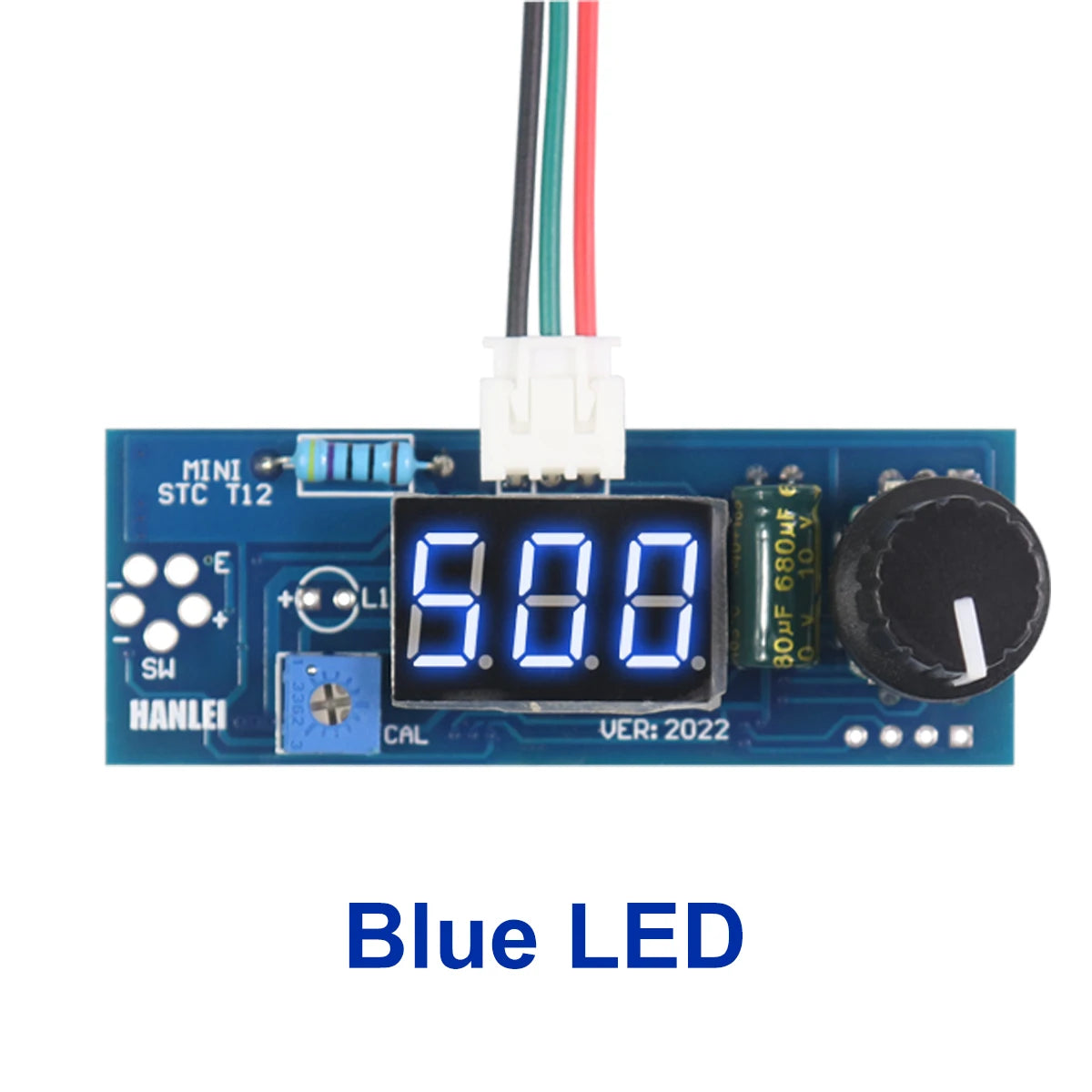

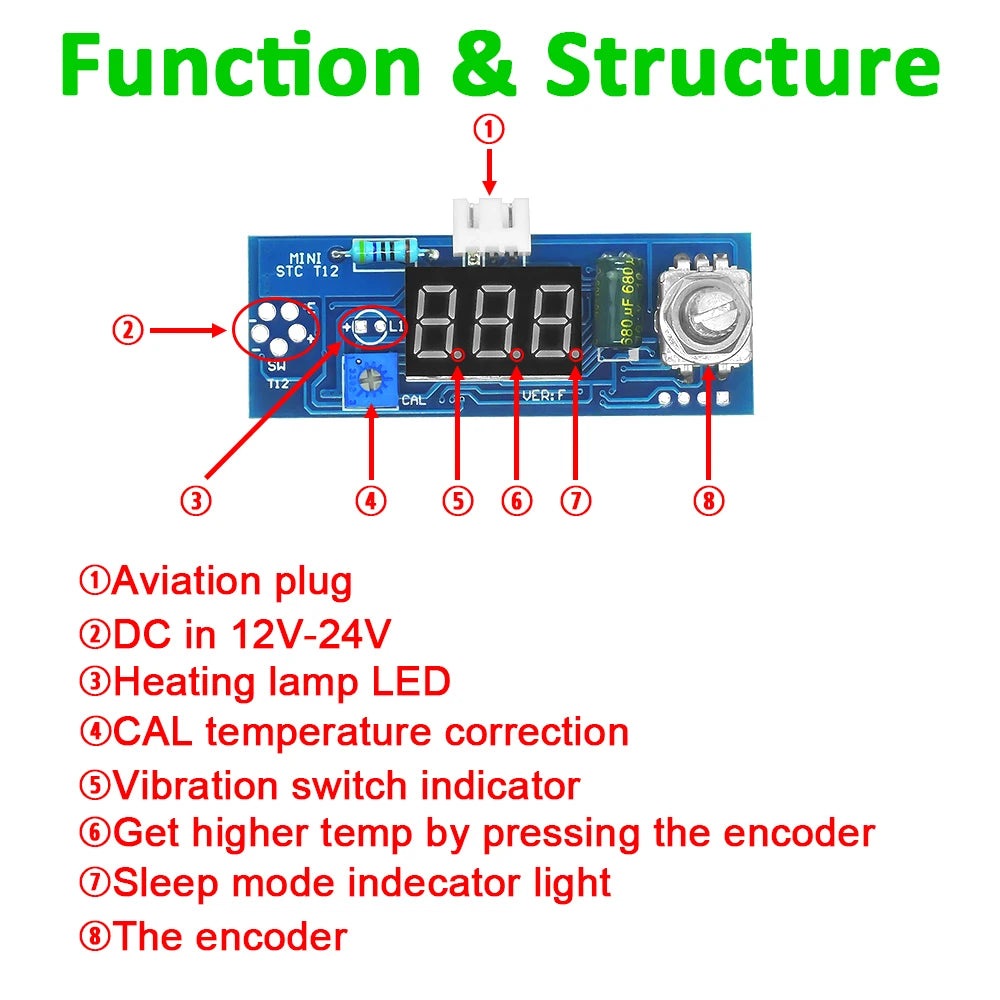

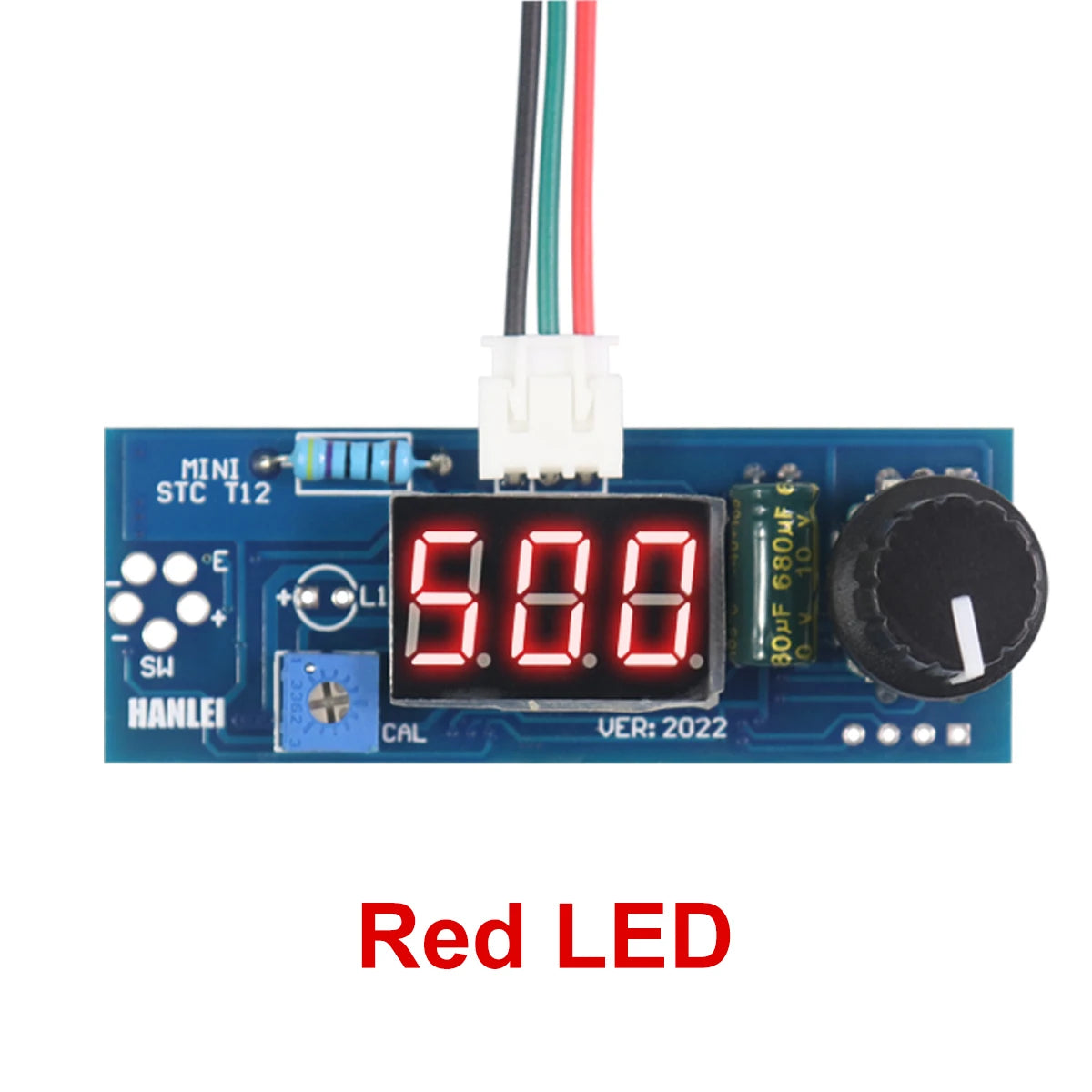

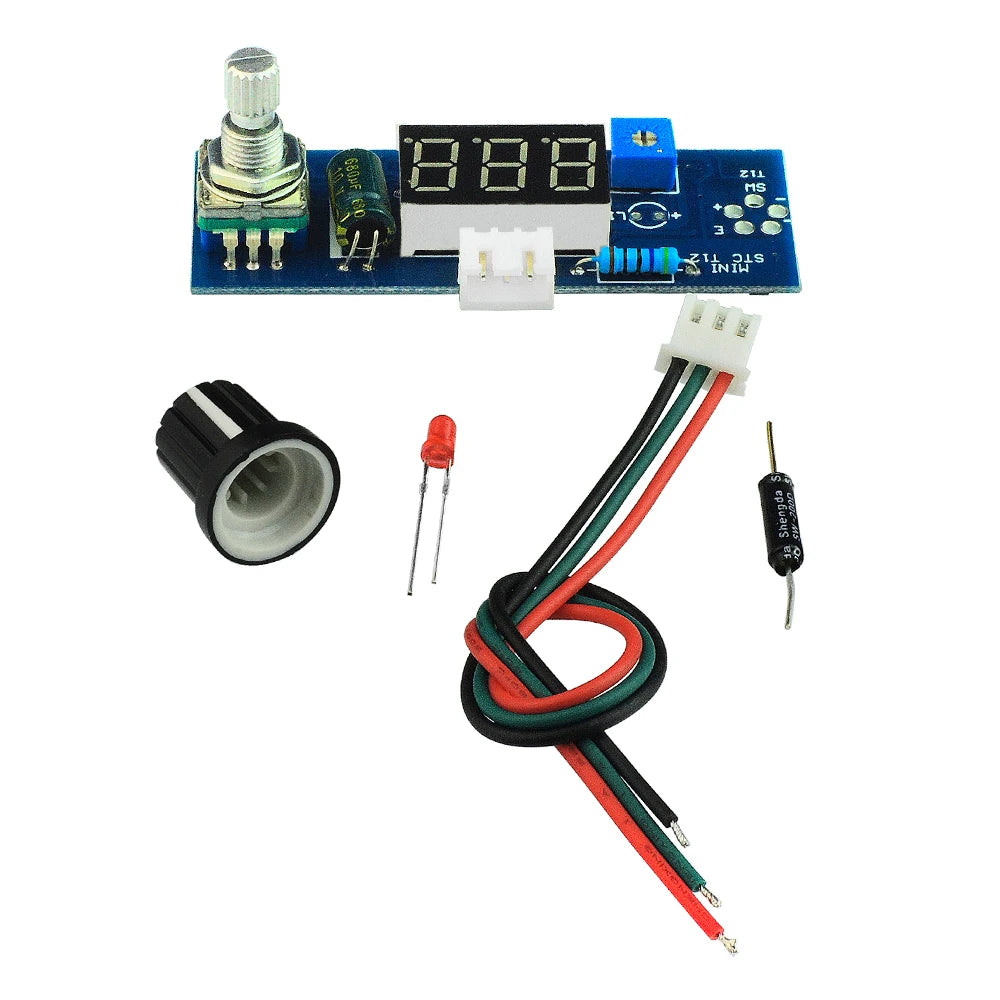

1. T12 digital temperature controller (vibration switch + LED + knob)

Input voltage: 12V-24V

Temperature adjustment range: 200C-450C Maximum Power: 75W

2.T12 Soldering Tip shape-k

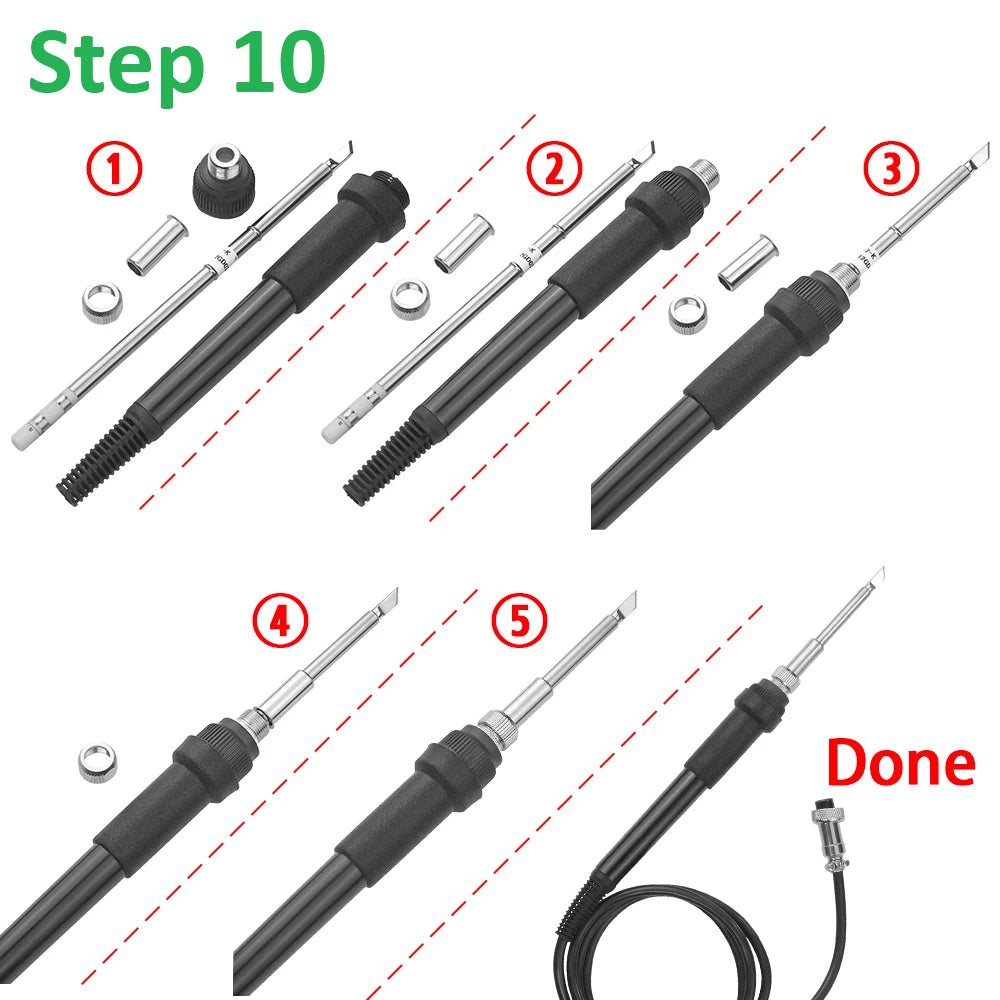

3. T2 / T12 handle (907 handle conversion)

4. T2 / T12 inner tube bracket kits

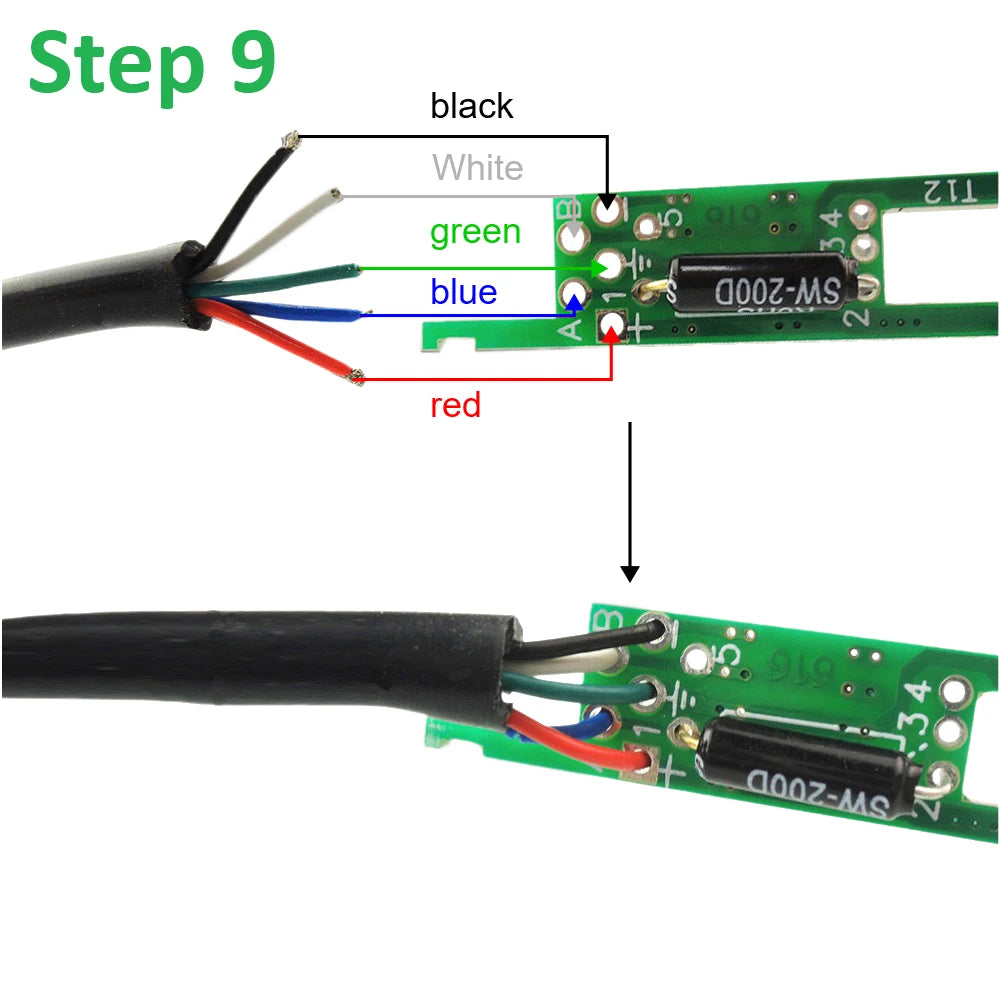

5. silicone 5 Core cable ,cable length: 100~110cm

6. Soldering station iron 5 core aviation plug

7.flux

8.the solder

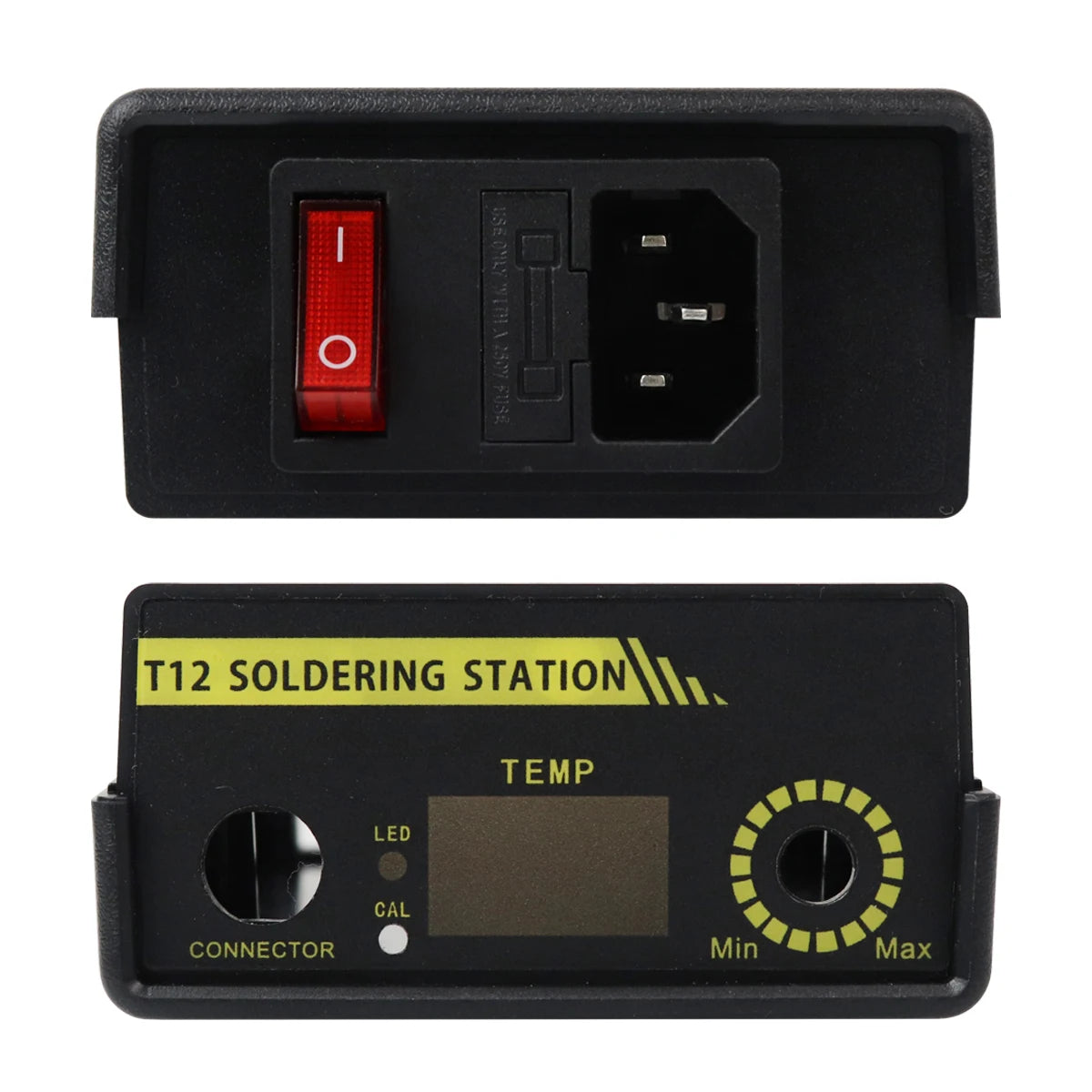

9.ABS shell

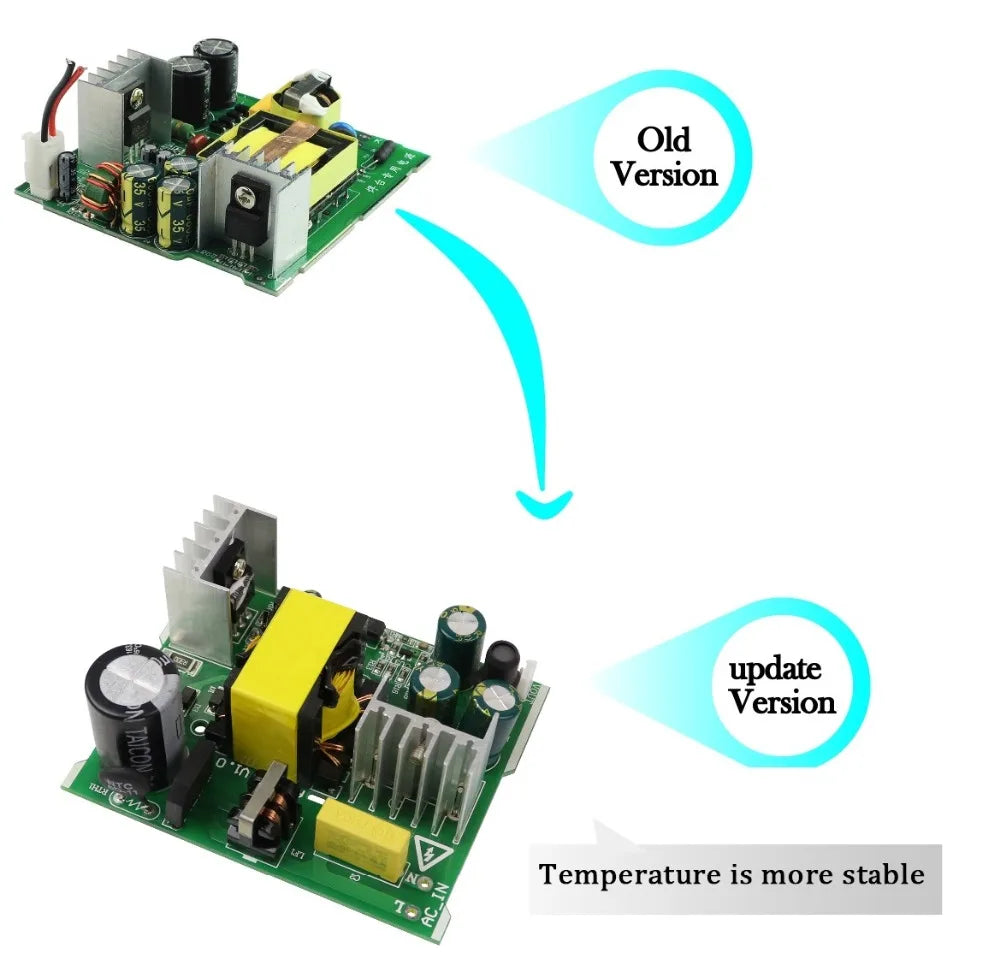

10.220V to 24V 4.5A new power supply switching transformer

11.Other cable/accessories (as picture shows)

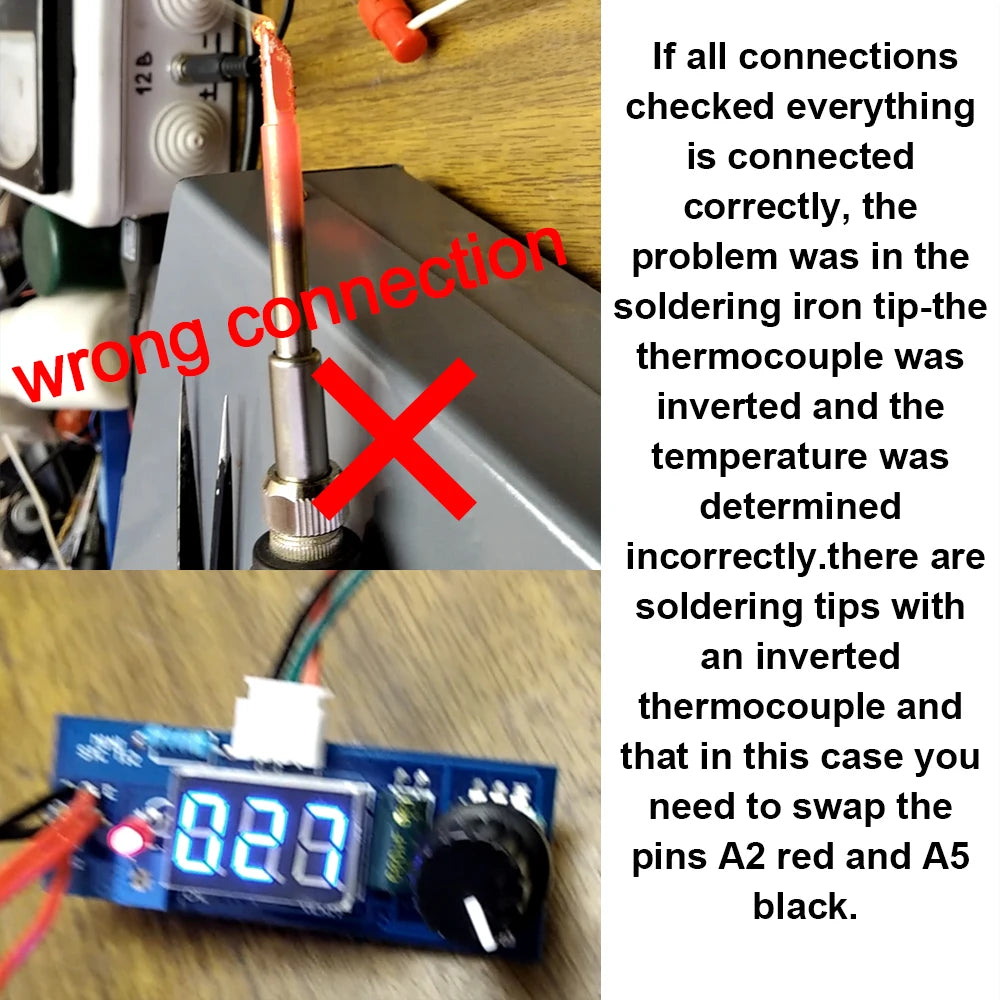

Question: the temperature does not correspond to reality, the display is 200 ° with and in fact the temperature of the tip is 300 ° sec. Why is that?

Answer :see the following,change P03 and P07

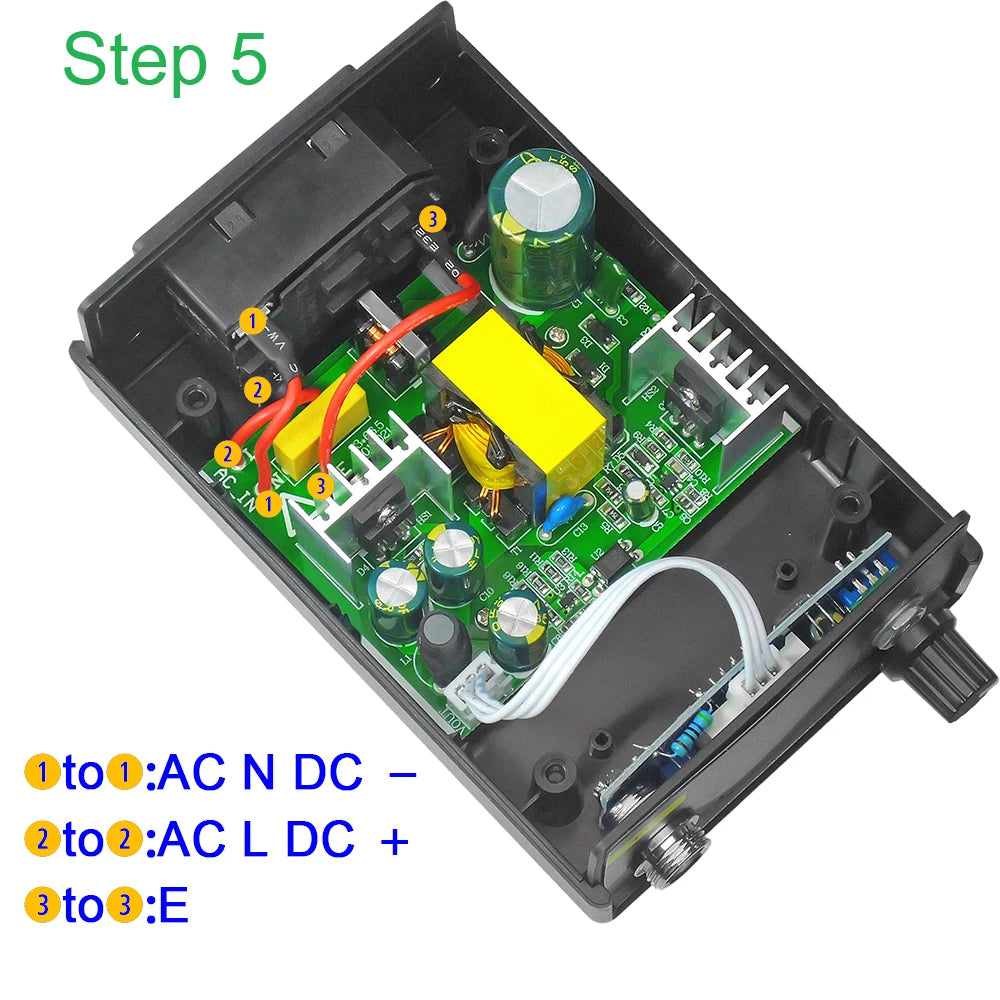

Question:if thetemperaturethe value of several degrees - dozens of degrees of temperature jumping(our product temperature stability is plus or minus 10C) ,you can do this make temperature more stable,check our manual step 5!

Controller parameter setting mode:

(The default has been set, no special requirements, please do not set up a random)

Press and hold the encoder button does not move → start → enter the parameter settings mode:

There are 12 menus available for setup,P00,P01,P02,P03,P04,P05,P06,P07,P08,P09,P10,P11.The digital display menu is 1.5 seconds,and then automatically displays the corresponding parameters of this menu,at the same time rotate left encoder is reduced,right is increase,Press it and automatically save the currently set parameters.And then display the next menu for 1.5 seconds, and then display the corresponding parameters of this menu, and so on. When all parameters are set to automatically enter the normal heating mode.

Because each set a parameter to save once, so you can shut down at any time without having to set all the parameters (such as you just want to set P01, set P01 after you can shut down and then boot into normal mode)

Menu item:

P00: restore the default parameters (0 or 1, the default value of 0,0 for not recovering, 1 for the recovery)

P01: Operational amplifier gain (200 to 350 times, step 1, default 230)

P02: Operational amplifier offset voltage (0 ~ 250mV, step 2, the default value of 100, refers to the tip to keep the room temperature operational amplifier inherent output voltage, according to my measurement this voltage varies greatly with temperature, different magnification Not the same, the higher the magnification, if you do not measure, please keep the default value)

P03: thermocouple ℃ / mV data (30 ~ 50, step 1, the default value of 41, refers to the thermocouple need to temperature how much voltage was increased by 1mV, according to the type of thermocouple self-calculation, if you do not understand, please keep Defaults)

P04: temperature adjustment step (0,1,2,5,10 degrees optional, 0 can lock the soldering iron temperature)

P05: sleep time (how long don’t not move into sleep) (0 ~ 60 minutes, step 1, 0 is to forbidden the sleep function)

P06: Shutdown time (0 ~ 180 minutes, 0 ~ 30 step 1,30 ~ 180 step 10, 0 is forbidden shutdown function)

P07: temperature correction (+20 degrees, step 1) (due to NTC resistance in the chassis, the soldering station heat will lead to the detection of NTC temperature higher than room temperature, resulting in high temperature compensation of the thermocouple, soldering iron temperature is not accurate,or other causes the temperature is not accurate.If you set the other parameters are correct value but the temperature is still high or low, you can use this parameter correction.For example, to detect the displayed soldering iron temperature is 20 degrees higher than the actual value of this parameter Set to 20)

P08: wake mode (0,1, 0 in the shutdown mode can be rotated the encoder and also can shake the handle to wake up, 1 can only rotate the encoder wake up (Note: press the encoder can not wake up, can only rotate) )

P09: temperature increase mode to increase the temperature to adjustable (20 degrees to 100 degrees adjustable, adjust the pace of 10 degrees)

P10: temperature to increase the duration to adjustable (adjustment range of 10 seconds to 250 seconds, adjust the step 5 seconds)

P11: Parameter setting mode Auto save parameter and return to heating mode Function to active time adjustable (range 4 seconds to 60 seconds)

Installed Note:

1. Strictly reference shop tutorials, well insulated and grounded against static electricity.

2. Before power test, carefully check the wiring is correct, whether Weld and short, full power test machine after confirmation.

3. connect 12-24V DC, if received more than 20V power supply,2017 new style product don't need to remove anything!

4. When you configure the power supply voltage and current requirements themselves refer to the following table:

Power (third column) is determined by the voltage (first column), as long as the current reaches the minimum current (second column).

Measuring Machine normal, lights and display status:

1. Unplugged T12 tip, turn the light flashed off, show SER, 1 seconds after the display 500.

2. T12 plug tip, boot light uniform flashing, indicating rapid heating from room temperature generally show the set temperature to rise, approaching the set temperature, strobe lights. Indicator is not flashing or intermittent flashes, indicating that the tip temperature reaches the set temperature or alternating temperature compensation.

When measuring machines on display digital bounce questions:

Because with the new T12 tip, the tip inside the heater did not burnt, it will be just a little jump start with warm, generally do not need special treatment, the natural use of 1-2 days basically not bounce up. If you need effective immediately, the general recommendations of the temperature to 350 ?-380 ?while heating to the point of tin iron head, burning off after 4-5 minutes, until the tip to cool before you can reboot! (1 no action can be repeated 2-3 times)

Package Contents

100% Brand New

1x As the the following picture shows all diy kit

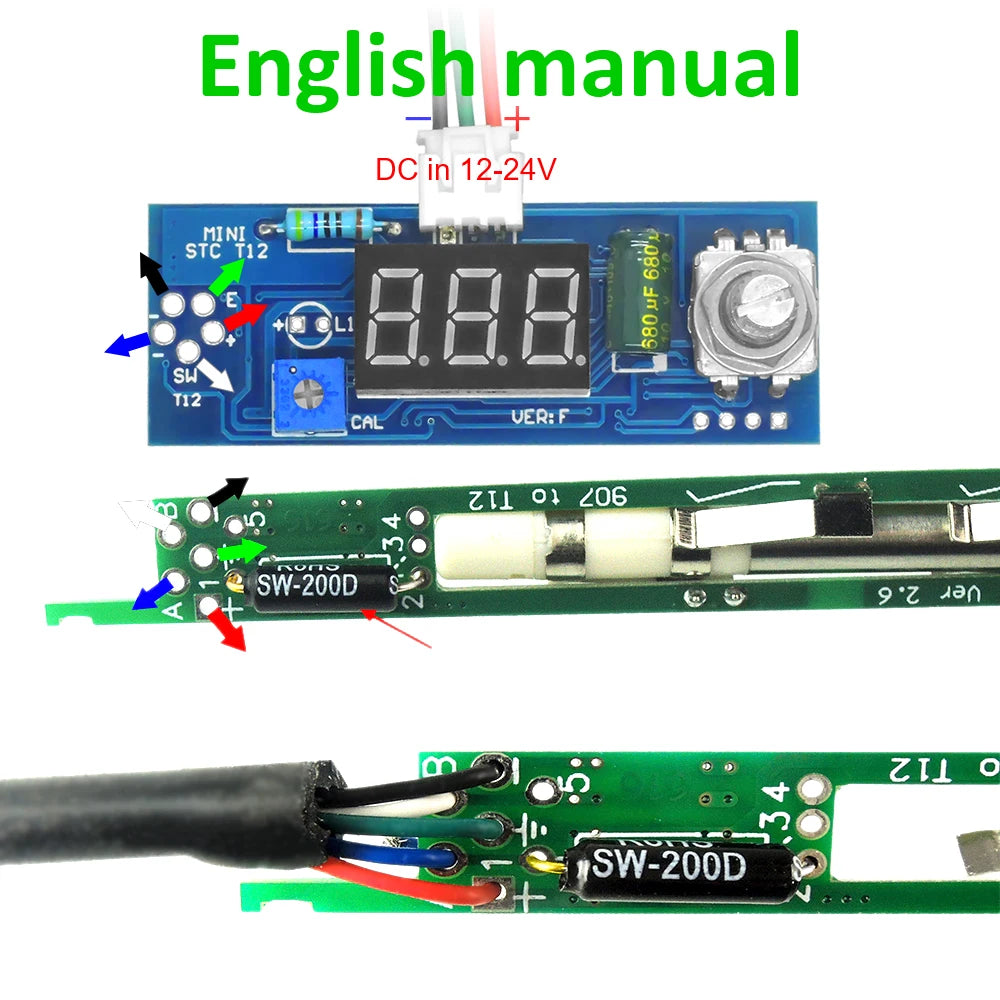

English manual
