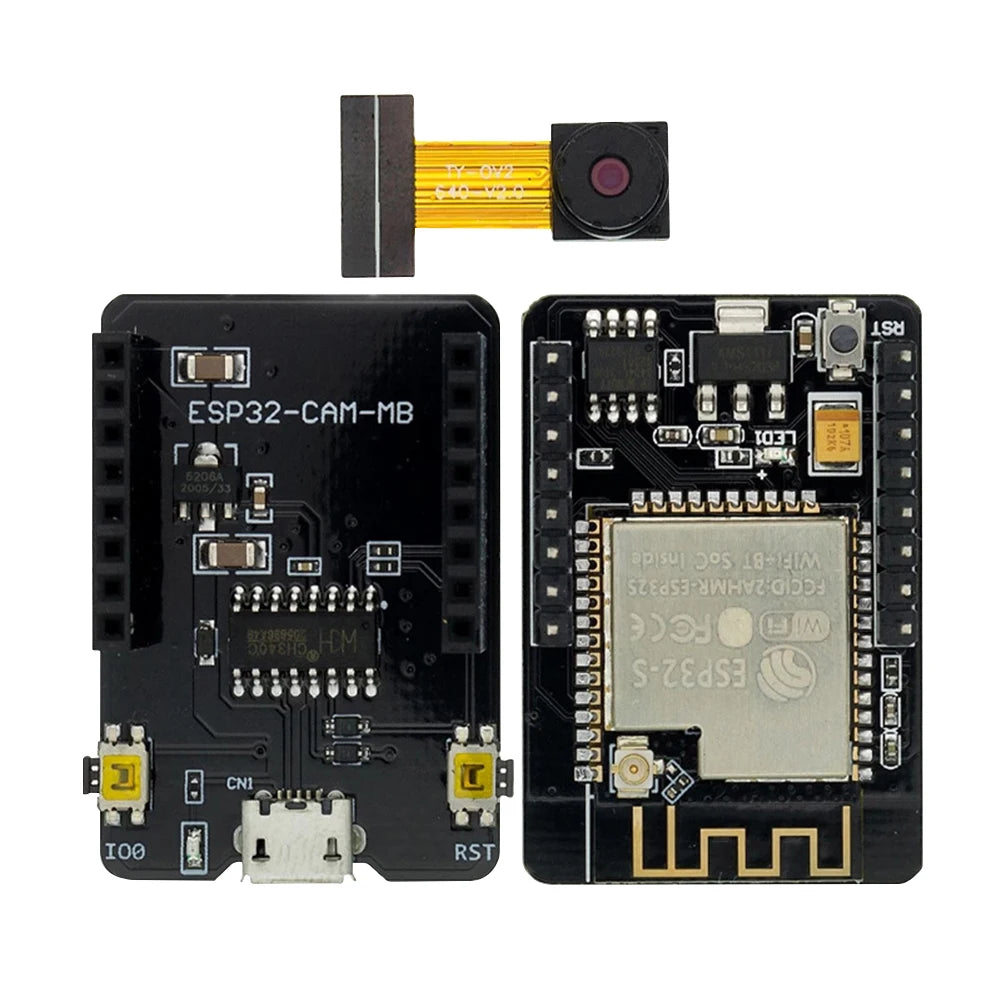

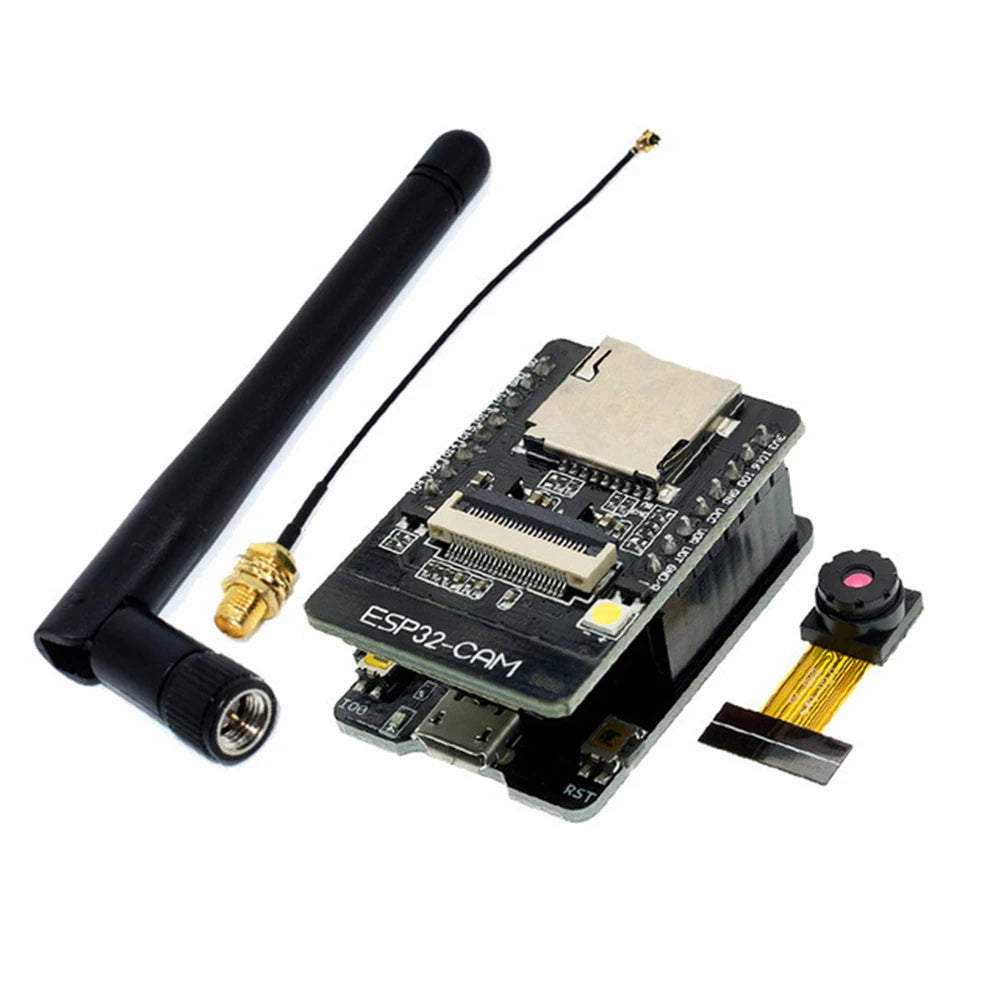

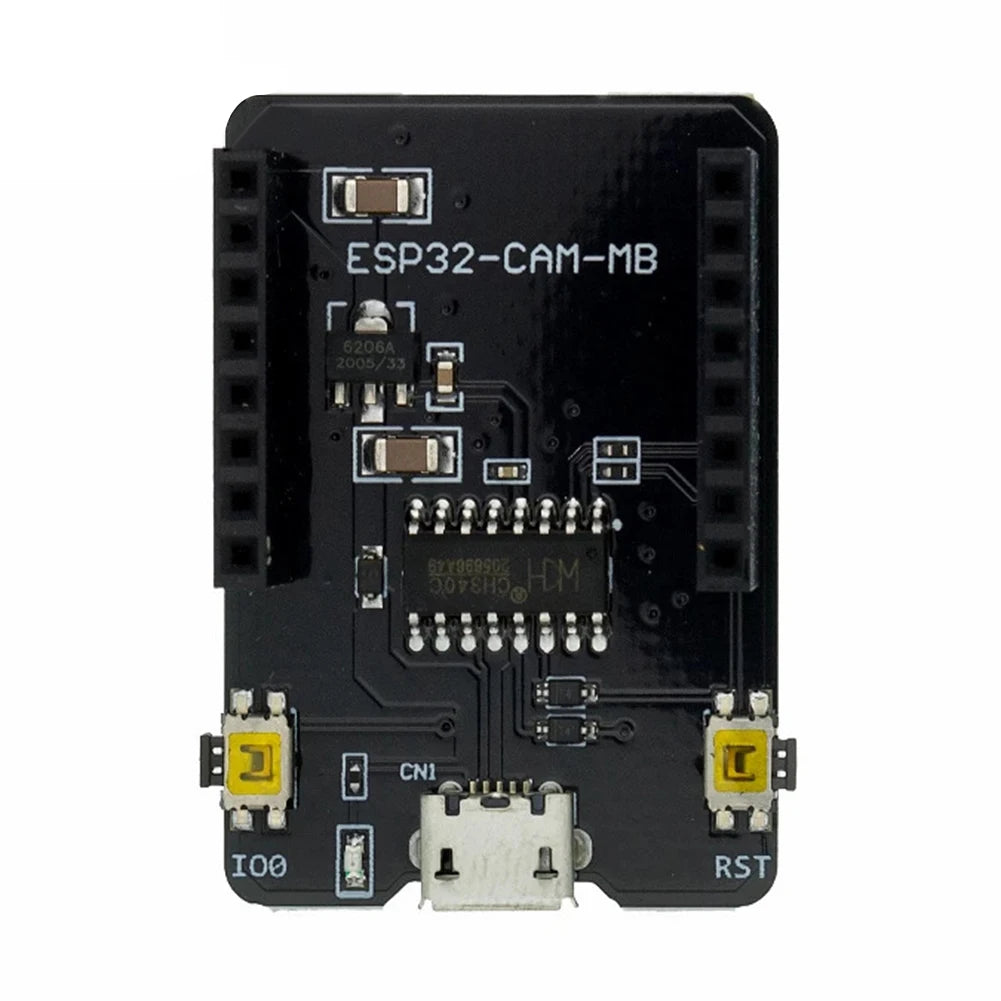

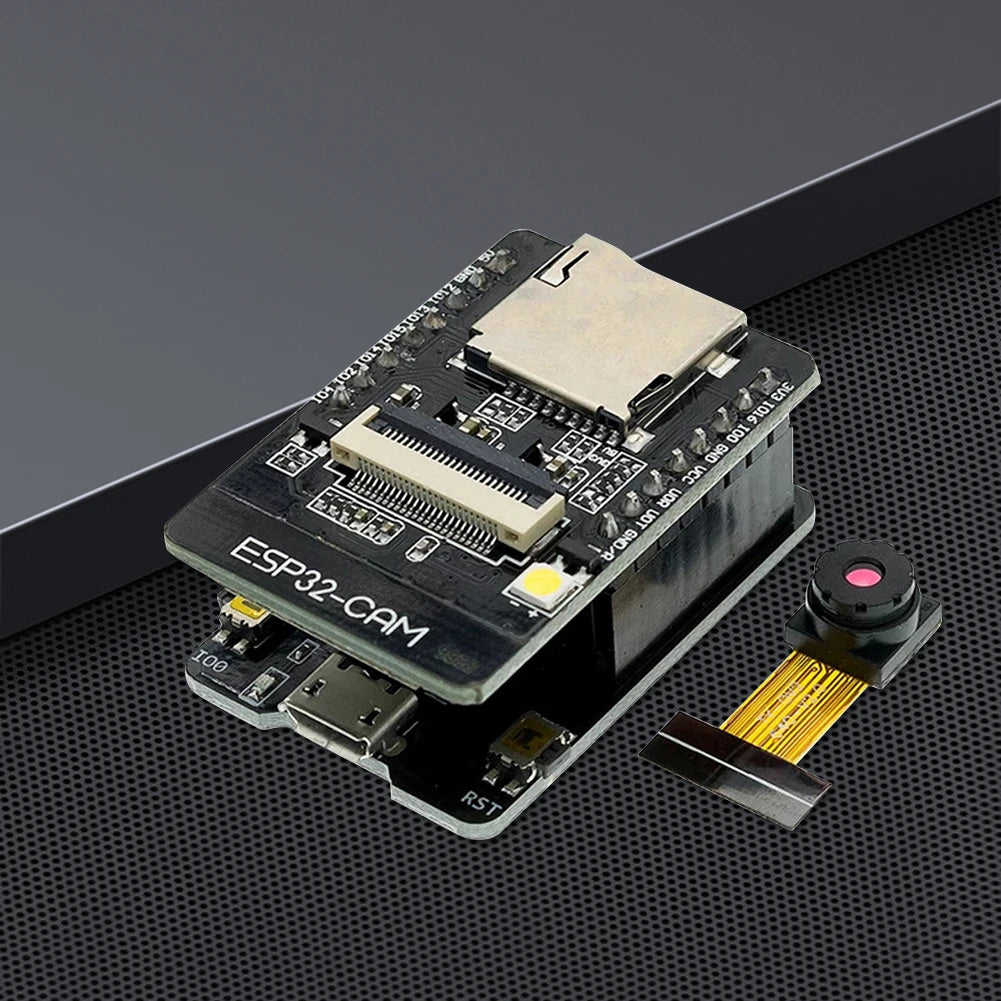

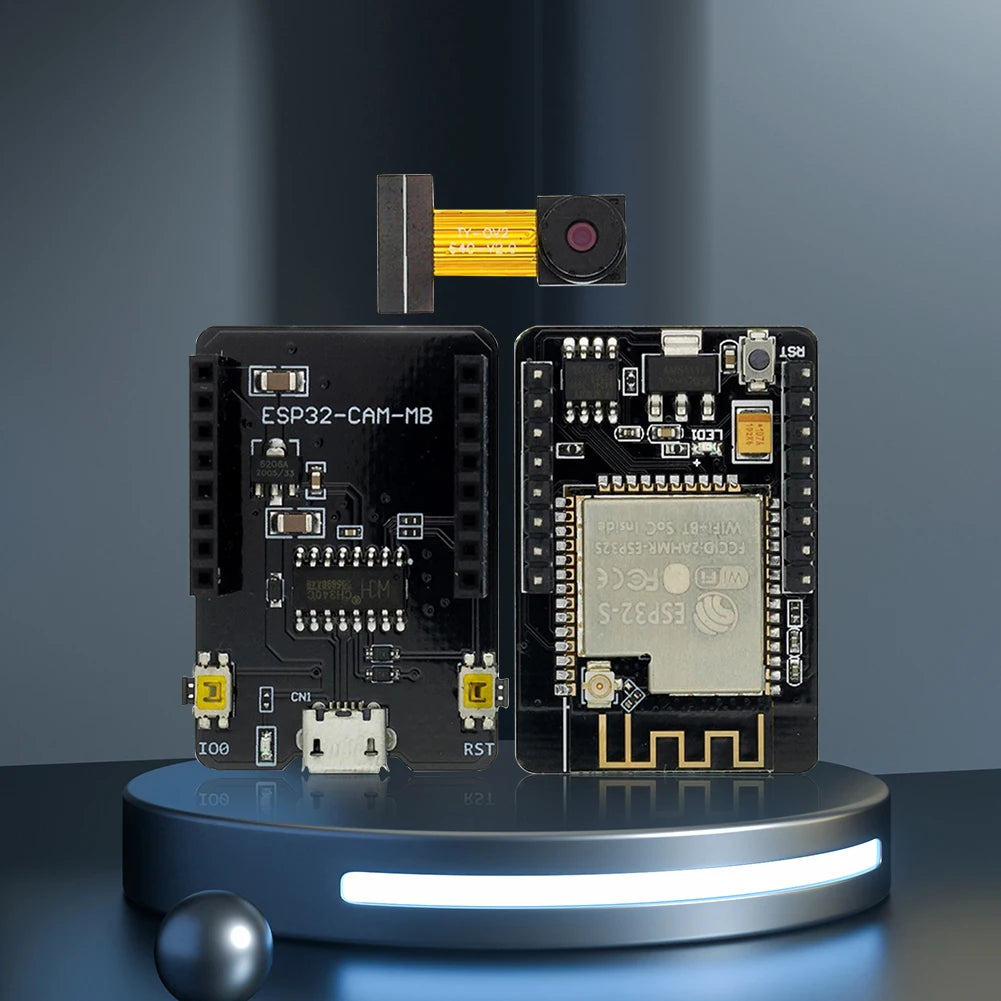

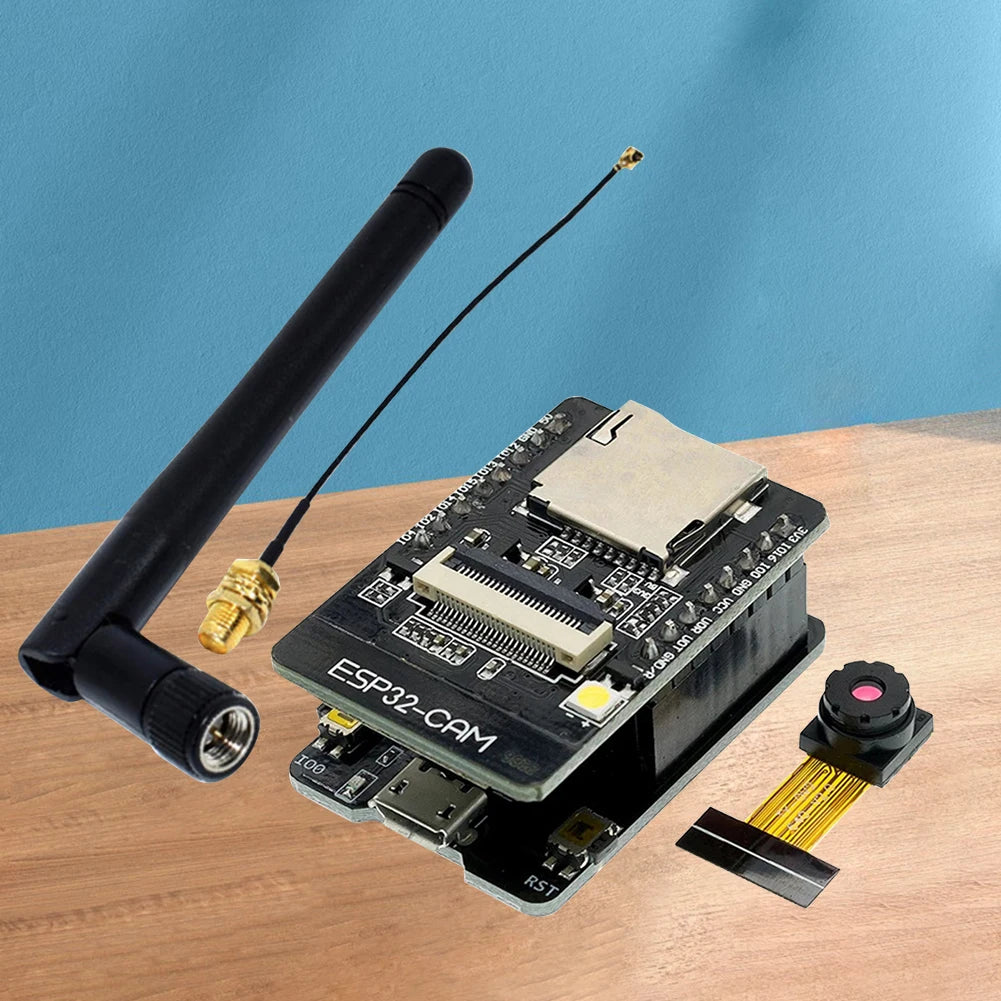

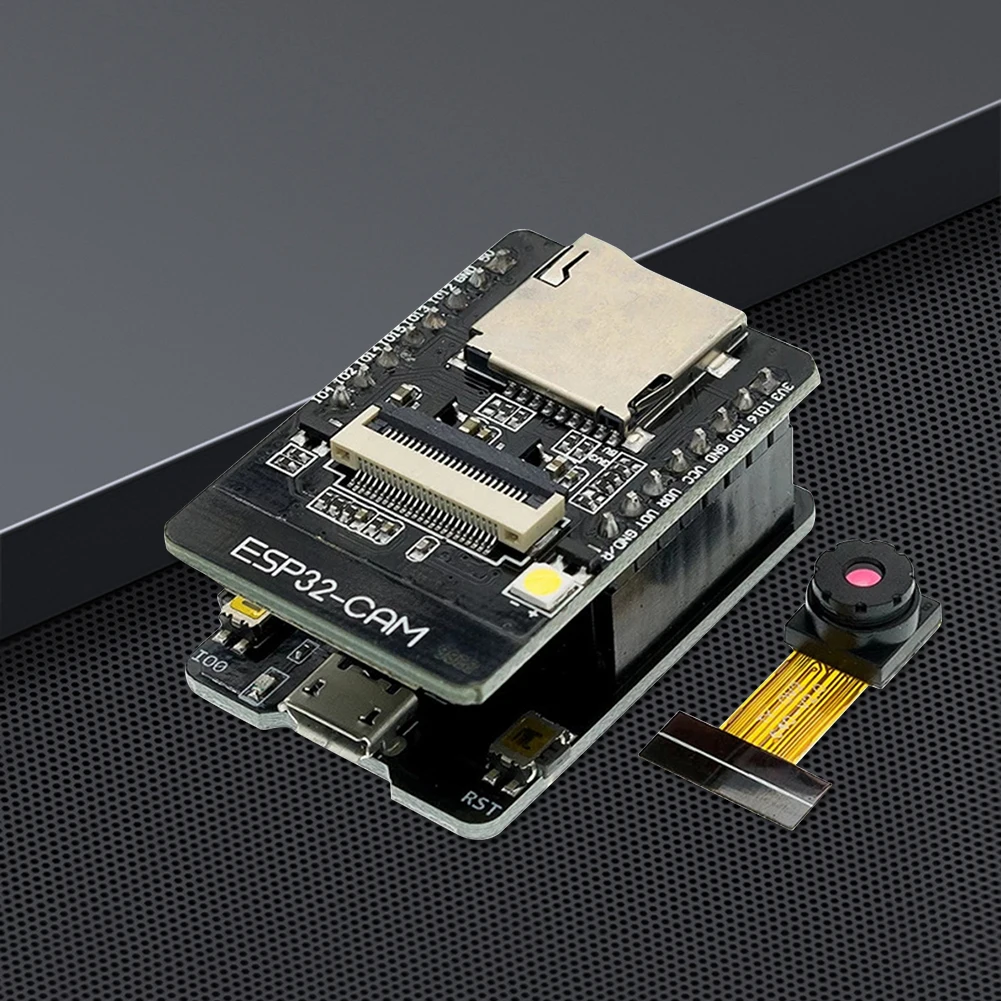

ESP32-CAM ESP32 Development Board CH340G WiFi Bluetooth-compatible Module with 2.4G Antenna for Home Smart Device
Feature:
1. Wide Applications: This module is widely used in various IoT scenarios, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless recognition, wireless positioning system signals, and other IoT applications.
2. Large Memory Capacity: Comes with a default 32Mbit SPI flash and internal 520KB + external 4MPSRAM RAM that provides sufficient storage for storing data or running applications.
3. Dual Wireless Connectivity: Supports Bluetooth-compatible 4.2 BR/EDR and BLE standards, as well as Wi-Fi 802.11 b/g/n/e/i, providing fast and stable wireless connectivity options.
4. Multiple Interfaces: Supports UART, SPI, I2C, PWM interfaces, making it easy to connect to other devices or sensors.
5. High Performance: The module supports TF cards up to 4GB and has 9 IO ports, providing users with greater flexibility in use cases. It transmits at high power levels of 17±2dBm (@1lMbps) for 802.l1b, 14±2dBm (@54Mbps) for 802.l1g, and 13±2dBm (@MCS7) for 802.l1n, transmitting data quickly and efficiently.


Specification:
SPI Flash: default 32Mbit
RAM: Internal 520KB+External 4MPSRAM
Bluetooth-compatible: Bluetooth-compatible 4.2 BR/EDR and BLE standards
WiFi: 802 II b/g/n/e/i

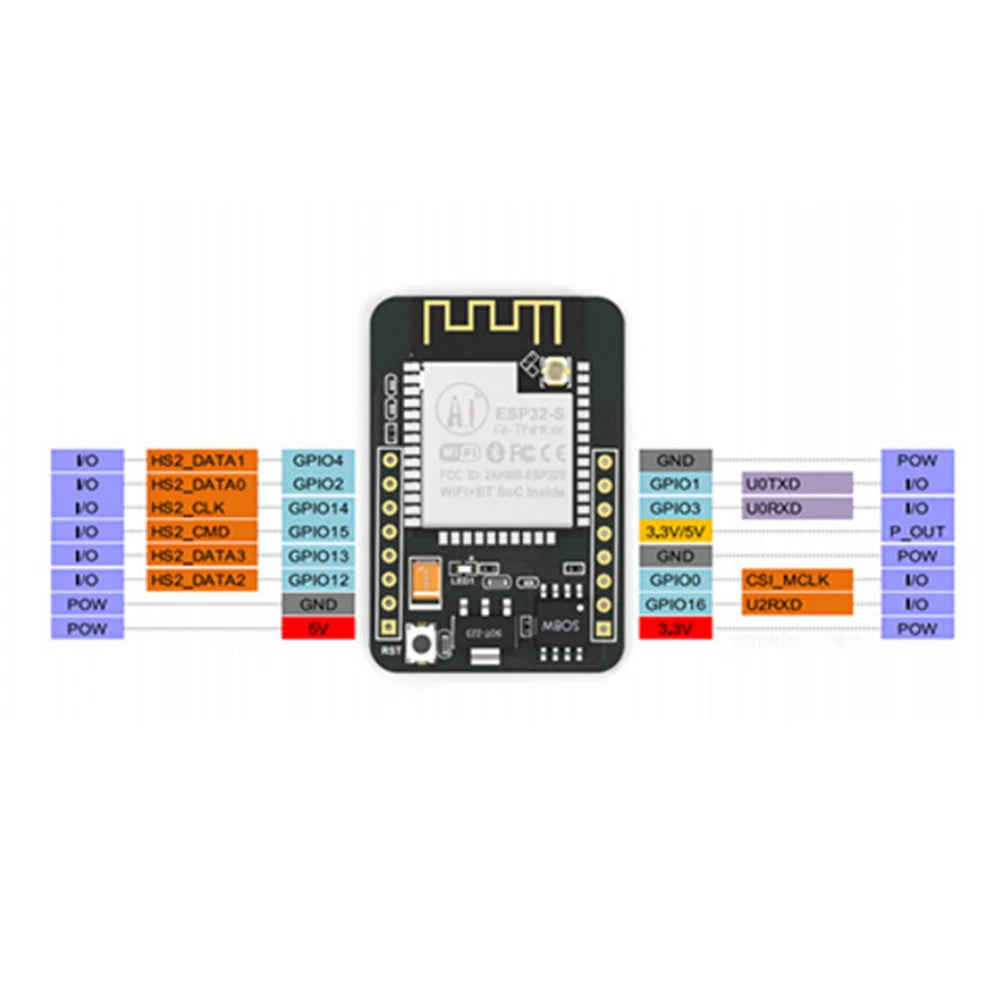

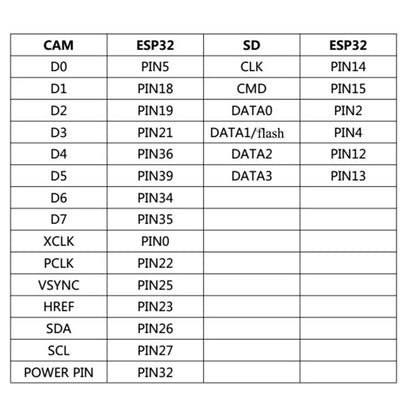

Supported interfaces: UART, SPI, I2C, PWM
TF card support: up to 4G
IO ports: 9
Serial port speed: default 115200 bps

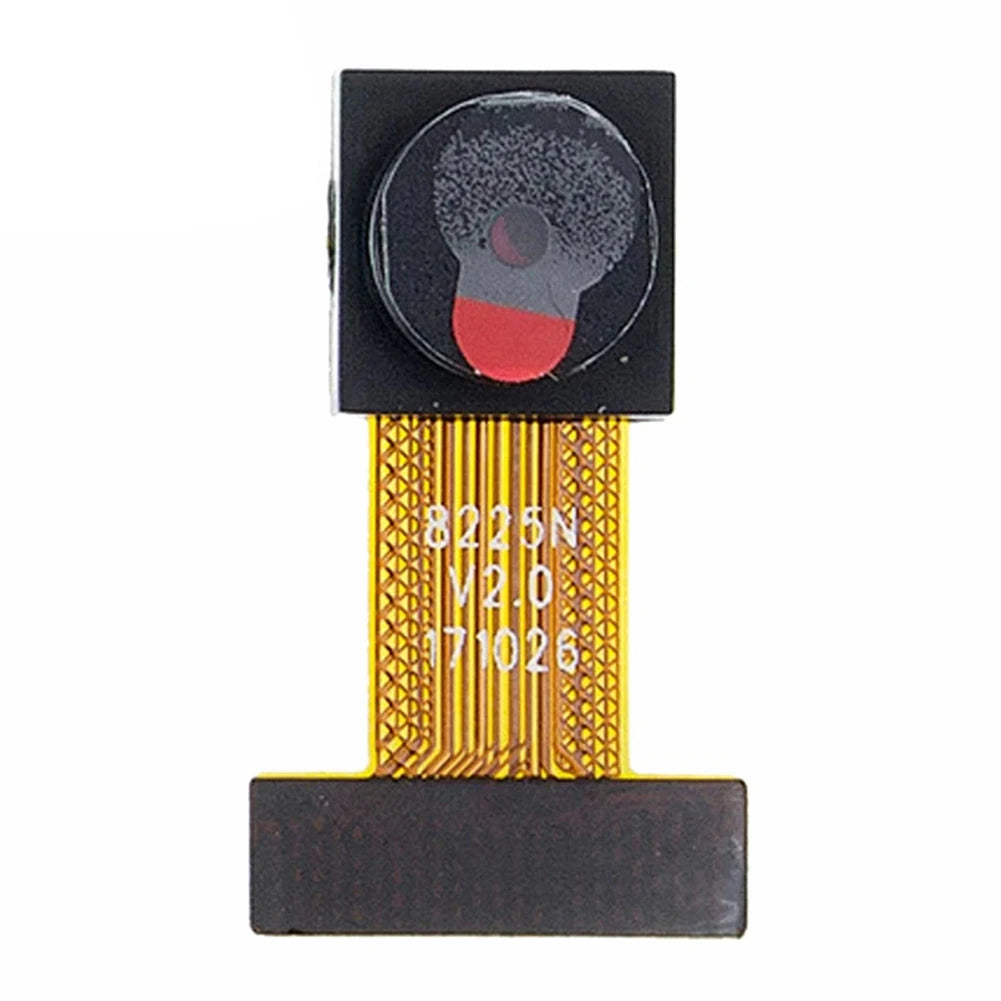

Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE
Spectrum range: 2412-2484MHz
Antenna form: onboard PCB antenna with a gain of 2dBi

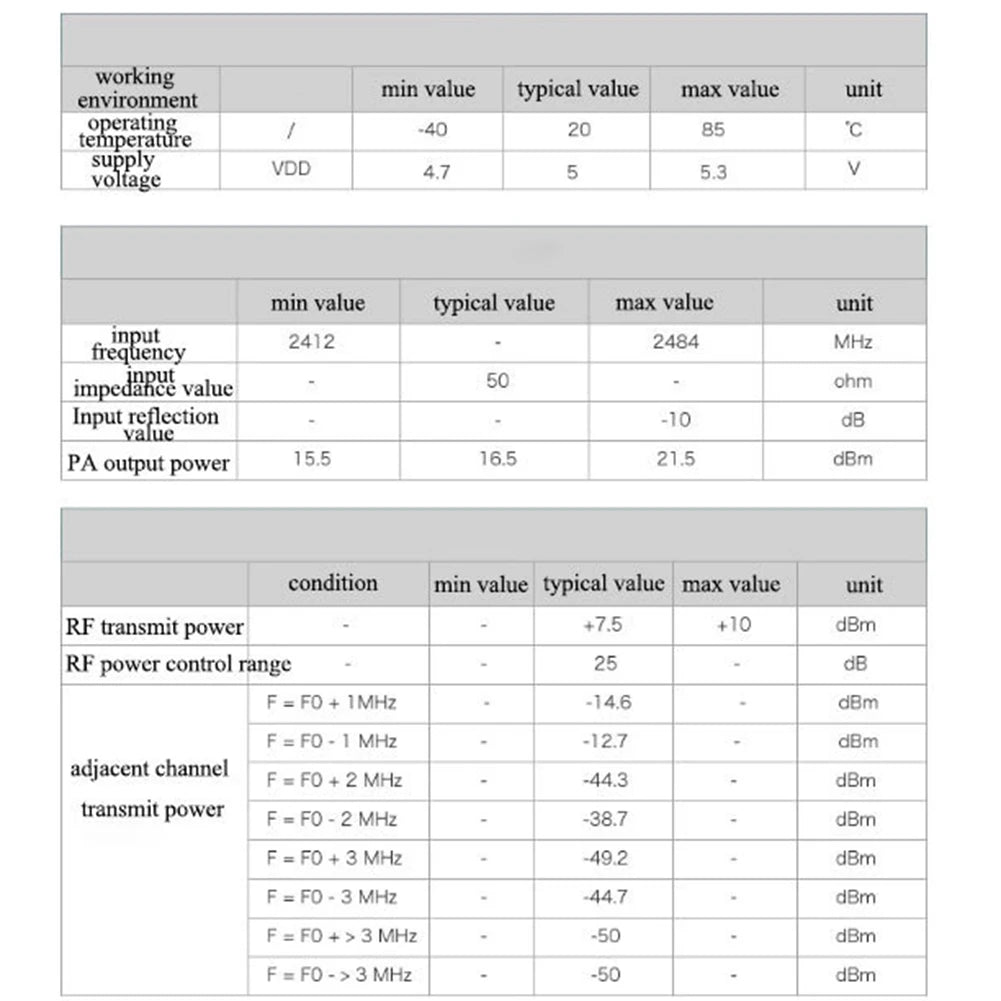

Transmission power:
802. l1b: 17 ± 2dBm (@ 1Mbps)
802.l1g: 14 ± 2dBm (@ 54Mbps)
802.l1n: 13 ± 2dBm (@ MCS7)
Product size: 27 * 48.5 * 4.5mm/1.06 * 1.90 * 0.17inch (excluding pins)

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

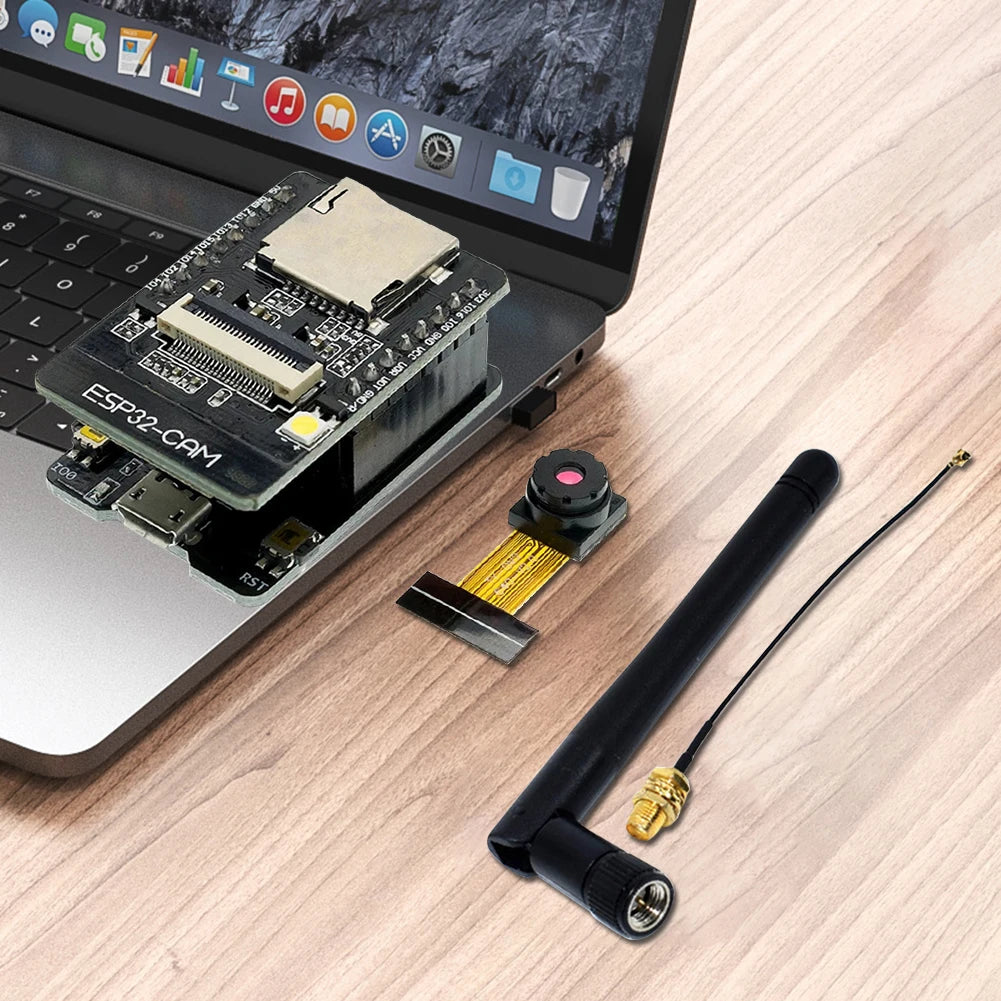

1 x Development Board Kit
