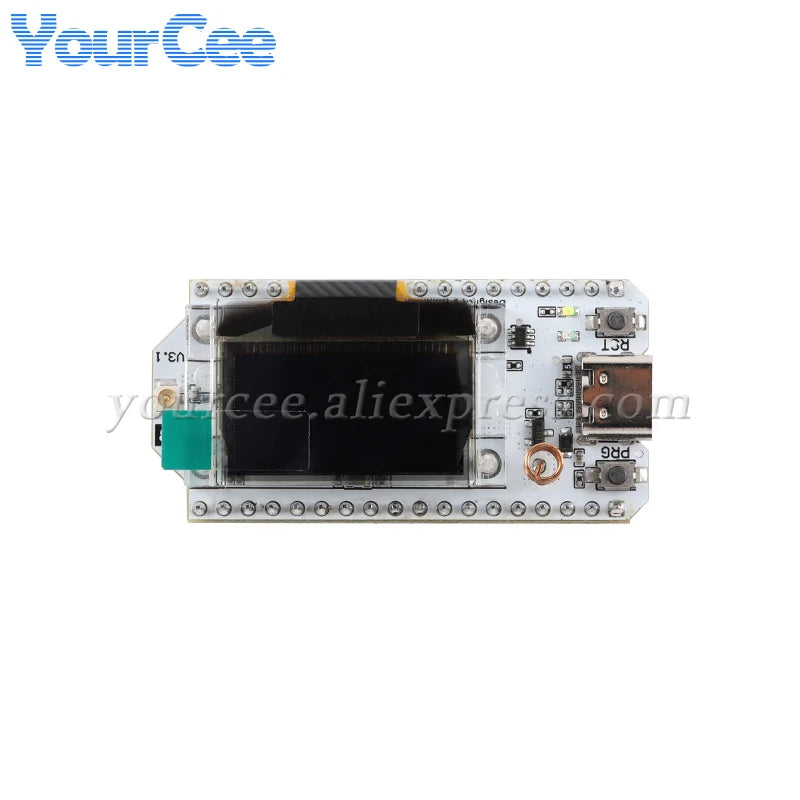

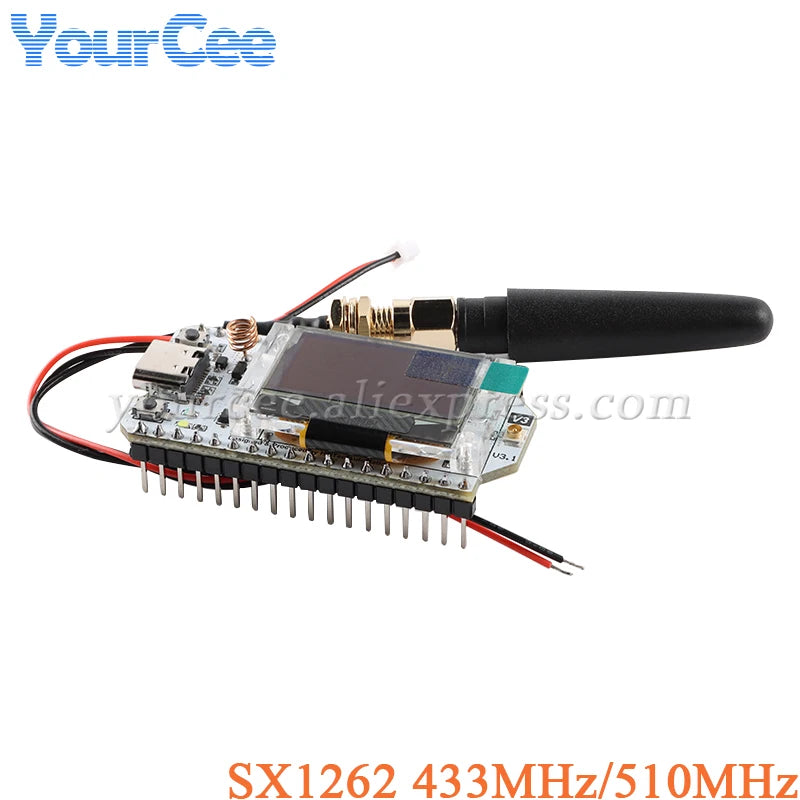

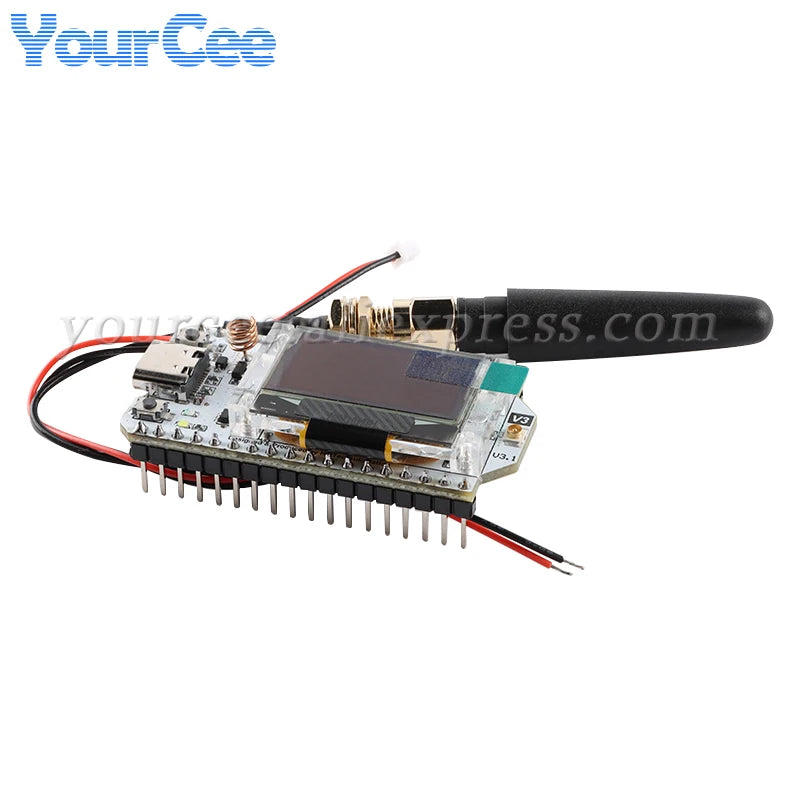

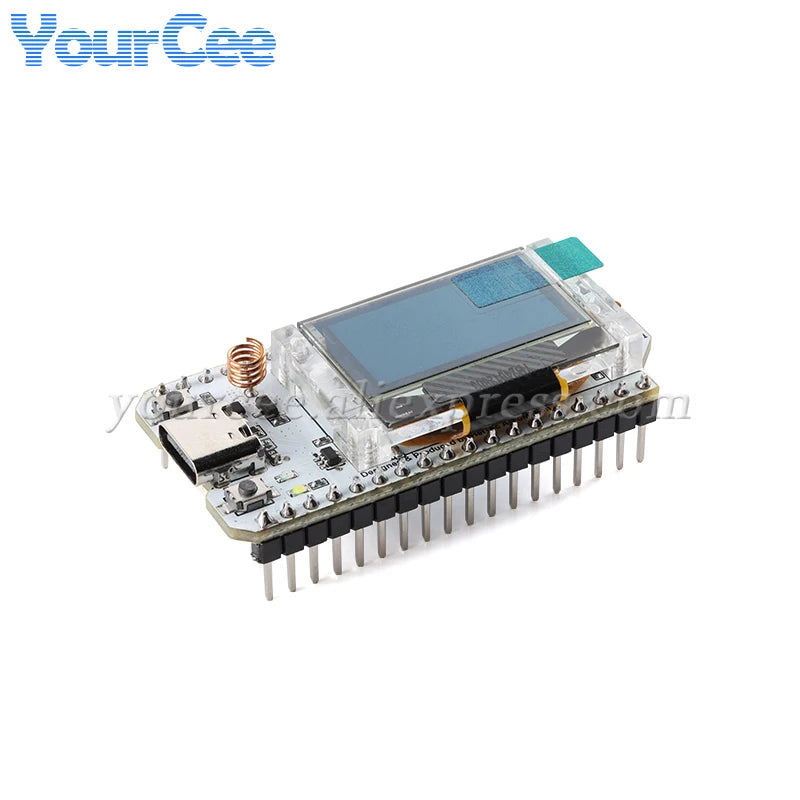

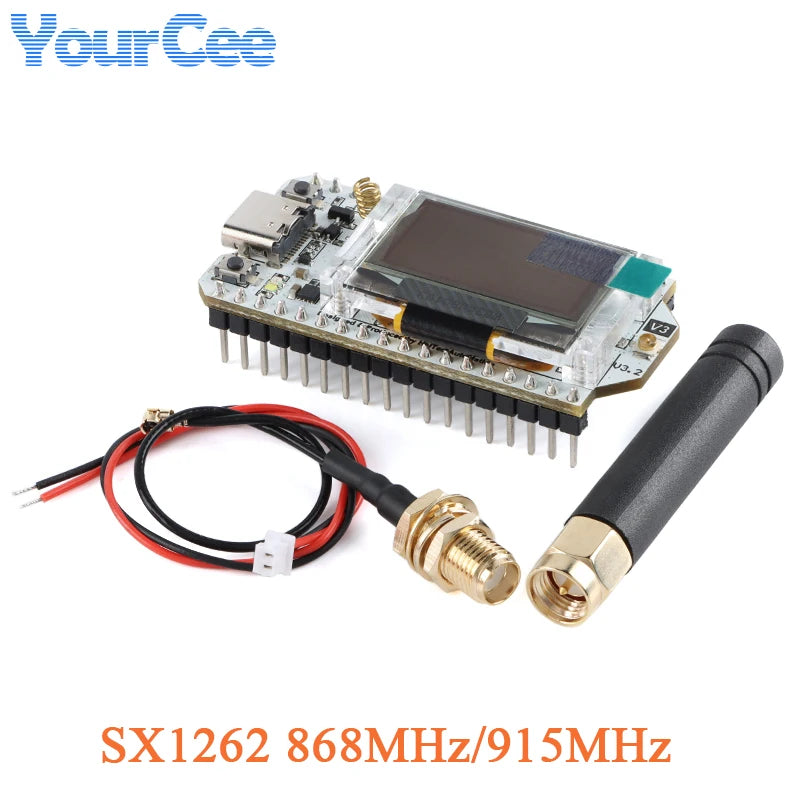

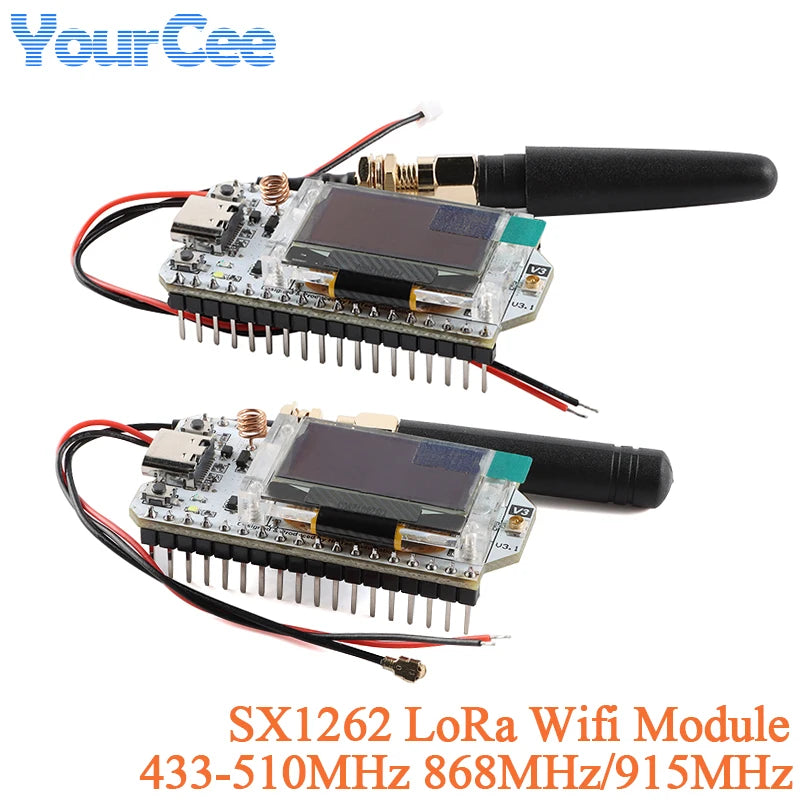

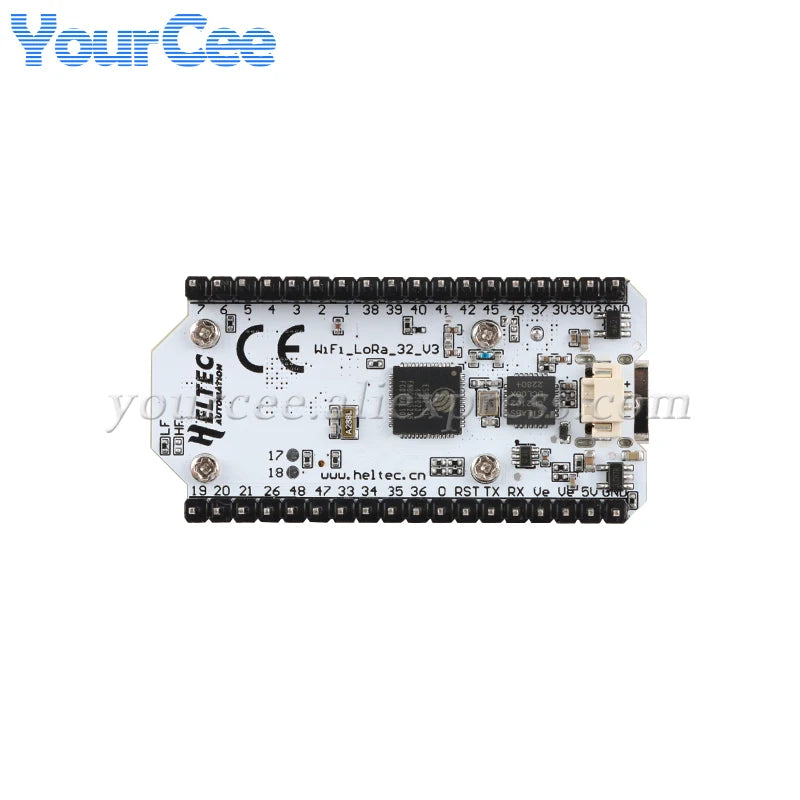

Placa Desarrollo LoRa ESP32 SX1262 WiFi Kit 32 (433-510MHz / 868-915MHz) con Pantalla OLED Azul 0.96" para Arduino
Placa Desarrollo LoRa ESP32 SX1262 WiFi Kit 32 (433-510MHz / 868-915MHz) con Pantalla OLED Azul 0.96" para Arduino
Precio habitual
$42.540 CLP
Precio habitual
$30.486 CLP
Precio de oferta
$42.540 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
0.96 Inch OLED Display: 0.96 Inch OLED Display
Application: Computer
Brand Name: Your Cee
Condition: New
Dissipation Power: low
ESP32-S3 node: CP2102 USB to serial port chip
Hign-concerned Chemical: None
LoRa32-v3 WIFI Wireless: Bluetooth-compatible module
Operating Temperature: normal
Origin: Mainland China
Package: TQFP
Quantity: 1
Smart Electronics Experiment: Switch And Sensor For Arduino STM32
Supply Voltage: 3.3V-7V
Support ESPRESSIF SDK: MircoPython NodeMCU
Type: Module
is_customized: Yes
Description

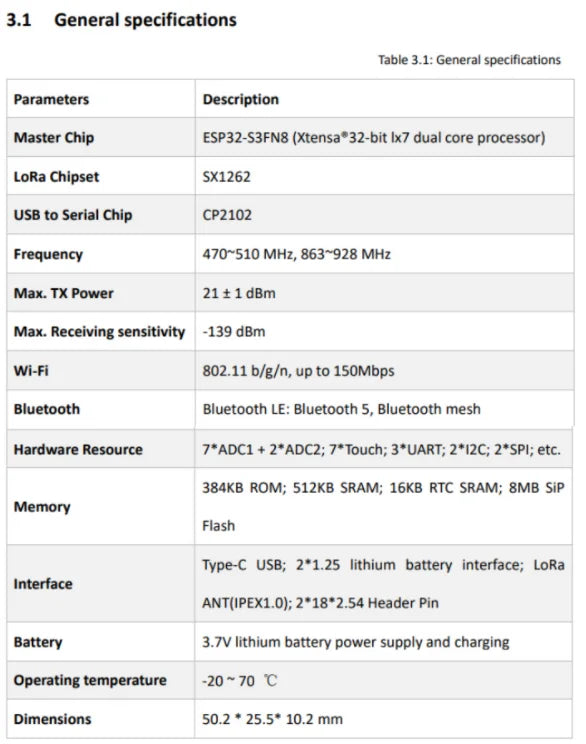

Dominant Frequency: 240MHZ
Flash: 8Mbyte
Processor: Xtensa 32 LX7 Dual Core
Master chip: ESP32-S3FN8
LoRa chip: SX1262
Open communication distance: 2.8KM
Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
Development environment: perfect support for Arduino

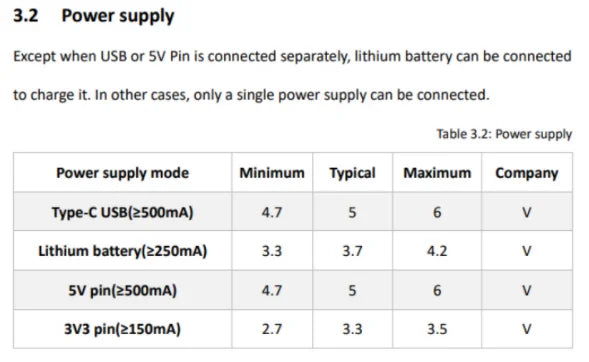

Operating voltage: 3.3-7V
Operating temperature range: -20-70 ℃
Receiver sensitivity: -139dbm (SD12, 125KHz)
USB adapter chip: CP2102
Support mode: Sniffer, Station, softAP and Wi-Fi Direct
Flash: 8Mbyte
Processor: Xtensa 32 LX7 Dual Core
Master chip: ESP32-S3FN8
LoRa chip: SX1262
Open communication distance: 2.8KM
Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
Development environment: perfect support for Arduino
Operating voltage: 3.3-7V
Operating temperature range: -20-70 ℃
Receiver sensitivity: -139dbm (SD12, 125KHz)
USB adapter chip: CP2102
Support mode: Sniffer, Station, softAP and Wi-Fi Direct
