Name：Ferrite core

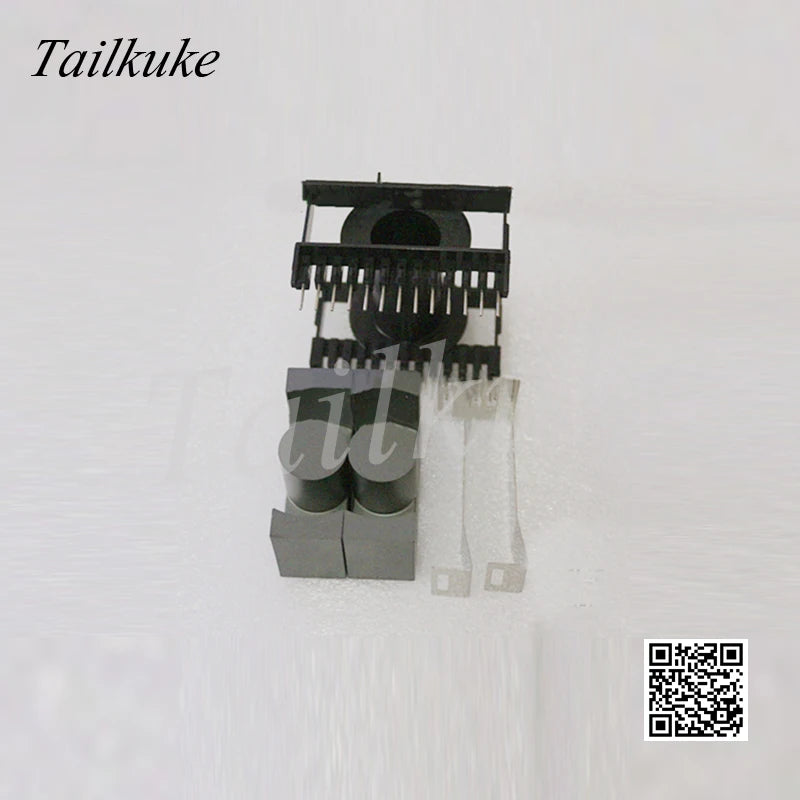

Model：ETD59 skeleton：horizontal12+12

Texture of material：PC40

Stitch distance：5.08mm Row spacing：50.8mm Slot pitch：41.7mm

Company：A set（One pair with magnetic core、Skeleton one）

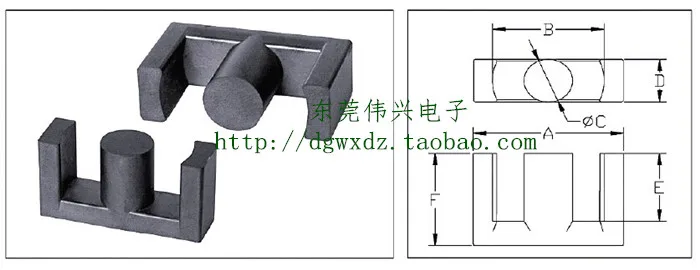

A:59.8mm B:43.6mm C:21.6mm D:21.6mm E:22.5mm F:31.0mm





C1（mm¯¹）Core Constant：0.38

Le（mm）Magnetic path length：139.0

Ae（mm2）Effective cross-sectional area of magnetic core：368.0

Ve（mm3）Magnetic corevolume：51500

AL±25%( nH/N2 ) No air gap in coreEquivalent inductance at：5400





Reminder



One、The core is sold according to the model and size，Companymm(millimeter），tolerance+、-0.3mm

Two、Dimensions according to product description on page，Don't just imagine buying，If you don't know, please consult customer service。

Three、The core is fragile，Be careful when using，If you have any questions, please contact us。

Four、It will be slower for the core and frame to be fragile，We will send it to you the next day。



One、Ferrite core is mainly composed of iron(Fe)，manganese(Mn)，Zinc(Zn)3Composition of metal elements，Commonly known as manganese zinc ferrite。The annular ferrite core has no air gap，And the cross-sectional area is the same，So the magnetic effect is very high。



Two、The inductor or or transformer can be made by winding the coil on the ferrite core，They are widely used in instruments and meters，In communication equipment and household appliances。 There are many material brands of ferrite core，There are also many geometric shapes，Columnar、I-shaped、Cap shape、Single hole、Double hole、Four hole、 U shape、Tank shape、 E shape、 EI shape， EC shape、 RM shape， PQ shape、 EP shape，See attached drawing。The cores of each shape form a series of their own，For user selection。



Three、Ferrite cores have a wide range of choices，According to different magnetic parameters，To select different materials and shapes due to low magnetic loss at high frequencies，They are widely used in switch mode power supply(SMPS)，radio frequency(RF)Transformers and inductors。Ferrite cores of various shapes and sizes are used in inductors for high frequency power supply and high quality communication market，pulse transformer，High frequency transformer，And noise filter, etc。Ferrite is characterized by high permeability，Good temperature characteristics，And low decay rate。
