SPECIFICATIONS

Brand Name: NoEnName_Null,FLIR

Customized support: OEM, ODM

DIY Supplies: ELECTRICAL

Focus: Focus free

Hign-concerned Chemical: None

IP Rating: IP54

IR Sensor: 160 x 120 (19,200 pixels)

Image Frequency: 8.7 Hz

Interfaces I/O: Bluetooth, Wifi, USB-C

Material: plastics

Model Number: Cx5

Object Temperature Range: -4 to 752°F (-20 to 400°C)

Origin: Mainland China

Place of Origin: Sweden

Power Supply Voltage: Battery Powered

Temperature Control Accuracy: ±3%

Temperature range: -4 to 752°F (-20 to 400°C)

Theory: Optical imaging

Thermal Sensitivity/NETD: <70 mK

Type: Thermal Camera

Warranty: 1 years

Hello, I am Reyna. Welcome to my store. Due to the time difference, I am unable to reply to your message in a timely manner. If you need any information about this product, please leave me a message. I will reply to you as soon as I see them. I hope we can become good friends. Welcome to add me on WhatsApp+8618873638617 My email address 2480667414@qq.com

Product Description

Certified for use in explosive environments, this camera eliminates the need to acquire hot work permits due to gas, vapor, and dust and makes T-Class surveys quick and easy. In addition, the 3.5" (88.9 mm) touchscreen interface is simple to use, and the 160 x 120 thermal resolution gives accurate temperature measurements.

Affordable, pocket-sized IR camera for safe inspection in certain explosive environments
* Certified for use in many explosive environments, eliminating the need to acquire hot work permits while making T-Class surveys quick and easy
* For use in most industries with explosive atmospheres including chemical, oil and gas, and wastewater treatment facilities
* 160 × 120 (19,200 pixels) thermal camera resolution
* 8.7 Hz image frequency
* Eliminate the need for hot work permit in certain hazardous locations due to explosive gas or dust
* FLIR MSX adds visible light details to thermal images and embosses them onto the full thermal image
* 1-Touch level/span saves time on manual thermal adjustments by modifying the level and span with a single touch

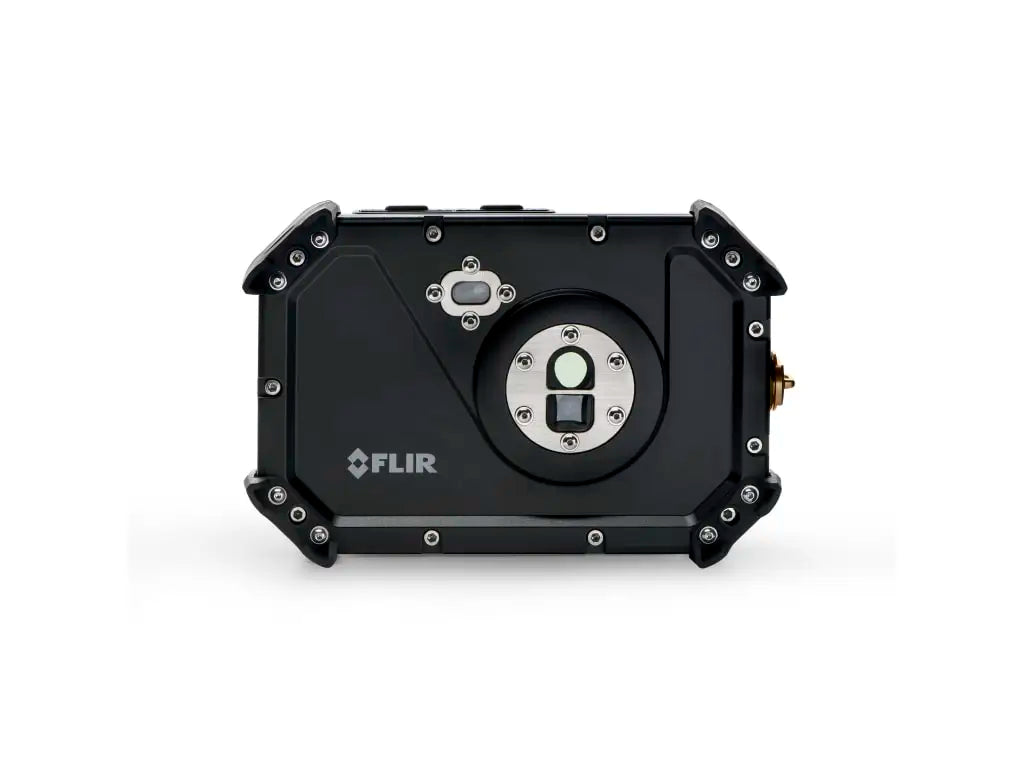

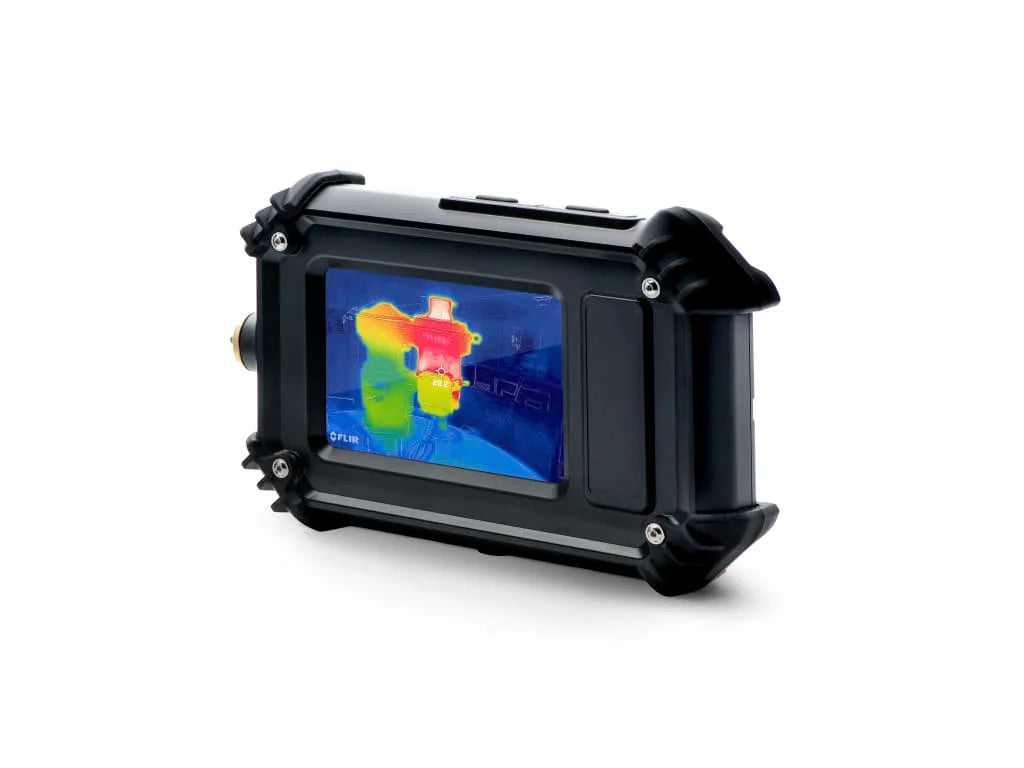

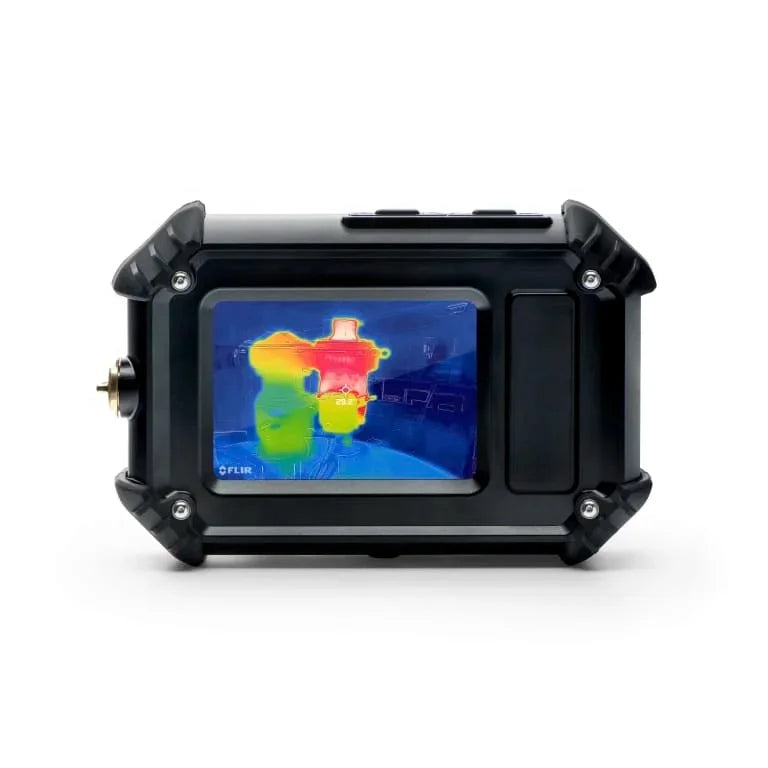

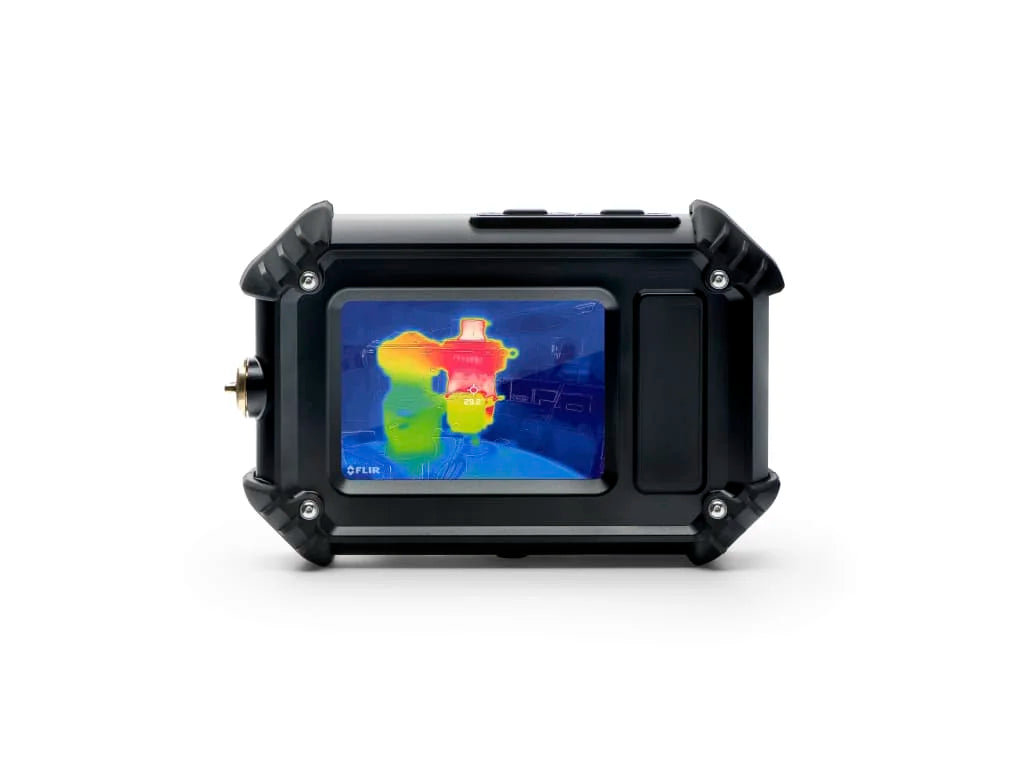

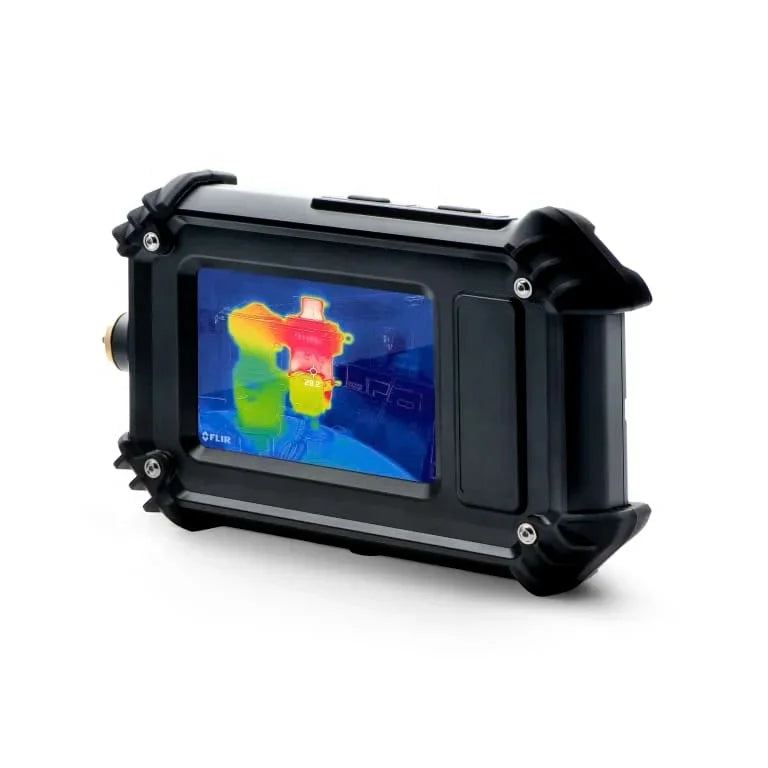

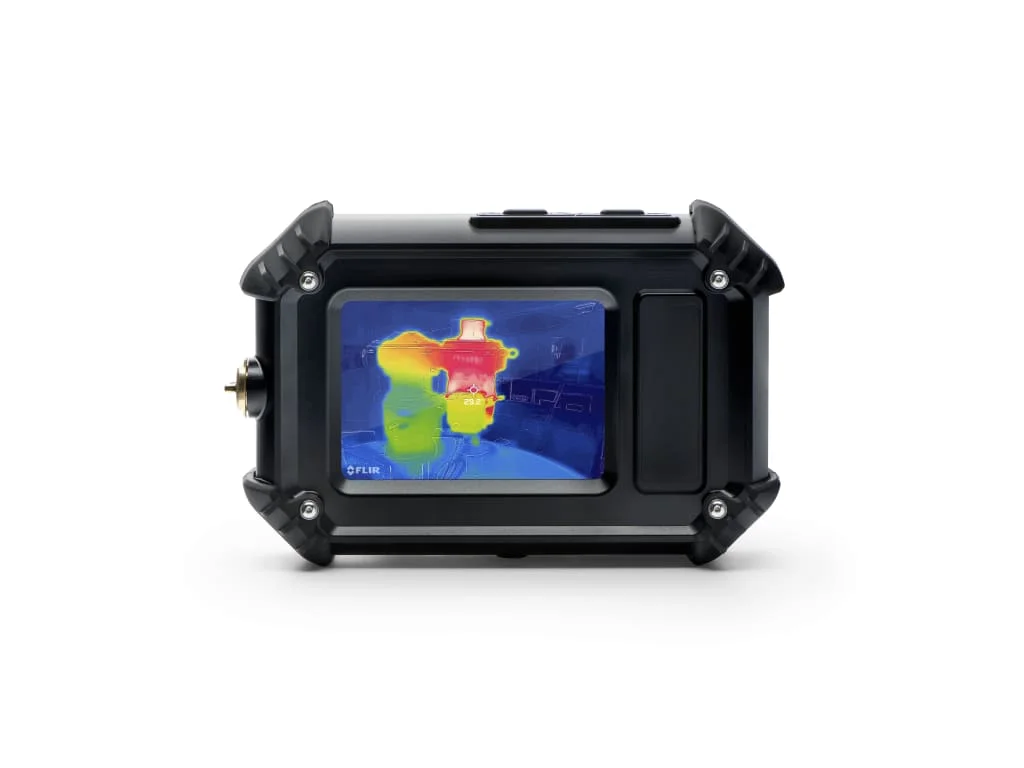

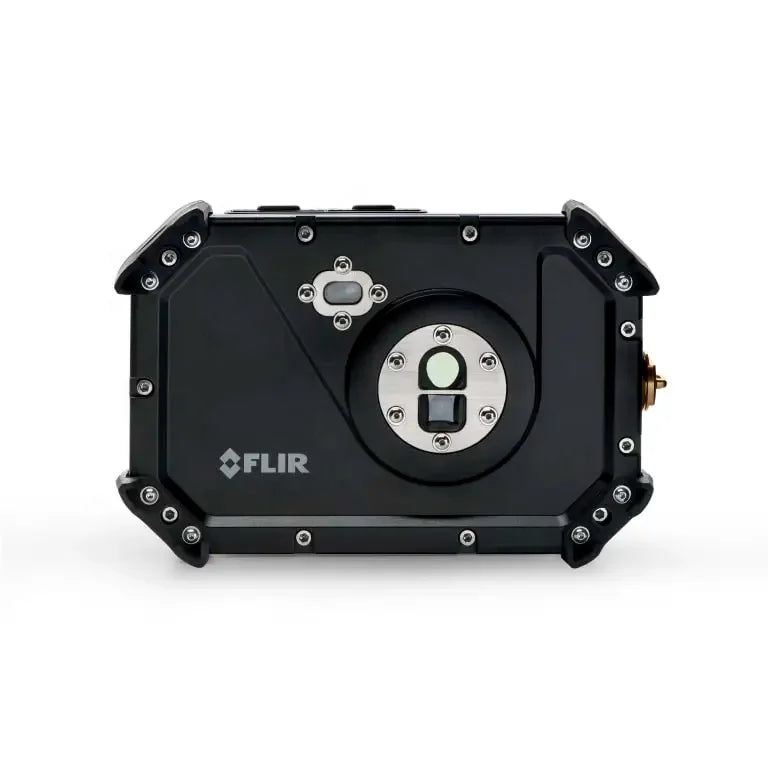

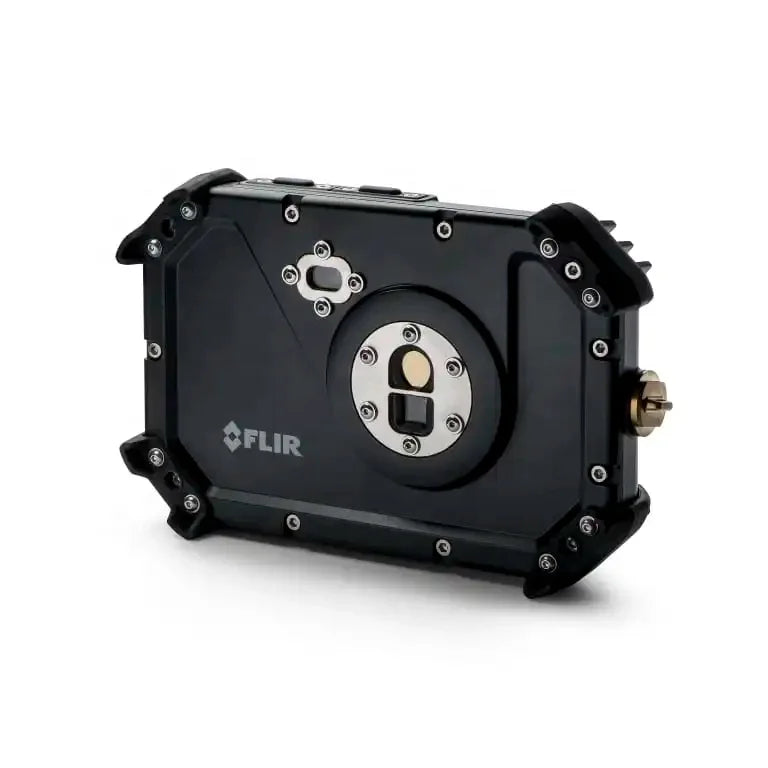

FLIR Cx5 - Hazardous Location-Rated Thermal Camera

* Certified for use in many explosive environments, eliminating the need to acquire hot work permits while making T-Class surveys
quick and easy
* For use in most industries with explosive atmospheres including chemical, oil and gas, and wastewater treatment facilities
* 160 × 120 (19,200 pixels) thermal camera resolution
* 8.7 Hz image frequency
* Eliminate the need for hot work permit in certain hazardous locations due to explosive gas or dust

Hazardous Location-Rated Thermal Camera

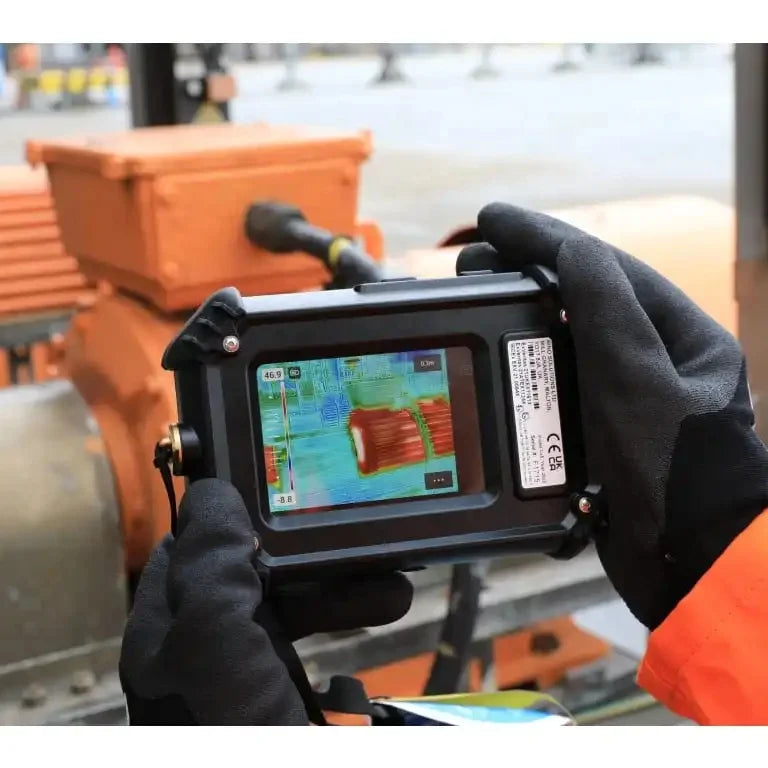

The FLIR Cx5 is certified for use in many explosive environments, eliminating the need to acquire hot work permits due to gas, vapor, and dust, while making T-Class surveys quick and easy. With FLIR MSX® (Multi-Spectral Dynamic Imaging) and 1-Touch Level/Span, the Cx5 can help you identify potential problems quickly to improve plant performance. The 3.5-inch touchscreen interface is simple to use, and 160 × 120 thermal resolution gives you accurate temperature measurement of nearby targets. Built-in FLIR Ignite™ cloud service provides direct data transfer, storage, and backup, so images are always available and securely stored on all your devices. With the FLIR Cx5 in your toolbox, you’ll always be ready to investigate mechanical and electrical equipment around your production site.

Specification

IR Sensor	160 x 120 (19,200 pixels)
Thermal Sensitivity/NETD	<70 mK
Field of View (FOV)	54 x 42°
Minimum Focus Distance	Thermal: 3.94" (0.1 m) MSX®: 11.8" (0.3 m)
Image Frequency	8.7 Hz
Focus	Focus free
Spectral Range	8 to 14 μm
Display	3.5" (88.9 mm), capacitive touch (touchscreen) Screen rotation: Yes
Visual Camera	5 MP
Digital Camera Focus	Fixed
Image	Adjustment: Automatic level and span Manual level and span 1-Touch level and span Modes: Infrared image Visual image MSX (embossed visual details on thermal image) Picture-in-picture (IR area on visual image)
Color Palettes	Iron, gray, rainbow, arctic, lava, rainbow HC
Object Temperature Range	-4 to 752°F (-20 to 400°C)
Accuracy	At ambient temperature 59 to 95°F (15 to 35°C) and object temperature above 32°F (0°C) 32 to 212°F (0 to 100°C): ±9°F (±5°C) 212 to 752°F (100 to 400°C): c5%
Measurement	Functions Spot Box with maximum/minimum Correction Emissivity; matt/semi-matt/semi-gloss + custom value Reflected apparent temperature Atmospheric compensation
Image Storage and Streaming	Storage media: Internal memory and onboard Ignite cloud connectivity (with Wi-Fi) Image storage capacity: >5000 images Image file format: Standard JPEG, 14-bit measurement data included

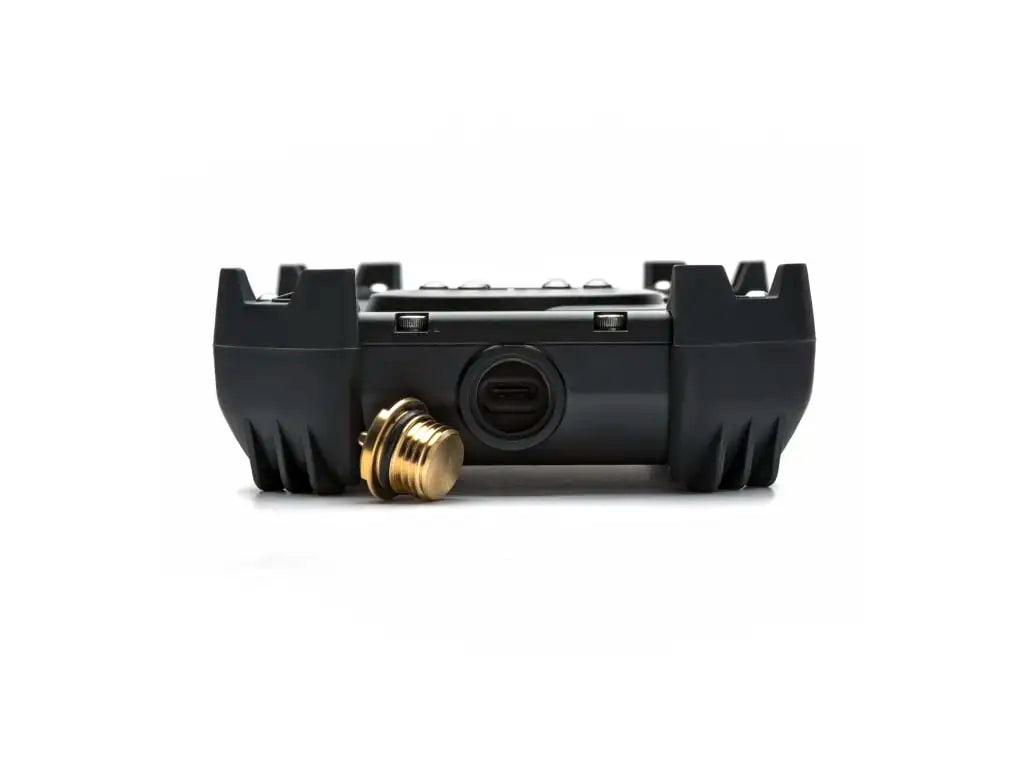

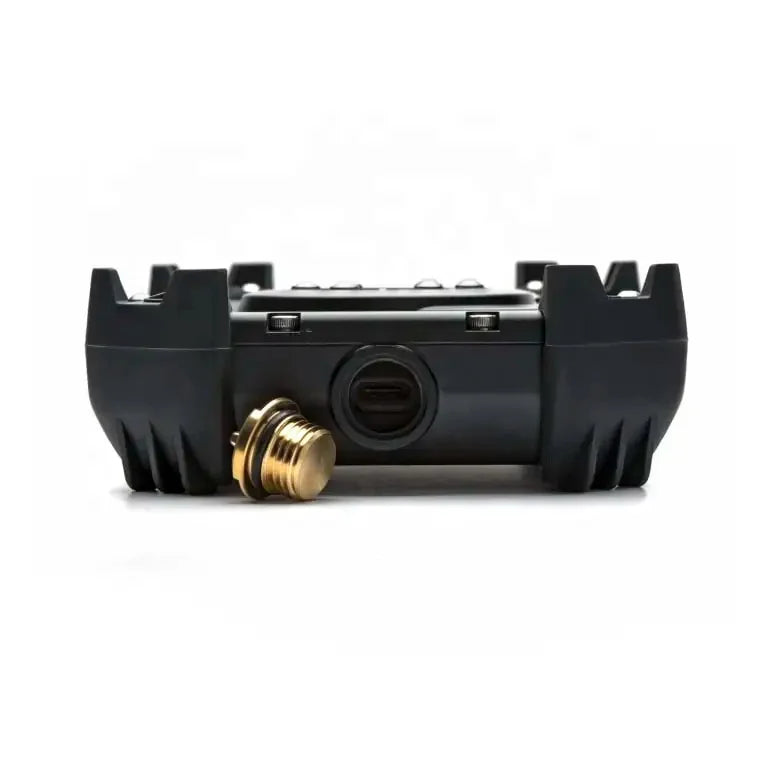

Communication and Connectivity	Wi-Fi: 802.11 a/ac/b/g/n (2.4 and 5 GHz) USB: USB 2.0, Type-C connector Bluetooth: PAN Image upload: Directly upload images to Ignite cloud library and services
Temperature Range	Operating: 14 to 122°F (-10 to 50°C) Storage: -40 to 158°F (-40 to 70°C)
Encapsulation	Camera housing and lens: IP54 (IEC 60529)
Drop Test	Designed for 6.6' (2 m)
Certifications	EN EIC 60079-0: 2018 EN EIC 60079-31: 2014 EN EIC 60079-15: 2019 IEC 60079-15: 2017 IEC 60079-0: 2017 IEC 60079-31: 2013
Power Supply	Battery type: Rechargeable built-in Lithium ion battery Battery operating time: 4 hours Charging system: USB-C (1 A) Charging time: 2 hours External power operation: 5 V, USB-C
Tripod Mounting (Built-in)	UNC ¼"-20
Dimensions	6.6 x 4.4 x 1.7" (168 x 112 x 42 mm)
Weight	1.52 lbs (0.69 kg)
