SPECIFICATIONS

Accuracy: ±3°C or ±5%

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

Scene dynamic range: -20°C to 400°C, -4°F - 752°F

Theory: Infrared Thermometer, thermal imaging camera

Thermal resolution: 160x120

Type: Hand Tool Parts

Visual resolution: 1440x1080

brand name: FLIR

customized support: OEM, ODM

material: plastic + iron

model number: ONE PRO

place of origin: China

type: thermal imaging camera

Hello friend, I am a seller from China, Xiong. Welcome to my store! Please add my WhatsApp:+86 19173103281.

Product Description

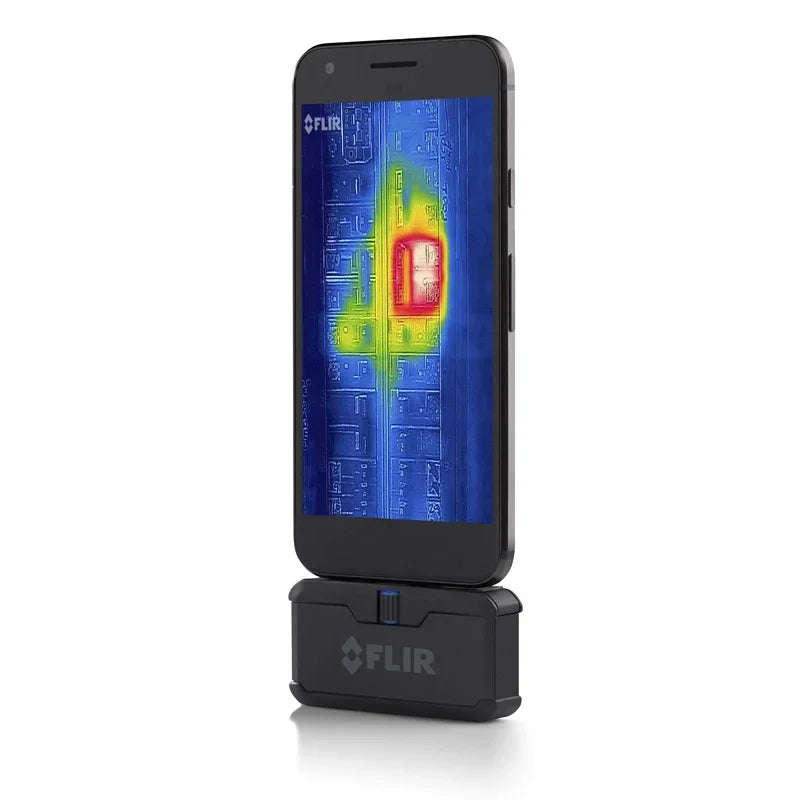

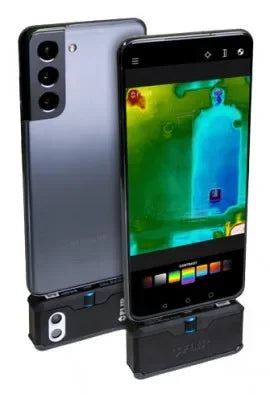

A 160 x 120 resolution thermal Imaging iPhone accessory with a 55° wide lens.

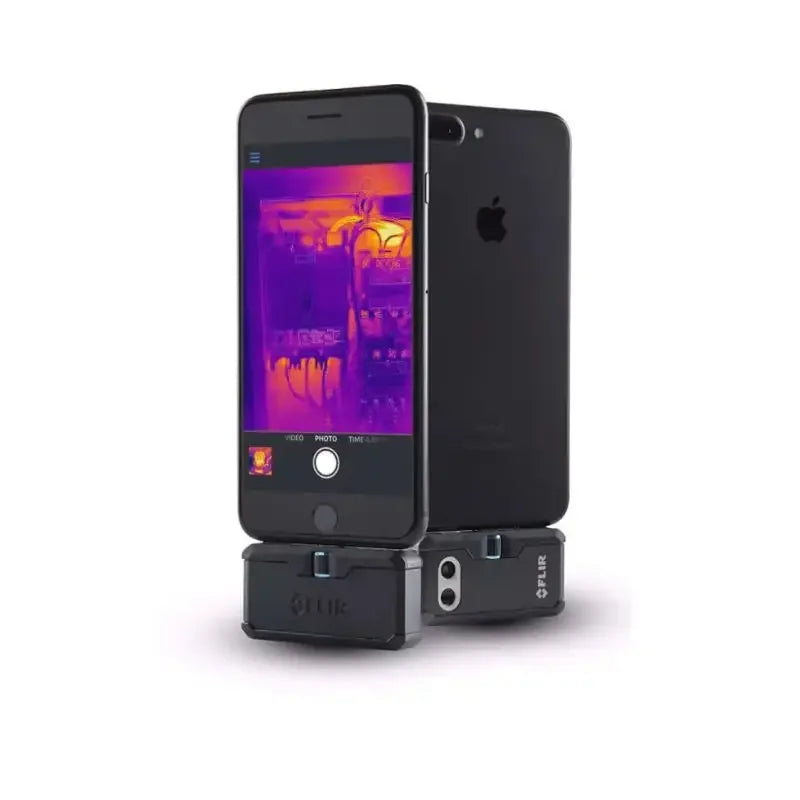

FLIR ONE PRO for iPhone (iOS) w/MSX 160 x 120 Resolution/9Hz
* OnePro iOS Thermal Imaging Camera Attachment
* Radiometric * FLIR ONE can measure temperatures on any spot in a scene between -4°F and 752°F (-20° to 400°C).


* Ask Another Pro * Connect with certified thermographers around the world for a second set of eyes on your project.


* FLIR ONE App * Explore additional features like FLIR ONE Panorama™, FLIR ONE TimeLapse™, and FLIR ONE CloseUp™ functions.

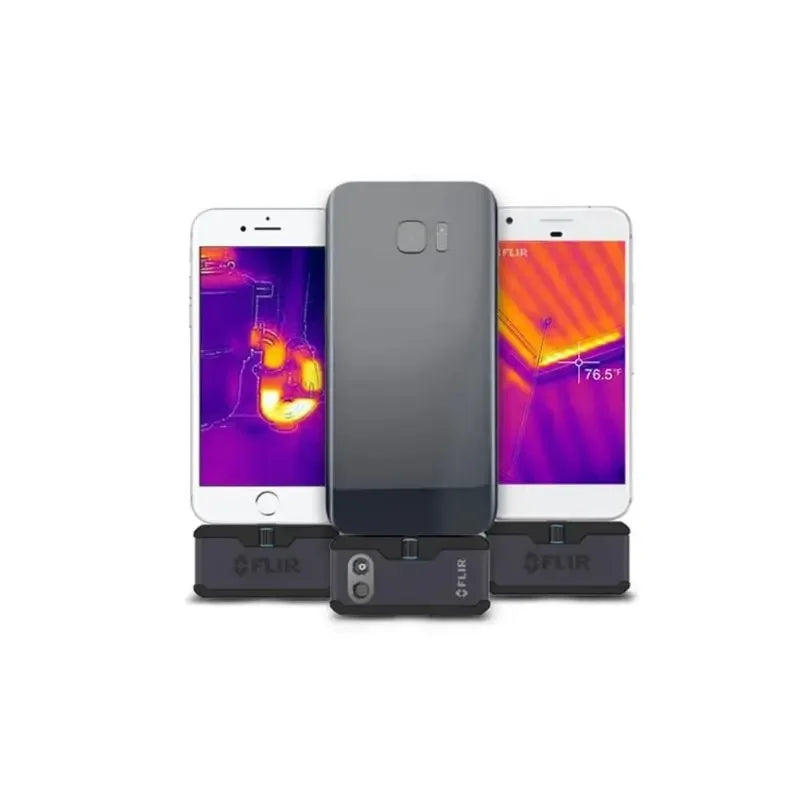

* OneFit™ Compatibility * The revolutionary OneFit adjustable-height connector ensures that your FLIR One will fit your phone or
tablet,

The all new FLIR ONE Pro gives you the power to find invisible problems faster than ever. Its revolutionary VividIR™ thermal image processing lets you see more details and provide your customers with proof that you solved their problem right the first time. Whether you're inspecting electrical panels, looking for HVAC/R problems, or finding water damage, the new FLIR ONE Pro is a tool no serious professional should be without. The new FLIR ONE app requires sign in, which enables automatic warranty registration and access to all the latest updates from FLIR.

Specification

Certifications	MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
Operating temperature	0 °C – 35 °C (32°F – 95°F) , battery charging 0 °C – 30 °C (32°F – 86°F)
Non-operating temperature	-20 °C – 60 °C (-4°F – 140°F)
Size	68mm W x34mm H x14mm D (2.7in x 1.3in x .6in)
Weight	36.5g
Mechanical Shock	Drop from 1.8m
Thermal Sensor	Pixel size 12μm, 8 – 14μm spectral range
Thermal resolution	160x120
Visual resolution	1440x1080
HFOV / VFOV	55° ± 1° / 43° ± 1°
Frame rates	8.7Hz
Focus	Fixed 15cm – Infinity
Scene dynamic range	-20°C – 400°C, -4°F - 752°F
Accuracy	±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60s after start-up when the unit is within 15 °C – 35 °C and the scene is within 5 °C – 120 °C
Shutter	Automatic/Manual
