Instructions for purchasing this kit:

   1, Before purchasing, Please ensure that your screen model is exactly the same as the model in our list, and that the screen itself can be turned on and displayed normally. If your screen is damaged, please do not place an order as this kit cannot repair and drive damaged screen.

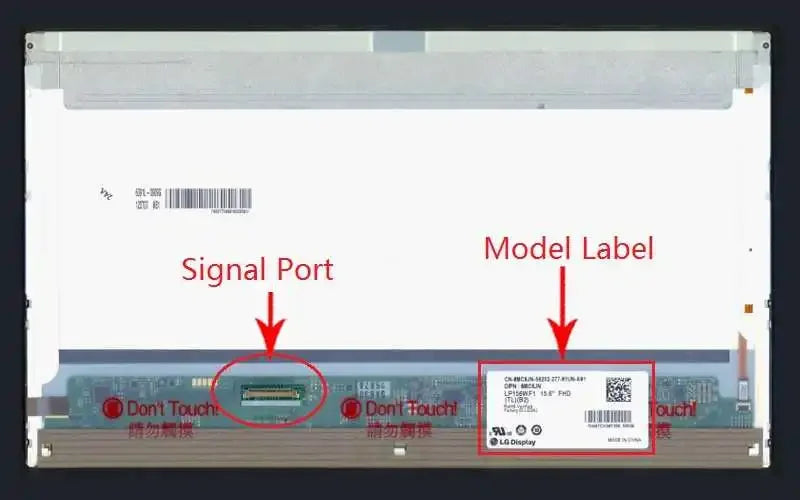

   2, If your screen model is not in our product list. Please provide us with the complete screen model to confirm the suitable kit (This is very important, Wrong purchase may lead to unusable). The model label can be found on the back of the screen panel. As shown in the following photo:

   3, Power adapter input: DC 12V 3A (DC Port: 2.5MM and 5.5MM inner+ outside-)

Please note: Do not use a power adapter with voltage exceeding 12V, as this will damage the circuit board.

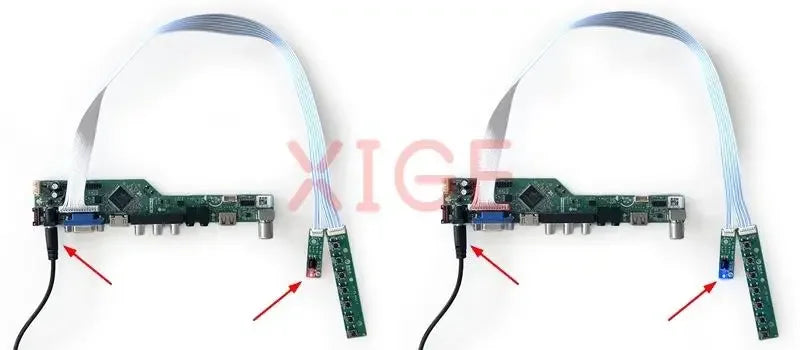

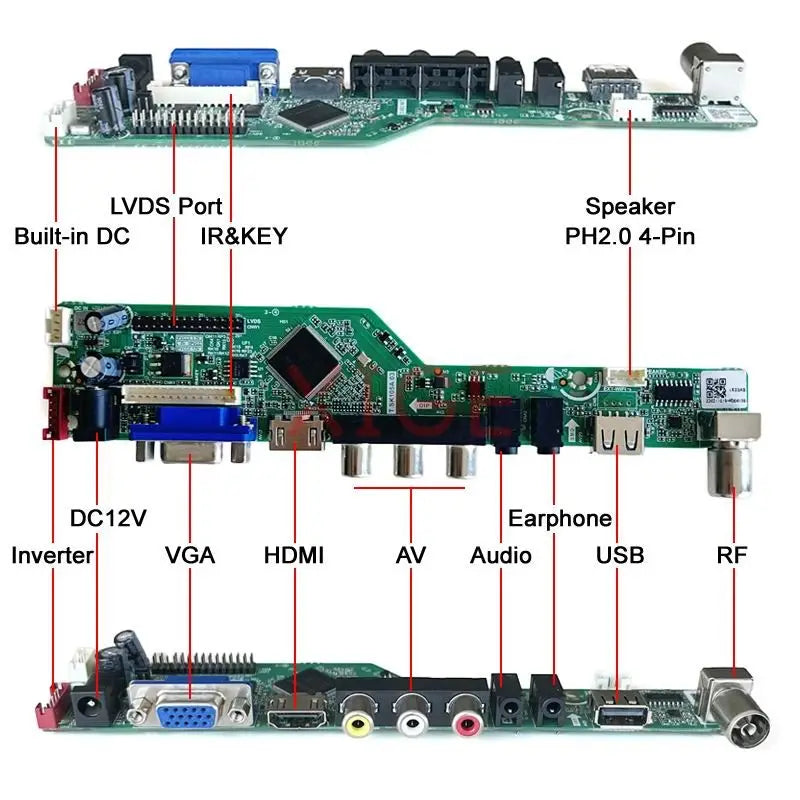

   4, This controller board kit is suitable for LED screen of LVDS 40-Pin signal ports. Only supports TV analog signals, not digital signals. AV Compatible With PAL And NTSC. USB port supports software upgrade, multimedia play. When powered on, the indicator light is red. It will turn blue in about 5 seconds. When the correct signal input is not detected, the indicator light will turn red again. As shown in the following photo:

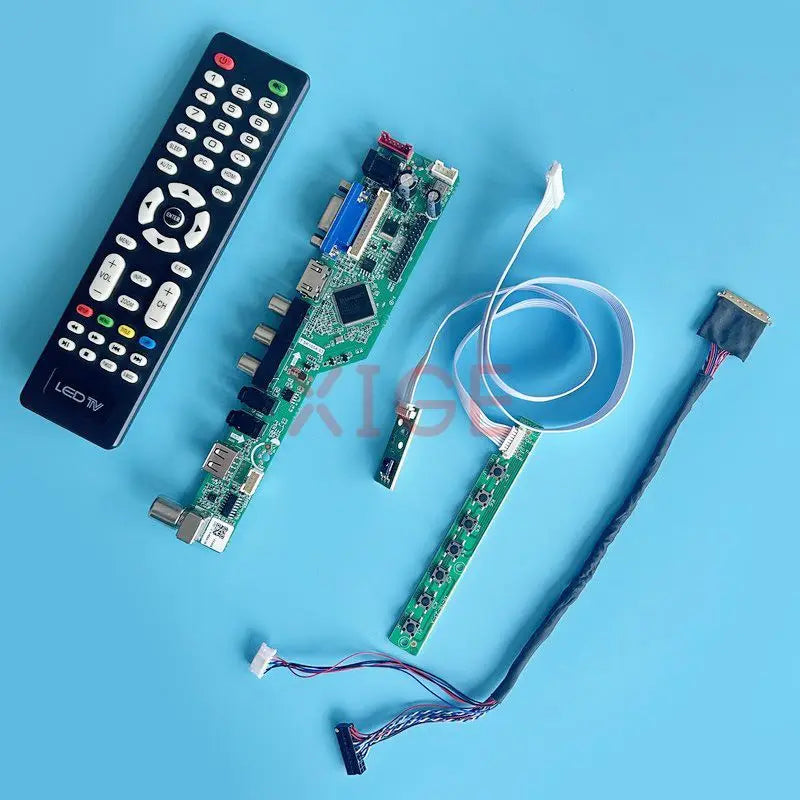

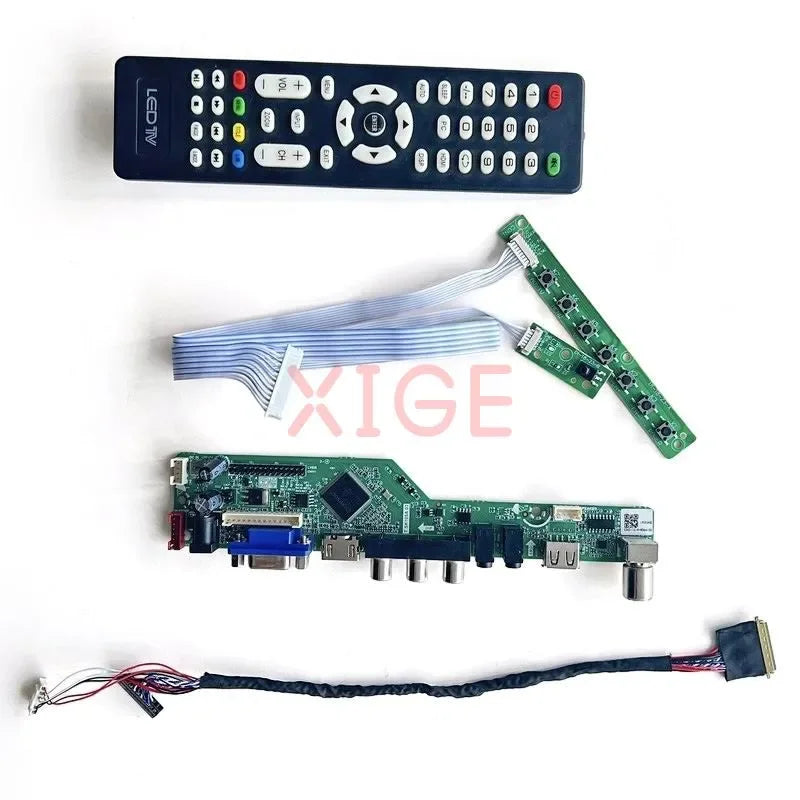

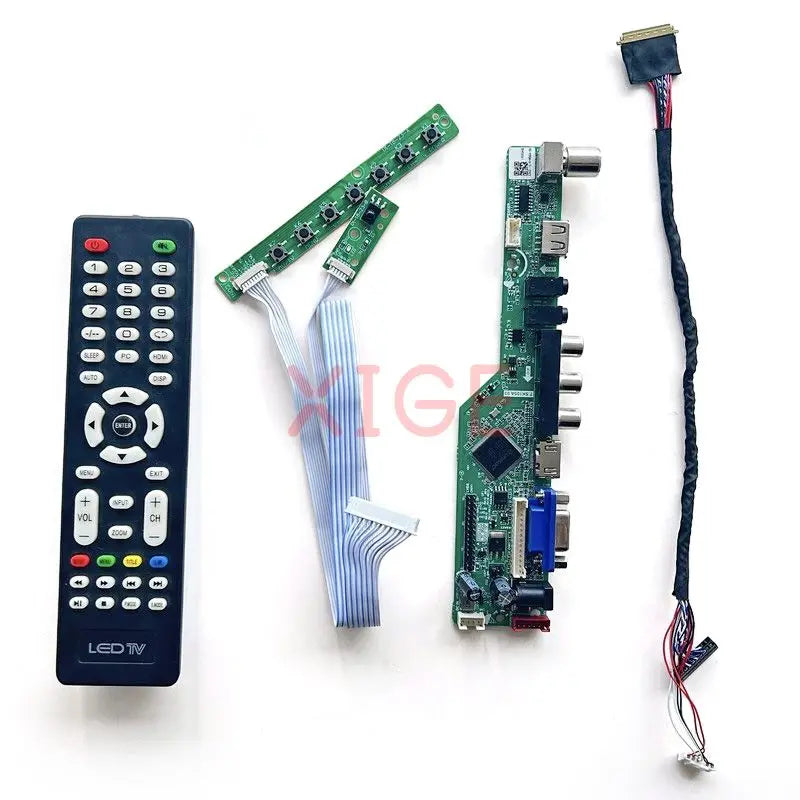

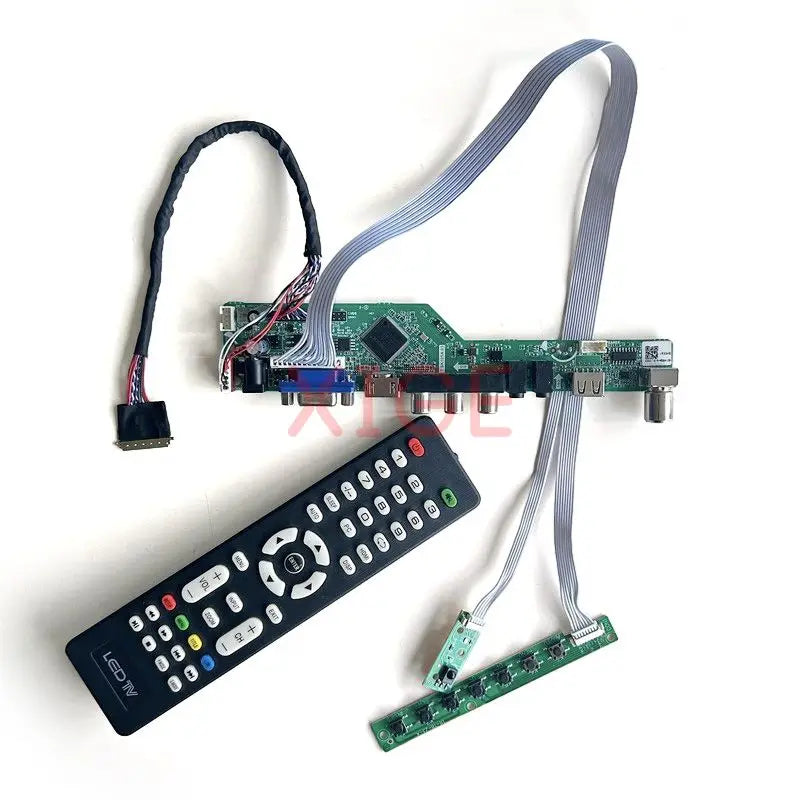

   5, The kit includes:

1Pcs x Controller motherboard

1Pcs x LVDS signal cable

1Pcs x IR and Keyboard with cable

1Pcs x Remote control (Battery Not included)

In addition to the products included in the kit, you may also need the following accessories:

DC 12V 3A Power adapter → Please click here

PH2.0 4-Pin Small speaker → Please click here

Motherboard Protection Box → Please click here

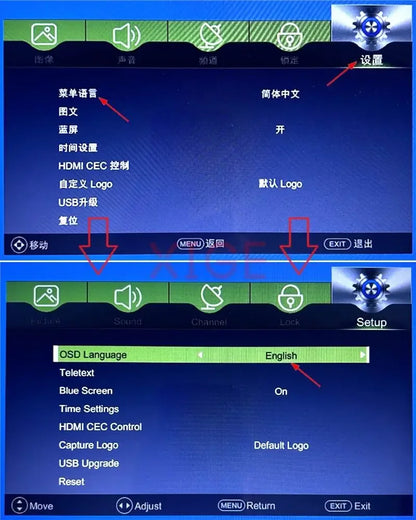

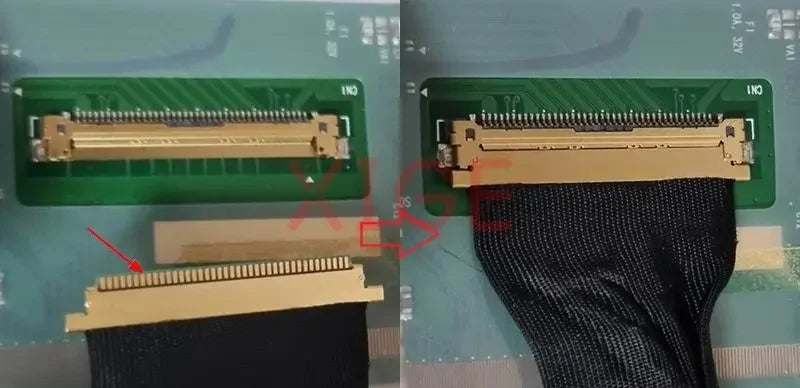

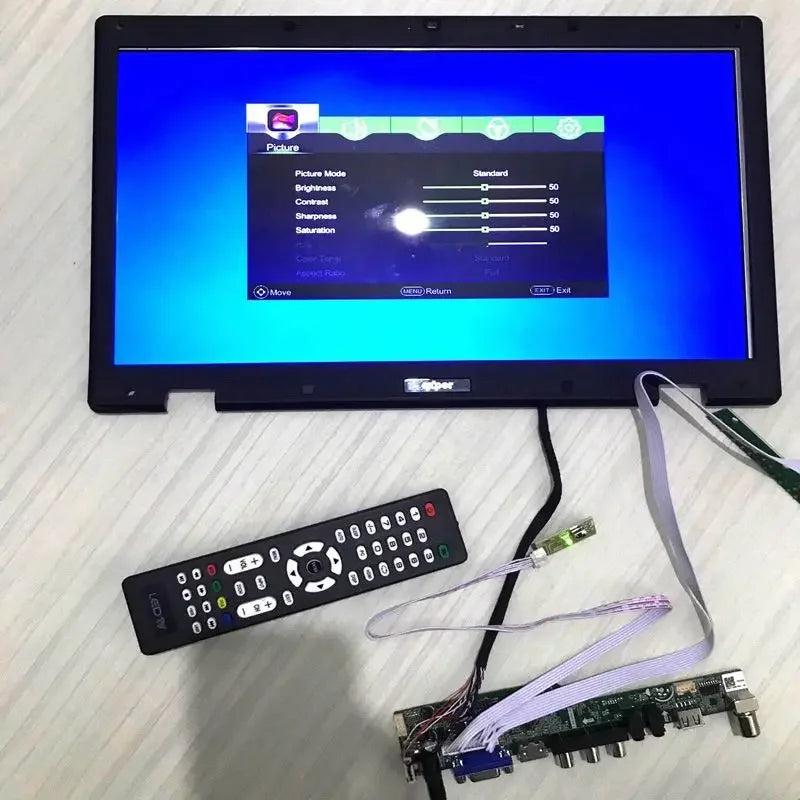

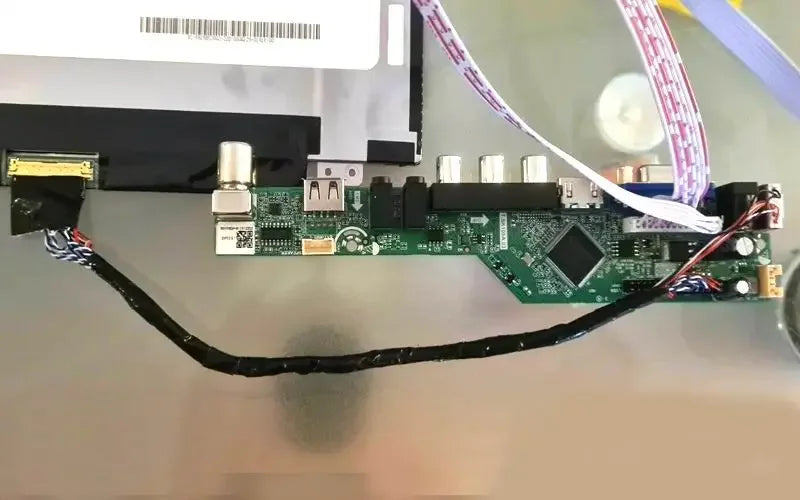

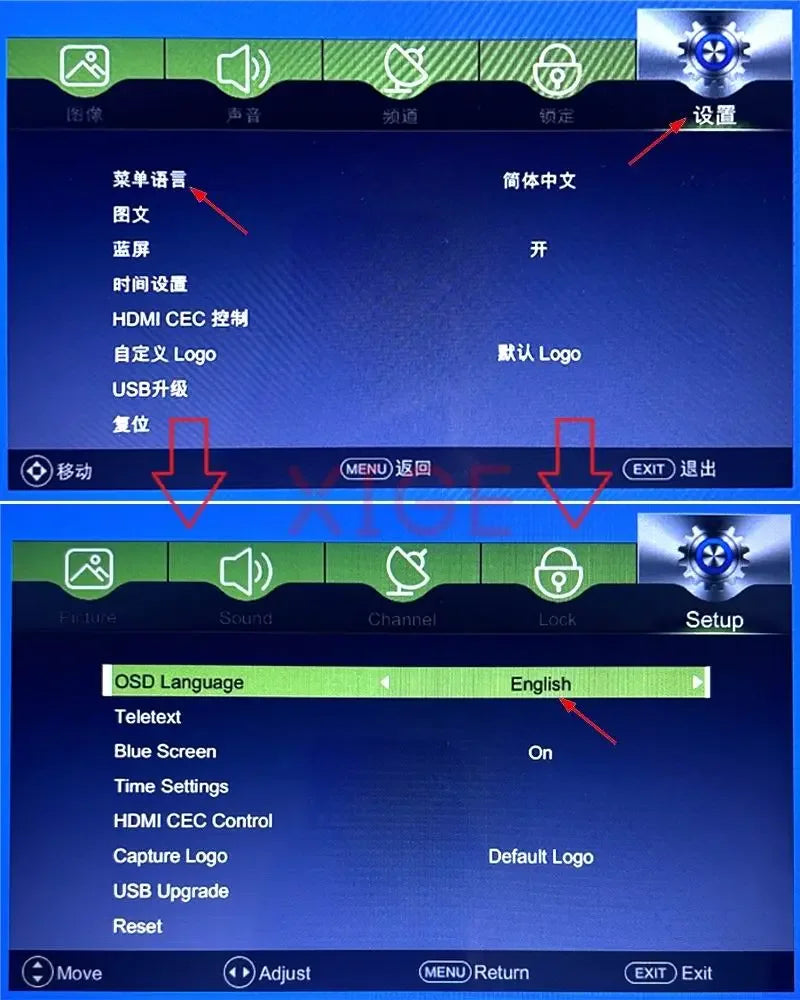

   6, Please refer to the photos below for screen cable connections and language settings. (OSD menu has multiple interfaces. If different, please contact us)

   7, If you have any problems during the operation. Please feel free to contact us. It's best to provide some photos or videos to help us check the problem. Blind negative evaluation does not solve any problem. Hope we can communicate to solve. Thanks in advance.

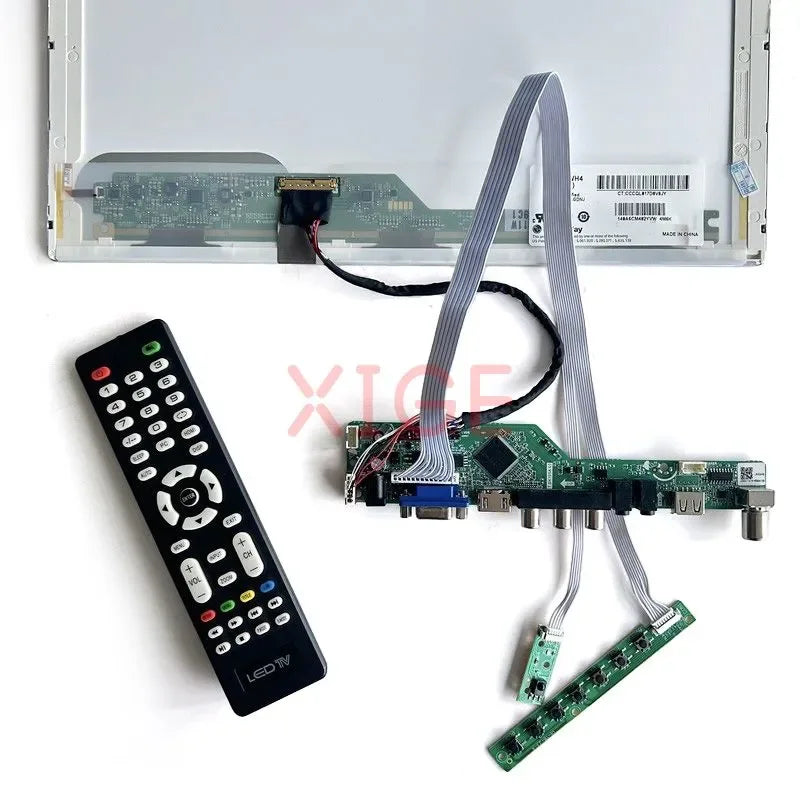

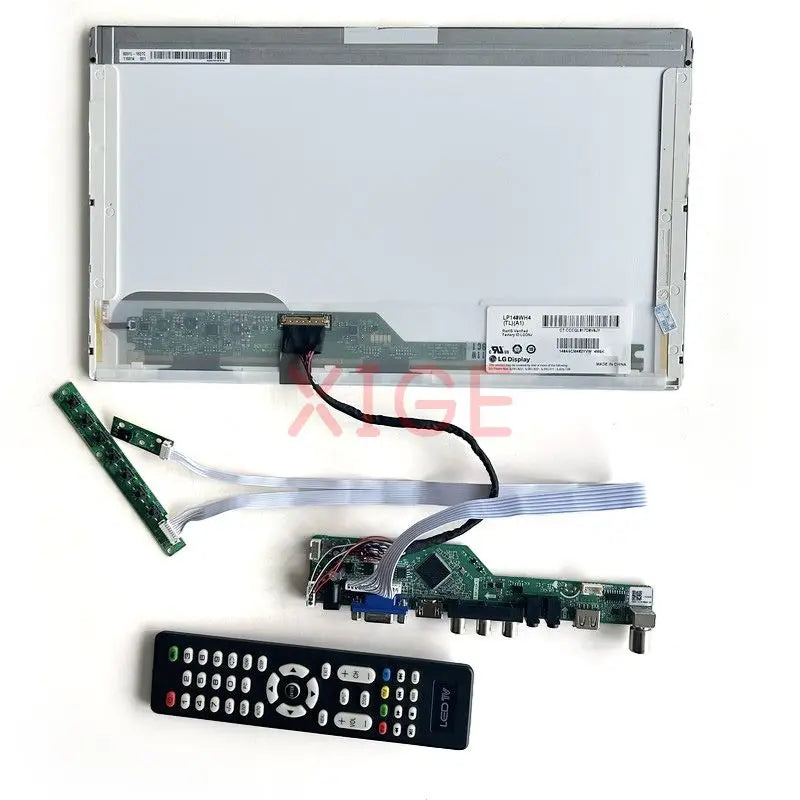

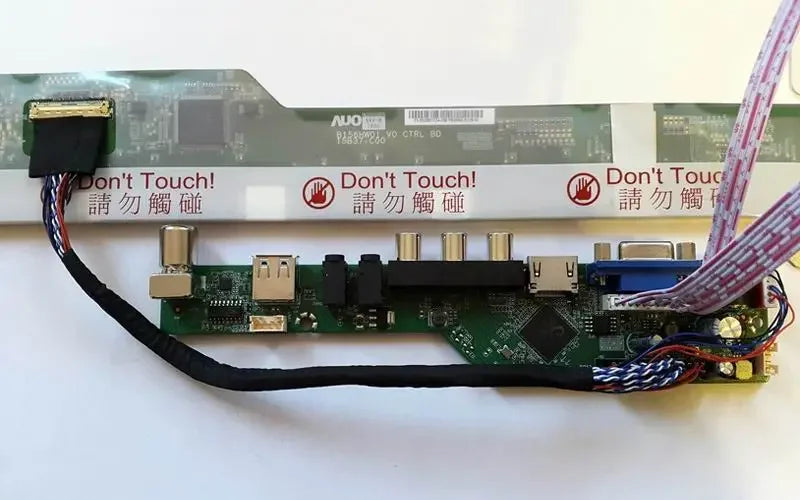

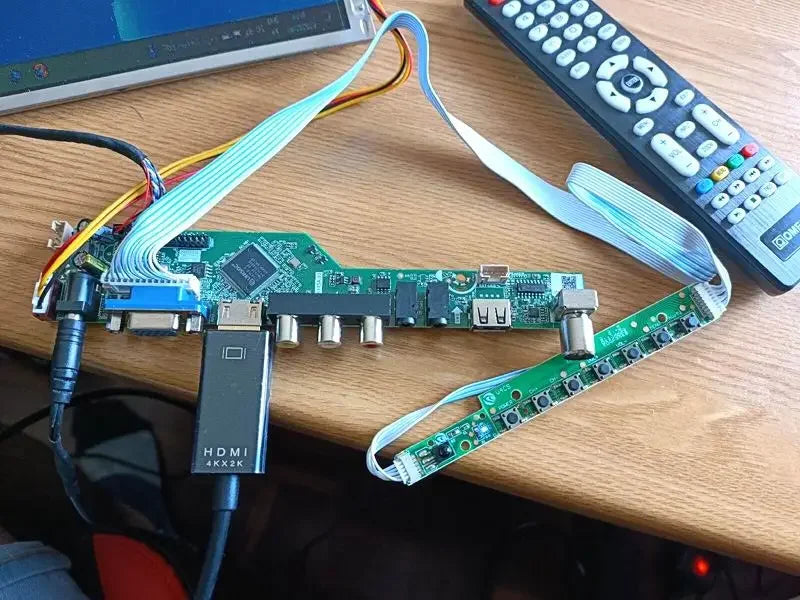

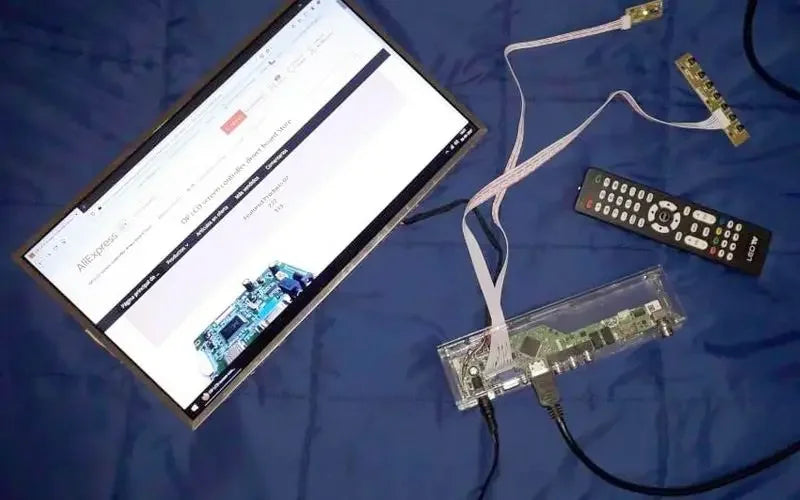

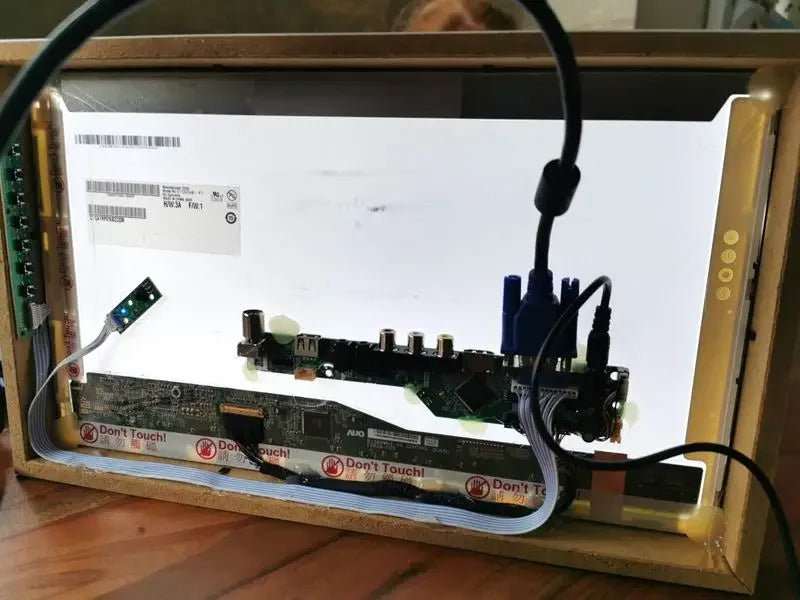

Below are photos from buyer feedback. For reference only.
