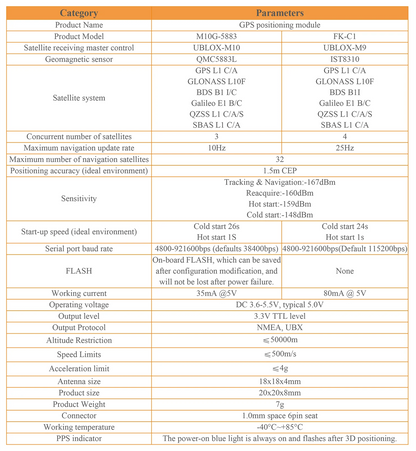

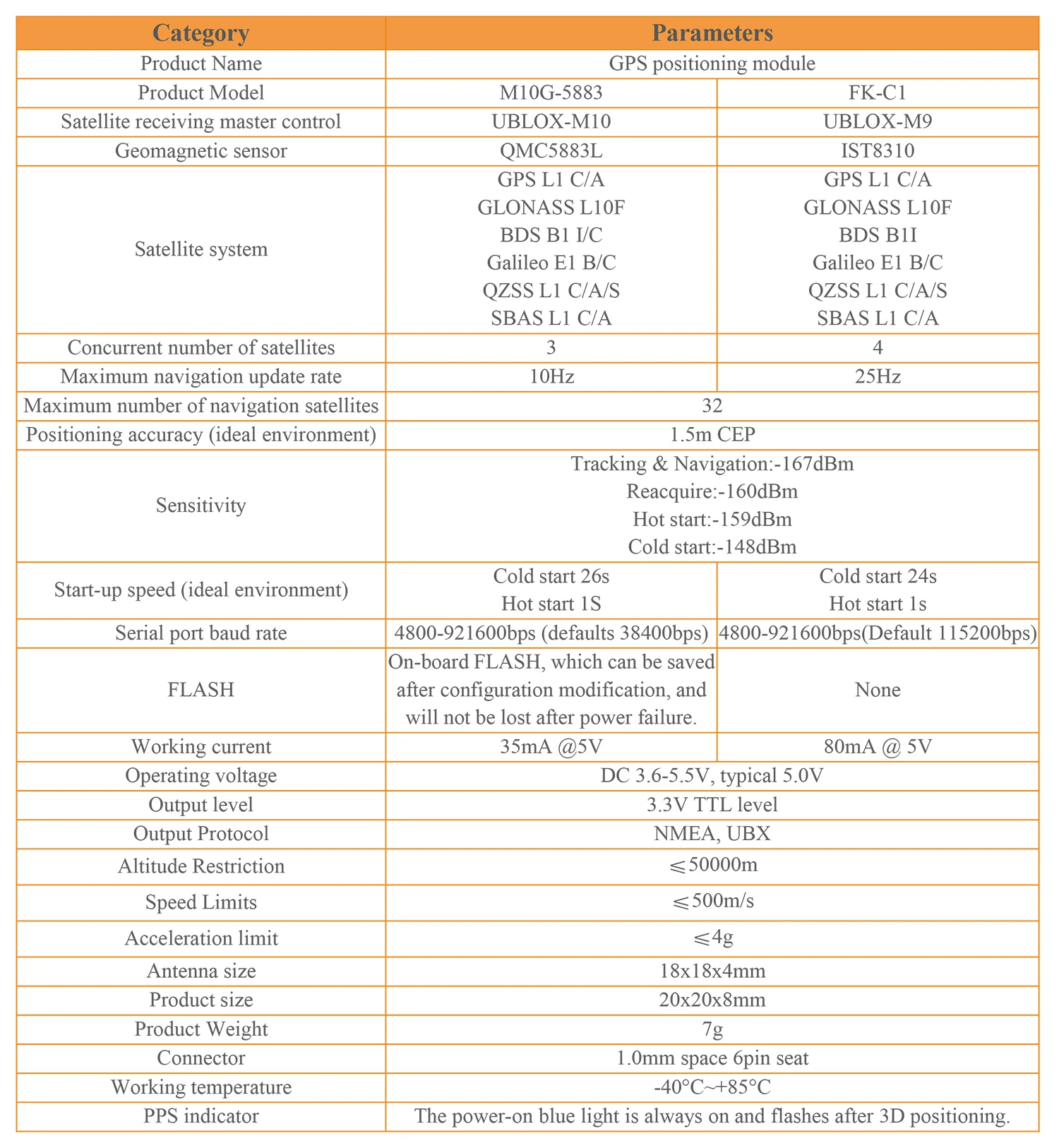

Category

Parameters

Product Name

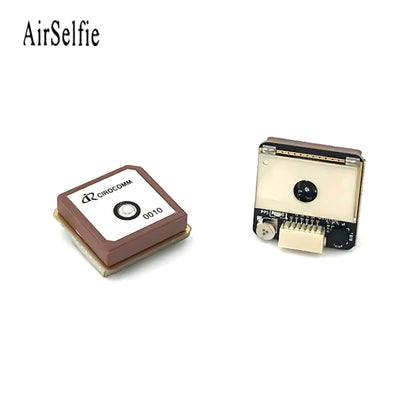

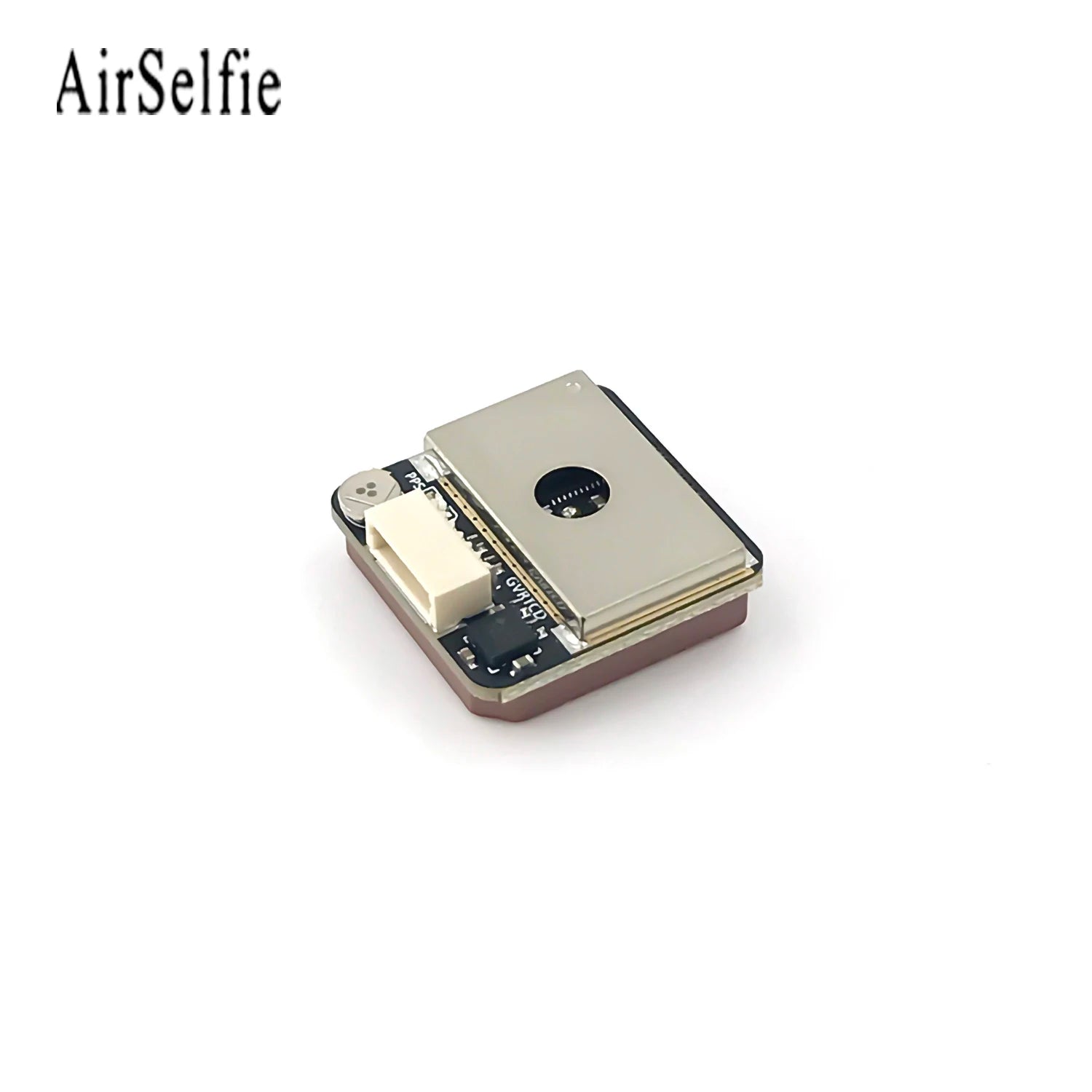

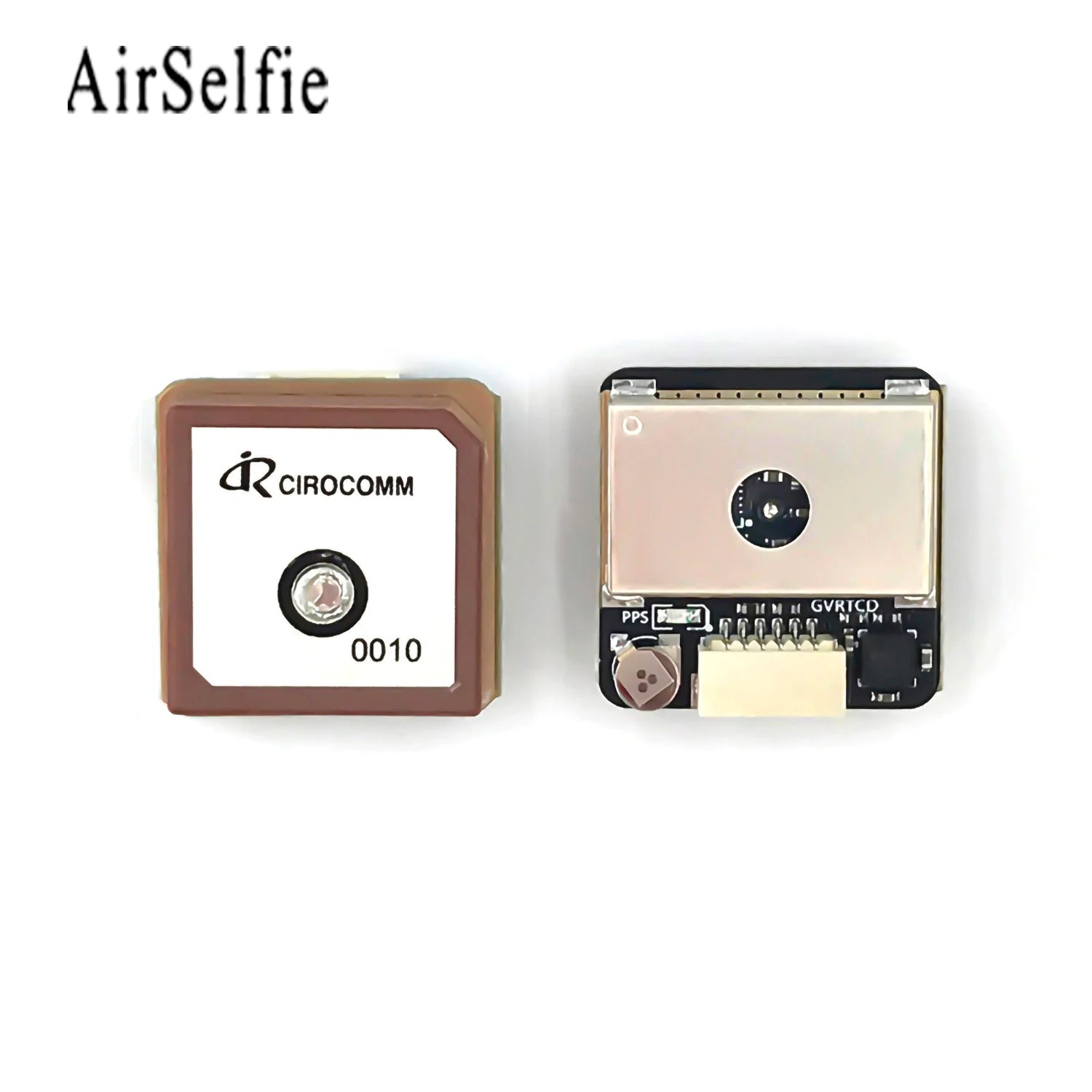

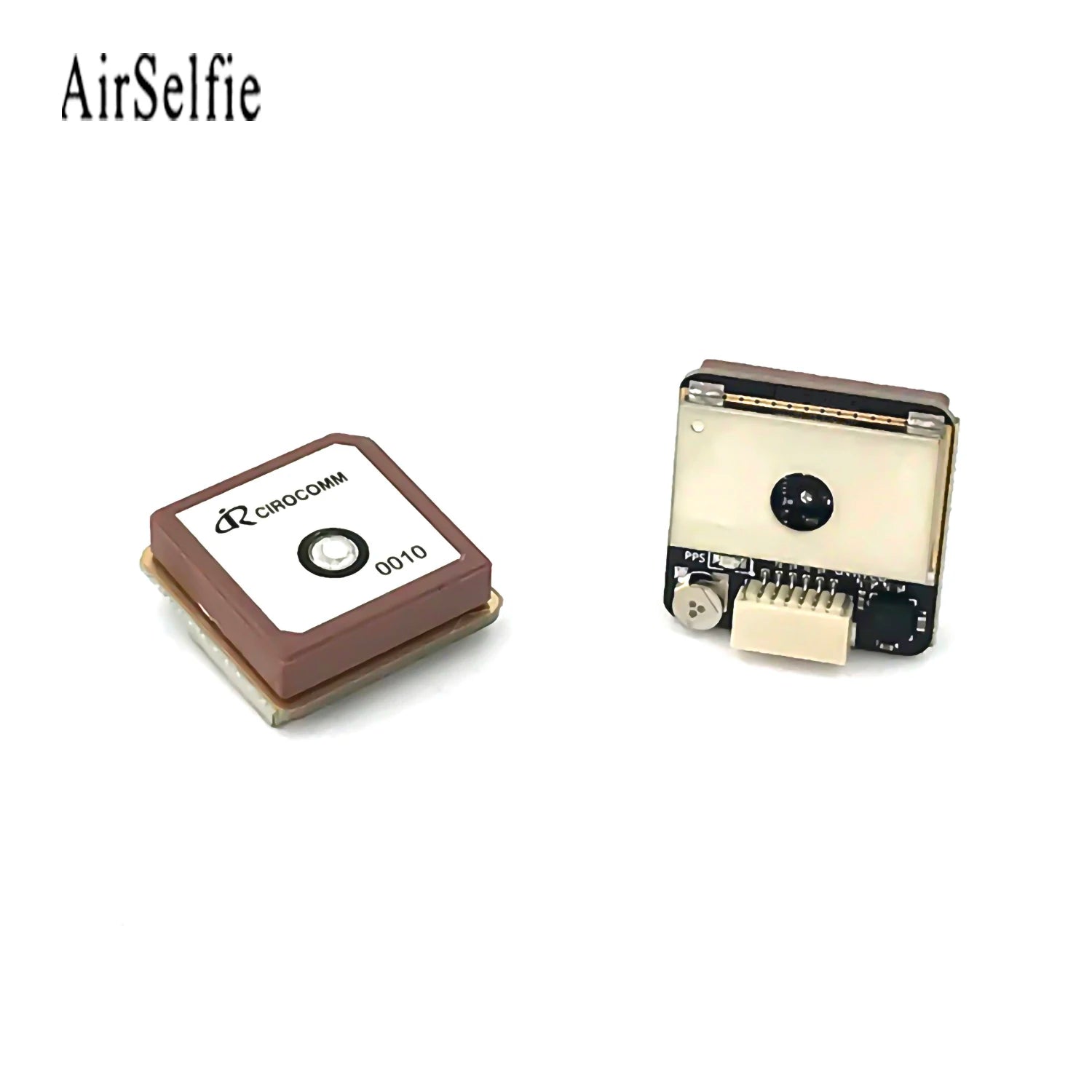

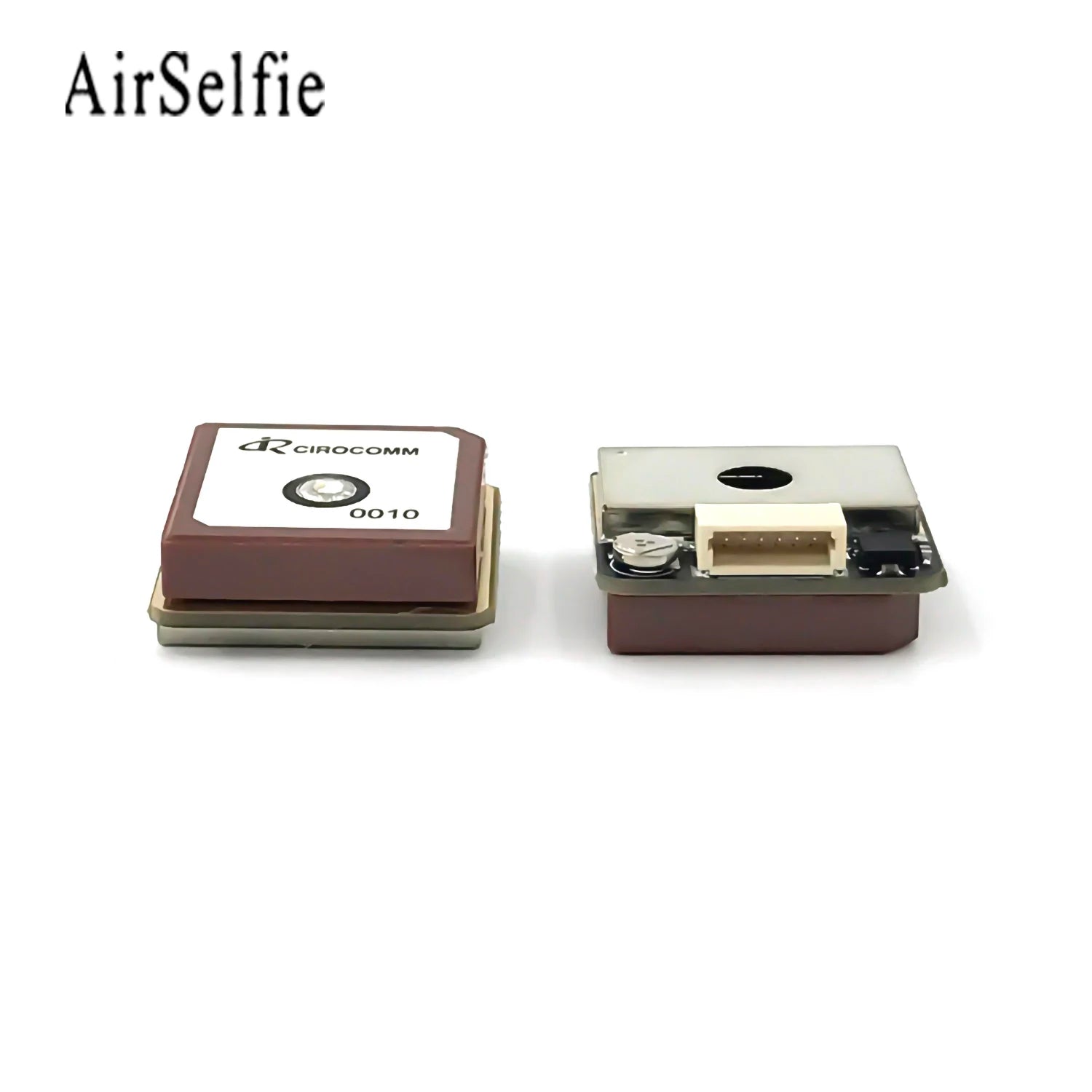

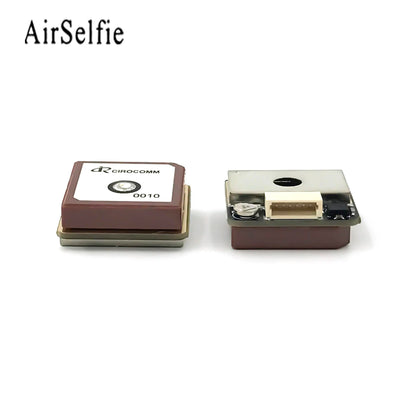

GPS positioning module

Product Model

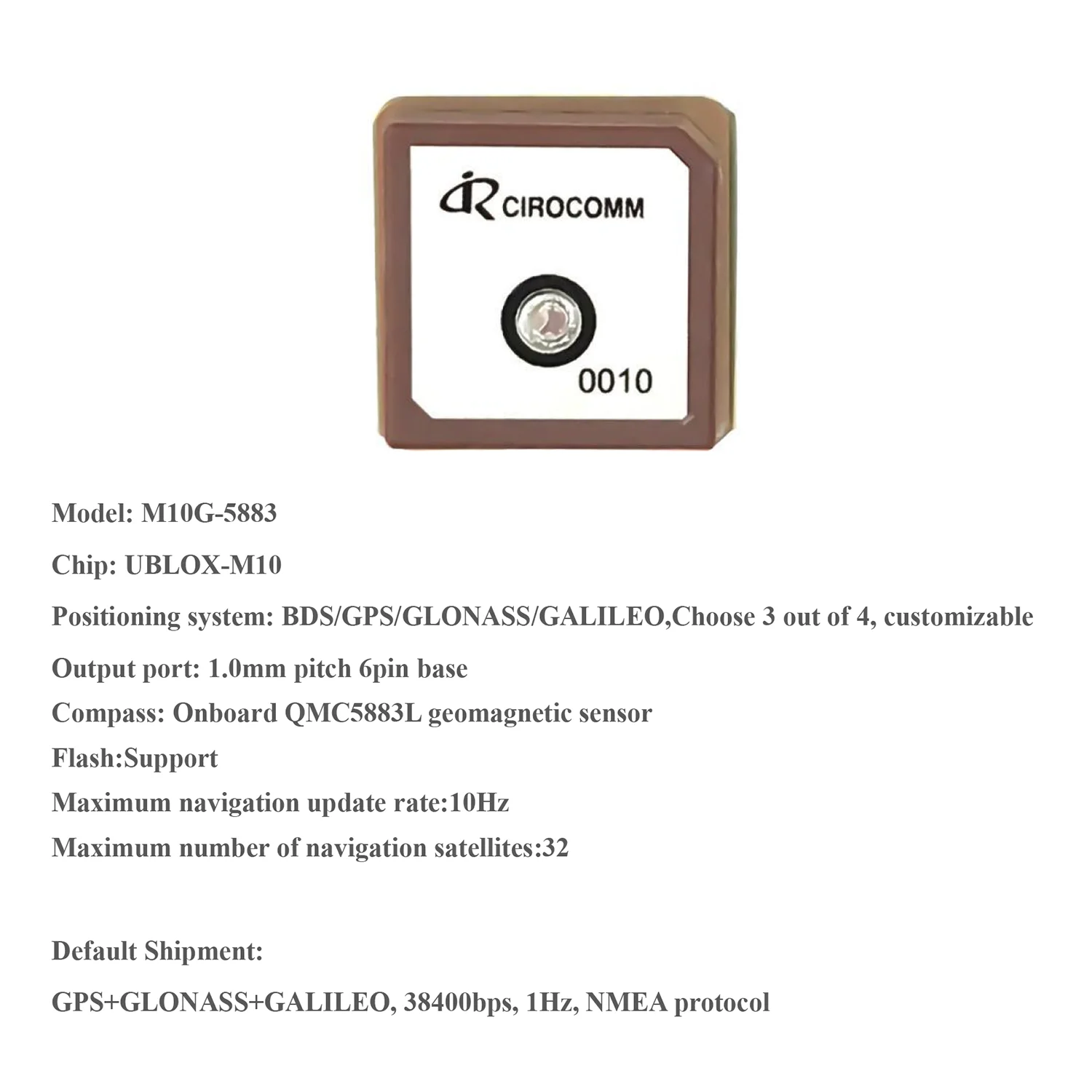

M10G-5883

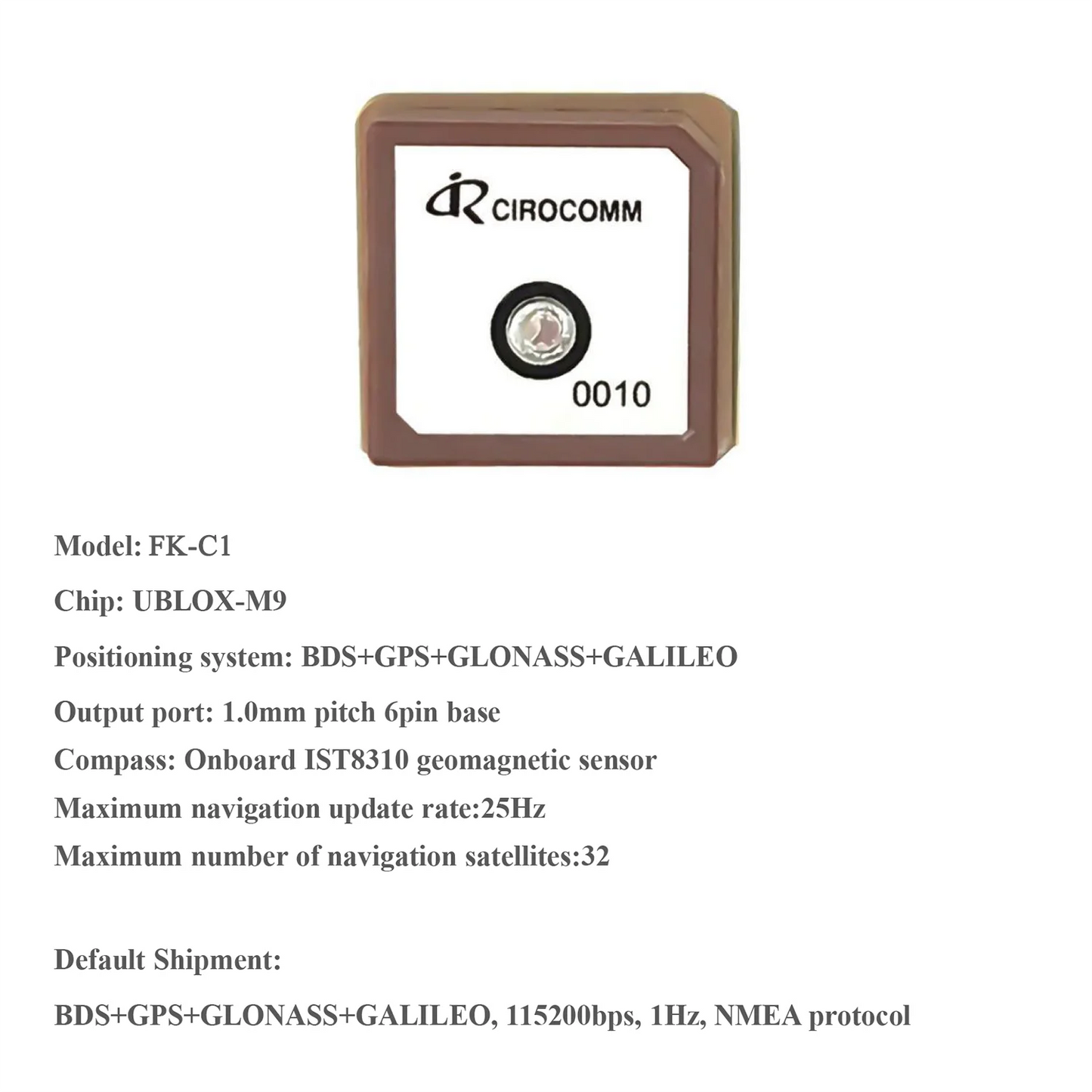

FK-C1

Satellite receiving master control

UBLOX-M10

UBLOX-M9

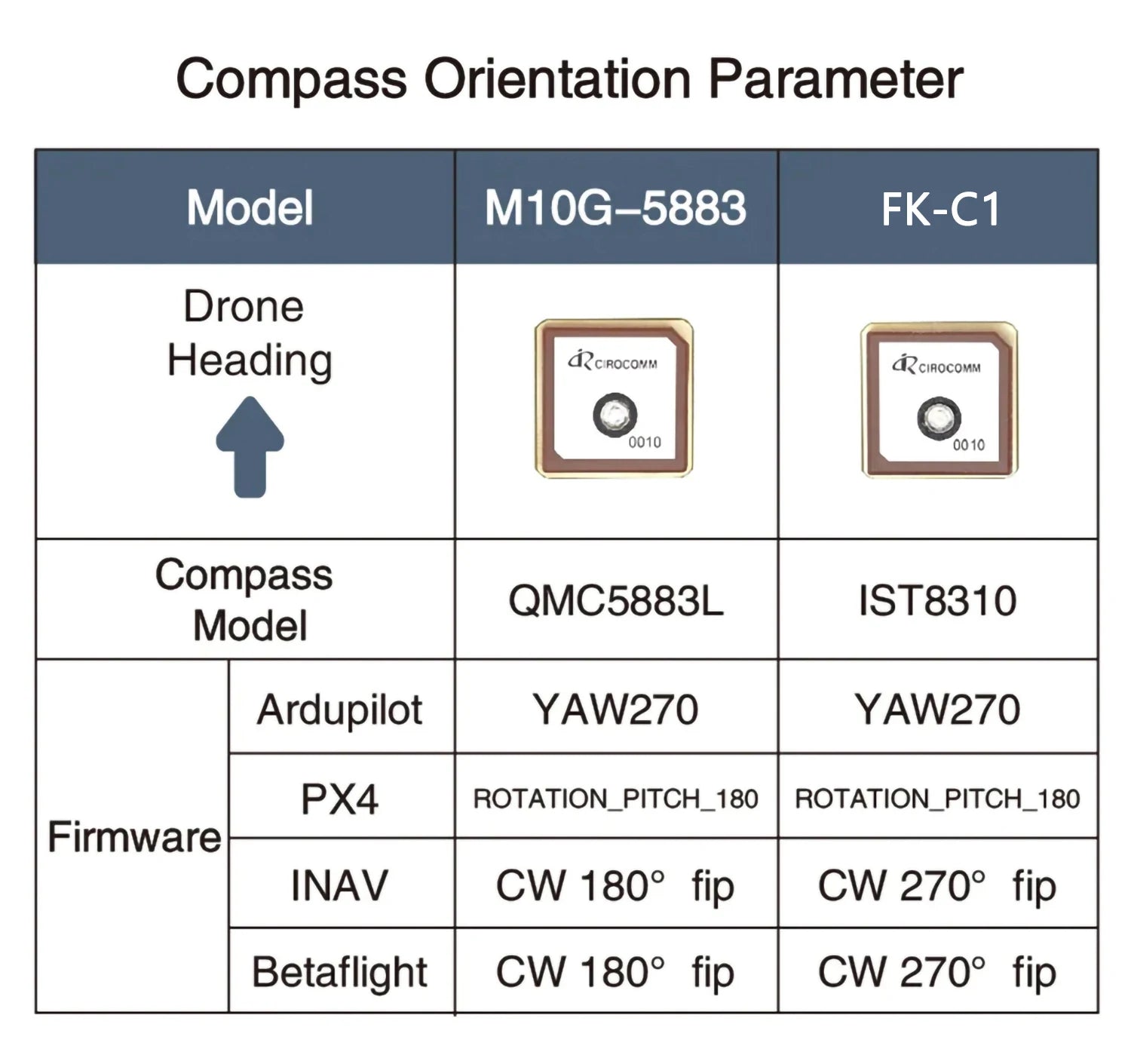

Geomagnetic sensor

QMC5883L

IST8310

Satellite system

GPS L1 C/A

GLONASS L10F

BDSB1I/C

Galileo E1B/C

QZSS L1 C/A/S

SBAS L1 C/A

GPS L1 C/A

GLONASS L10F

BDS B1I

Galileo E1B/C

QZSS L1 C/A/S

SBAS L1 C/A

Concurrent number of satellites

3

4

Maximum navigation update rate

10Hz

25Hz

Maximum number of navigation satellites

32

Positioning accuracy (ideal environment)

1.5m CEP

Sensitivity

Tracking & Navigation:-167dBm

Reacquire:-160dBm

Hot start:-159dBm

Cold start:-148dBm

Start-up speed (ideal environment)

Cold start 26s

Hot start 1S

Cold start 24s

Hot start 1s

Serial port baud rate

4800-921600bps(defaults38400bps)

4800-921600bps(Default 115200bps)

FLASH

On-board FLASH, which can be saved after configuration modification, and will not be lost after power failure.

None

Working current

35mA@5V

80mA @ 5V

Operating voltage

DC 3.6-5.5V, typical 5.0V

Output level

3.3V TTL level

Output Protocol

NMEA, UBX

Altitude Restriction

≤50000m

Speed Limits

≤500m/s

Acceleration limit

≤4g

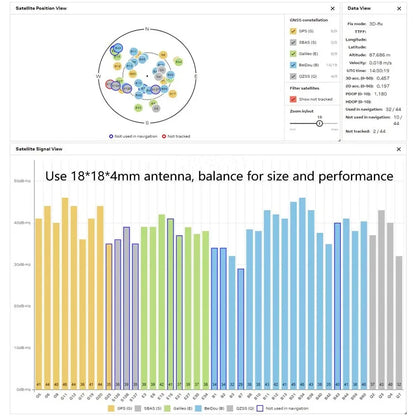

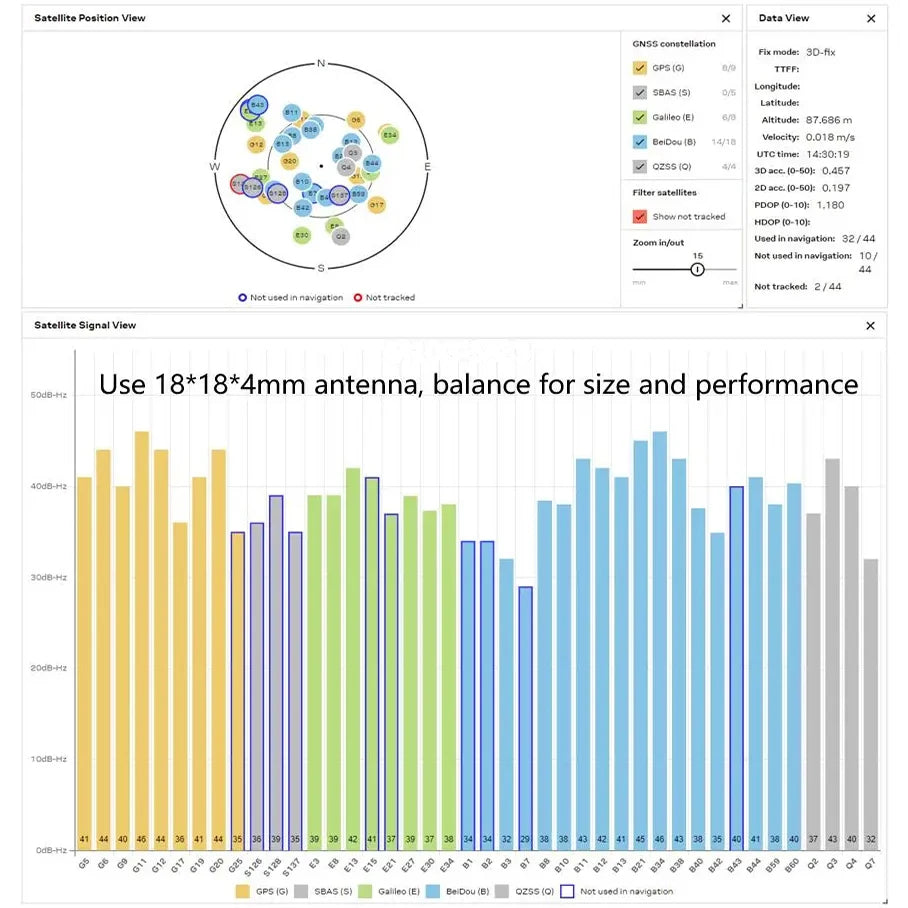

Antenna size

18x18x4mm

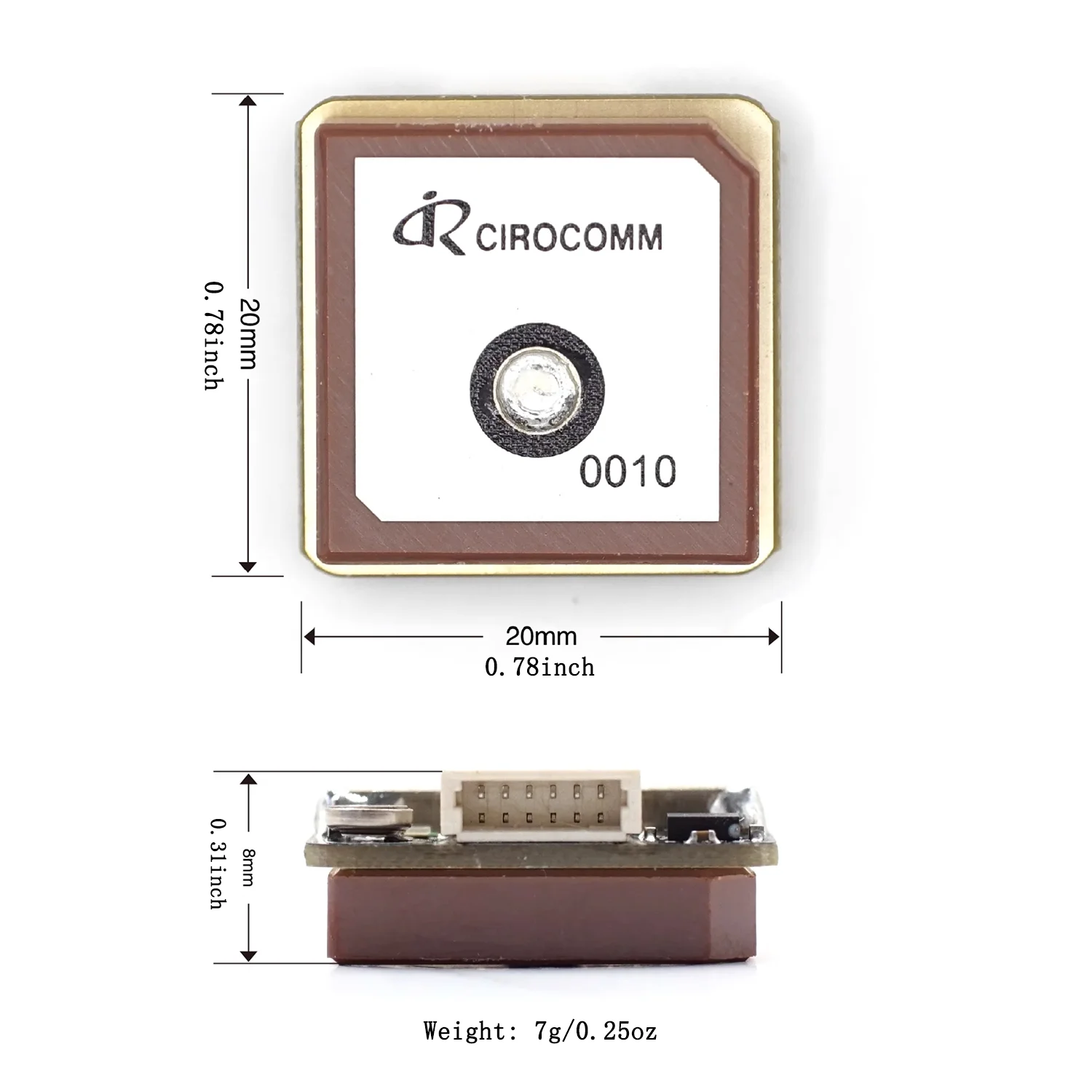

Product size

20x20x8mm

Product Weight

7g

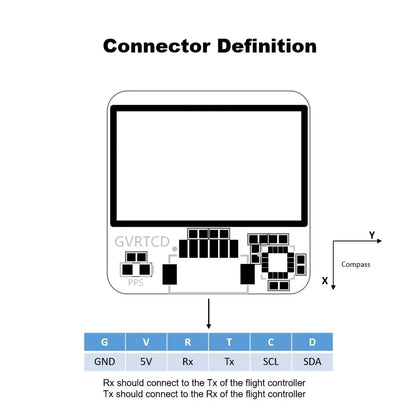

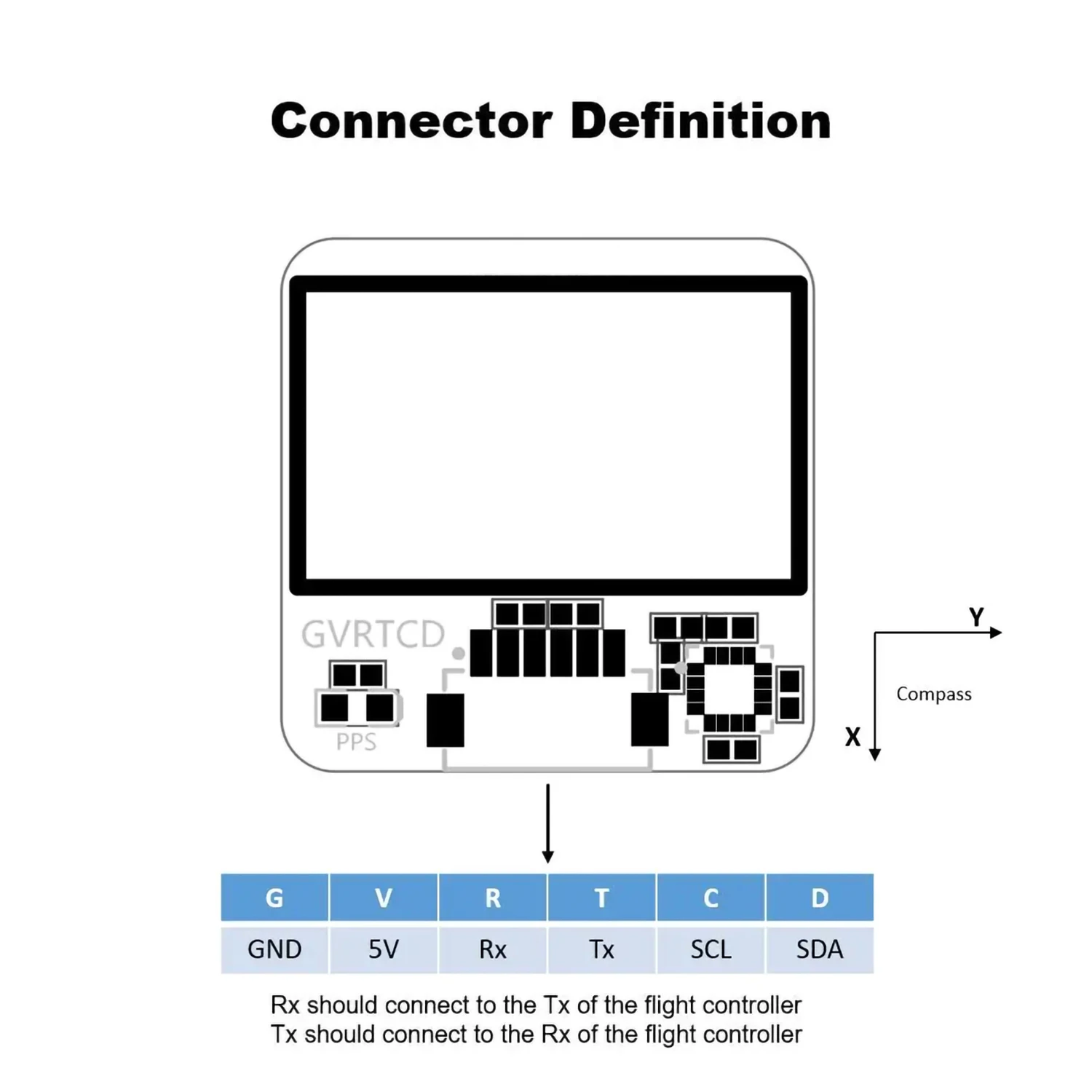

Connector

1.0mmspace6pin seat

Working temperature

-40°C~+85°C

PPS indicator

The power-on blue light is always on and flashes after 3D positioning.
