Placa Driver Backlight LED Universal GYD-399 Corriente Constante para TV LCD 26-55" Booster
Placa Driver Backlight LED Universal GYD-399 Corriente Constante para TV LCD 26-55" Booster
Precio habitual
$9.245 CLP
Precio habitual
$12.245 CLP
Precio de oferta
$9.245 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
Choice: yes
Model Number: GYD-399
Origin: Mainland China
Package: Yes
Type: IDE Cables
semi_Choice: yes
Instructions:

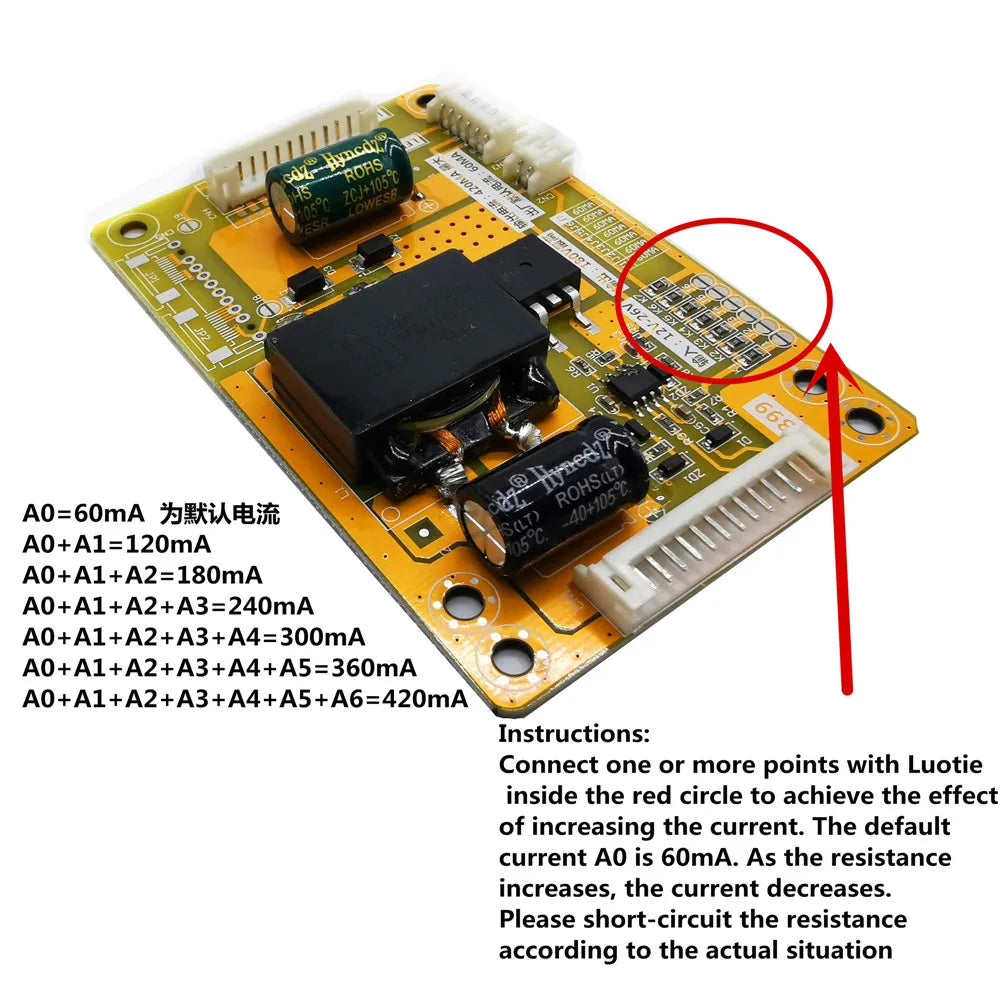

Connect one or more points with Luotie inside the red circle to achieve the effect of increasing the current. The default current A0 is 60mA. As the resistance increases, the current decreases. Please short-circuit the resistance according to the actual situation
A0=60mA
A0+A1=120mA
A0+A1+A2=180mA
A0+A1+A2+A3=240mA
A0+A1+A2+A3+A4=300mA
A0+A1+A2+A3+A4+A5=360mA
A0+A1+A2+A3+A4+A5+A6=420mA
