SPECIFICATIONS

Brand Name: Gaqqee

Certification: None

Choice: yes

DIY Supplies: ELECTRICAL

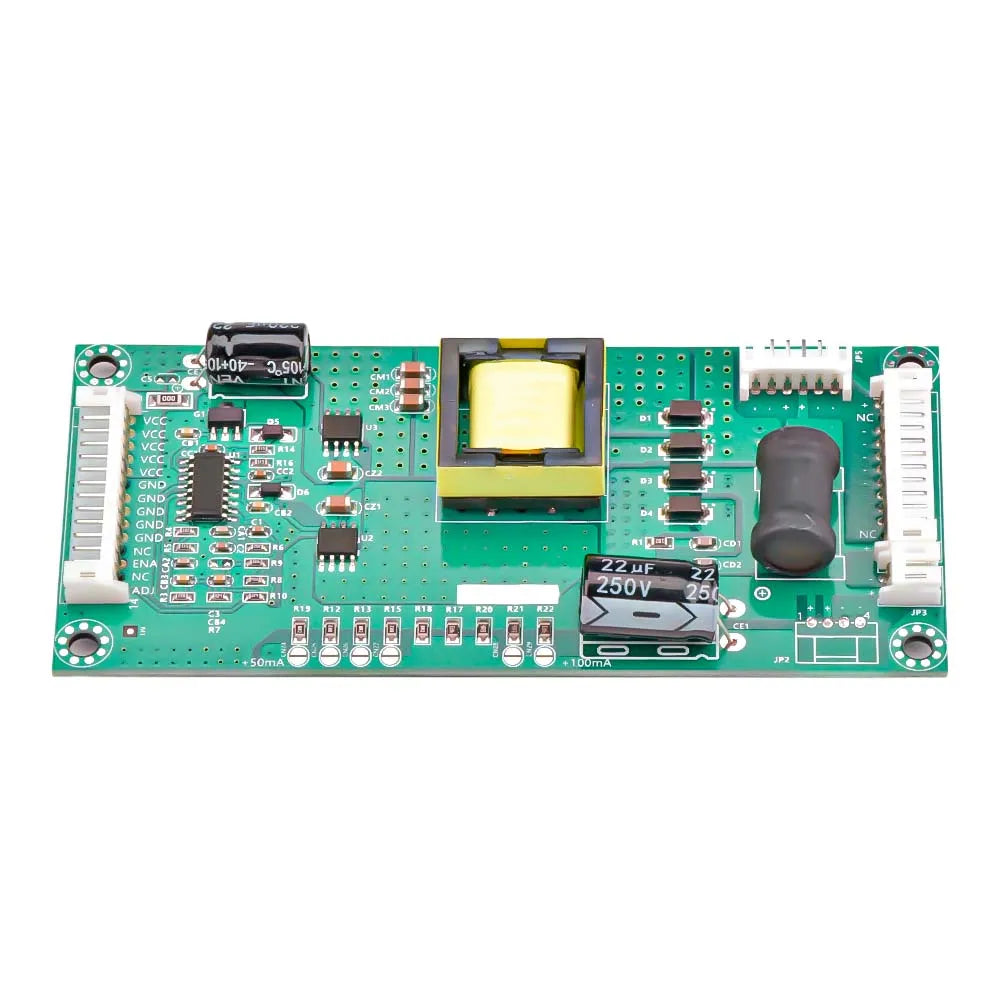

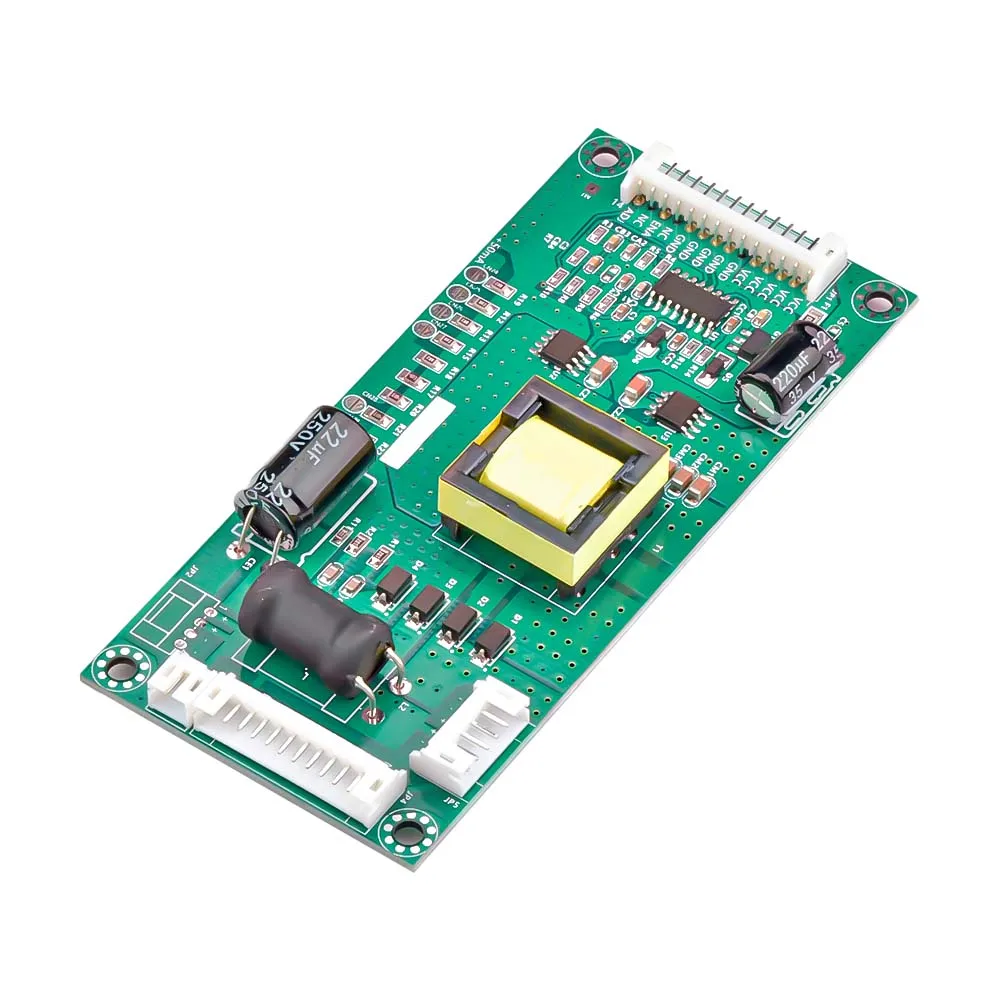

Model Number: LCD TV backlight board

Origin: Mainland China

Size: 11.1*5*1.1cm

Style: constant current board

semi_Choice: yes

Features:

1: Widely used

2: Small size

3: Stable performance

4: Easy to use

5: Universal under 65 inches

Specifications:

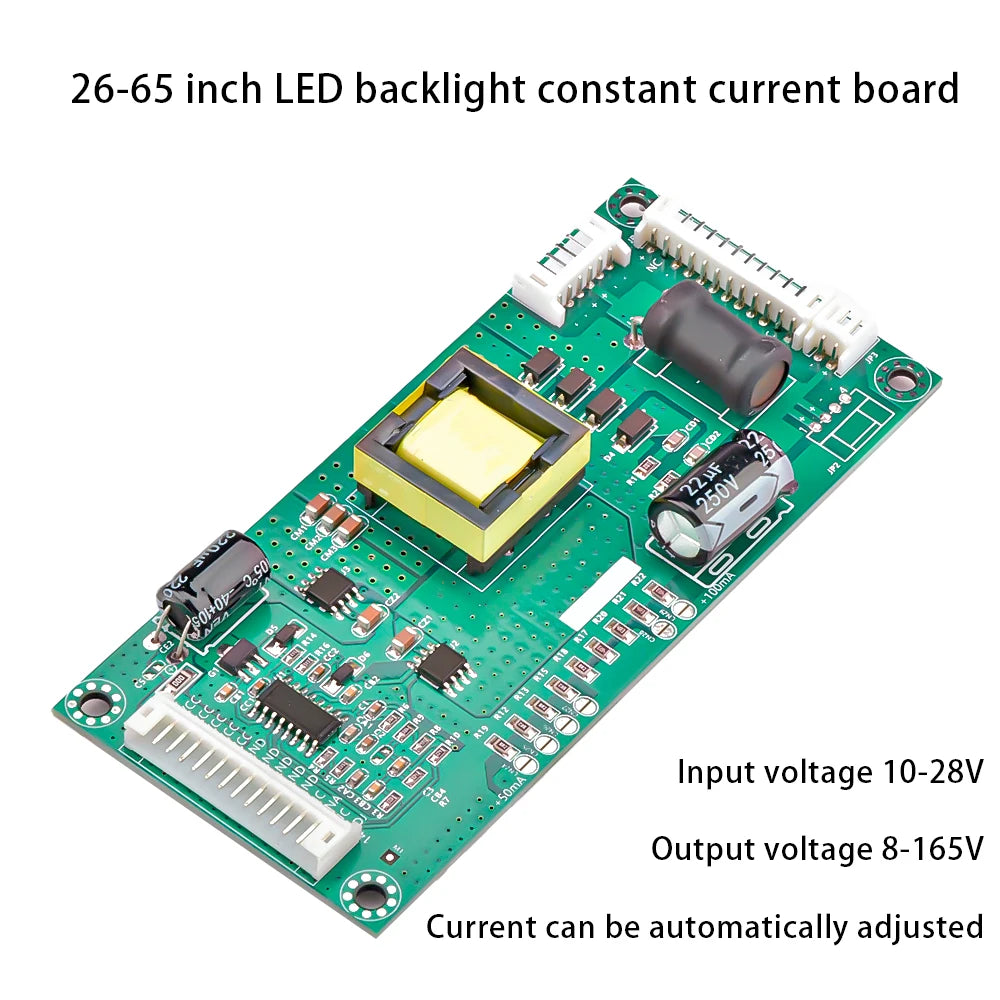

[Input voltage range] 10-28V

[Output voltage range] 8-165V

[Support range] Available below 65 inches

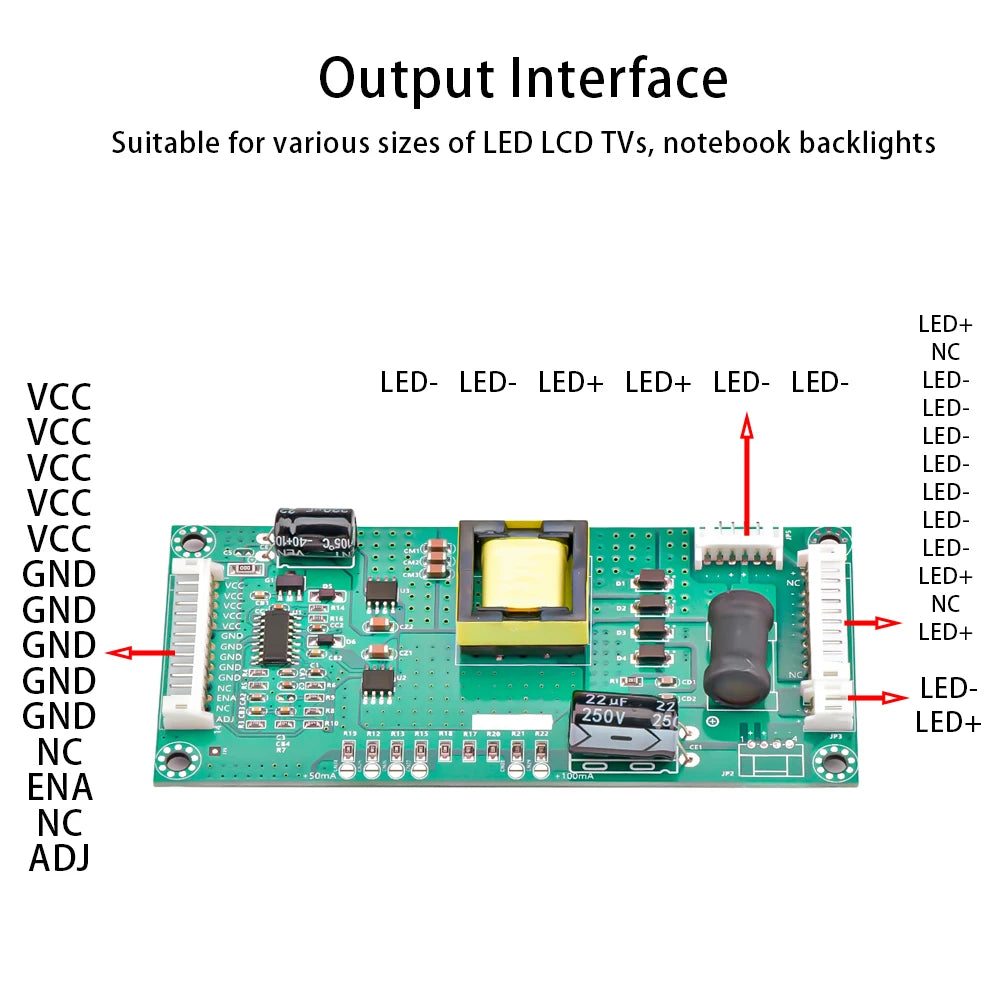

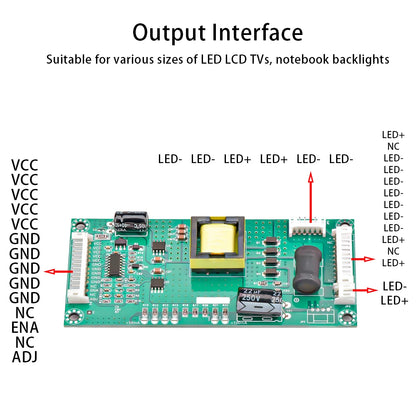

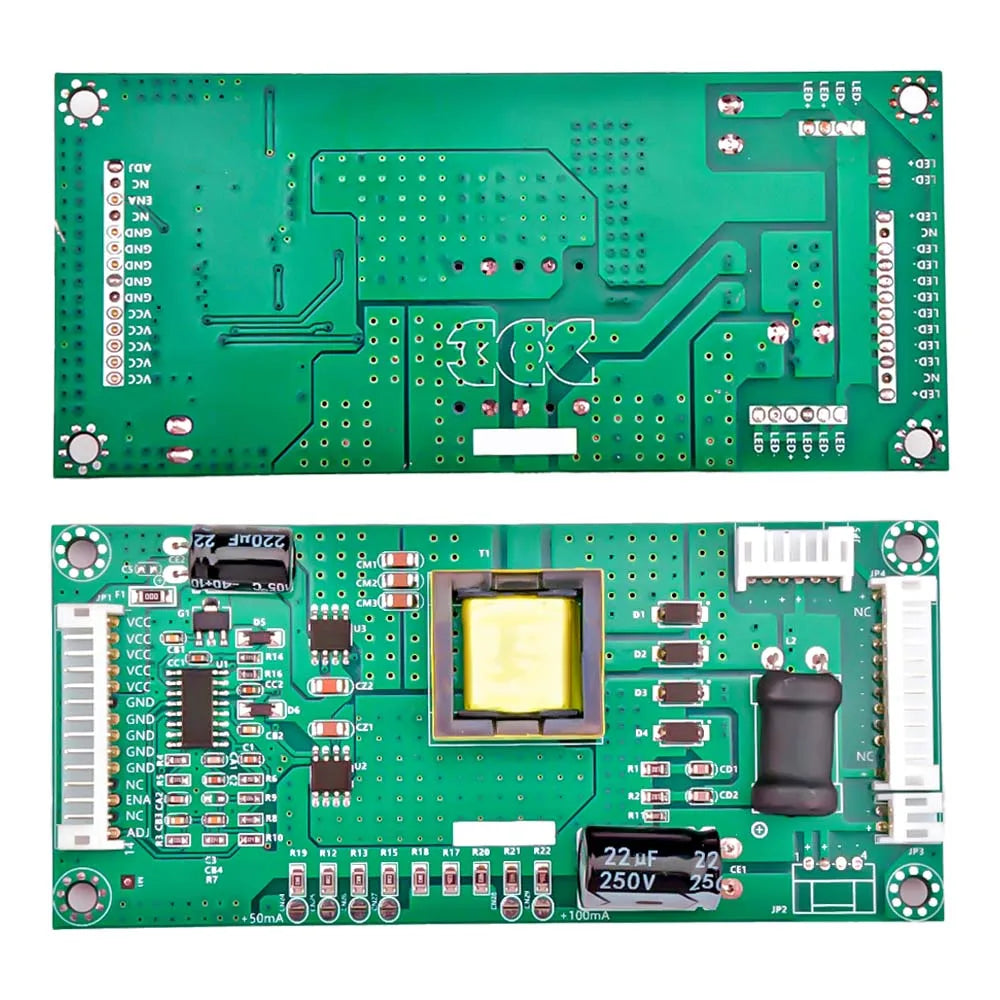

[Interface definition] VCC: 10V-28V input, GND=ground,

ENA=switch, NC=empty pin, ADJ=brightness adjustment

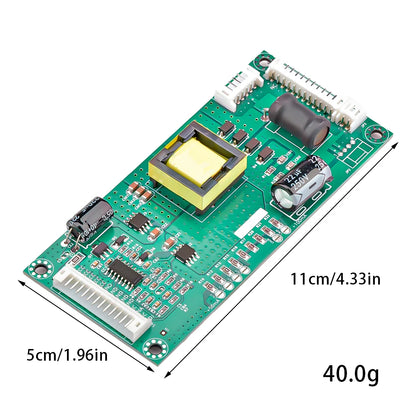

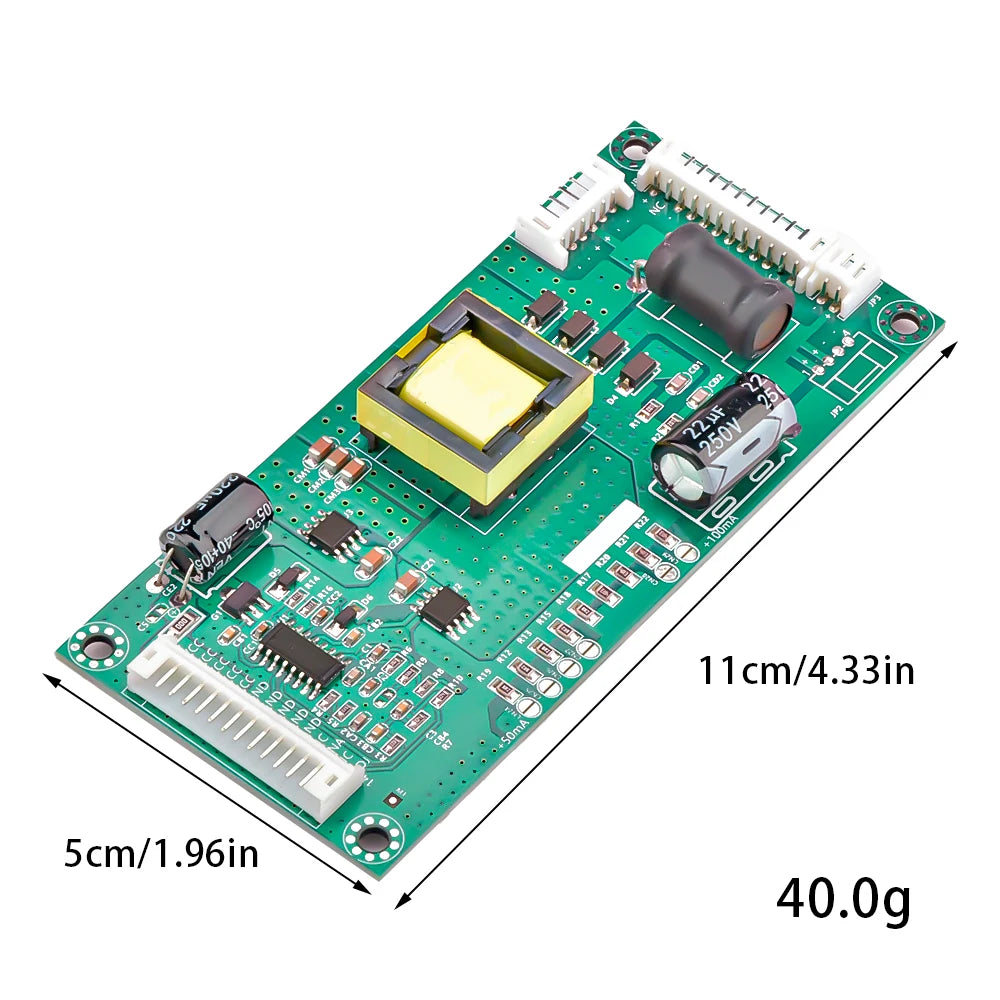

[Size] 11*5cm (manual measurement) Net weight: 40g

[Note!] When using 12V input, the output voltage is below 80V. When using 24V power supply, the output voltage is above 80V. Please read clearly and purchase as needed. Thank you.

Package Included:

Universal LCD TV backlight panel below 1*65 inches LED boost constant current panel
