SPECIFICATIONS

Application: Computer

Brand Name: Ziqqucu

Condition: New

Dissipation Power: Boost Constant Current Board

Model Number: below 65 inches LED boost constant current board

Origin: Mainland China

Package: SMD

Type: Voltage Regulator

is_customized: Yes

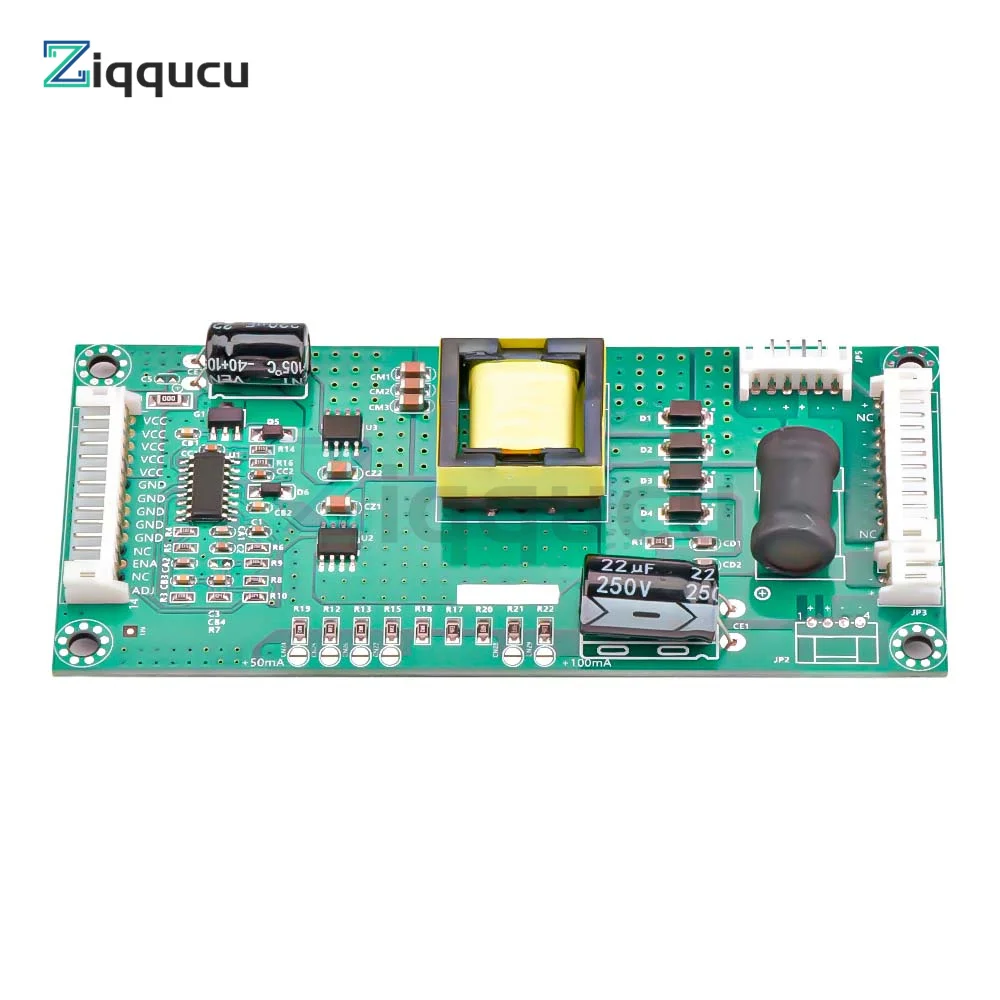

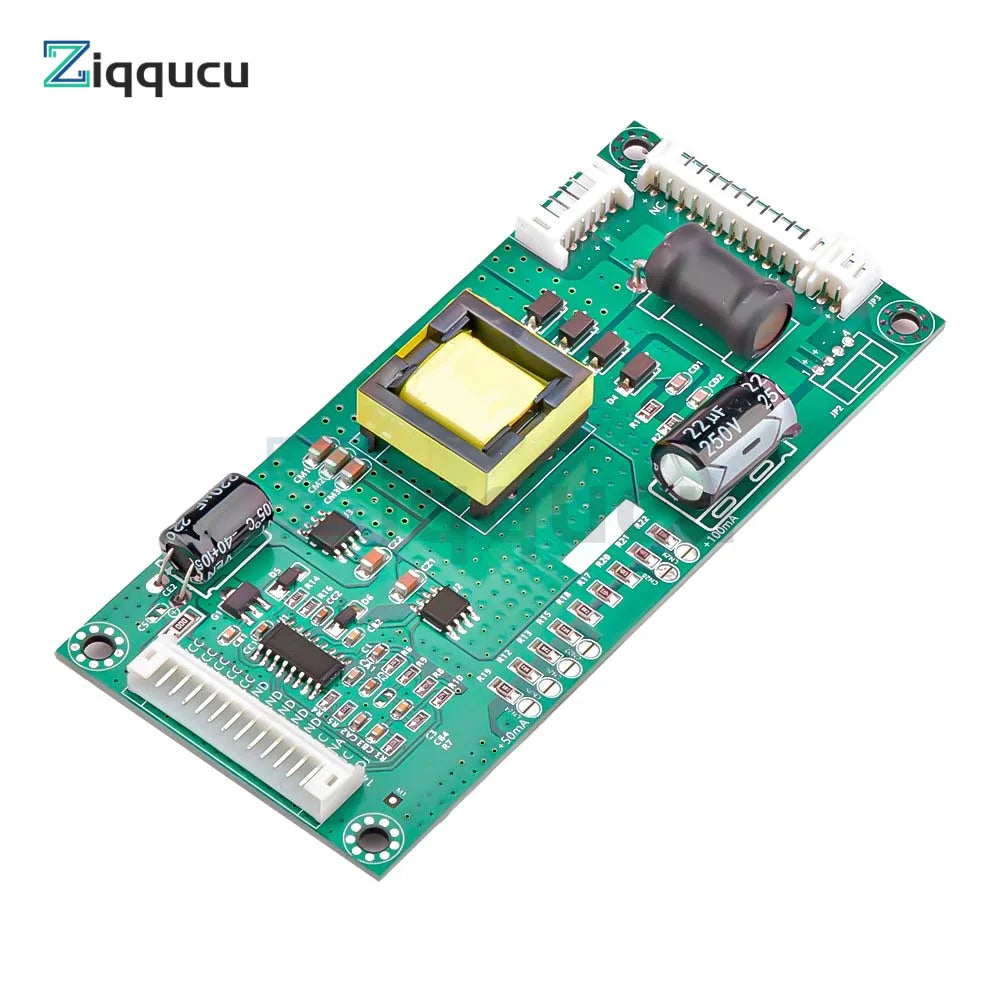

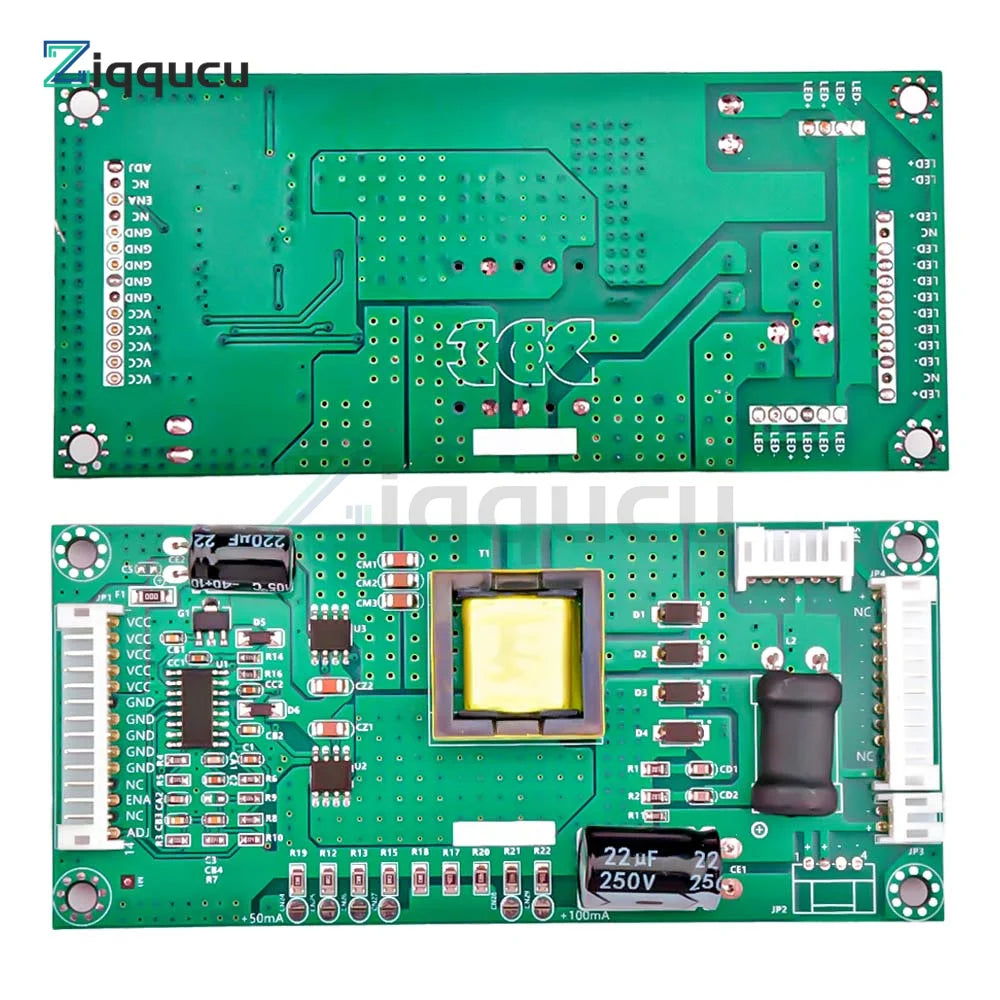

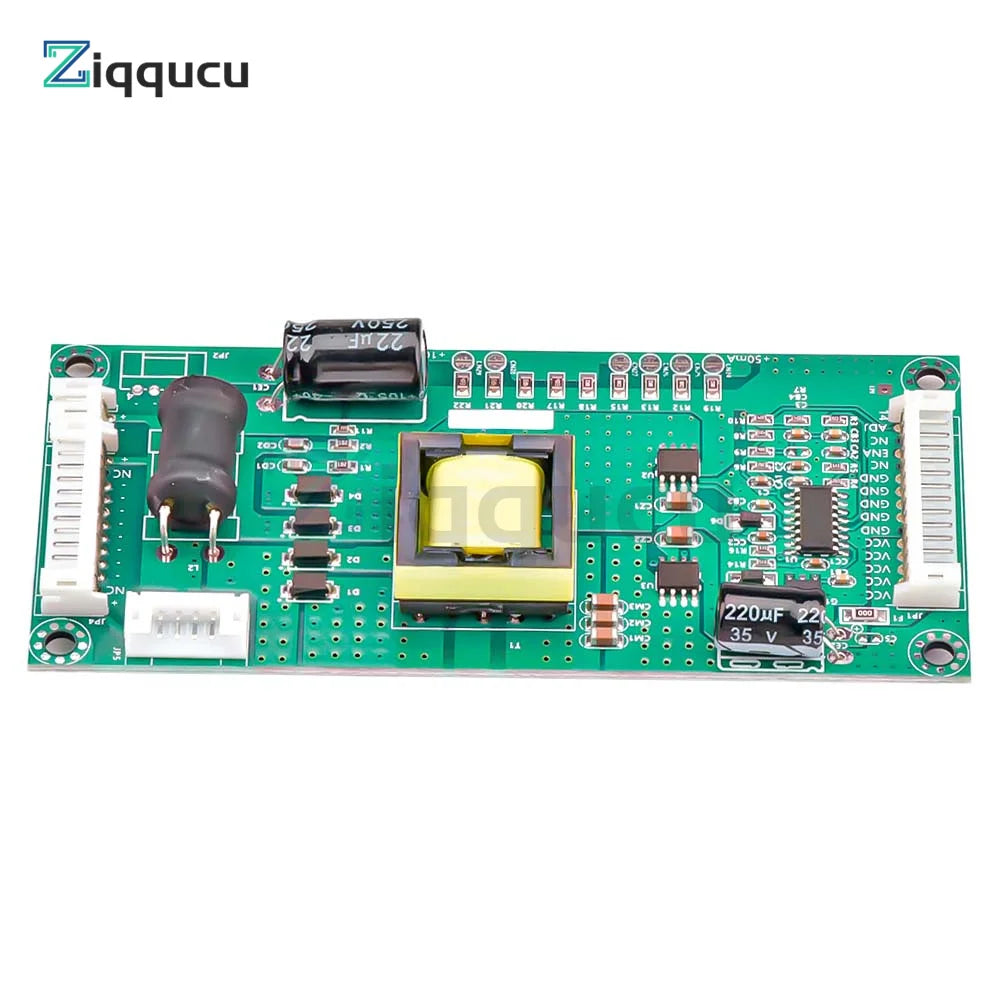

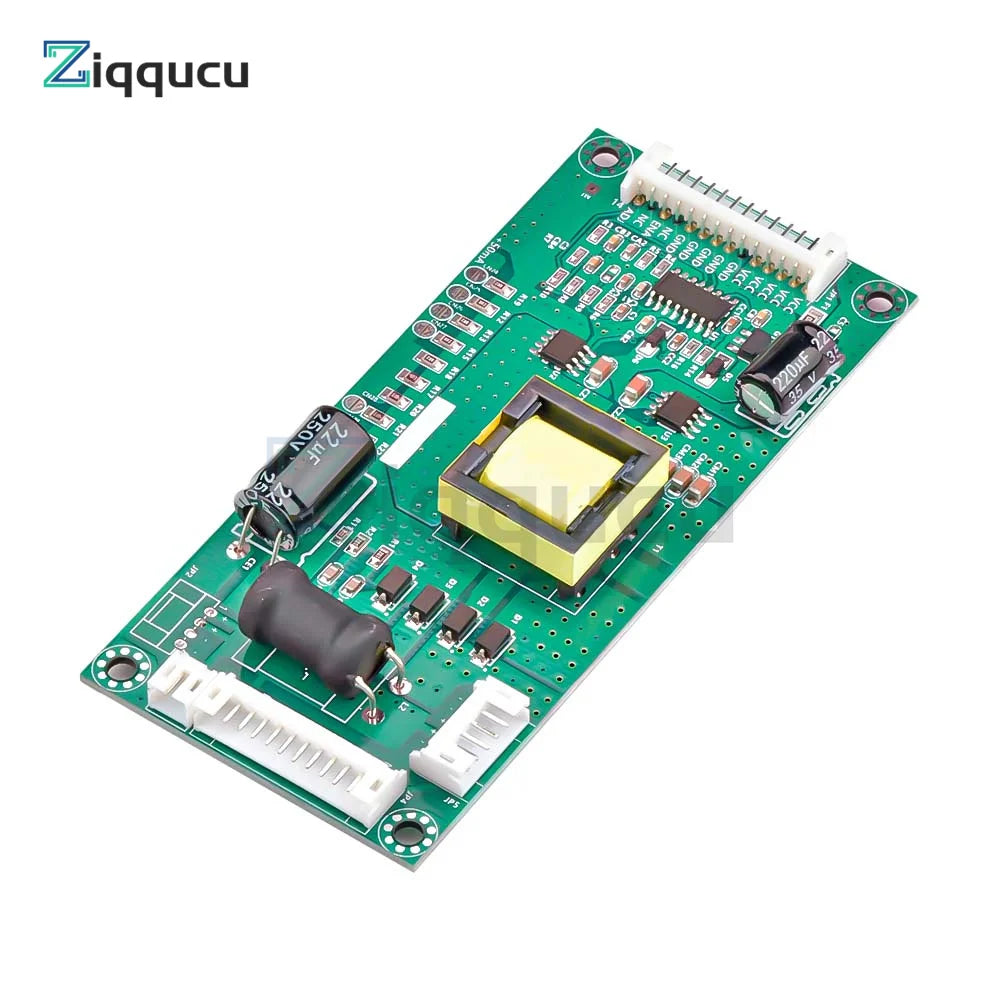

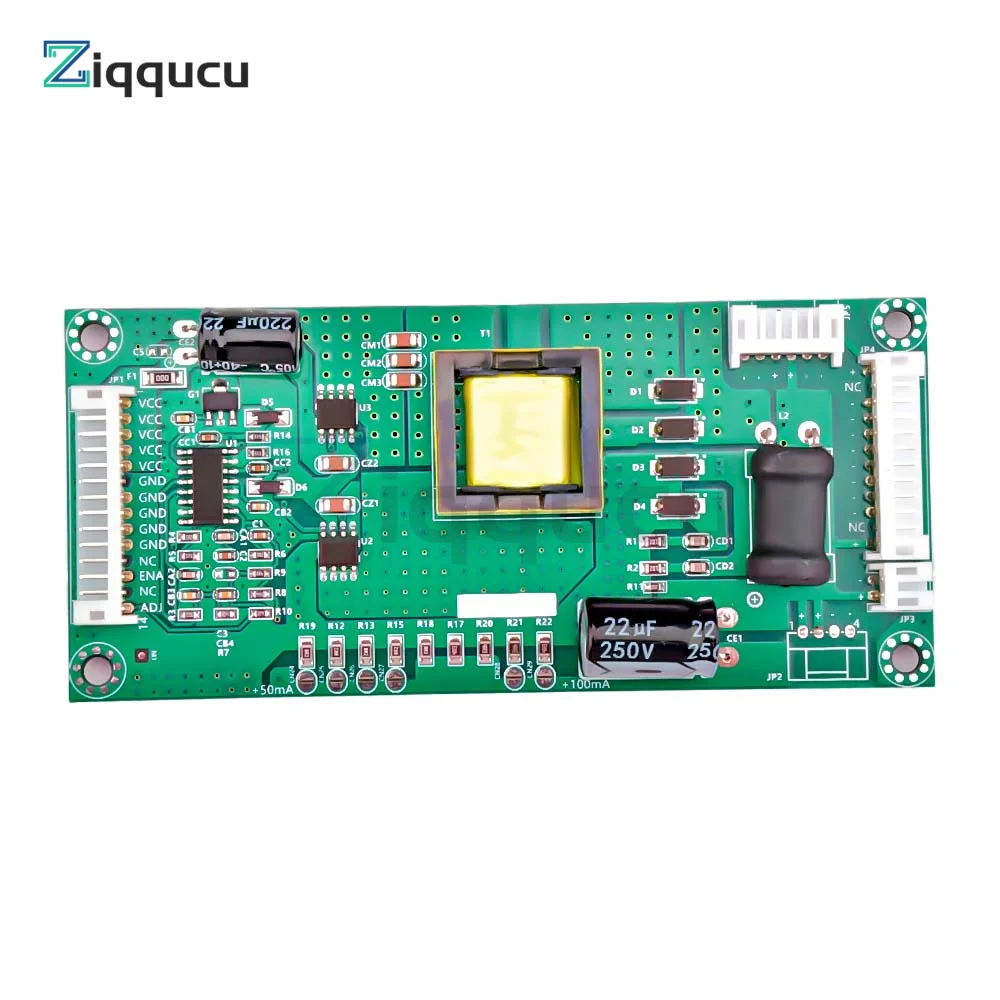

General Purpose LCD TV Backlight Board Below 65 Inches LED Boost Constant Current Board Driver Backlight Voltage Board

Product selling point

1: Wide range of applications

2: Small size

3: stable performance

4: Simple to use

5: General purpose below 65 inches

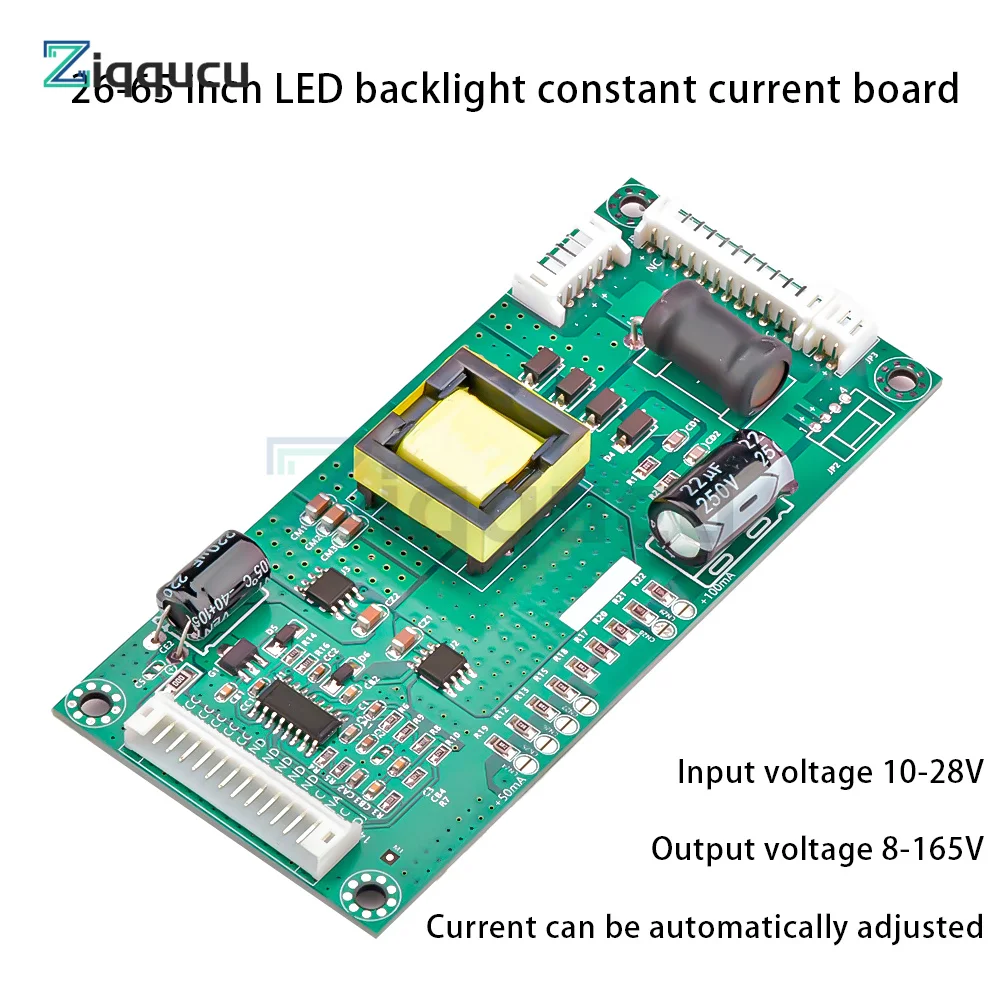

【Input voltage range】10-28V

【Output voltage range】8-165V

[Support range] Any below 65 inches

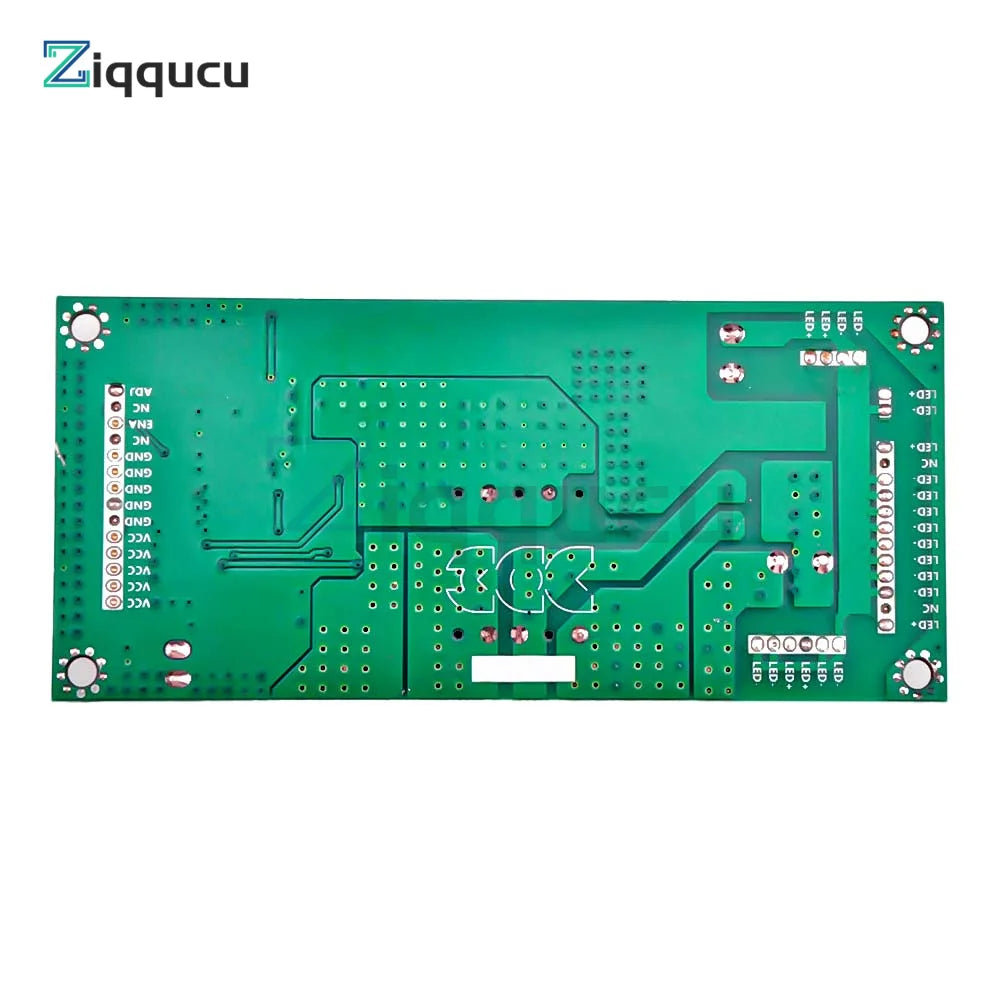

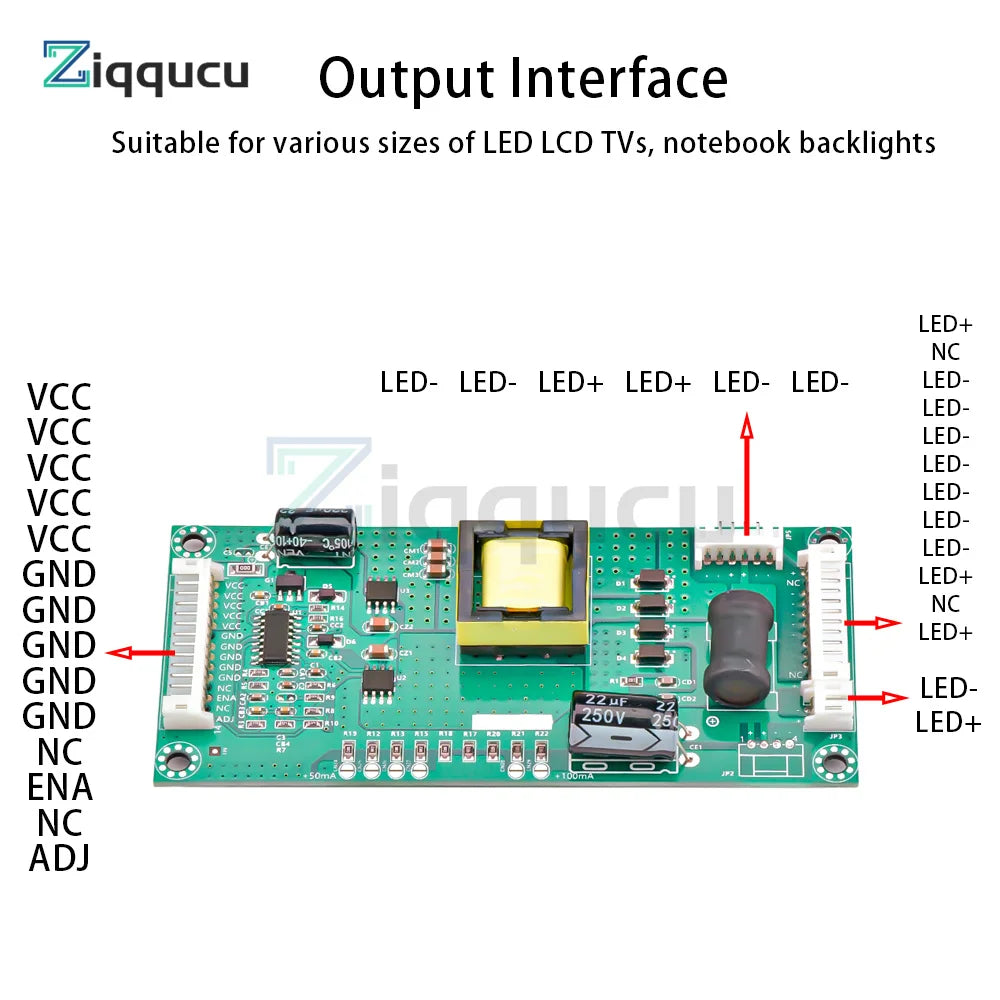

【Interface definition】VCC: 10V-28V input, GND=ground,

ENA=switch, NC=empty pin, ADJ=brightness adjustment

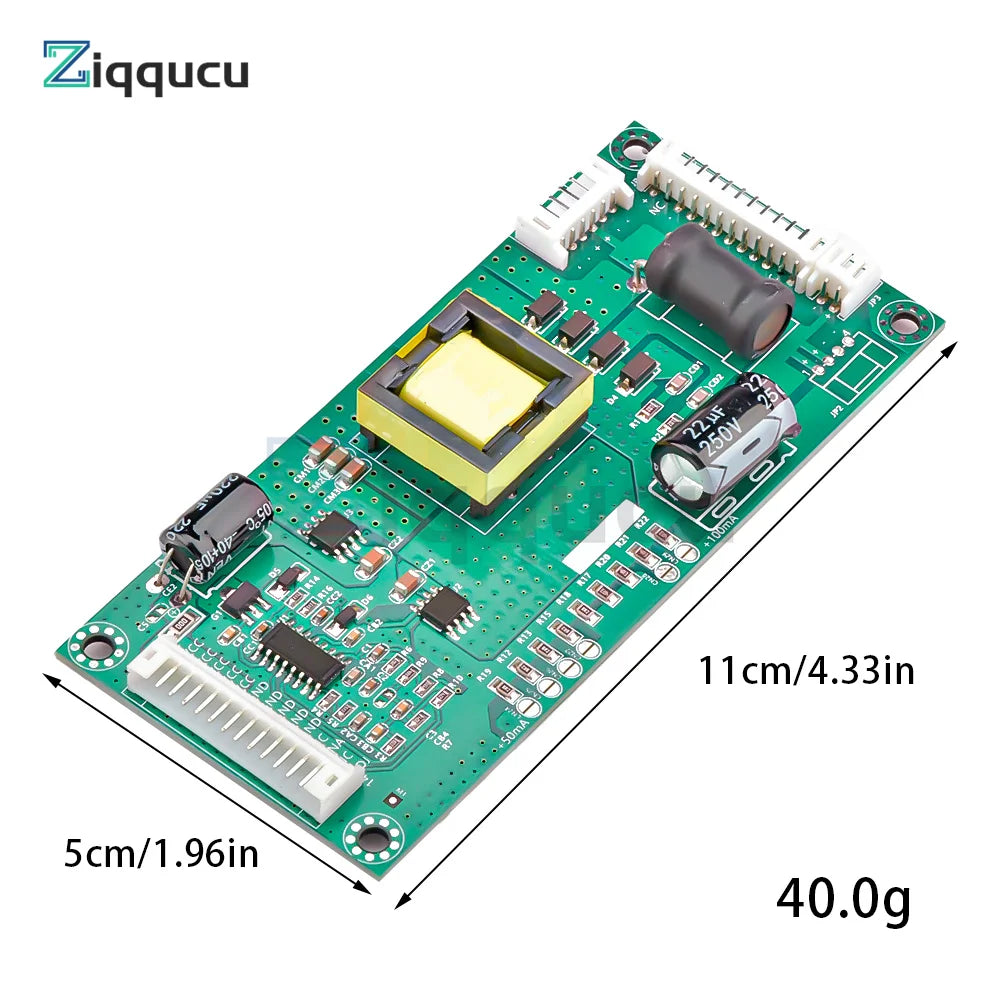

[Size] 11*5cm (manual measurement) Net weight: 40g

[Note!] When 12V input, the output voltage is below 80V, when 24V power supply, the output voltage is above 80V, please see clearly, buy as needed, thank you

list

1*65 inch general LCD TV backlight board LED boost constant current board
