Amplificador Señal Celular 5 Bandas 2G/3G/4G LTE Repetidor 700/1700/1900/2600 MHz
Amplificador Señal Celular 5 Bandas 2G/3G/4G LTE Repetidor 700/1700/1900/2600 MHz
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS

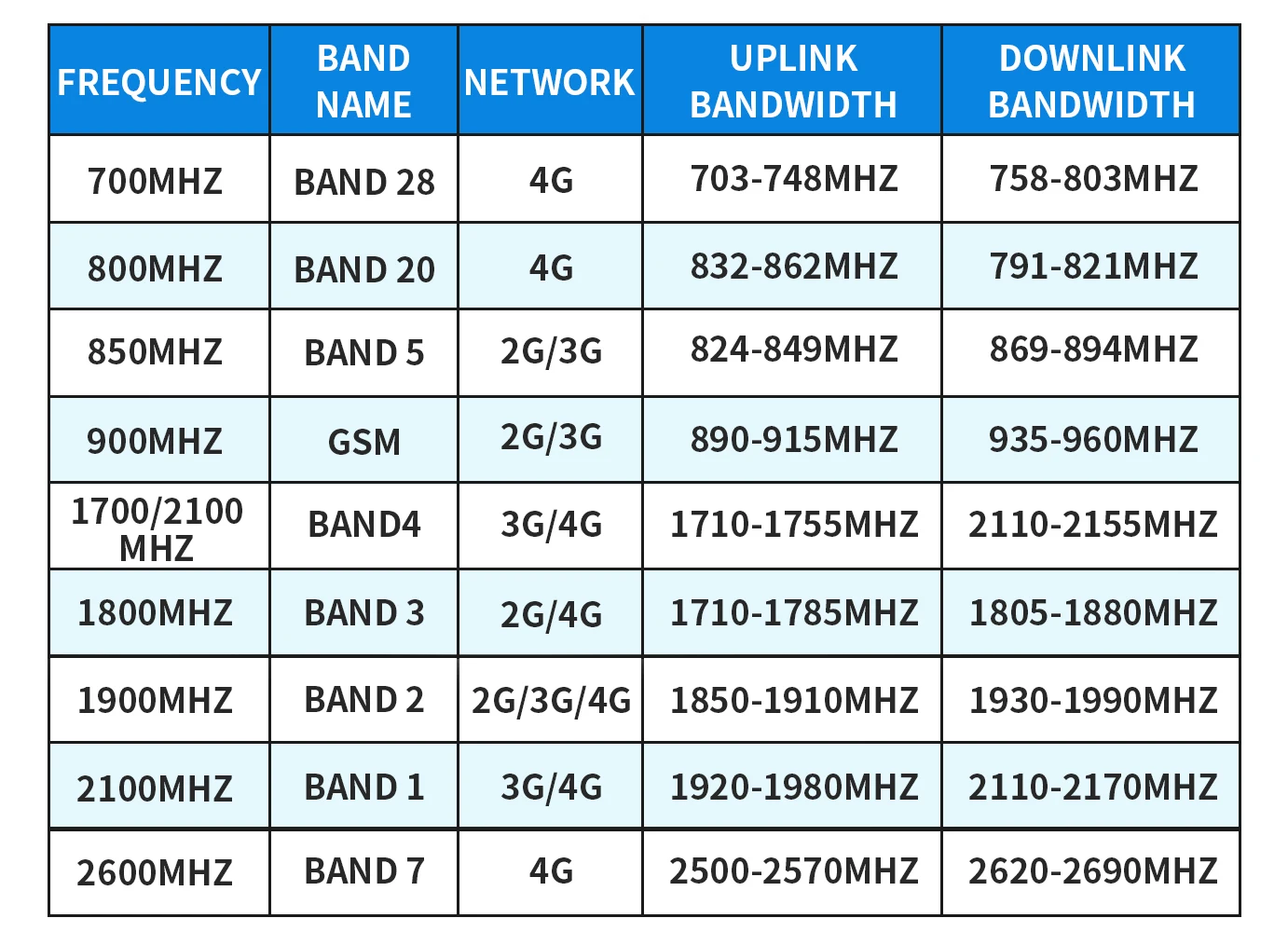

AWS: 1710~1755 2110~2155(MHz)
Bandwidth: 30M+25M+75M+60M+70M
Brand Name: GOBOOST
CDMA: 824~849 869~894(MHz)
Certification: CE
DCS: 1710~1785 1805~1880(MHz)
GSM: 890~915 935~960(MHz)
Hign-concerned Chemical: None
Impedance: 50 ohm
LTE-2600: 2500~2570 2620~2690(MHz)
LTE-B20: 832~862 791~821(MHz)
LTE-B28: 703~748 758~803(MHz)
MTBF: ≥50000 hours
Model Number: GB20-5 band
Origin: Mainland China
Output Power: 20dBm
PCS: 1850~1910 1930~1990(MHz)
Power Comsumption: < 24W
Power Supply: AC:100-240V,50/60Hz DC:12V 2A
Ripple in Band: ≤6dB
VSWR: ≤3
WCDMA: 1920~1980 2110~2170(MHz)

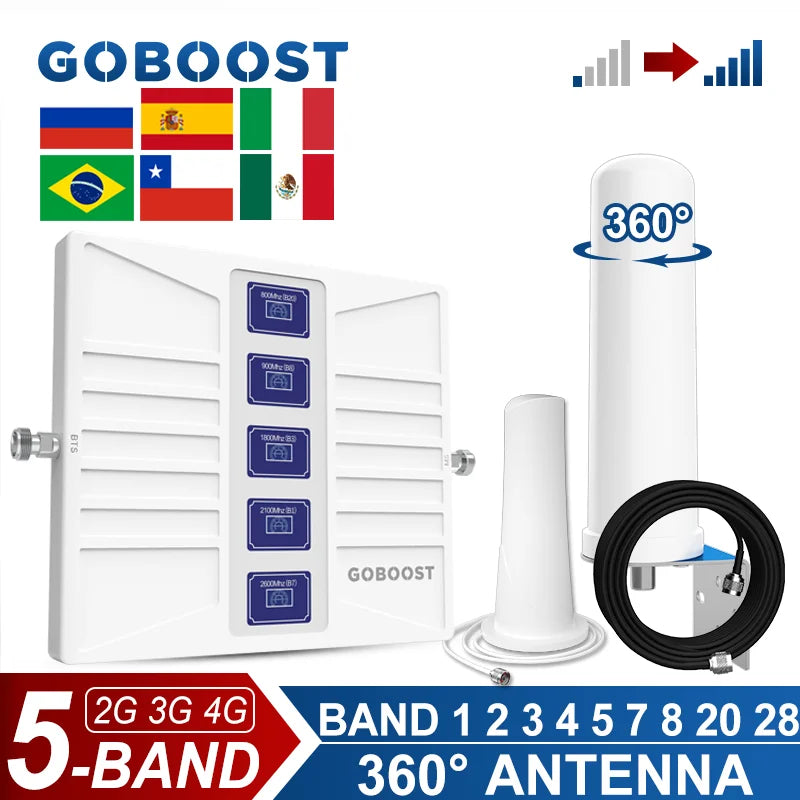

GOBOOST 5 Band Signal Booster 2G 3G 4G LTE Cellular Amplifier 700 800 1700 1800 1900 2100 2600 MHz Network Repeater Antenna Kit
GOBOOST 5-Band Signal Booster

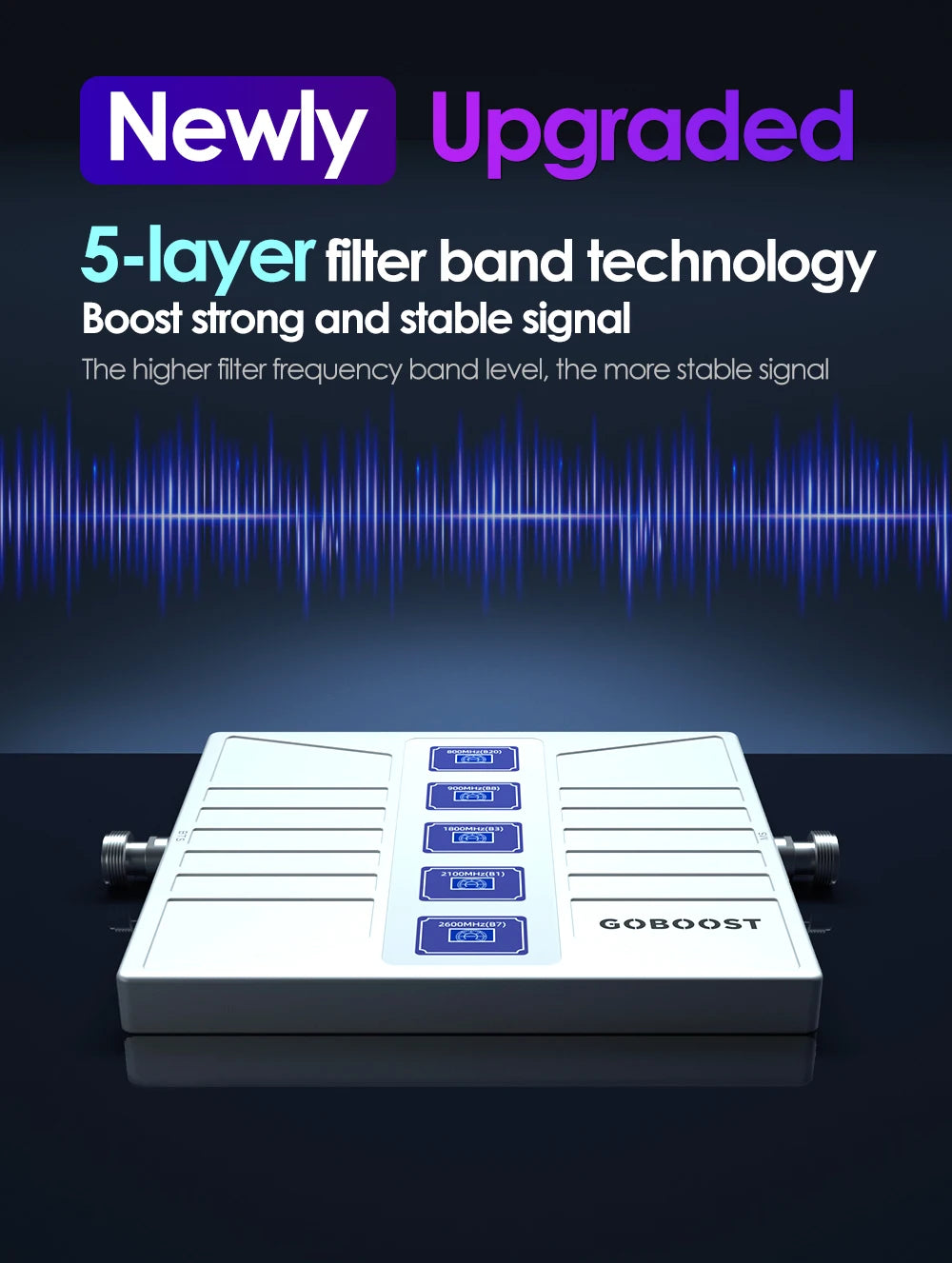

2023 Newly Upgraded
5-layer filter band technology ,Boost strong and stable signal

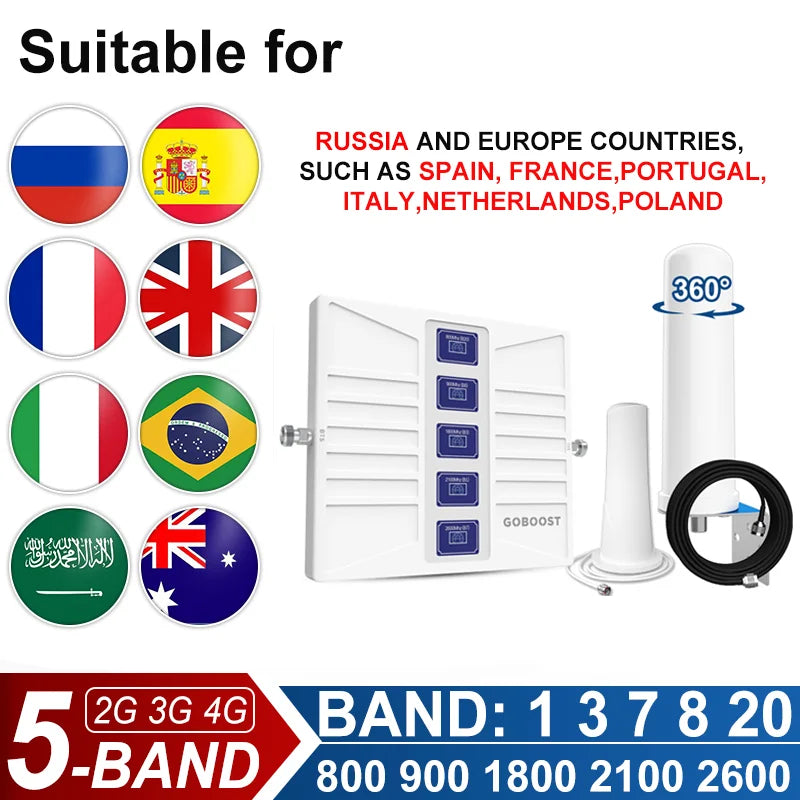

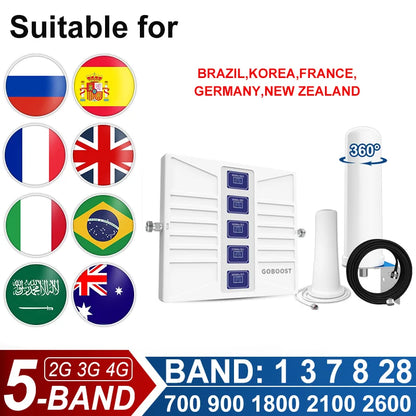

Suitable countries:Russia and Europe countries, such as Spain, France,Portugal,Italy,Netherlands,Poland,....

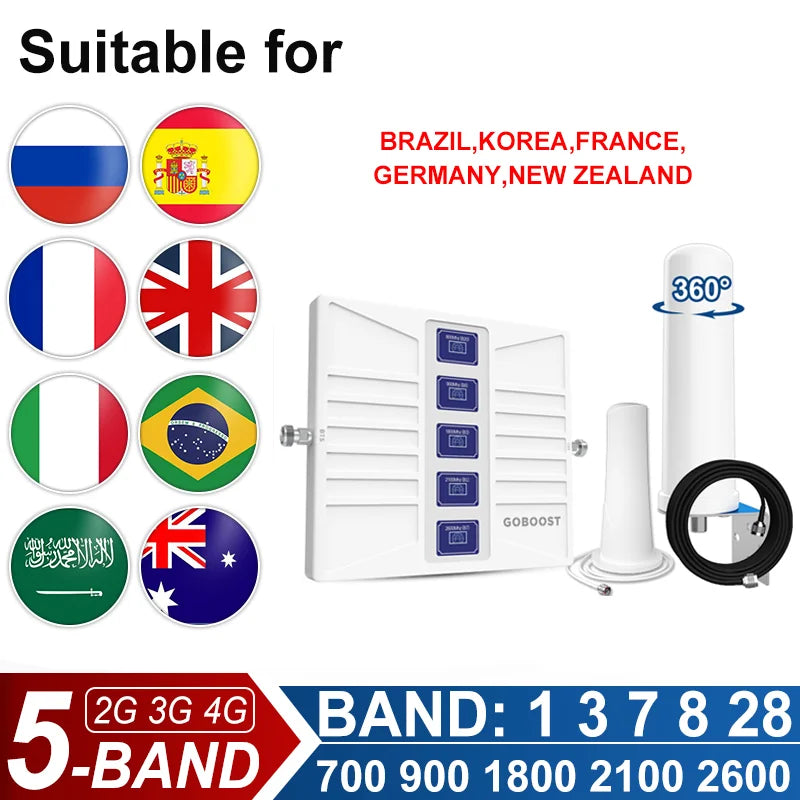

Suitable countries: Brazil,Korea,France,Germany,New Zealand,....

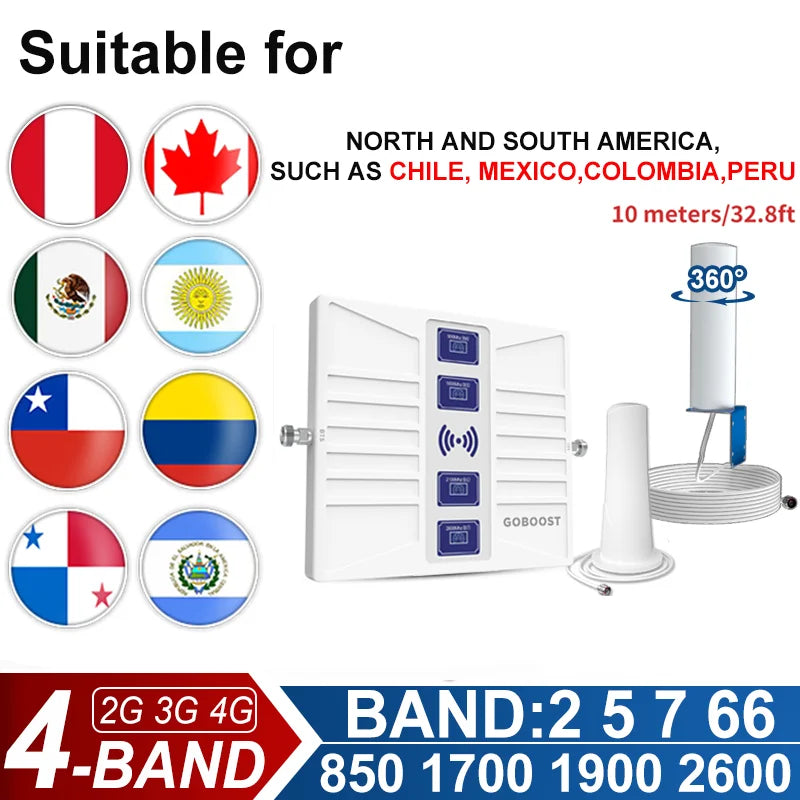

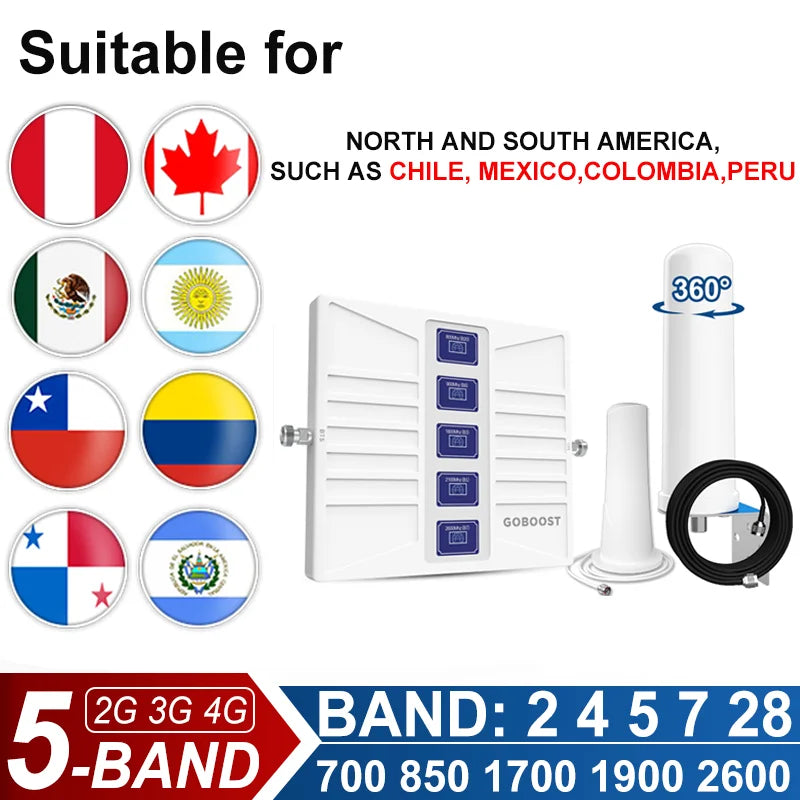

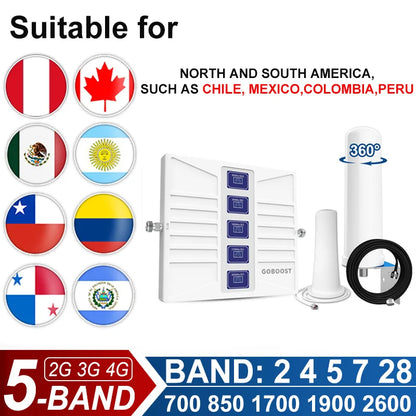

Suitable countries:North and South America,such as Chile, Mexico,Colombia,Peru,....

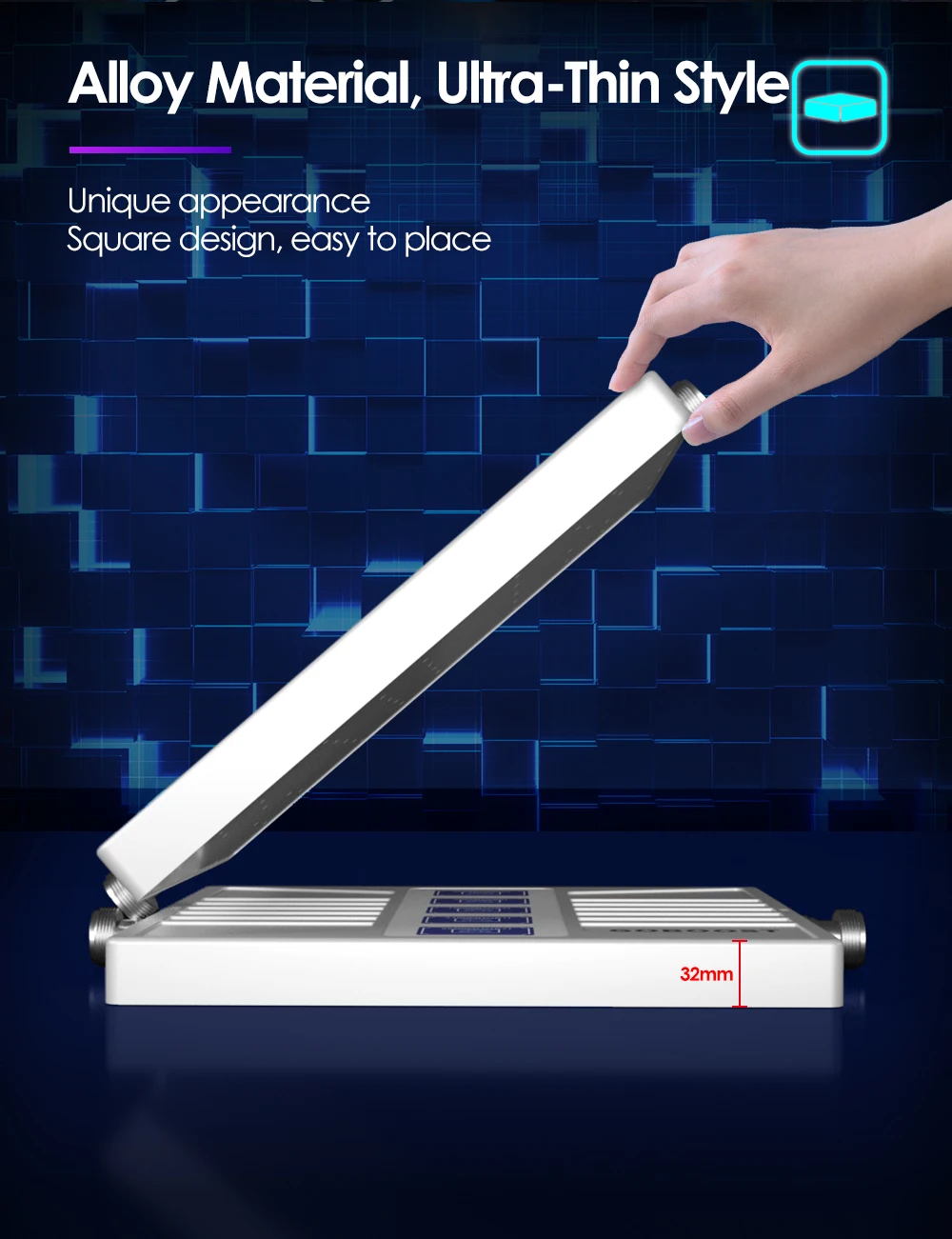

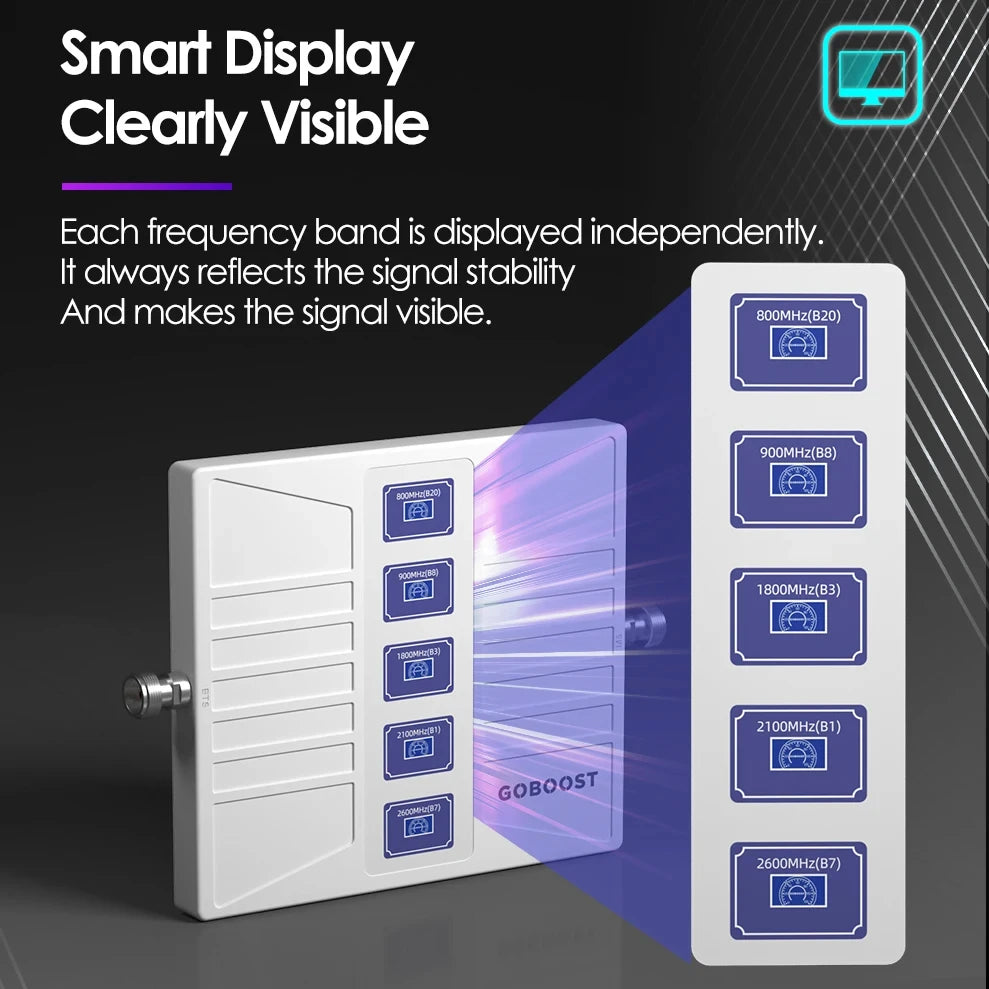

New Design,Alloy Material,Ultra-Thin Style
Unique appearance
Square design, easy to place
Faster Operation, Stable Signal Output

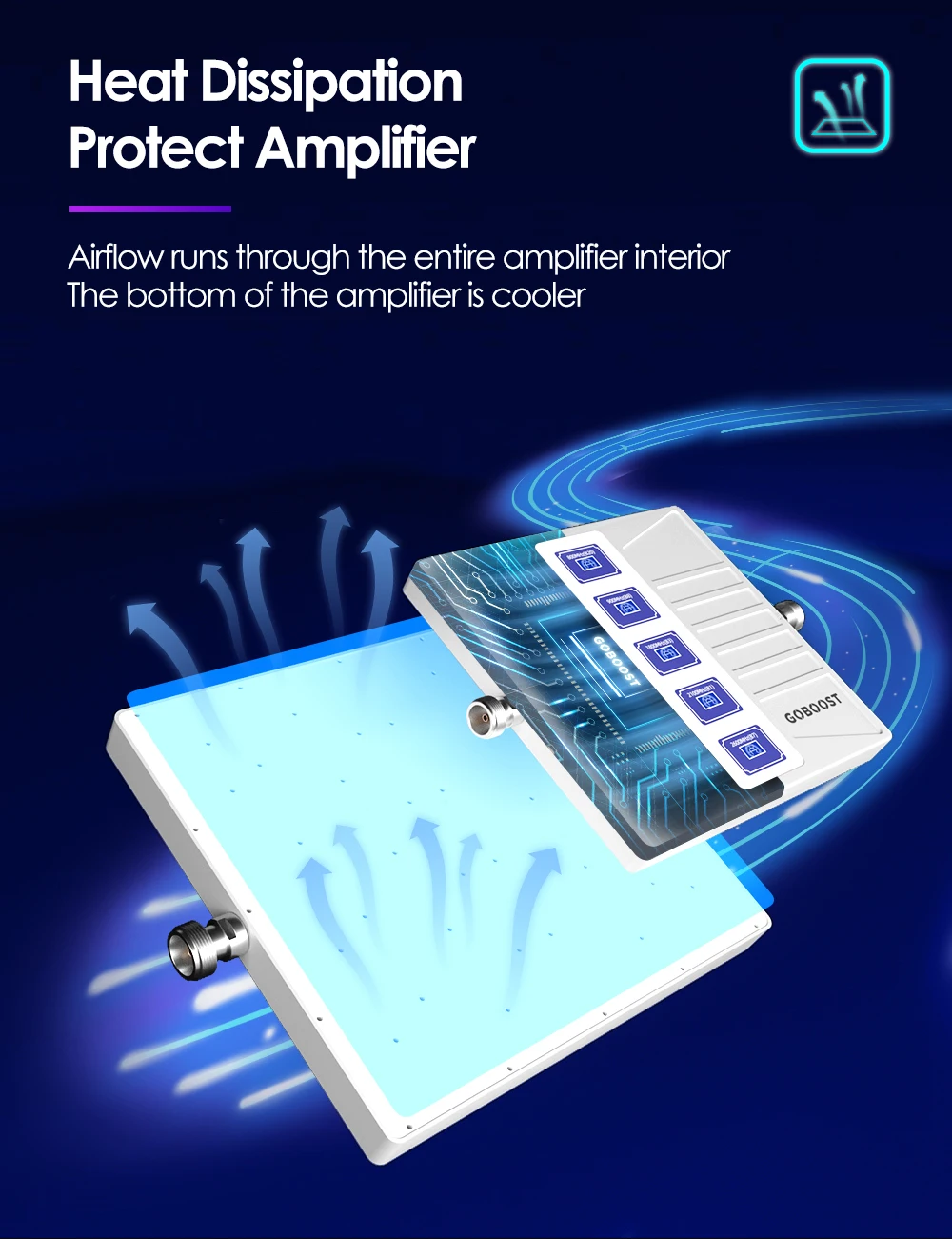

Heat Dissipation Protect Amplifier
Airflow runs through the entire amplifier interior
The bottom of the amplifier is cooler
Say Goodbye To Dropped Calls
Suitable for multi-room houses ,offices ,Villas, Bars, RVs,ect

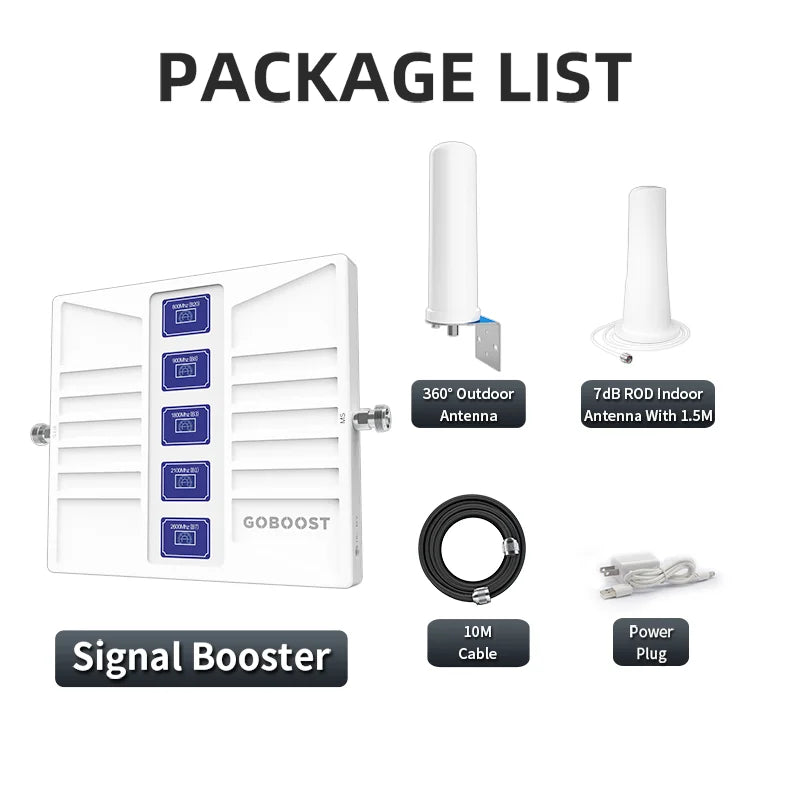

GOBOOST 5 Band Signal Booster*1

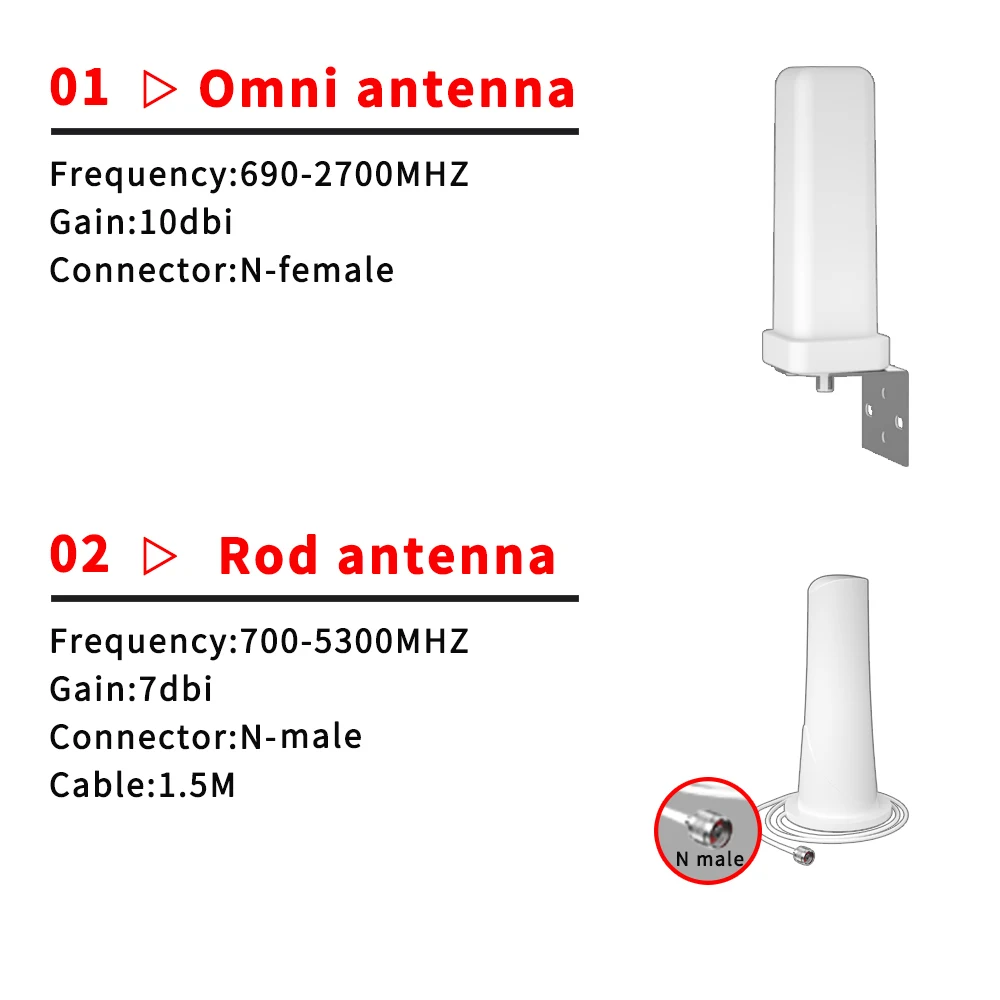

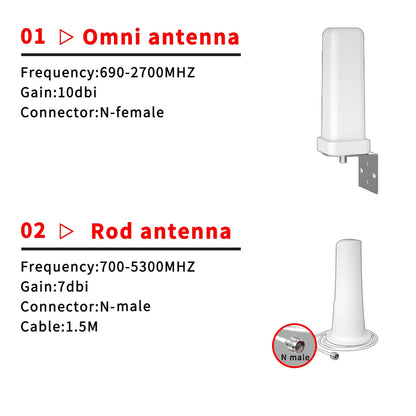

360° Outdoor Antenna*1

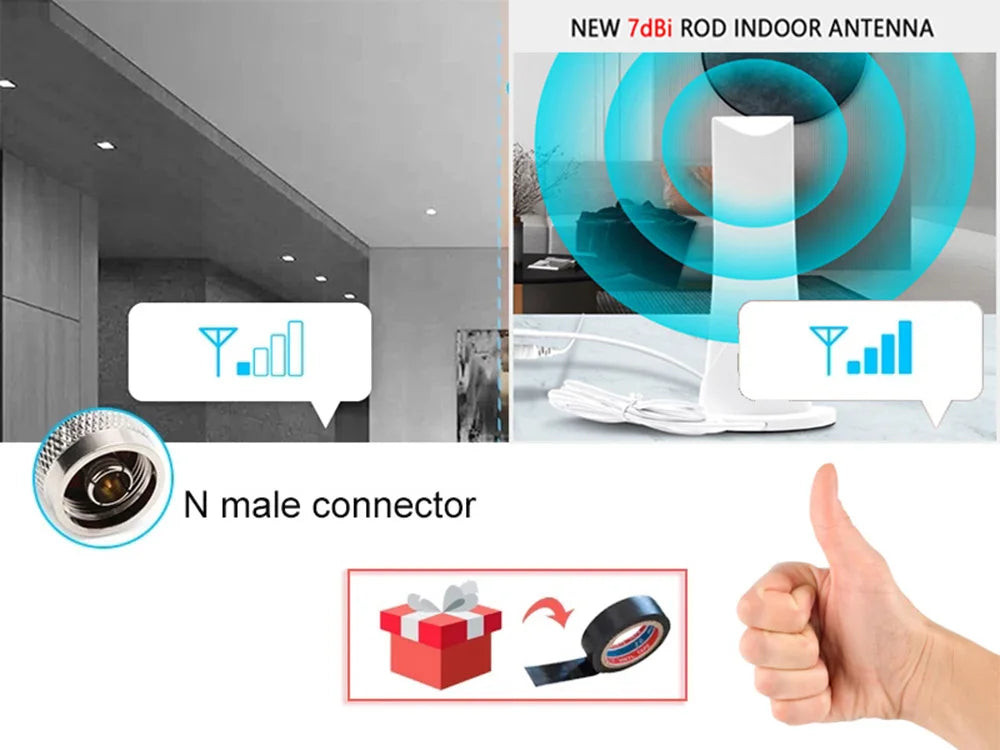

Columnar Indoor Antenna With 1.5m Cable*1

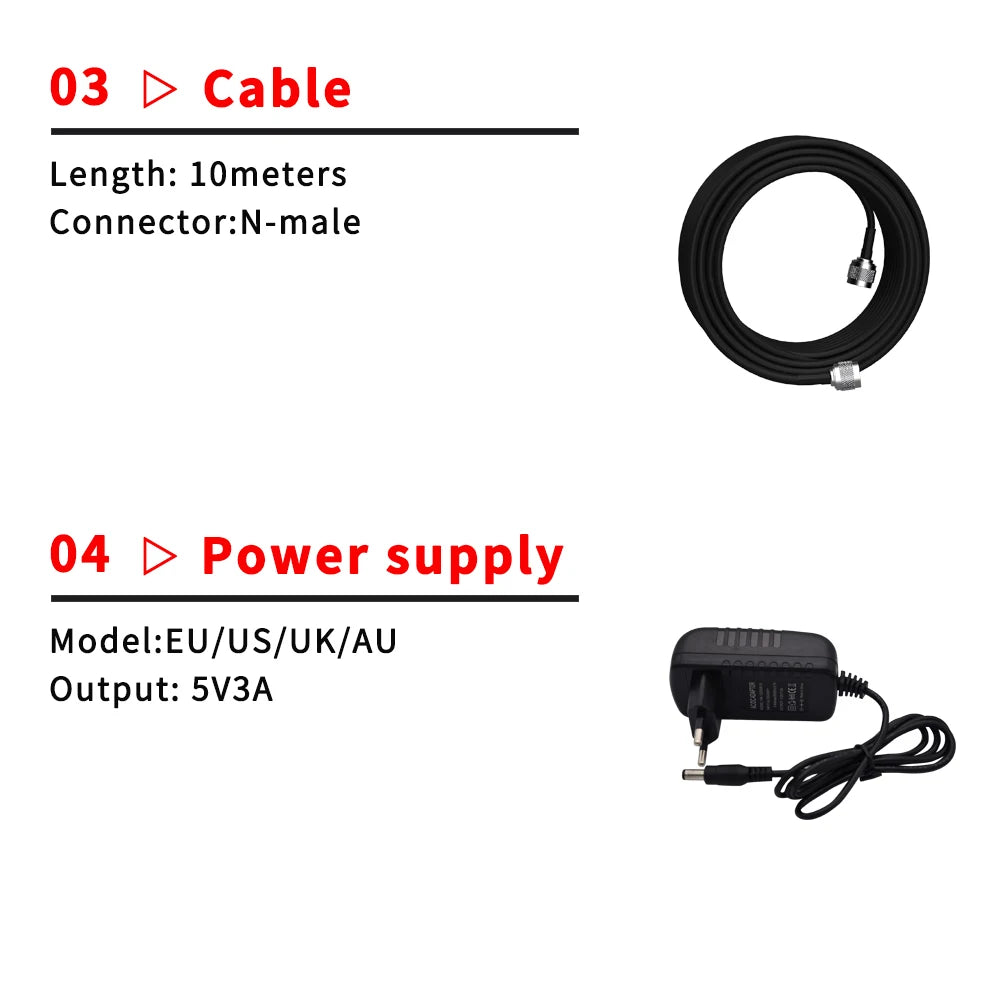

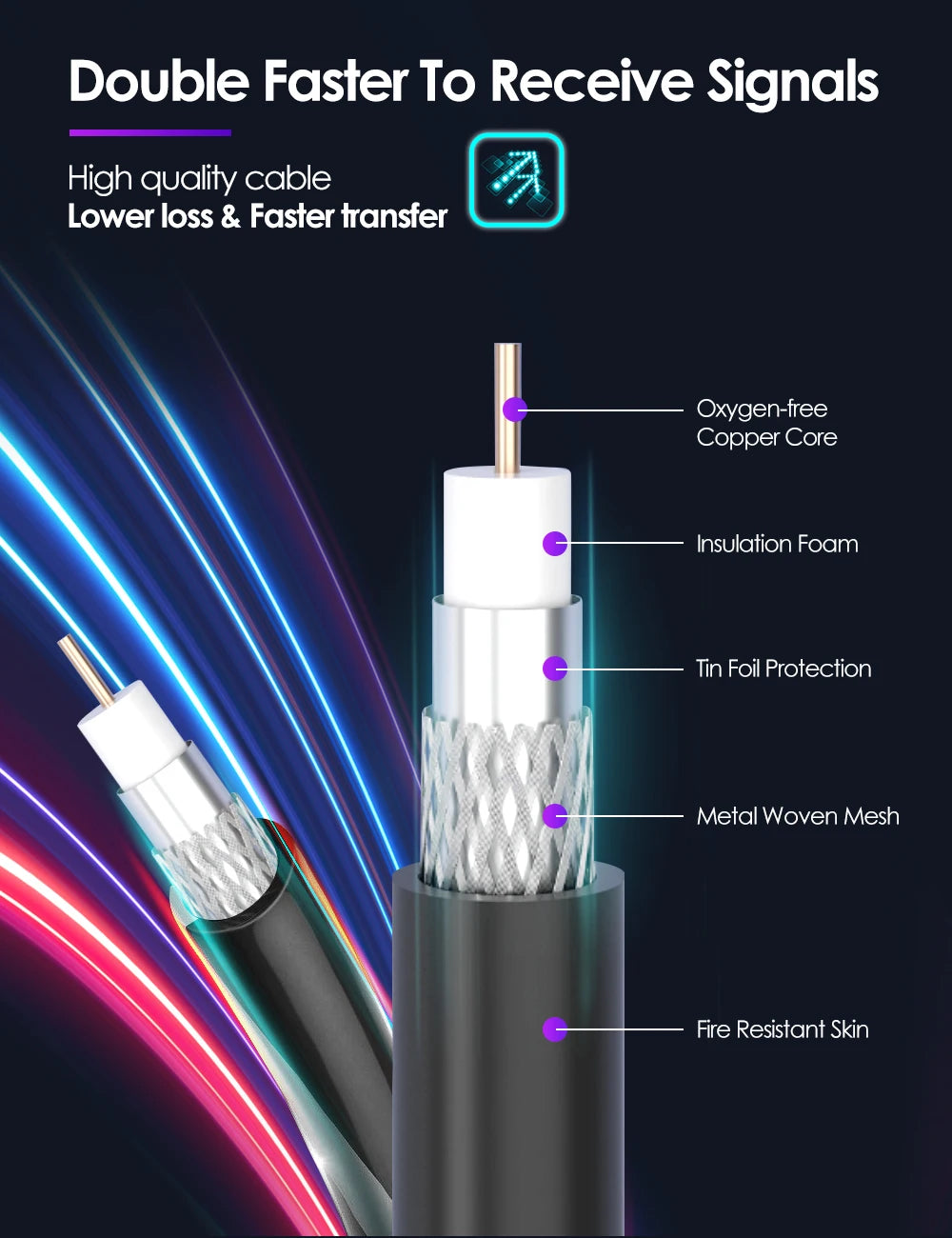

Cable 10M
Power Supply*1
User Manual
STILL CONFUSED BY... ?
Q1:Where could be used? |
A1:Home/Office/Village/Basement/Factory,etc.Every place where can receive good signal at high place(at least 3 bar),and meet the installation requirement below. |

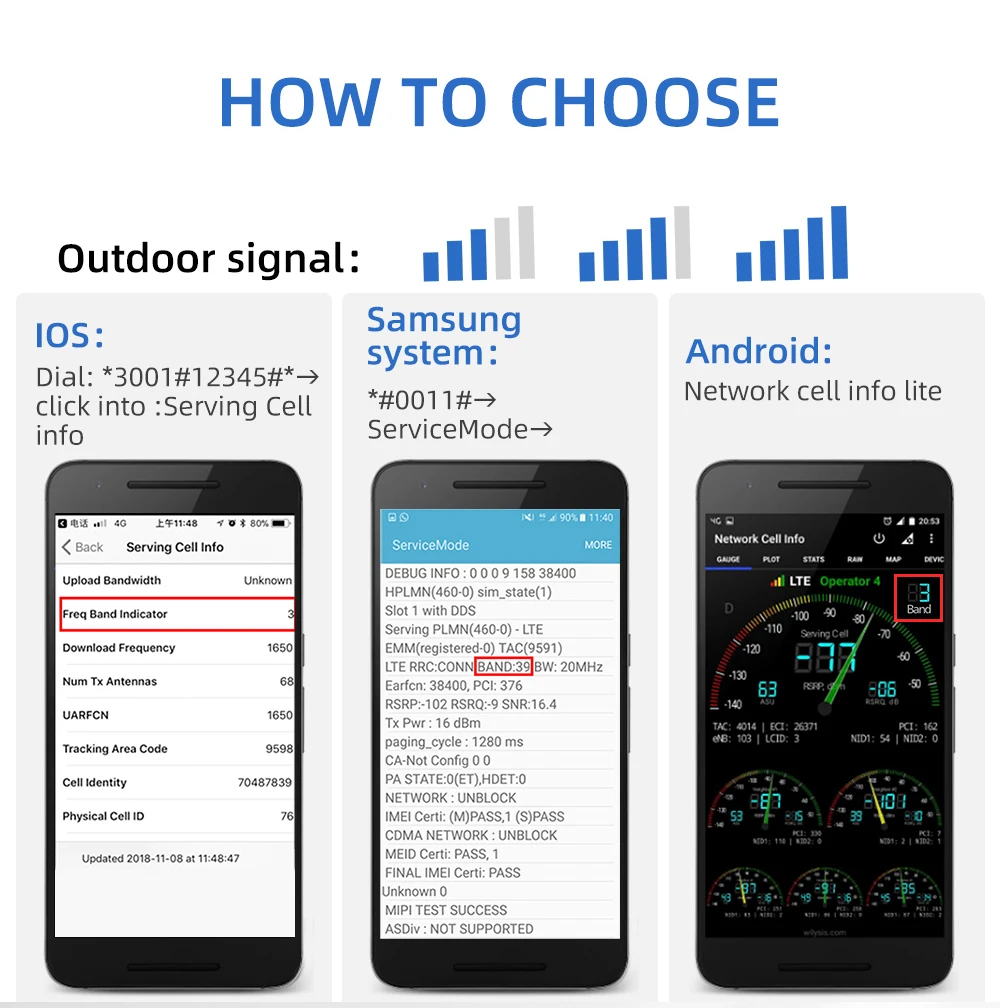

Q2:How do I know what frequency I need? |
A2:Android system: Download App “ Network Cell Info Lite” and check LTE band with App Apple system: call : *3001#12345#* ,Chick Serving cell info, check frequency band indicator Samsung system:call #0011# or download network cell info lite app to check. |
Q3:Will it work in village with no connection? |
A3：As long as you can receive good signal at high place(at least 3 bar), which is meet the installation requirement in meanwhile,it could work. A4:Yes, it is. |
Q4:Network signal info shows Edge 2G,is there a chance to get 3G or 4G with amplifier? |
A4Yes, it is. Please to test your mobile phone frequency of 3G/4G network in the place where you can receive 3G/4G signal, then purchase the matched frequency. |

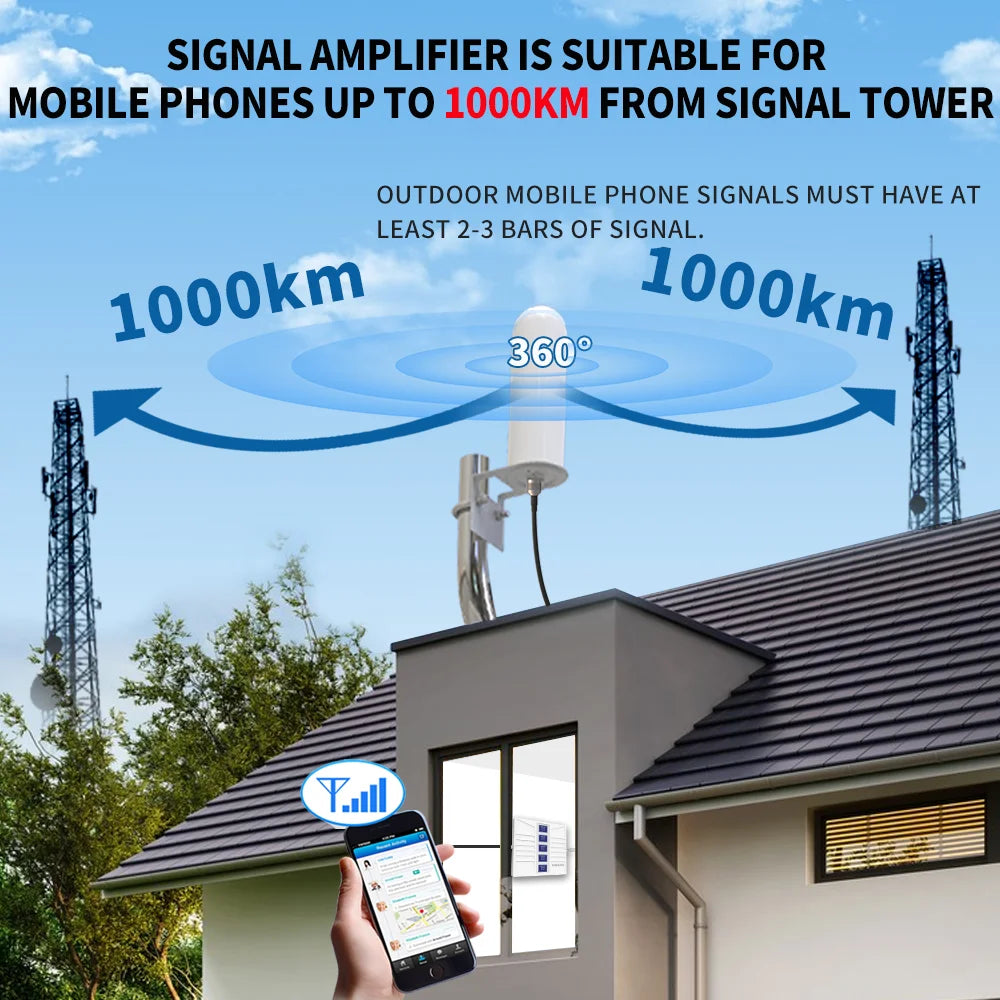

Q5:Will I get signal when the twor is xxx km away? |
A5：Yes!As long as you can receive good signal at high place,you will hava no signal distress by following installation step. |
Q6:Why I can't get HD voice,only get the internet? |
A6:Please check whether the mobile phone is enabled for high-definition voice calls and make sure your operator supports HD calls. |
Q7:Why it can't enhance 2G /3G /4G signal? |
A7:Please check whether the frequency of your mobile phone is matched with the device or not.FREQUENCY DOEESN'T MATCH,IT CAN NOT WORK. |
Q8:How does it work? |
A8:First of all, the device needs to receive good outdoor signals by outdoor antenna. After being amplified by the amplifier, the amplified signal is output to the indoors and receive by your phone.So please make sure the frequency is matched, and your outdoor signal is good to receive,strictly following the installation to do. |
|
More details and question,welcome to contact us,our aim is to customize the most suitable signal solution for you, so that you have no signal troubles. | |
Purchase! Enjoy fast shipping.Just have a try if your cell phone signal is poor!
Anyway you can enhoy the free return and full refund for no reason.
The service is available for some countries, which are Russia, Israel, Spain, France, Brazil, Italy, Poland, South Korea,Saudi Arabia, Netherlands, Australia, etc.

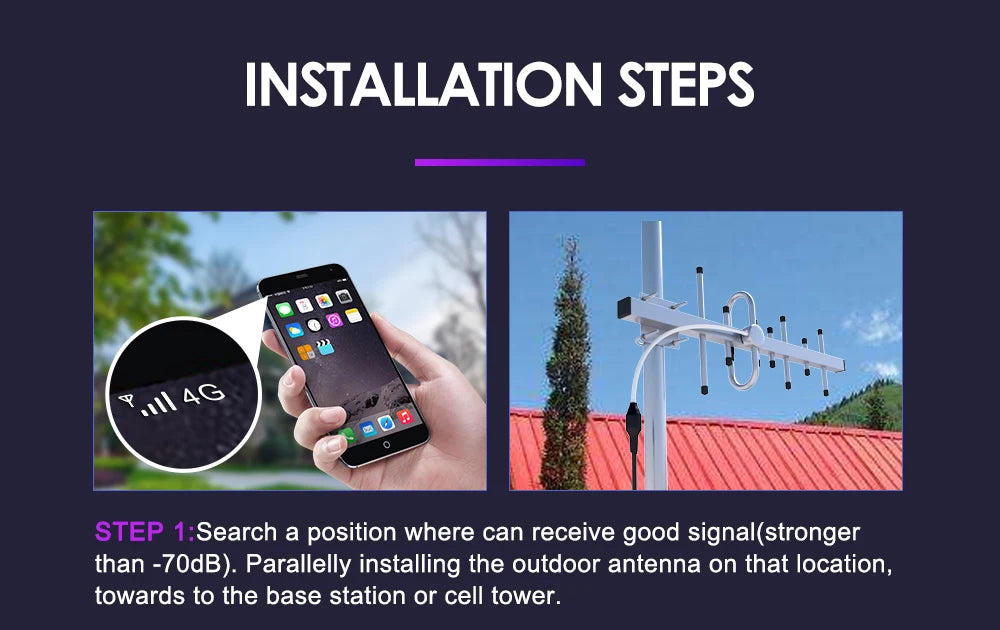

STEP 1:Search a position where can receive good signal(strongerthan -70dB).Parallelly installing the outdoor antenna on that location,towards to the base station or cell tower.

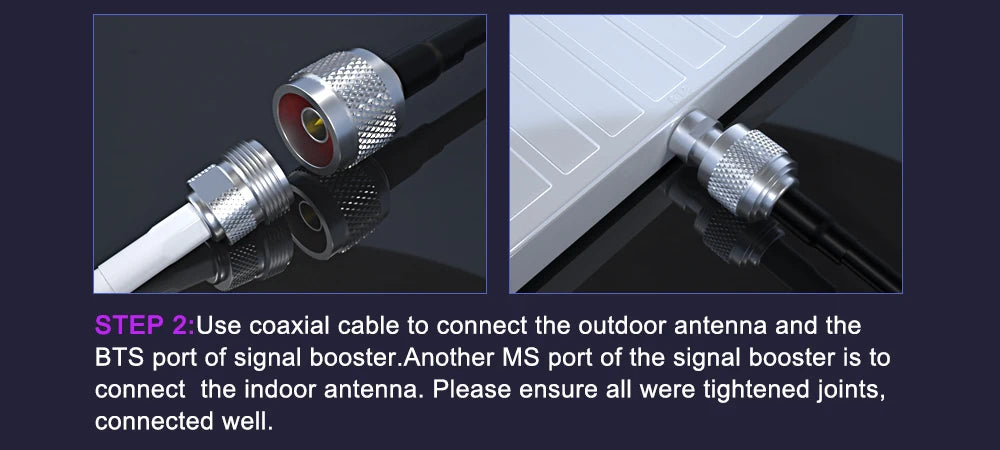

STEP 2:Use coaxial cable to connect the outdoor antenna and the BTS port of signal booster.Another MS port of the signal booster is to connect the indoor antenna. Please ensure all were tightened joints,connected well.

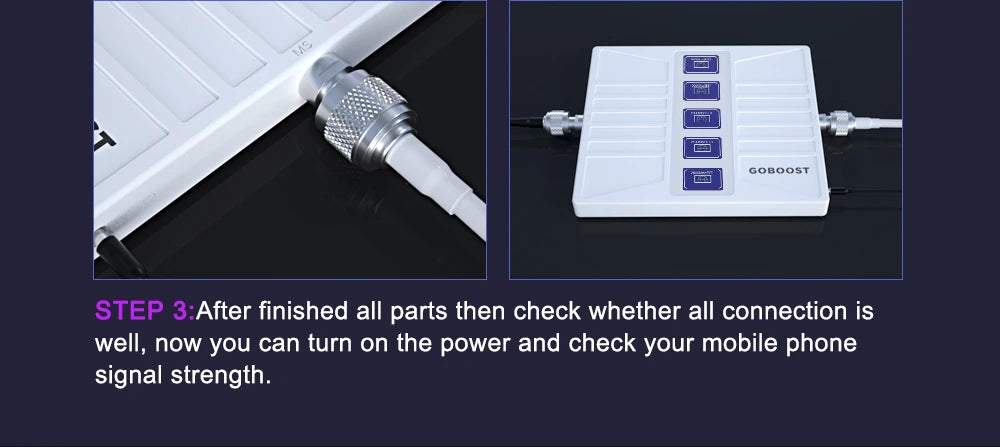

STEP 3:After finished all parts then check whether all connection is well, now you can turn on the power and check your mobile phonesignal strength.
Why GOBOOST?
Payment
1. We could accept all the payment way accepted by AliExpress.
2.What you pay is for the product and shipping cost only, not including any tax. Please be aware of that whether need to pay tax or not, depends on the policy of your country, we certainly could not change it. If you could not accpt it, we do not suggest you to place order.
Shipping
1. All the available ways are indicated at the page of product. We would send out the order as per your choice.
2.The parcel would be sent to the exact address that you fill in the order. In order to make you receive the parcel promptly and safely, please provide right contact info.
3.If you do not receive the parcel within the protection time, please contact us at the first time, we would check it for you or extend the protection time.
After-sale service
1. Please note that we always check and test the product twice before shipping and pack them well as far as possible. However we could not control anything during the long transit. Therefor, the product is broken at receiving, please contact us, we would resend you a new one.
2.Our product have one year warranty. But please be cooperative to provide video or pictures to show exact the problem, and listen our suggestions for the installation.
3.Any problem about the parcel or the prodcut, please feel free to contact us at the first time, we would be very glad to help and reply ASAP.
Feedback
If you are satisfied with our service and product, we would be very appreciated that you put us five star and positive review. You could also recommend it to people who needs it. We would present coupon as little gift to you for thanks.
GOBOOST 5 Band Signal Booster 2G 3G 4G LTE Cellular Amplifier 700 800 1700 1800 1900 2100 2600 MHz Network Repeater Antenna Kit
