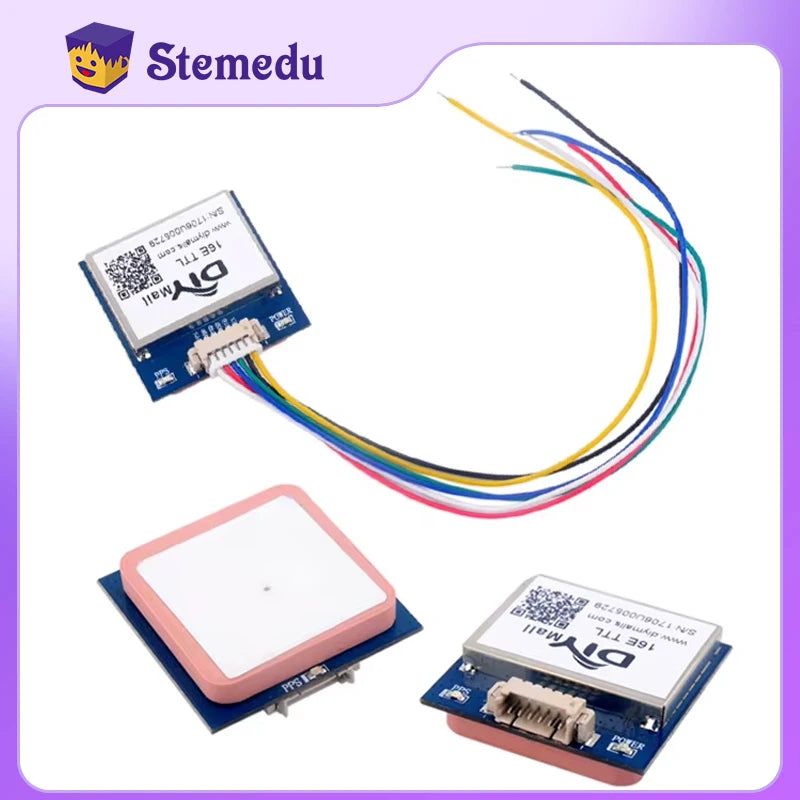

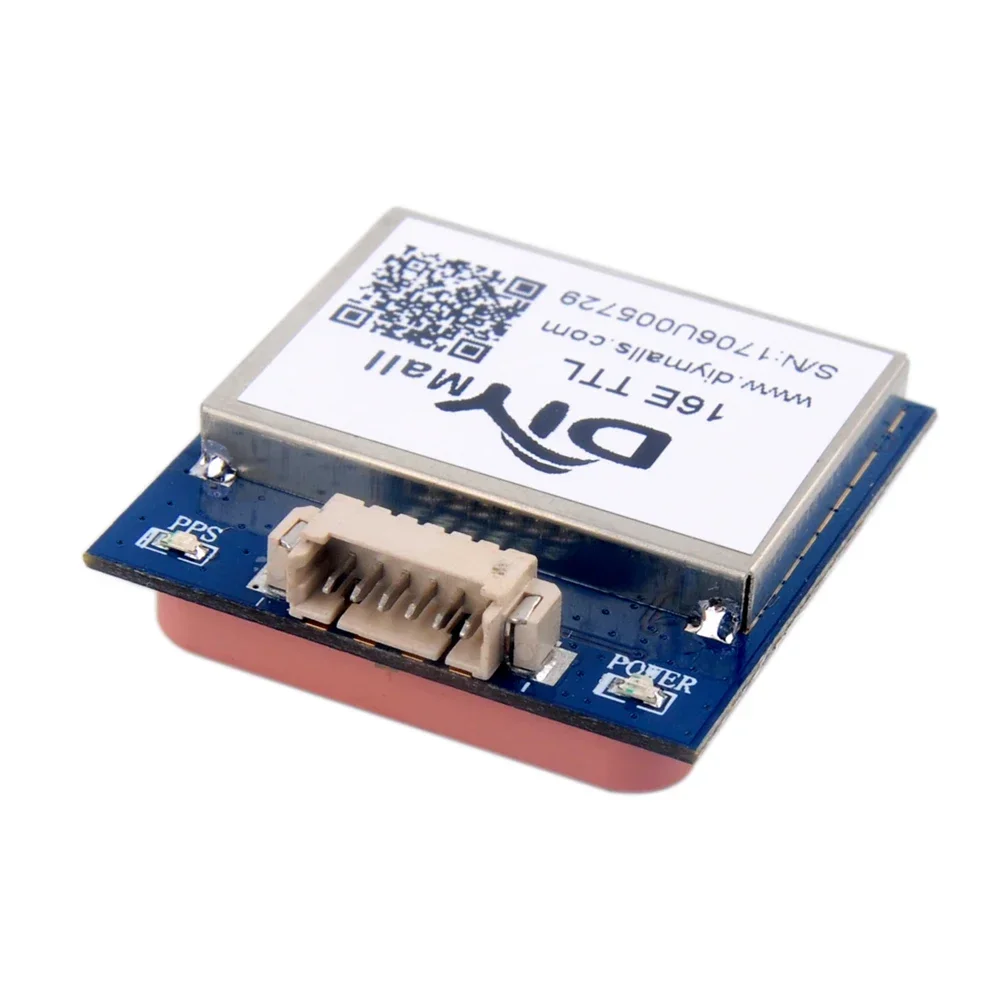

VK16E G28U7FTTL GPS Module GMOUSE Ceramic Antenna TTL Level 9600 Baud Rate Built in Flash for Flight Control Car Guide Navigation

Description:
Product main chip: 7th Chip
Built-in LNA signal amplifier
Built-in Flash, free configuration of product parameters

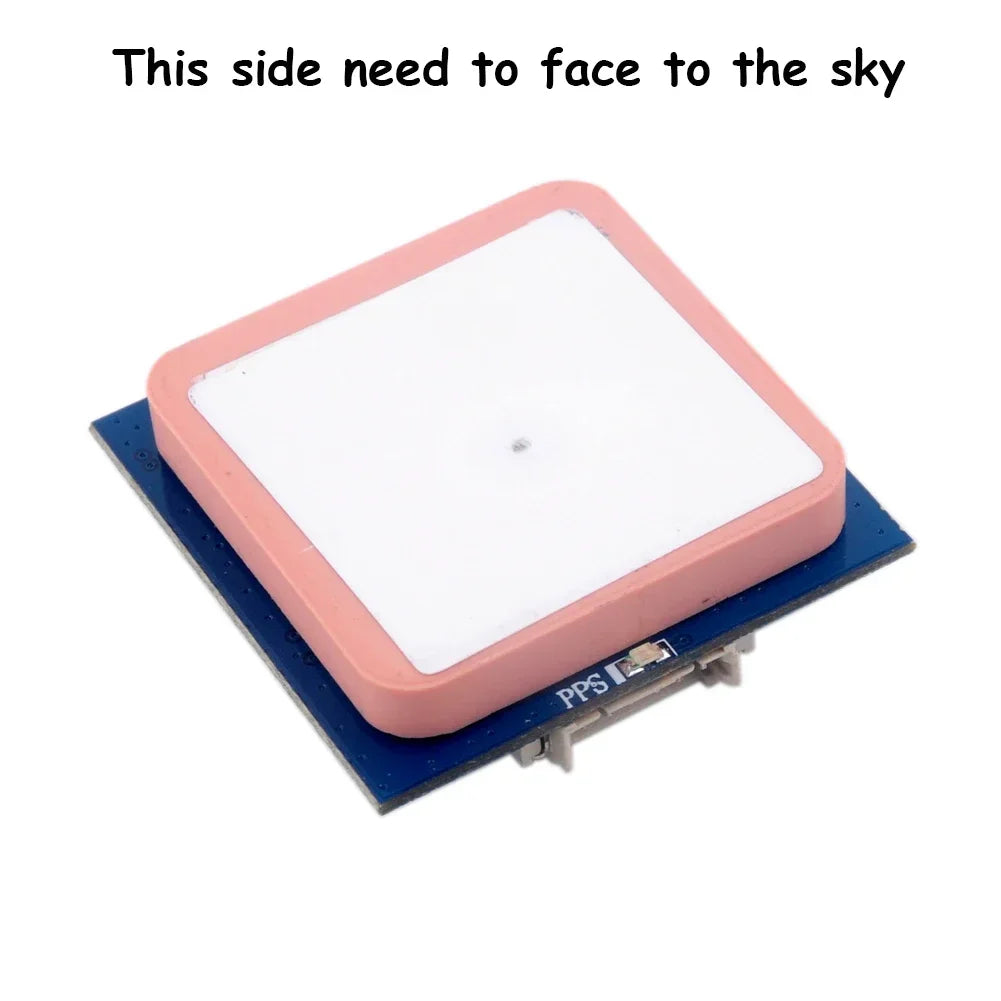

Industry-standard 25 x 25 x 4mm high-sensitivity ceramic antenna
Built-in TCXO crystal and Farah capacitor faster hot start
1-10Hz positioning update rate
Frequency: L1, 1575.42MHz
Baud rate: 4800,9600,19200,38400,57600,112500bps(default baud rate is 9600)
Channel: 56
Sensitivity tracking: -162dBm Capture: -160dBm cold start -148dBm
Cold start averages: 29 seconds
Warm start averaging: 28 seconds
Hot start averages: 1 second
Precision: HorizontalPosition: Autonomous <2.5maverage
SBAS <2.0m average
Timepulse signal: RMS 30 ns
Maximum height: 50000 meters
Maximum speed: 500 m / s
Maximum acceleration: ≦ 4G
Update frequency: 1-10 Hz
Dimensions 28 x 28 x 8.5 mm
Weight: 30 grams
Operating temperature -40 to 85 degree celsius
Storage temperature -40 to 85 degree celsius

Application:
It can be used in vehicle monitoring, bus station, car guide
Navigation, ship navigation, notebook navigation and other products

Package Included:
1 X G28U7FTTL Replace VK16E GMOUSE GPS Module
1 X JST 1.25mm 6P Cable

FAQ
Q:The data sheet of the ubx-g7020-kt says supply and i/o 1.4 v to 3.6 v, i don't see any other parts on the board, how is it ok to supply this with 5v?
A:You can use 3.3V-5V, there is voltage converter inside the module
