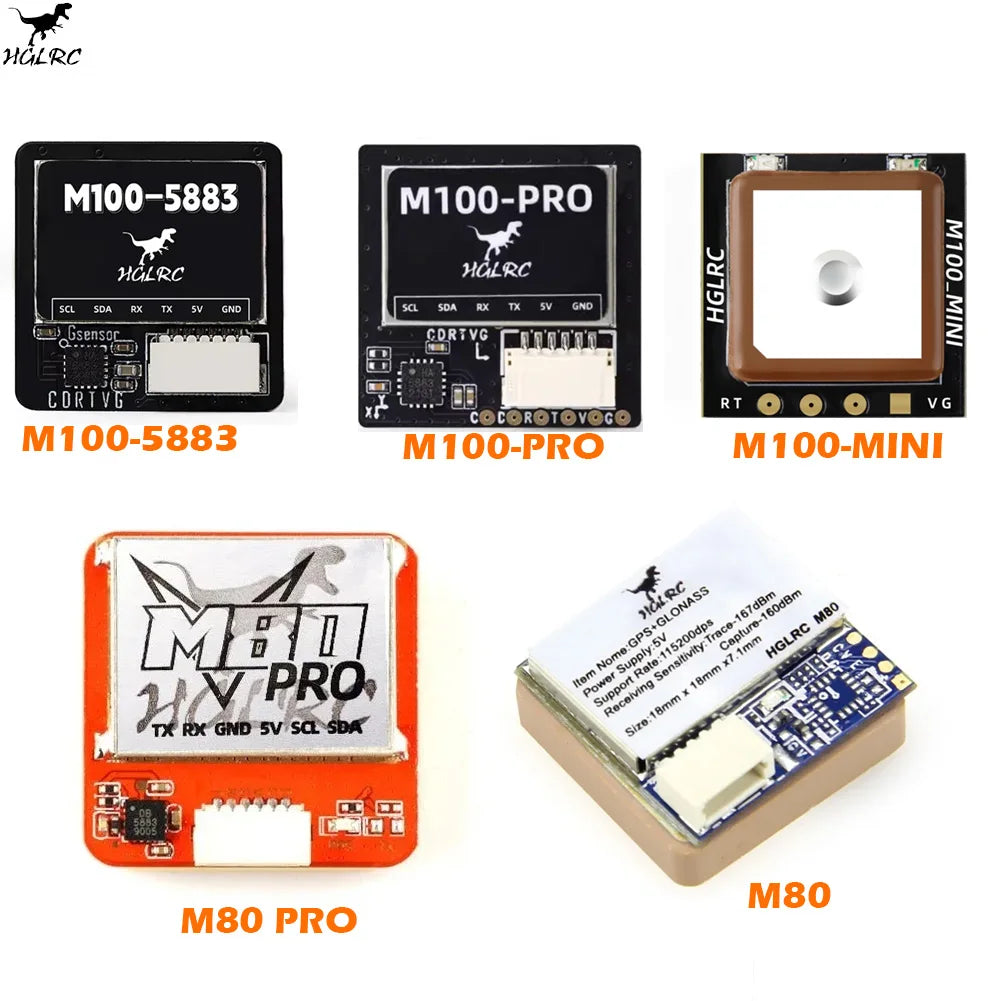

Módulo GPS HGLRC M100-PRO / M100-5883 / M100 MINI / M80 PRO / M80 para Drones RC FPV Racing Quadcopter Freestyle

$23.785 CLP

~~$26.785 CLP~~ $23.785 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Color M80 GPS M80 PRO GPS M100 MINI GPS M100 5883 GPS M100 PRO GPS

Cantidad

SPECIFICATIONS

Brand Name: Mitoot

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

Hign-concerned Chemical: None

Material: Metal

Model Number: M100

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Tool Supplies: Battery

Upgrade Parts/Accessories: Lithium Battery

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

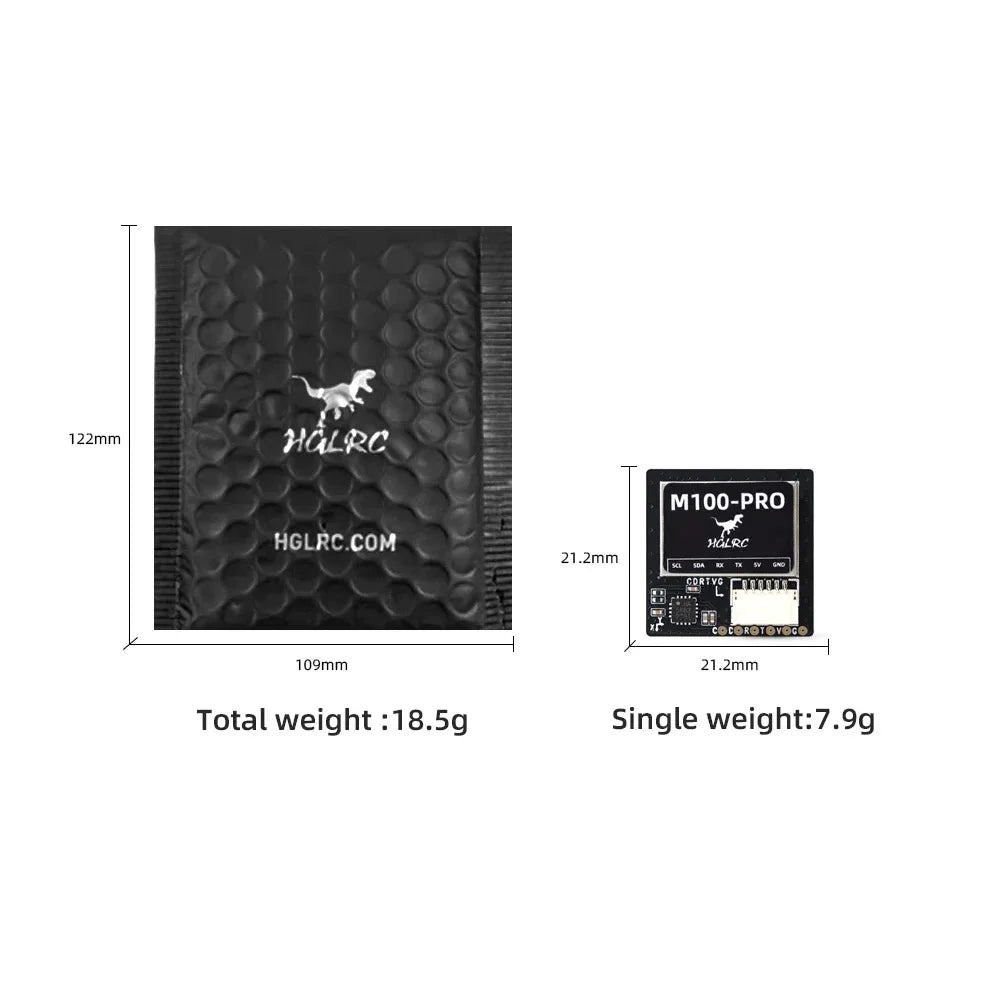

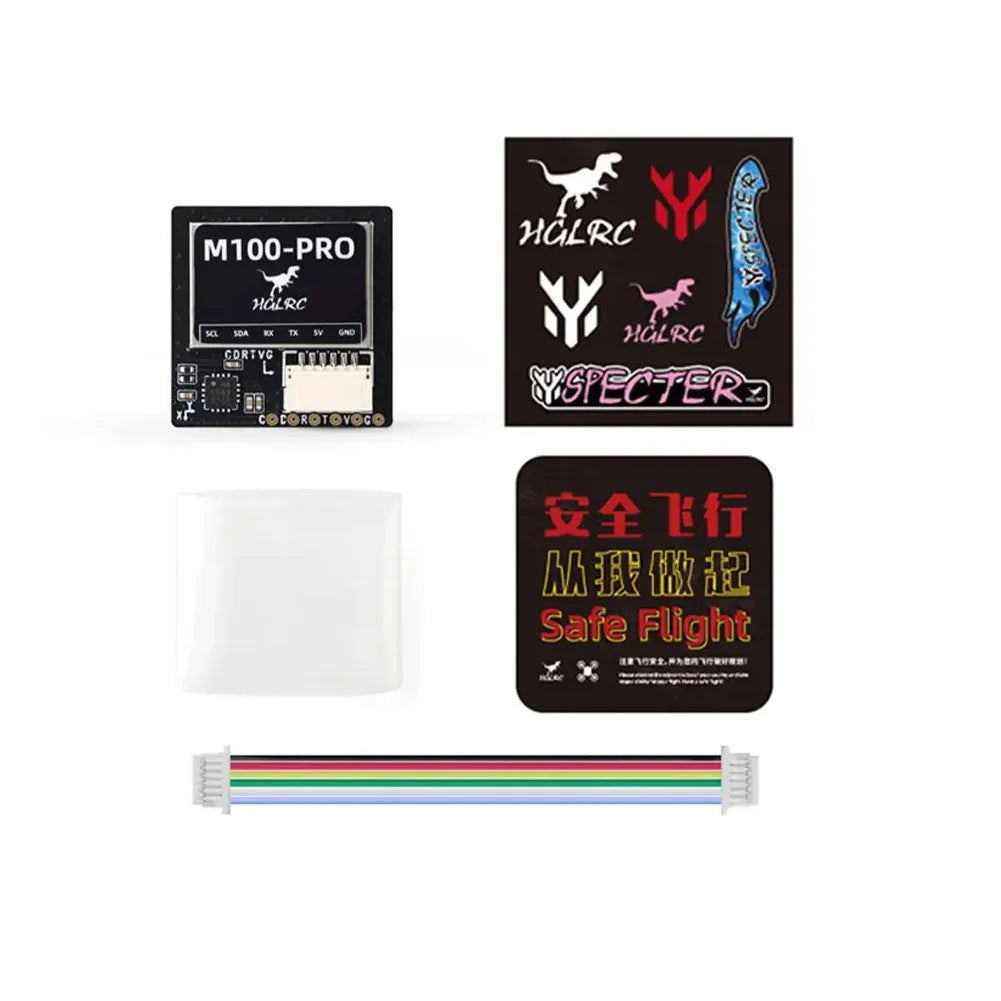

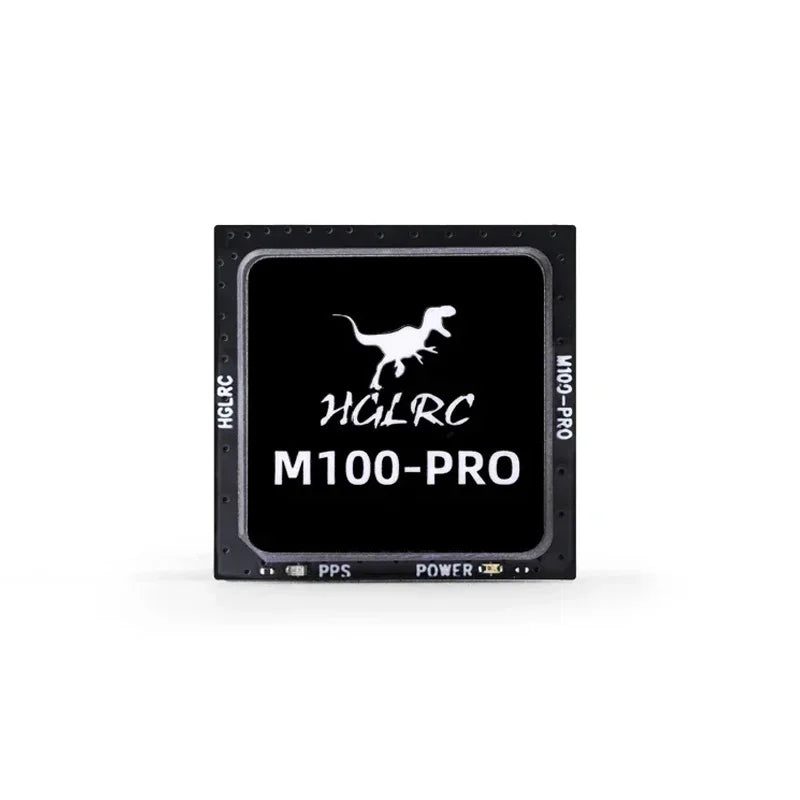

HGLRC M100-PRO GPS:

Adopting the new 10th generation chip, the number of satellite searches is 50+
QMC5883L compass, more accurate pointing
The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
Five-mode positioning, strong and stable signal to protect you.

Product parameters:
Chip: B101 (10th generation chip)
Receiving channel: 120
Baud rate: 115200 Protocol: UBX
Antenna: ceramic antenna Output frequency: 10Hz
Frequency: GPS L1, GLONASS G1, BDS B1,
GALILEO E1, QZSS L1, SBAS L1, IRNSS
Power input: 3.6-5.5V
Weight: 7.9g Acceleration 4G
Speed: 500m/s
Size: 21.2×21.2×8.2mm
Operating temperature: -40℃~+85℃
Storage temperature: -40℃~+105℃

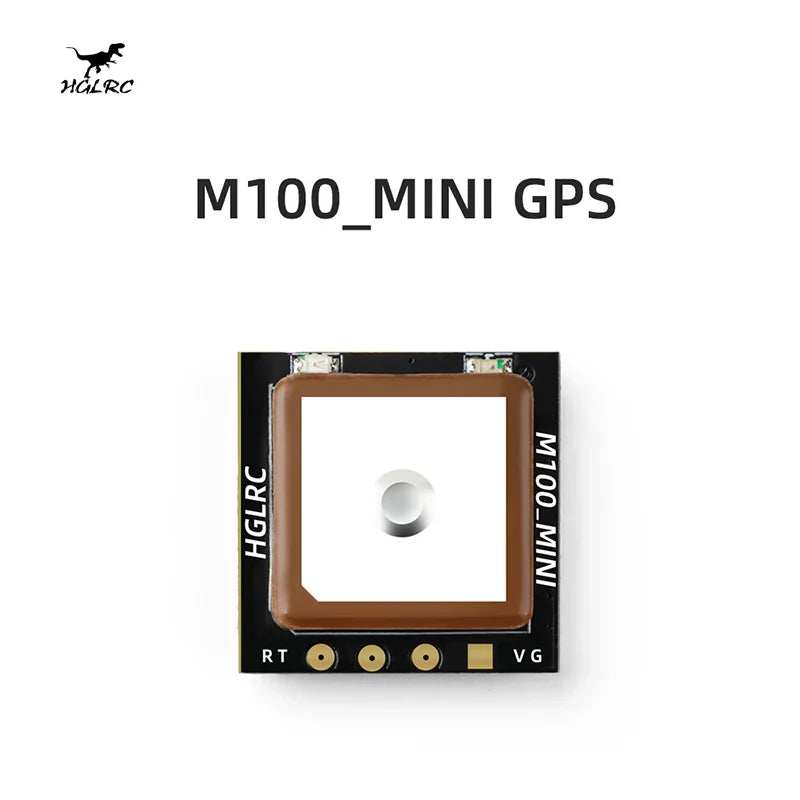

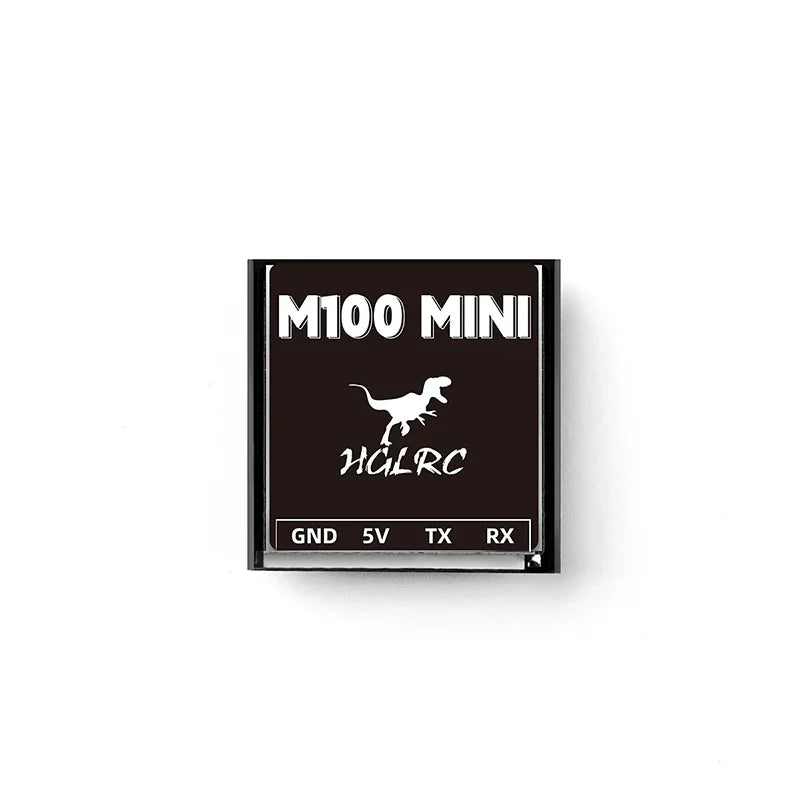

HGLRC M100 MINI GPS:

Chip: M10(10th Generation Chip)

Antenna: Ceramic Antenna

Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1

Receive Channel: 72ch

Baud Rate: 115200bps

Output Frequency: 10Hz

Input: 3.3V-5V

Size: 15x15x5.2mm

Weight: 2.6g

Speed Accuracy: 0.05m/s

Horizontal positioning accuracy: 2D ACC2.0m(Outdoor)

Receiver Sensitivity: Trace -166dBm

Capture -160dBm

Characteristics: High:50000m,

Speed: 500m/s,

acceleration 4G

Operating temperature: -40°C - +85°C

Storage temperature: -40°C - +105°C

M100_MINI Include:

HGLRC M100_MINI GPS X 1

Heat Shrink Tube (Φ12mm x 20mm) X 1

HGLRC sticker X 1

HGLRC Manual X 1

SH1.0-4Pin Cable X 1

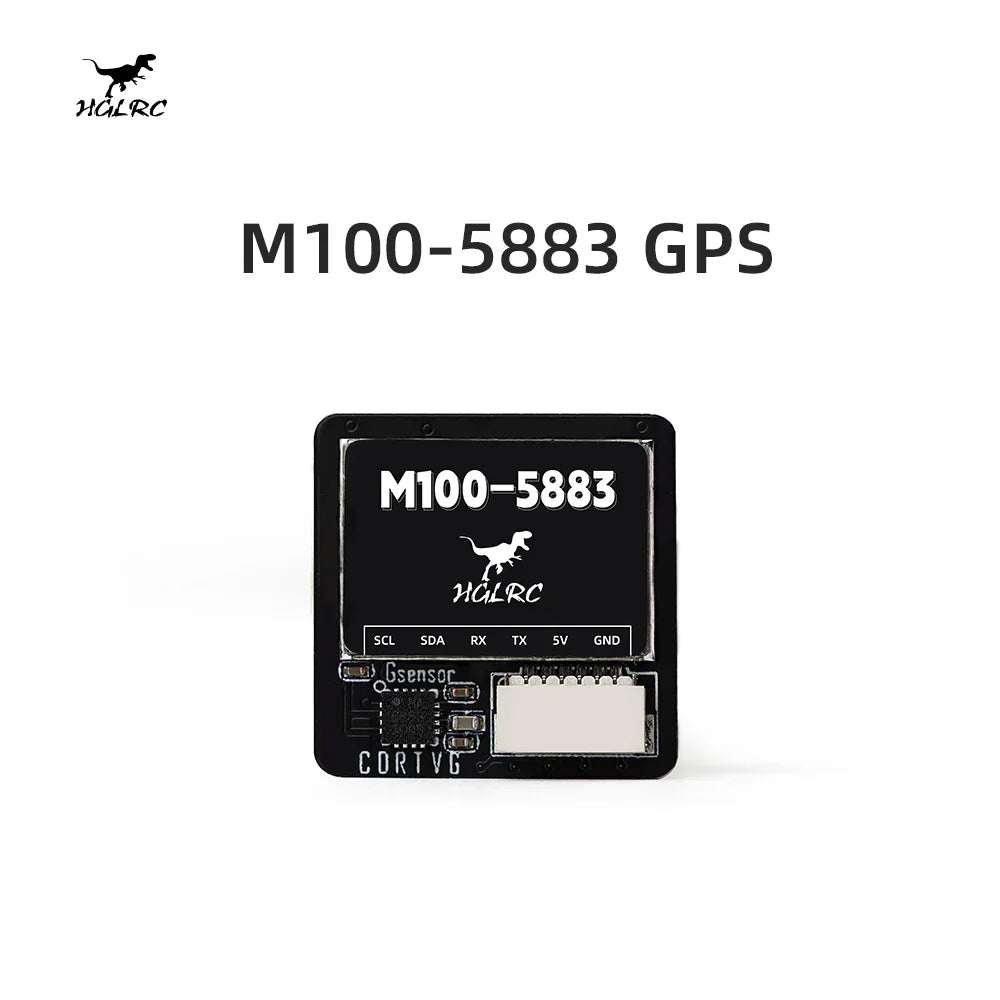

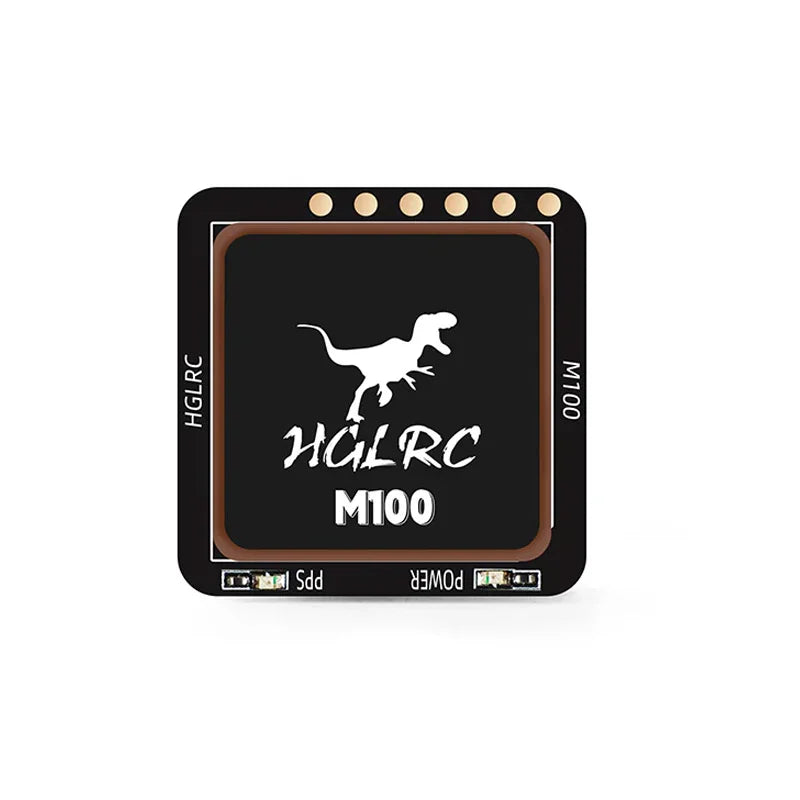

HGLRC M100-5883 GPS

New upgraded 10th generation chip with compass

Suitable for FPV fixed-wing UAV

Technical Parameters:

1. Chip: M10 (tenth generation chip)

2. Antenna: ceramic antenna

3. Frequency: GPS/QZSS L1C/A, SBAS EGNOS, GAGAN, MSAS and WAAS

GLONASS L1OF, BDS B1I, Galileo E1B/C

4. Receive channel: 72ch

5. Baud rate: 115200bps.

7. Output frequency: 10Hz

8. Power input: 3.3-5V

9. Size: 21x21x8.02mm

10. Weight: 7.73g

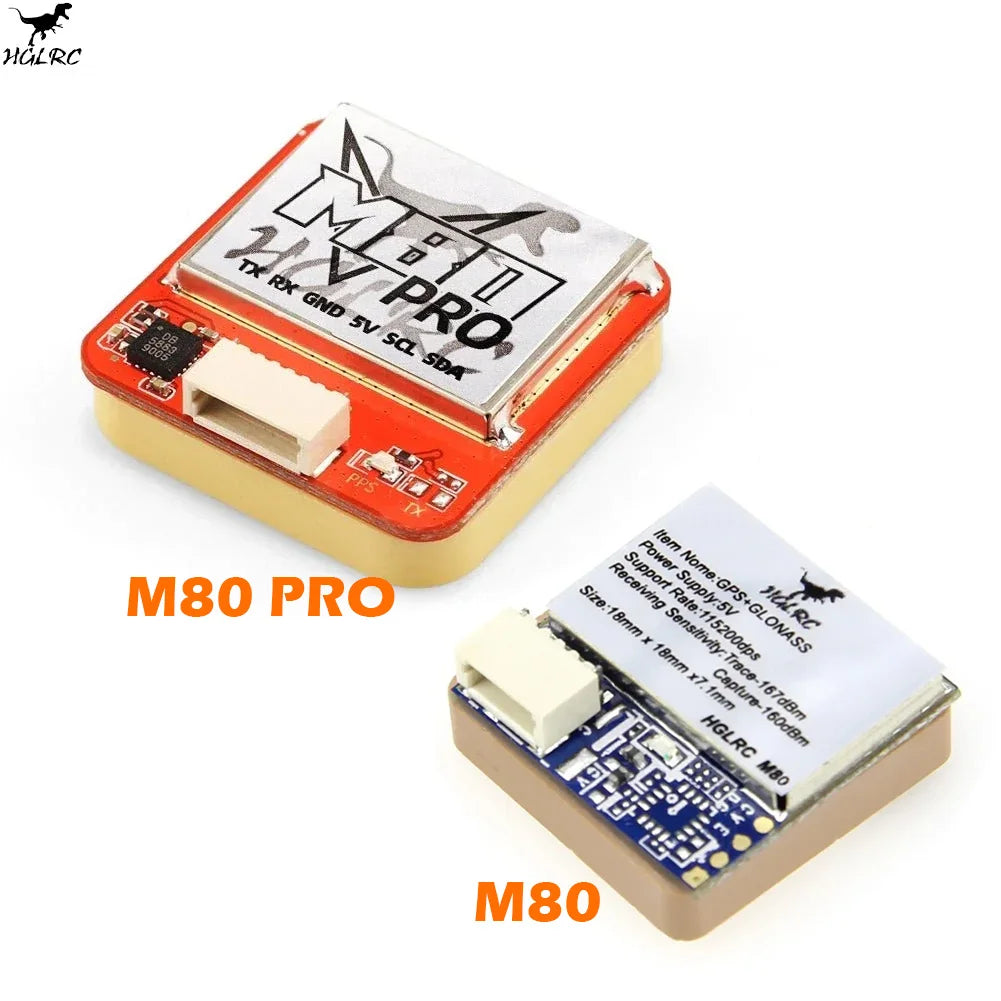

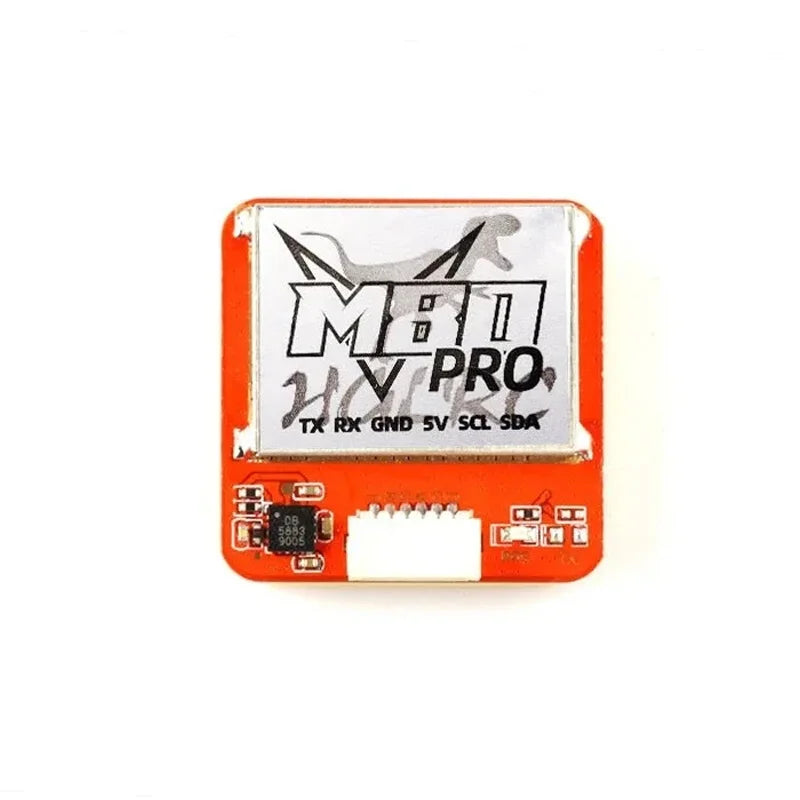

HGLRC M80 PRO GLONASS GALILEO QZSS SBAS BDS GPS Module QMC5883 Compass Gain Antenna for RC Airplane FPV Long Range Drones

Item Name:HGLRC M80PRO GPS
Chip:M8030
Power Supply:5V
Antenna: Ceramic Antenna
Receiving Format:GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
Receiving Channel:72 Searching Channel
Compass:QMC5883
Support Rate:115200dps
Output Frequency:1Hz-10Hz,Default 10Hz
Speed Precison:0.05 m/s
Level Positioning Precison:2D ACC1.5m(ln Open Sky)
Receiving Sensitivity:Trace -162dBm
Capture-160dBm
Dynamic Characteristics:Max Height:50000m
Max Speed:500m/s
Max Acceleration:4G
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+105℃
Size:25mm x 25mm x 8.3mm
Weight:12.5g

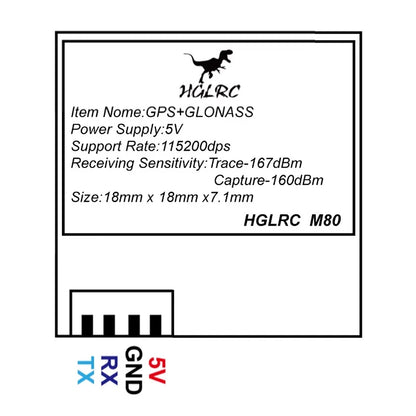

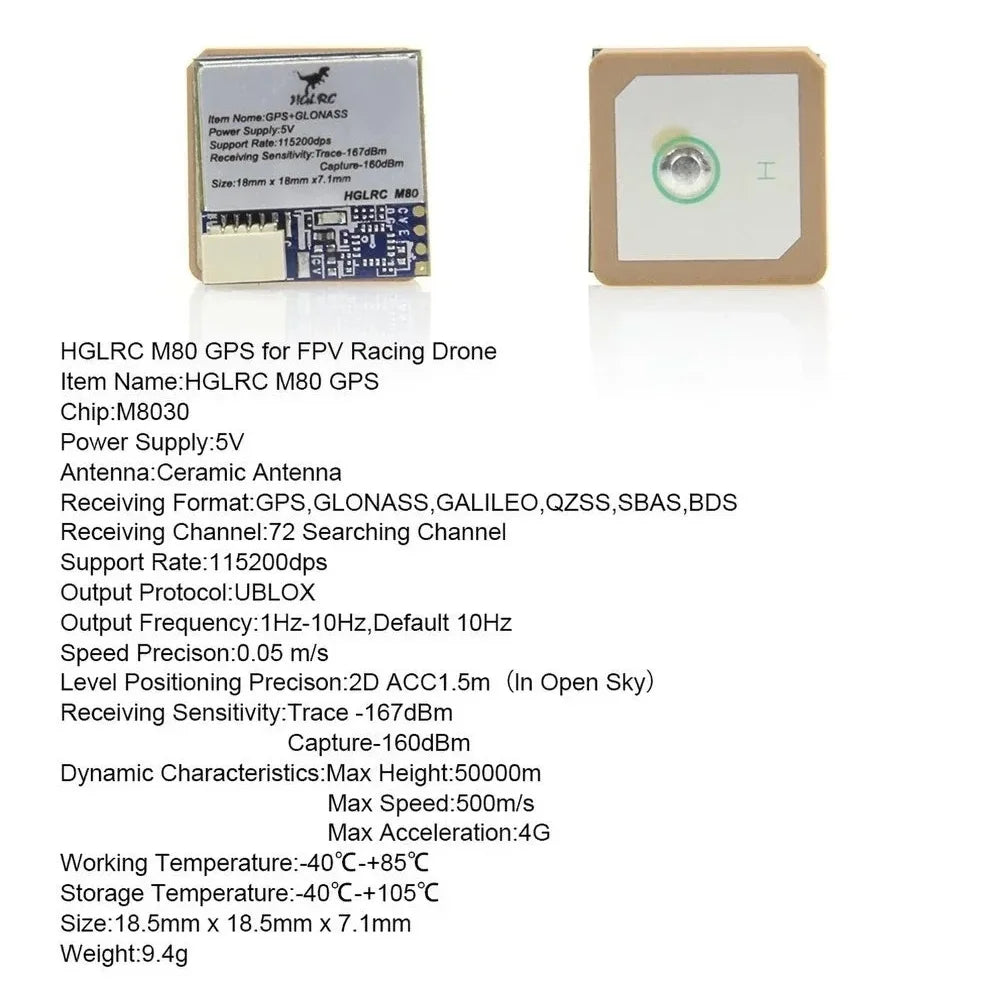

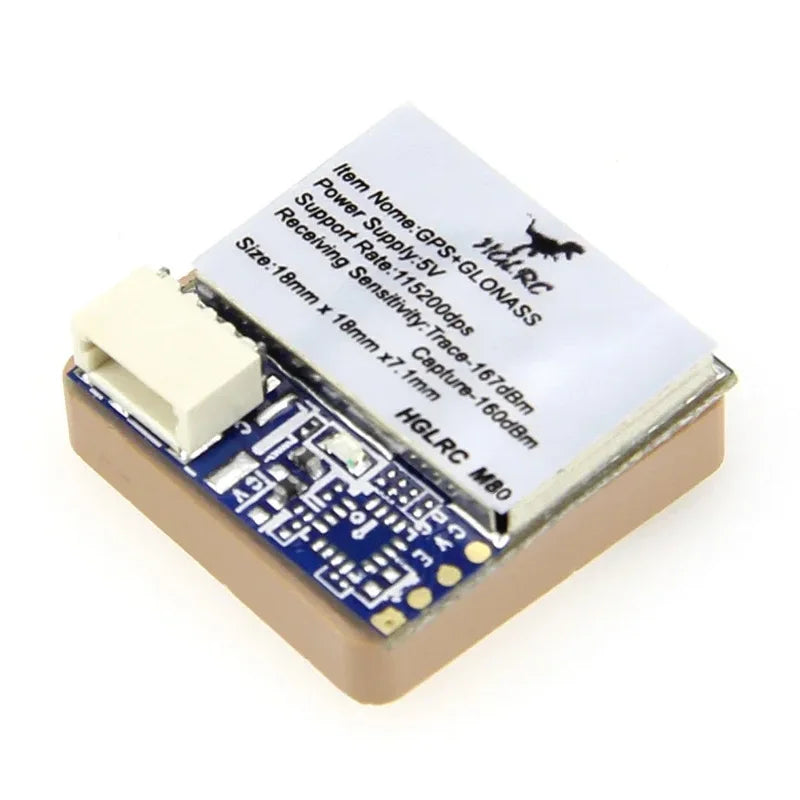

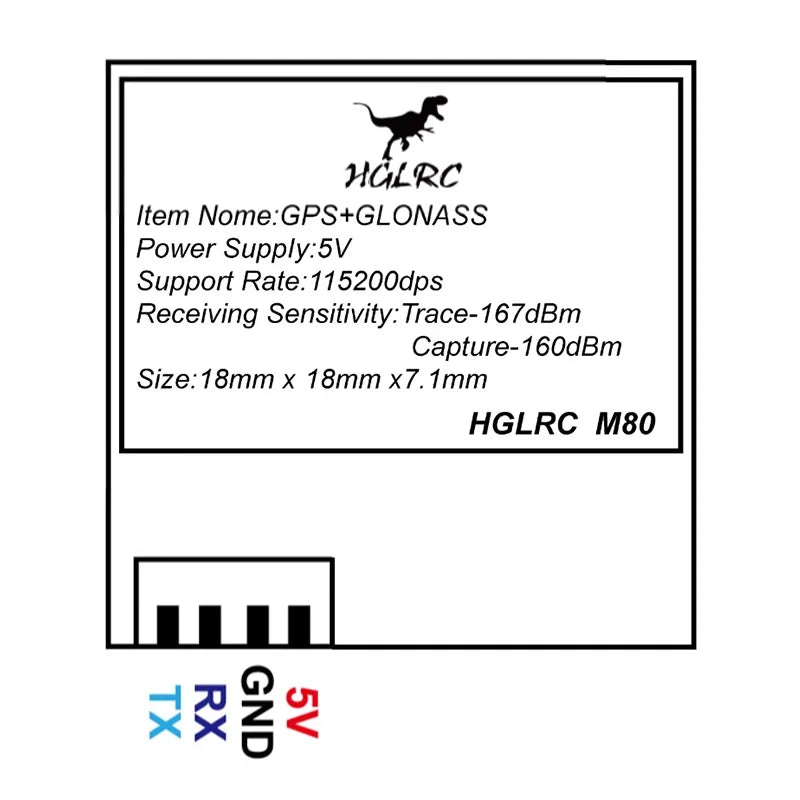

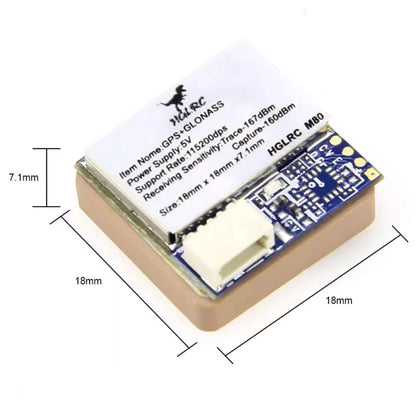

HGLRC M80 GPS Mini GPS Module Supports GPS,GLONASS,GALILEO,QZSS,SBAS,BDS for RC Drone FPV Racing Models Part Accessories

Features:
1.Receiving Format: GPS,GLONASS,GALILEO,QZSS,SBAS,BDS.
2.Receiving Channel: 72 Searching Channel.
3.Level Positioning Precison: 2D Acc1.5m(ln Open Sky).
4.Receiving Sensitivity: Trace -167dBm, Capture -160dBm.
5.Dynamic Characteristics: Max Height:50000m, Max Speed:500m/s, Max Acceleration:4G.

descriptions:
1.This HGLRC M80 GPS module supports GPS,GLONASS,GALILEO,QZSS,SBAS,BDS.
2.It comes with high sensitive and good quality.
3.It is a good choice for RC fans!

Specifications:
Brand: HGLRC
Last Name: M80 GPS
Chip: M8030
material: metal
Color: Brown
Power supply: 5V
Antenna: Ceramic Antenna
Receiving Format: GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
Receiving Channel: 72 Searching Channel
Support Rate: 115200dps
Output Frequency: 1Hz-10Hz,Default 10Hz
Speed Precison: 0.05 m/s
Level Positioning Precison: 2D Acc1.5m(ln Open Sky)
Receiving Sensitivity: Trace -167dBm, Capture -160dBm
Dynamic Characteristics: Max Height:50000m, Max Speed:500m/s, Max Acceleration:4G
Working Temperature: -40℃-+85℃
Storage Temperature: -40℃-+105℃

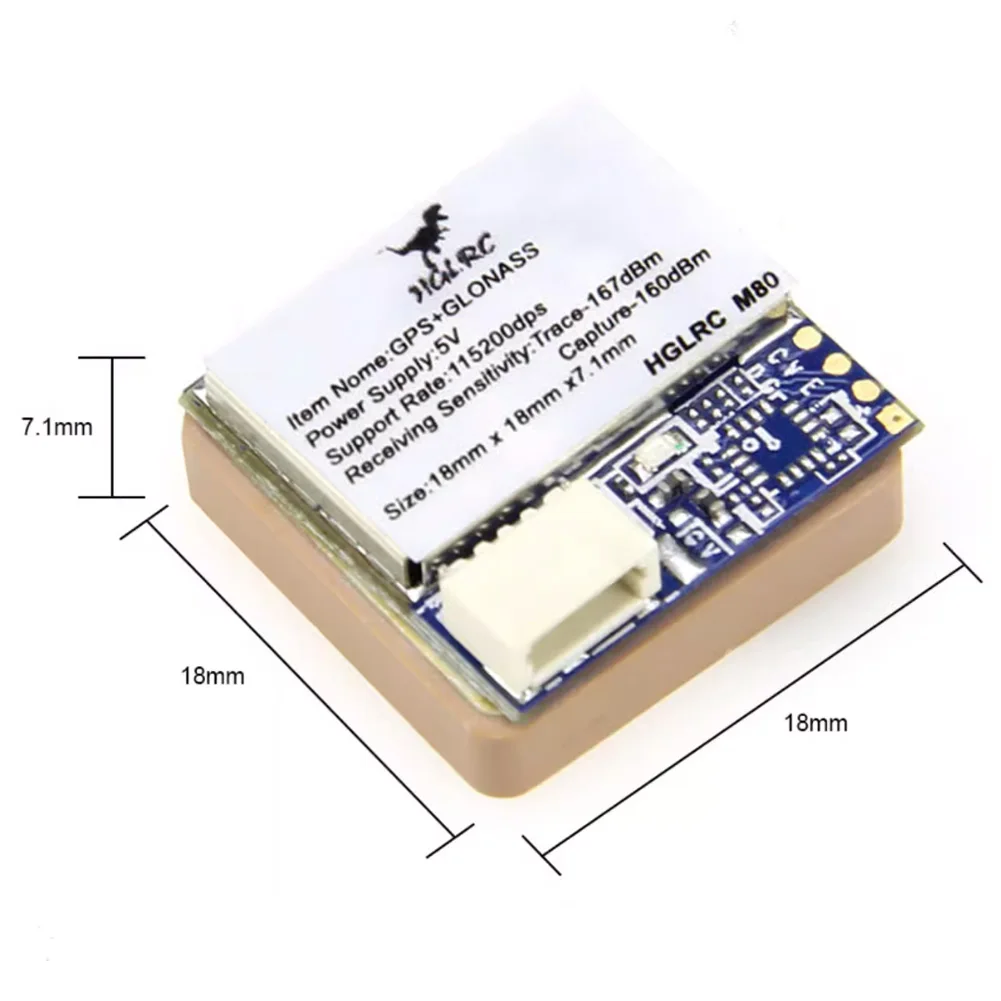

Size: 18.5x18.5x7.1mm/0.72x0.72x0.28in
Weight: 9.4g/0.33oz

Package information:
Package Size: 80x60x50mm/3.12x2.34x1.95in
Package Weight: 10.9g/0.38oz
