SPECIFICATIONS
Brand Name: DWIN
Color: 262K
Display Mode: None
Driver IC: T5L0
Hign-concerned Chemical: None
Model Number: DMG48270C043_04W
Origin: Mainland China
Resolution: 128*128
Type: TFT
Viewing Angle: 70/70/40/30
is_customized: Yes

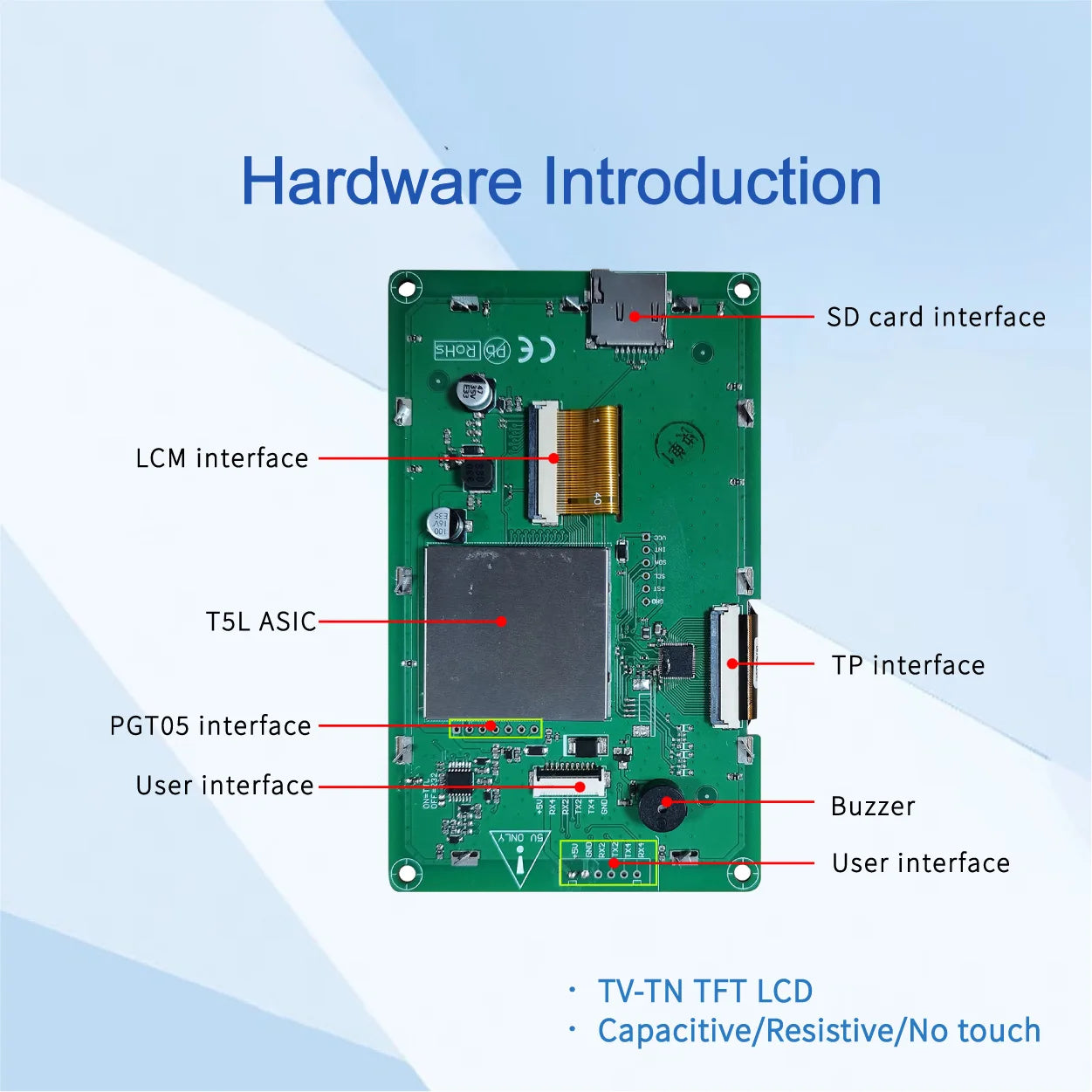

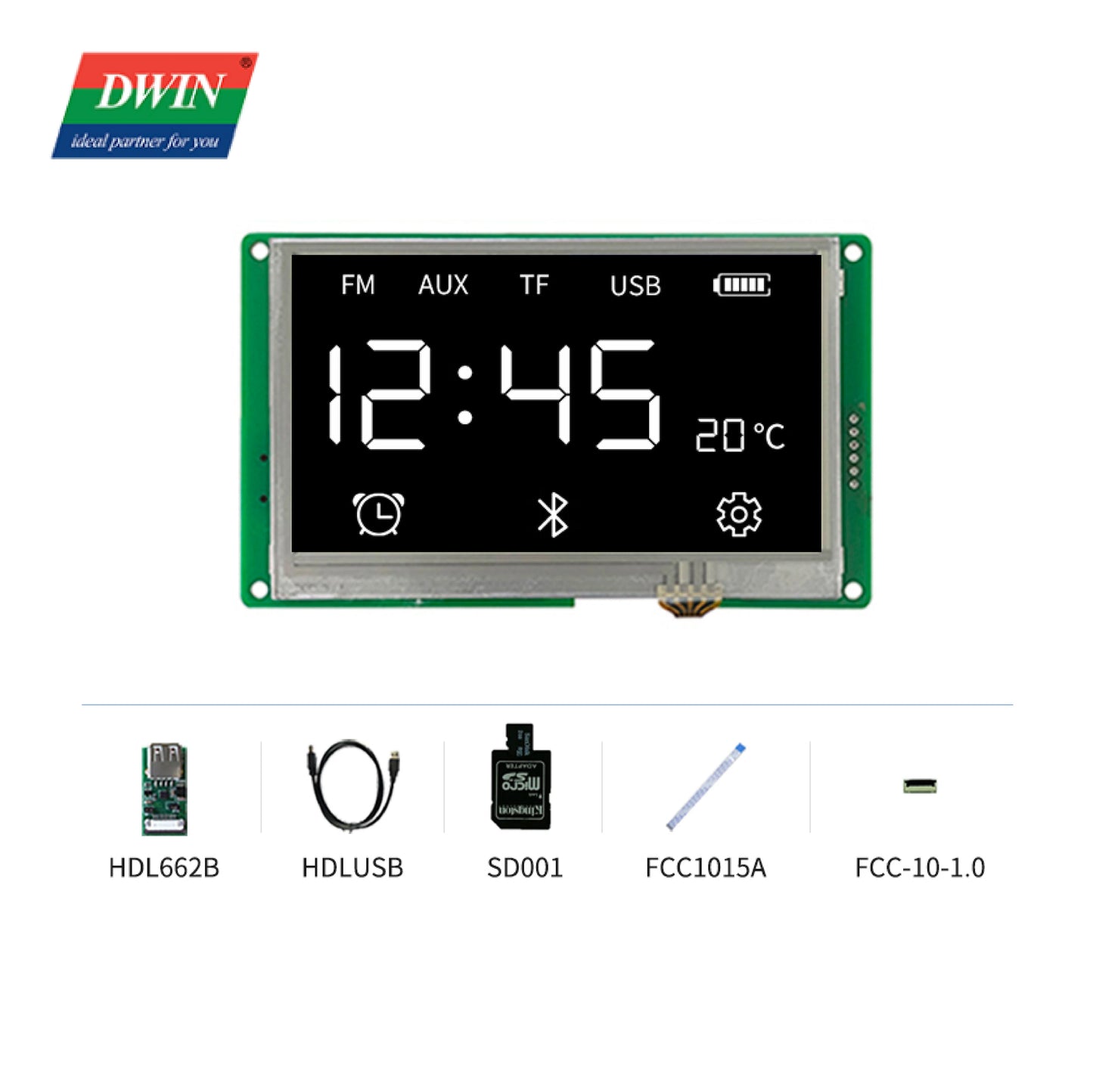

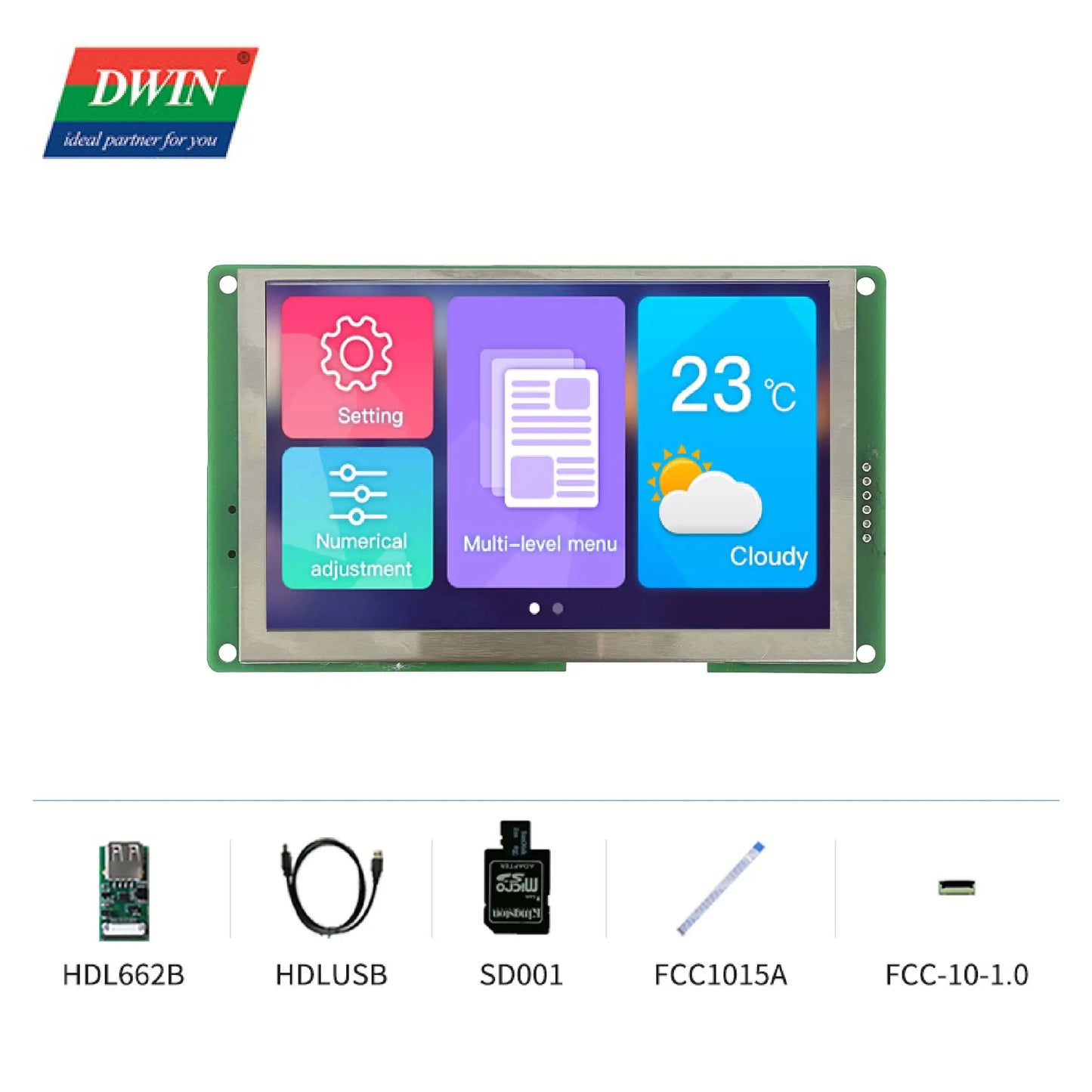

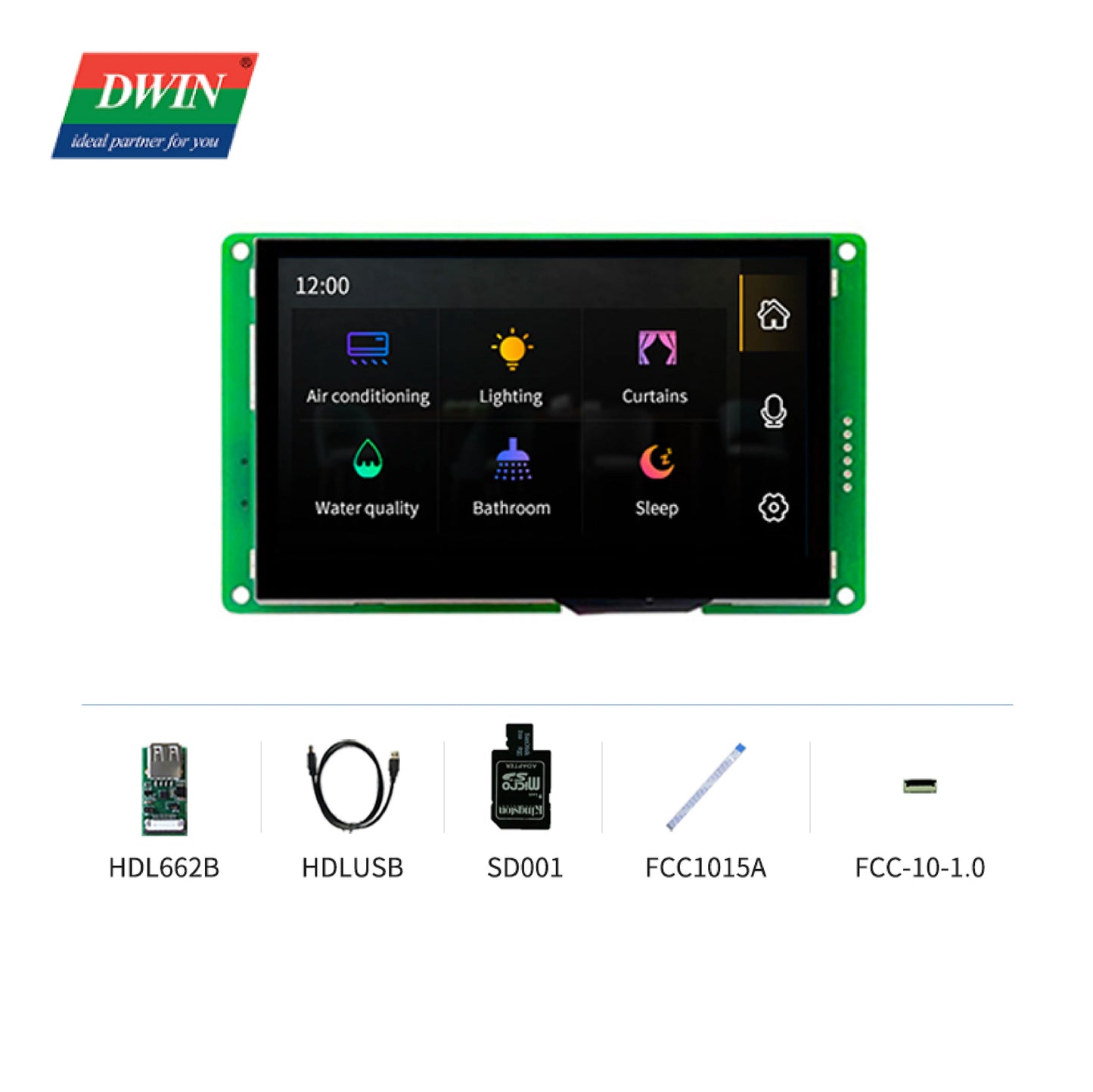

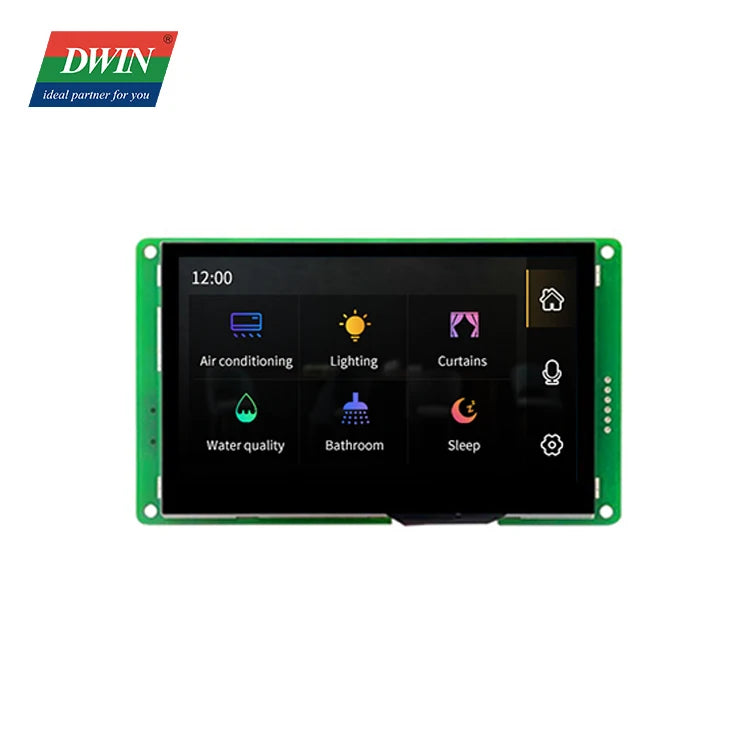

Features

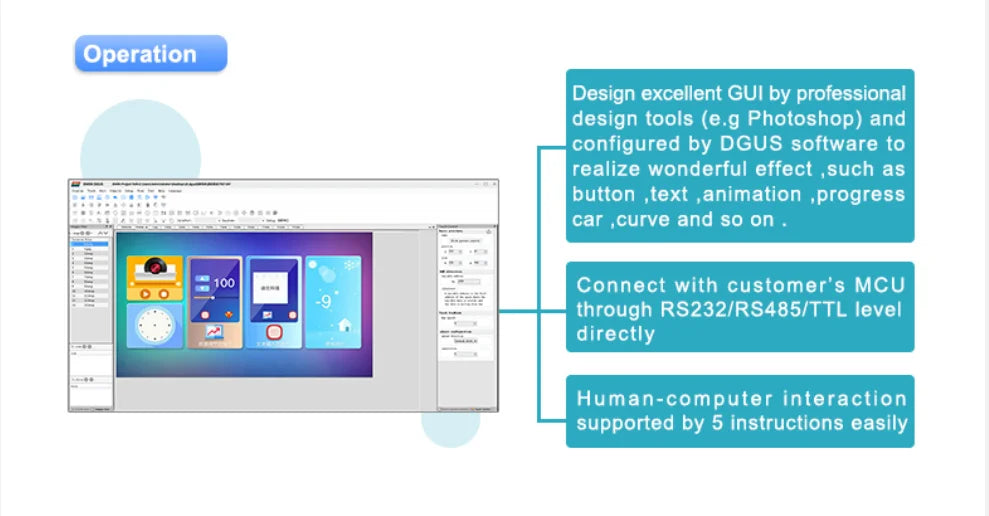

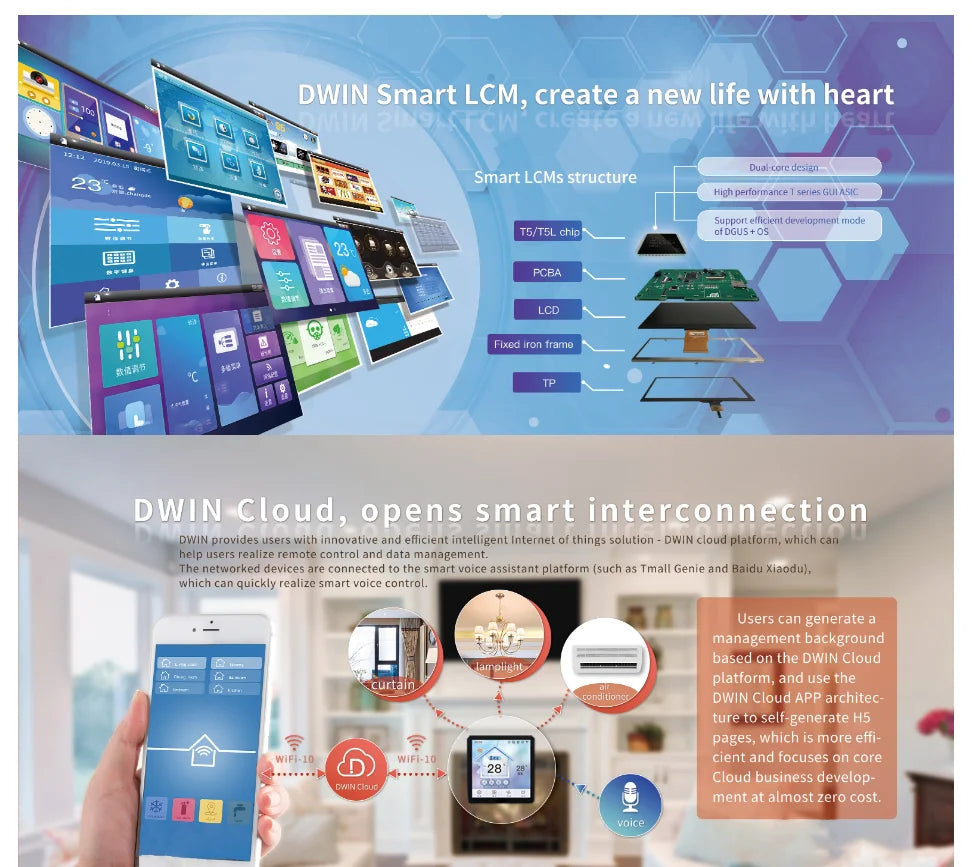

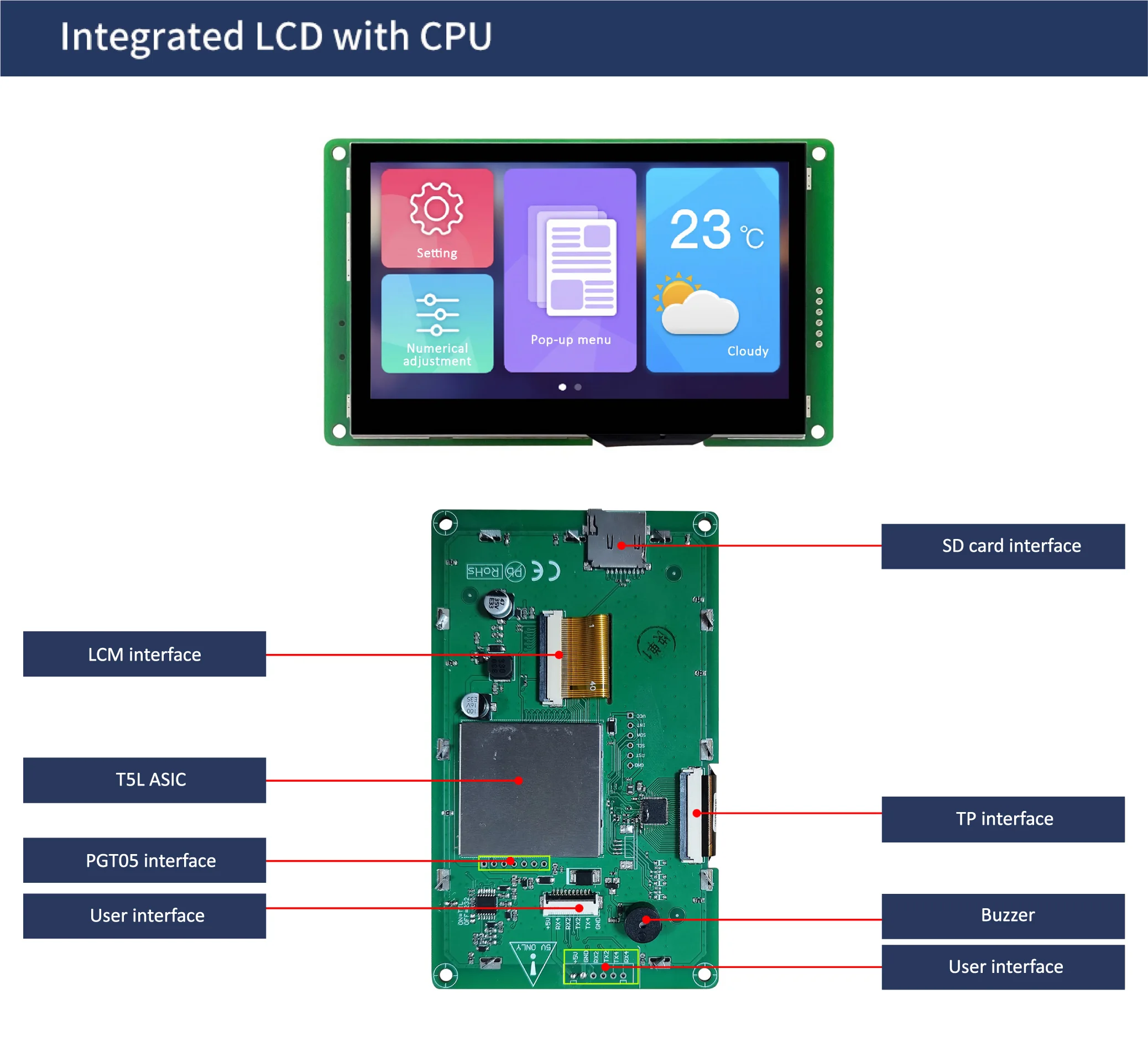

Based on T5L0, running DGUS II system, commercial grade.
4.3-inch, 480*272 Pixels resolution, 262K Colors, TV-TN-TFT-LCD.
Display parameters | ||||||
LCD Type |
TV-TN, TFT LCD |
|||||
Viewing Angle |
TV viewing angle, 70°/70°/40°/30°(L/R/U/D) |
|||||
Resolution |
480×272 pixels (0°/90°/180°/270°) |
|||||
Color |
18-bit 6R6G6B |
|||||
Active Area (A.A.) |
95.04mm (W)×53.86mm (H) |
|||||
Backlight Mode |
LED |
|||||
Backlight Service Life |
>10000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) |
|||||
Brightness |
WTC:250nit |
|||||
Brightness Control |
0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range) |
|||||
Serial interface parameters | ||||||
Mode |
UART2: ON=TTL/CMOS; OFF=RS232 |
|||||
Voltage Level |
Test Condition |
Min |
Typ |
Max |
Unit |
|
Output 1, Iout = -4mA |
2.7 |
3.2 |
- |
V |
||
Output 0, Iout = 4mA |
- |
0.1 |
0.4 |
V |
||
Input 1 |
2.4 |
3.3 |
5.5 |
V |
||
Input 0 |
0 |
- |
1.0 |
V |
||
Baud Rate |
3150~3225600bps, typical value of 115200bps |
|||||
Data Format |
UART2: N81 |
|||||

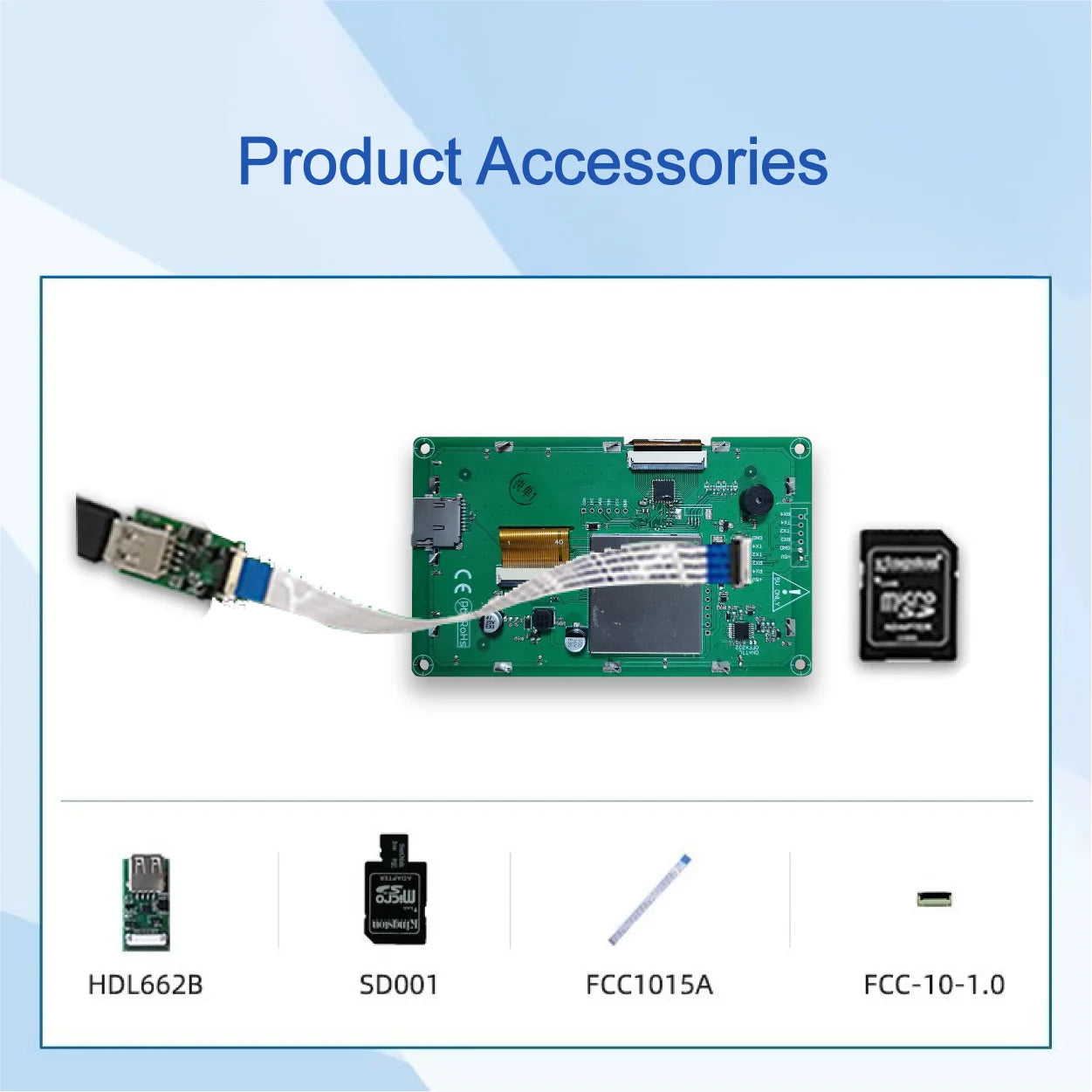

Interface Cable |
10Pin_1.0mm |
|||||
Electrical specifications | ||||||
Rated Power |
<5W |
|||||
Operating Voltage |
4.5~5.5V, typical value of 5V |
|||||
Operating Current |
200mA |
VCC=5V, max backlight |
||||
70mA |
VCC=5V, backlight off |
|||||
Recommended power supply: 5V 1A DC | ||||||
Operating environment | ||||||
Operating Temperature |
-10℃~60℃(5V @ 60% RH) |
|||||
Storage Temperature |
-20℃~70℃ |
|||||
Conformal Coating |
None |
|||||
Operating Humidity |
10%~90%RH, typical value of 60% RH |
|||||
Dimensions | ||||||
Form Factor |
WTC:121.92mm (W)×73.15mm (H)×15.60mm (T) |
|||||
Installation Dimensions |

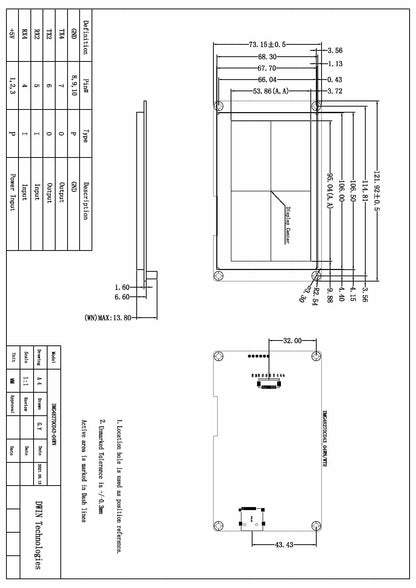

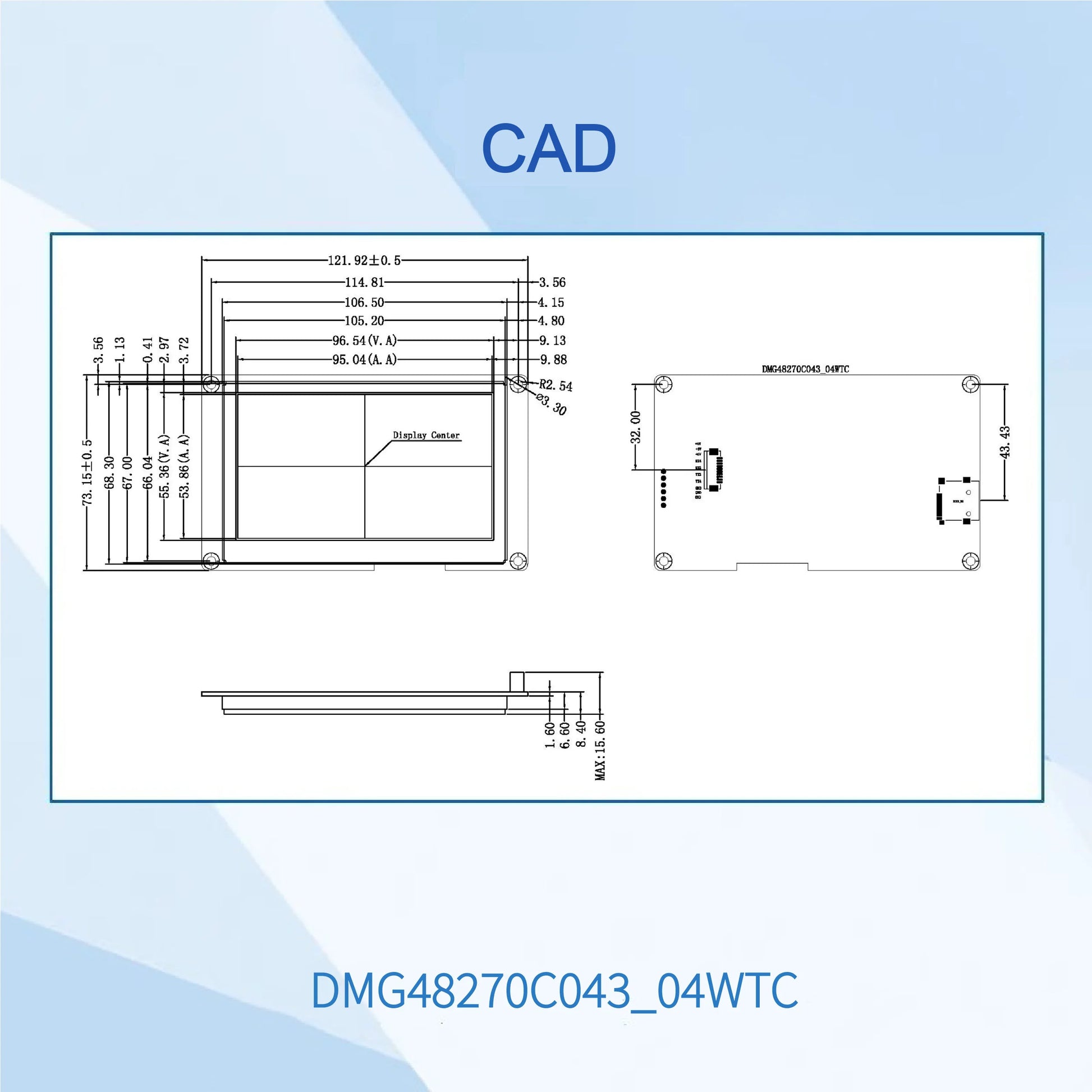

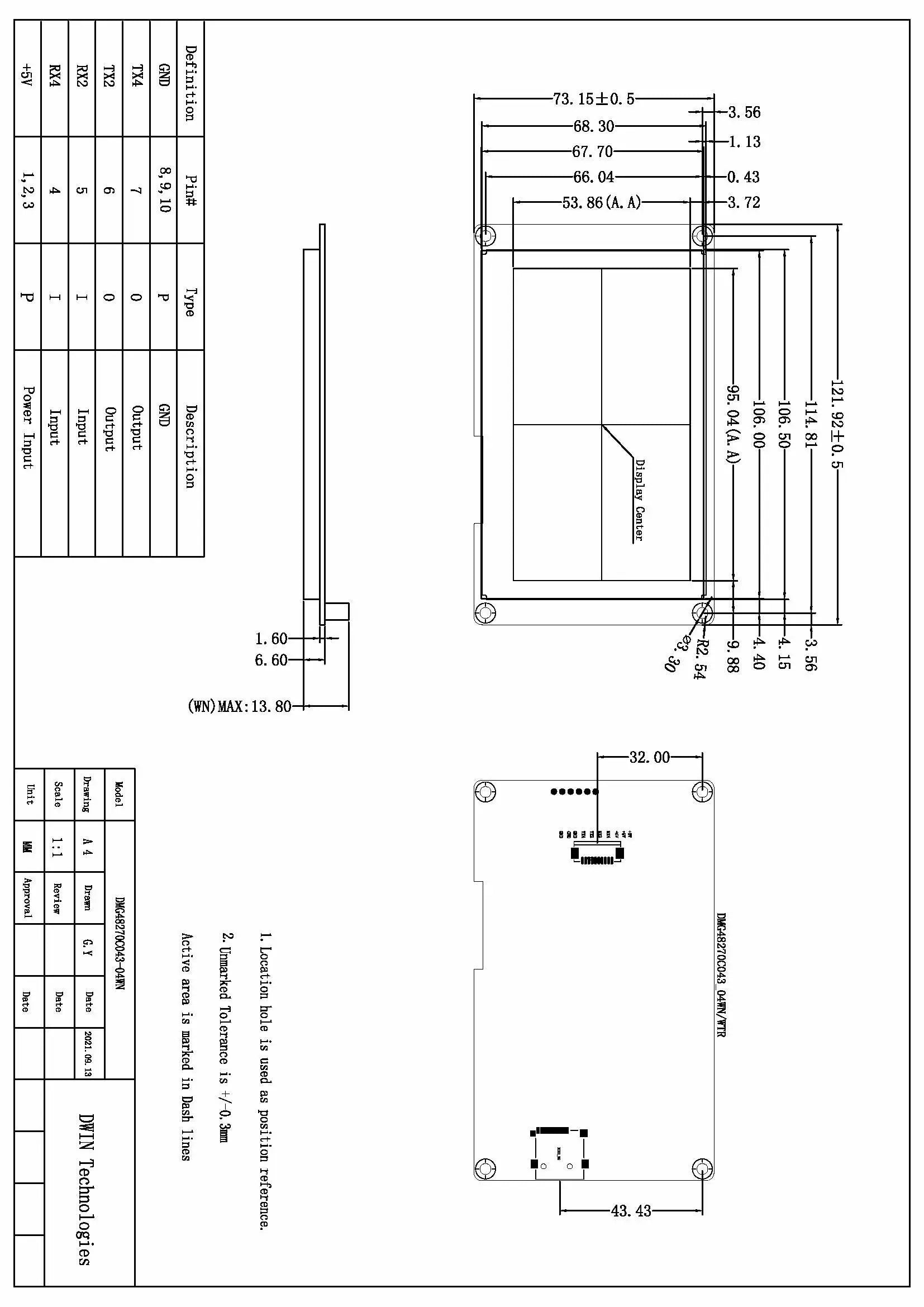

Positioning hole: 106.50(+0.3mm)×68.30(+0.3mm) |
|||||
Net Weight |
WTC:125g |
|||||
FAQ
