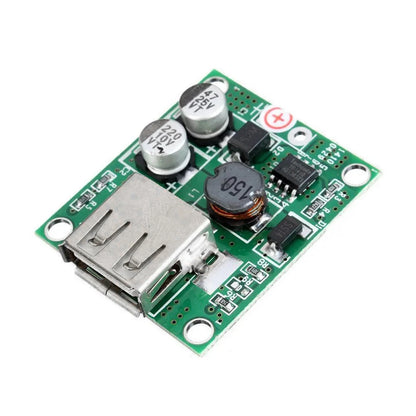

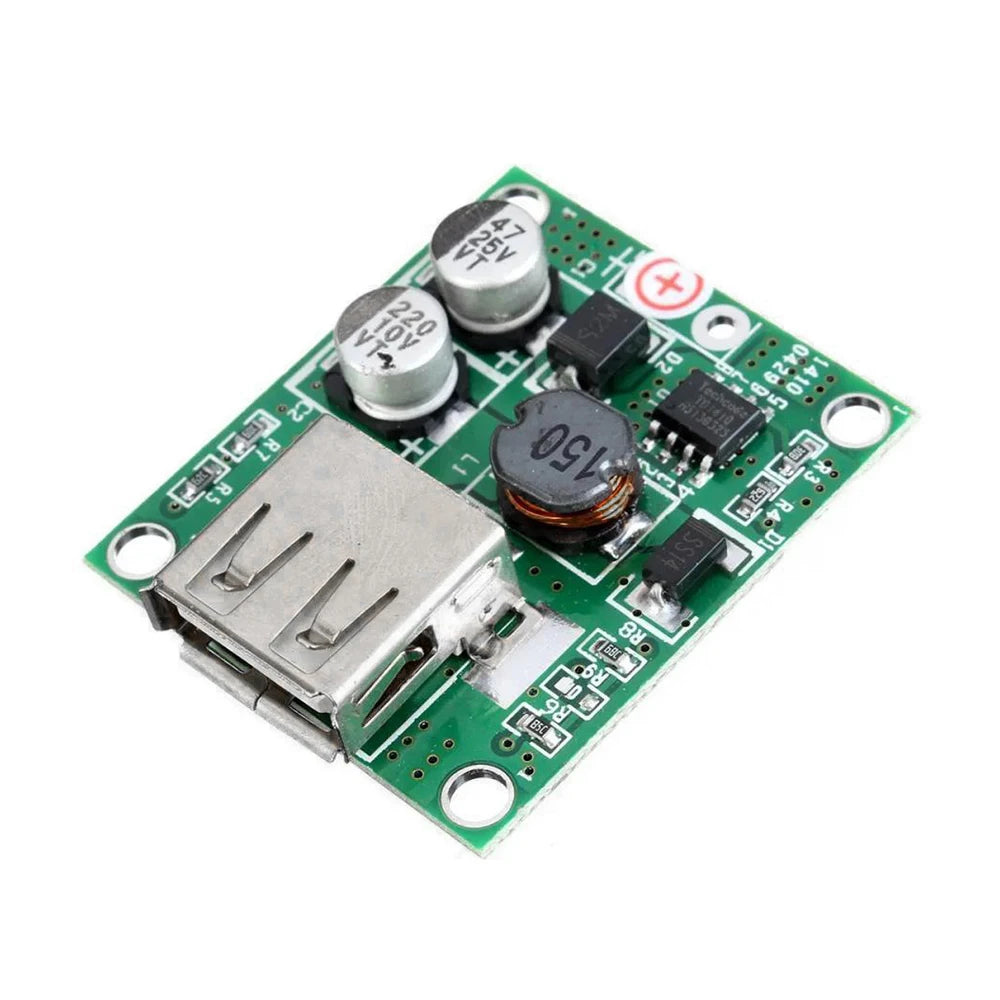

Input 5-18V output 5V 2A Solar Power Bank USB Charge Voltage Controller Regulator For Mobile phone MP3 MP4

Product Features:

This product is mainly used in solar folding bags and solar chargers, which can charge any mobile phone, MP3, MP4 and other digital products.

Automatic restart (after weak sunlight, stop charging, automatically resume after discharge in strong sunlight)

Automatic identification of mobile phones and other smartphones

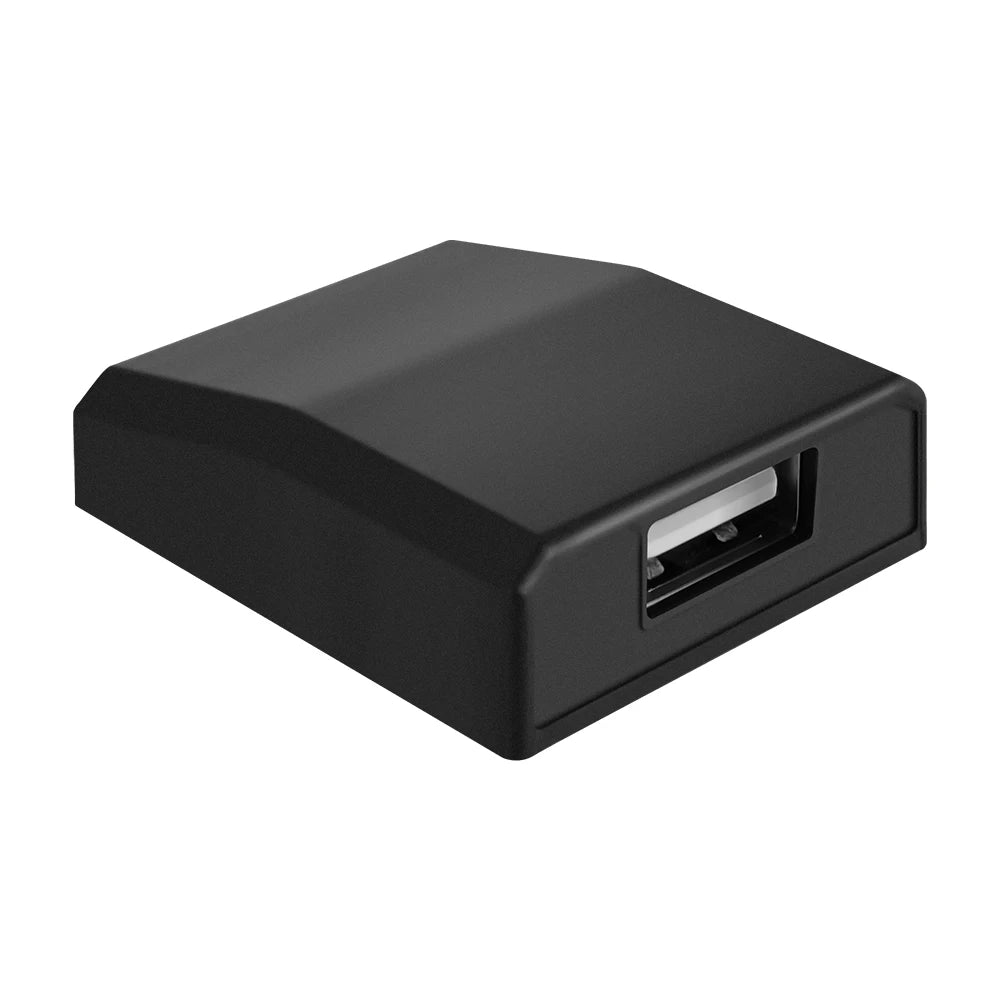

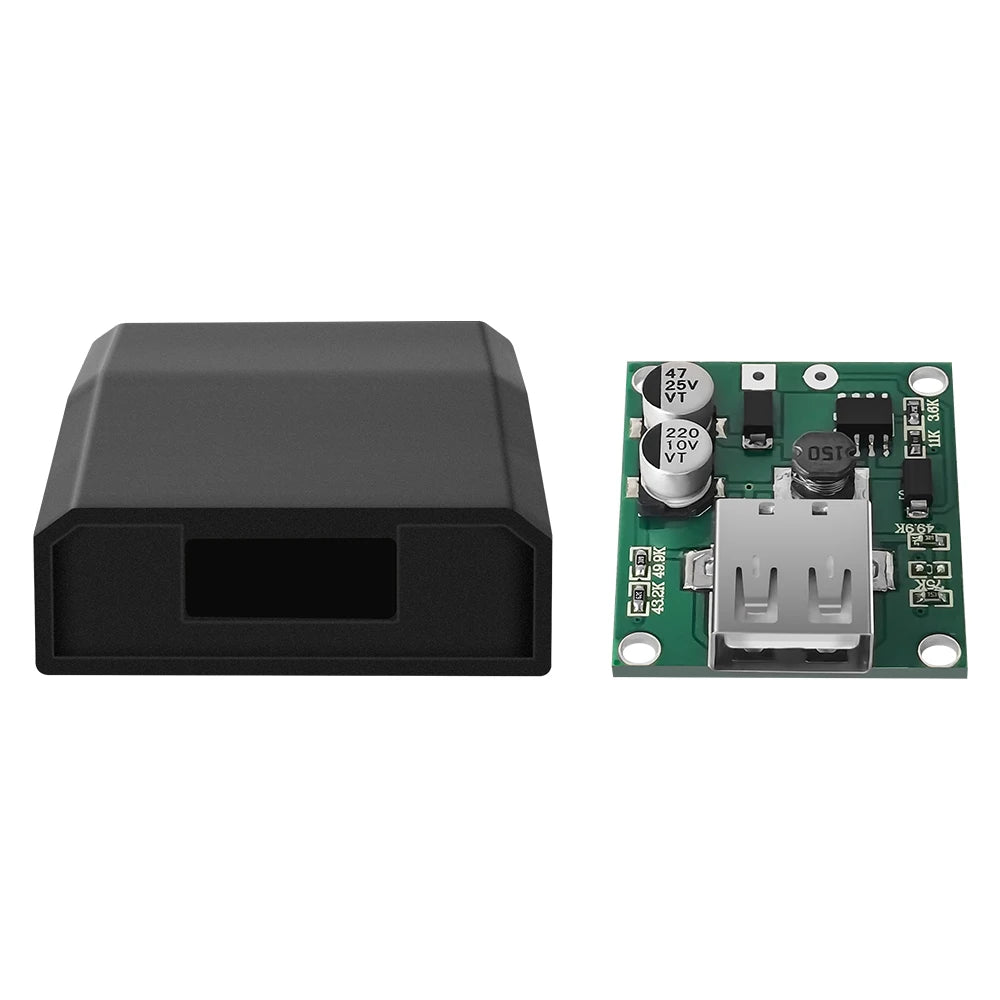

Matching plastic shell, more beautiful shape

Solar DIY accessories can be used to make chargers

Product parameters:

Wide input voltage range: input DC voltage 5~20V, can stably output 5V DC voltage.

Large output current up to 2A.

High conversion efficiency, up to 95%.

Industrial temperature range: -40°C ~ +85°C

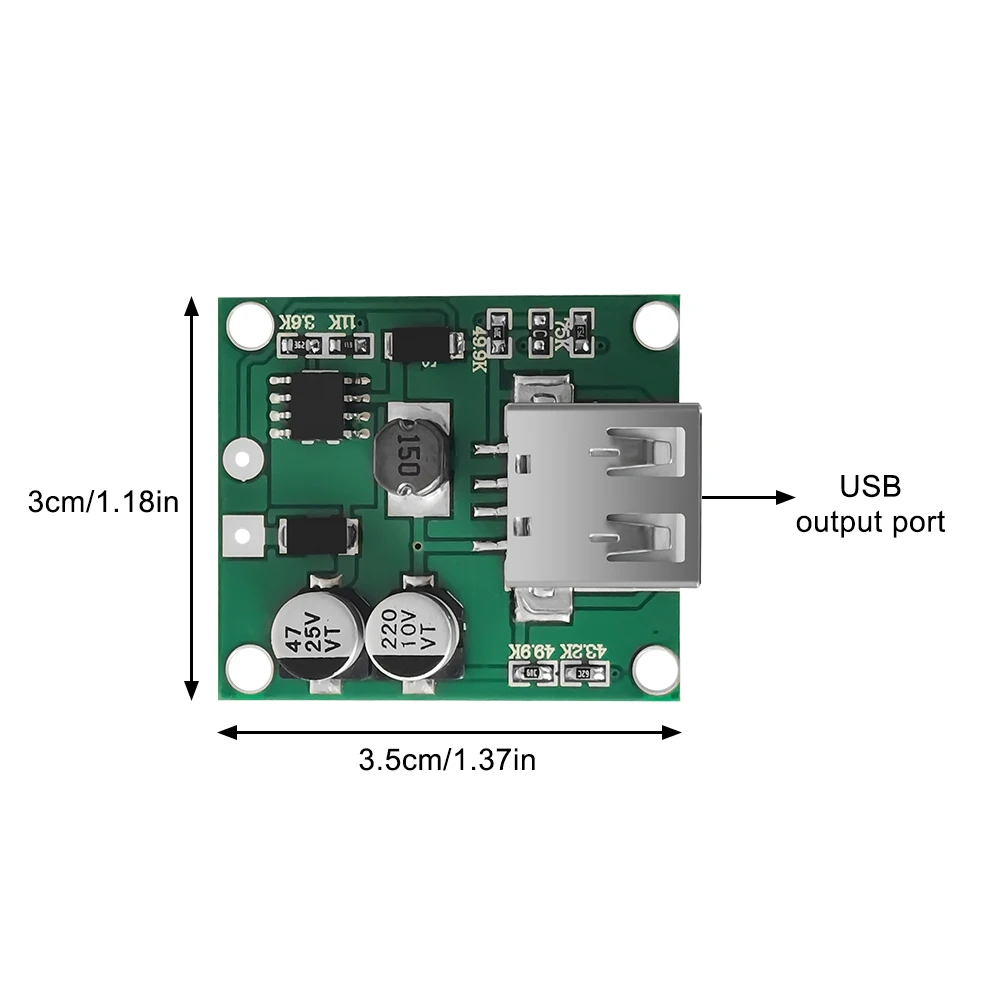

USB female output for charging any 5V digital product.

Input: Max 2A, 6-20V

Output: Max 2A, USB 5V

Tips:

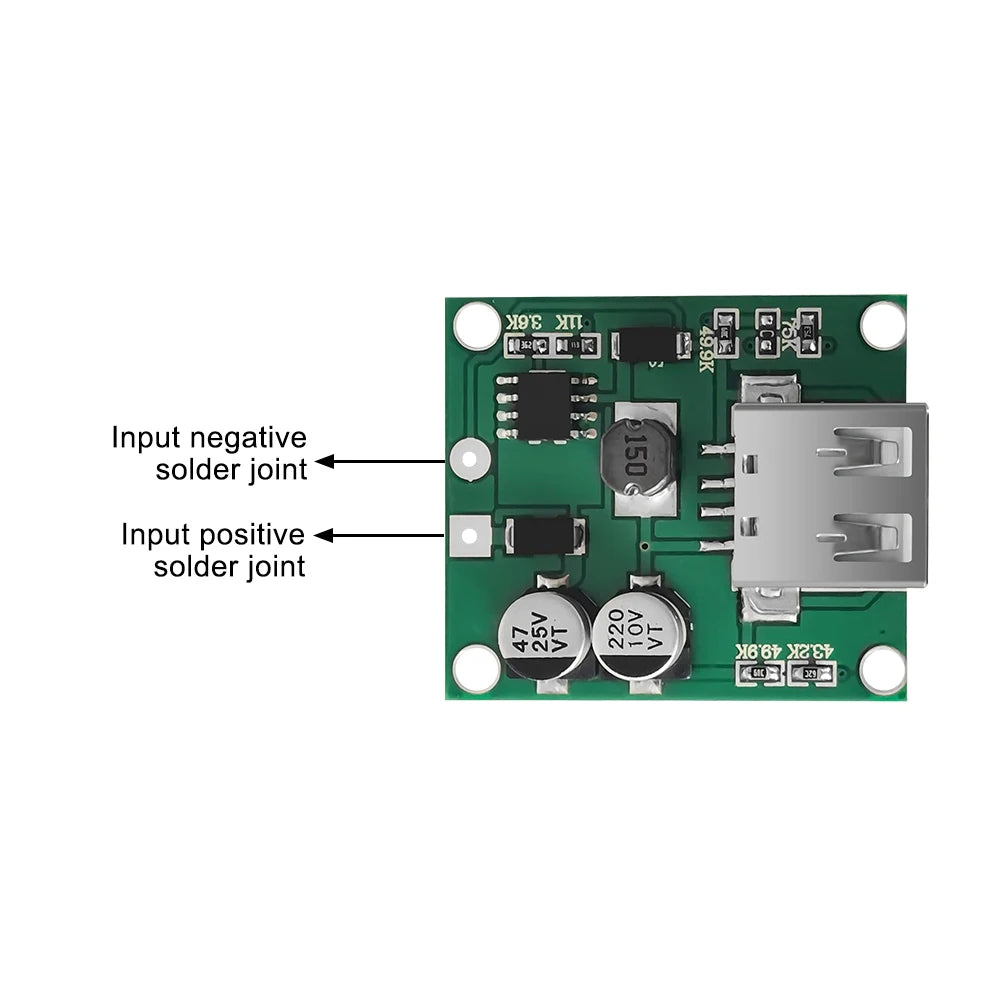

1. When soldering, pay attention to the positive and negative poles, do not solder the reverse, the reverse circuit board will burn out.

2. The input voltage and current should not exceed the specified voltage and current according to the requirements.

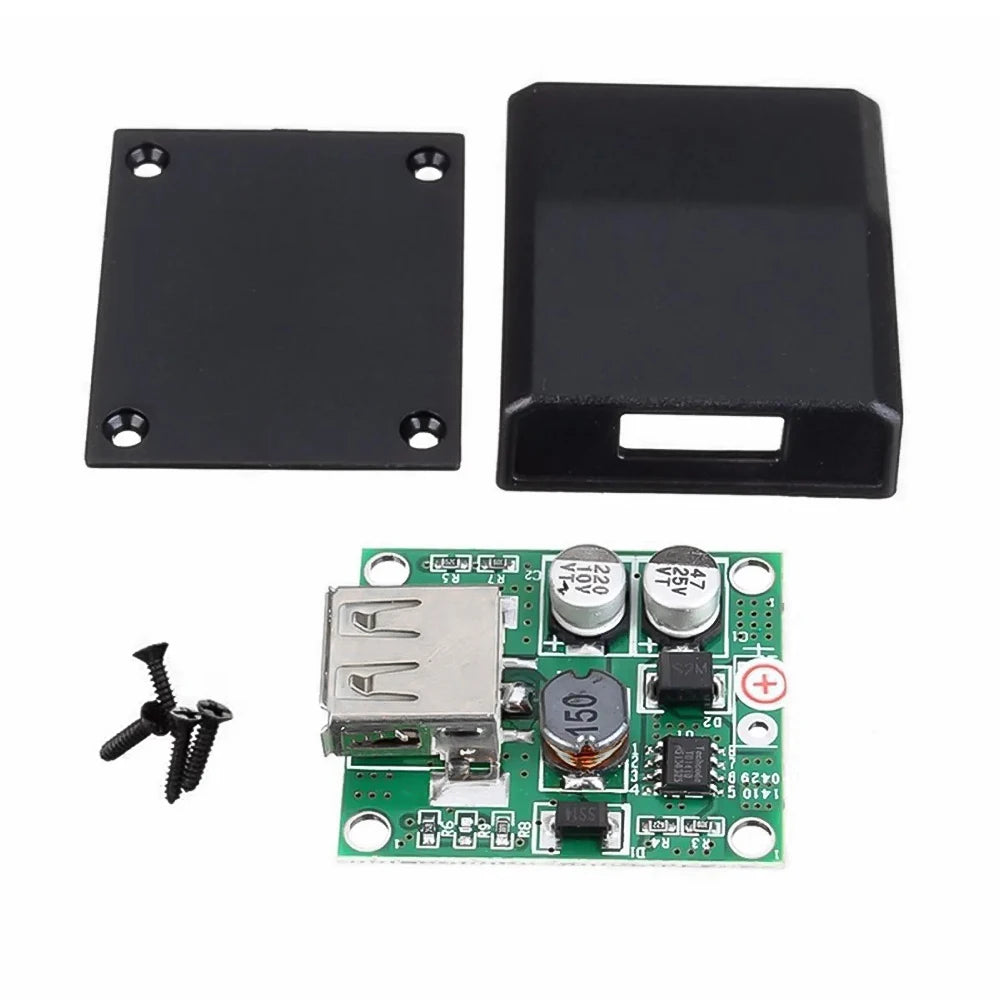

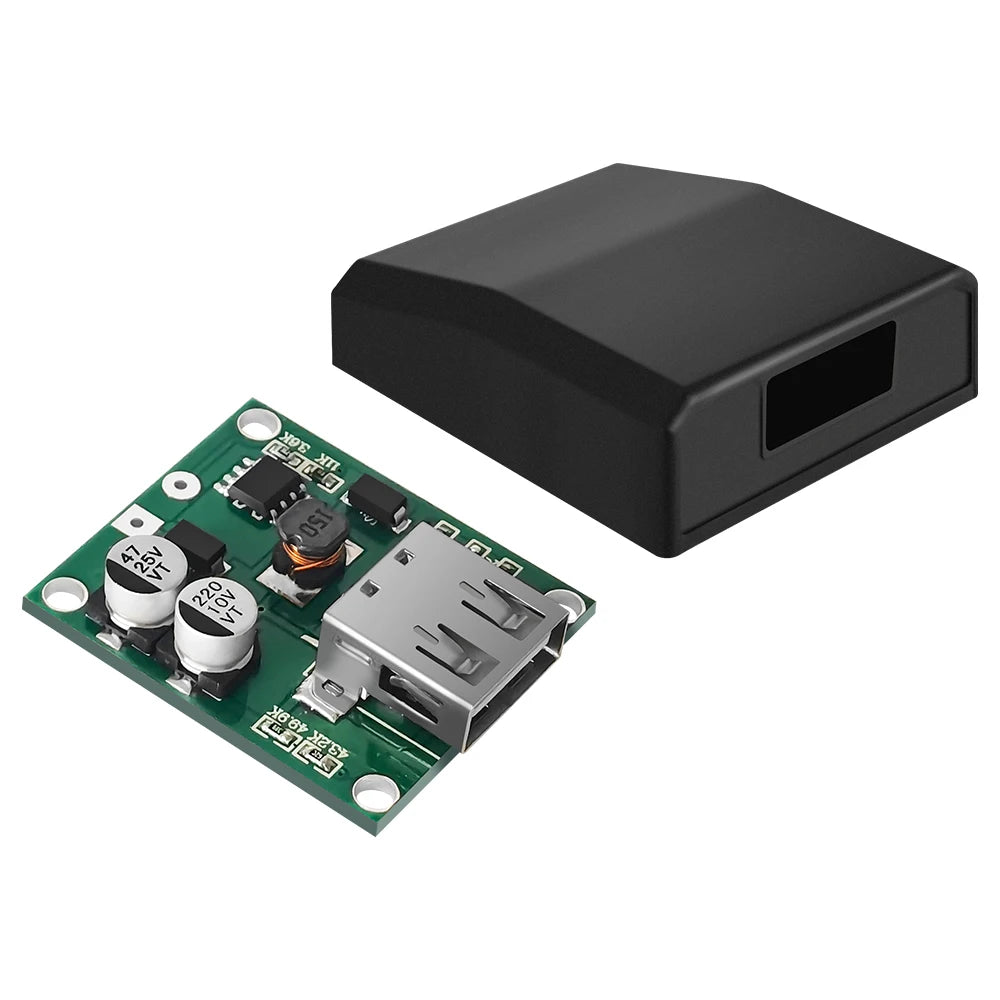

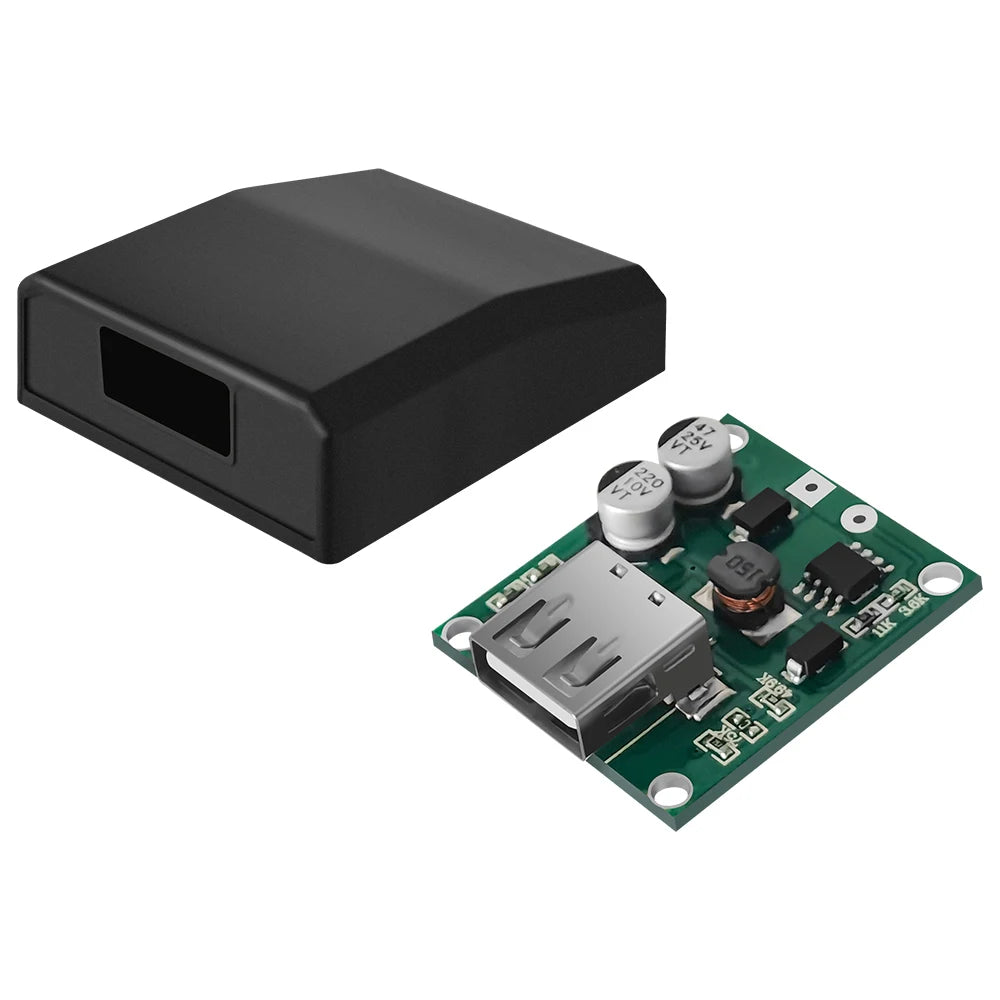

Product list

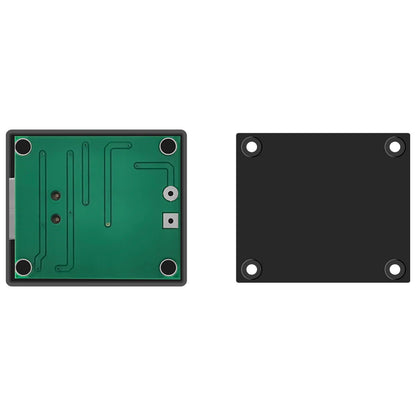

1* Circuit board box

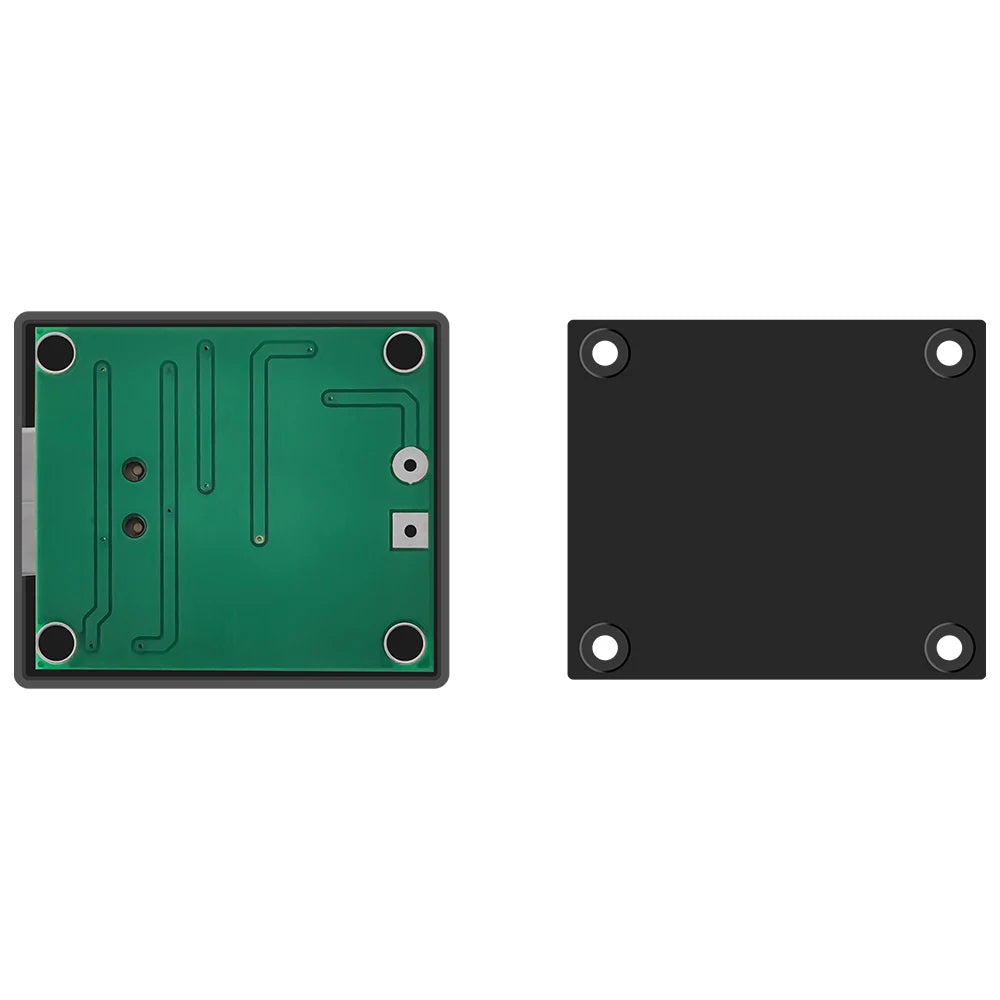

1* Bottom plate

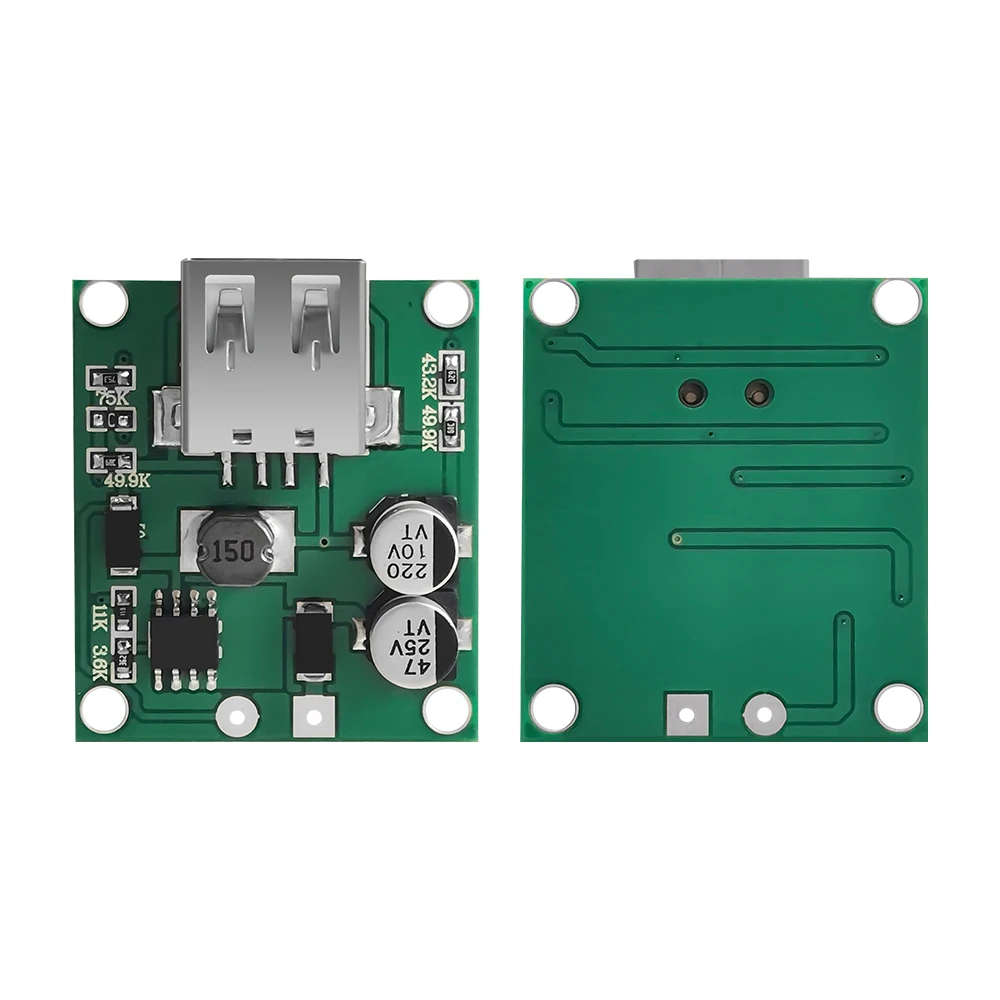

1* Circuit module

4* screws
