SPECIFICATIONS

Application: Outdoor, indoor

Brand Name: NoEnName_Null,ContrasTech

Certification: CE

Communication Method: I2C / CVBS / UAR

Customized support: Online technical support

DIY Supplies: ELECTRICAL

Data Storage Options: PC

Frame Rate: 50HZ

Function: see through smoke &light fog

Hign-concerned Chemical: None

Lens: Other

Model No.: iVa50ULW30M-D/iVa50FLW30M-D/iVa50HLW30M-D

Model Number: iVa50ULW30M-D/iVa50FLW30M-D/iVa50HLW30M-D

NETD: ≤ 40mK@25℃ ,F#1.0

Optional Lenses(mm): 4.1/6.9/13

Origin: Mainland China

Pixel Size: 12μm * 12μm

Place of Origin: Zhejiang, China

Resolution: 640 px * 512px

Sensor: CMOS

Sensor Technology: Uncooled VOx Detector

Special Features: aerial imaging application

Specificities: defrost function

Style: box camera

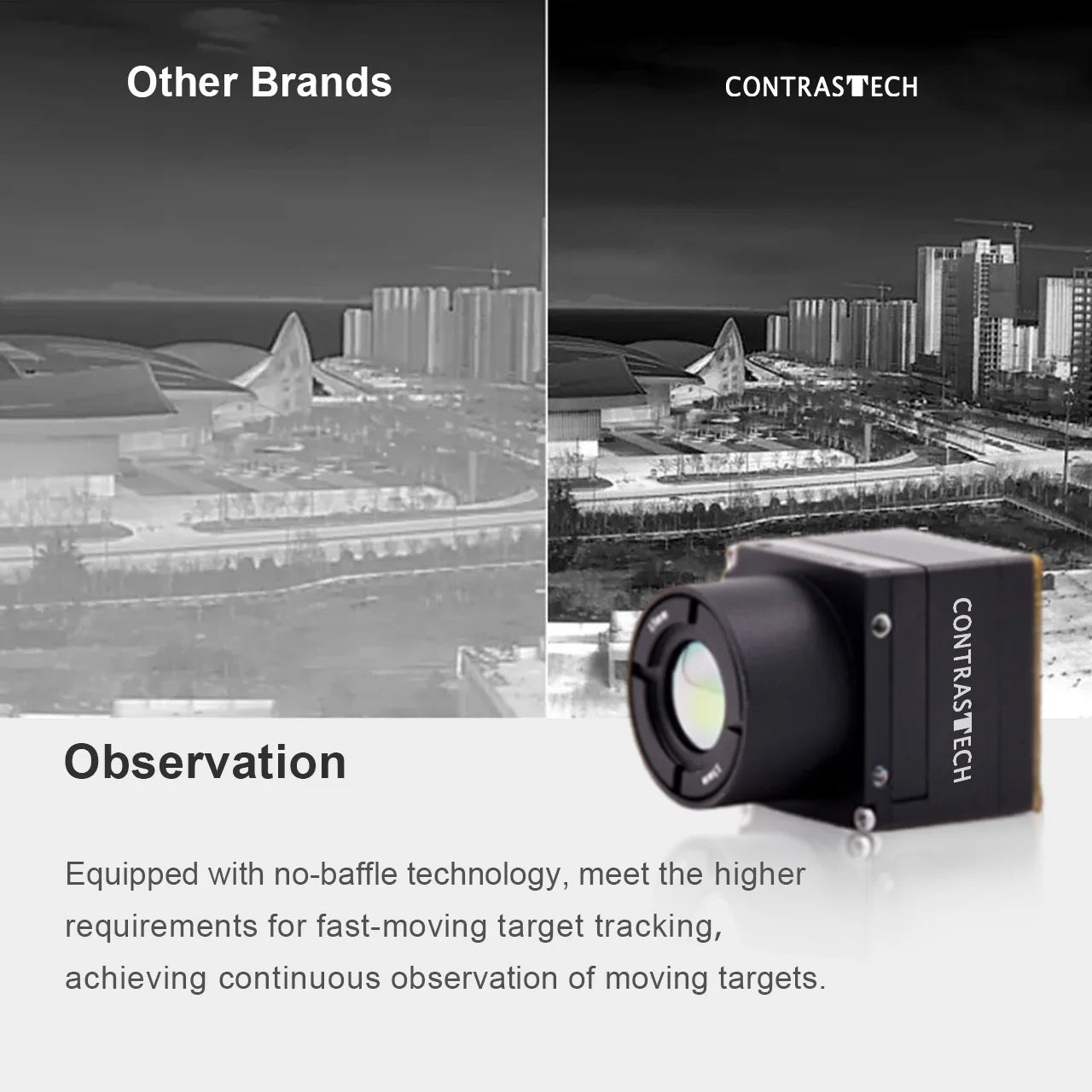

Technology: Observation

Video Compression Format: /

Warranty: 1 Year

Hello, I am Reyna. Welcome to my store. Due to the time difference, I am unable to reply to your message in a timely manner. If you need any information about this product, please leave me a message. I will reply to you as soon as I see them. I hope we can become good friends. Welcome to add me on WhatsApp+8618873638617 My email address 2480667414@qq.com

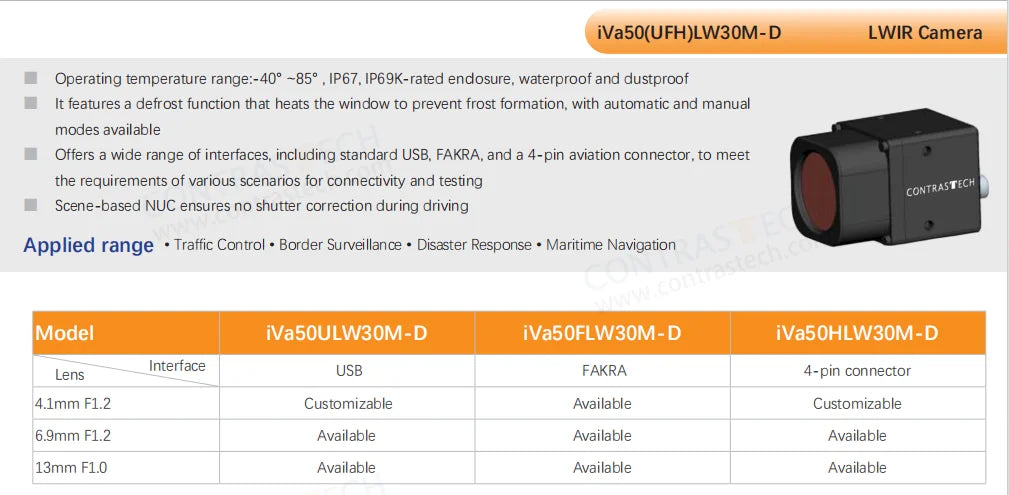

Model	Interface	Sensor Type	Resolution	Frame rate	NETD
iVa50ULW30M-D	USB	VOx Uncooled IRFPA	640x512	50Hz	≤ 40mK@25℃ ,F#1.0
iVa50FLW30M-D	FAKRA	VOx Uncooled IRFPA	640x512	50Hz	≤ 40mK@25℃ ,F#1.0
iVa50HLW30M-D	4-pin connector	VOx Uncooled IRFPA	640x512	50Hz	≤ 40mK@25℃ ,F#1.0

Sensor Type	VOx Uncooled IRFPA
Resolution	640×512
Data Format	RAW data (14bit, 10bit), YUV422 data(8bit)
Color Palettes	18 selectable color palettes, including Black Hot,White Hot,Iron, and Rainbow
Image Mirror	Horizontal/Vertical/Horizontal&Vertical
Typical Supply Voltage	5V DC (USB interface) or 12V DC (GMSL);Heater On: 12V DC (GMSL)
Power Consumption	≤ 1.1W(With heater on, ≤ 5W)
Connector	FAKRA/4-pin connector (M12)/ USB
Video Protocols	GMSL/ PAL / UVC
Communication Method	I2C / CVBS / UART
Operating Temperature Range	-40℃～ +85℃
Storage Temperature Range	-45℃～ +85℃

Focal Length/F#	FOV(H×V)	IFOV
4.1mm F1.2	120° ×92°	/
6.9mm F1.2	62° ×50°	1.5mrad
13mm F1.0	32.9° ×26.6°	0.9mrad
