SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

Detailed Description: DGTL ISO 5.7KV 1CH GT DVR

Factory Pack Quantity (Pcs): 40/2000

Hign-concerned Chemical: None

Manufacturer Product Number: ISO5851DW / ISO5851DWR

Mfr: Texas Instruments

Mounting Style: Surface Mount

Operating Temperature: -40°C ~ 125°C

Origin: Mainland China

Packaging: Tube/Reel

Product Type: Galvanically Isolated Gate Drivers

Quantity: 1

Subcategory: PMIC - Power Management ICs

Supplier Device Package: 16-SOIC (0.295", 7.50mm Width)

Type: SWITCH

Unit Weight / single: 0.6 g

Voltage - Supply (Vcc/Vdd): 15V ~ 30V

is_customized: Yes

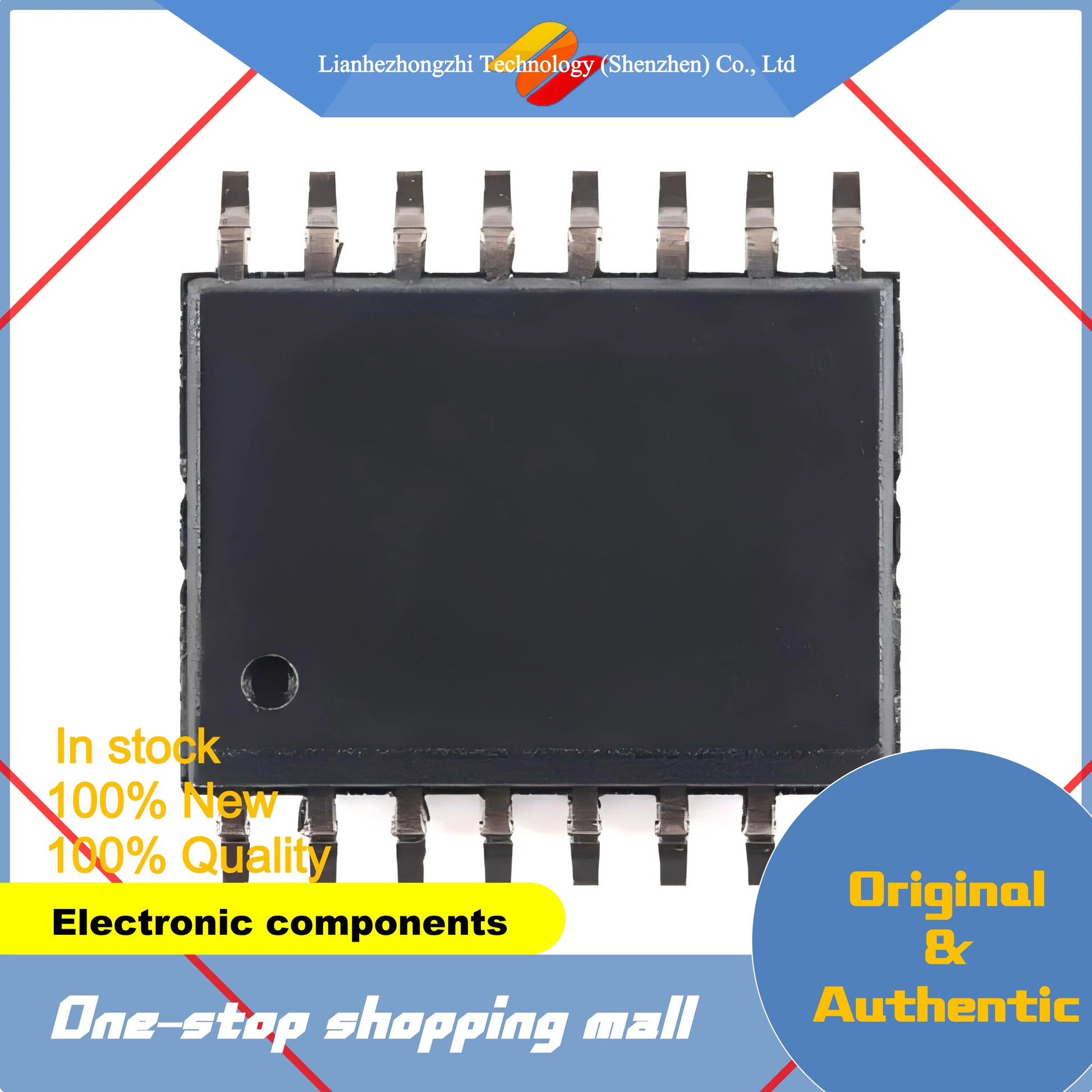

ISO5851DW / ISO5851DWR

Description The ISO5851 is a 5.7-kV RMS, reinforced isolated gate driver for IGBTs and MOSFETs with 2.5-A source and 5-A sink current. The input side operates from a single 3-V to 5.5-V supply. The output side allows for a supply range from minimum 15 V to maximum 30 V. Two complementary CMOS inputs control the output state of the gate driver. The short propagation time of 76 ns assures accurate control of the output stage. An internal desaturation (DESAT) fault detection recognizes when the IGBT is in an overload condition. Upon a DESAT detect, the gate driver output is driven low to V EE2 potential, turning the IGBT immediately off. When desaturation is active, a fault signal is sent across the isolation barrier, pulling the FLT output at the input side low and blocking the isolator input. The FLT output condition is latched and can be reset through a low-active pulse at the RST input. When the IGBT is turned off during normal operation with bipolar output supply, the output is hard clamp to V EE2. If the output supply is unipolar, an active Miller clamp can be used, allowing Miller current to sink across a low impedance path preventing IGBT to be dynamically turned on during high voltage transient conditions. When desaturation is active, a fault signal is sent across the isolation barrier pulling the FLT output at the input side low and blocking the isolator input. The FLT output condition is latched and can be reset through a low-active pulse at the RST input. When the IGBT is turned off during normal operation with bipolar output supply, the output is hard clamp to V EE2. If the output supply is unipolar, an active Miller clamp can be used, allowing Miller current to sink across a low impedance path preventing IGBT to be dynamically turned on during high voltage transient conditions. The readiness for the gate driver to be operated is under the control of two undervoltage-lockout circuits monitoring the input side and output side supplies. If either side has insufficient supply the RDY output goes low; otherwise, this output is high. The ISO5851 is available in a 16-pin SOIC package. Device operation is specified over a temperature range from –40°C to +125°C ambient.
