SPECIFICATIONS

Application: Computer Tool Kit

Brand: JCID JC

Brand Name: NoEnName_Null

Choice: yes

DIY Supplies: ELECTRICAL

Functions 1: V1SE 13/14Pro Series Original Color Repair Board

Functions 2: V1S Pro 13/14Pro Series Original Color Repair Board

Functions 3: It solves the issue of screen replacement without true tone.

Functions 4: There is no limit to the number of times the data of the touch IC can

Functions 5: For read and write screen data of 13Pro, 13PM, 14Pro, and 14PM.

Hign-concerned Chemical: None

Origin: Mainland China

Type: Combination

semi_Choice: yes

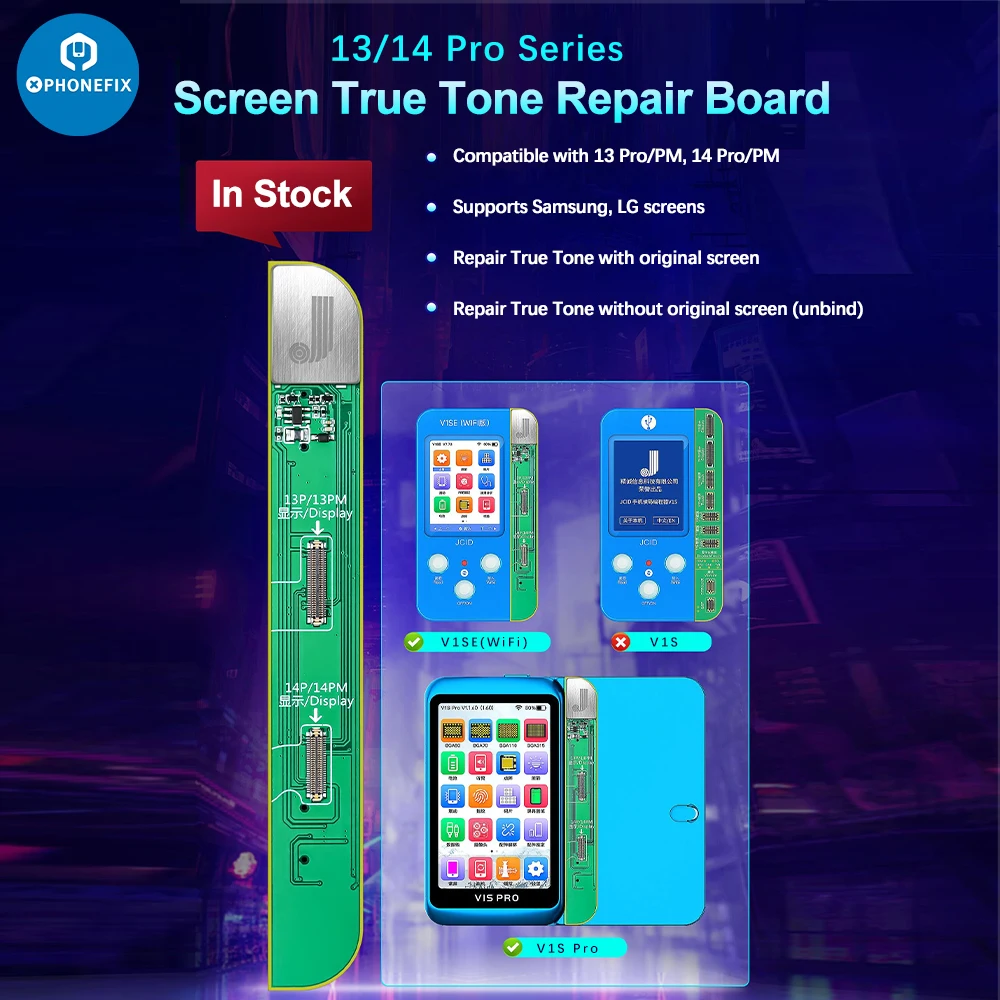

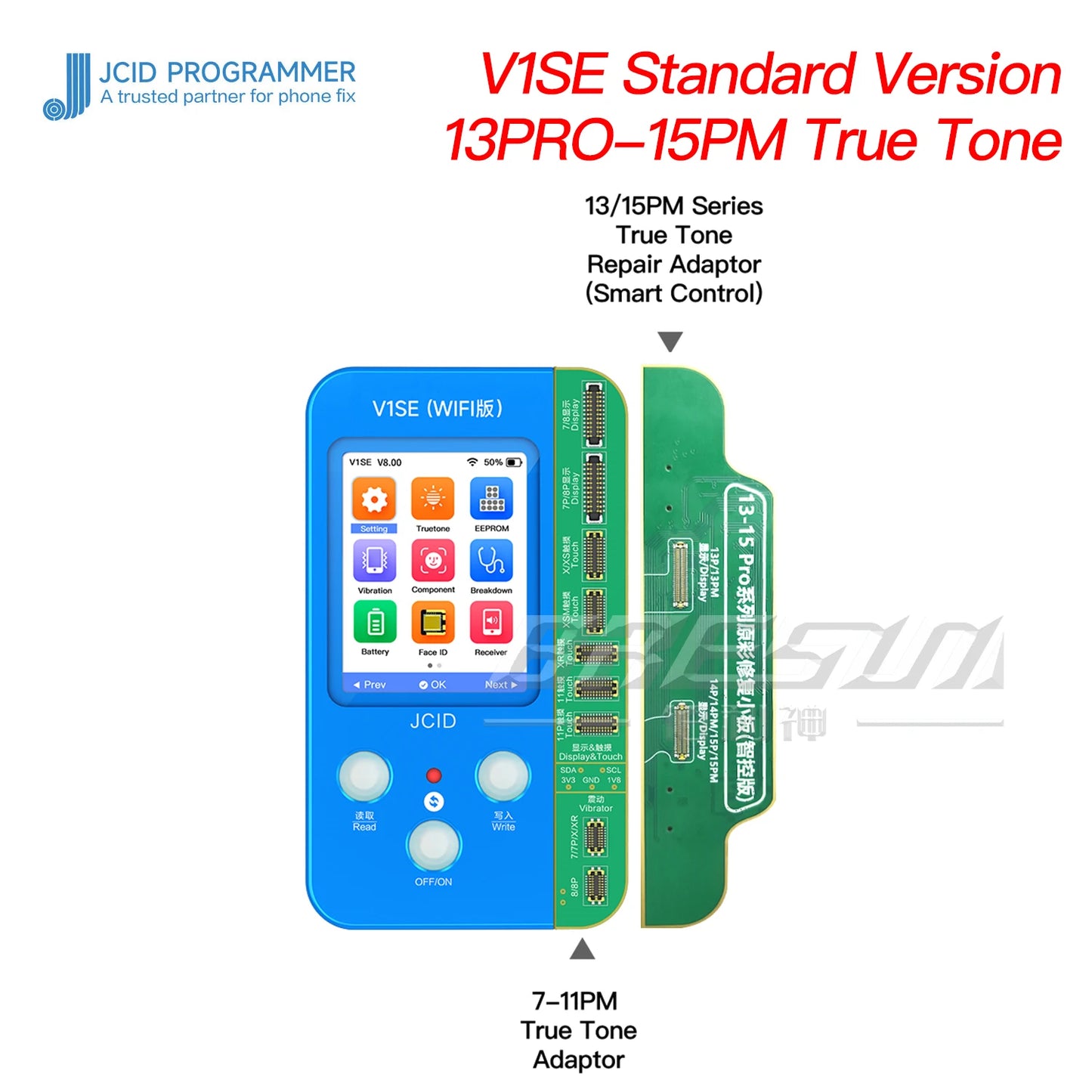

JCID V1SE iPhone 7-15 Pro Max Screen Sensitization Converter.

JCID V1SE screen repair board for iPhone 7-15Pro Max screen original color true tone function repair. JC true tone recovery board for iPhone 12/13/14/15 series original/non-original screen true tone function repair.

This converter is used to make screens compatible with any manufacturer (LG, Toshiba, Sharp etc) that produces original screens. Connect the old screen and the new replacement. The machine will copy all data from the old screen to the new one.

Instructions:

Power on the data cable that comes with the instrument, turn on the instrument switch, plug in the LCD interface board. Connect the LCD that needs reading code into the corresponding interface. The instrument will automatically read the LCD data. (This function can also be used as a tool for testing an LCD.) Press the left Read button, read the original screen data, replace with the screen that needs to be written, and then press the right Write button to write.

Software platform operation:

Power on the data cable that comes with the instrument, open the instrument switch, plug in the LCD interface board, insert the LCD that needs to read the code into the corresponding interface. The instrument will automatically read the LCD data. Open the computer software, click to read the data. The software will automatically call up the corresponding mobile phone interface picture and mobile phone model. Then change to the screen that needs to be written, click on Write data to complete the operation.

After the reading is successful, the data can be saved according to the user data. If there is no original screen to read, data can be obtained by scanning the QR code of the corresponding accessory through the mobile phone, or by serial number to Taobao query.
