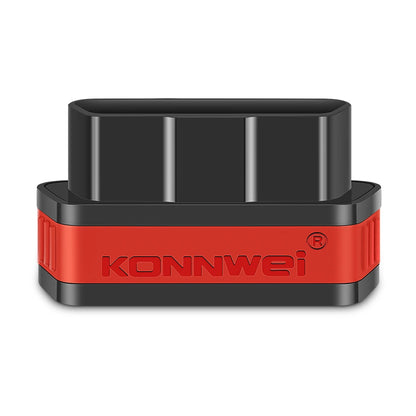

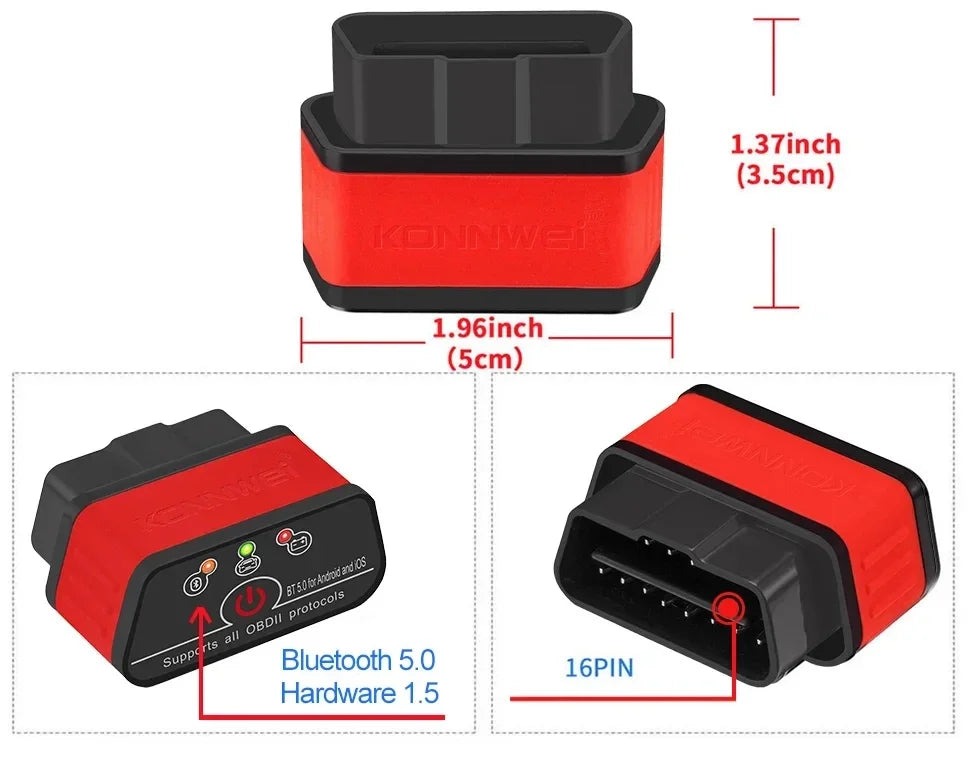

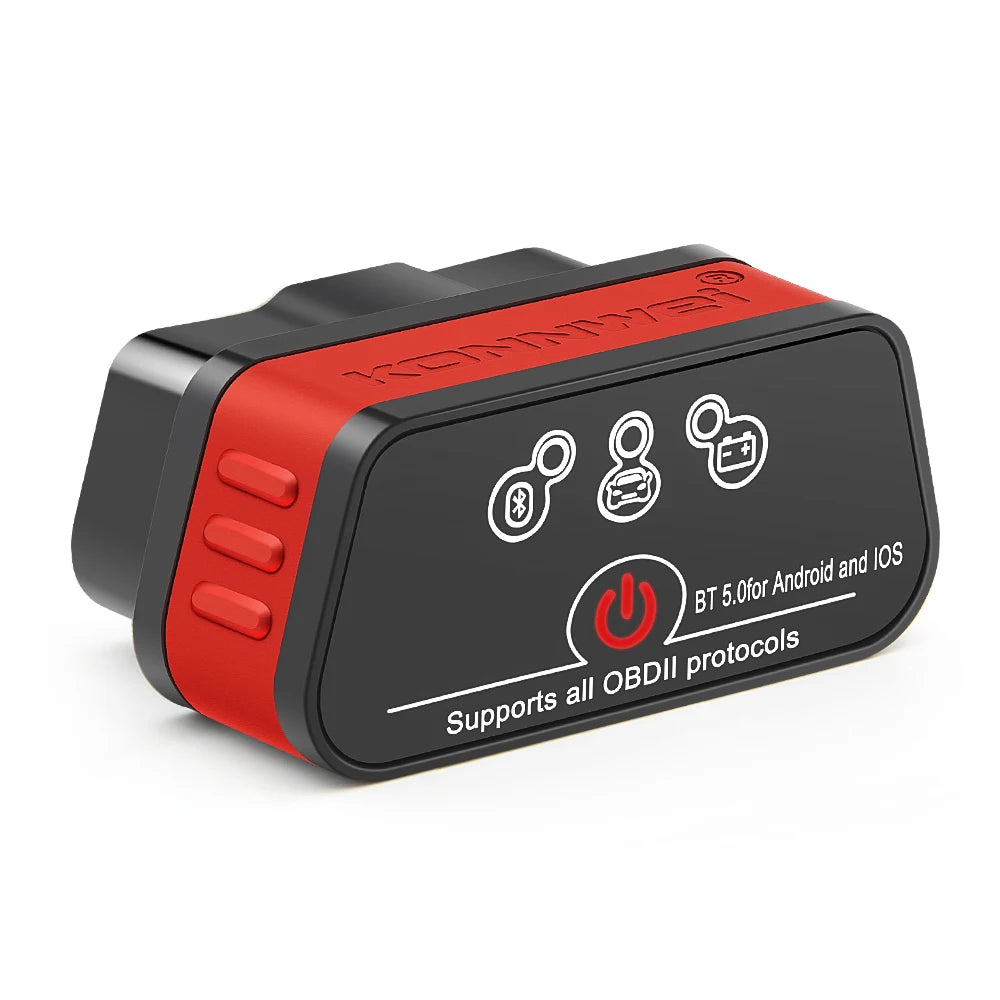

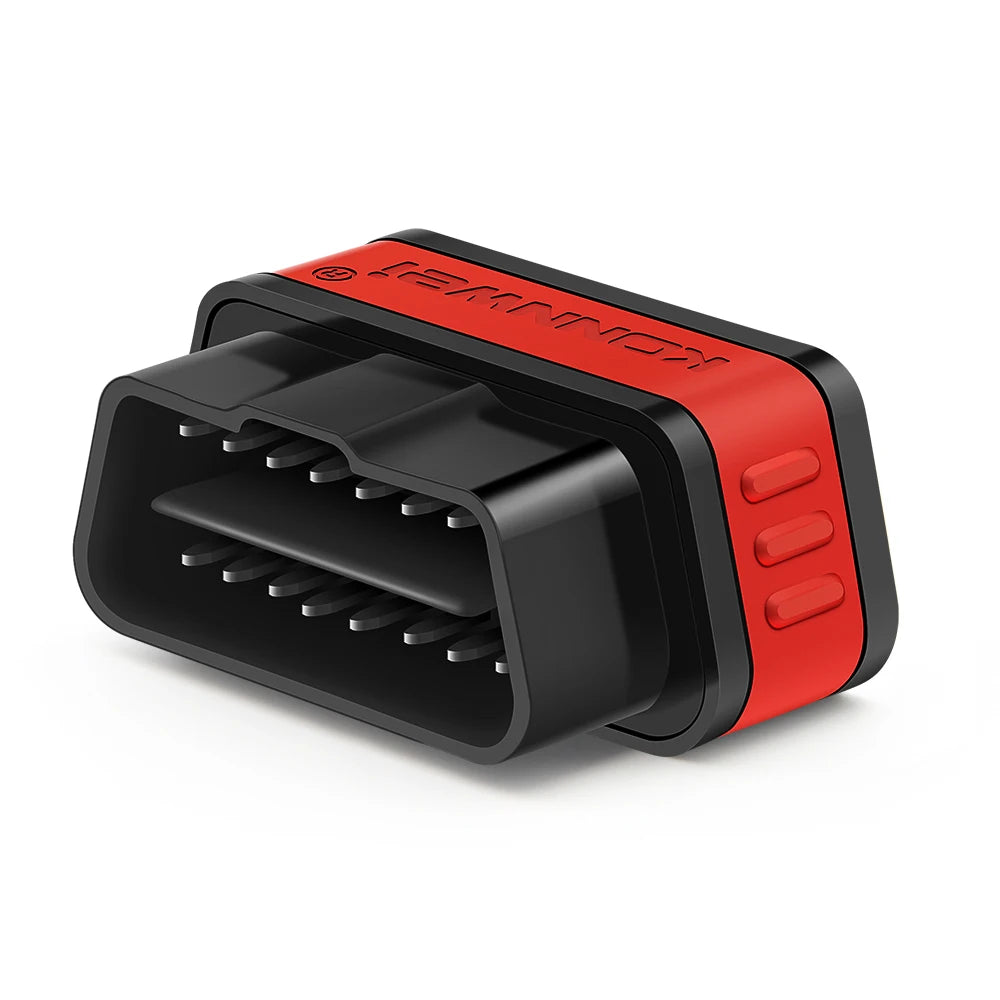

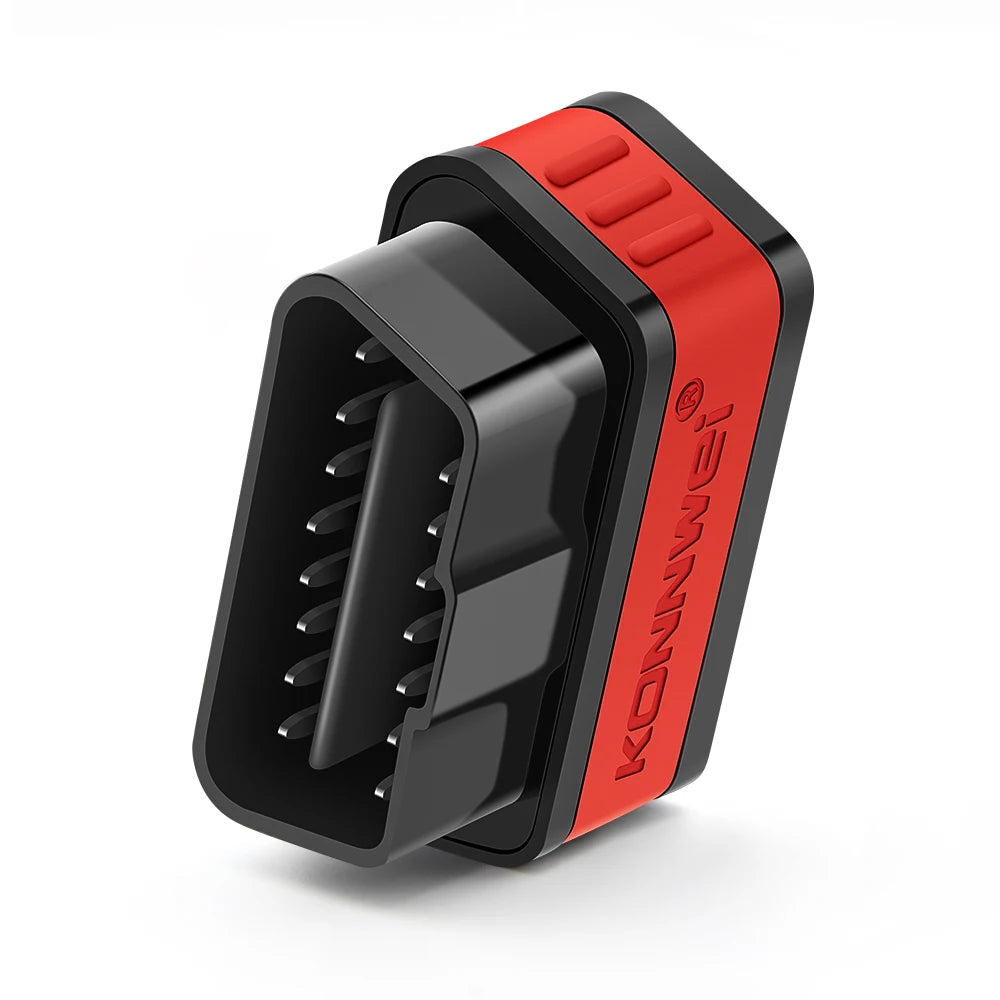

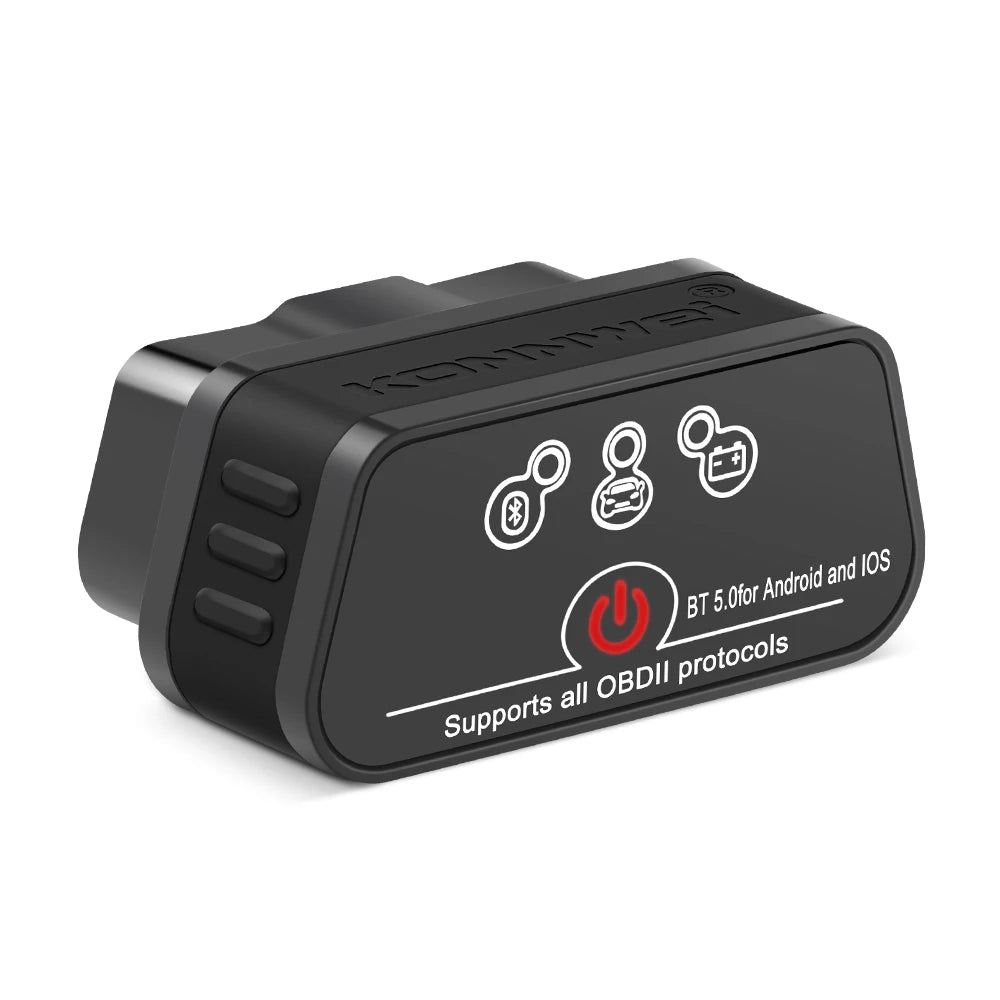

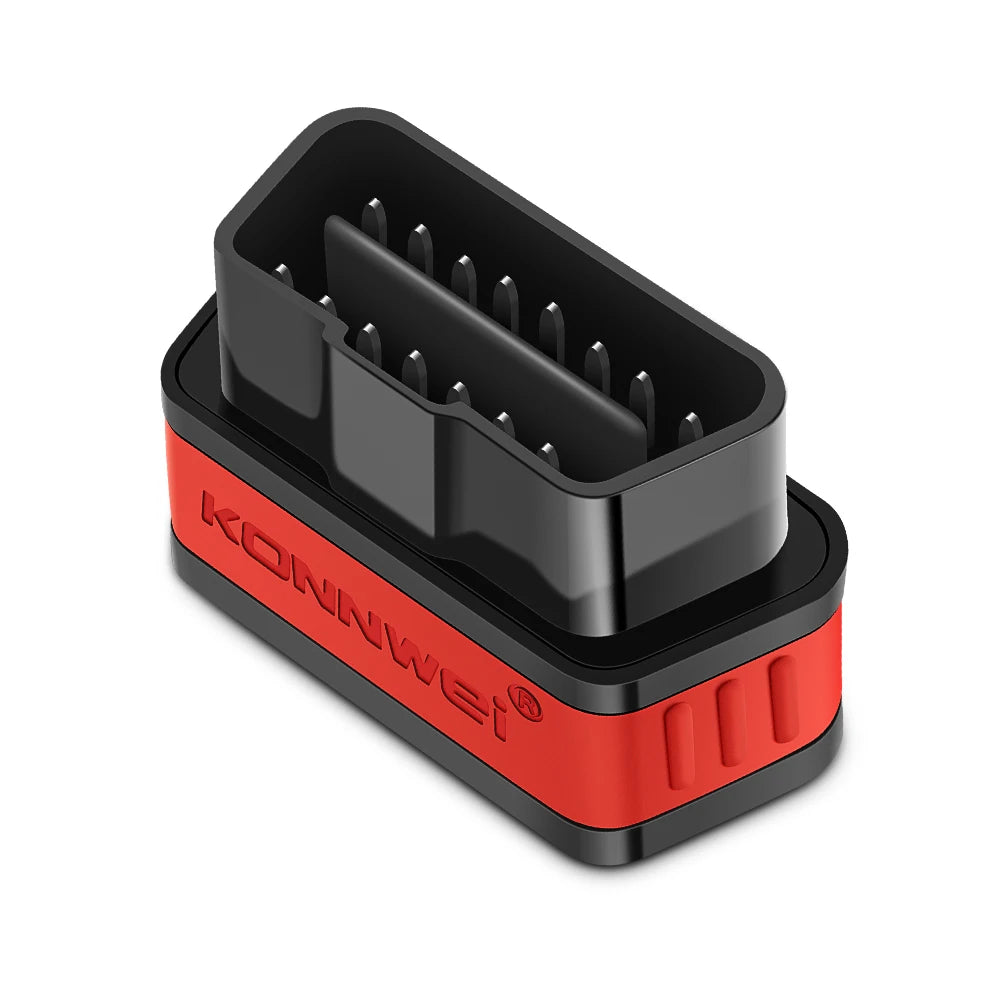

KONNWEI KW901 Bluetooth 5.0 Code Reader ELM327 V1.5 OBD OBD2 Car Diagnostic Tool ELM 327 V1 5 for Android/IOS pk Vgate iCar2

$18.346 CLP

~~$21.346 CLP~~ $18.346 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

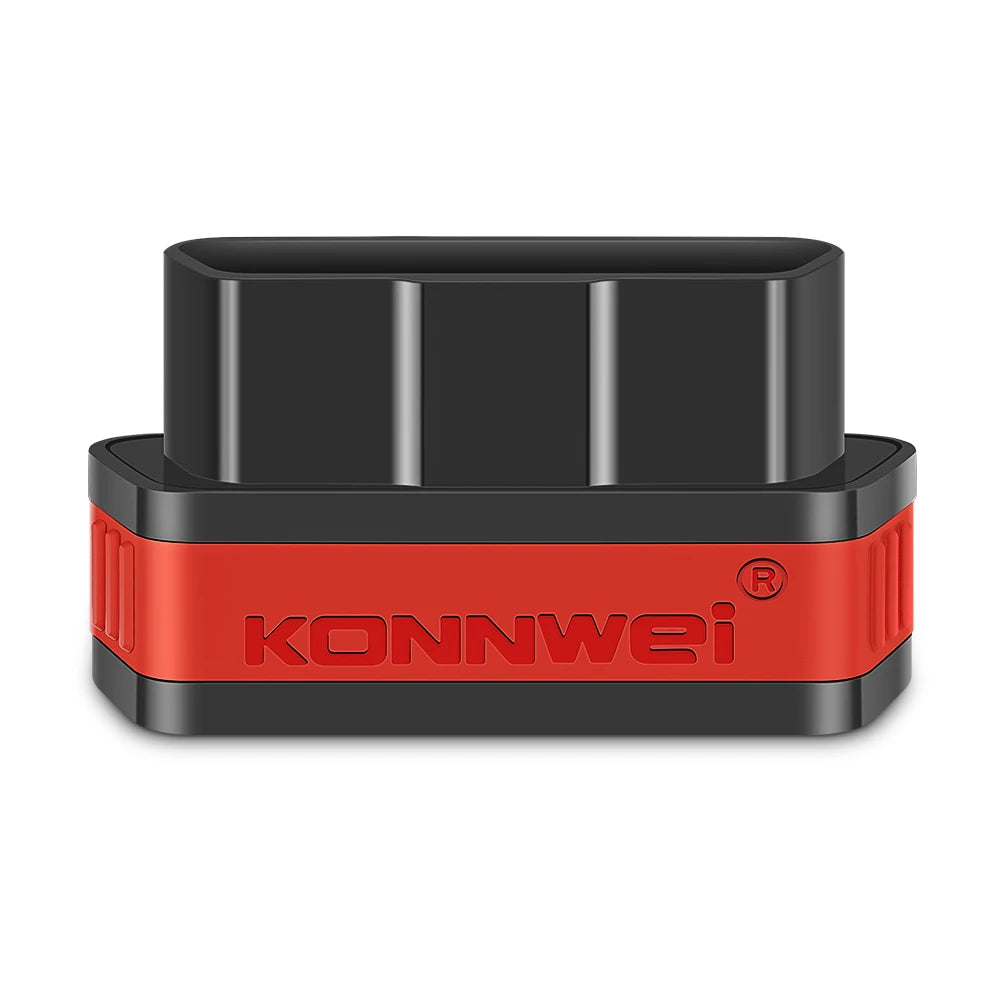

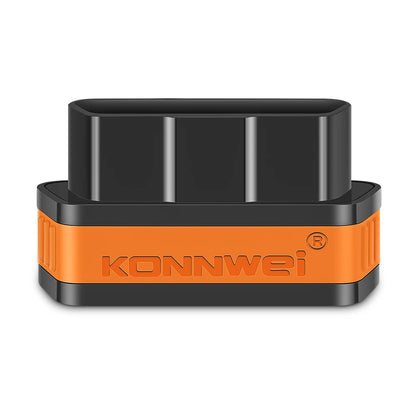

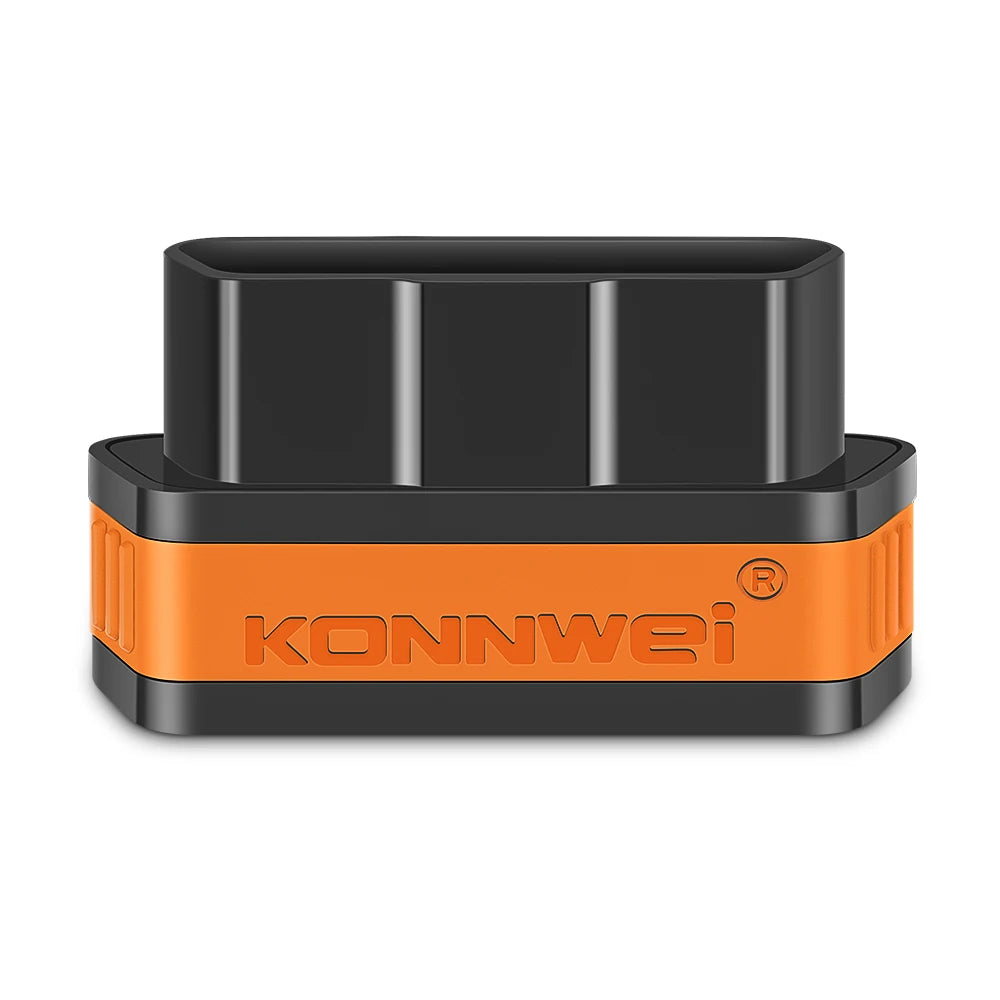

Color BT5.0 orange BT5.0 black BT5.0 red

Cantidad

SPECIFICATIONS

Brand Name: KONNWEI

Certification: CE

Choice: yes

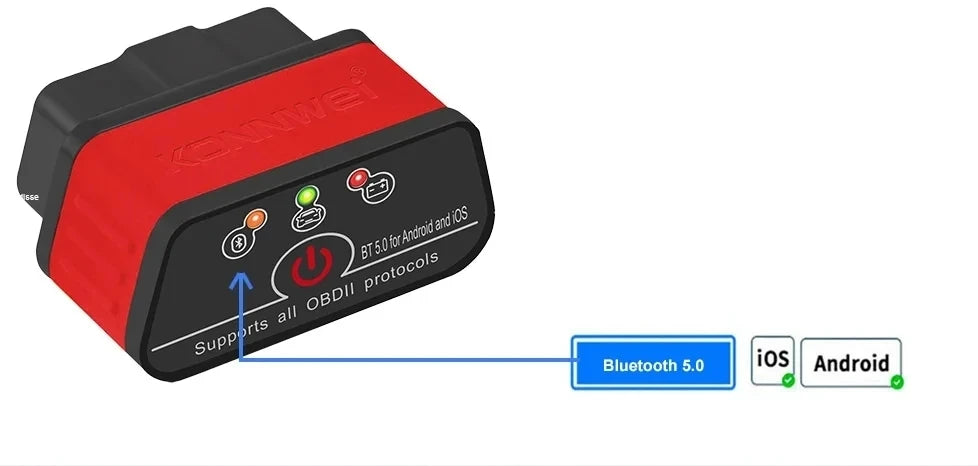

Connection Method: Bluetooth 5.0

Electronic: No

External Testing Certification: ce

Feaure 1: Support OBD II car models

Feaure 2: KONNWEI OBD2 Scanner ELM327 V1.5

Feaure 3: For Android/IOS

Function: 4mhz and support commands ATAL and ATPPS

Hardware Version: ELM327 V1.5

Hign-concerned Chemical: None

Item Height: 4

Item Length: 13

Item Type: Other

Item Weight: 0.09

Item Width: 8

Material: High Quality Material

Model Name: KONNWEI KW901 ELM327 V1.5 BT5.0

Origin: Mainland China

Power (W): W

Product Name: Mini ELM327 V1.5 OBD2 Scanner Bluetooth-Compatible BT5.0

Software Version: Newest

Special Features: Bluetooth,Read/Clear Fault Code

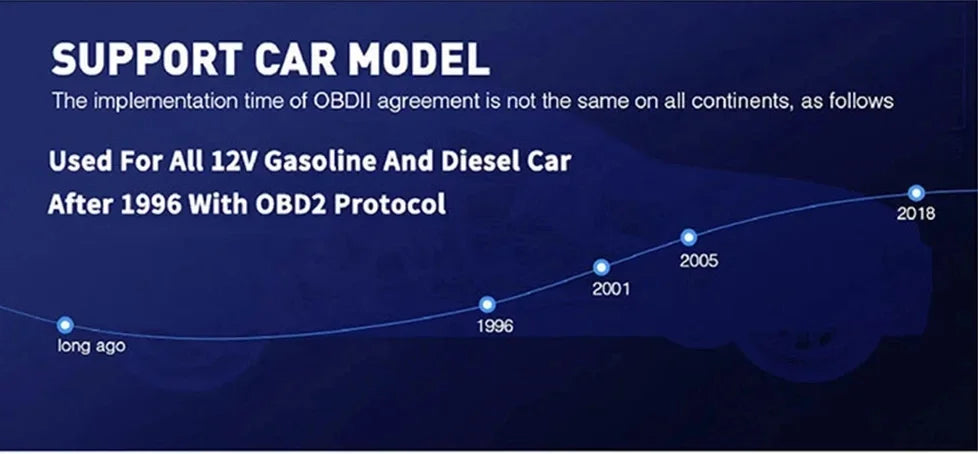

Support Car: Works with all OBD-II compliant vehicles

Voltage: V

KONNWEI KW901 Bluetooth 5.0 Code Reader ELM327 V1.5 OBD OBD2 Car Diagnostic Tool ELM 327 V1 5 for Android/IOS pk Vgate iCar2

Purchase Notes!!!

Some customers have feedback that the bluetooth will not connect when they connect to IOS, please follow the tips：
If your mobile phone is IOS, please connect to Bluetooth directly in the software, Don't connect to Bluetooth in phone settings.

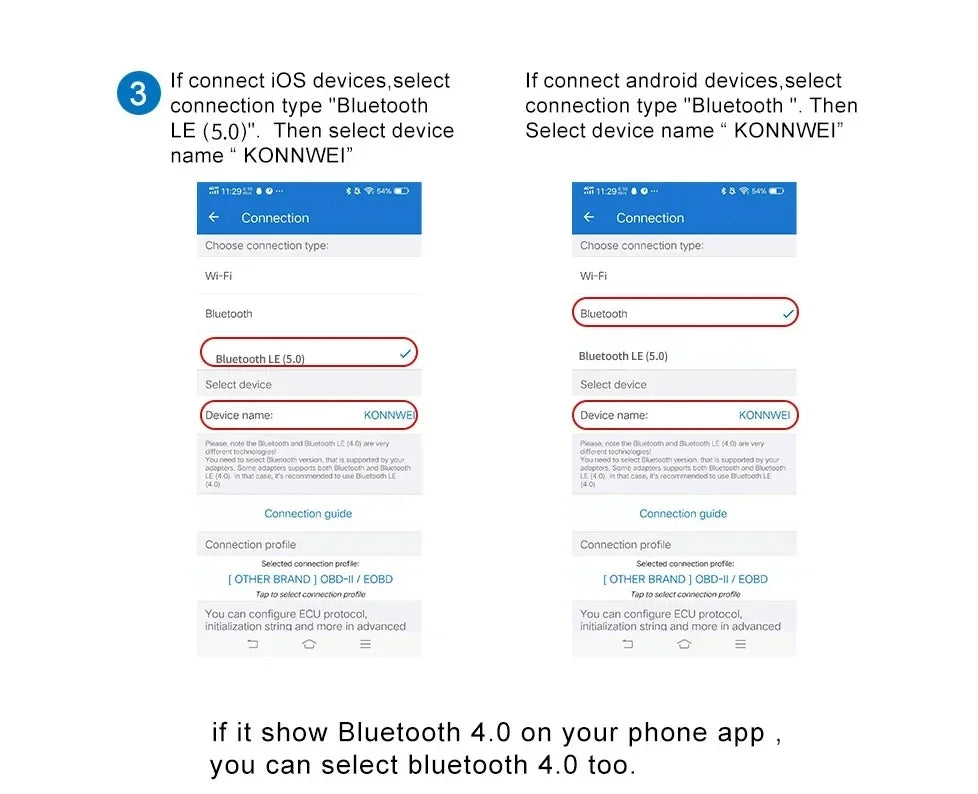

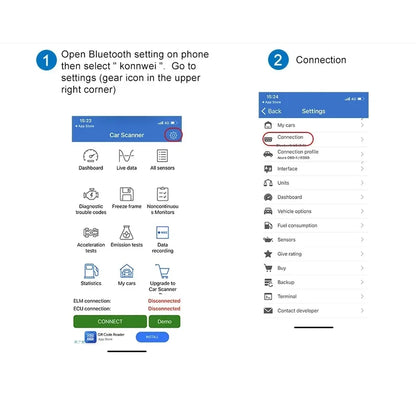

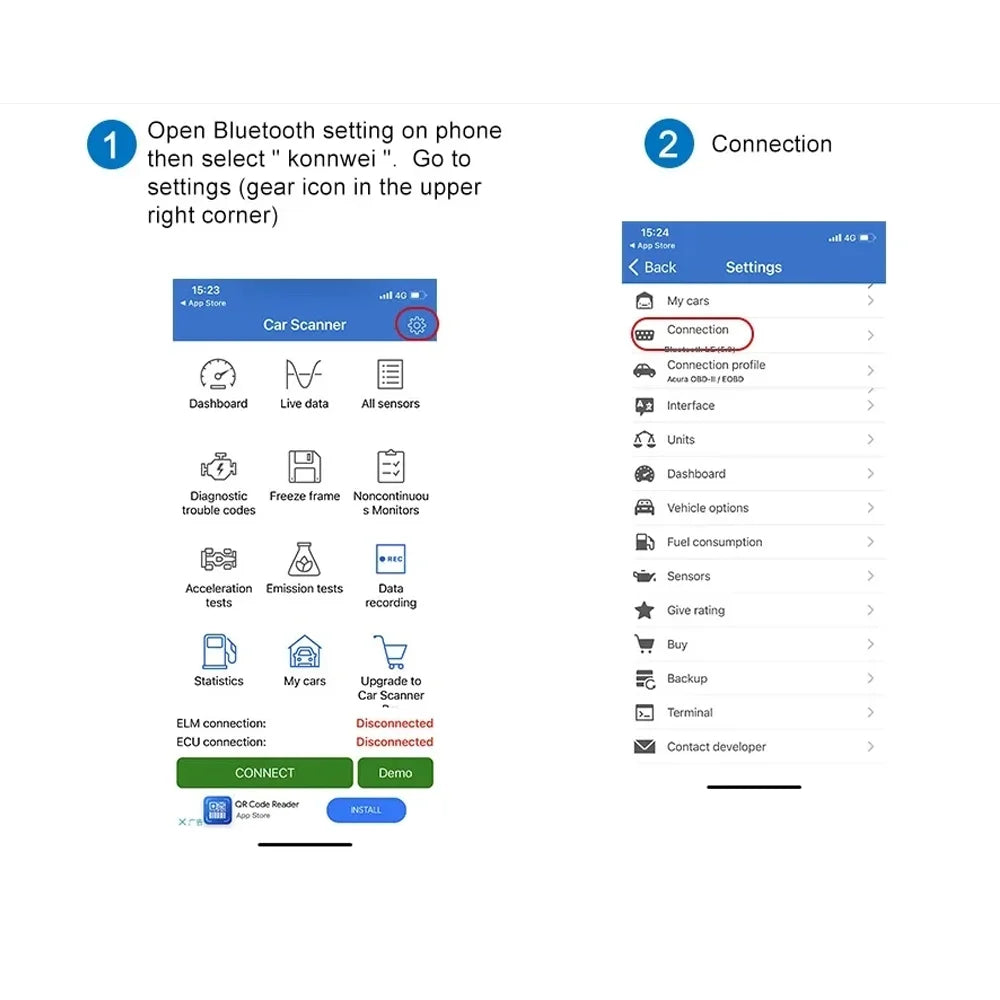

For IOS Connection method:

1. Plug in the KW901 to the OBD2 interface, and open the IPhone's Bluetooth first.
Don't connect to Bluetooth in phone settings. Please connect to Bluetooth directly in the software.
2. Open the software (like OBD Auto Doctor)
3. Enter the 'OBD Auto Doctor", choose "Extras".
4. Then click "Connectivity", choose "Bluetooth", and click "Device", choose "Konnwei".

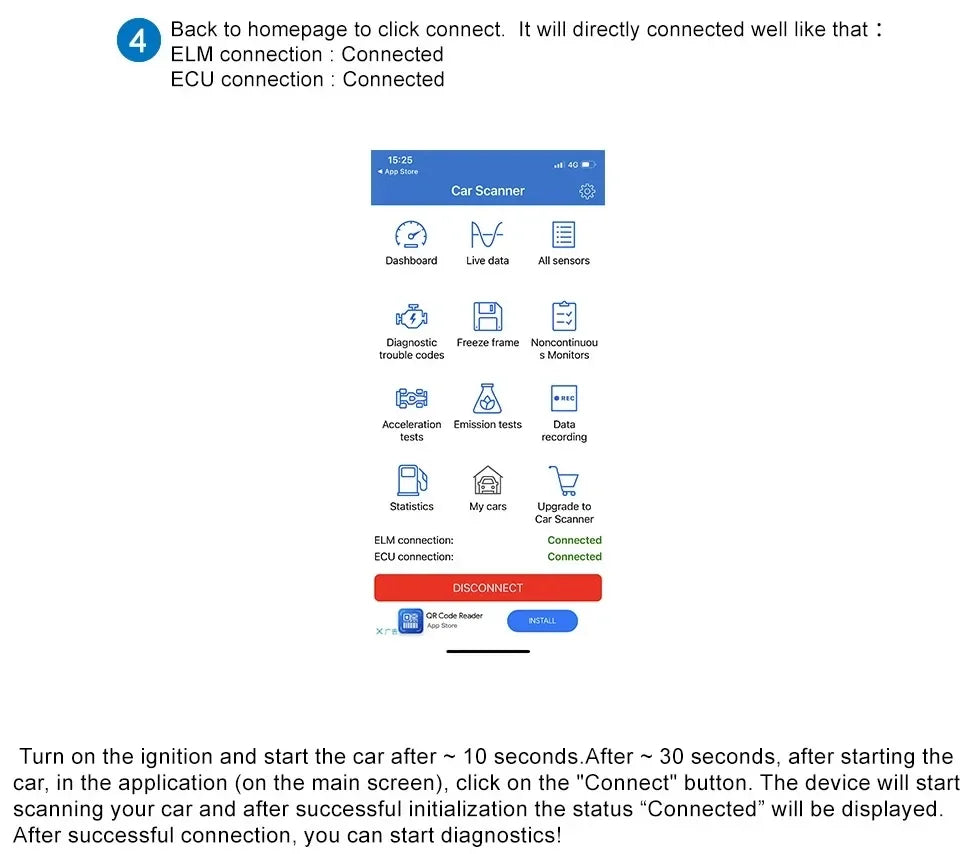

5. Connect Bluetooth in the"Connectivity", return to the home page, click the the icon on the upper right corner.
6. Wait for about ten seconds, it can connect successful.

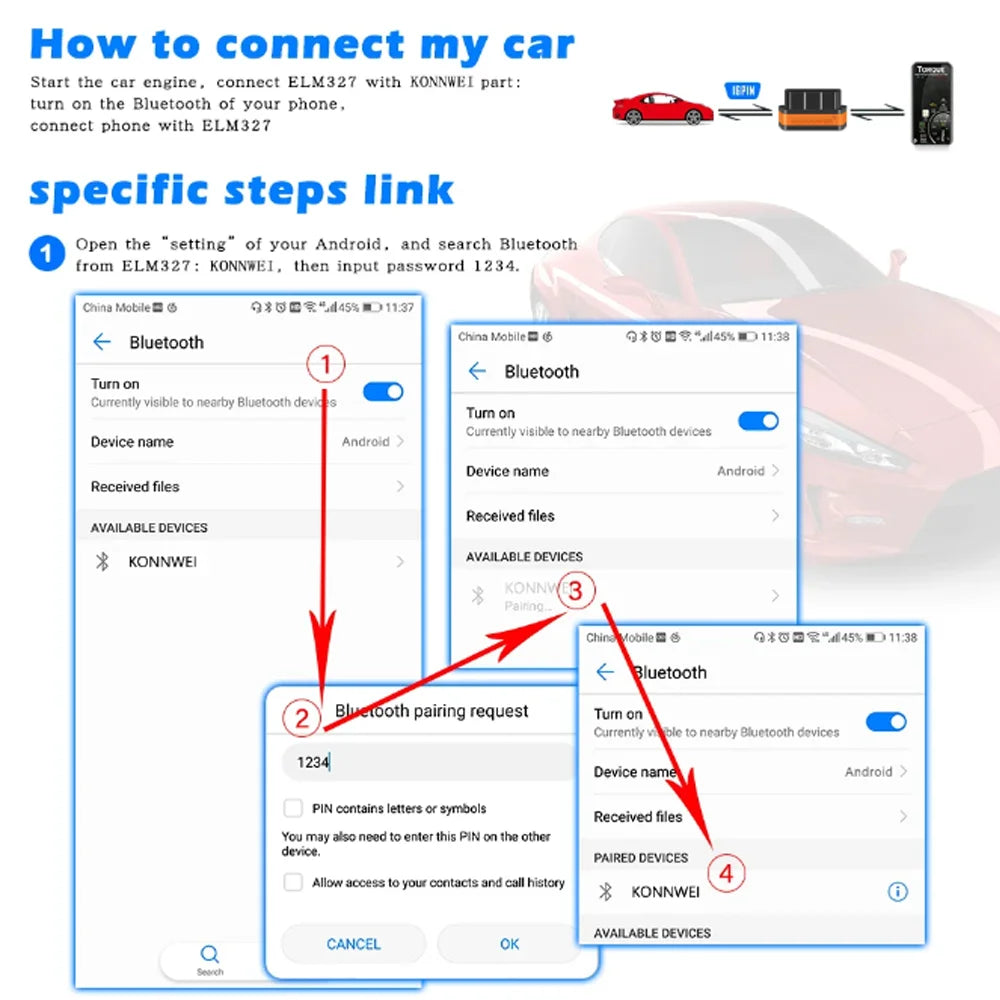

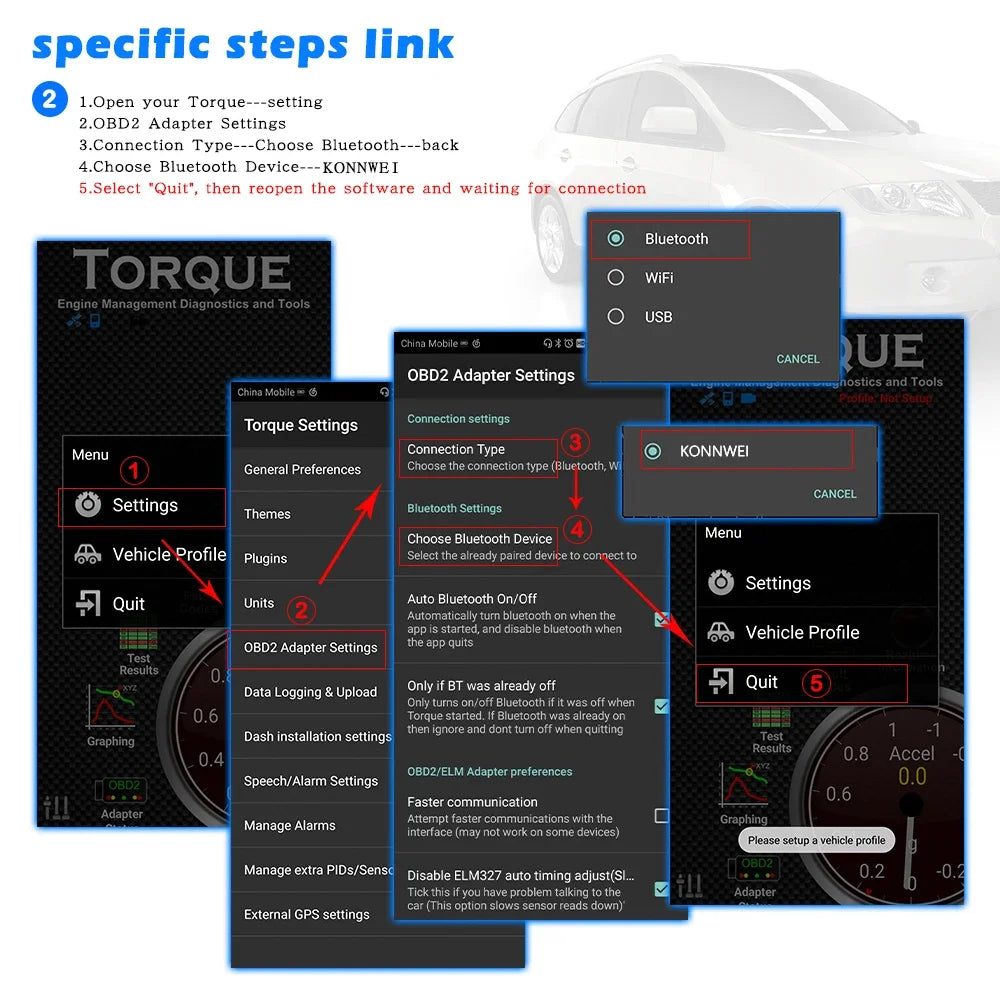

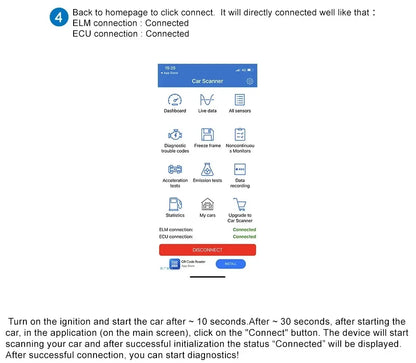

For Android Connection method:

Features:

1. CLEAR CHECK ENGINE LIGHT - This KW901 code reader will help you save money and accurately diagnose check engine light problem. Very easy to use.
2. EASY FITMENT - The majority of cars made in the past 2 decades are fitted with an OBD2 diagnostic port, simply find the port and plug the KW901 in.
3. FIT AND FORGET - It really is possible to fit and forget beacuse it's micro size and unique power saving functionality that protects your battery.
4. WORKS WITH HUNDREDS OF APPS - The KONNWEI Pro Bluetooth Low Energy device works with the most popular OBD apps. Please find download instruction for Android device in product description.
5. 2 YEAR WARRANTY - We offer a 2 year warranty as standard. If you have any problem with the device simply send it back and we will despatch a brand new replacement the following working day.

OBD-II protocols supported:

SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO9141-2(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250* Kbaud)

Specification:

Supply Voltage: 11.5V—15V
Supply Current: <200Ma
Standby Current: <30Ma ( TONWON Pro =<3Ma )
Operating Temperature: -40℃--85℃
Operating Humidity: 5%--95%RH Non-Dewfall
