Kit Tester Pantallas Laptop/TV (LCD/LED) con 14 Cables LVDS - Herramienta Reparación Monitores
Kit Tester Pantallas Laptop/TV (LCD/LED) con 14 Cables LVDS - Herramienta Reparación Monitores
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NoEnName_Null
DIY Supplies: ELECTRICAL
Hign-concerned Chemical: None
Origin: Mainland China
.
.
2. Connect the Power to the Panel tester ,the power input is 12V-3A or 12V-5A DC port 2.5MM and 5.5MM inner + outside -

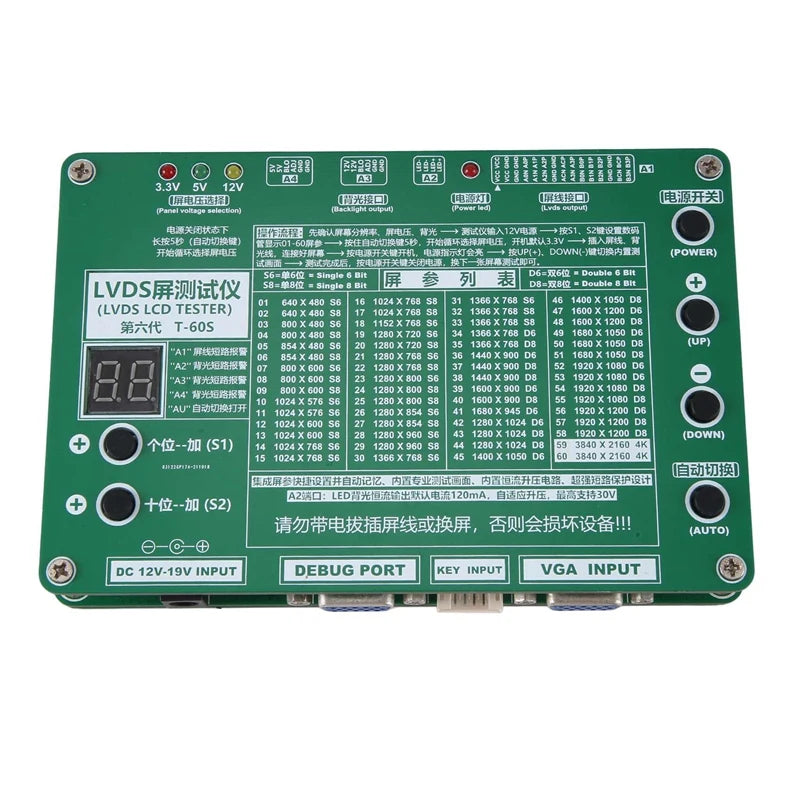

3. Press S1 or S2 set The resolution ,such as the 1440*900 ,you need to set the display on 36
4. Choose the Panel supply Voltage ,press the Auto for 5 seconds .if you panel is 3.3V then you not need to Choose
5. Connect the LVDS cable and the Backlight Line. Press the power ,then the LED Light. Press the Up or Down test the Panel .After test finished,Power off
Detailed information about the LVDS cables:
DF14-20Pin-Single8
DF14-20Pin-Single6
FIX-30Pin-Single8 (power on left) bit
FIX-30Pin-Single8 (power on right) bit
FIX-30Pin-Double6 (power on left) bit
FIX-30Pin-Double8 (power on left) bit
FIX-51Pin-Double8 (power on left) bit (Most universal LVDS cable for 32-65inch screen)
FIX-51Pin-Double8 (power on right) bit (Most universal LVDS cable for 32-65inch screen)
FIX-30Pin-Double8 (power on left) bit (for 17-42inch screen)
FIX-30Pin-Double8 (power on right) bit (for 17-42inch screen)
FPC-LVDS-30Pin-Single8 (power on left) bit
FPC-LVDS-30Pin-Single8 (power on right) bit
LP-40Pin-Double6(LED laptop HD)
LP-40Pin-Single6(LED laptop SD)

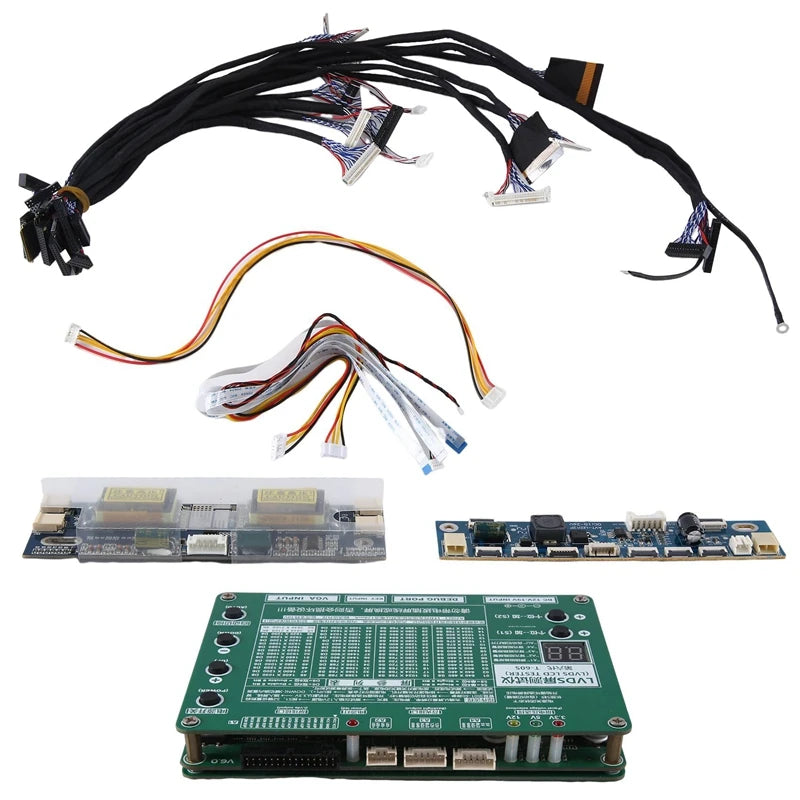

Totally 14 pcs LVDS/FPC cables for 12-65inch laptop/TV screen
Colour:As Shown
Material:PC+Metal
Package Contents:
1 * Screen Tester Kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
.
.
|
|
