SPECIFICATIONS

Brand Name: GLZLDY

Compatible Audio & Video Equipment Style: Display Equipment

Hign-concerned Chemical: None

Model Number: 51146-9P MS24049HJ

Origin: Mainland China

Package: Yes

lamp type: 9p 1.25mm

lvds: 2ch 8bit 30pin

resolution: 1920x1080

Before placing an order, please provide your panel model to us if you are not sure about your lcd, we will help you

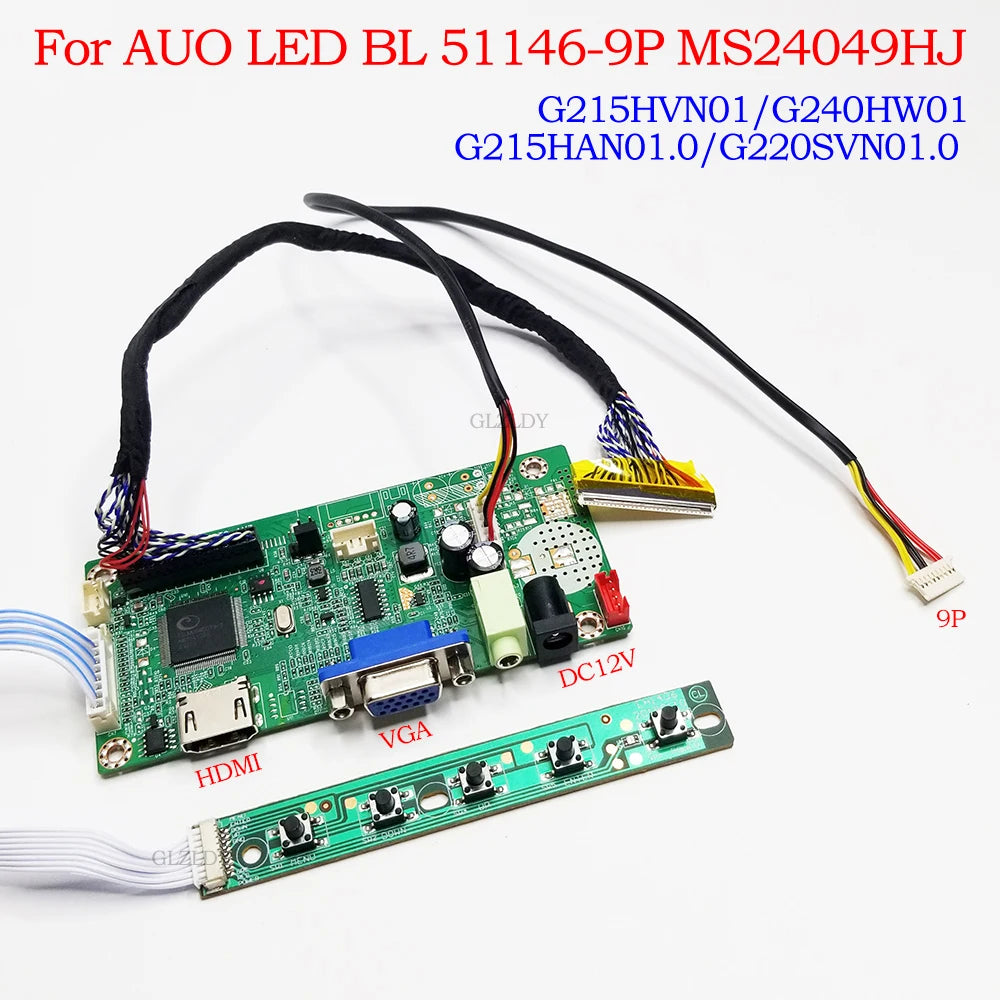

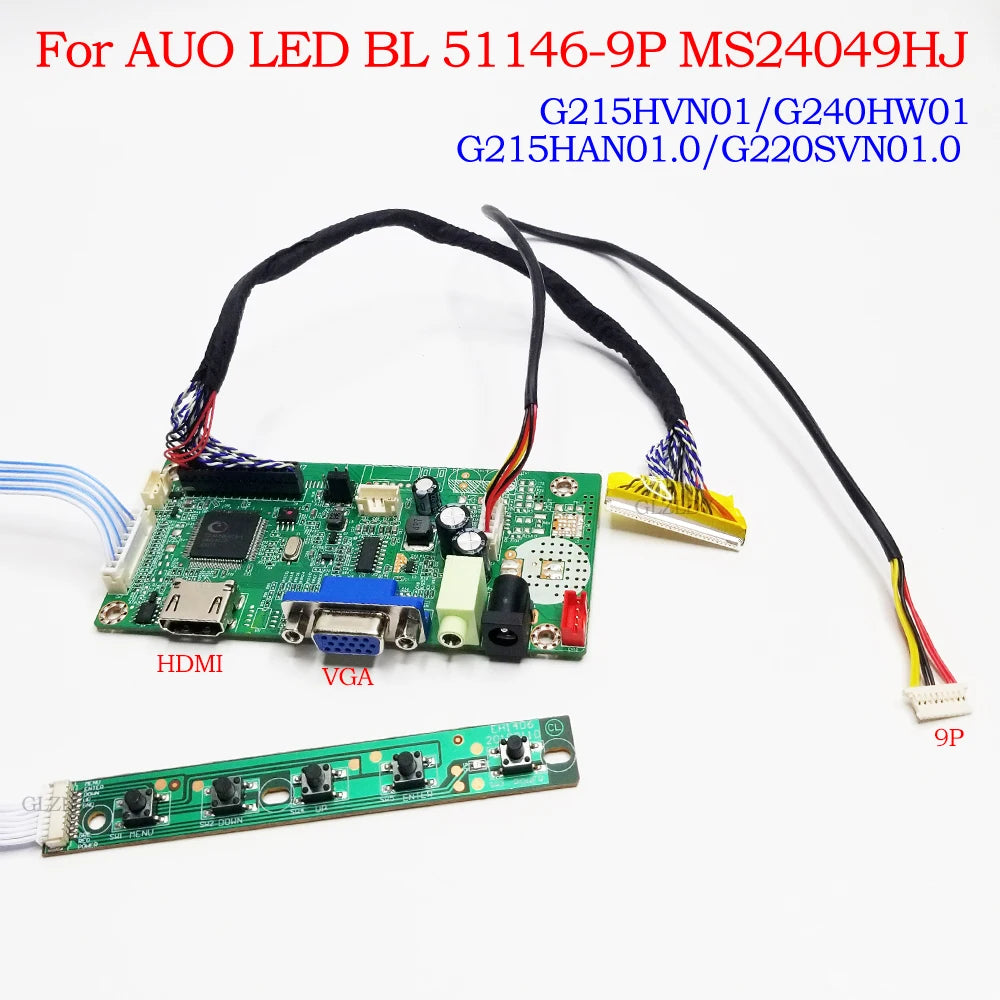

For AUO G215HVN01.0 G240HW01 G215HAN01.0 G220SVN01 LED Drive Board LVDS 30Pin 1920X1080 HDMI+VGA LCD Screen Controller Modify

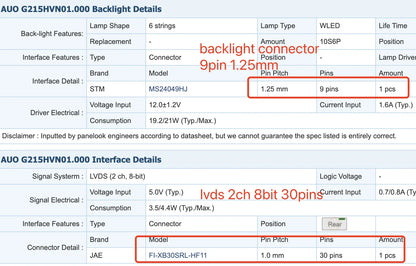

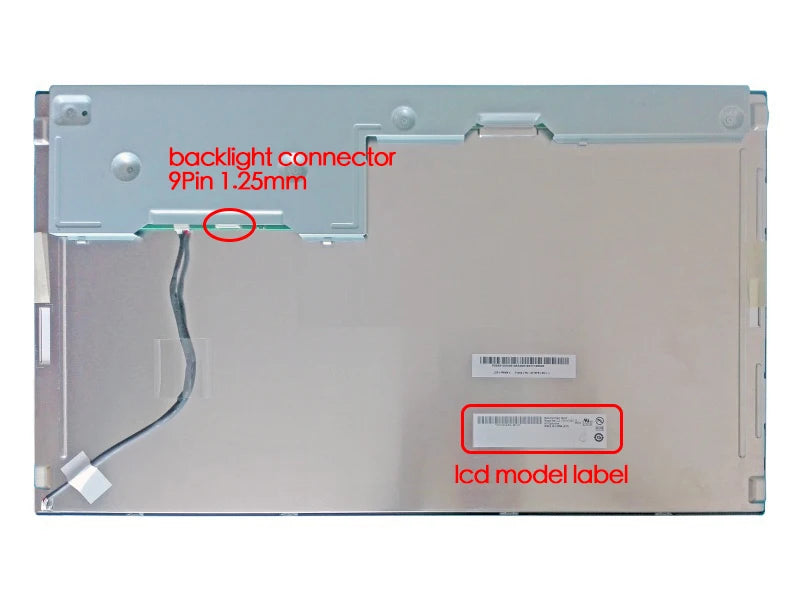

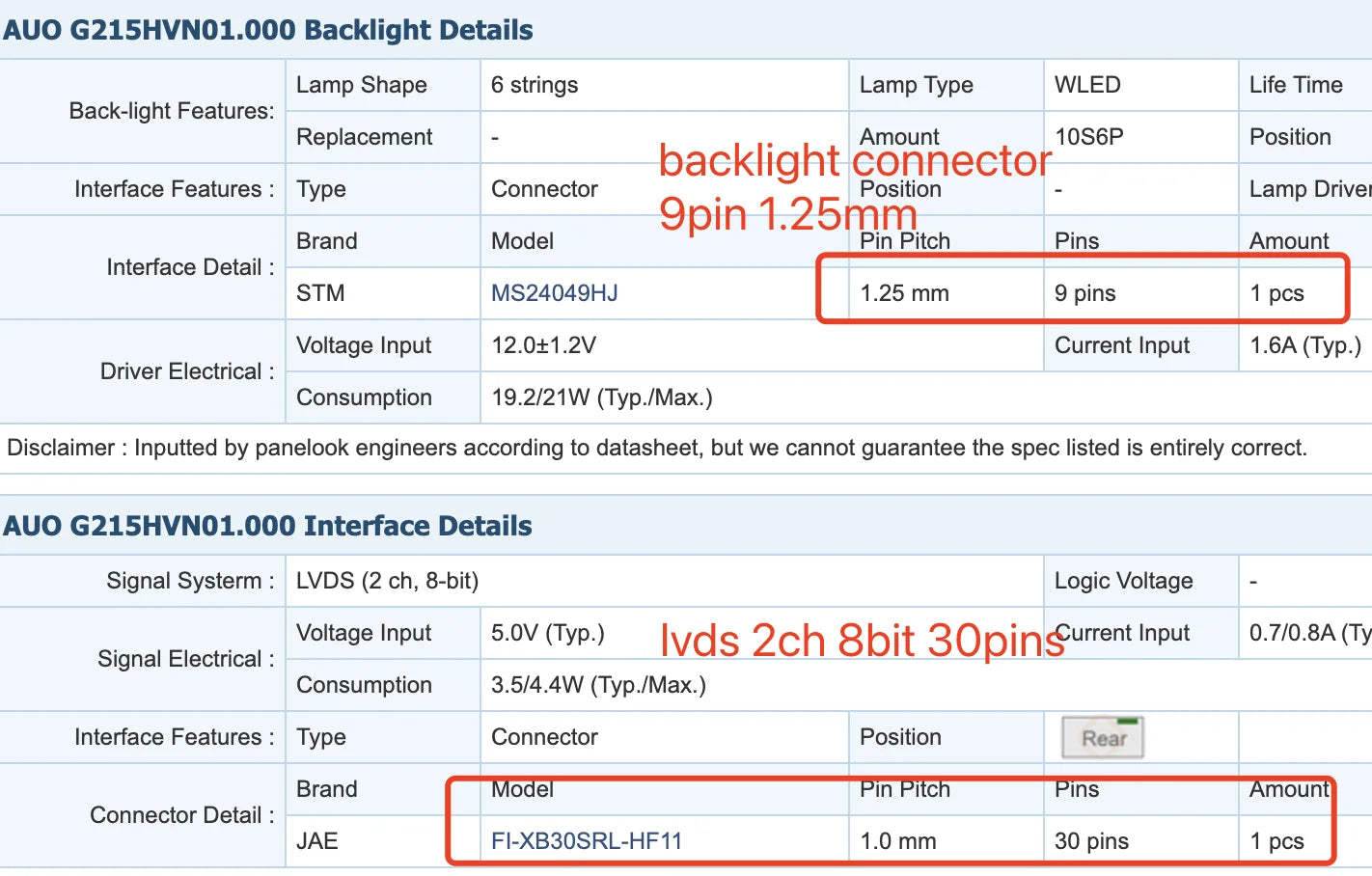

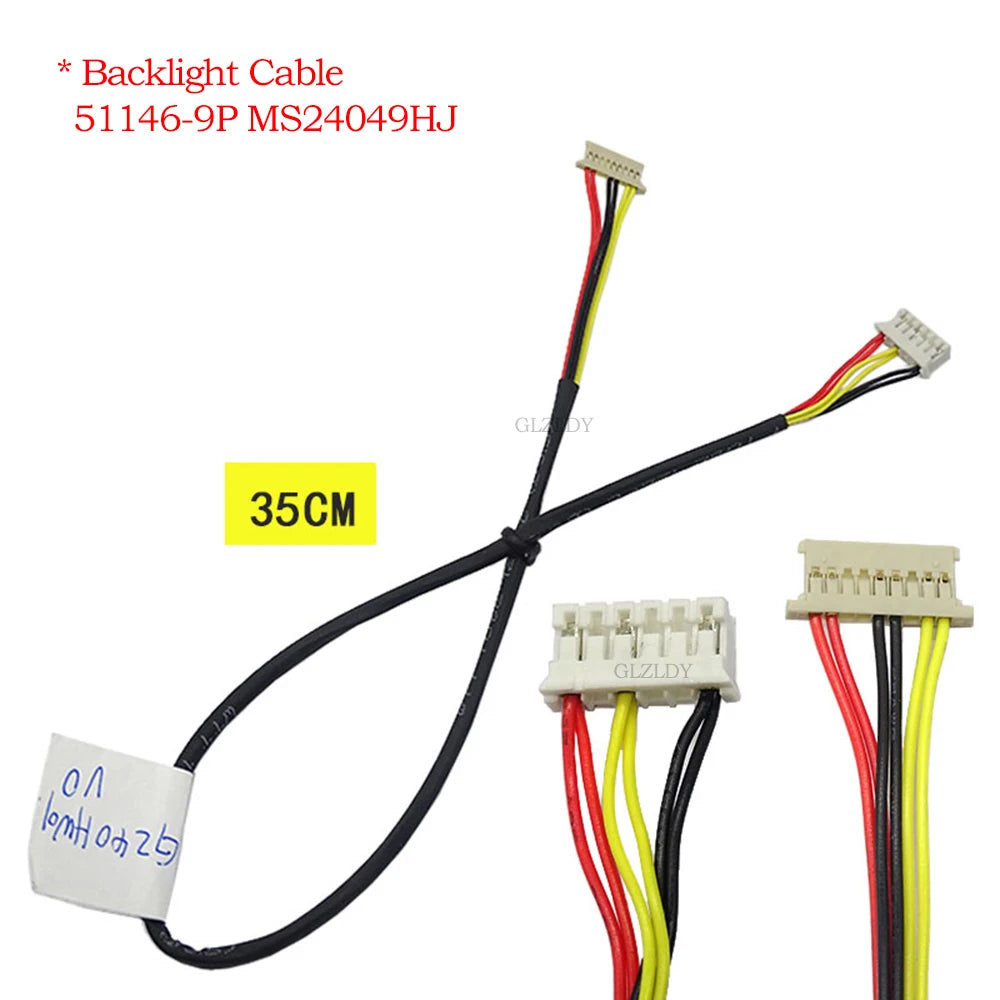

Backlight connector type: 51146-9P MS24049HJ

G215HVN01.0

G215HVN01.2

G215HVN01.3

G240HW01 V0

G240HW01 V1

G215HAN01.0

G220SVN01.0 （1680x1050）

Backlight connector type: MS24019RHD

G190EG01 V1 (1280x1024) special

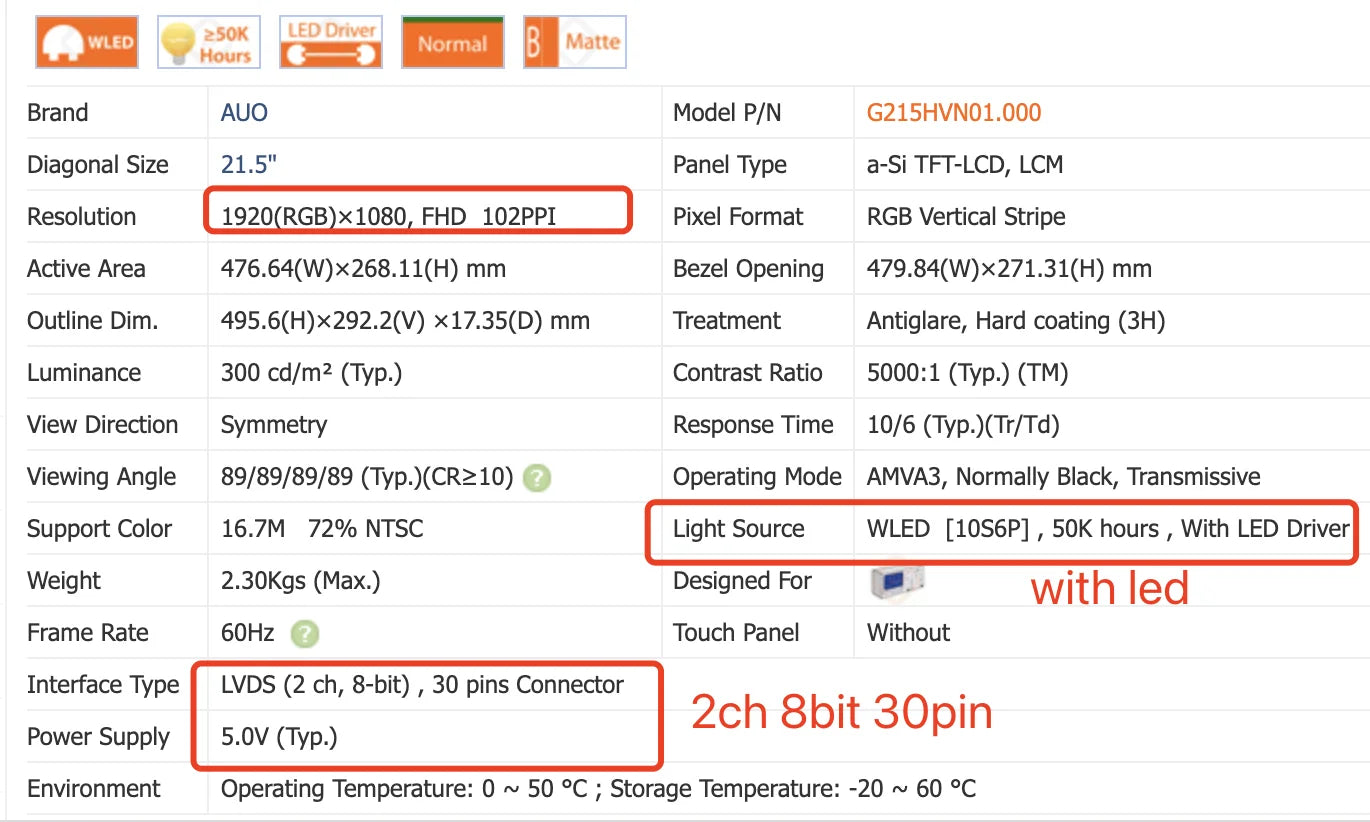

How to know the resolution of your screen:

You can check the resolution from this link: http://www.panelook.com/index.php, enter the panel model to search.

Features:

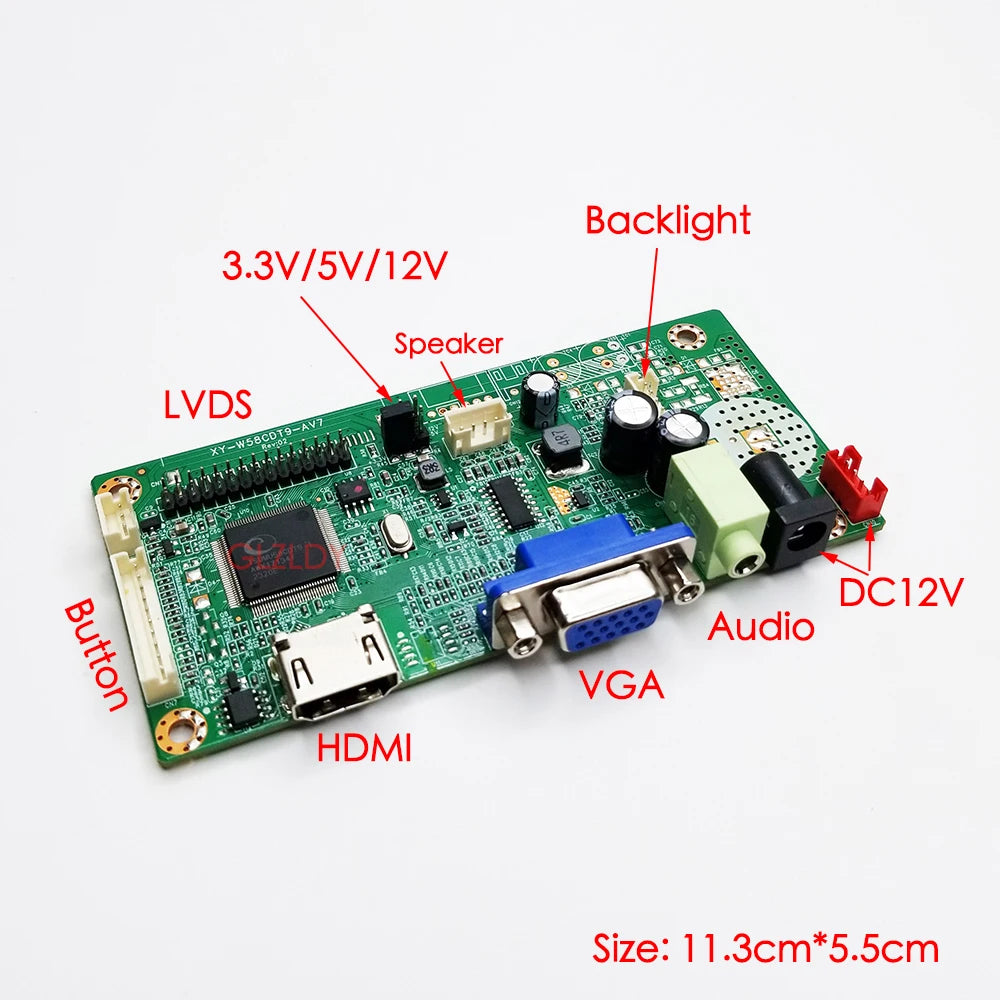

Notebook, host computer, monitor, vga signal interface

HD set-top box, computer / host, Xbox/PS3/PS4, game machine, raspberry pie

PC audio signal, Earphone, small sound box interface.

Specifications:

Voltage: 12V 3-5A

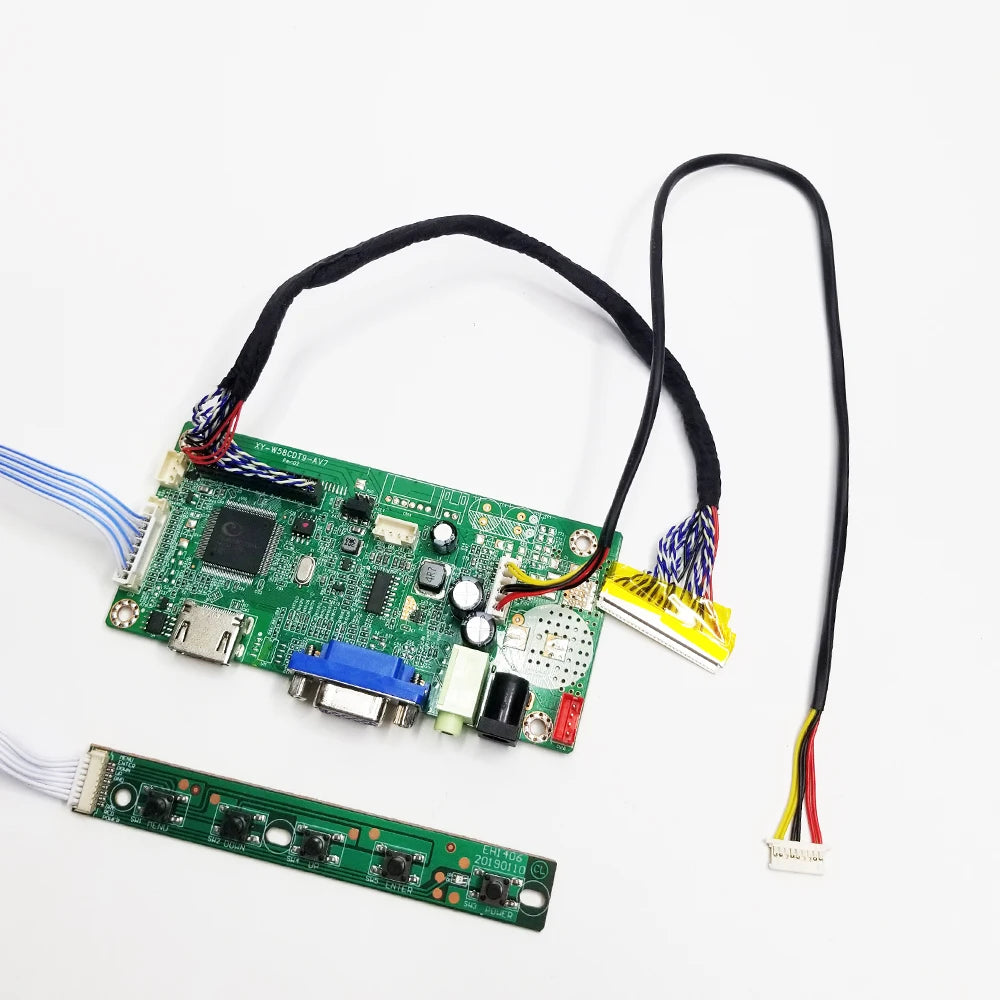

Package included:

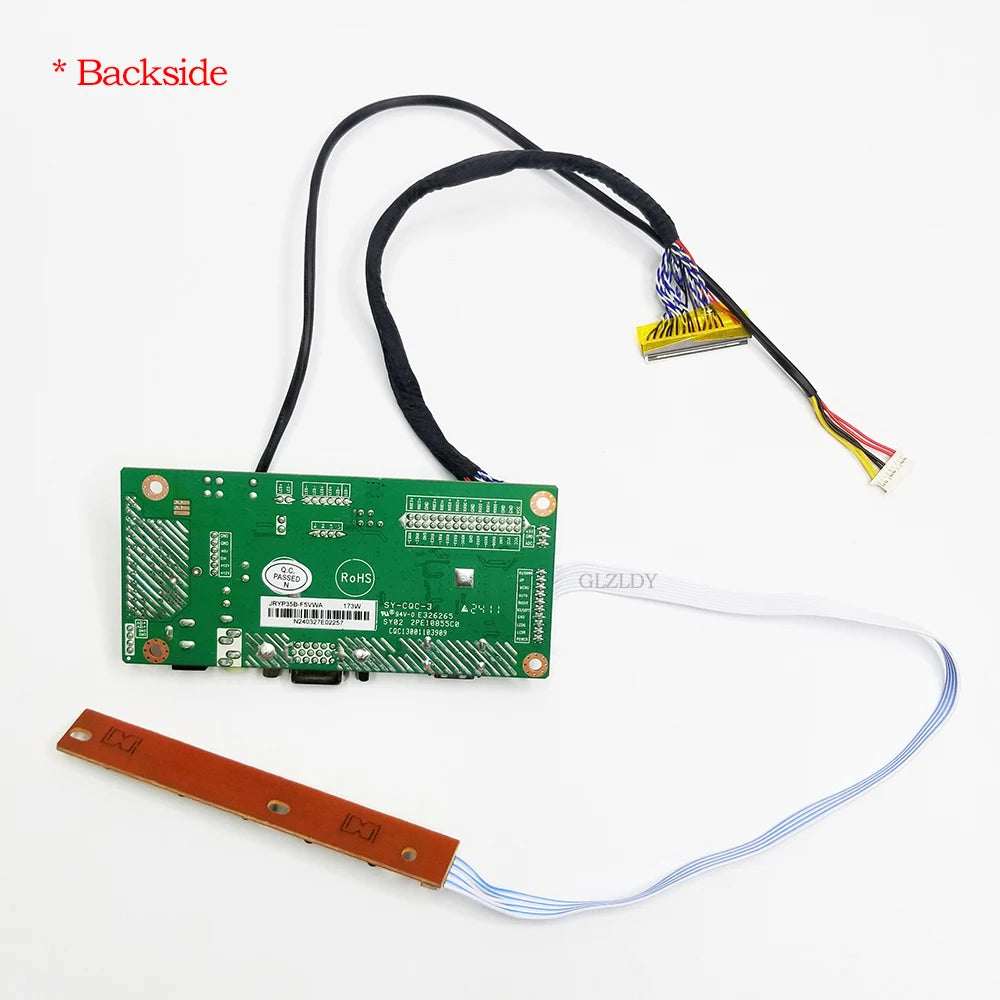

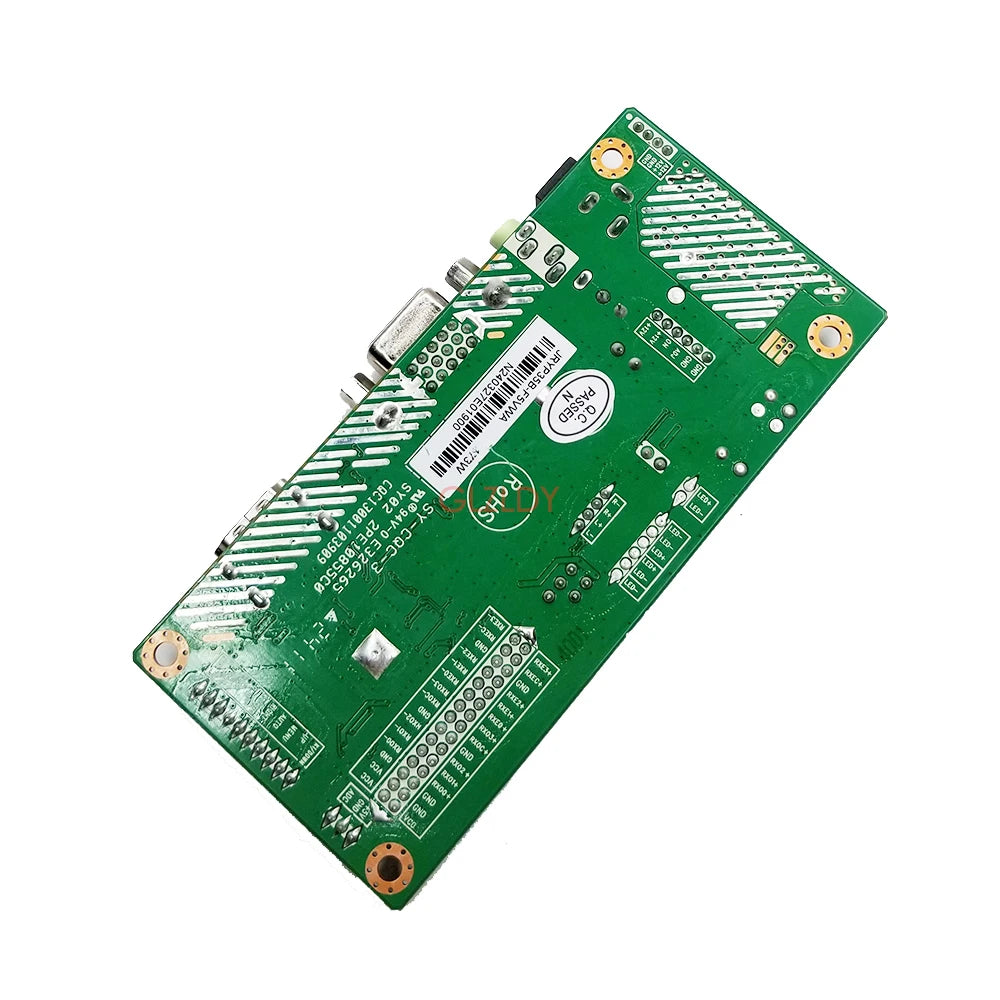

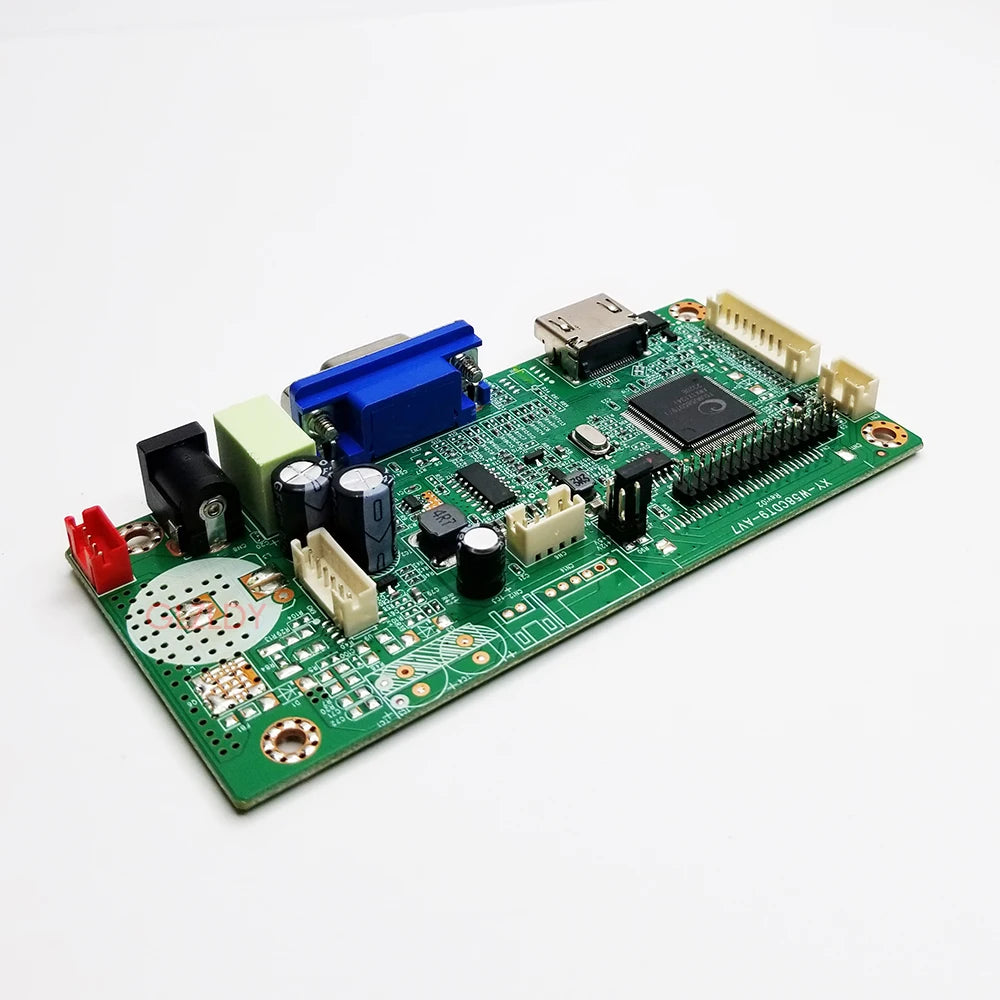

1 x Driver board

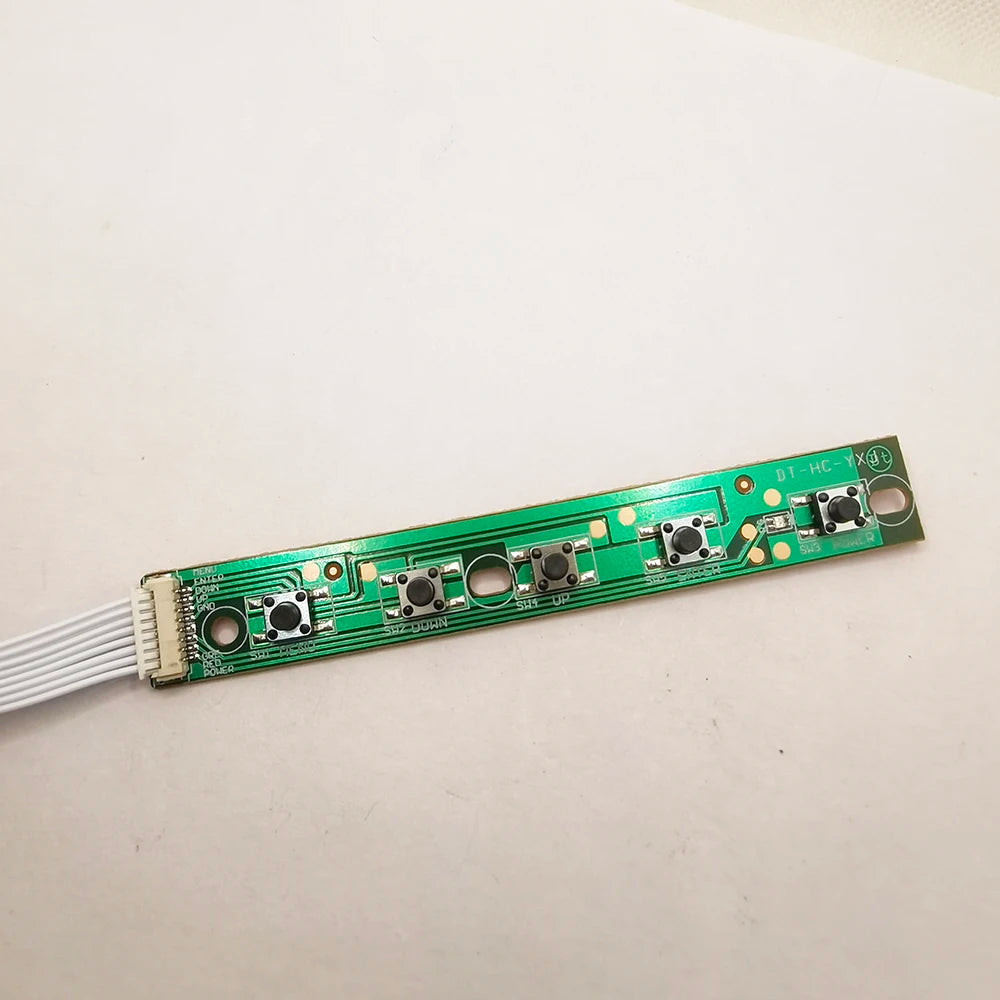

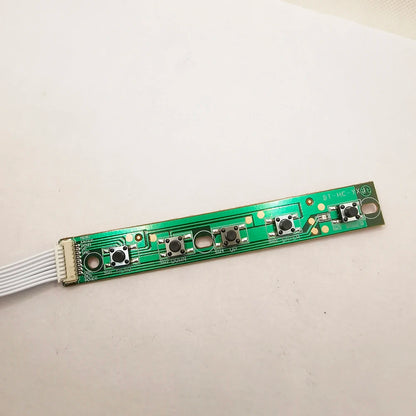

1 x 5 Key board

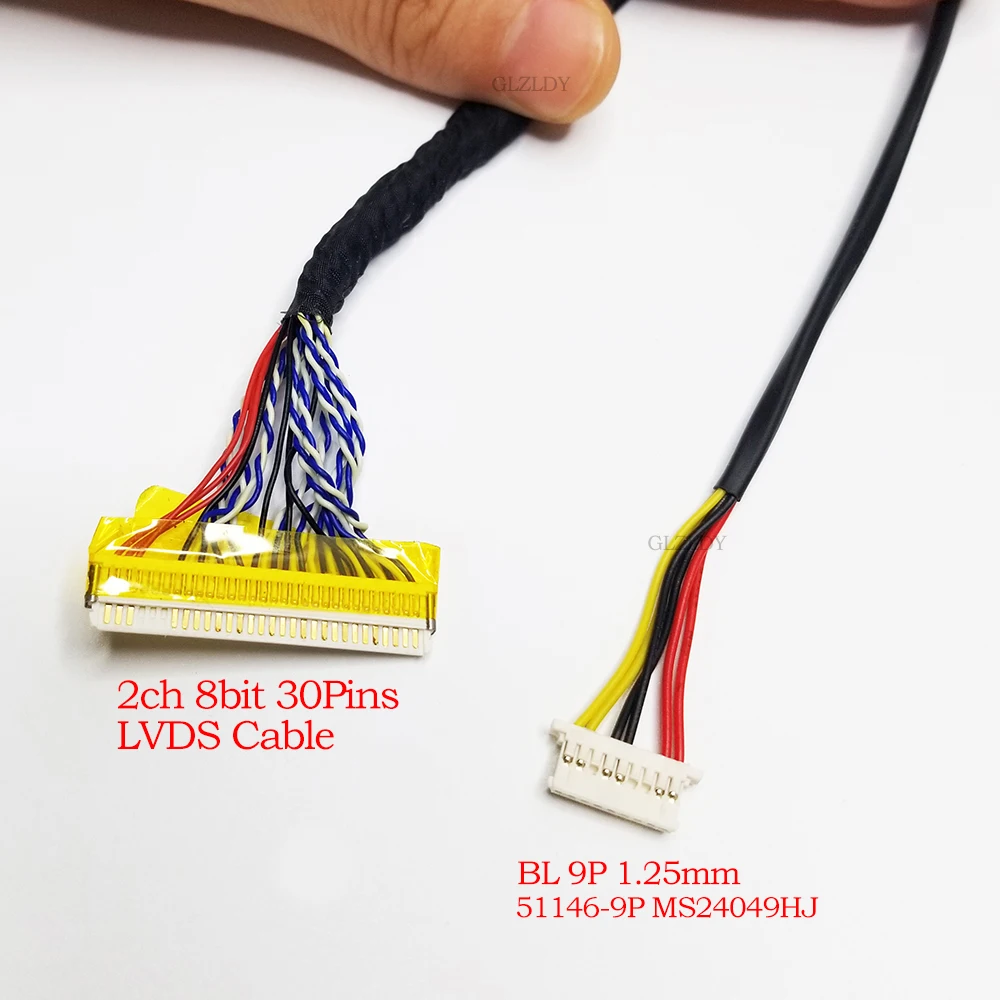

1 x LVDS cable

1 x backlight Cable

Note: This is a DIY kit, you need to have some knowledge of electronics and ability. We don't supply any instructions. Any problems caused by personal reasons, not covered under warranty
