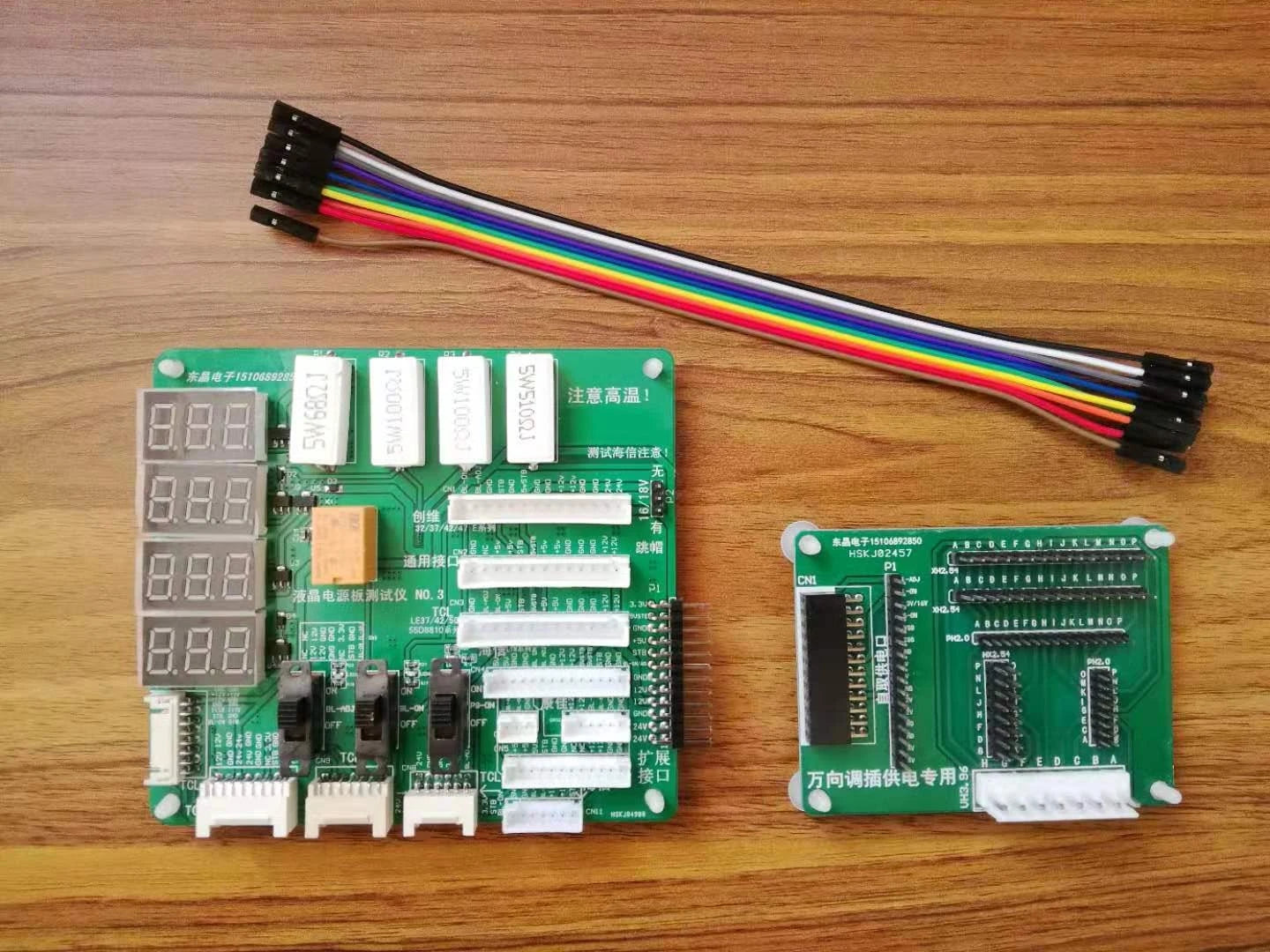

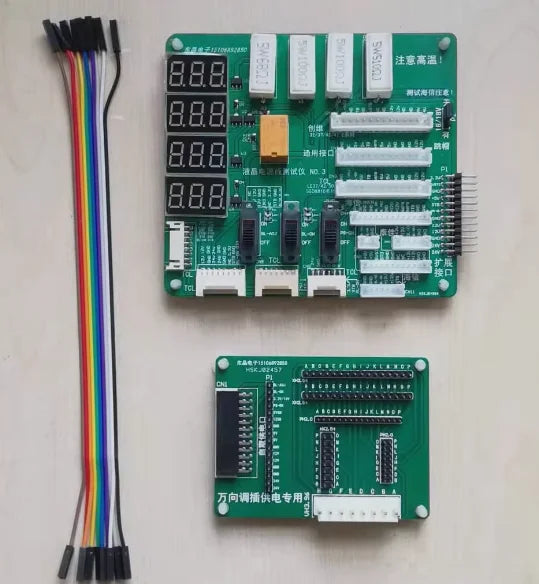

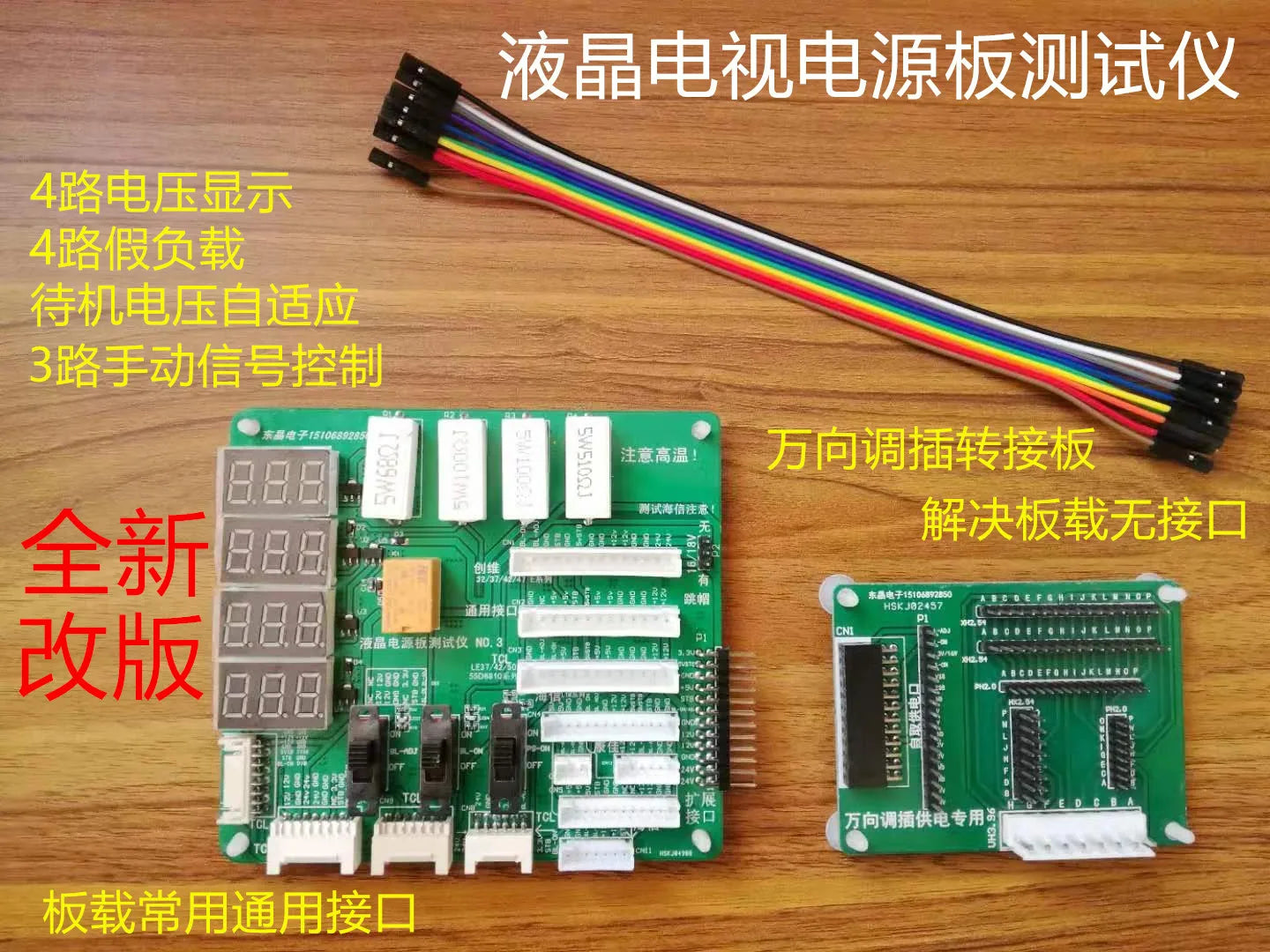

1.A power board tester

2.A special board for universal plug in power supply

3.Matching DuPont wire1strip10P

Product function：Main functions of power board tester，Simulate the working environment of motherboard，Real time detection of output voltage，And display accurately ，The output signals of each group are generated，And manually control the second startup、Backlight on、Brightness adjustment、output signal

Product features：\1、No external power supply is required，Digital tube support2.5-32VDisplay of high voltage difference，aloneCPUMore accurate control display voltage，Design reverse connection protection，Avoid damaging tester by wrong line sequence；\2、Integrated design of digital tube tester，Enhanced stability，More concise appearance ；\3、The tester has the function of automatic identification of standby voltage，3.3V 、5V、 8V、 9V 、12V、 16VAnd other standby voltage without manual intervention，Automatic conversion makes it easier to use。

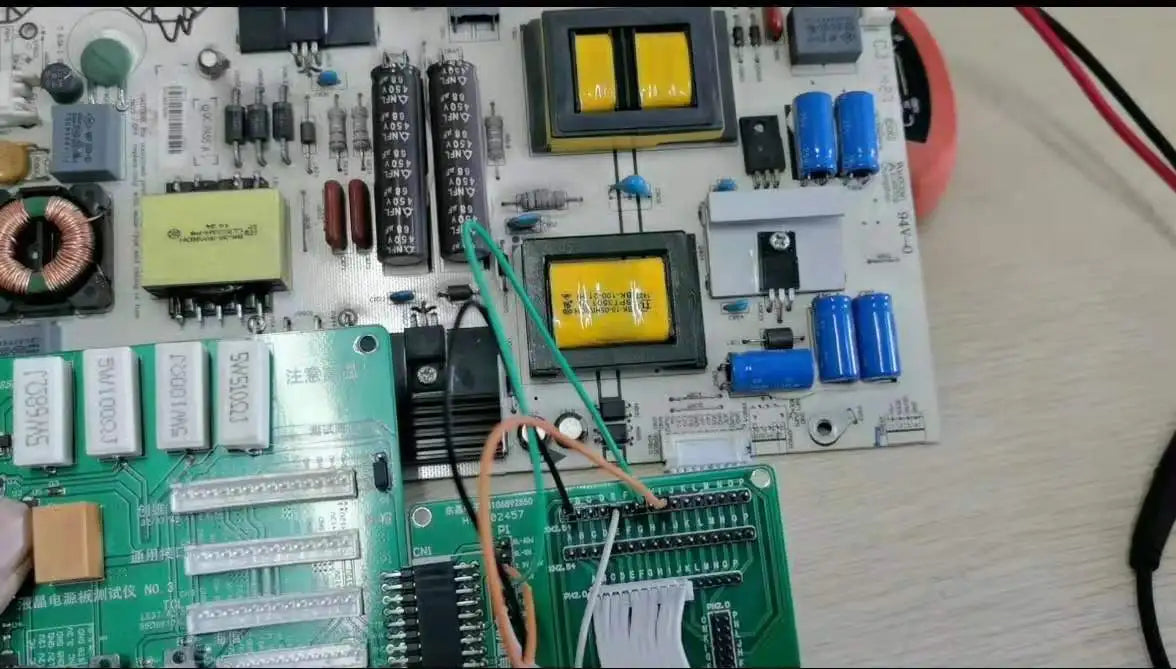

4，Combination of power board tester and universal plug in，Solve the problem of no corresponding interface on board，The actual application rate is very high，More perfect functions。

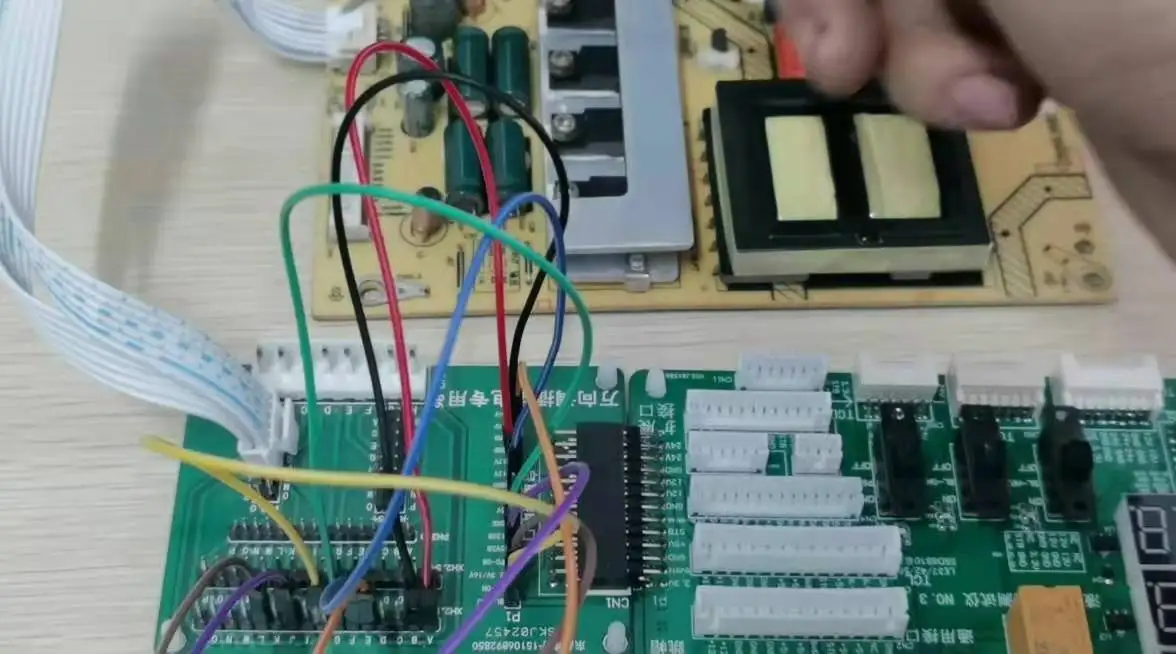

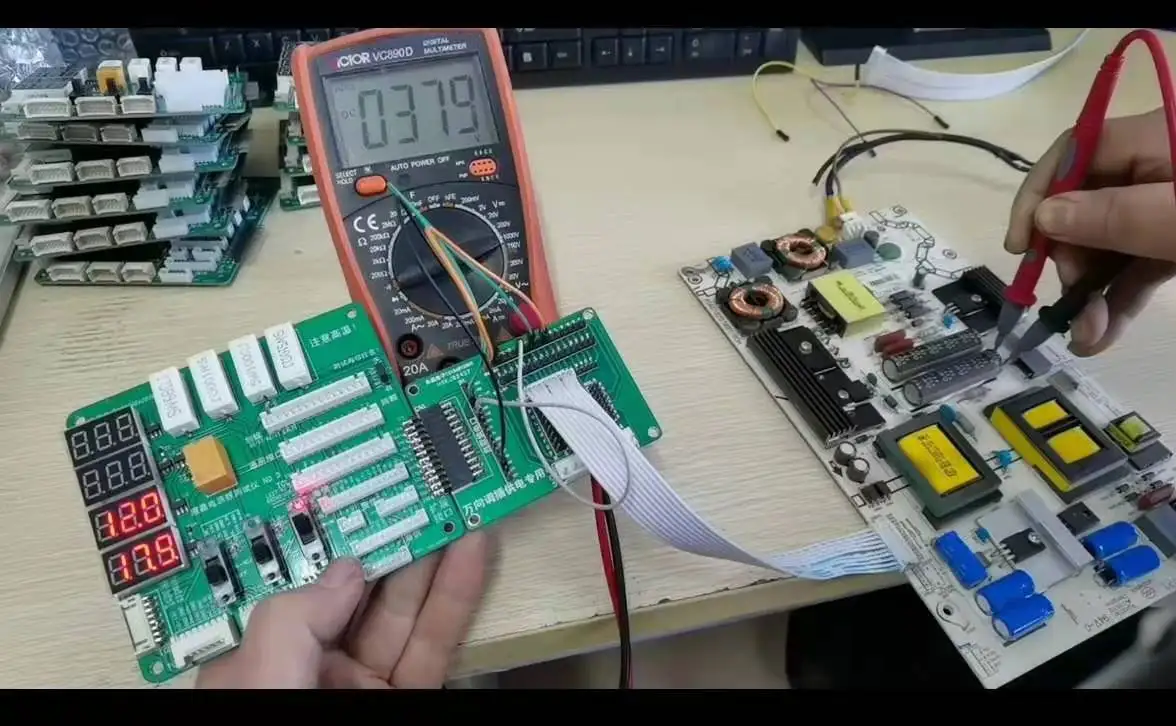

General interface test

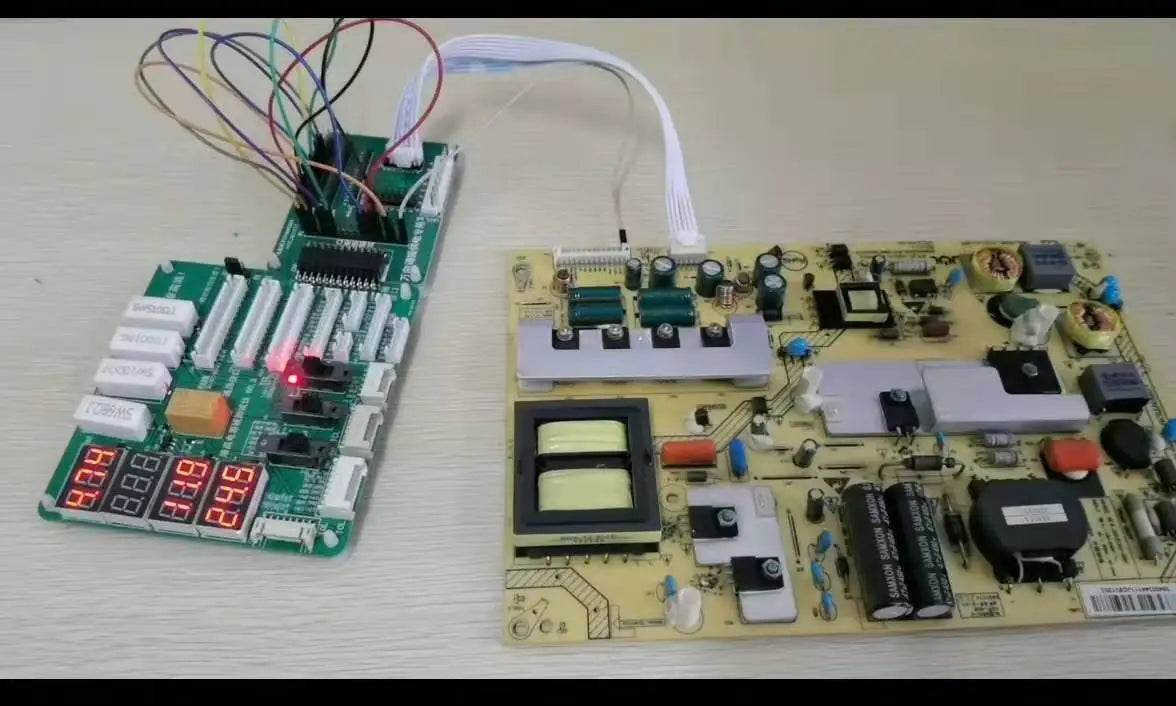

Haier TV power board test

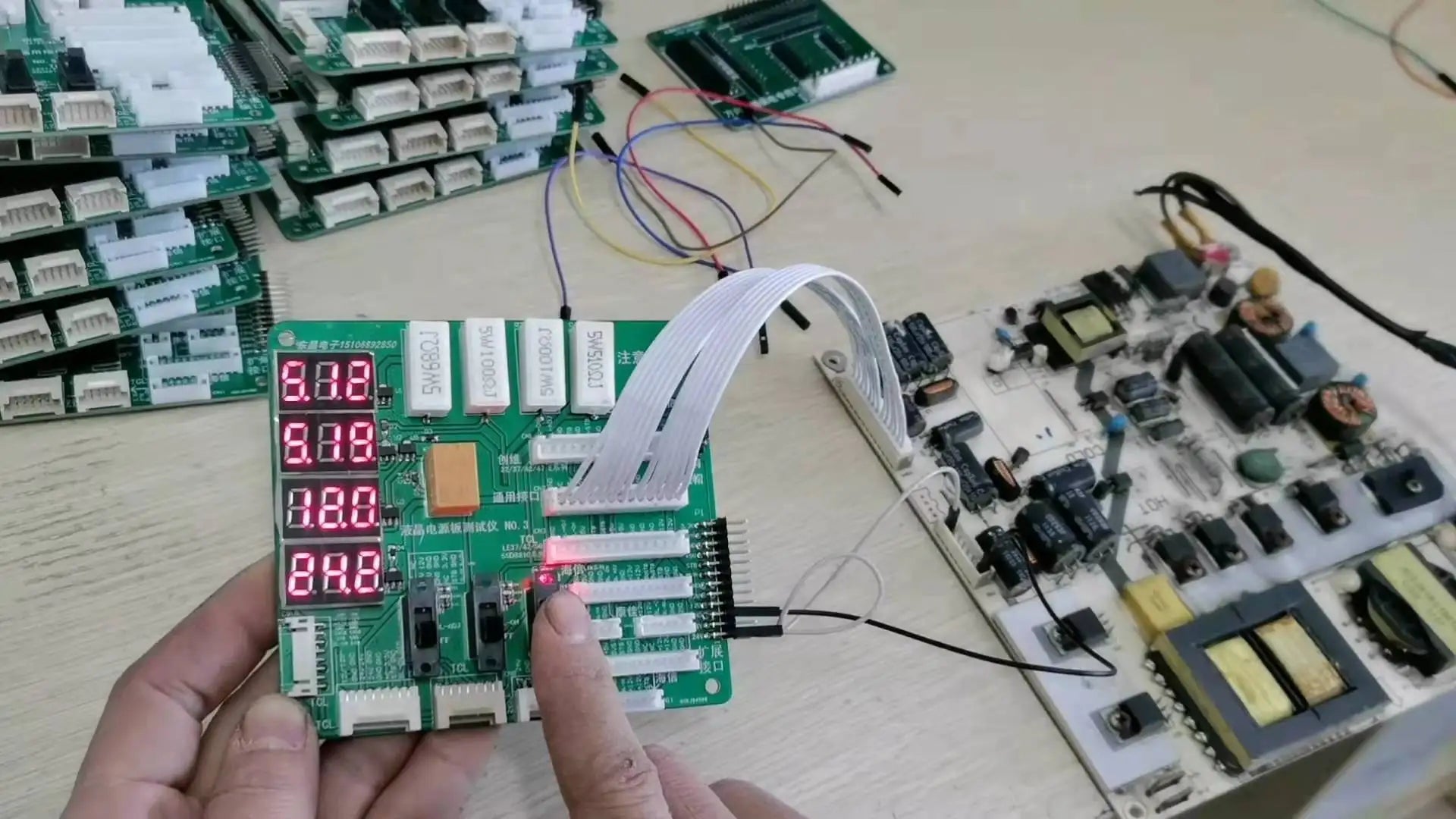

Test of Hisense TV power board

Need to see a detailed tutorial, you can find customer service for video links，There are a lot of maintenance videos and tooling test videos。
