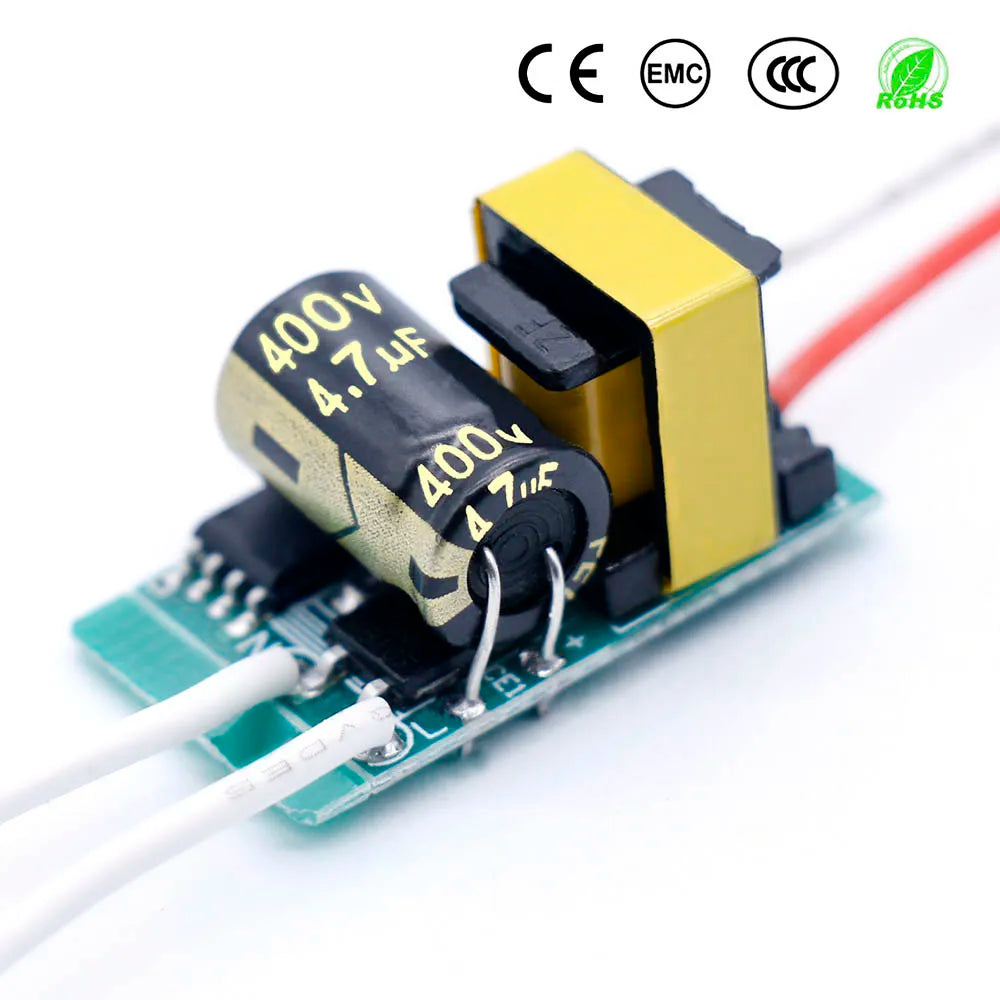

Driver LED No Aislado (3-40W) Fuente AC175-265V Transformador Iluminación SMD Bulbo
Driver LED No Aislado (3-40W) Fuente AC175-265V Transformador Iluminación SMD Bulbo
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
12-18W Load-Output: 100-148V and 105-115mA
18-24W Load-Output: DC80-110V 220-230mA
24-32W Load-Output: DC110-145V 220-230mA
3-7W Load-Output: 20-59V and 105-115mA
32-40W Load-Output: DC145-182 220-230mA
40-50W Load-Output: DC100-130V 330-350mA
7-9W Load-Output: 59-79V and 105-115mA
9-12W Load-Output: 80-99V and 105-115mA
Application place: LED Blub Driver
Brand Name: warm and happy
Certification: CCC,ce,CQC,ROHS
Characteristic: High temperature resistance 130
Current: 105-115mA
Features: Non-isolated LED driver
Hign-concerned Chemical: None
Input Signal: AC
Input Voltage: 175-265V
Item Type: Lighting Transformers
Material: Plastic+alloy+copper
Model Number: TDFGLQD102
No-load output voltage: 20-148V /Danger! No-load test is prohibited
Note: Do not touch the coil PCB during work
Origin: Mainland China
Output Signal: DC
Output Voltage: 20-59V/60-79V/80-99V/100-150V
Plug Type: None
Power: 3-7W/7-9W/9-12W/12-18W/18-24W/24-32W/32-40W/40-50W
Warranty: 2
Weight: 5

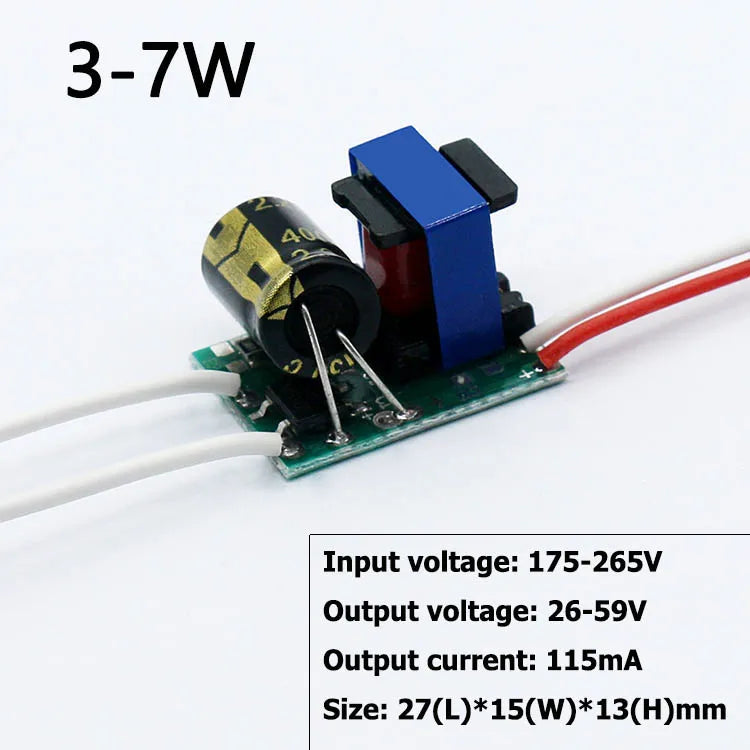

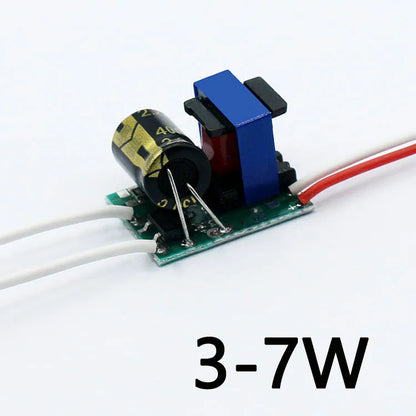

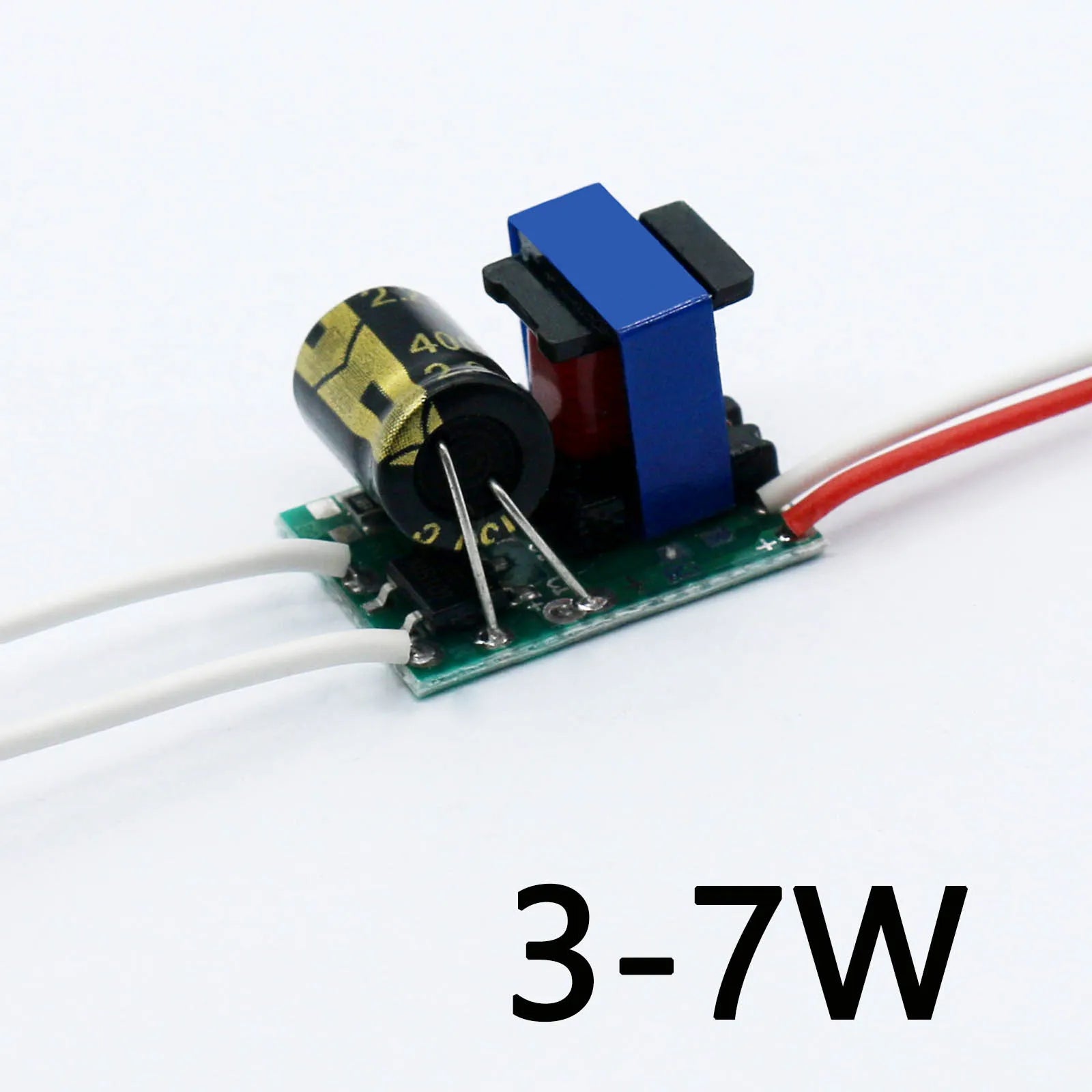

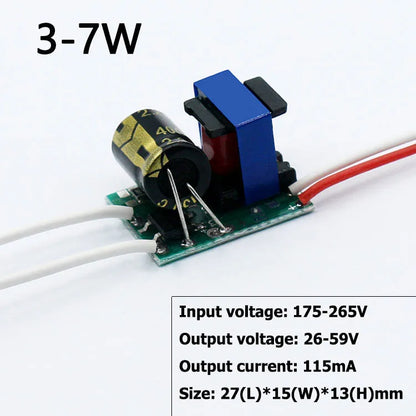

3-7W Parameter
400v 2.2uF
130 degree high temperature resistant material
6000 hours of electrolysis
2.0mH full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load Output voltage: 26-59V
Output current: 105-115mA
No-load output voltage : 20-148V
（Danger! No-load test is prohibited）
Size: 21 (L) * 15 (W) * 13 (H) mm

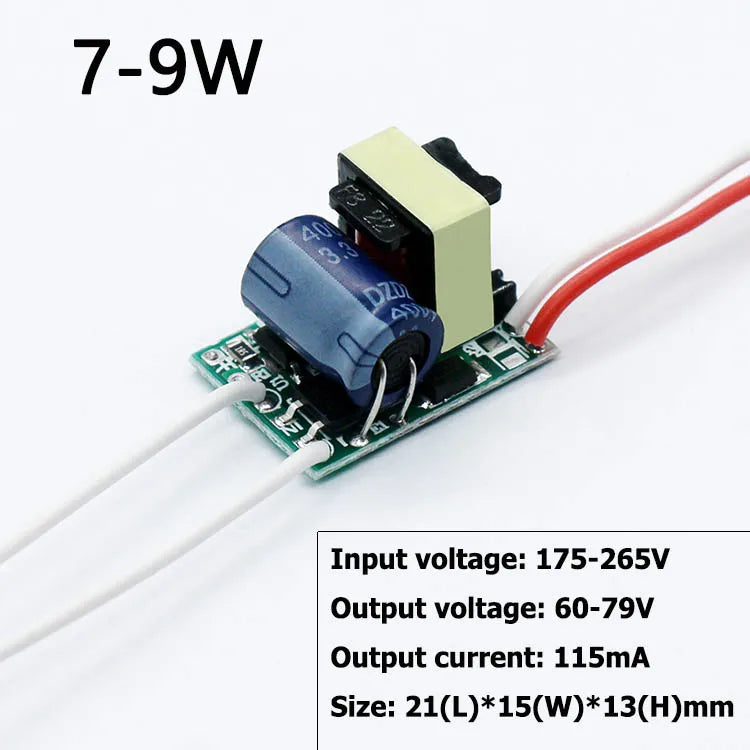

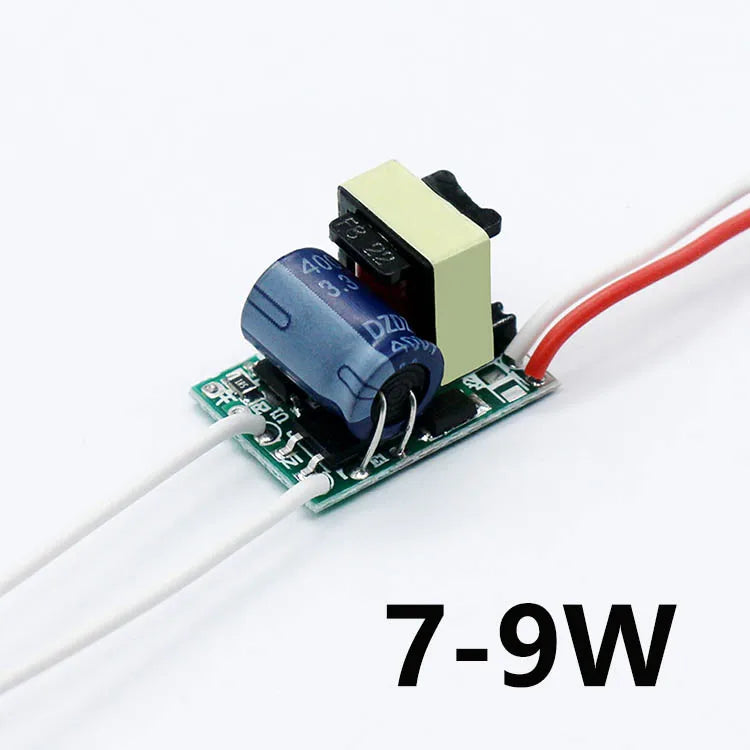

7-9W Parameter
400v 3.3uF
130 degree high temperature resistant material + 6000 hours of electrolysis
2.0mH full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load-Output voltage: 60-79V
Output current: 105-115mA
No-load output voltage : 20-148V
（Danger! No-load test is prohibited）
Size: 21 (L) * 15 (W) * 13 (H) mm

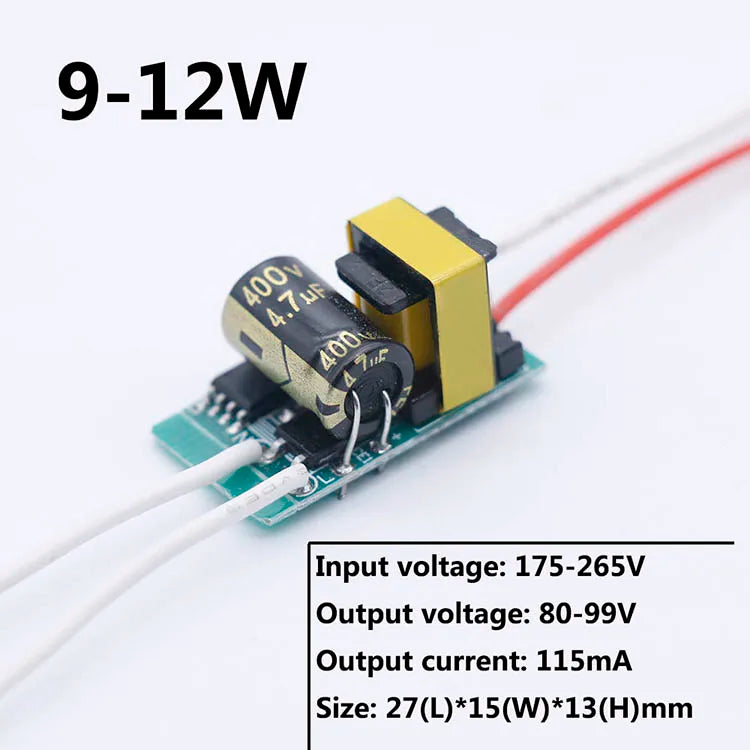

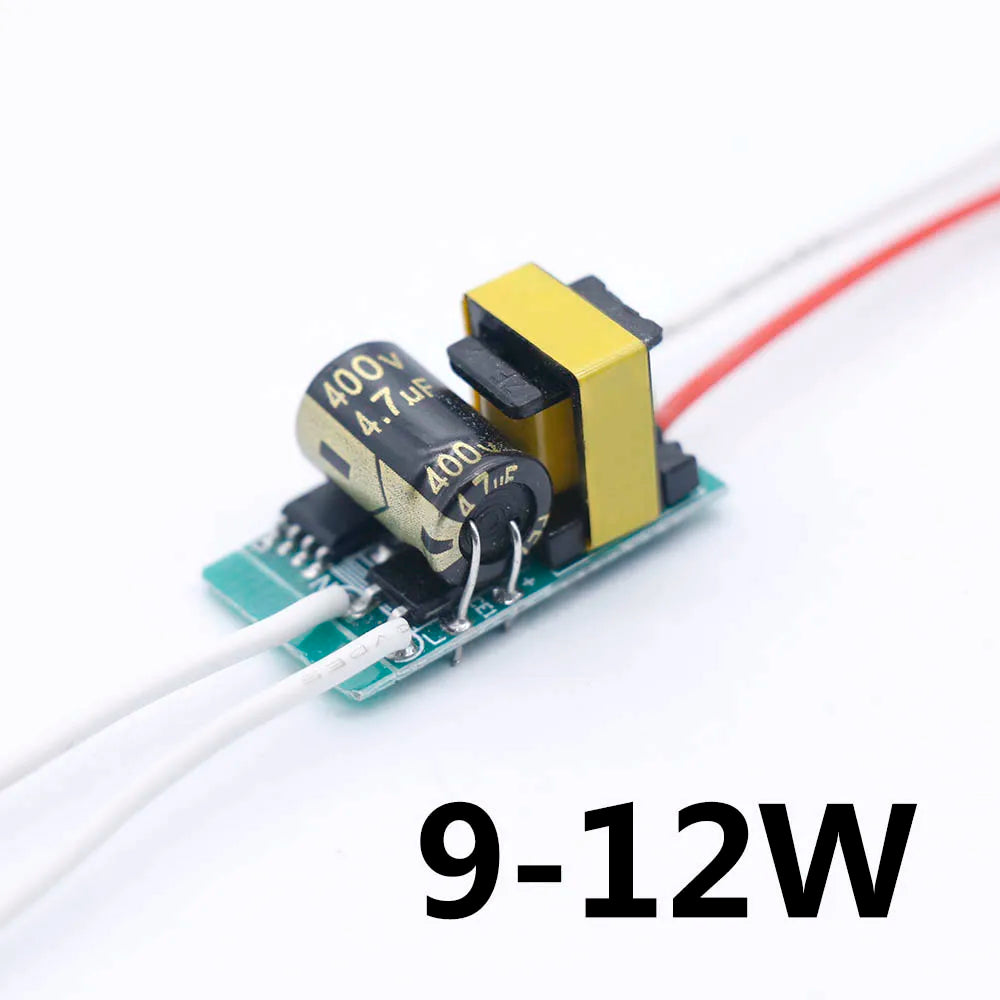

9-12W Parameter
400v 4.7uF
130 degree high temperature resistant material 6000 hours of electrolysis
2.0mH full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load-Output voltage: 80-99V
Output current: 105-115mA
No-load output voltage : 20-148V
（Danger! No-load test is prohibited）
Size: 27 (L) * 15 (W) * 13 (H) mm

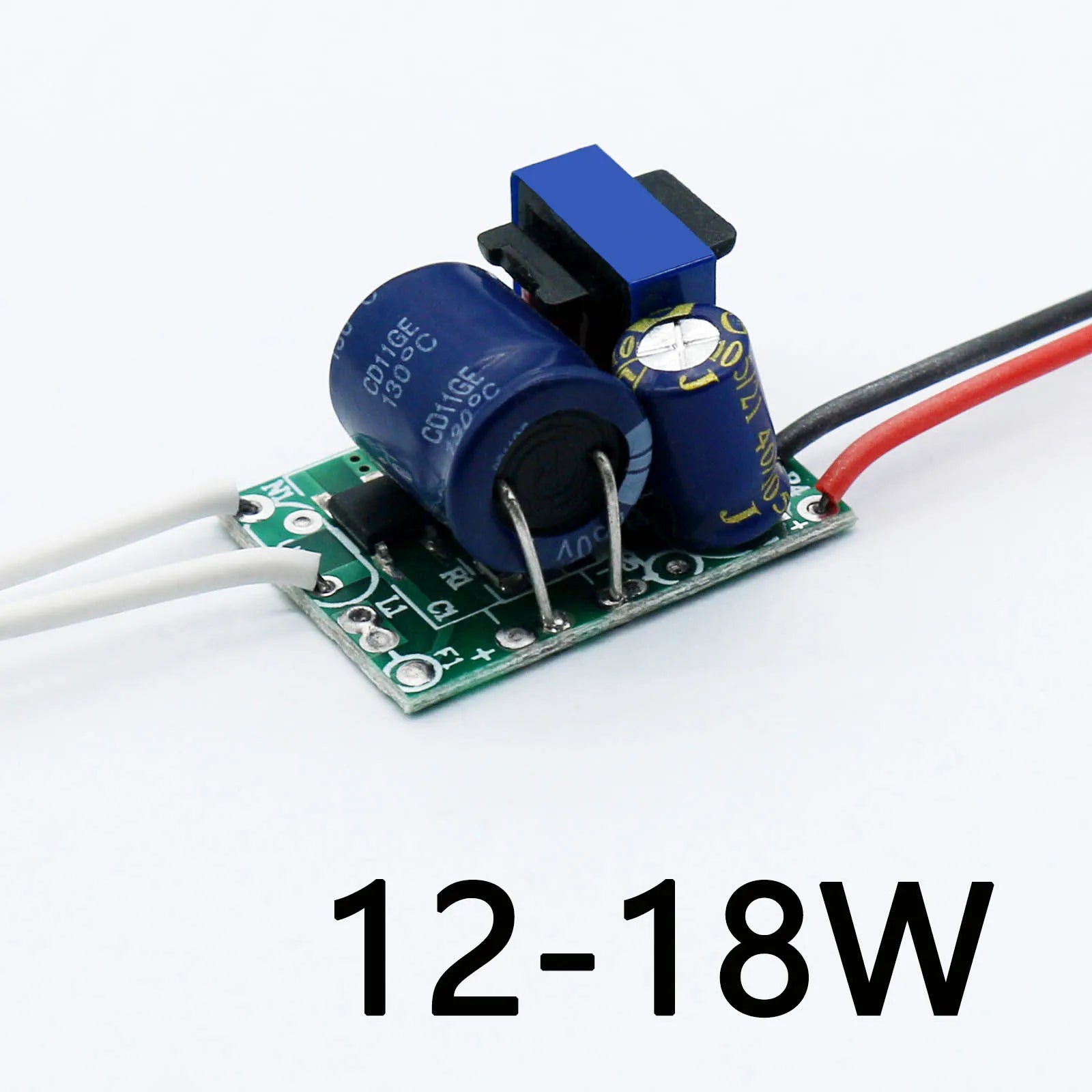

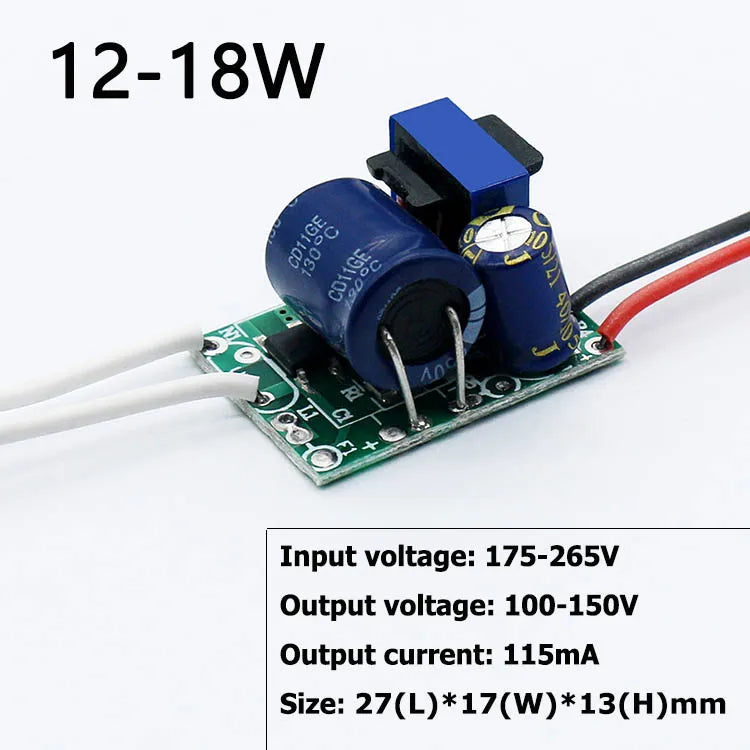

12-18W Parameter
400v 6.8uF
130 degree high temperature resistant material 6000 hours of electrolysis
3.6mH full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load-Output voltage: 100-148V
Output current: 105-115mA
No-load output voltage : 20-148V
（Danger! No-load test is prohibited）
Size: 24 (L) * 18 (W) * 13 (H) mm

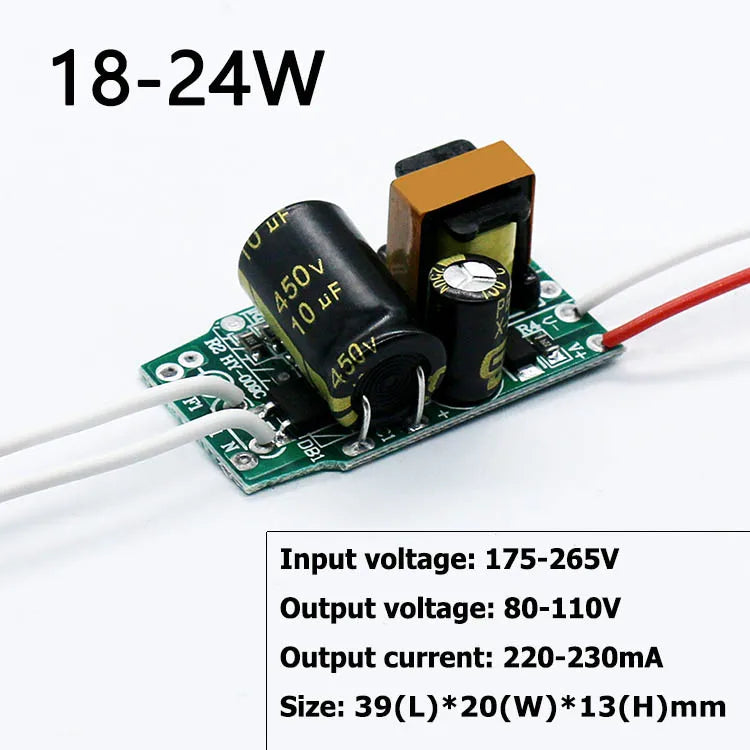

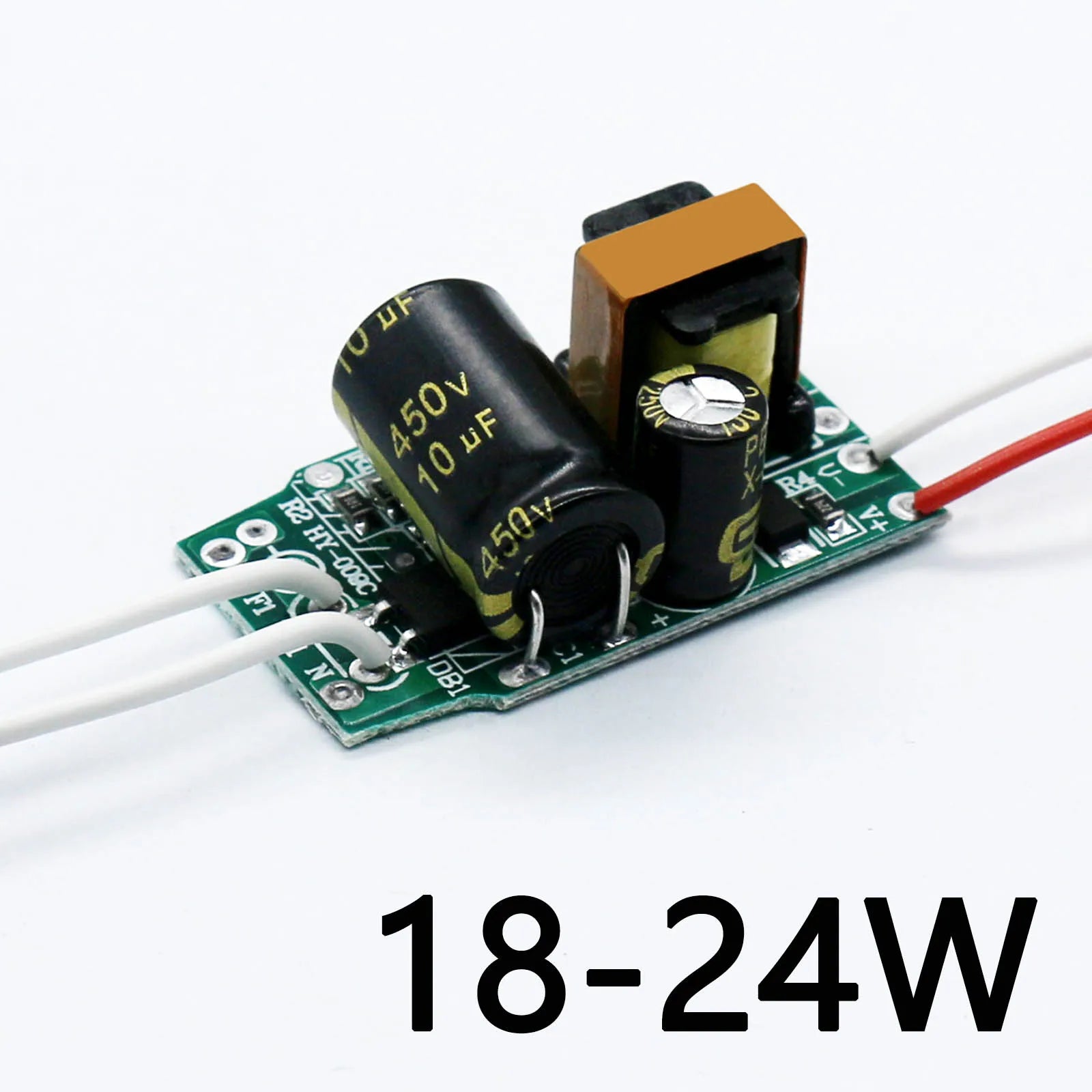

LED Non-isolated 18-24W
Parallel/serial ：2B14C to 2B16C
450v 10uF
130 degree high temperature resistant material
8000 hours of electrolysis
2.0mH Full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load Output voltage: 80-110V
Output current: 220-230mA
No-load output voltage : 20-148V
（Danger! No-load test is prohibited）
Size: 39 (L) * 20 (W) * 13 (H) mm

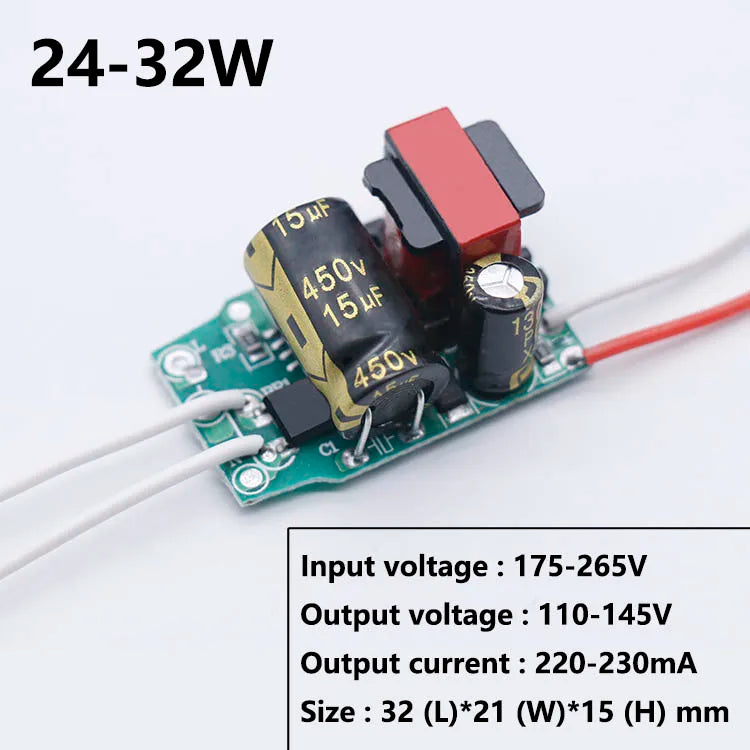

LED Non-isolated 24-32W
Parallel/serial ：2B18C to 2B22C
450v 15uF
130 degree high temperature resistant material
8000 hours of electrolysis
2.0mH Full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load Output voltage: 110-145V
Output current: 220-230mA
No-load output voltage : 20-148V
（Danger! No-load test is prohibited）
Size: 32 (L) * 21 (W) * 15 (H) mm

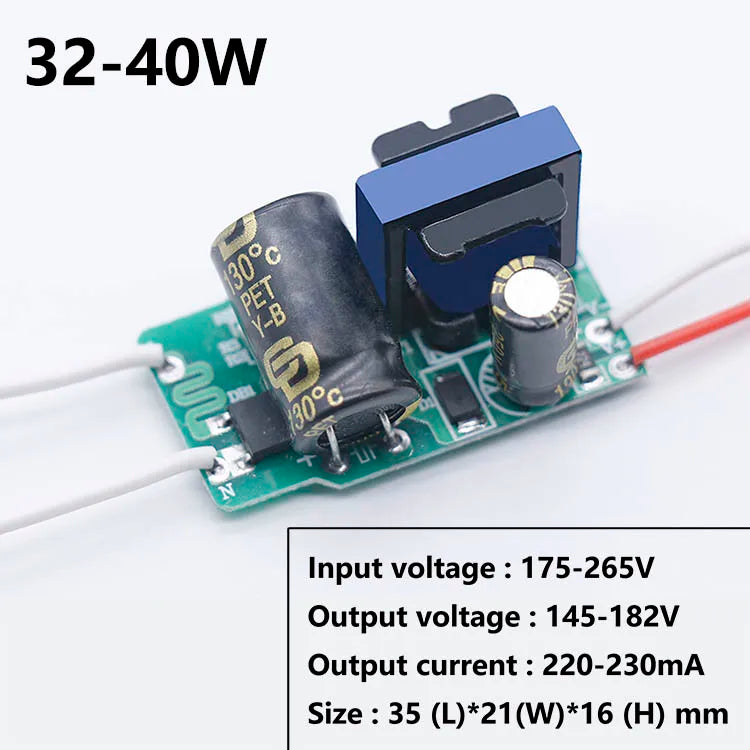

LED Non-isolated 32-40W
Parallel/serial ：2B23C to 2B27C
400v 15uF
130 degree high temperature resistant material
8000 hours of electrolysis
2.0mH full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load Output voltage: 145-182V
Output current: 220-230mA
No-load output voltage : 20-200V
（Danger! No-load test is prohibited）
Size: 35 (L) * 21(W) * 16 (H) mm

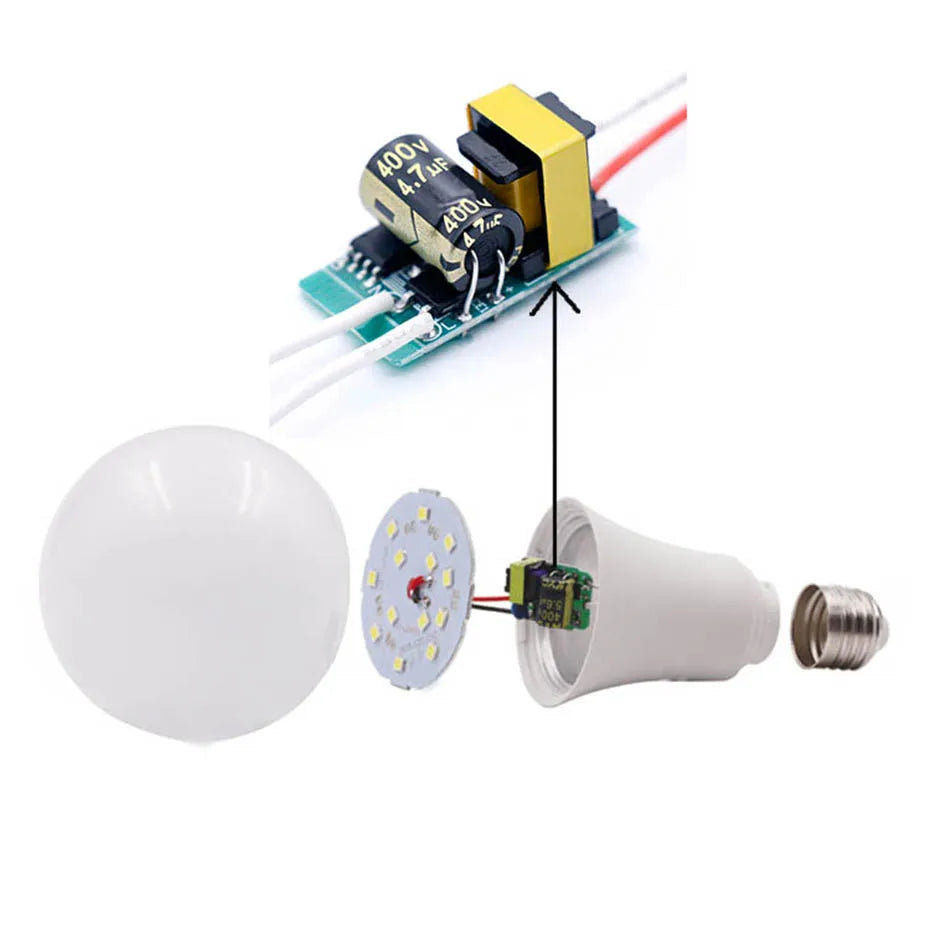

How to use it ?
Use the built-in driver in the SMD bulb
