Placa Desarrollo LILYGO SoftRF T-Beam SUPREME ESP32-S3 LoRa (SX1262 868/915MHz) con GPS U-blox L76K, WiFi, Bluetooth, OLED 1.3"
Placa Desarrollo LILYGO SoftRF T-Beam SUPREME ESP32-S3 LoRa (SX1262 868/915MHz) con GPS U-blox L76K, WiFi, Bluetooth, OLED 1.3"
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: lilygo
Chipset: ESP32-S3
Compatible Audio & Video Equipment Style: Professional Audio Equipment,Display Equipment

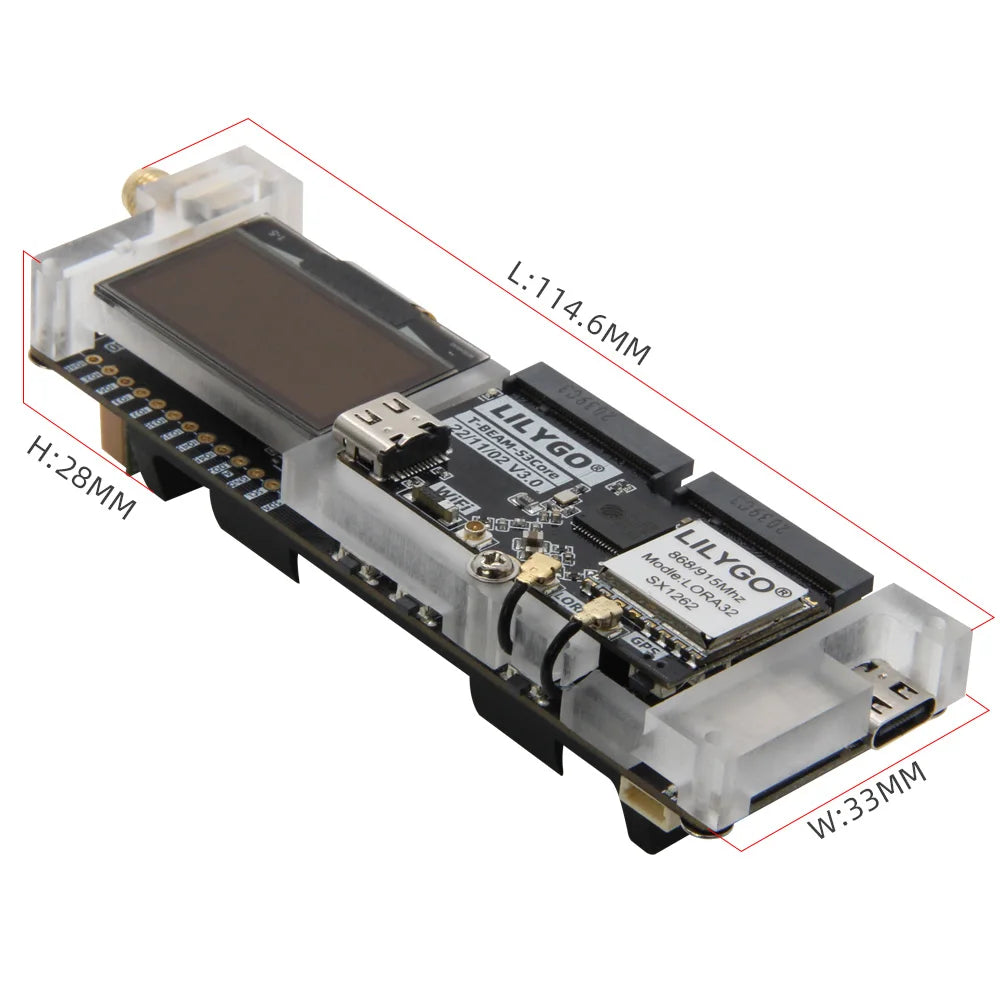

Dimensions (WxHxD)): 114.6*28*33mm
Frequency: 915MHz
Hign-concerned Chemical: None
Model Number: SoftRF T-Beam-S3
Origin: Mainland China
Package: Yes
T-BeamCORE L76K 433MHz: H637
T-BeamCORE L76K 868MHz: H614
T-BeamCORE L76K 915MHz: H636
T-BeamCORE UBLOX 433MHz: H635
T-BeamCORE UBLOX 868MHz: H613
T-BeamCORE UBLOX 915MHz: H617
T-BeamSUPREME L76K 433MHz: H640
T-BeamSUPREME L76K 868MHz: H616
T-BeamSUPREME L76K 915MHz: H639
T-BeamSUPREME UBLOX 433MHz: H638
T-BeamSUPREME UBLOX 868MHz: H615
T-BeamSUPREME UBLOX 915MHz: H618
Type: Bluetooth,WIFI
Weight: 100g

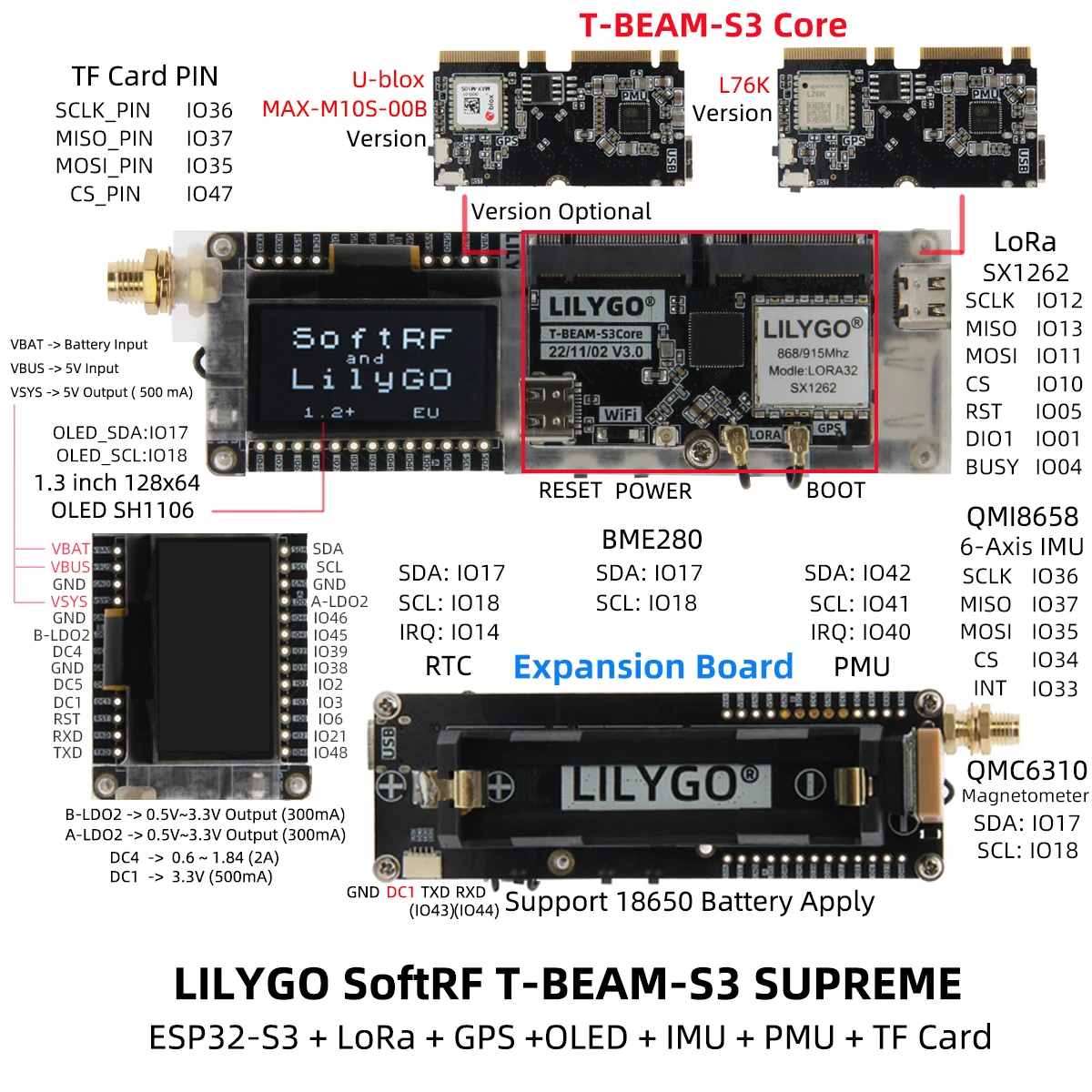

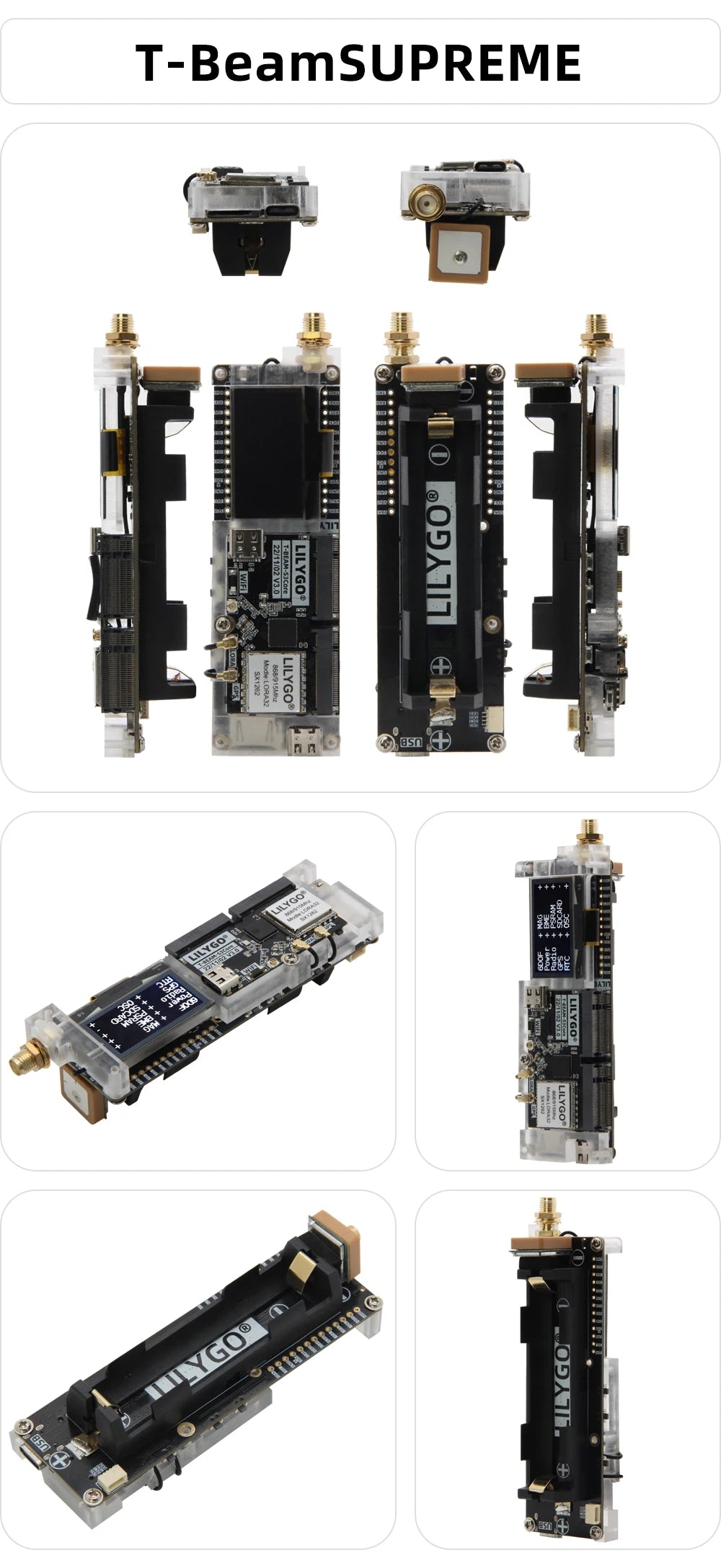

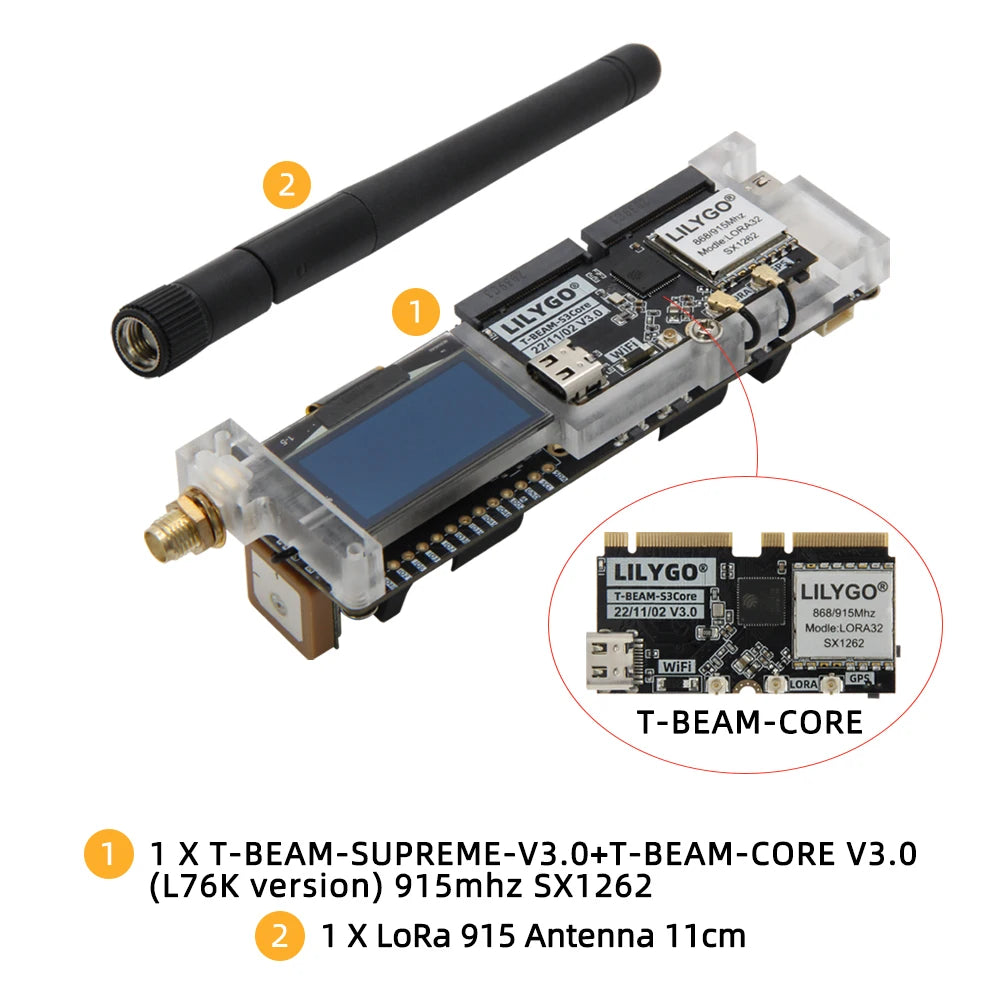

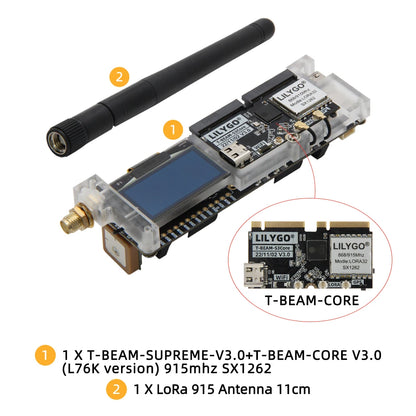

T-BeamSUPREME Introduction

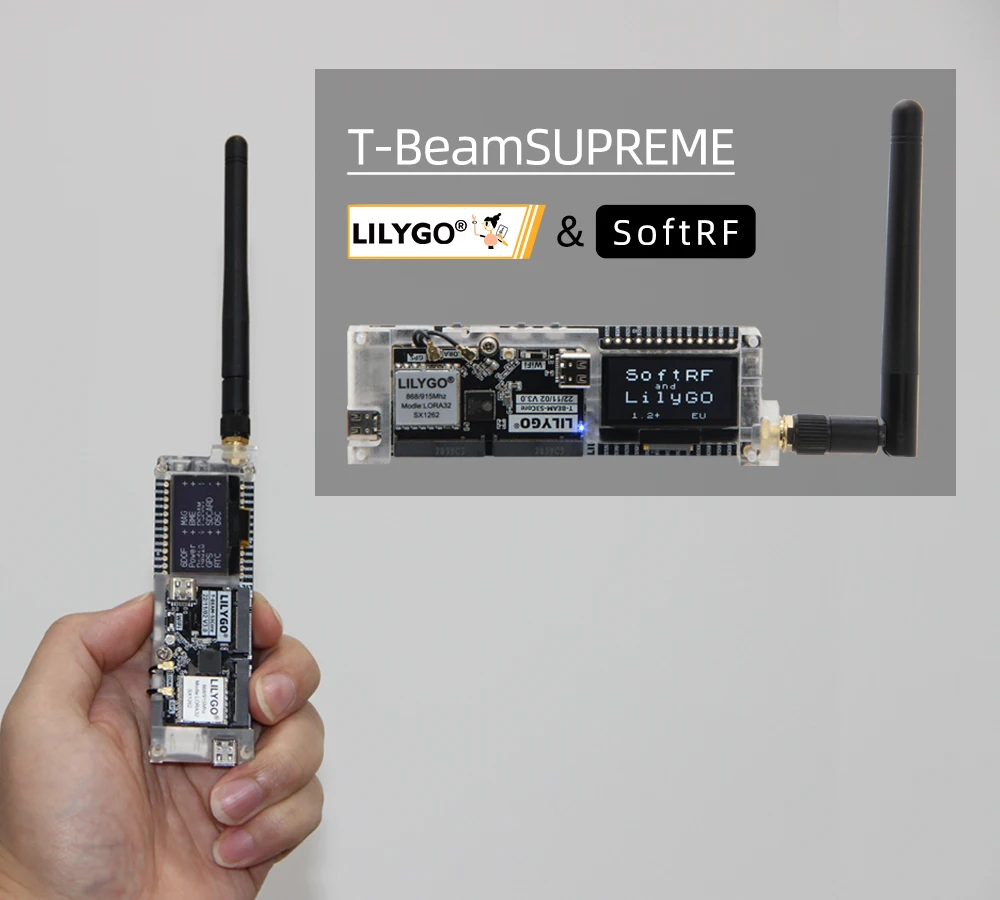

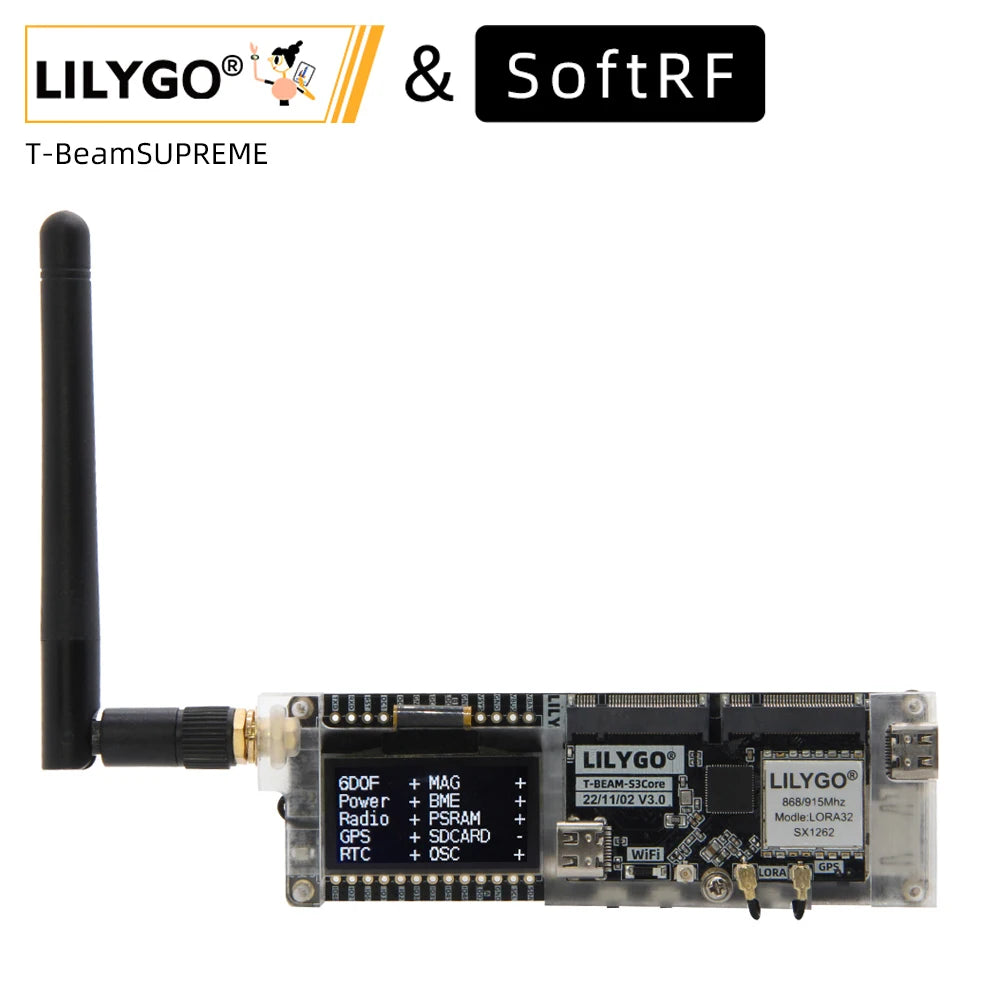

T-BeamSUPREME is a collaborative development board produced by LILYGO and SoftRF.

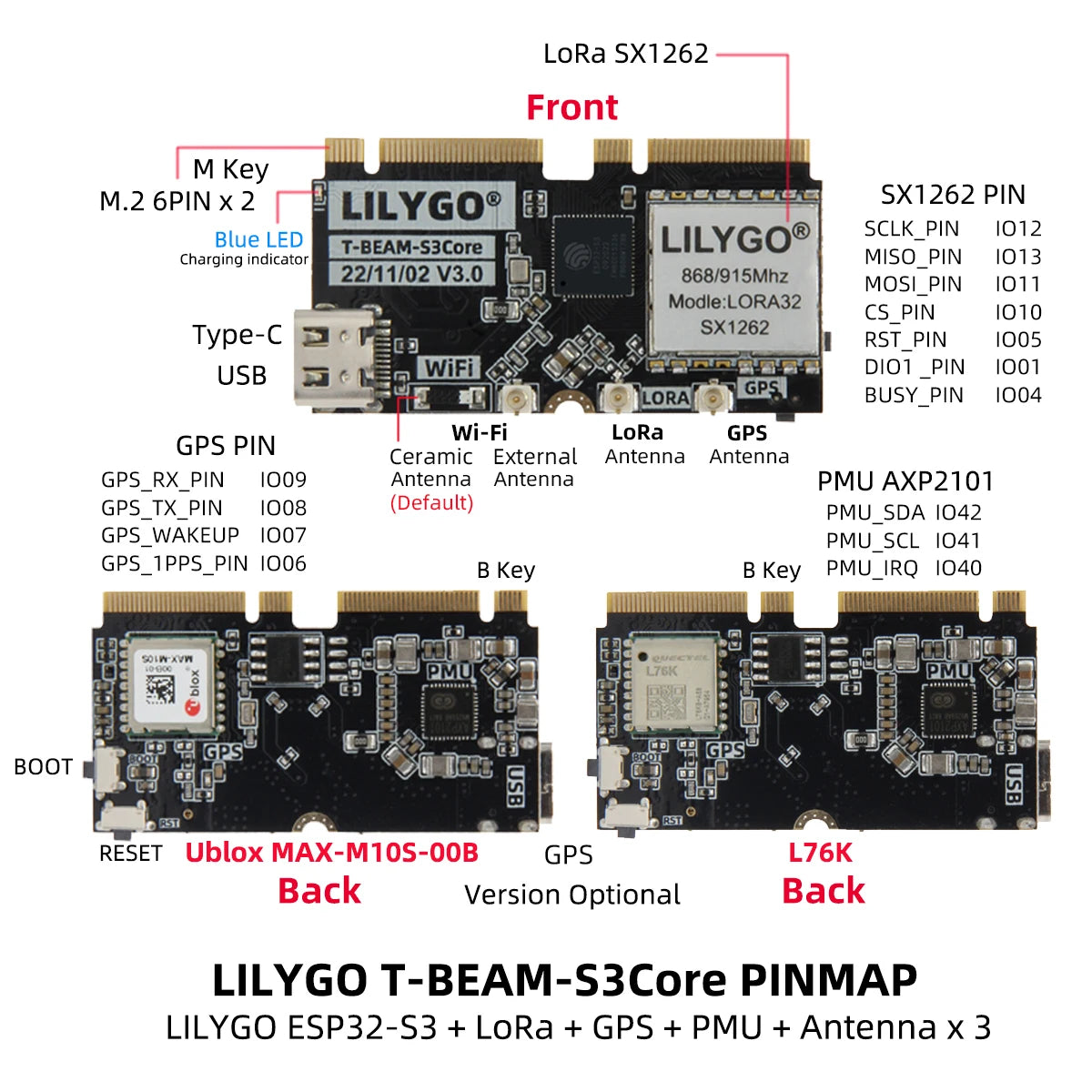

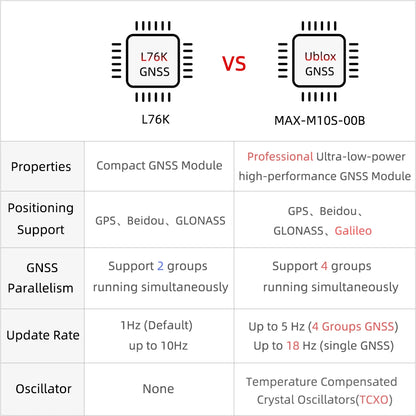

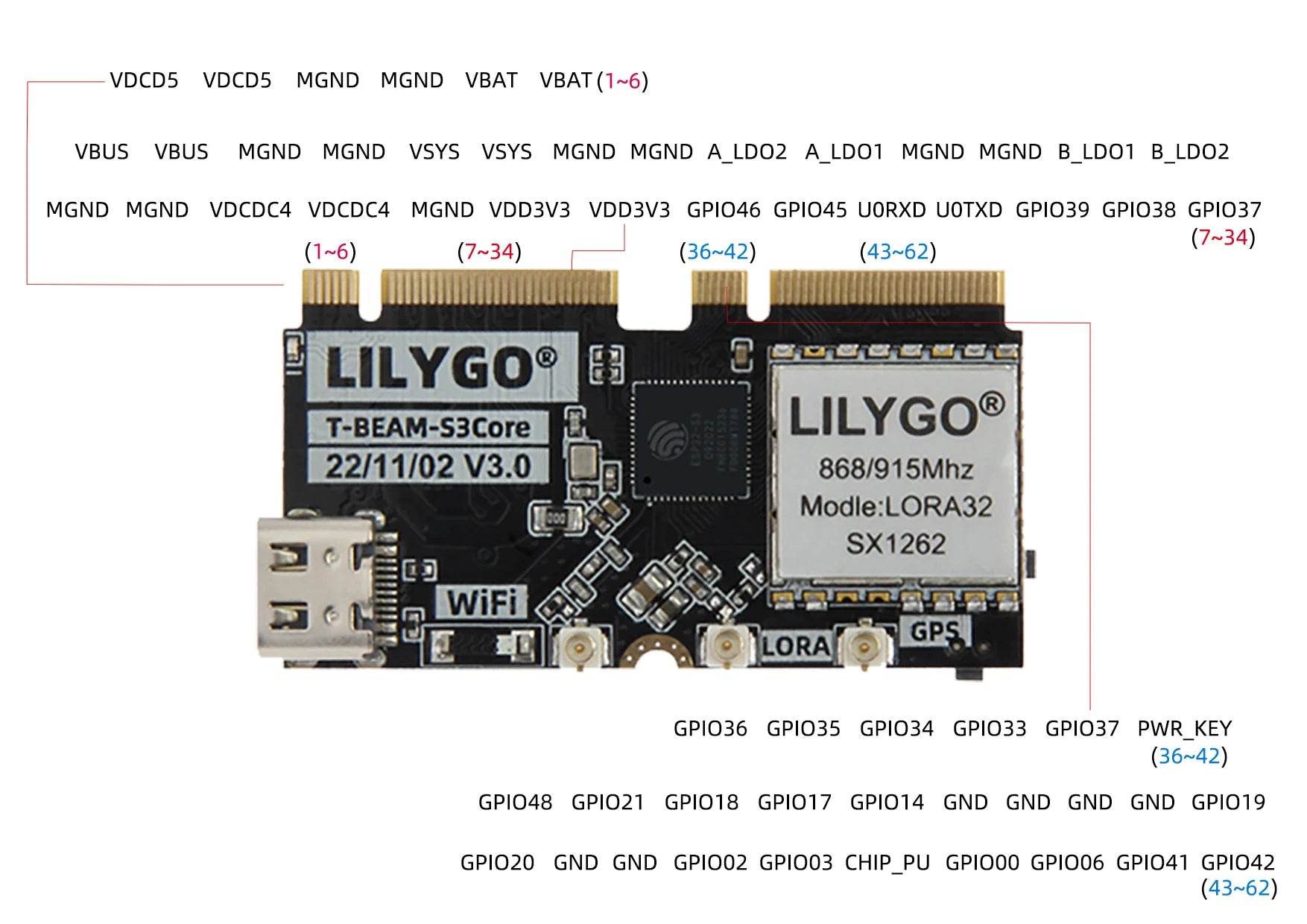

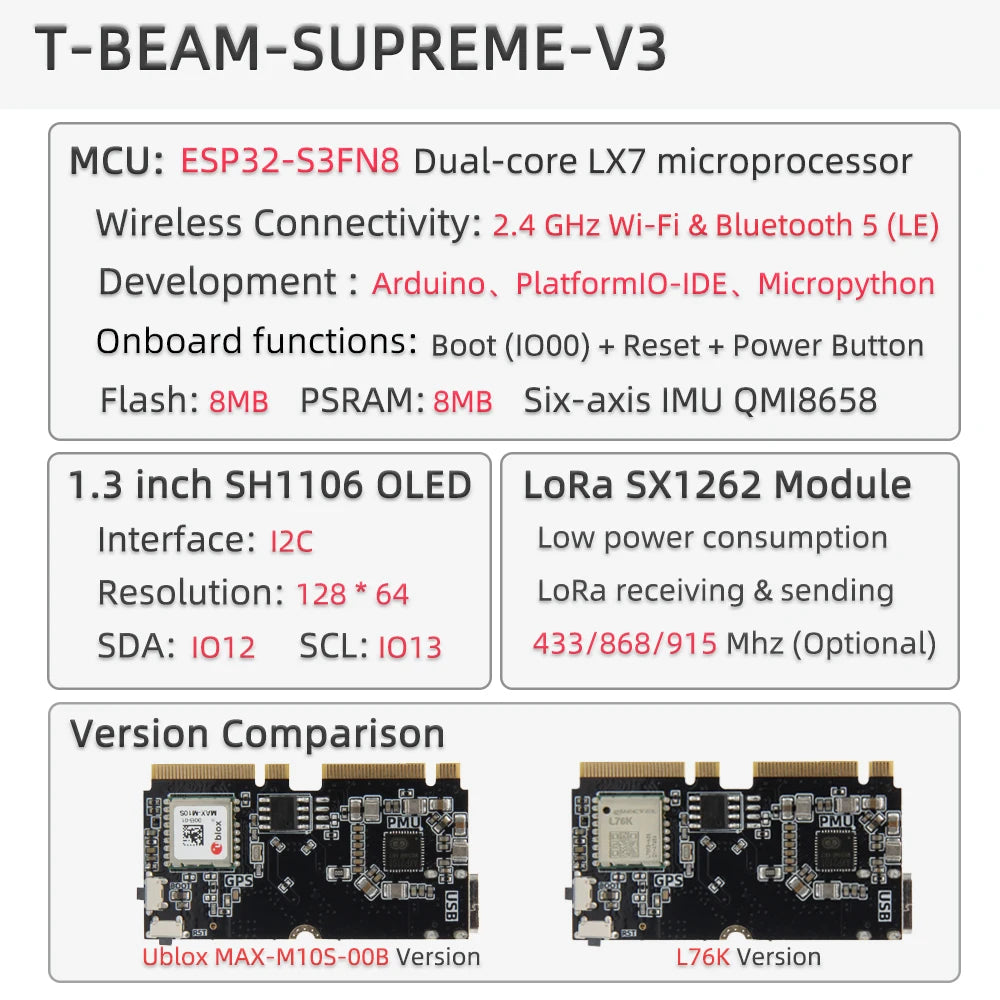

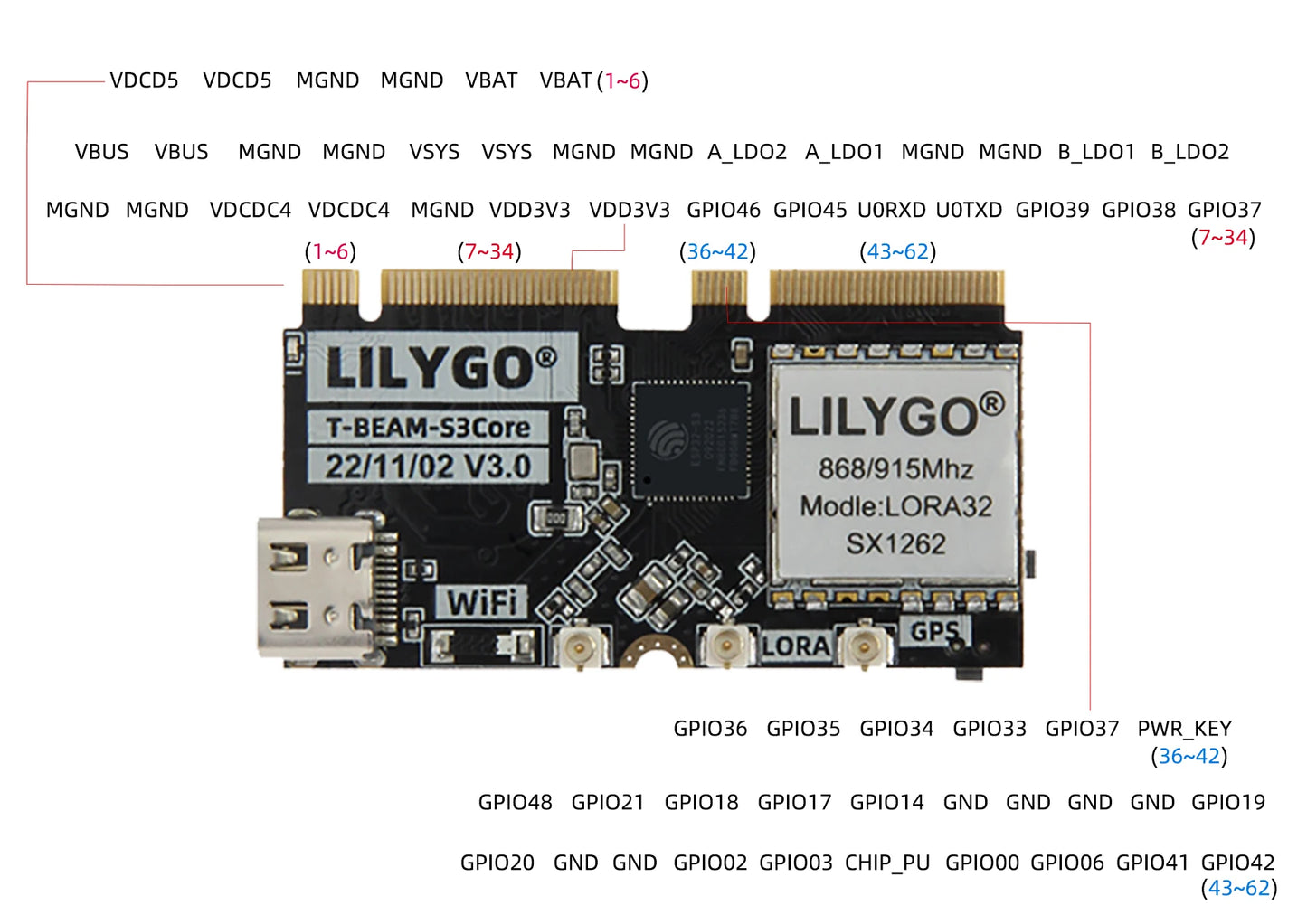

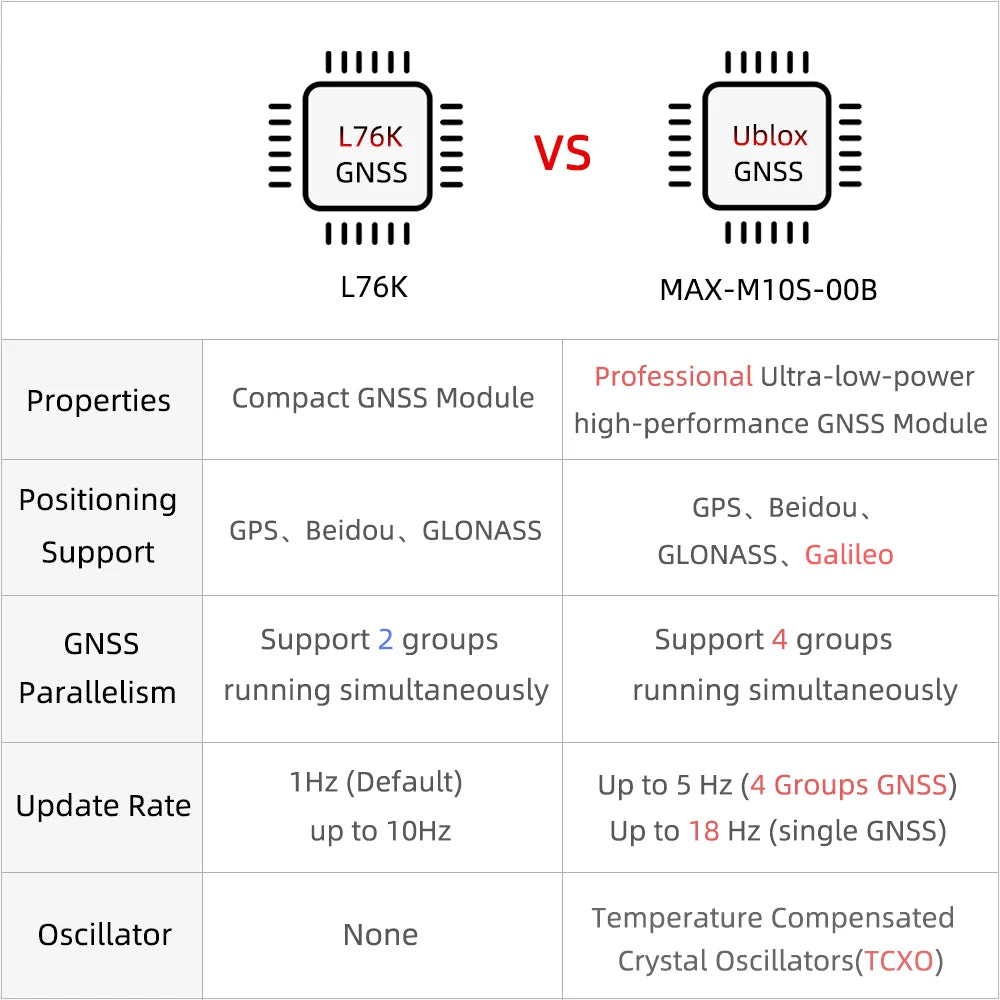

The CORE is composed of ESP32-S3, LoRa SX1262, and GPS (with the option of U-blox MAX-M10S-00B or L76K chip).
The CORE can be replaced according to your experiment requirements, and the UBLOX and L76K versions are currently available.
LILYGO® April 7, 2023
⚠️Due to low demand for CORE, we will cease its sales and exclusively offer the T-Beam SUPREME bundle as a finished product. Feel free to contact us if you have any inquiries or if you need assistance.
LILYGO® January 16, 2024
Note:
This product is intended for verification test experiments as a development board module.
Please ensure compliance with local wireless management regulations when purchasing and select a frequency that complies with local laws and regulations.
Github - SoftRF
Github - LILYGO LoRa series
