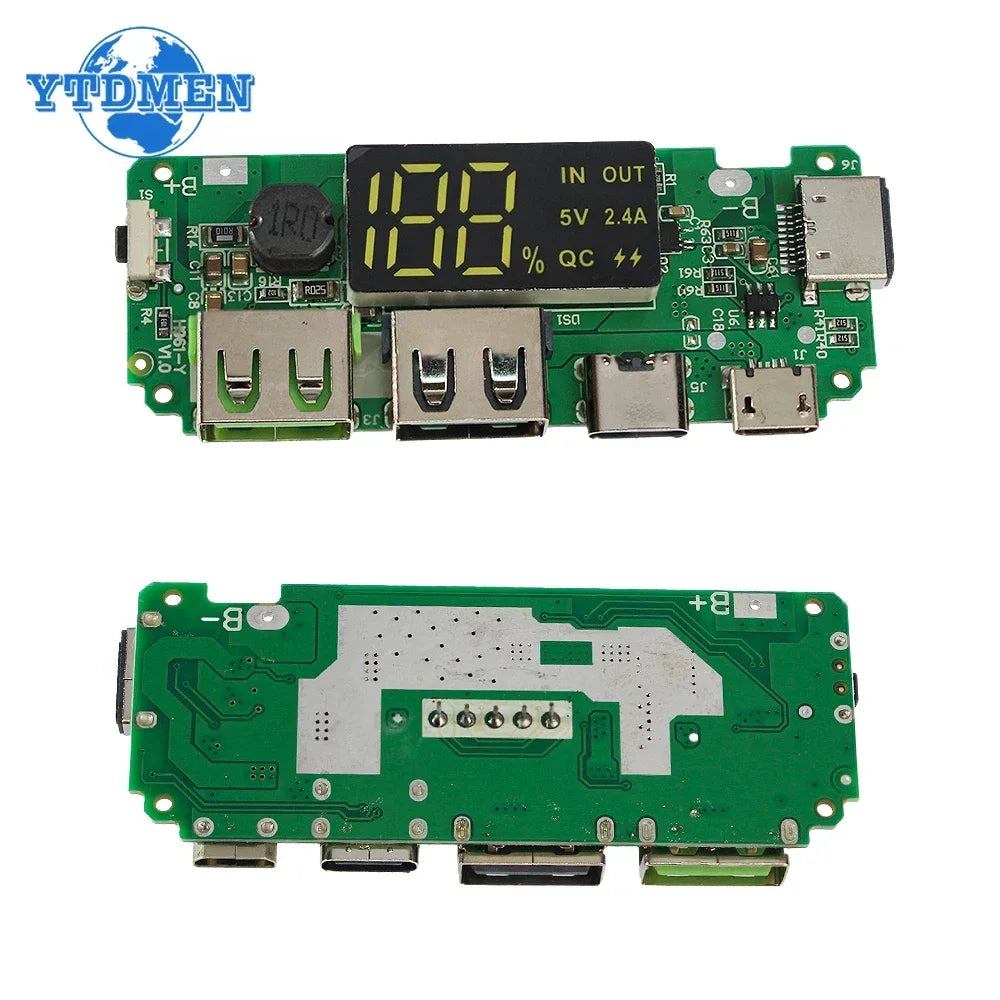

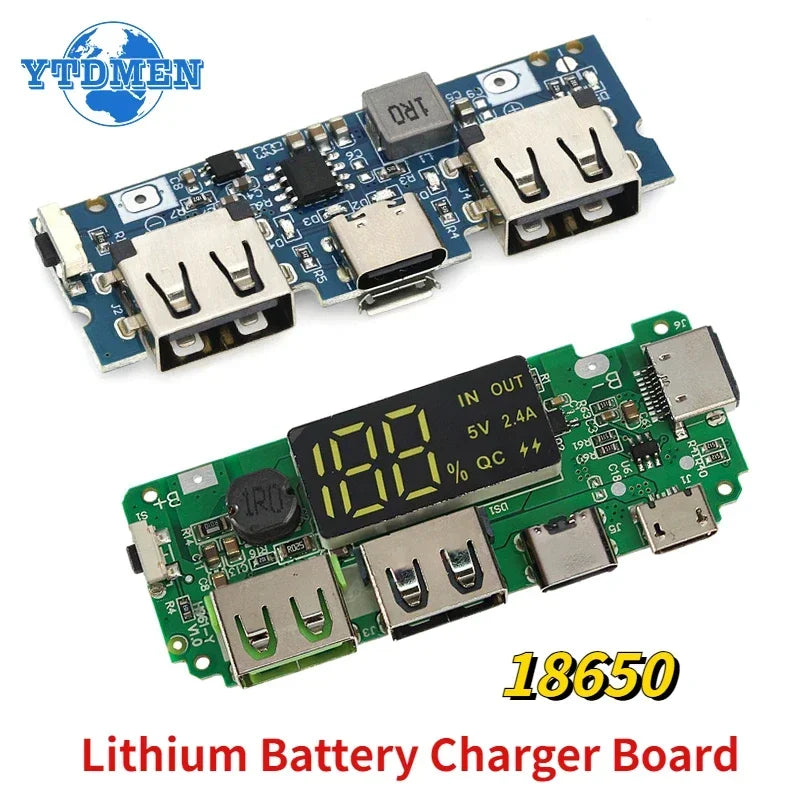

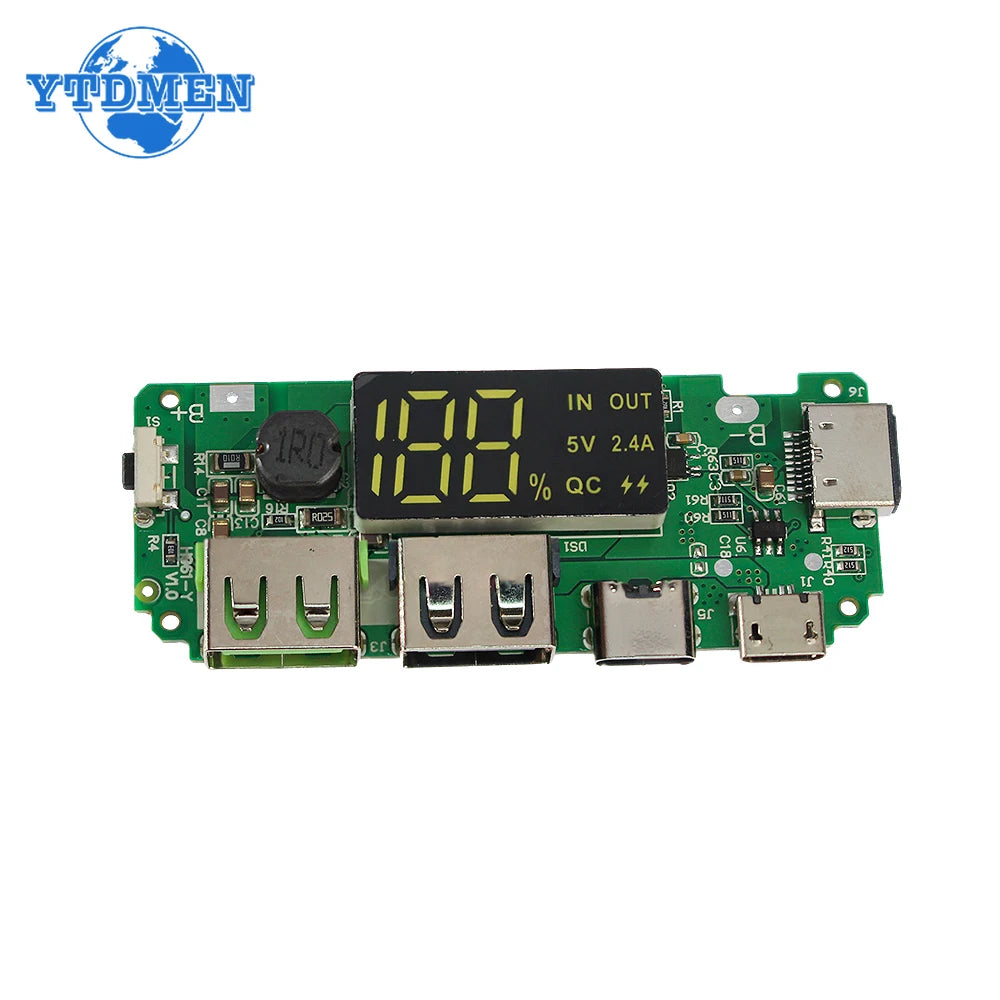

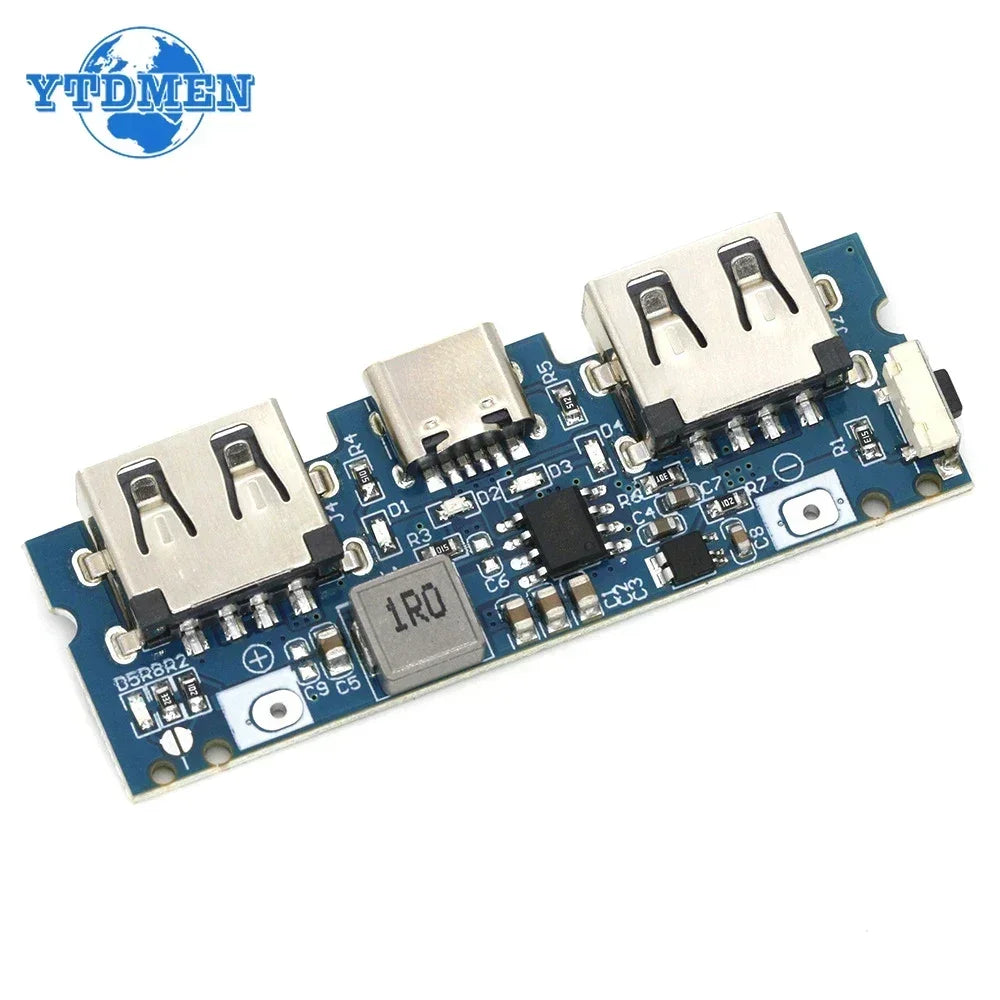

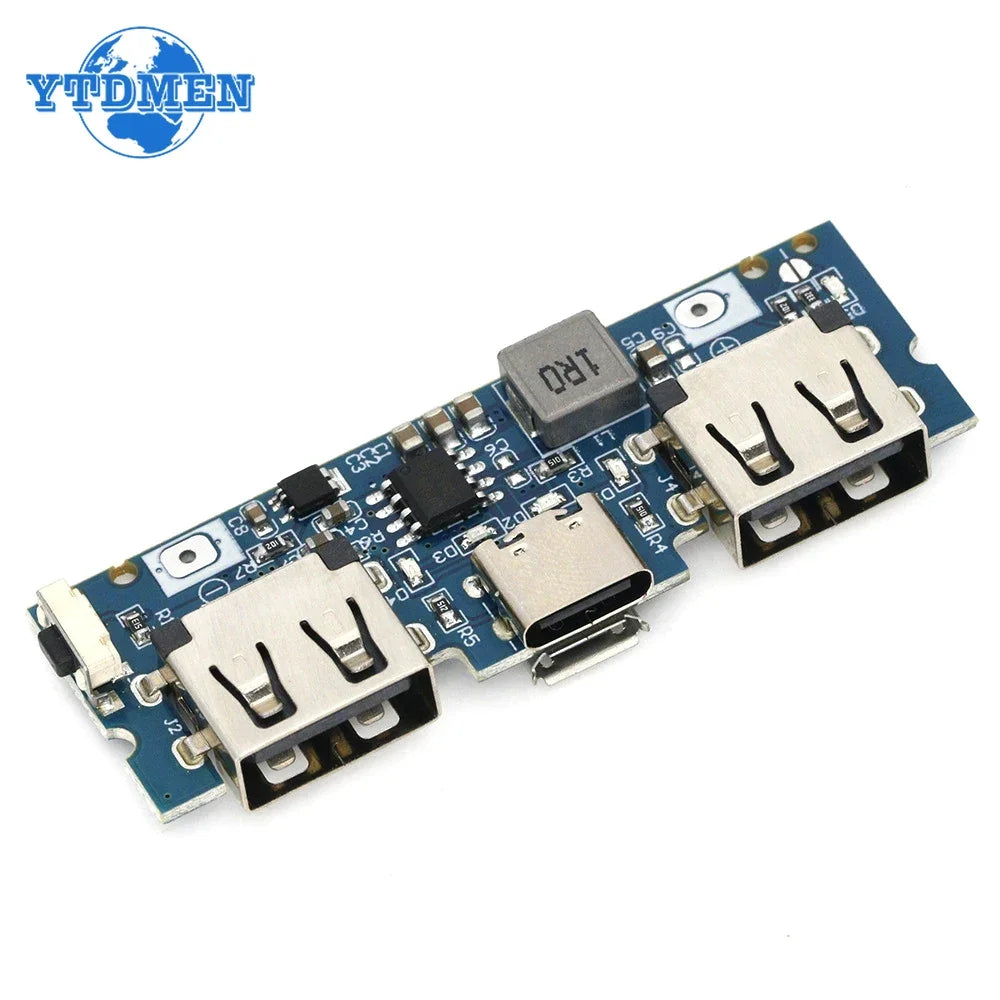

Lithium Battery Charger Board LED Dual USB 5V 2.4A Micro/Type-C USB Mobile Power Bank 18650 Charging Module Circuit Protection

$7.429 CLP

~~$10.429 CLP~~ $7.429 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Color 5V 2A 1A 5V 2.4A 5V 2.4A Micro Type-C

Cantidad

SPECIFICATIONS

Brand Name: YTDMEN

Choice: yes

Condition: New

Hign-concerned Chemical: None

Origin: Mainland China

Type: Module

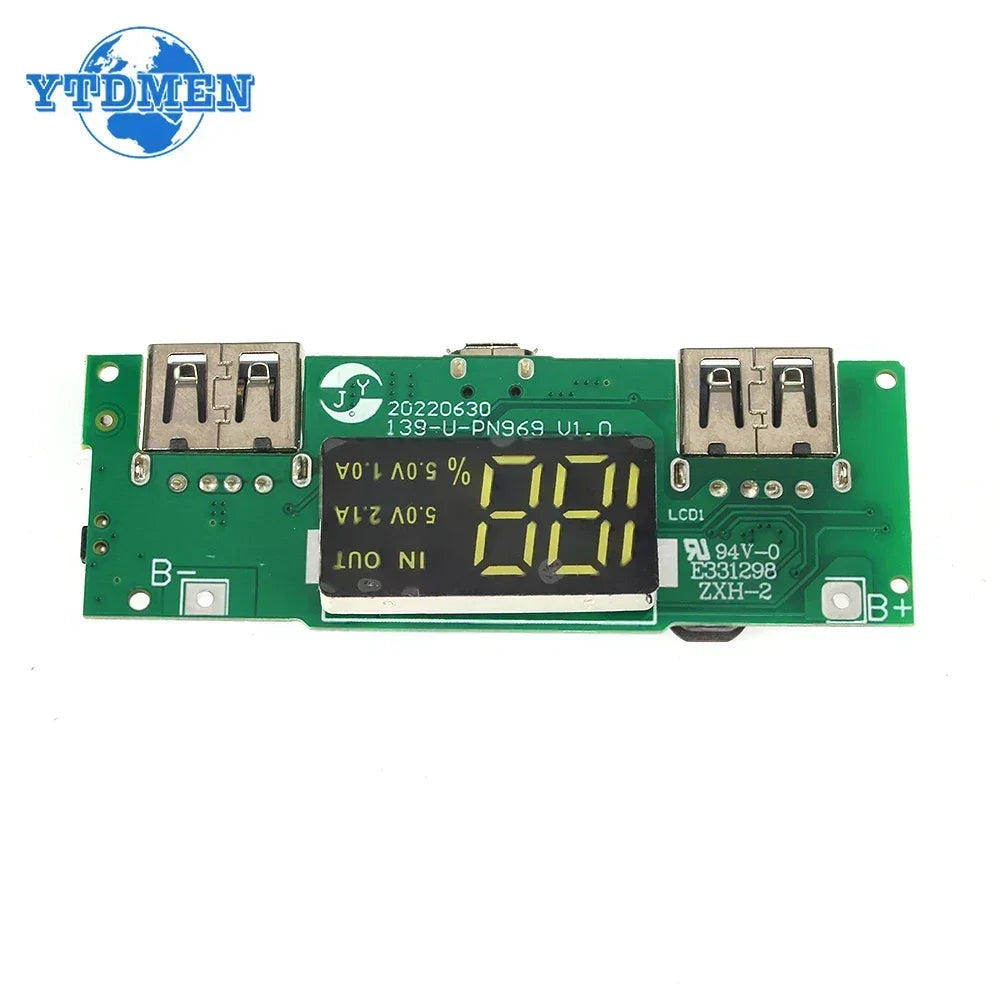

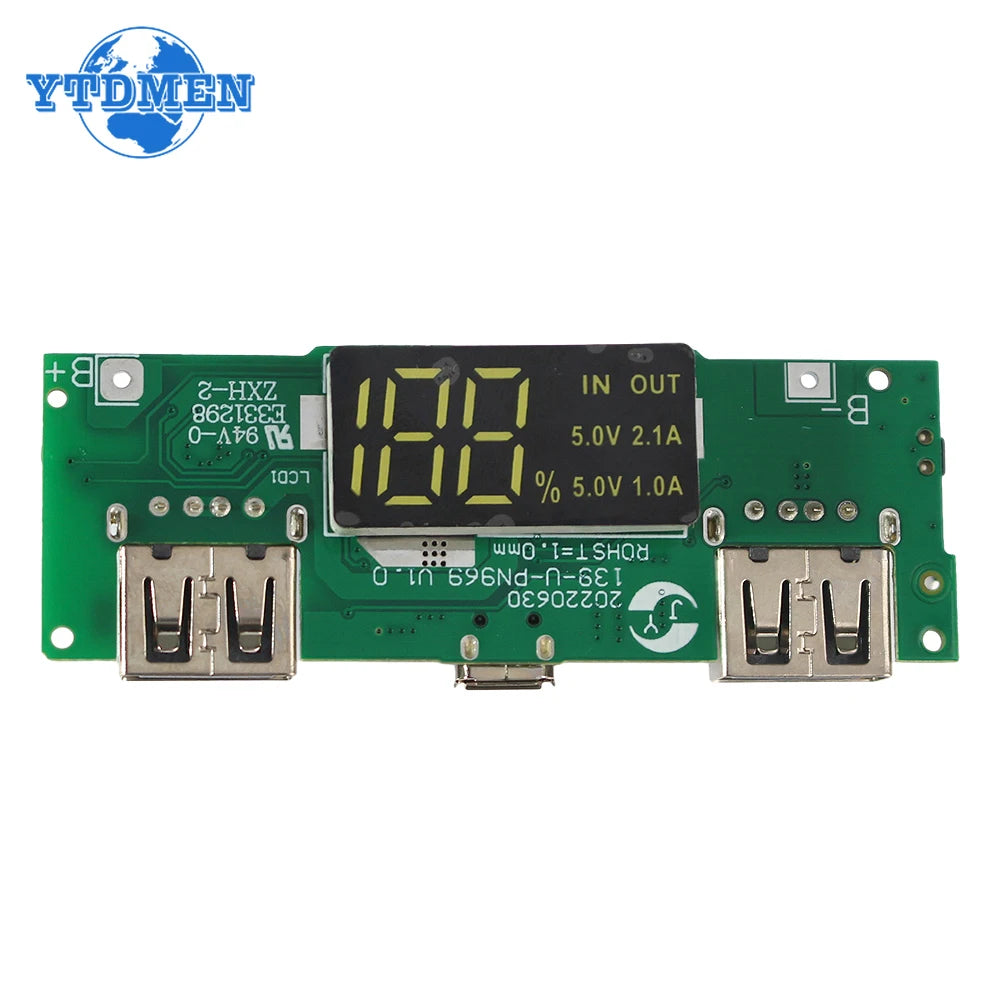

5V 2A 1A / 5V 2.4A

Product description:

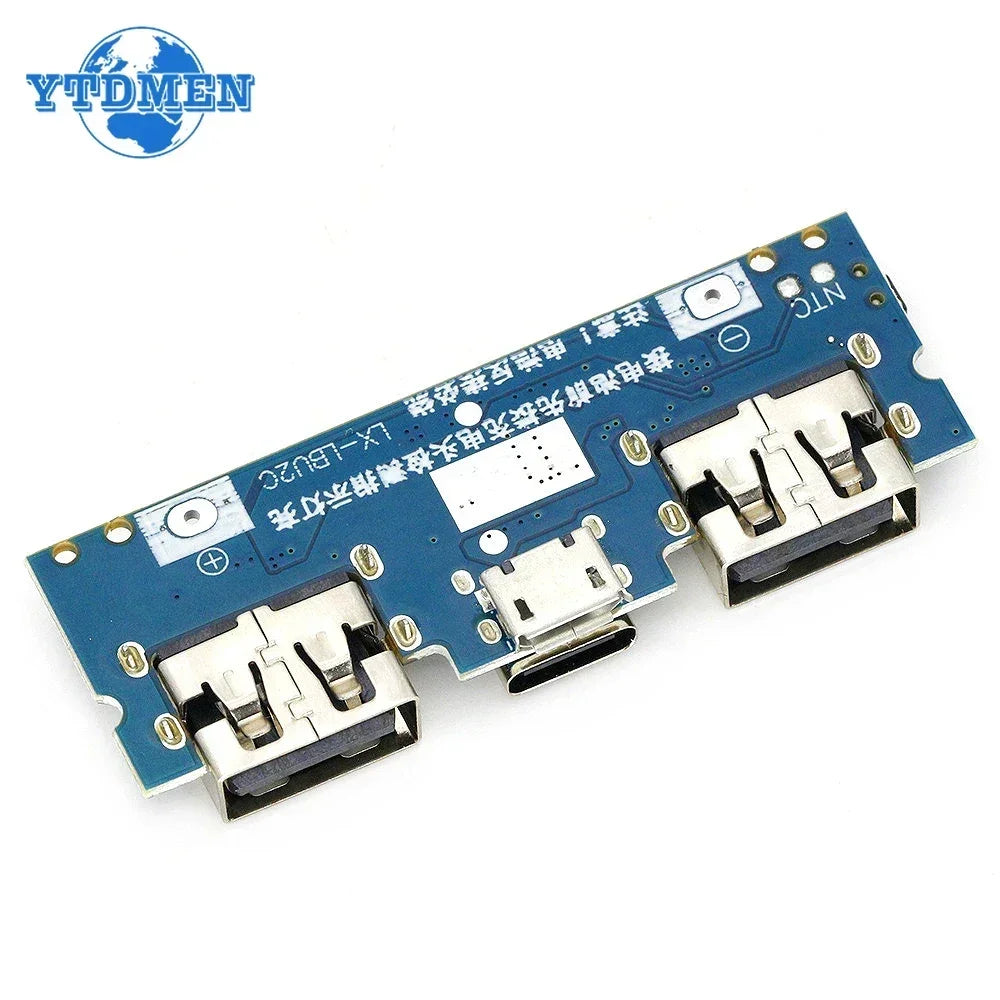

5V 2.4A Micro Type-C

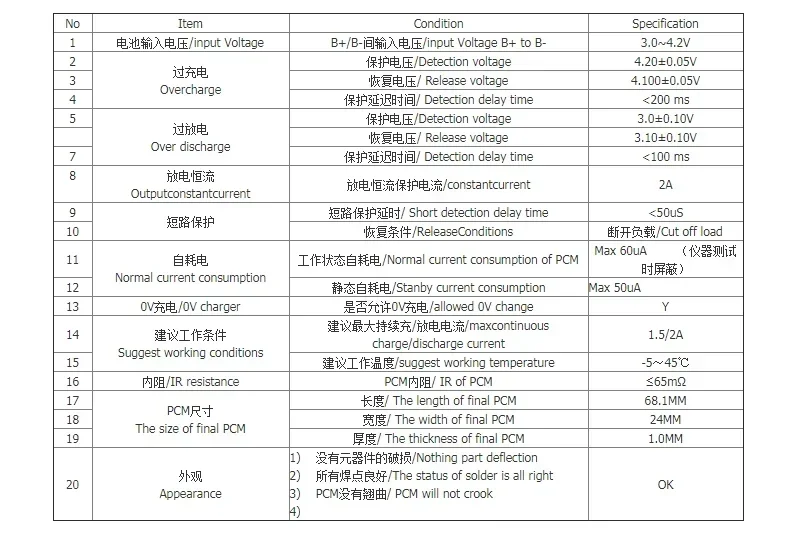

Product features parameters:

1、Input interface: type-c and microUSB.

2, output interface: 2 high quality USB interface (high current loss is small), 2.4A3, battery interface: support for 3.7V battery ( full of 4.2V) welding wiring mode. Battery charging

Battery charging current 2.4A.

4 Apple Samsung and other high-current charging recognition IC, give full play to the advantages of 2.4A current (cell phone to 2.1A/2.4 high-current charging is to be related to the agreement)

5, charging and discharging design, can reach 90%.

6, ultra-small size, 55 * 19 * 8mm.

Application Notes:

1, the motherboard received, first connected to the charging head test, see the LED light status

2, normal application, the battery is welded, ( wire twisted will be insufficient power supply ) battery reverse motherboard must burn. Be careful!

3, the battery and the motherboard line can not be too thin, try to be thicker. Can pass current. Can not be too long, the interface needs to be welded

4, the battery can only be connected in parallel, not in series, series must burn the motherboard!

5, to ensure that the battery is good, if the battery is connected to a full charge, plug the phone can not be discharged, most of the battery aging scrapped!

6, the battery do not add protection plate. Some batteries were not originally for charging treasure, there is a protection plate, there will be a limit on the current, may exceed one or two amps on the protection of the disconnect output!

7, the board will burn reverse. Burned IC will have traces. Only reverse connection will occur. So the consequences of reverse connection this side does not bear

8, type-c port only do input, can not output

9、Input current refers to the input current of the battery.
